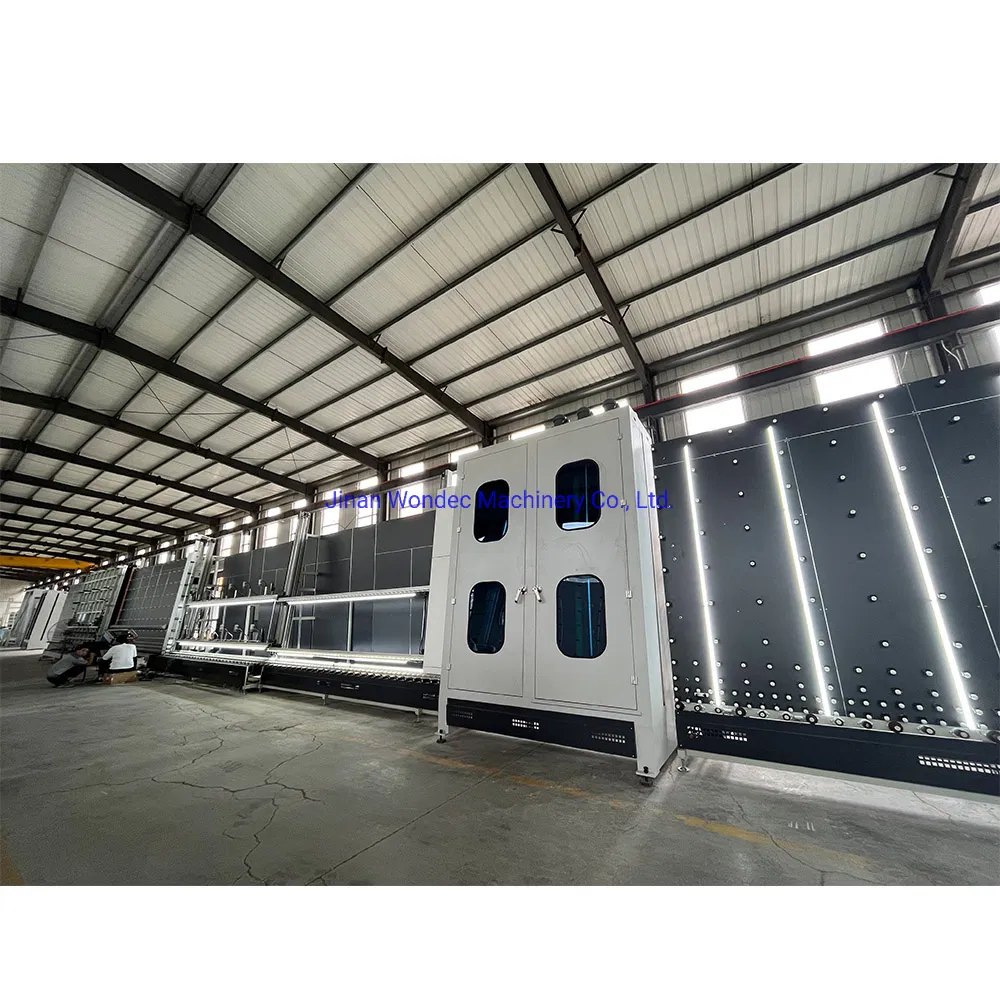

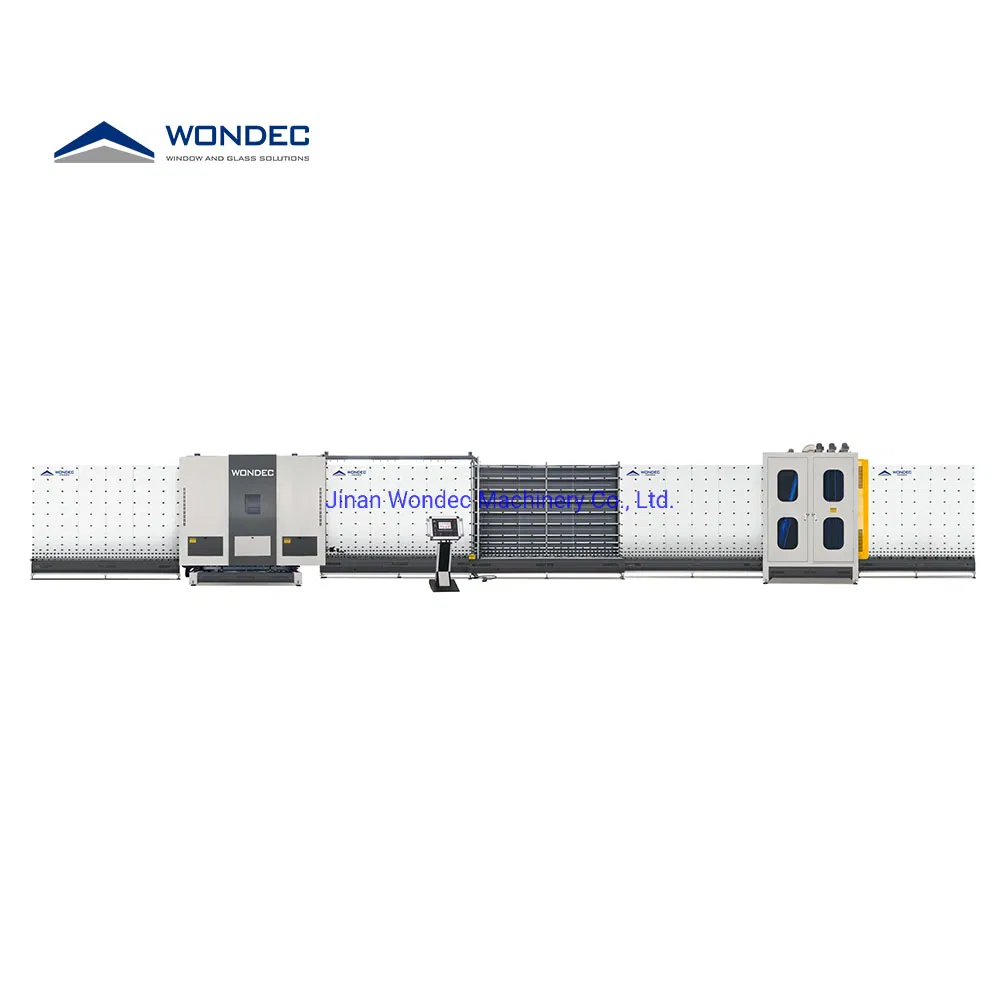

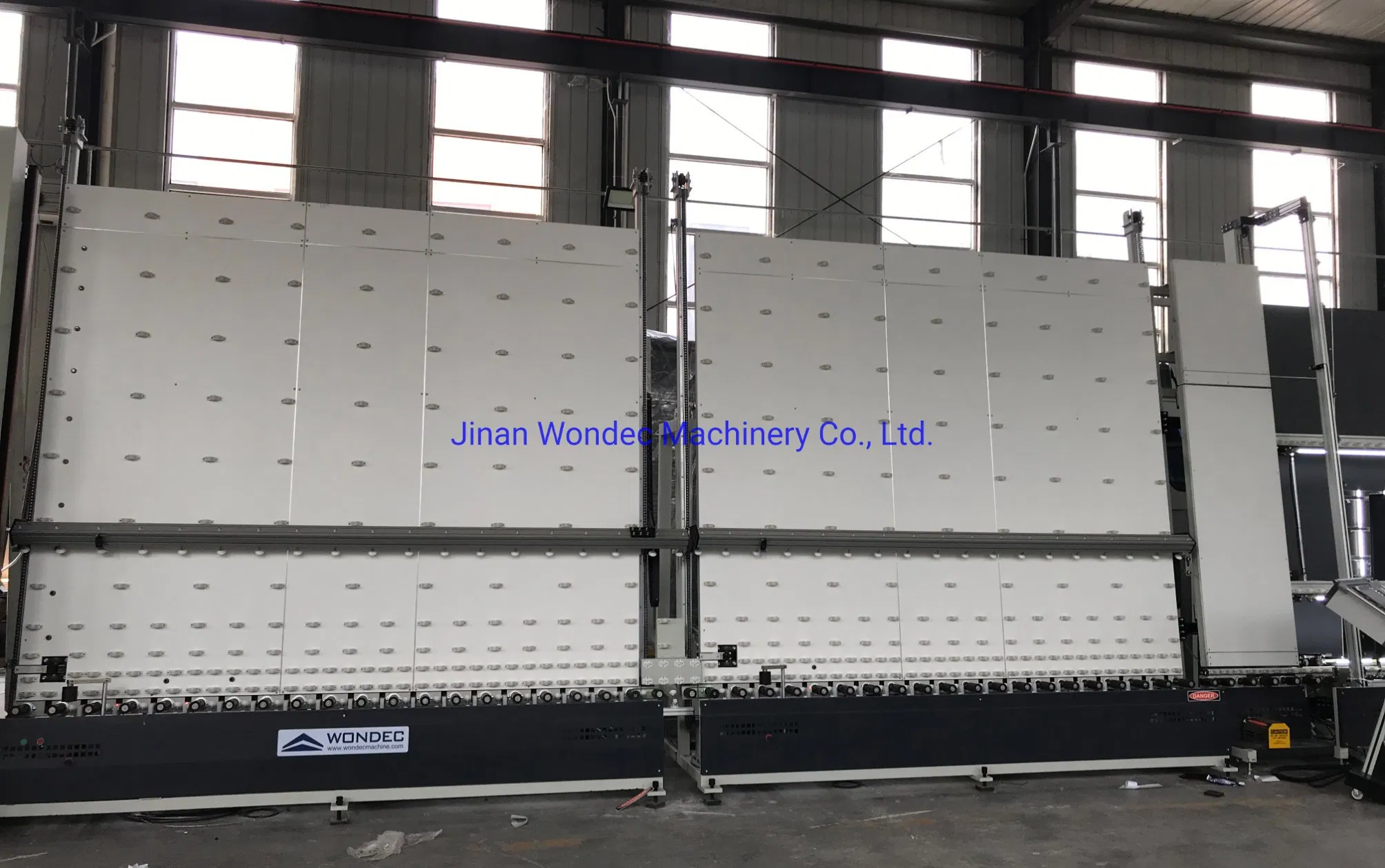

Jumbo Glass Flat Panel Press Insulating Glass Gas Filling Manufacturing Line

Basic Specifications

Model NO.

WLBZ3060-C

Max Glass Size

3000*6000mm

Min Glass Size

300*500mm

Key Selling Points

Easy to Operate, Automatic, High-Accuracy

Core Component

PLC, Motor, Pump, Gear, Engine

Type

Insulating Glass Production Line

Structure

Vertical

Condition

New

HS Code

84752990

Production Capacity

50 set/Per Quarter

Product Description

WLBZ3060-C Double Station for Jumbo Glass

This machine is a conventional type, designed for high-efficiency insulating glass production. For customization requirements, please contact our technical team.

⚙

7-Part Production Structure:

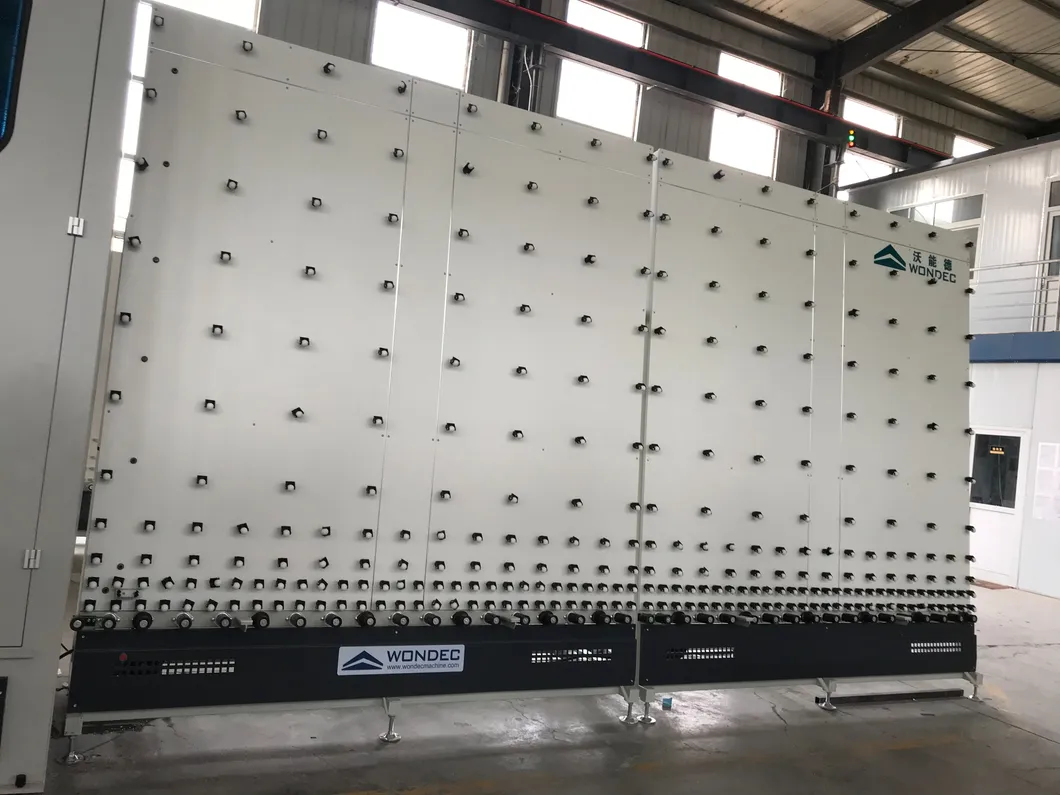

Double loading section (with Low-E checking)
Washing and drying section

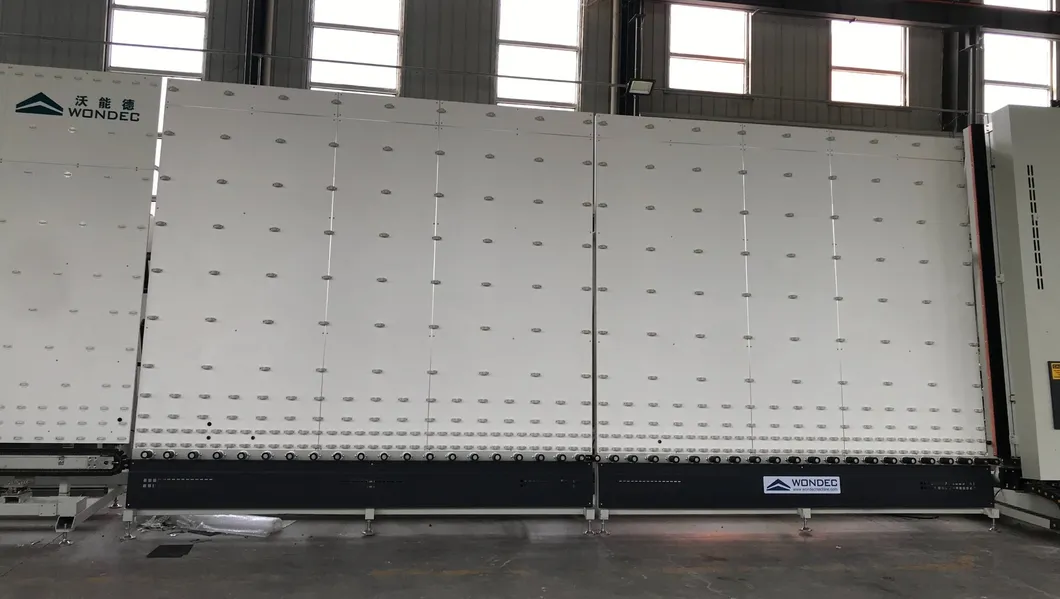

Double conveyor section

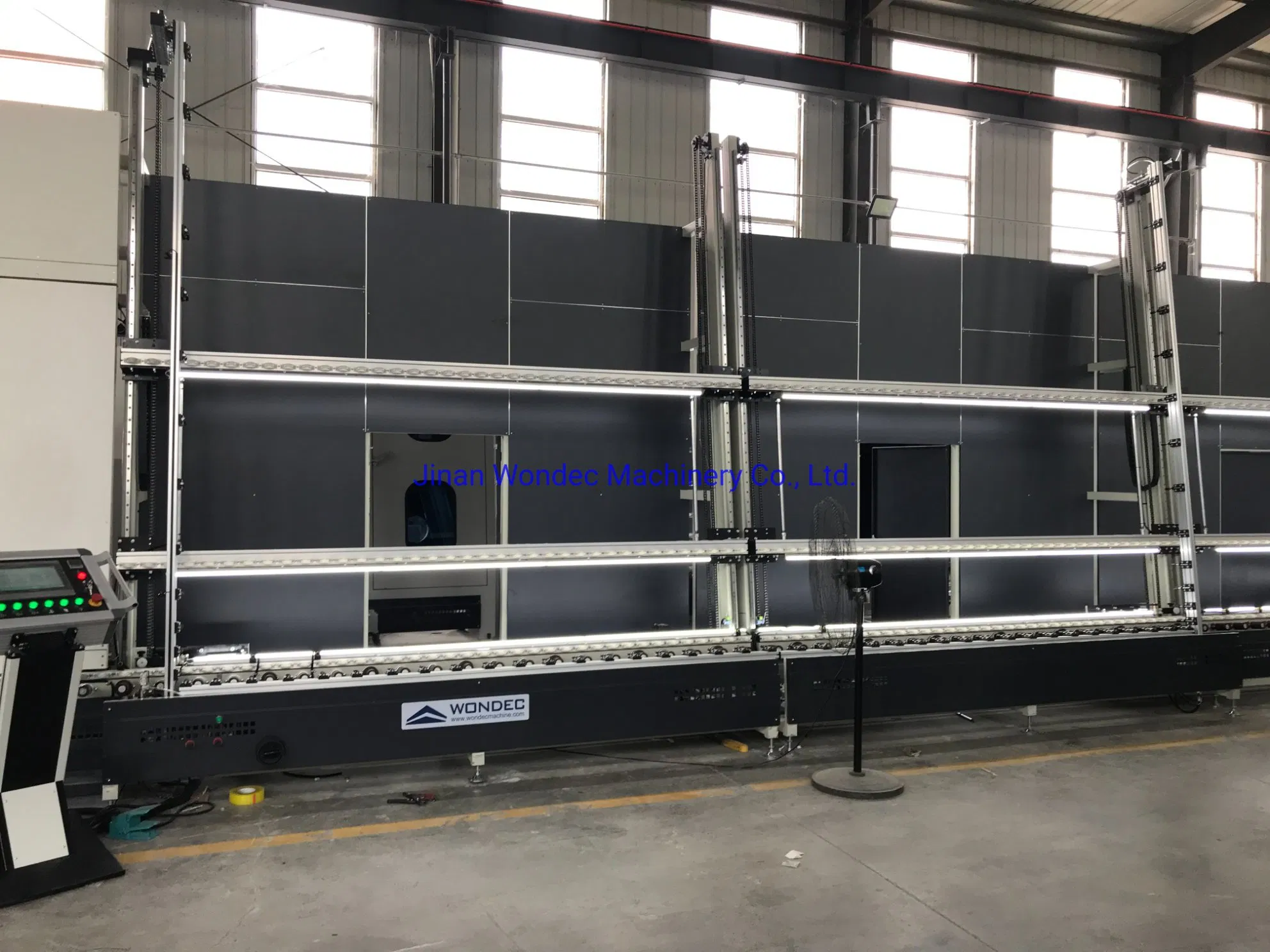

Double lights inspection and aluminum spacer locating section
Double outside assembly section
Double inner assembly and panel press section (with gas filling function)
Double unloading section

Detailed Component Display

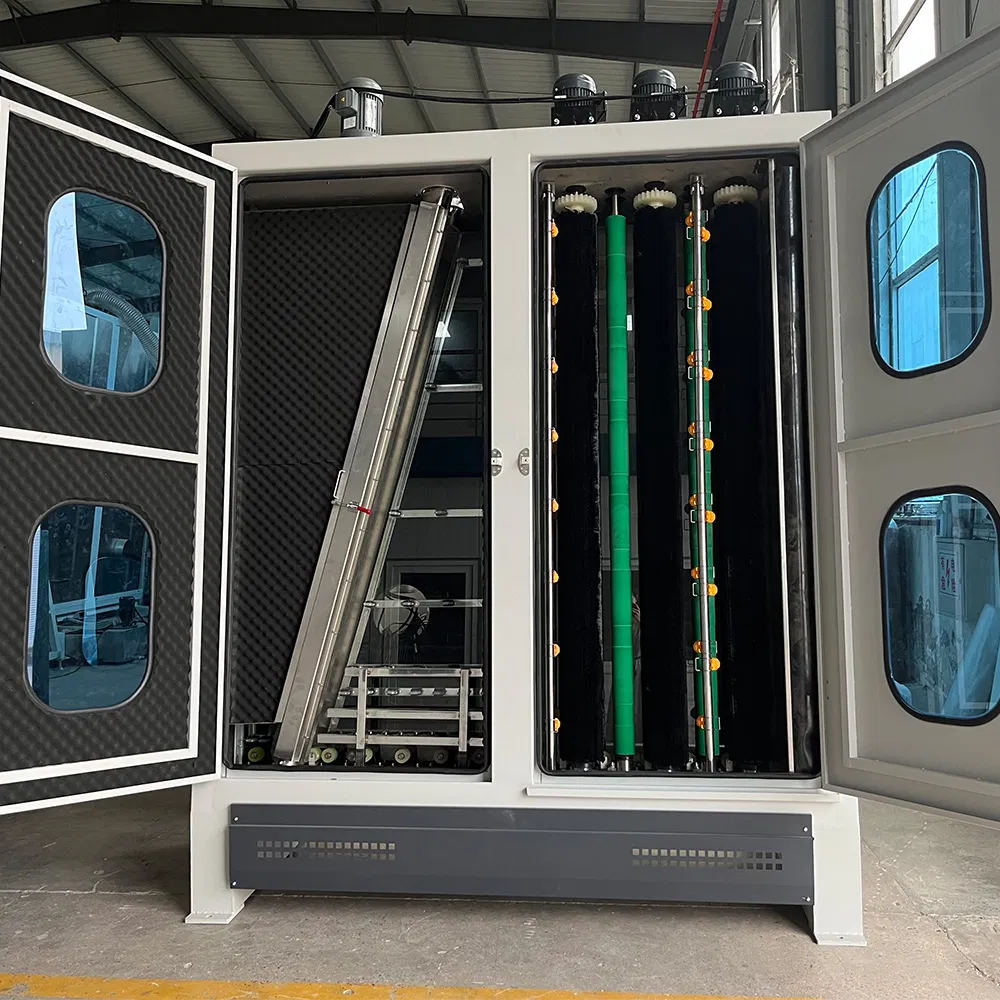

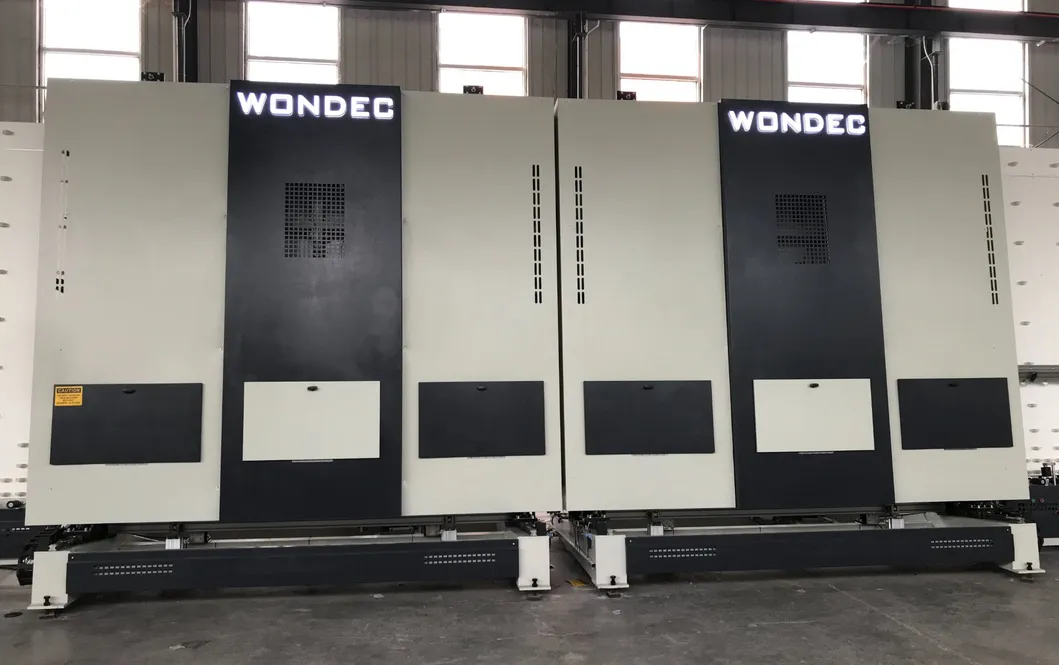

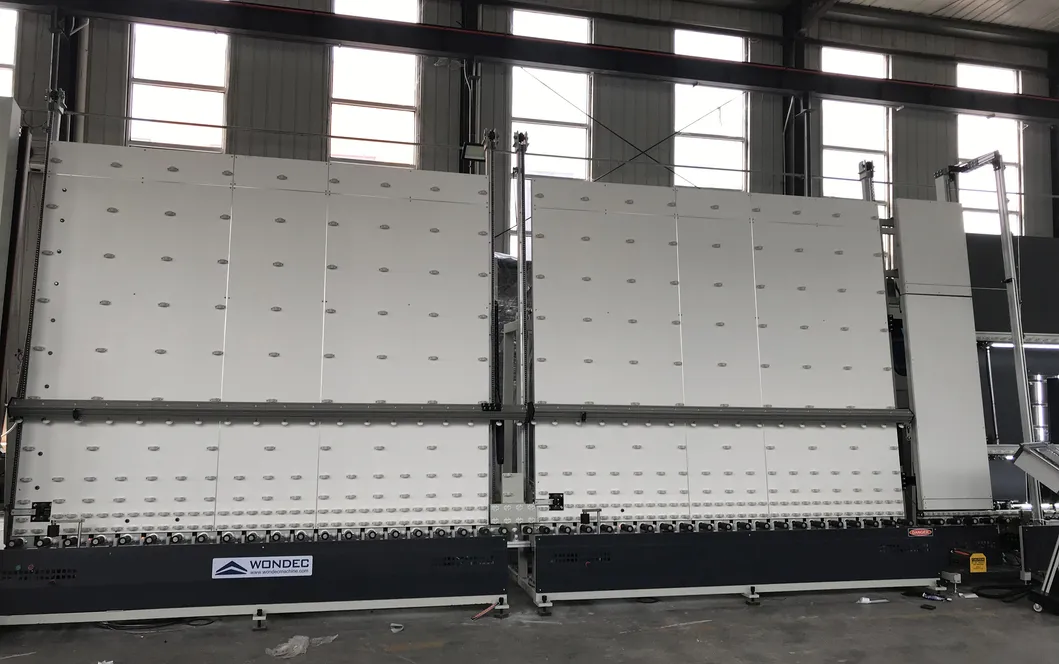

Section 01-02: Washing & Drying

Stainless steel material is adopted for all washing areas and water tank systems. The 3 pairs of brushes are driven by independent motors to ensure continuous operation even if one motor requires maintenance.

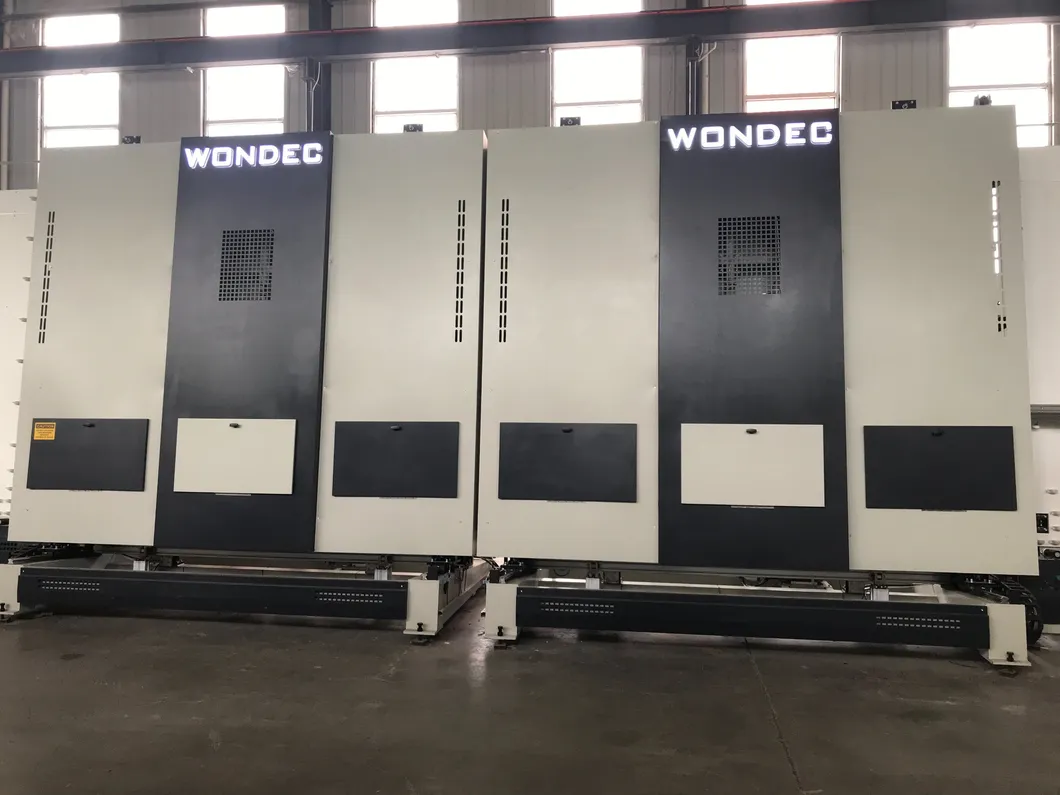

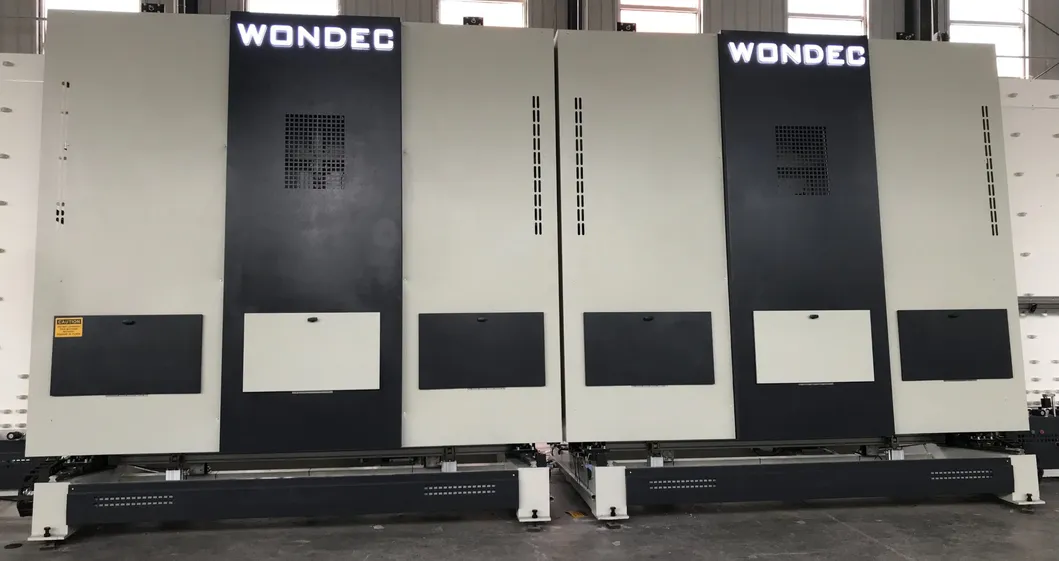

Section 06-07: Pressing & Unloading

The panel press is controlled by a high-precision Servo motor. The machine frame uses denser steel for maximum stability. An integrated encoder calculates glass length to precisely activate gas filling nozzles.

Technical Parameters

Technical Parameter	WLBZ3060-C Value
Total Power	90kw
Max Glass Size	3000x6000mm
Min Glass Size	300*500mm
Single Glass Thickness	3~12mm
Max I.G. Unit Thickness	12~80mm
Glass Washing Speed	3~12m/min
Working Speed	2~48m/min
Air Flow	0.8m³/min
Water Electrical Conductivity	≤40μs/cm
Overall Dimension	4300037003400 mm

Our Service

Pre-sales Support:

Custom equipment footprint layouts based on your building floor plan and professional technical drawings.

After-sales Commitment:

Weekly production reports, onsite installation, debugging, personnel training, and one-year warranty with lifetime technical support.

Why Choose Us

Frequently Asked Questions

Which countries are your products exported to?

Our equipment has been exported to over 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.

How do we operate the glass processing machinery?

We provide comprehensive paper instructions in English and offer training until your operators are proficient in using the machine.

What is your quality control process?

Every component is inspected before use. The complete machine undergoes rigorous testing and video/picture verification before factory departure to ensure optimal performance.

What happens if the machine has problems after ordering?

Free replacement parts are provided during the warranty period. We also offer 24/7 technical support via phone, WhatsApp, and email for the lifetime of the machine.

Can you provide onsite installation?

Yes, we can arrange for engineers to visit your factory to handle installation, debugging, and staff training once the equipment arrives.

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 10 years of experience in the glass processing machinery field, providing both equipment and integrated solutions.
