| Model NO. | ZB-GX |
|---|---|
| Laser Visibility | Visible |
| Applicable Material | Mirror/Glass |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Laser Wavelength | Fiber Laser |
| Type | Optical Fiber Laser Marking Machine |
| Marking Method | Scanning Marking |
| Product Name | Glass Laser Machine |

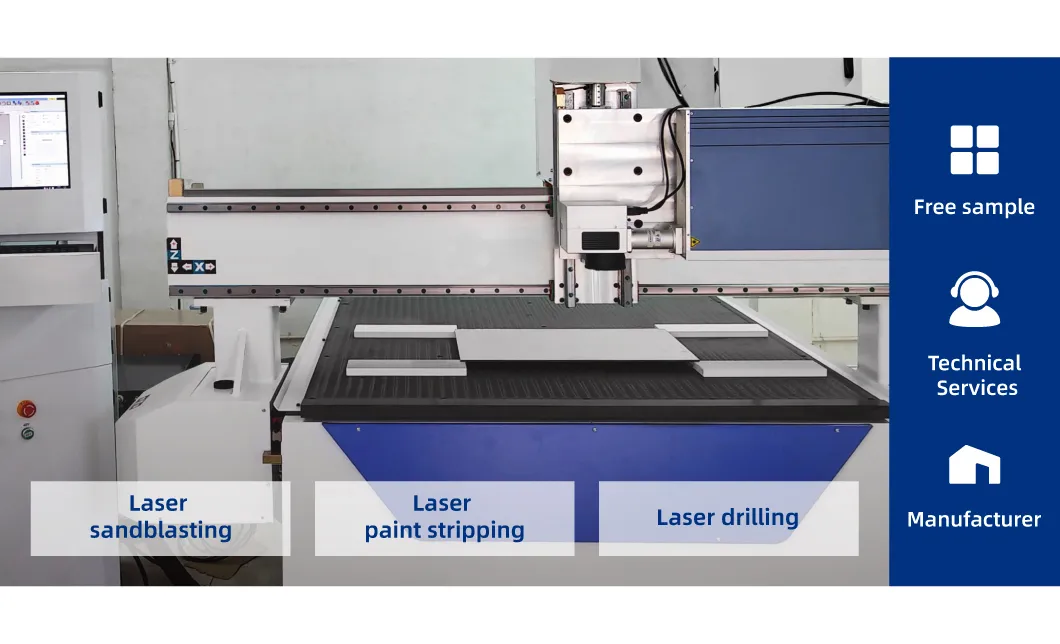

| Function | Laser Sandblasting / Laser Paint Stripping |
| Power | 120W/200W |
| Processing Range | 5*5*2mm ~ 2400*1200*80mm |
| Mechanical Repeatability | ≤±0.25mm |
| Production Capacity | 200 Sets/Month |

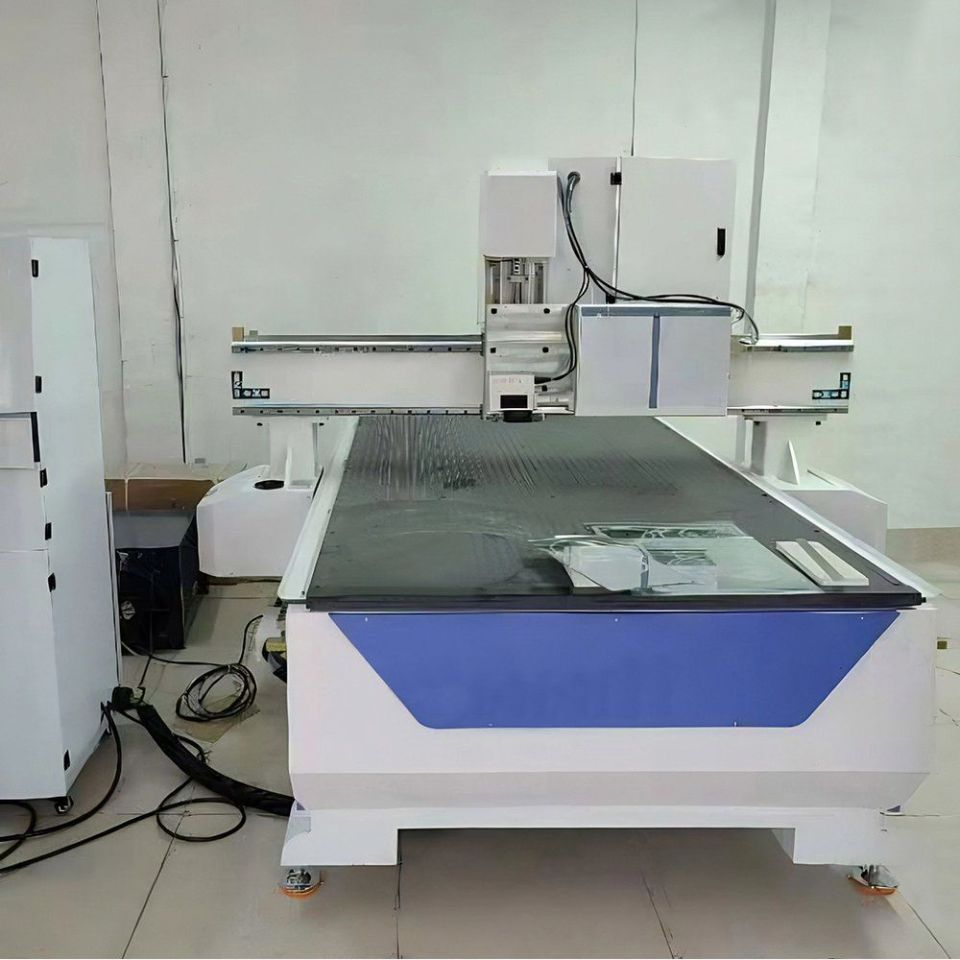

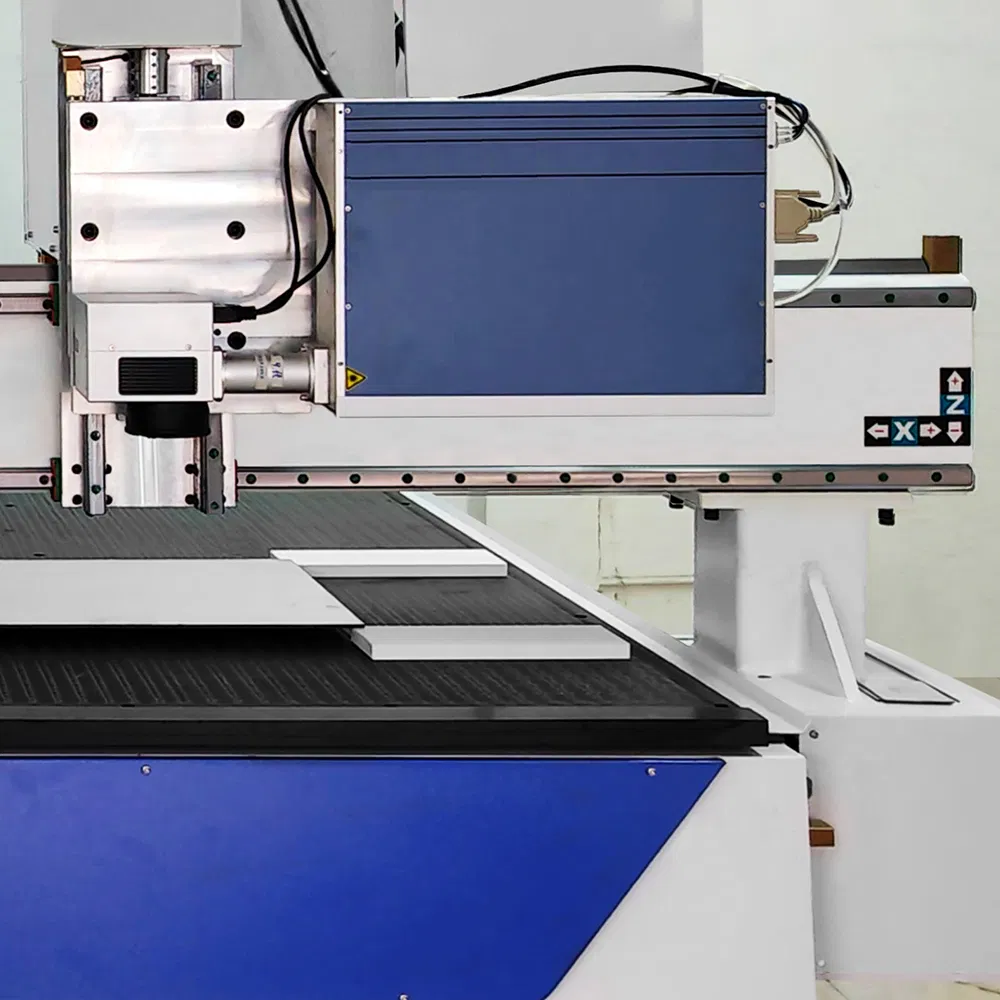

The large-format smart mirror laser sandblasting machine replaces the traditional etching process. It does not require film pasting, film engraving, or sandblasting. It features fast engraving speeds and is environmentally friendly and pollution-free. With low operational costs and no consumables, it allows for direct processing from drawings without the need for molds. The maximum standard sandblasting size is 1.2 meters * 2.4 meters, with customization available.

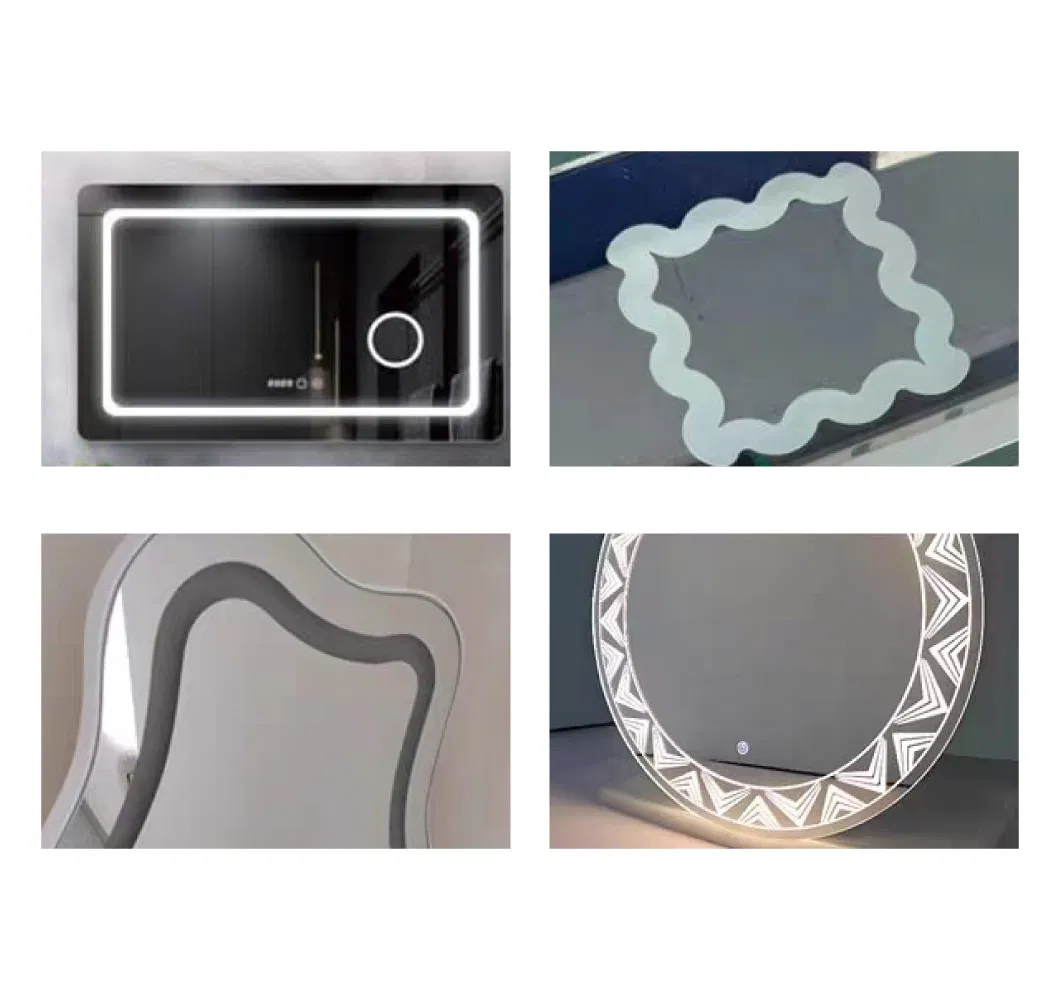

This technology can remove protective paint from smart mirrors and painted glass in a single pass to achieve a frosted effect. It is fast and ensures no damage to the mirror or glass surface, leaving clear results with no residue on silver or copper coatings.
| Laser Type | Fiber Laser |
|---|---|
| Laser Wavelength | 1064nm |
| Total Power | 2KW |
| Engraving Range | 1200*2400mm |
| Engraving Line Speed | ≤12000mm/s |
| Laser Theoretical Life | 100,000 hours |

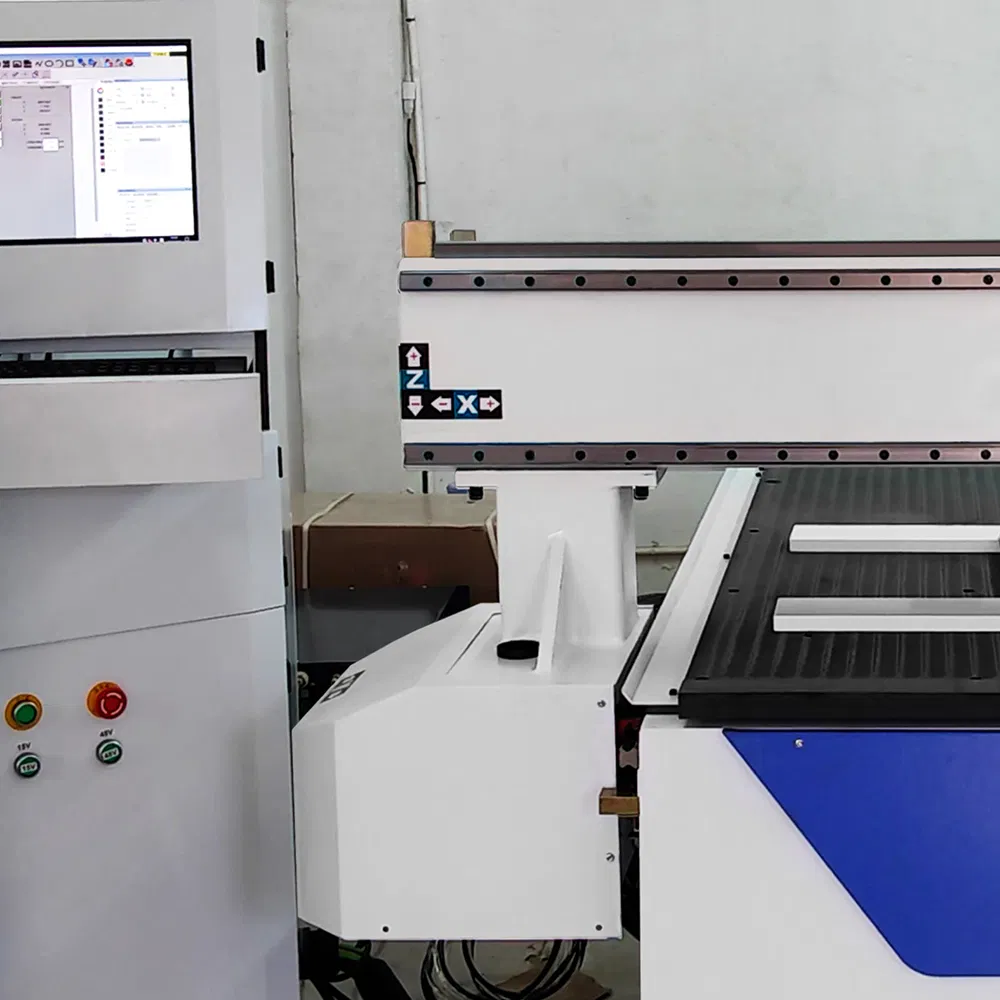

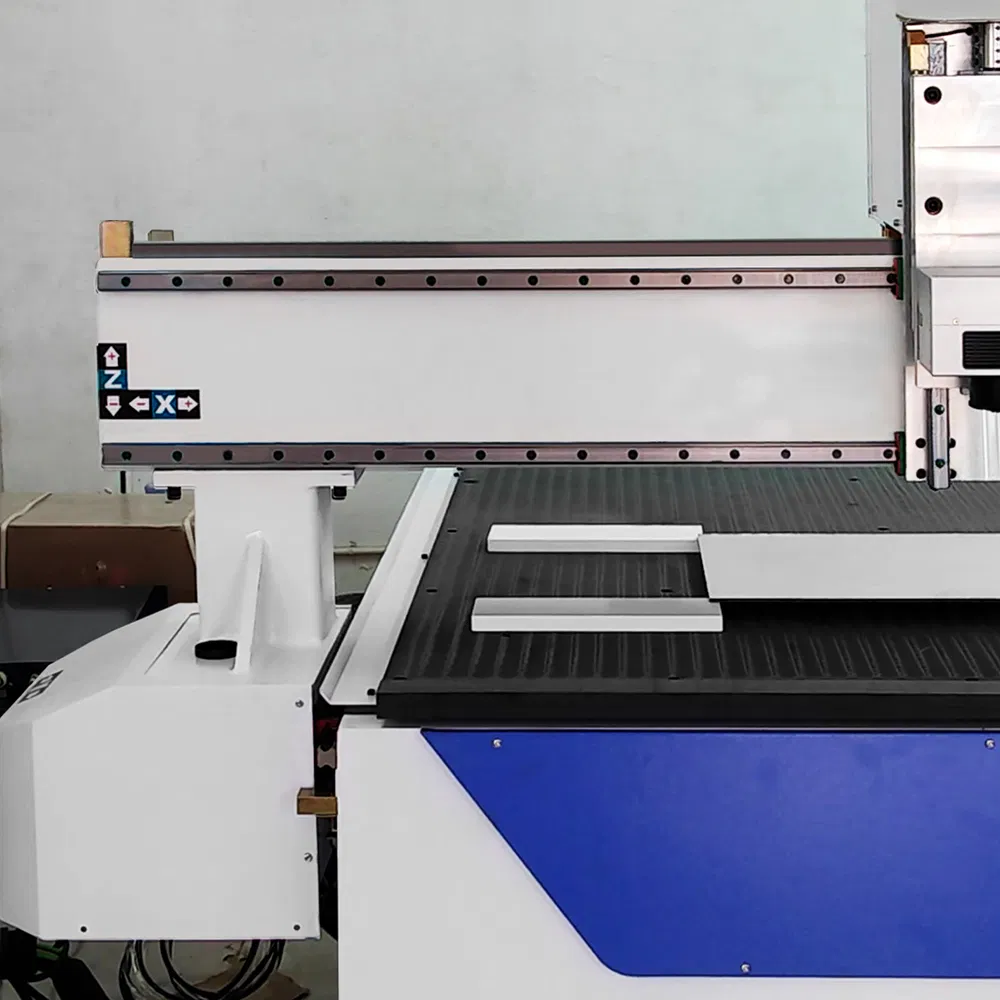

| Movement System | Professional laser control system + high-precision servo motion system |
| Graphics Format | EPS/DXF/PLT-CDR/Al/AC6 |
| Design Software | AutoCAD, Corel DRAW, AI, JD |
| Power Supply | 90-260V 50Hz-60Hz |
| Work Environment | ±5-35ºC |
