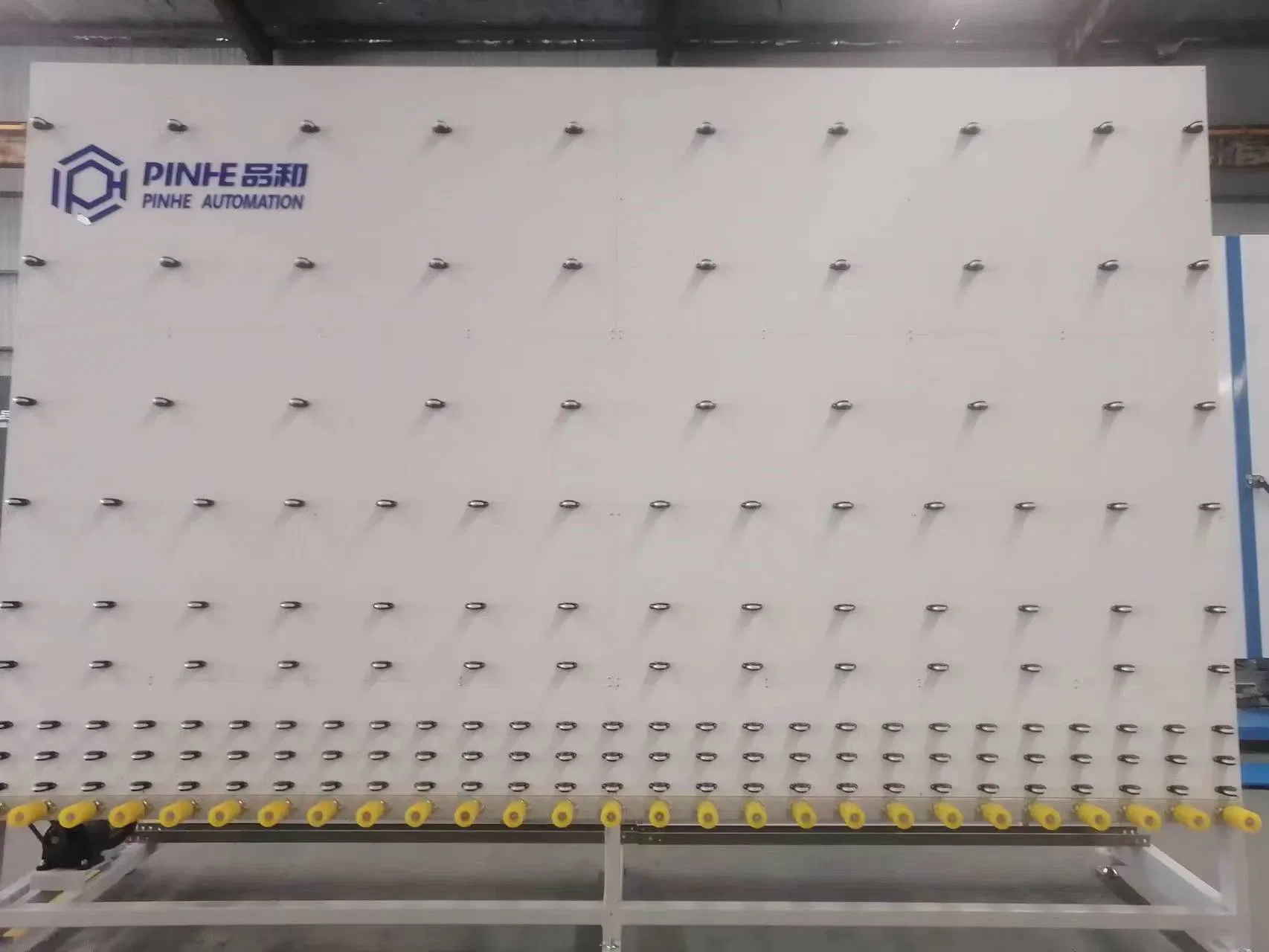

Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
1 / 5
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line
Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line

Lbg2500 Vertical Automatic Insulating Glass Multi-Function Flat Press Production Line

Customization: Available
Certification: CE
Control System: PLC Control
Send Inquiry

Product Description

📋

Basic Information

ModelLBG2500CustomizedAvailable
Glass Thickness12~40mmPower Supply46kw
Dimension(LxWxH)25300X3200X3600mmWorking Speed2~45m/Min
Max Glass Size2500X4000mmMin Glass Size280X450mm
Washing Speed2~ 12m/MinPane Thickness3~ 12mm
Air Pressure0.8m3/Min (1MPa)Conductivity≤ 40μs/cm
✨

Product Description

LBG2500 Vertical Automatic Insulating Glass Multi-function Flat Press Production Line

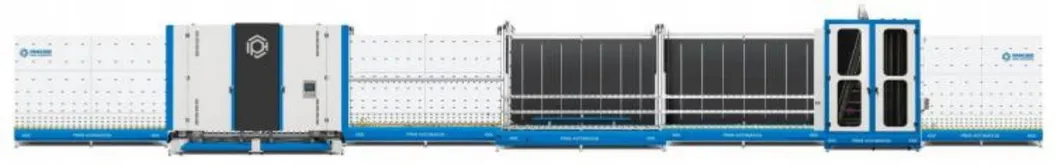

Lbg2500 Production Line Overview

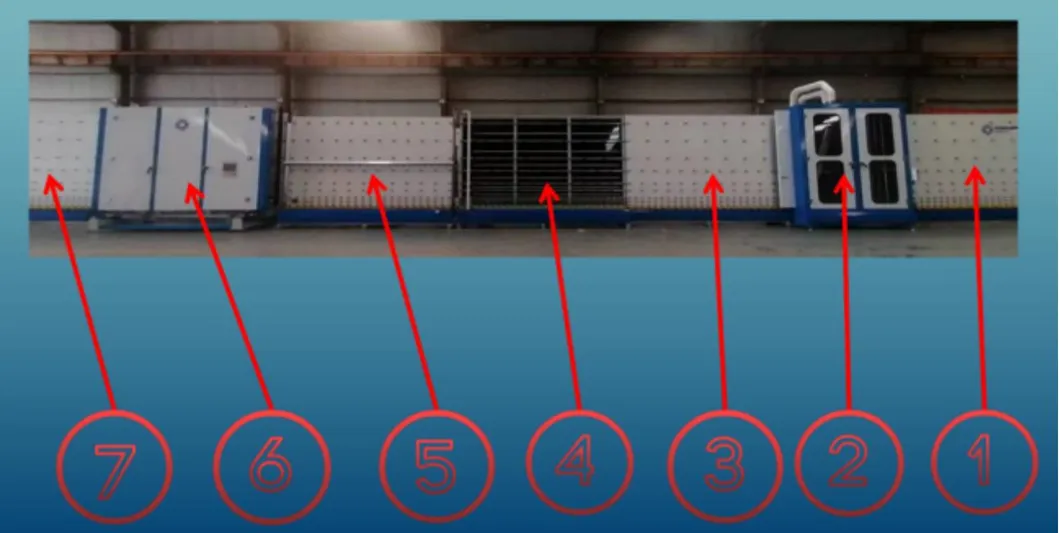

Lbg2500 Production Line Detail

Line Composition:

  • Feed section
  • Washing and drying section
  • Transition and storage section
  • Light inspection and spacer bar location section
  • Outside assembly section
  • Inside flat press section
  • Storage section

Main Features:

  • Supports outside and inside assembly with automatic argon gas filling.
  • Advanced PLC control system with intuitive touch screen interface.
  • Automatic detection for coated glass and Low-E glass surfaces.
  • Self-adjusting air knife based on glass thickness.
  • Variable frequency drive for brush rotation speeds.
  • Precision aluminum spacer and glass automatic positioning system.
  • Remote monitoring and program upgrade capabilities.
  • Capable of producing double, triple, Low-E, stepped, shaped, and laminated insulating glass.
⚙️

Technical Parameters

Parameter Item Specification Details
Power Supply46Kw
Dimension(LxWxH)25300x3200x3600mm
Working speed2~45m/min
Max Glass Size2500x4000mm
Min Glass Size280x450mm
Washing Glass Speed2~12m/min
Pane glass thickness3~12mm
Insulating Glass Thickness12~40mm
Air flow (air pressure)0.8m3/min (1MPa)
Water electrical conductivity≤ 40μs/cm
⚡

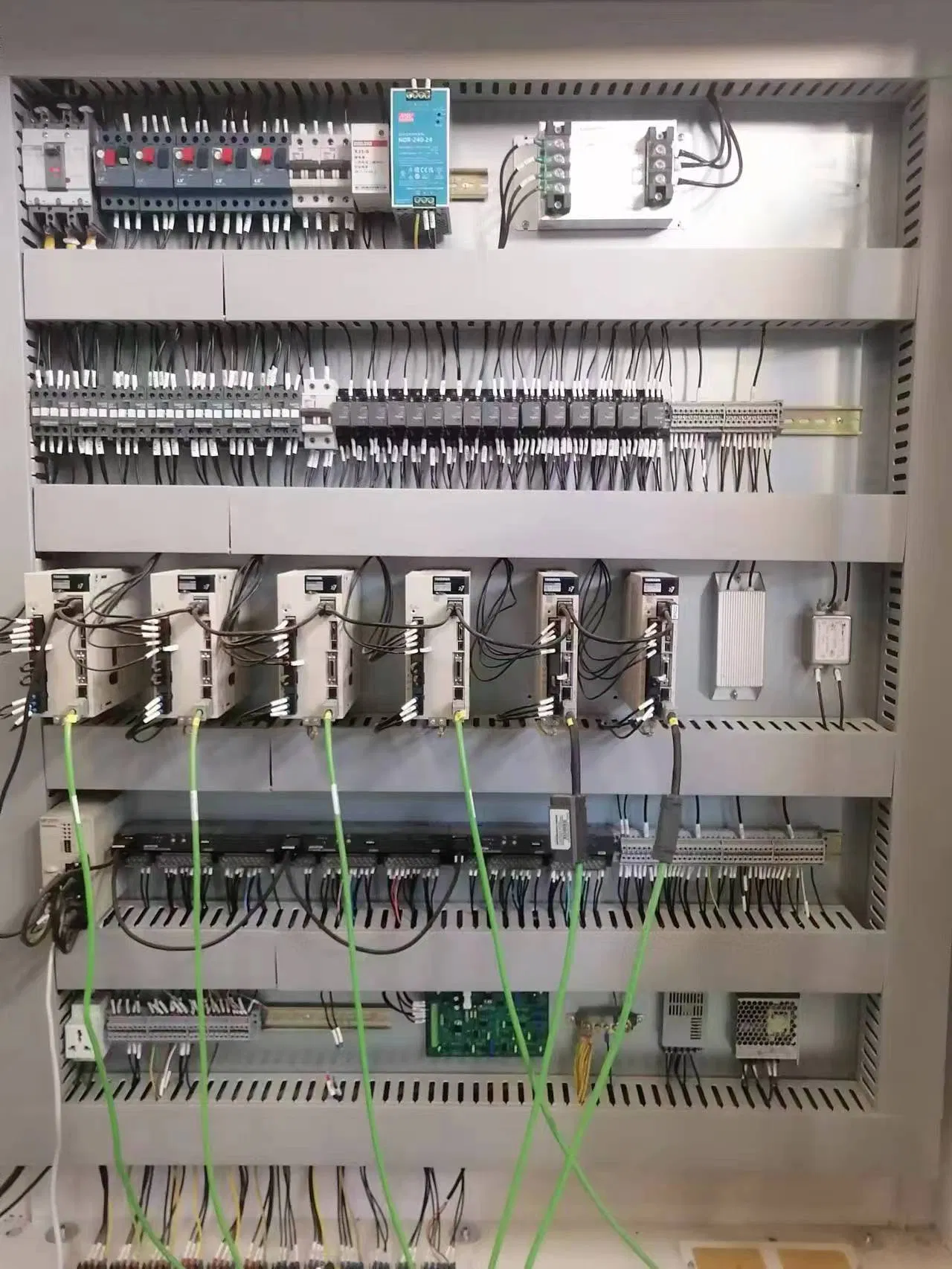

Main Electrical Components

No. Component Name Brand Origin
1PLCSIEMENSGermany
2Touch ScreenINOVANCEChina
3Photoelectric SwitchSIEMENSChina
4Limit SwitchAutonicsKorea
5Vacuum GeneratorYSBChina
6Electromagnetic ValveAirTACChina
8CylinderPinliChina
9Solenoid Directional ValveYOUTIANChina
10Press/Turn ButtonSchneiderFrance
11Electrical ComponentsSchneiderFrance
12TracheaXINLIAmerica
🛠️

Detailed Section Gallery

Section 1: Feed Section & Low-E Sensor

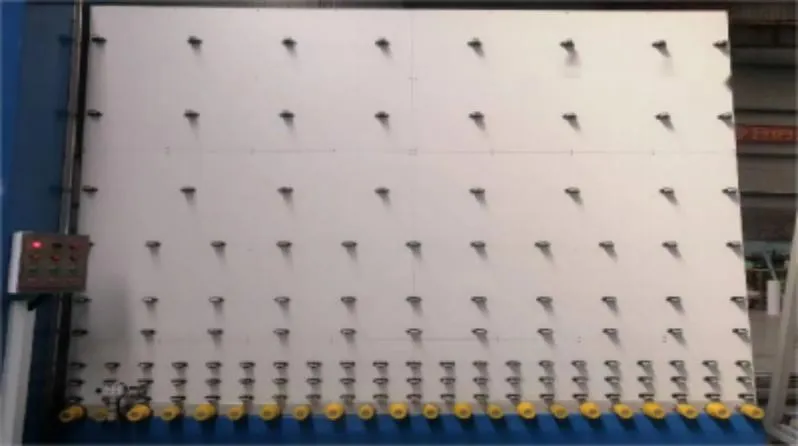

Feed Section

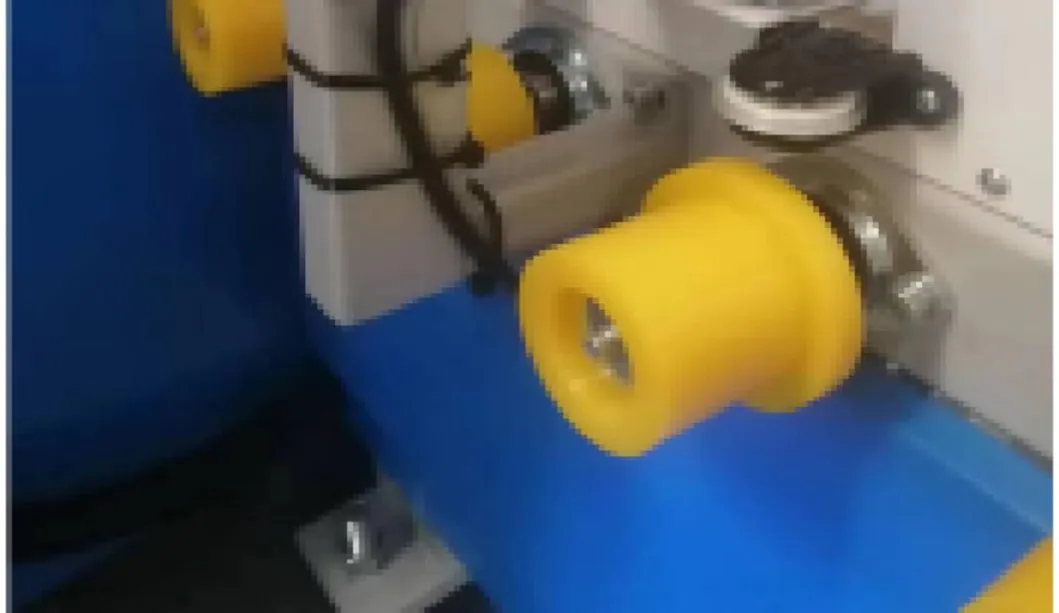

Low-E Glass Sensor

Section 2: Washing and Drying Part

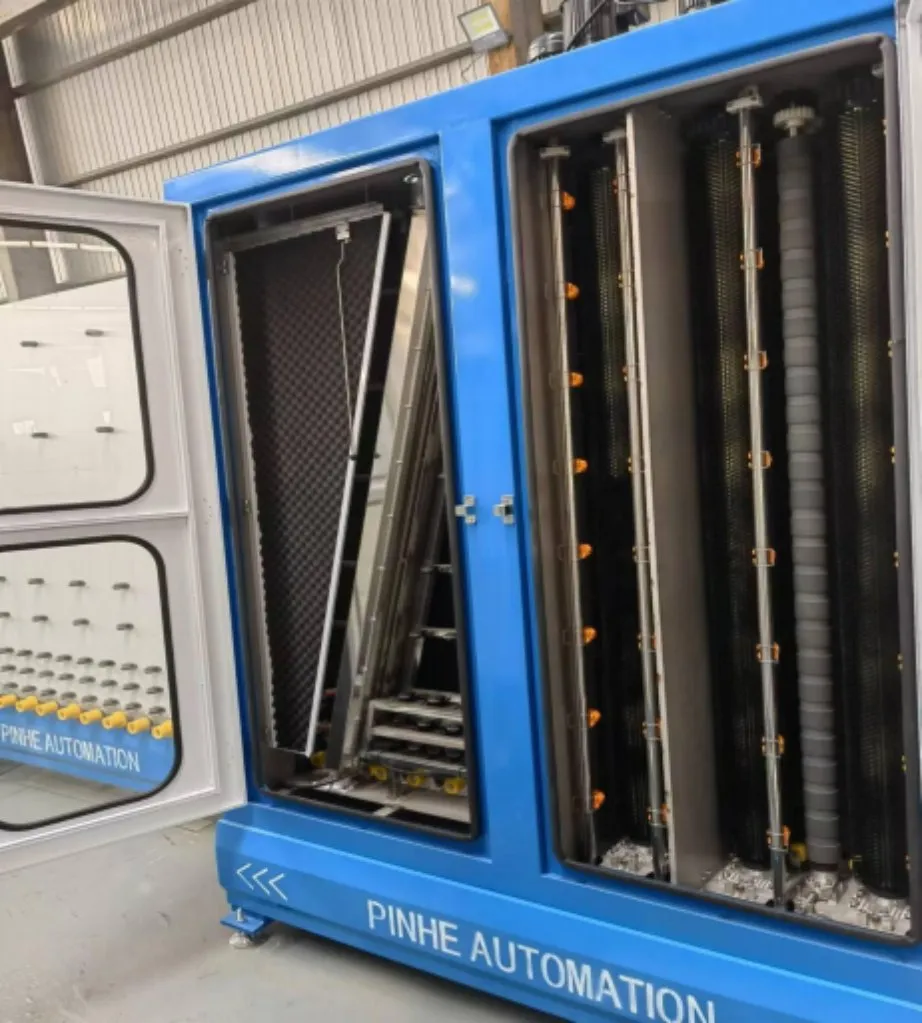

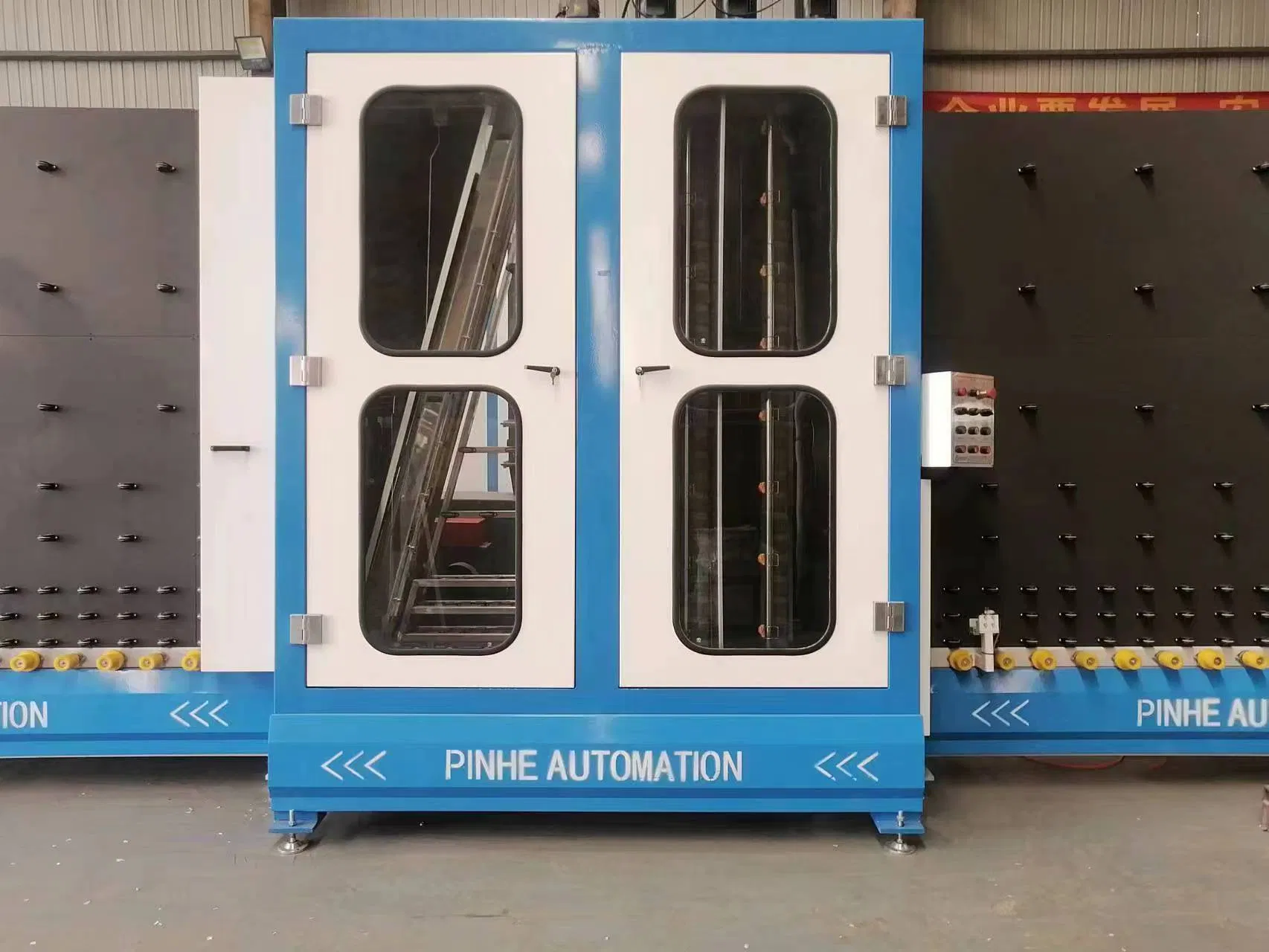

Washing Section

Section 3-5: Transition, Light Inspection & Assembly

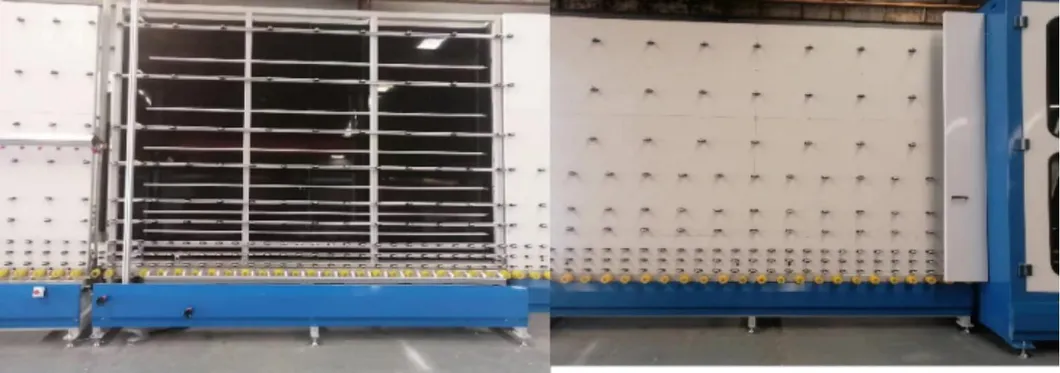

Inspection Section

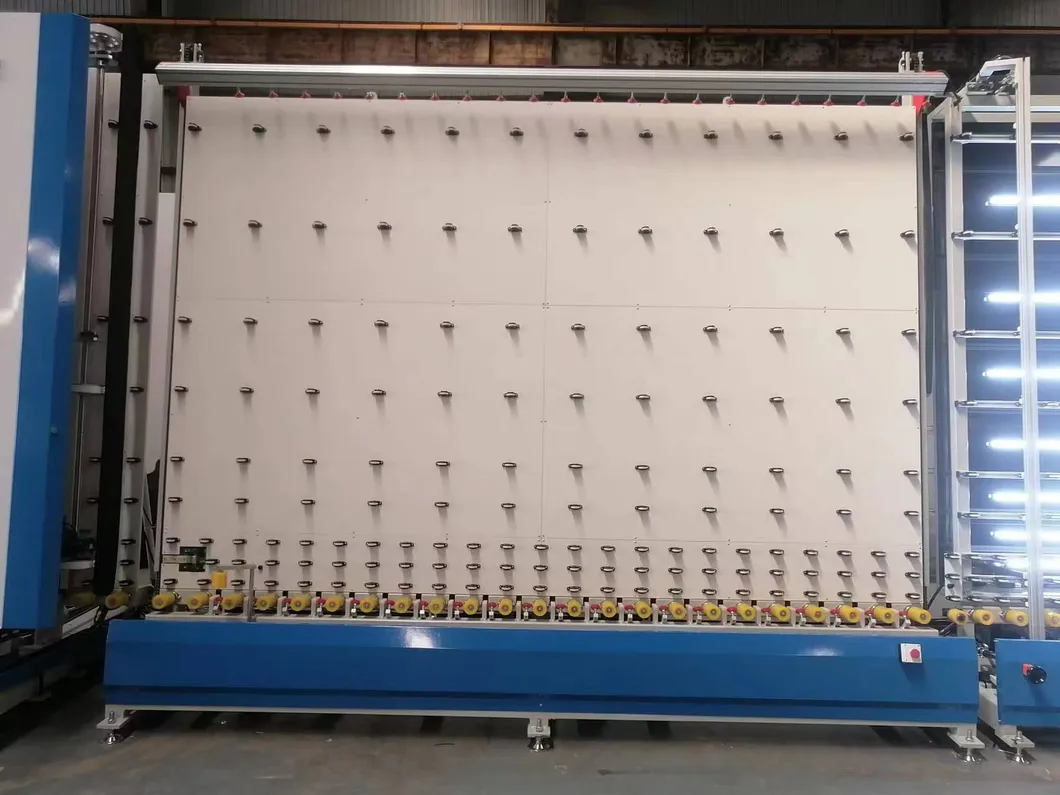

Outside Assembly

Section 6-7: Inside Flat Press & Storage

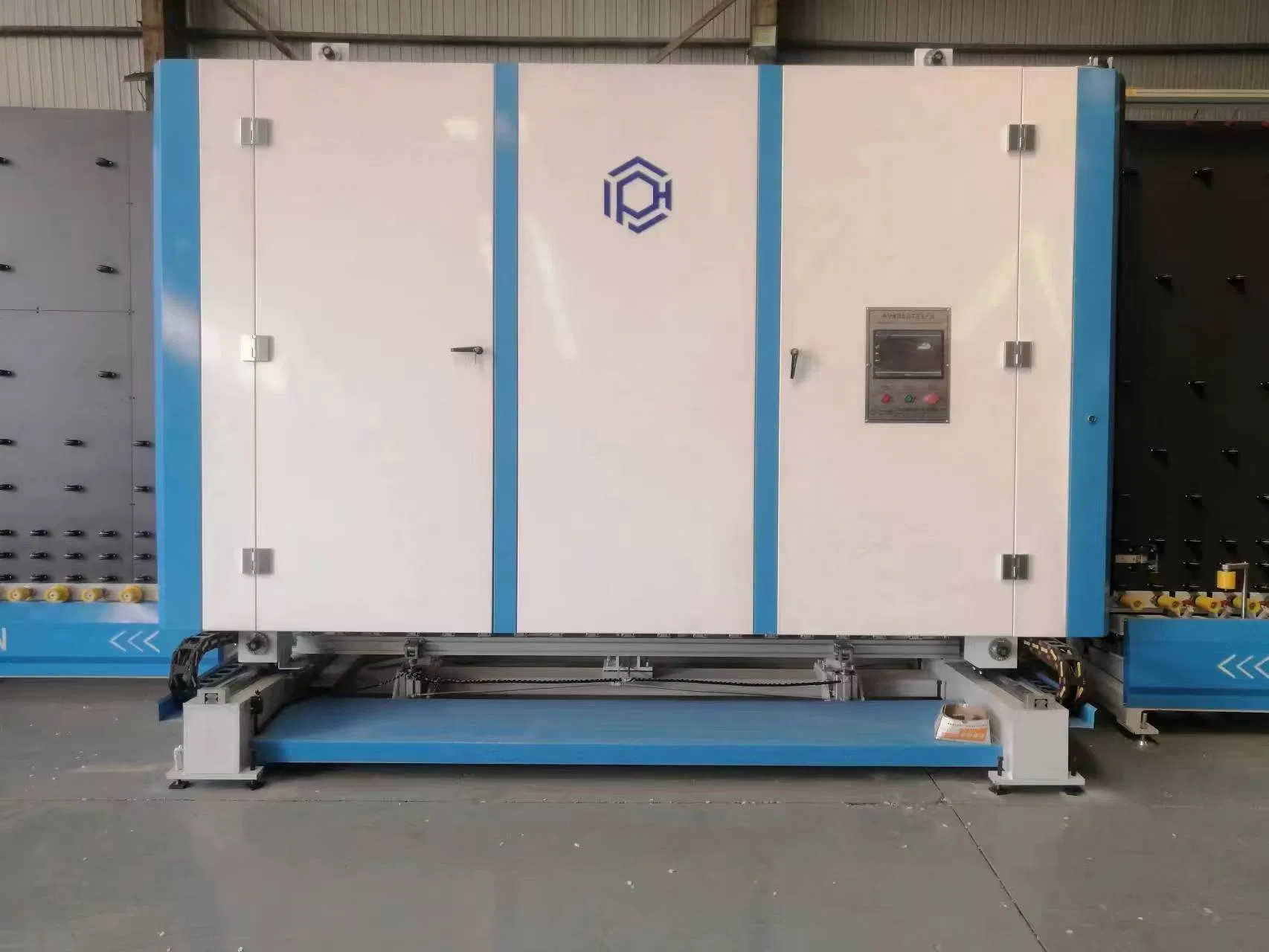

Flat Press and Assembly
❓

Frequently Asked Questions

Q1: What is the maximum glass size this production line can handle?
The LBG2500 model supports a maximum glass size of 2500 x 4000 mm.
Q2: Does the machine support Low-E glass processing?
Yes, the line is equipped with a specialized Low-E glass sensor and automatic surface detection to ensure safe and precise handling of coated glass.
Q3: Can this line produce triple-glazed insulating glass?
Absolutely. The production line is designed to produce double, triple, stepped, and even shaped or laminated insulating glass units.
Q4: How does the argon gas filling work?
The system includes an automatic argon gas filling function integrated within the flat press section for high efficiency and consistent gas concentration.
Q5: What are the main control components used in the machine?
The machine utilizes world-class components including a Siemens PLC and Schneider electrical parts to ensure long-term stability and easy maintenance.
Q6: Is the washing speed adjustable?
Yes, the washing and drying speed can be adjusted between 2 to 12 meters per minute via the frequency inverter to suit different production requirements.
