Model NO.LBJ2536
Automatic GradeAutomatic
CNC ControlCNC
Voltage380V
Specification26000*1800*3600mm
OriginShandong, China
HS Code8475299000
Production Capacity500set/Year
Package Size2200.00cm * 180.00cm * 310.00cm
Package Gross Weight5500.000kg

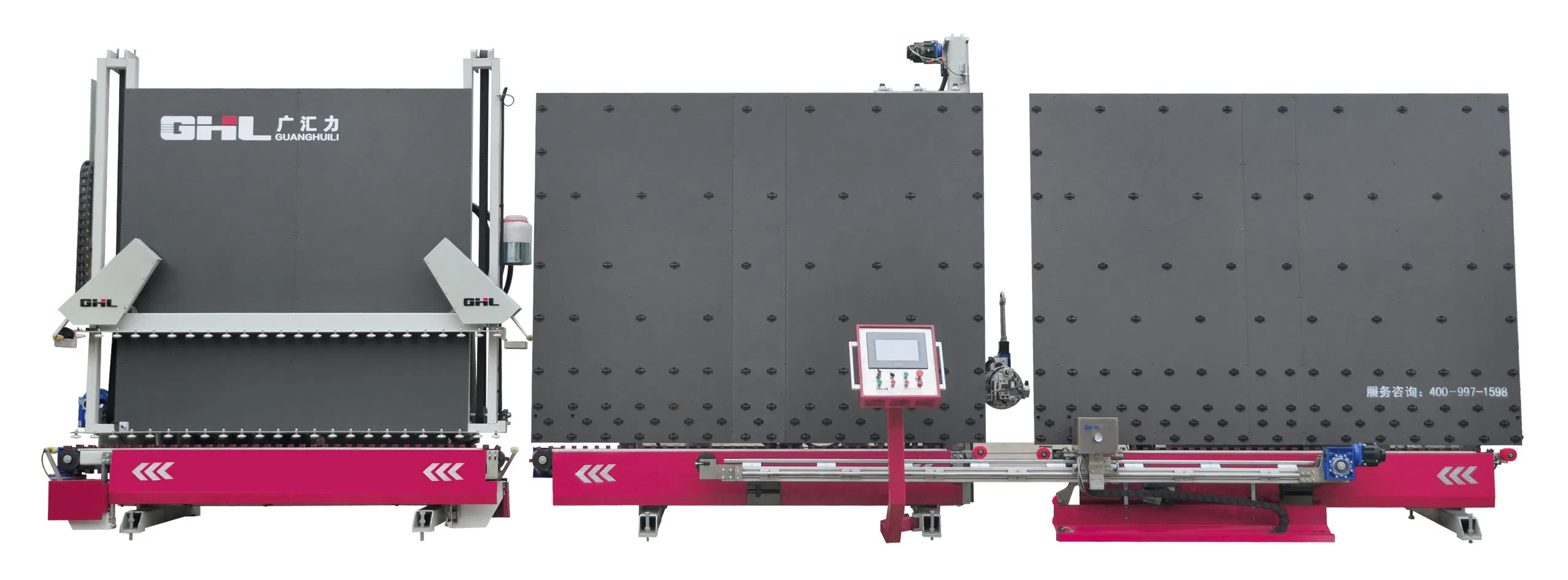

Machine Performance Introduction
✔
Outside and inside assembly program, comprehensive function.
✔
Automatic numerical control insulating glass production line, automatic identification LOW-E.
✔
Siemens PLC control, touch sensitive screen man-machine interface.
✔
Adopt imported vacuum generator and sucker resulted in perfect suction effect to the glass.
✔
Produce the step IG unit and triple glass production according to the customers' different request.
✔
Full distance automatic changeable frequency speed adjustment, saving work waiting time and improving production efficiency.
| Input Voltage | 380V 50Hz |
| Total Power | 30kw |
| Max. Glass Size | 2000*3000mm |
| Min. Glass Size | 300*500mm |
| Glass Thickness | 3~12mm |
| Working Speed | 8~45m/min |
| Total Weight | 5500kg |
| Overall Dimension | 22000*1800*3100mm |
Frequently Asked Questions
What is the maximum glass size this machine can process?
The LBJ2536 model can handle a maximum glass size of 2000*3000mm.
Does the production line support Low-E glass?
Yes, the machine features automatic identification for Low-E glass to ensure proper processing.
What control system does the machinery use?
It is equipped with a Siemens PLC control system and a touch-sensitive man-machine interface for easy operation.
What types of glass units can be produced?
The line can produce standard IG units, step IG units, and triple glass production based on customer requests.
What is the working speed of the production line?
The working speed is adjustable between 8 to 45 meters per minute using frequency speed adjustment.
What is the required glass thickness for this line?
The machine is designed to work with glass thicknesses ranging from 3mm to 12mm.
