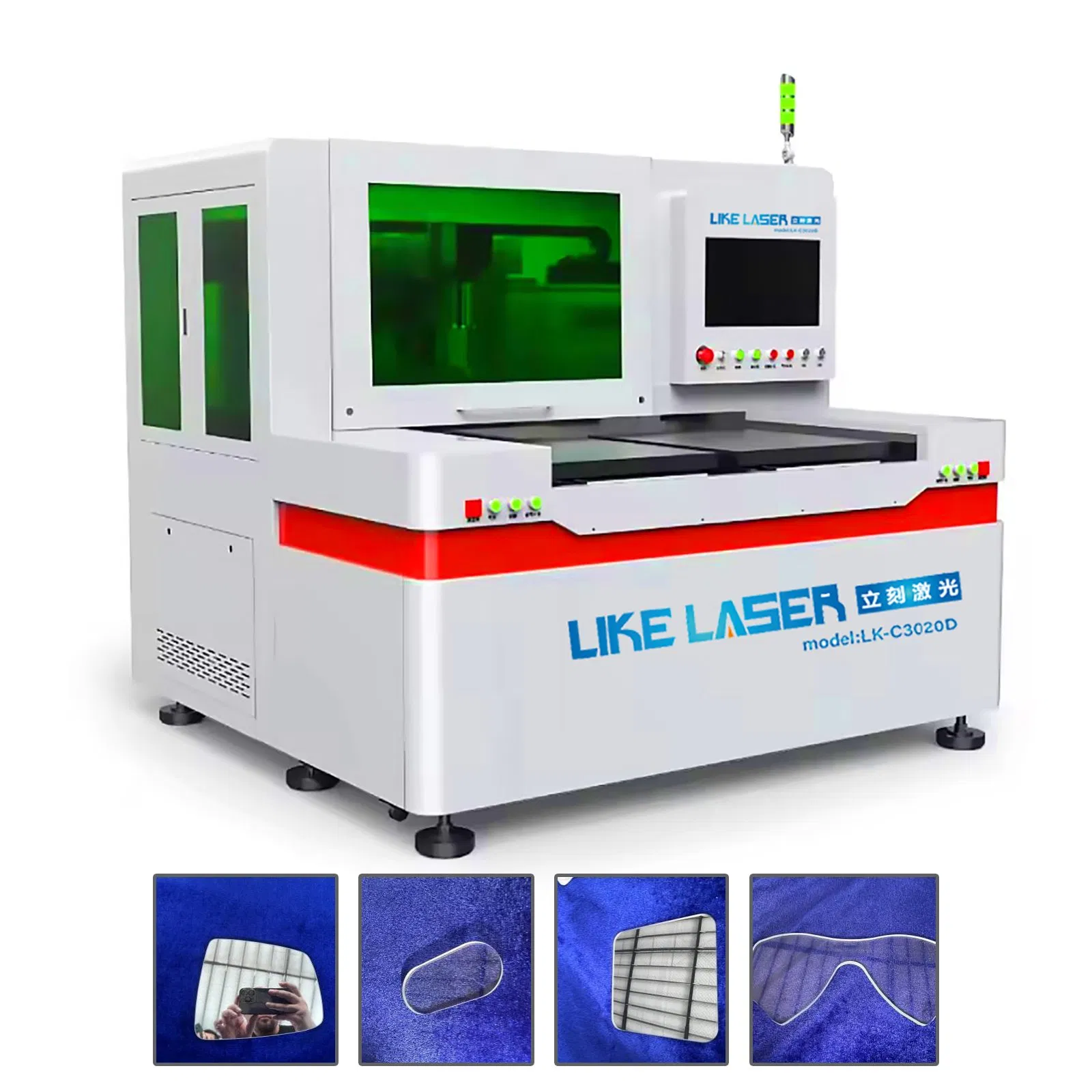

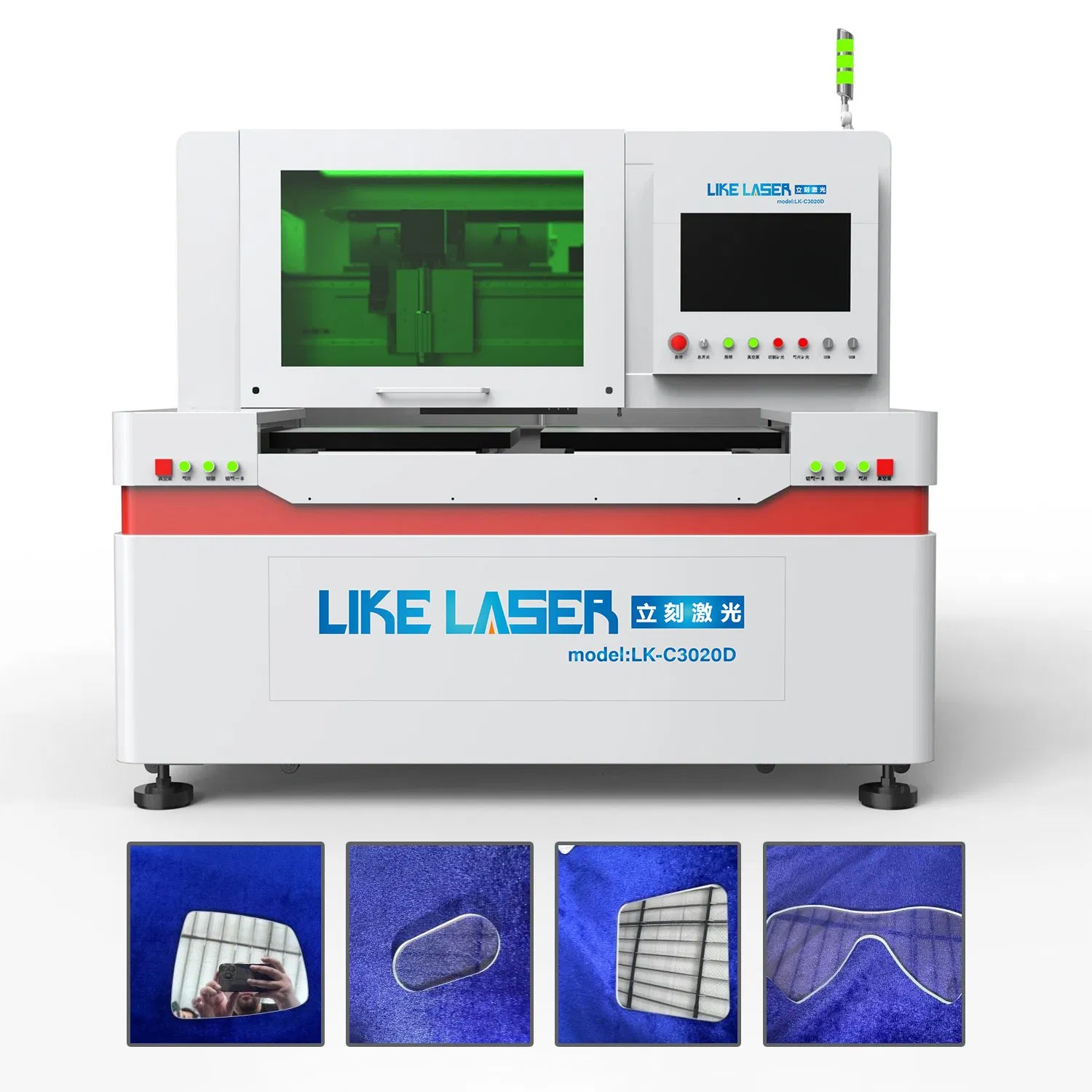

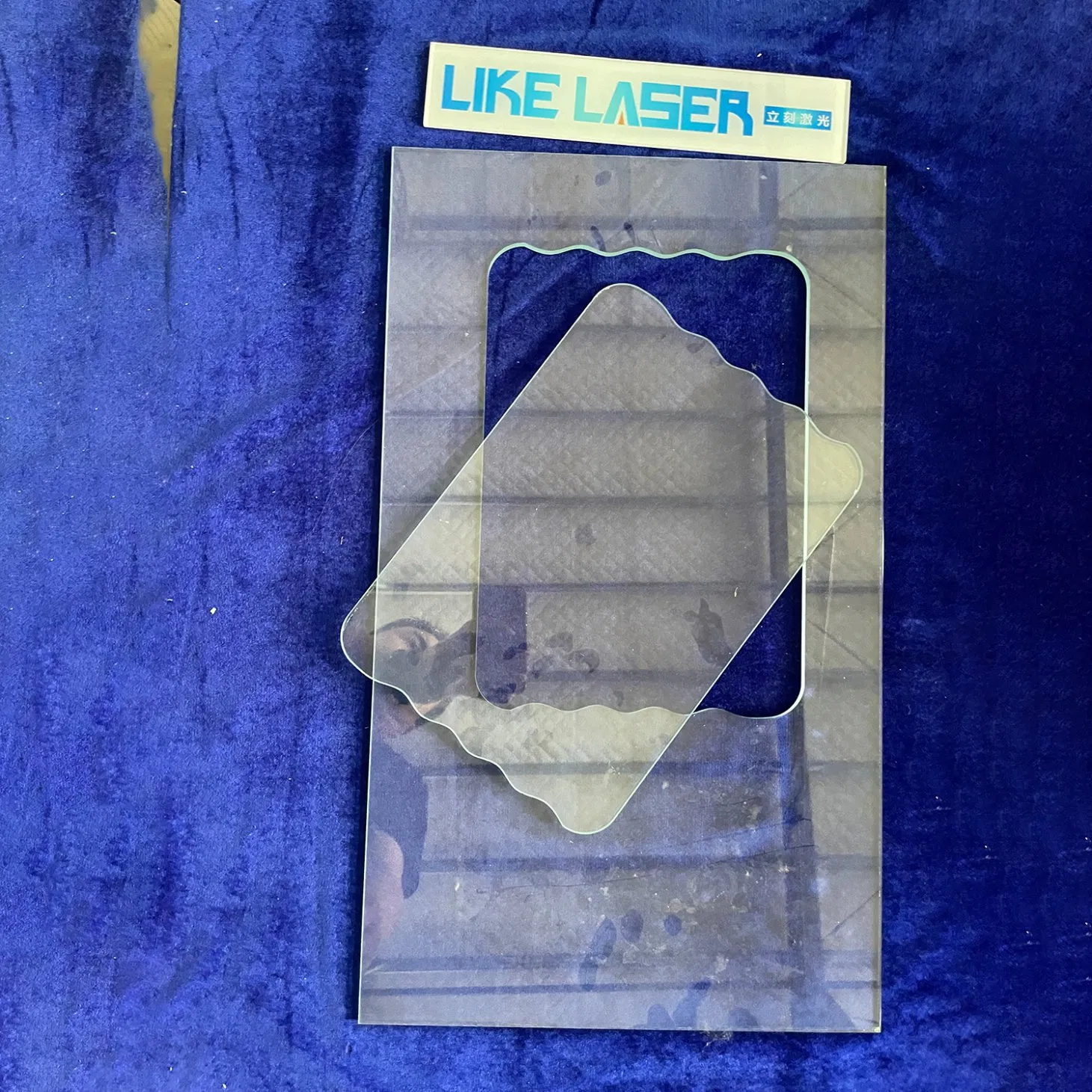

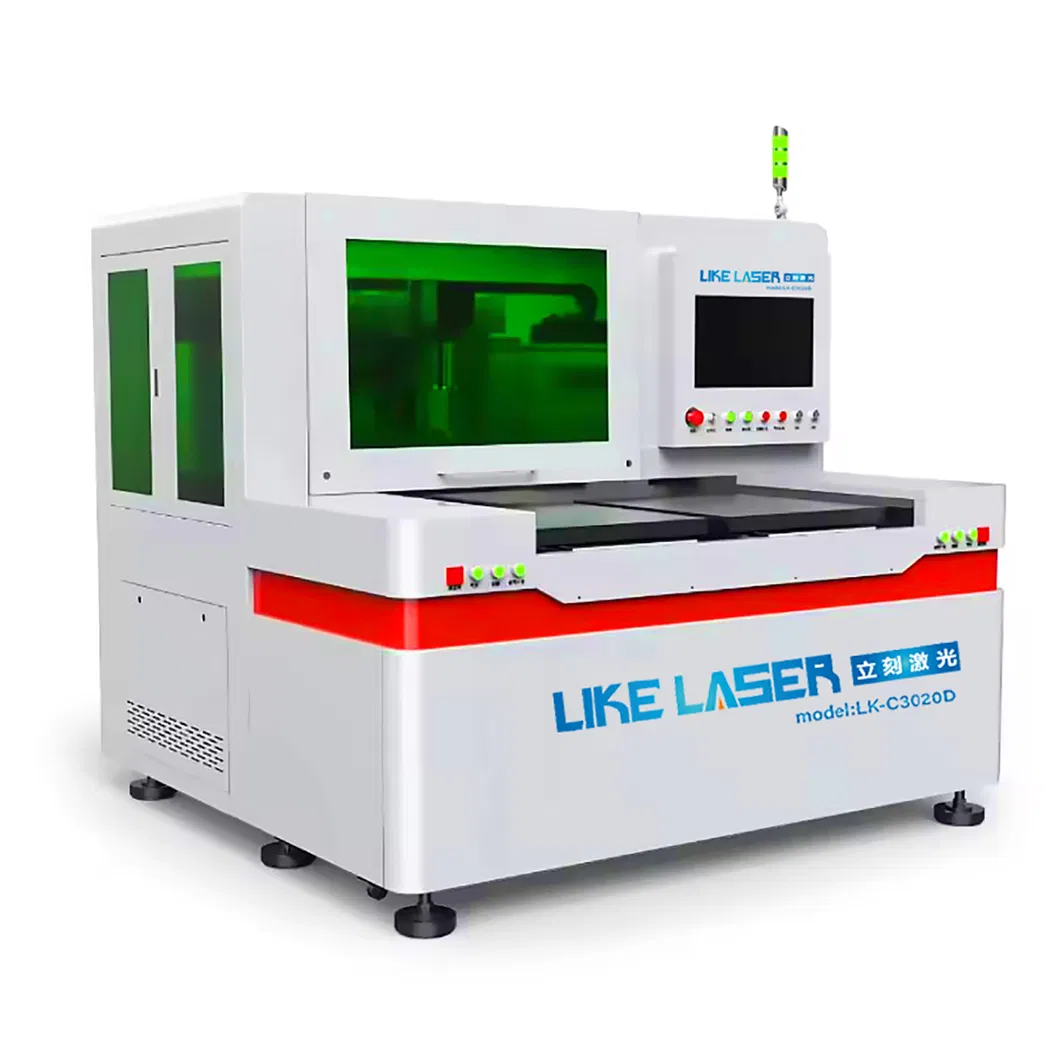

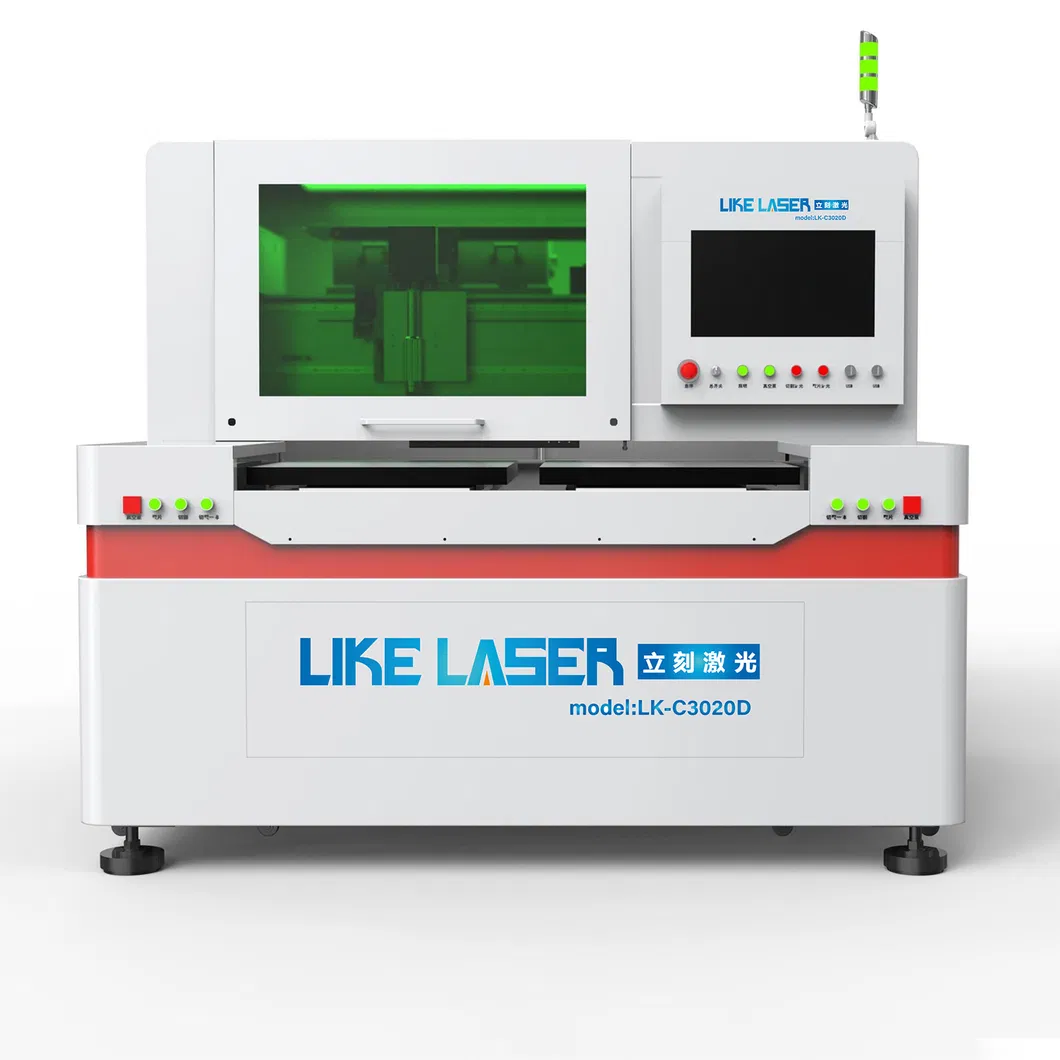

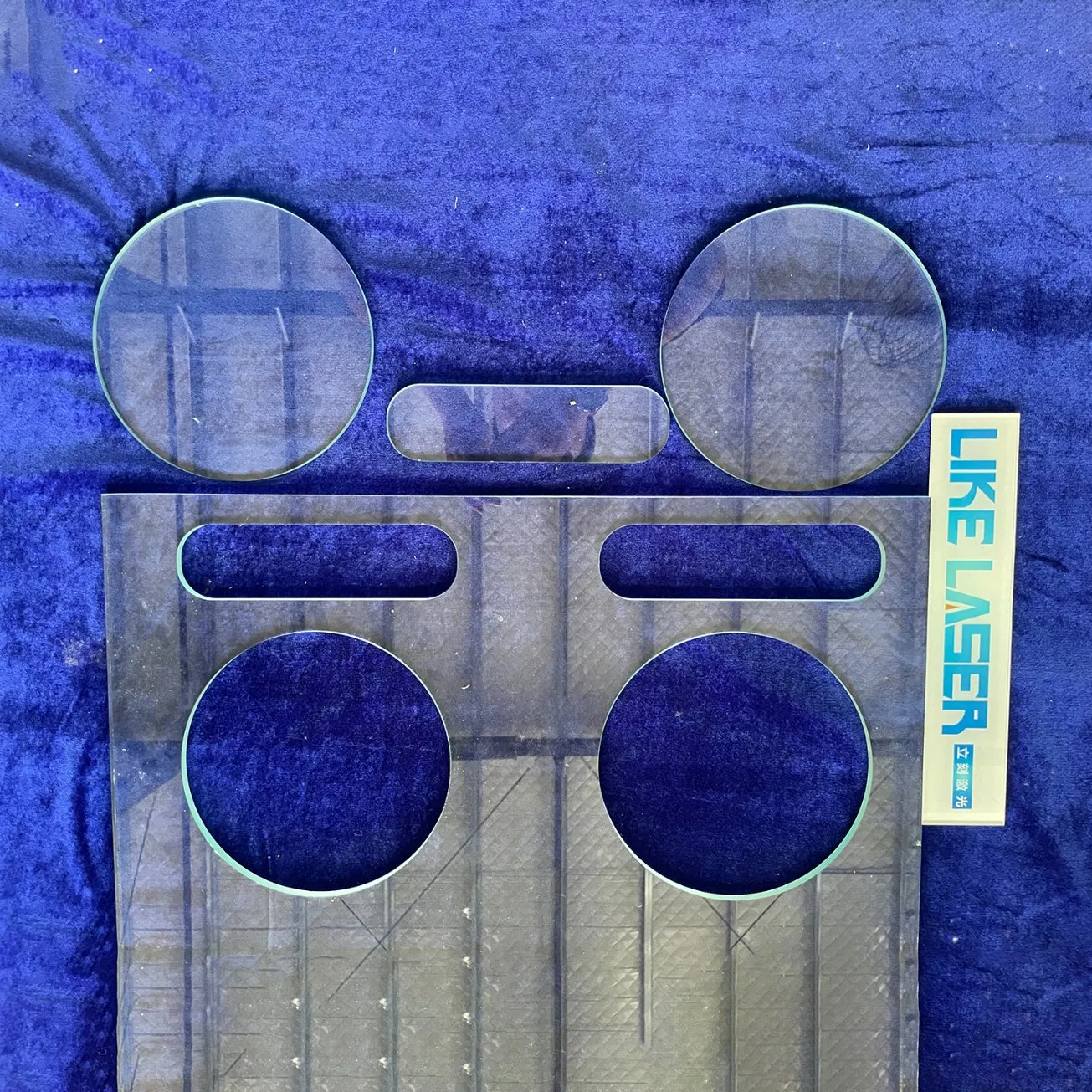

The Laser Glass Cutting Machine is a high-efficiency, automatic system utilizing picosecond laser and RF CO2 laser technology. It is widely applied in various industries including mobile phone cover plates, camera lenses, optical lens production, smart wearables, and automotive mirrors.
This ultra-fast glass laser cutting machine utilizes a self-developed AI control system and high-end picosecond light source. Key features include:
| Model | Standard Size | Workbench |
|---|---|---|
| LK-GC7060D | 700*600mm | 2 |
| LK-GC8060D | 800*600mm | 2 |
| LK-GC1380A | 1300*800mm | 1 |
| LK-GC2010D | 2000*1000mm | 1 |
| LK-GC2412D | 2400*1200mm | 1 |

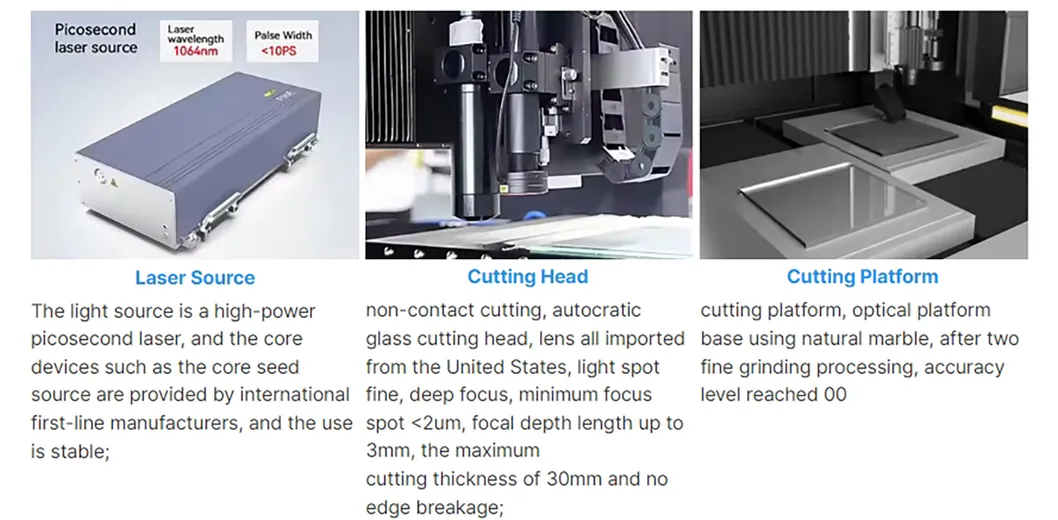

| Laser Type | Picosecond pulse laser (Seed source: German Nlight or equivalent) |
| Wavelength | 1064nm, beam quality: M2 < 1.3 |
| Pulse Length | < 10PS; Frequency: 1Hz-1000kHz |

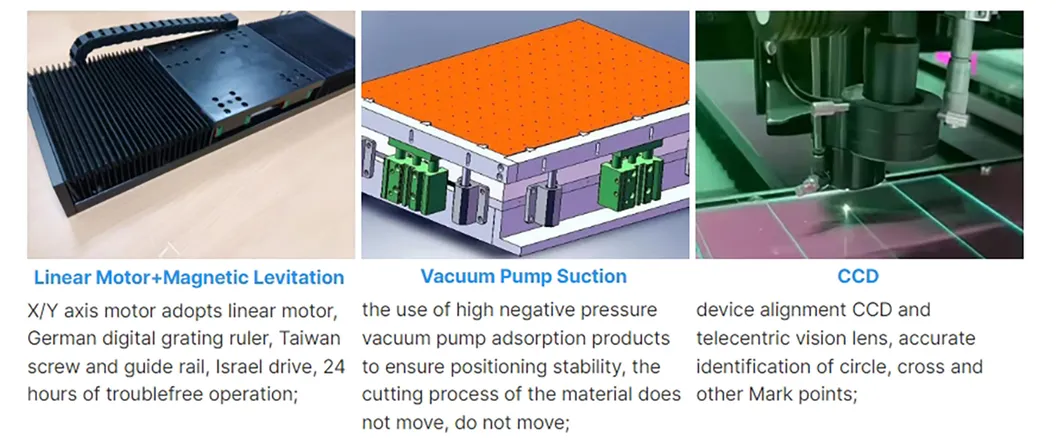

| Visual System | 5 million CCD with adjustable Ring-type light source |
| Focusing Spot | < 2um |
Our equipment is professionally packed using robust wooden cases to ensure safe international transport.
The equipment has passed ISO9001 international quality system certification, European Union CE certification, and American safety certifications.
