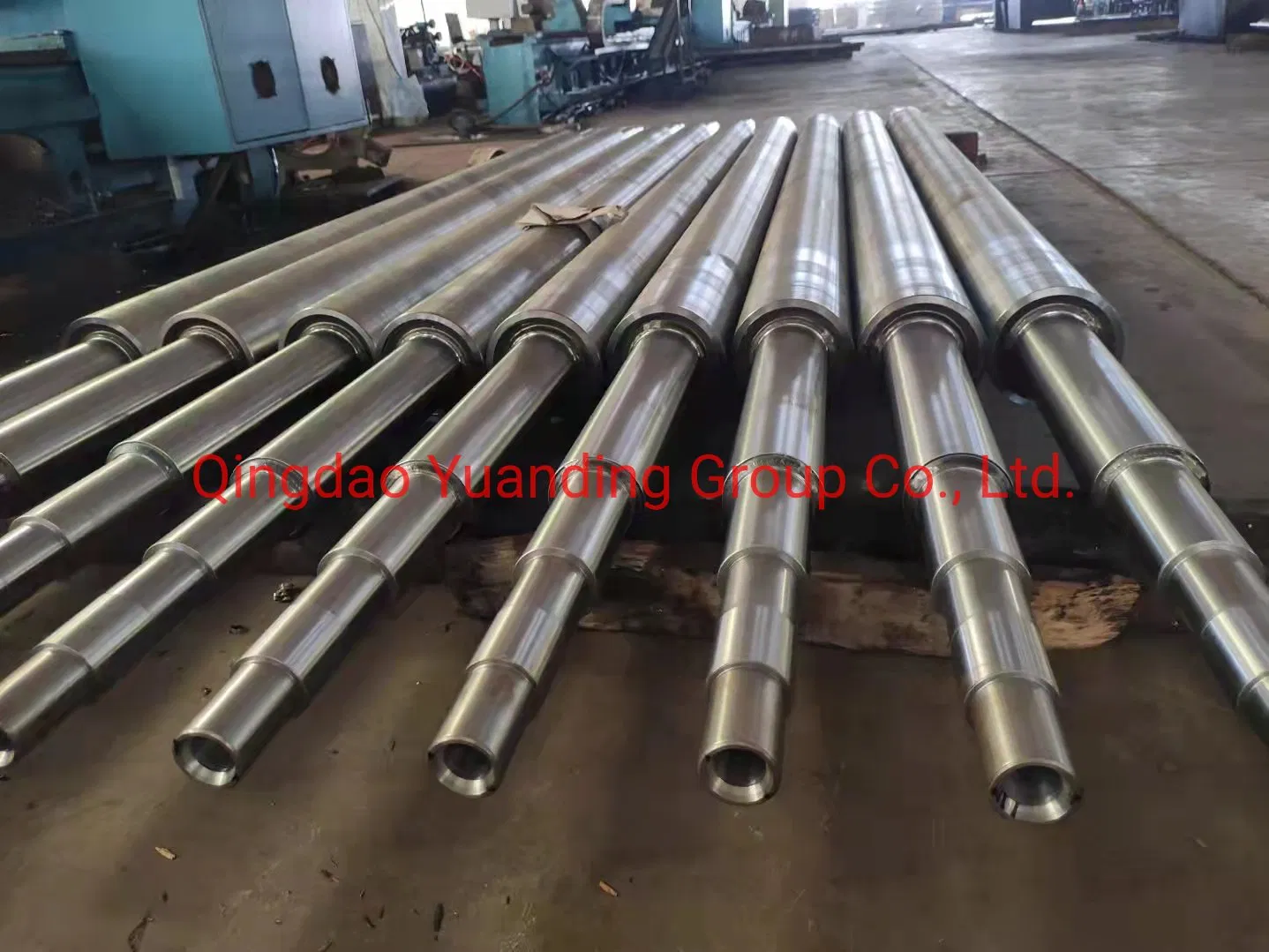

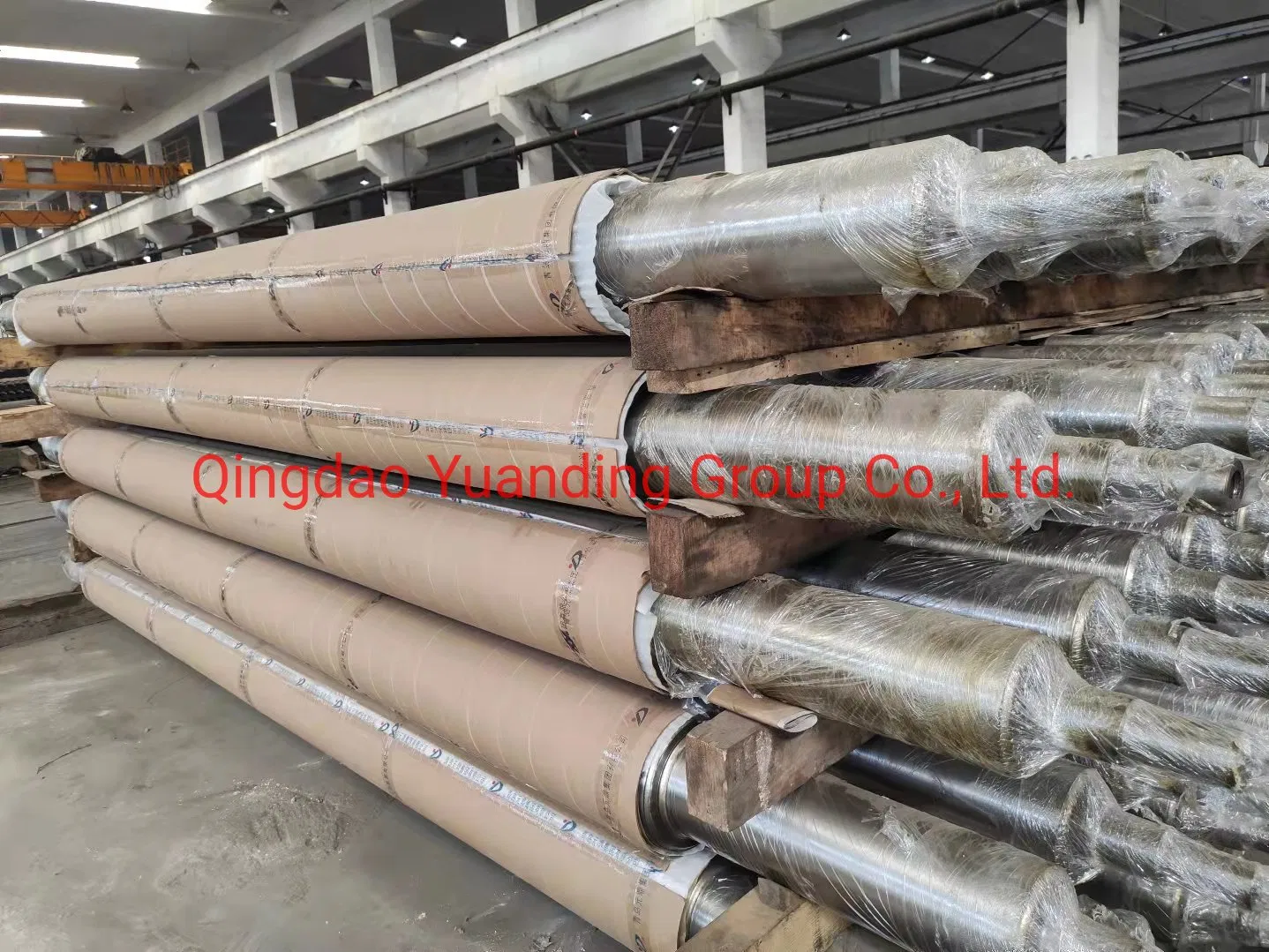

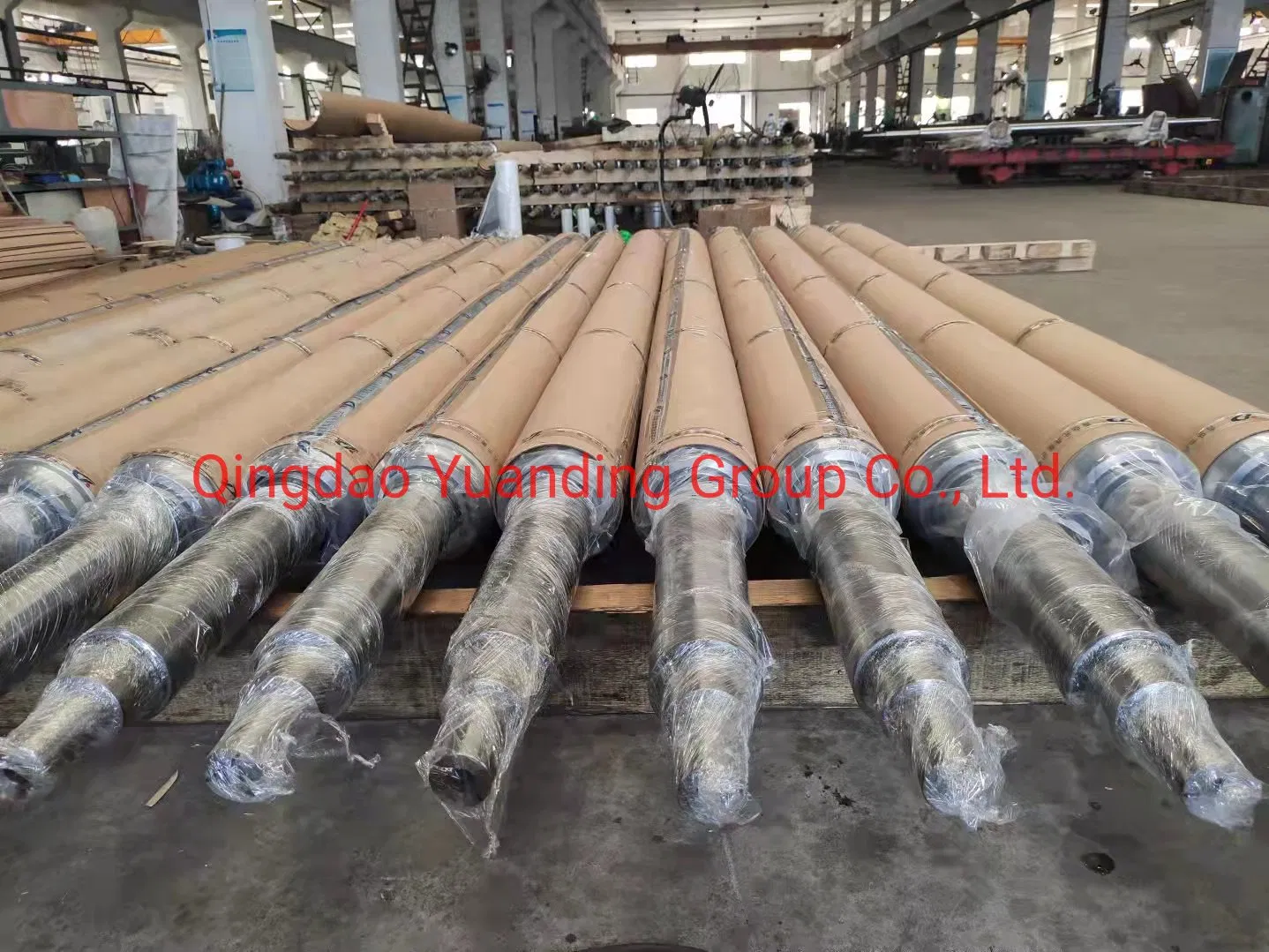

Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
1 / 5
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line
Lor Roller Used in The Float Glass Production Line

Lor Roller Used in The Float Glass Production Line

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO.
rollers
Shape
Roller
Application
Flat Glass Annealing Lehr
Design
Customized
Type
Heat-Resistant Material
Material
Castable
HS Code
84759000
Capacity
50000 PCS/Year
Product Description

We supply a comprehensive range of industrial rollers specifically designed for float glass production lines. Our expertise covers everything from LOR rollers to lehr rollers utilized across zones A through F.

Roller Production 1

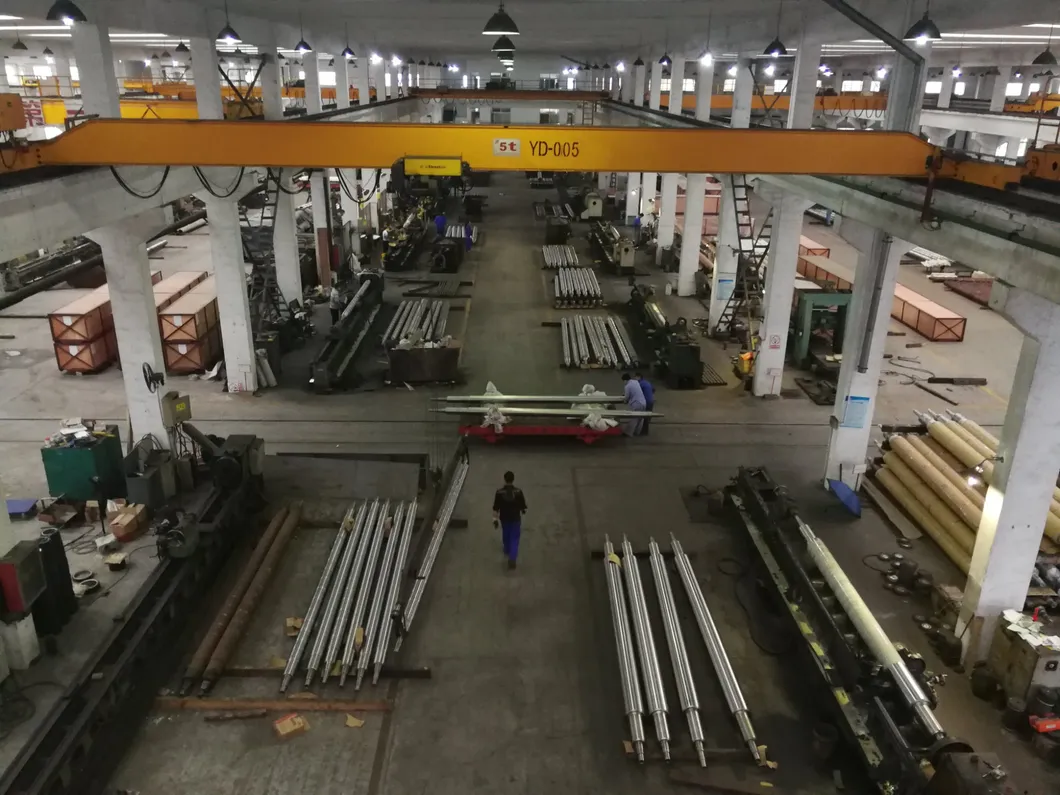

Roller Production 2

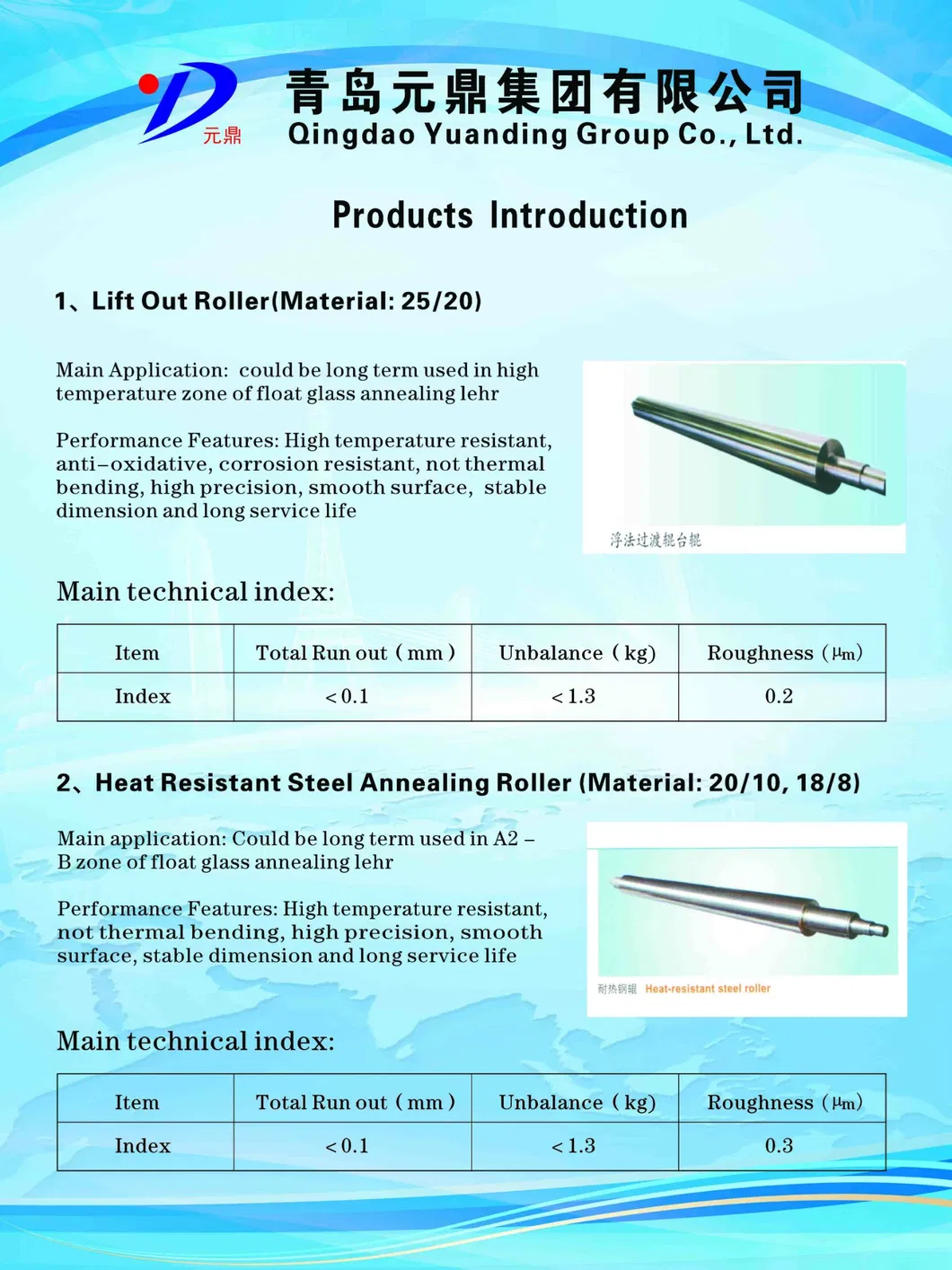

Roller Production 3
Performance Features:
  • Long-term usage in high-temperature environments
  • Superior anti-oxidative and corrosion resistance
  • Zero thermal bending with high precision dimensions
  • Smooth surface finish to prevent glass scratching
Core Roller Categories

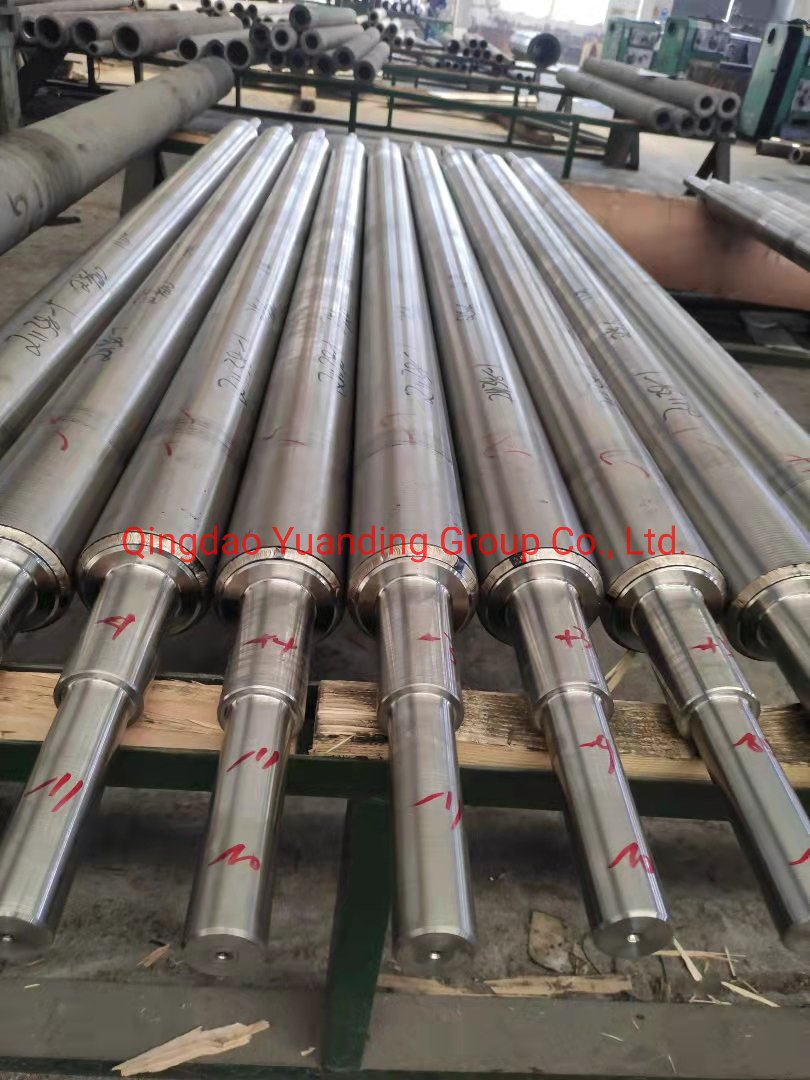

1. Lift Out Roller (LOR)

Material: 25/20. Designed for long-term use in high-temperature zones of float glass annealing lehrs. Features high precision, stable dimensions, and exceptional service life.

2. Steel Roller

Material: 25/20, 18/8. Applied in A2-B zones of float glass annealing lehrs. Engineered for thermal stability and high-precision performance.

3. HRF 650 Heat-Resistant Roller

Non-asbestos series providing wear-proof and scratch-free quality for sheet surfaces, ensuring excellent thermal stability.

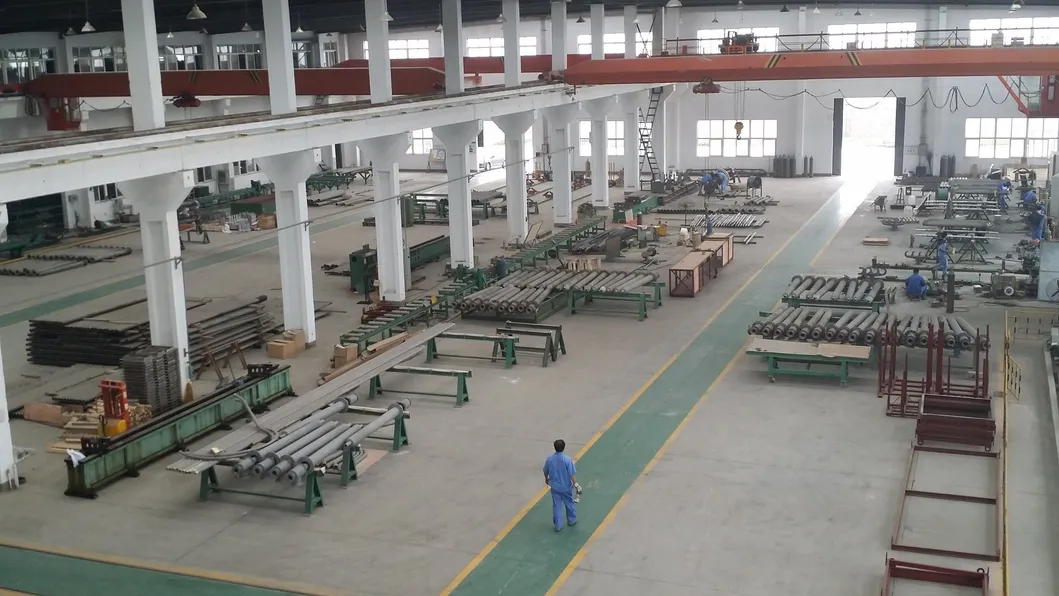

Product Detail

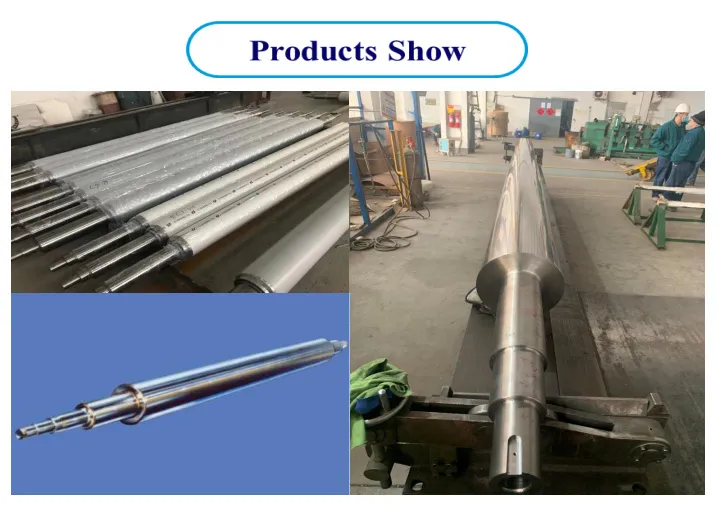

Product Detail 2

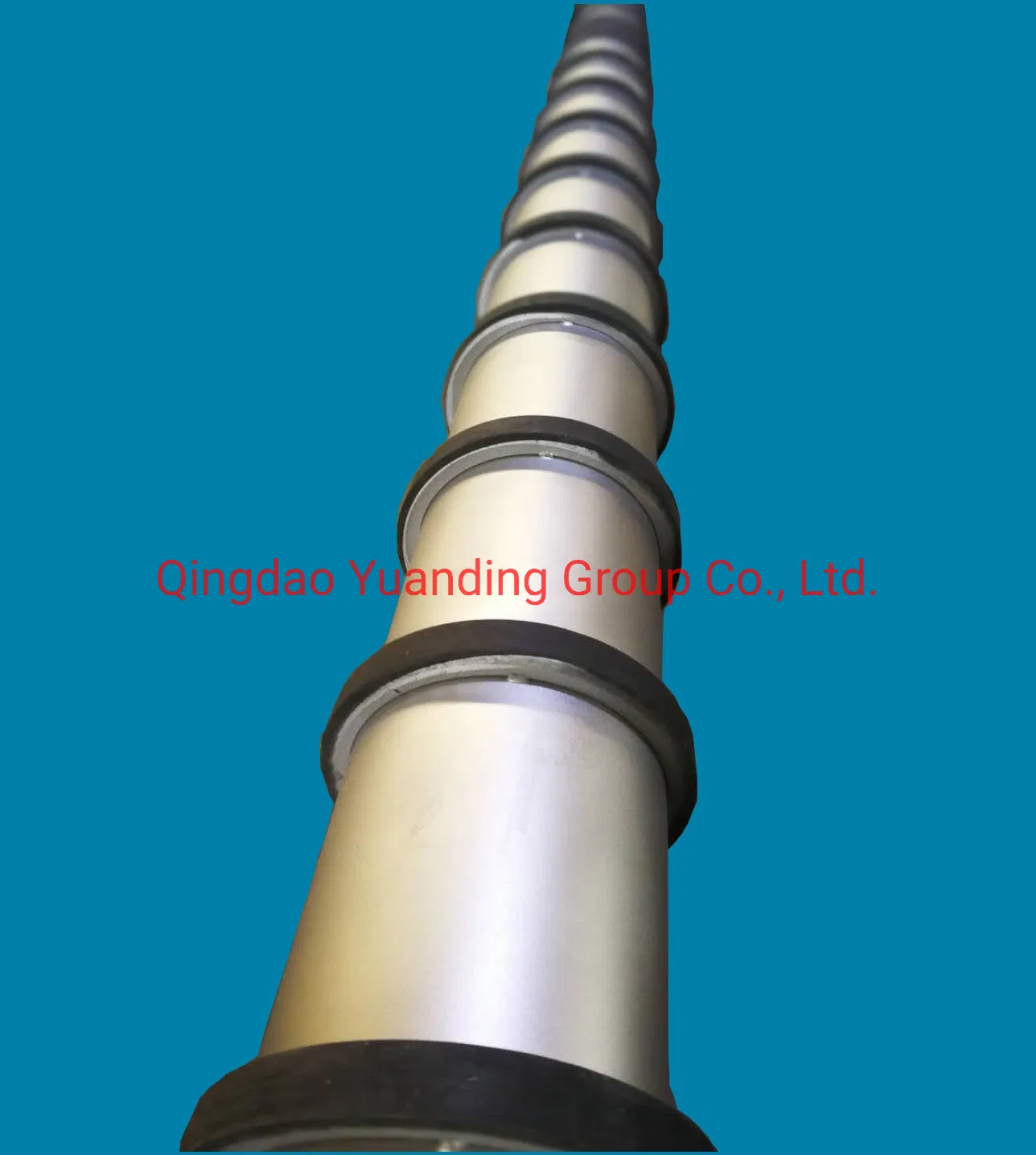

4. Composite & Graphite Ring Rollers

Composite: Used in forced air cooling zones (<260ºC). High performance-cost ratio with interval assembly for fast heat dissipation.

Graphite: Used in zones below 400ºC. Small thermal expansion, no deformation, and proper hardness to keep glass scratch-free.

Technical Parameters
Item Content
NameLOR, Steel Roller, Metal Donut Roller, Fiber Roller, Composite Roller, etc.
MaterialCr25Ni20, Cr18Ni8, Fiber Material, Graphite Material, Composite Material or customized
ProcessCentrifugal casting or seamless pipe; welding; heat-treatment; machining; polishing
Working Temp.650ºC - 750ºC
SpecificationCustomized Dimension
Applicable IndustryFloat Glass Manufacturing
Production & Quality Control

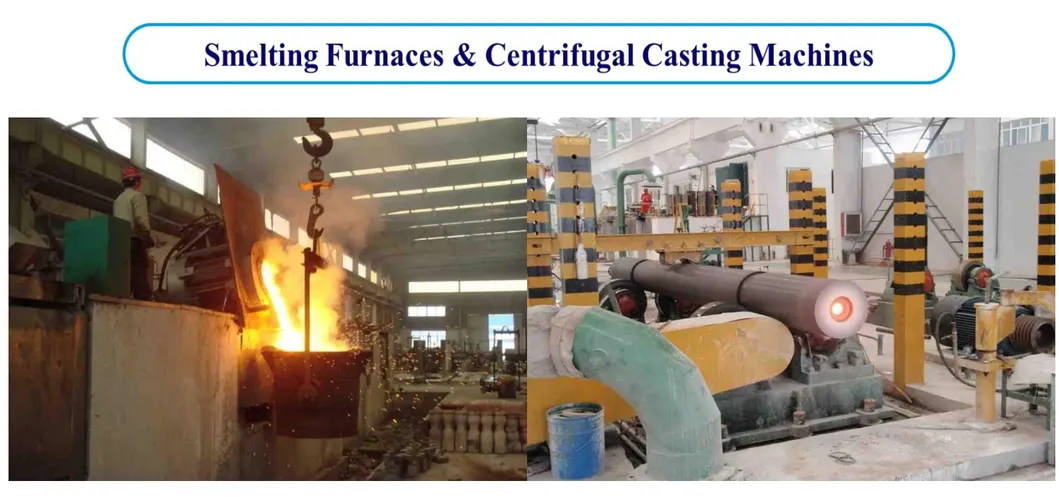

Process 1

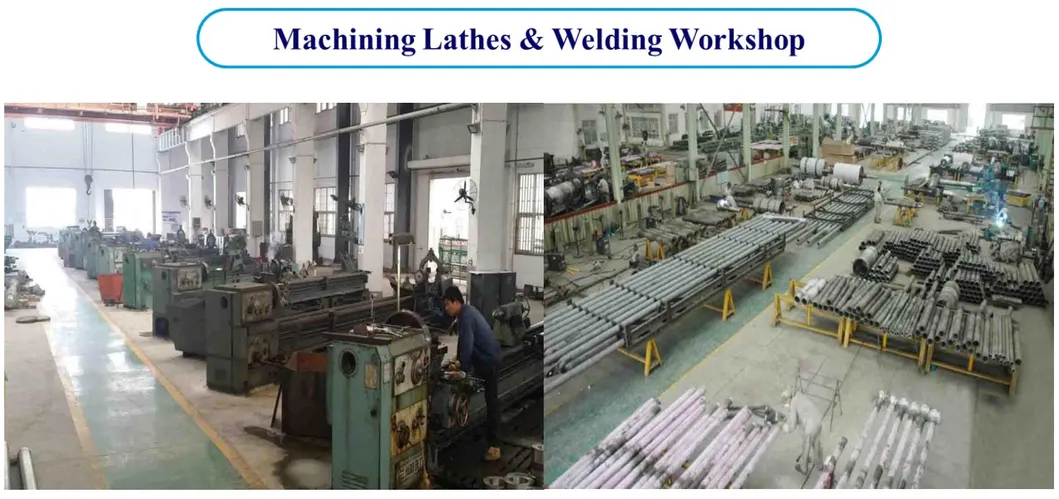

Process 2

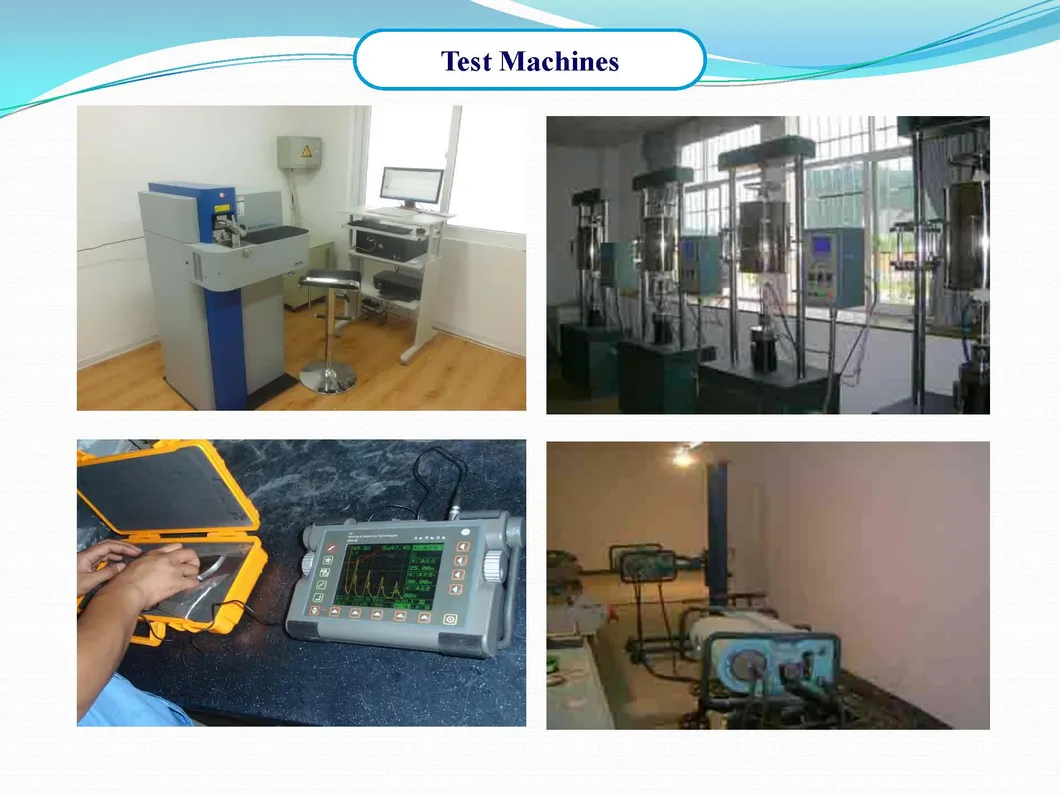

Testing 1
Testing 2
Testing 3
Testing 4
Frequently Asked Questions (FAQ)
What are the primary applications for these rollers?
These rollers are specifically designed for the float glass annealing lehr production line, covering various temperature zones from the high-heat entry to the cooling stages.
What materials are used for high-temperature resistance?
We primarily use high-grade alloys such as Cr25Ni20 (25/20) and Cr18Ni8, as well as specialized heat-resistant fiber and graphite materials for different zone requirements.
How do you prevent thermal bending in rollers?
Through the use of centrifugal casting and seamless pipe processing combined with precise heat treatment, our rollers maintain stable dimensions and resist thermal bending even under long-term high-temperature use.
Can the roller dimensions be customized?
Yes, all rollers including LOR, lehr, and composite rollers can be manufactured according to customized specifications and specific industrial dimensions.
What are the benefits of using Graphite Ring Rollers?
Graphite ring rollers offer small thermal expansion, no deformation, and ideal hardness that ensures the glass surface remains scratch-free while facilitating fast heat dissipation.
What is the maximum working temperature for these products?
Our standard high-temperature rollers are designed to operate efficiently within the 650ºC to 750ºC range, depending on the material and specific application zone.
