Low-E Edging Machine Enhance Quality of Your Insulated Glass Unit

1 / 5

Low-E Edging Machine Enhance Quality of Your Insulated Glass Unit

Customization:	Available
Certification:	CE
Processing Speed:	42m/Min

Send Inquiry

Product Description

ⓘBasic Information

Model NO.	LCM2536	Processing Thickness	3-19 mm
Warranty	One Year	Coating Deleting	Shaped Options
Type	Glass Edging Machine	Structure	Vertical
Control System	PLC	Condition	New
Package Size	1000.00cm * 120.00cm * 350.00cm	Gross Weight	2000.000kg

📋Product Description

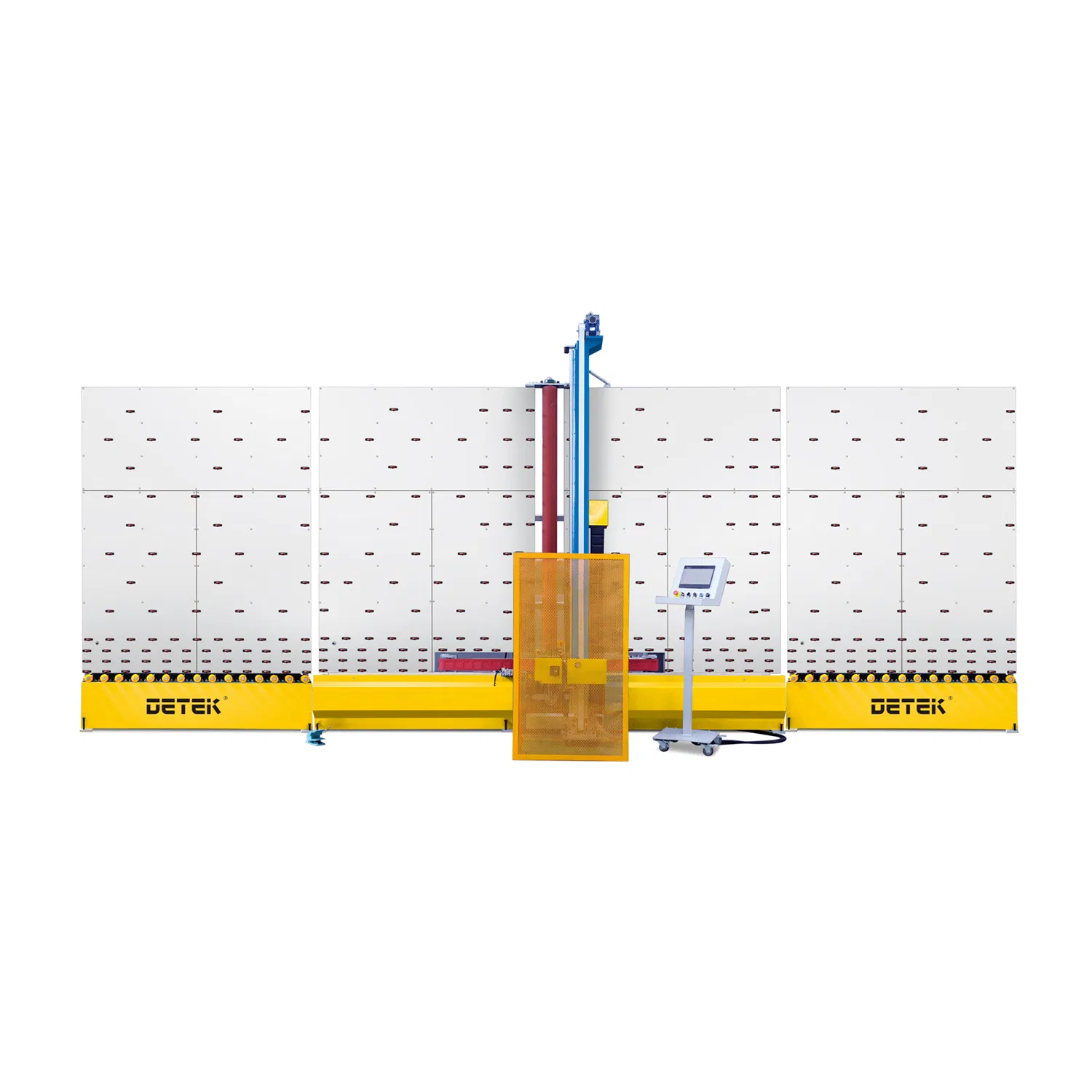

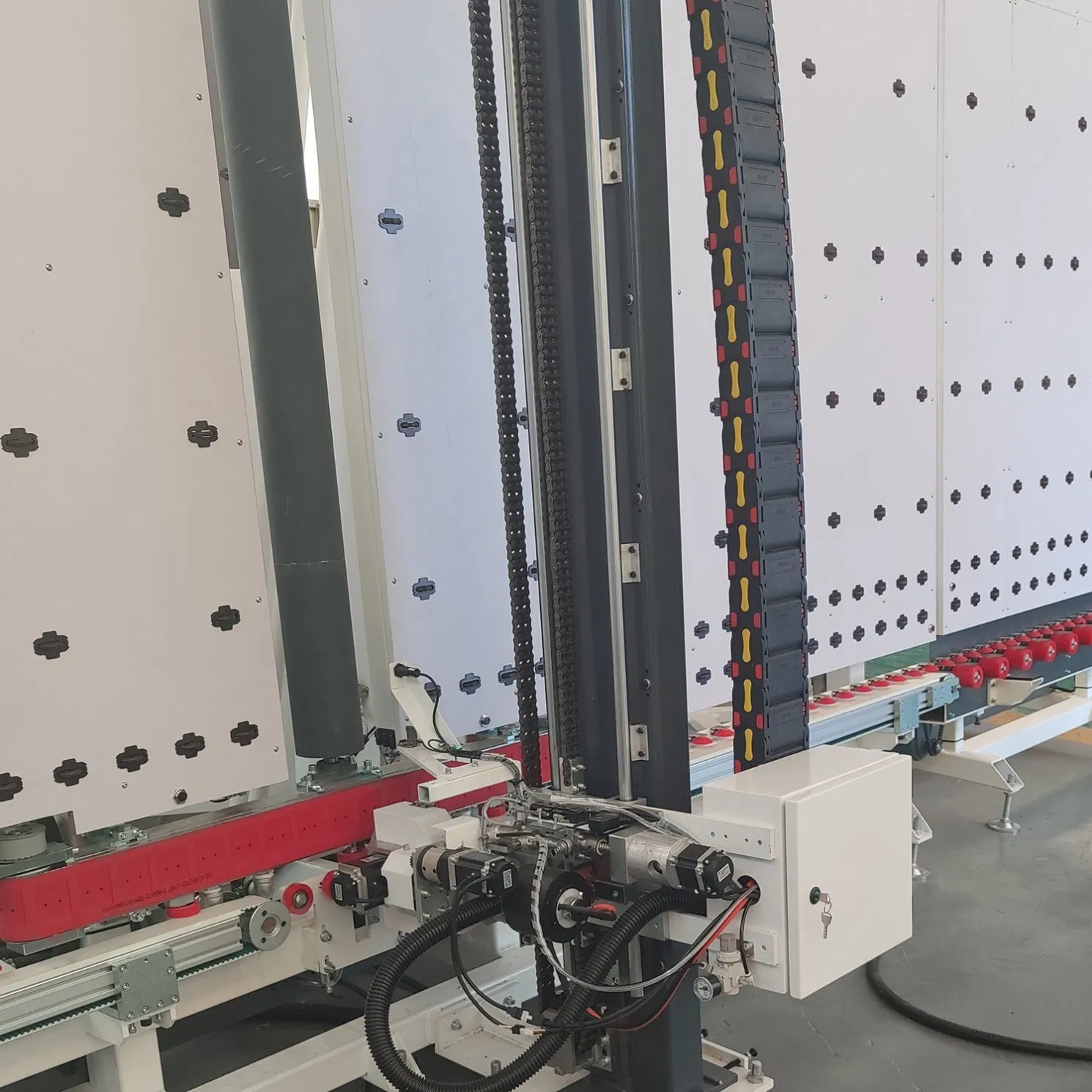

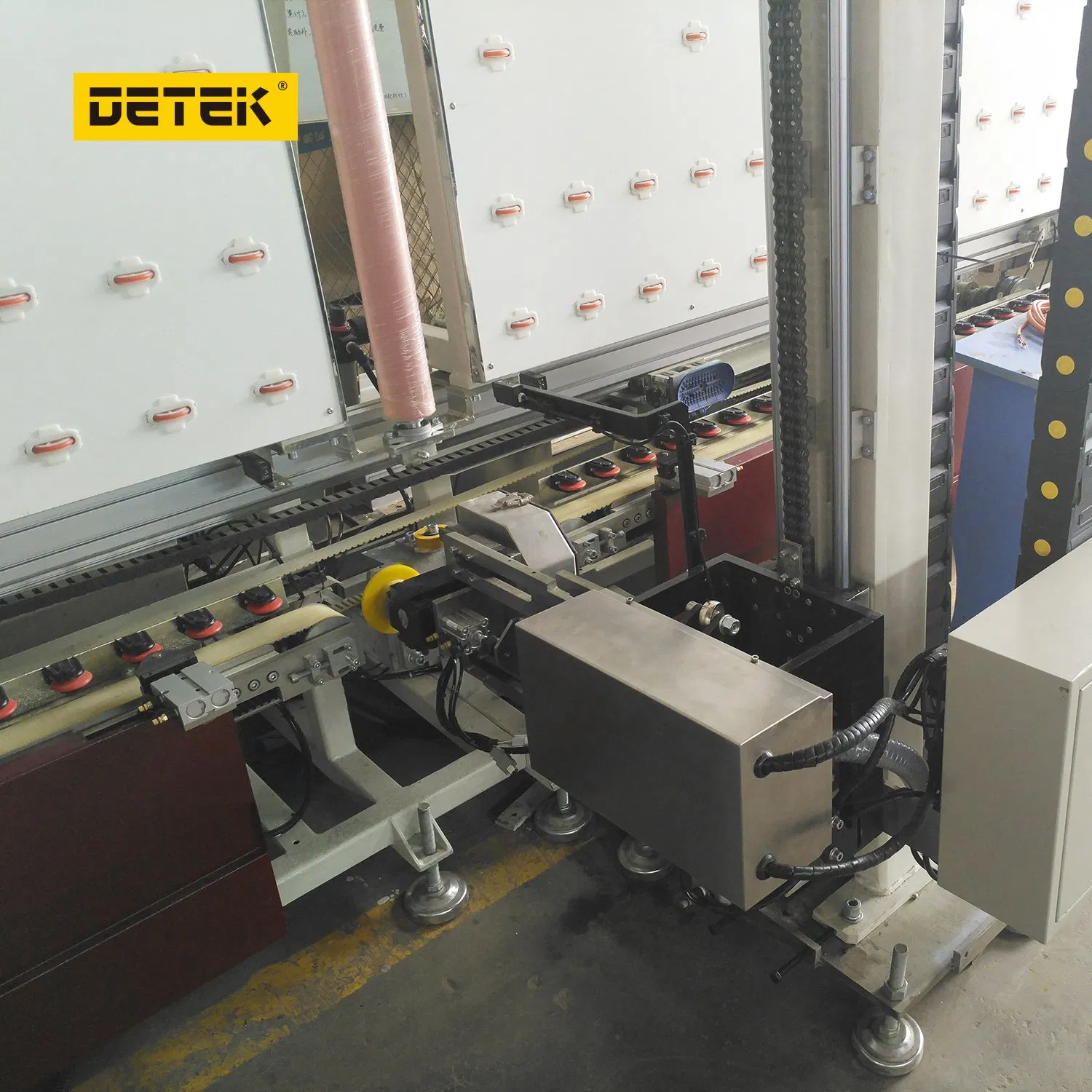

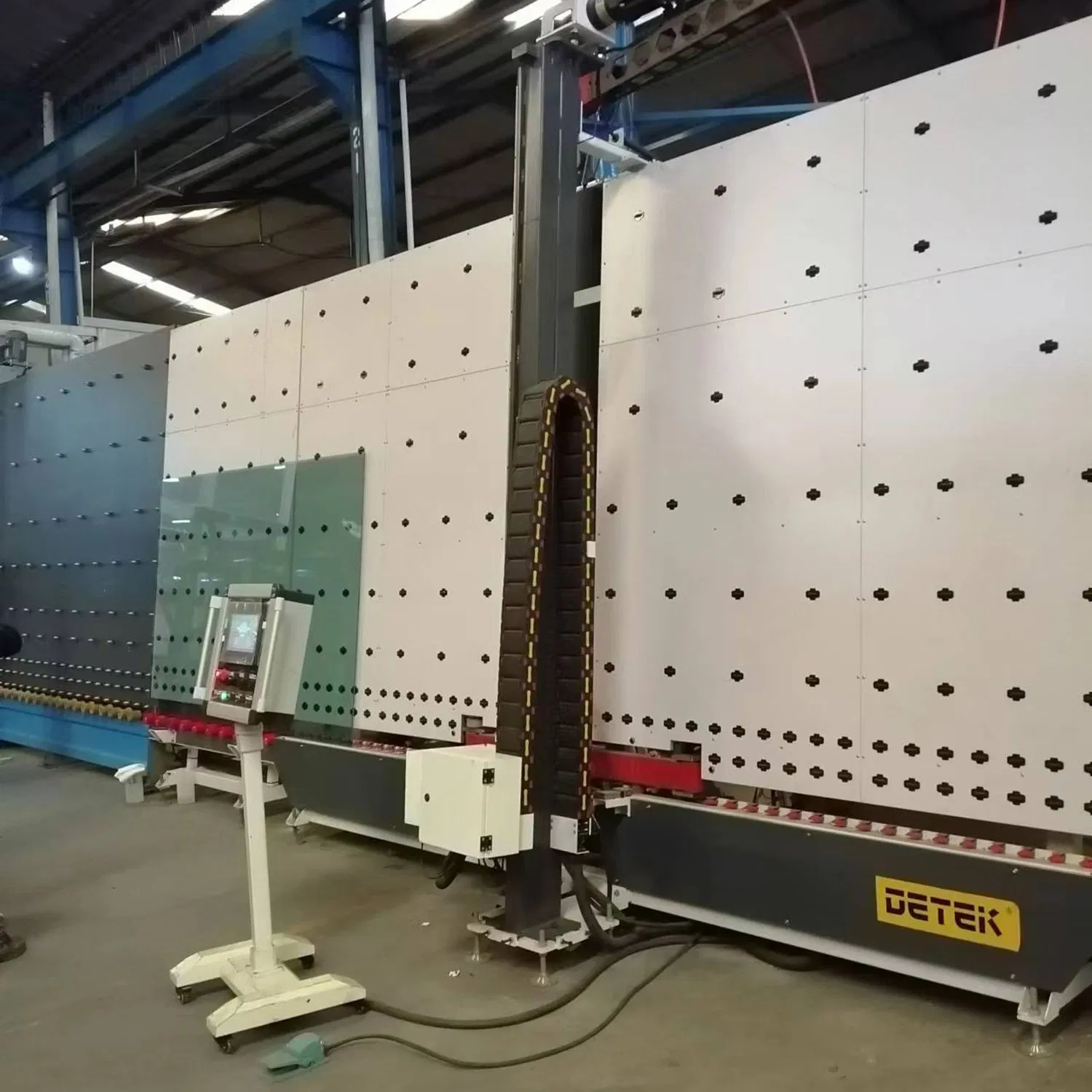

LCM2536 Auto Low-E Deleting Machine

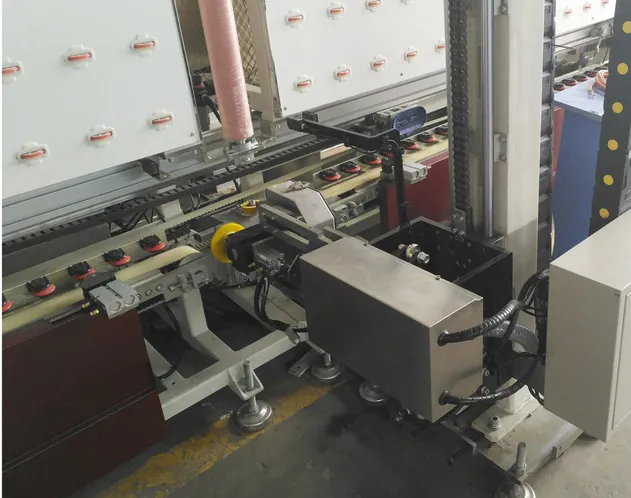

This auto Low-E deleting machine is a vital component for coated glass IGU production. It is designed to be connected with insulating glass production lines to efficiently remove the coating film of Low-E glass.

✓

Application: Vital for coated glass IGU production, removes coating files automatically.

✓

High Strength: Laser cutting, CNC bending, carbon steel with spray plastic back plate.

✓

Smart Control: PLC system with HMI touch screen and Low-E coating automatic identification.

✓

Advanced Motion: Four-axis servo control system for precision deleting.

✓

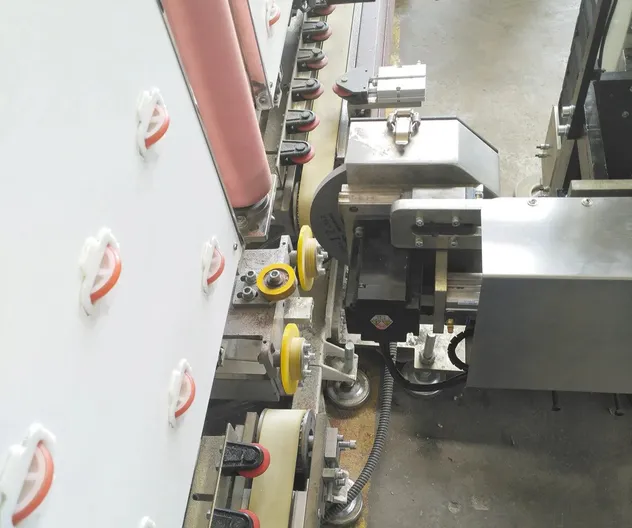

Auto Detection: Automatic glass size detection and abrasive wheel pressure adjustment.

✓

Versatile: Supports abnormal shape coated glass deleting and memory functions.

⚙Specifications

Parameter	Detail
Max. glass processing size	2500×3600mm
Min. glass processing size	350X500mm
Glass thickness	3-19mm
Edge deleting width	10mm
Glass conveyor speed	42 m/min
Edge deleting speed	32 m/min
Abrasive wheel width	10mm/12mm/15mm

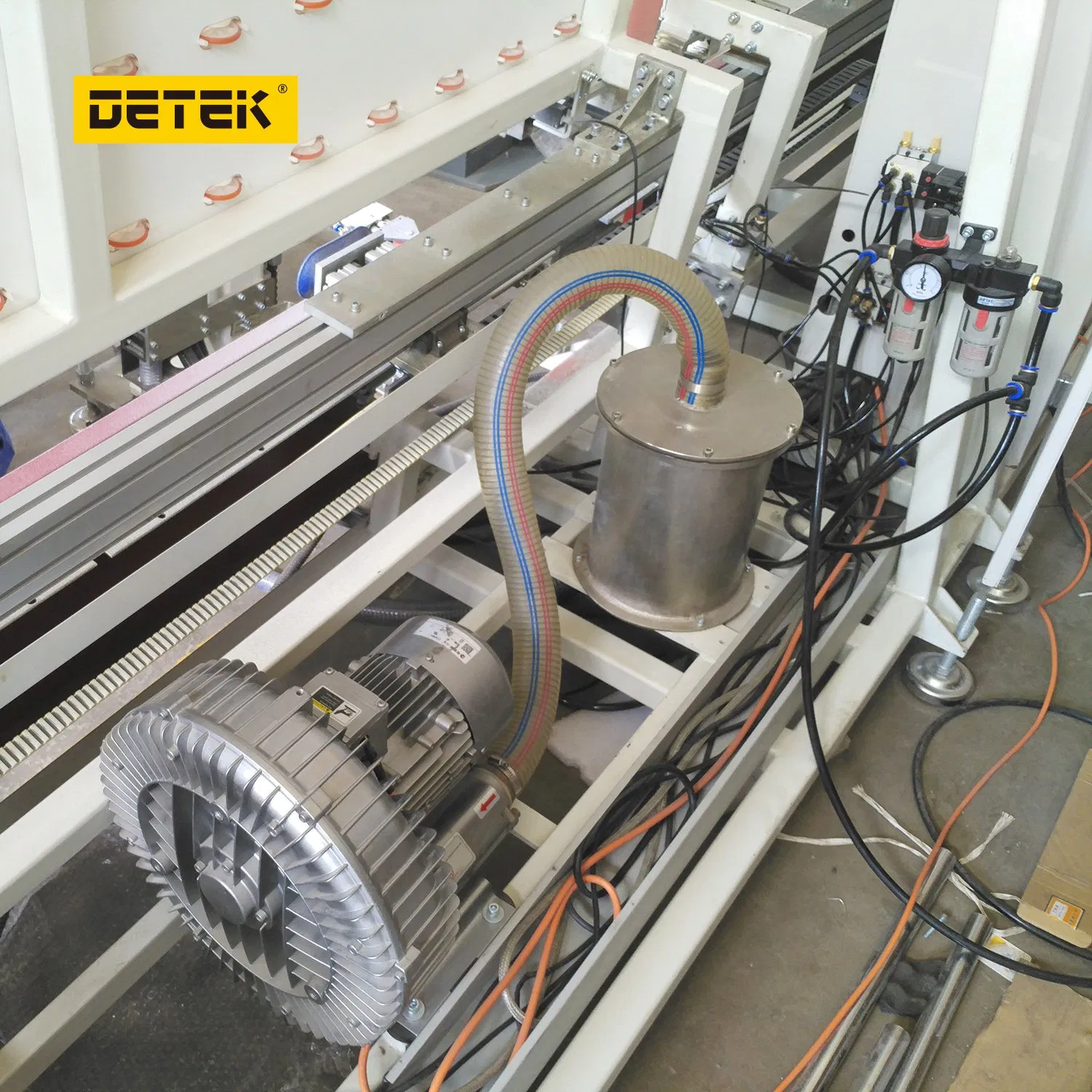

Air supply	0.5-0.8Mpa 0.3m3/min.
Total power	3P 380V 50HZ 3.35Kw

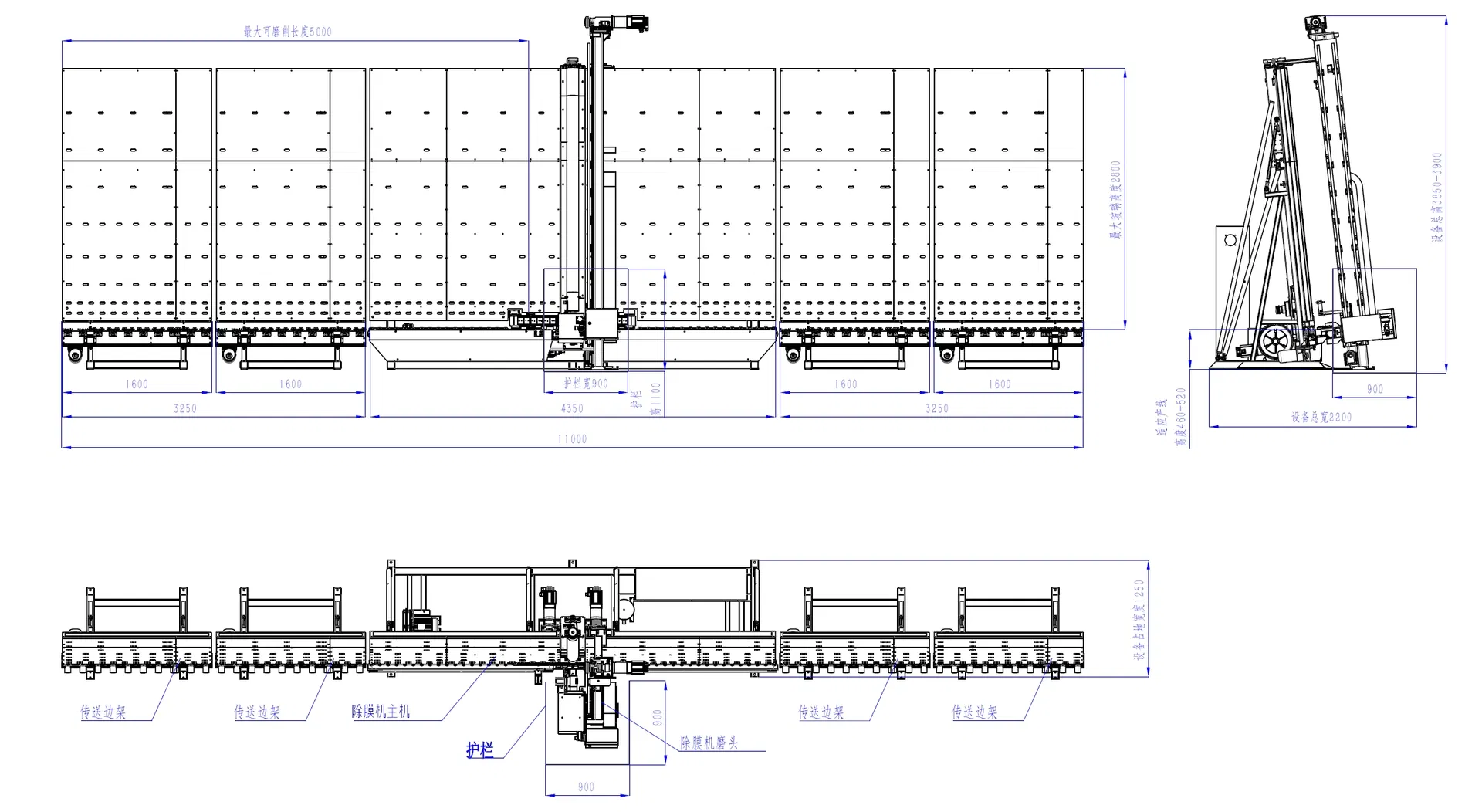

Dimension	9600X2500X3650mm
Weight	2600Kg

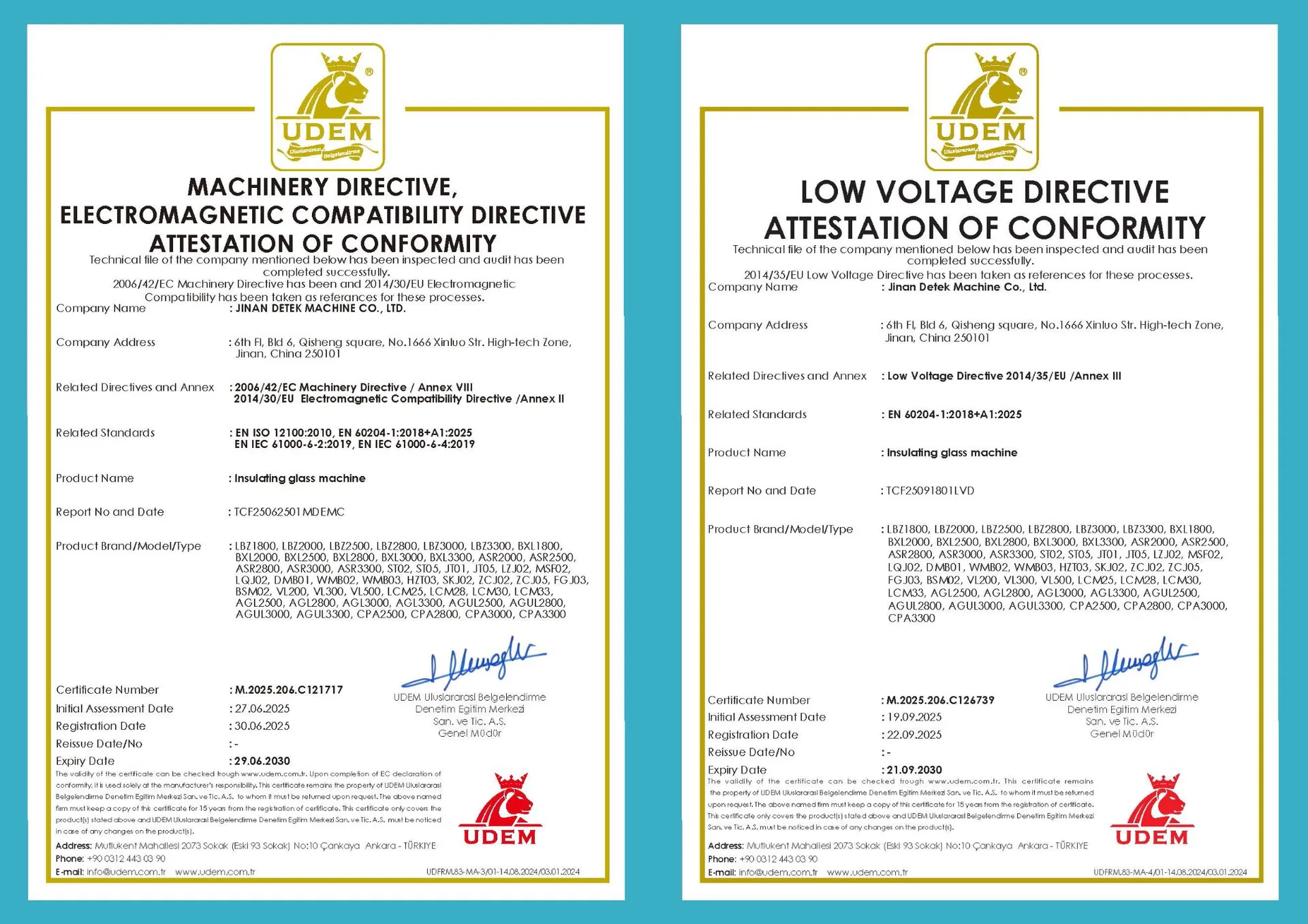

🎖Certifications & Exhibition

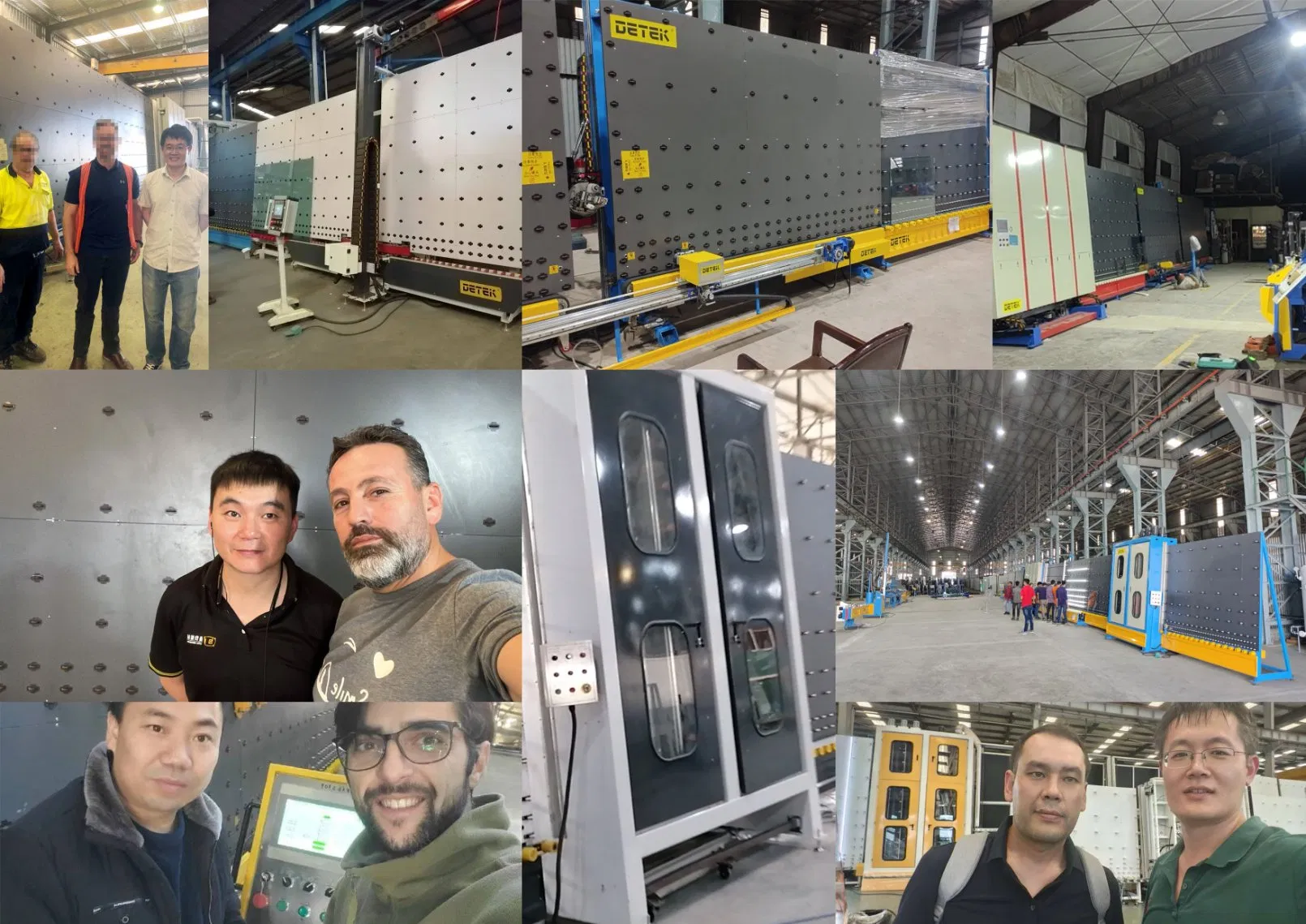

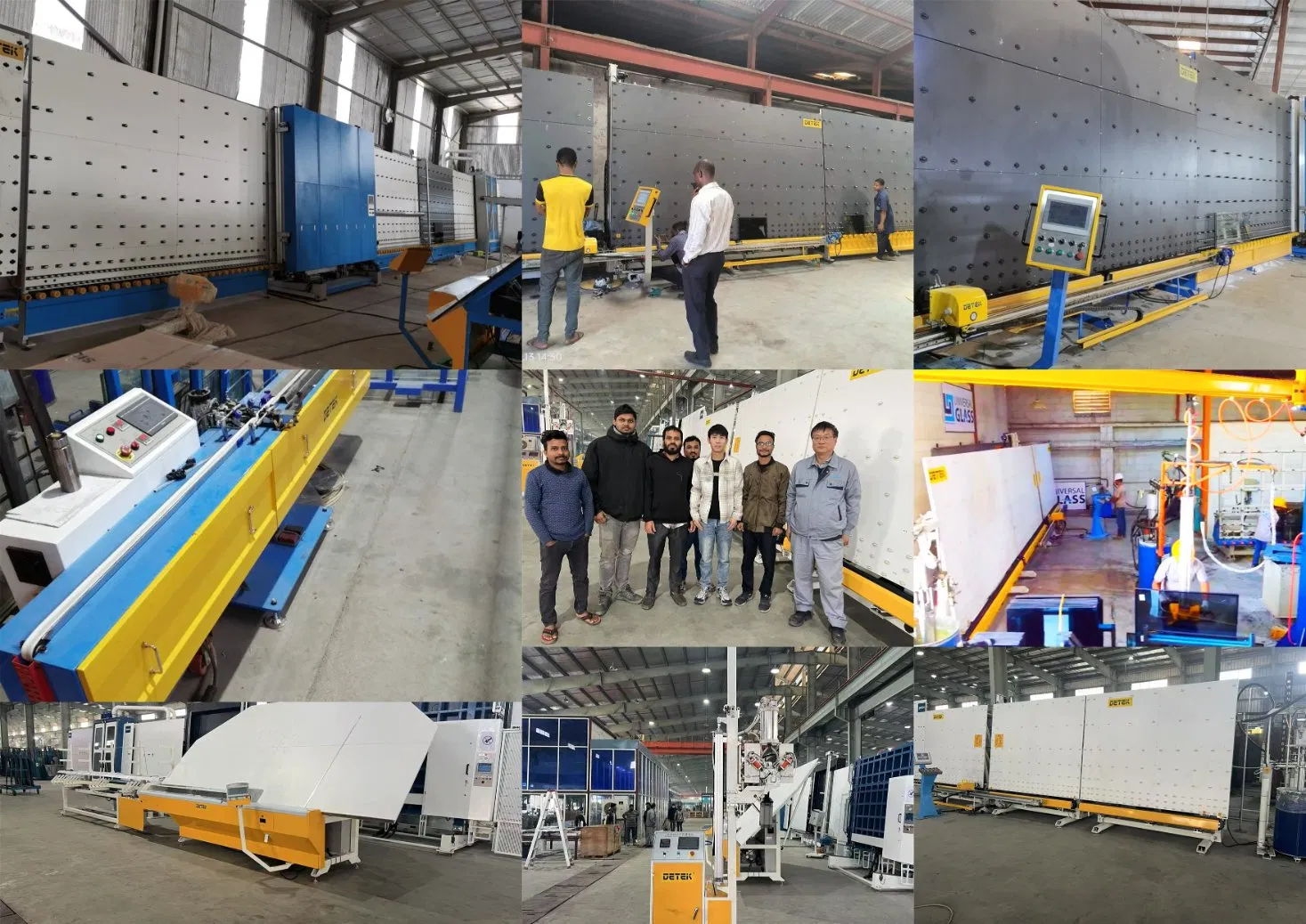

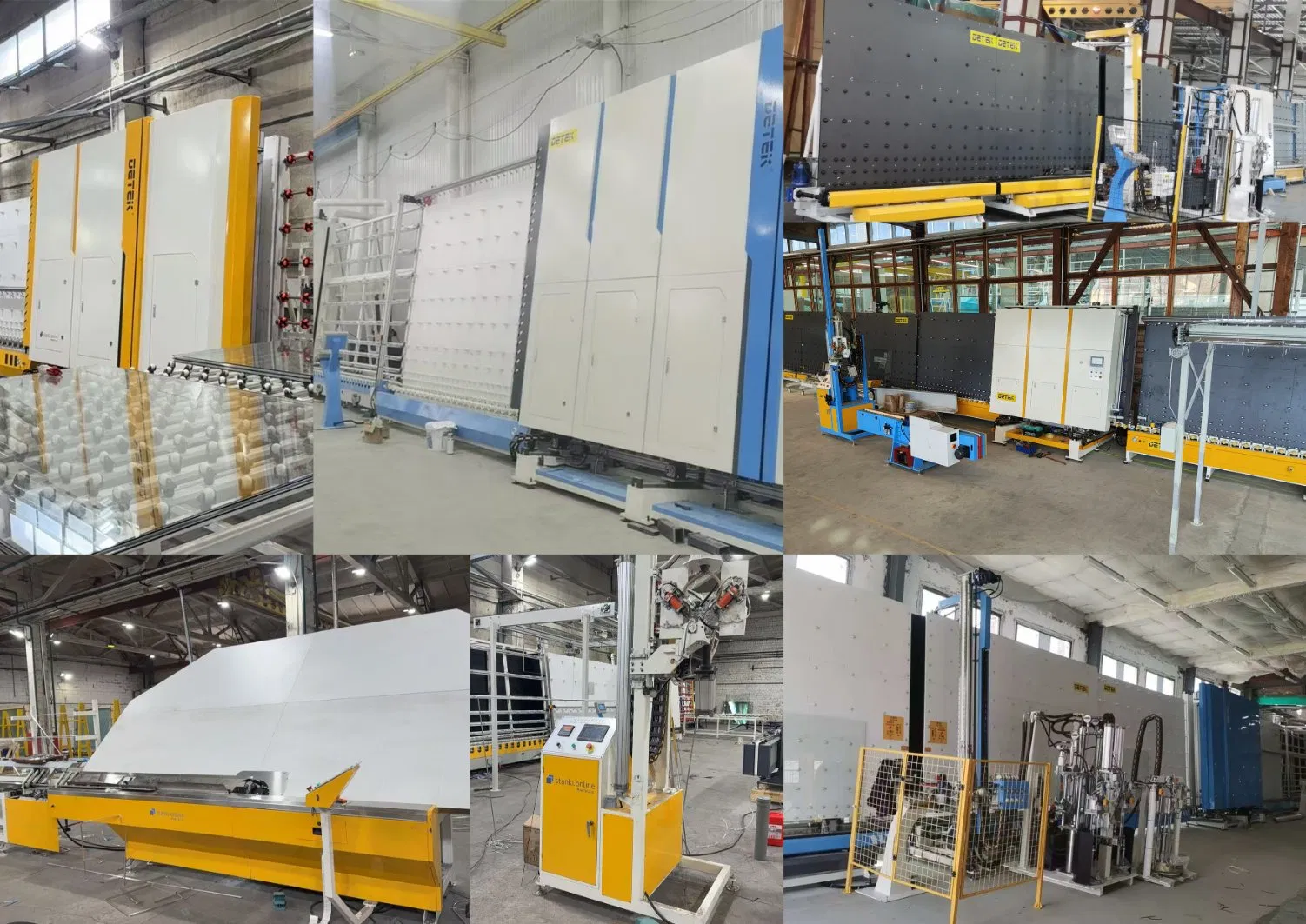

🏭Customers' Workshop

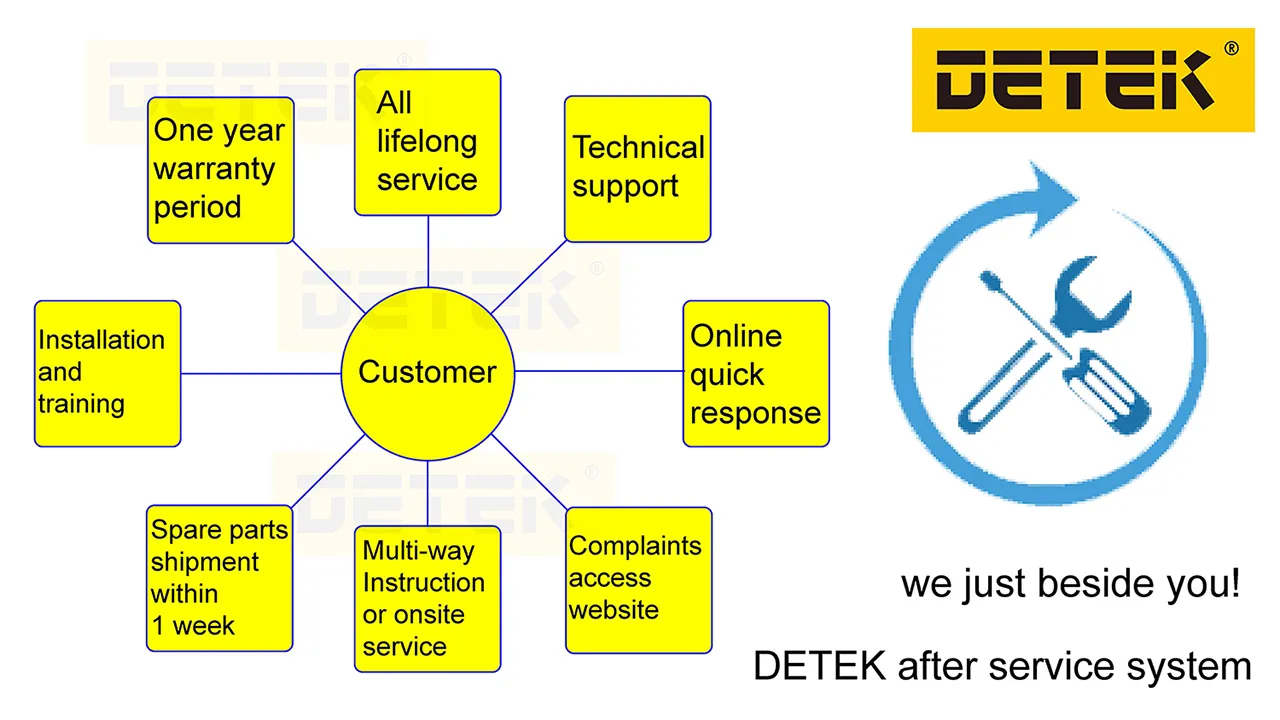

📦Packaging & After Sales

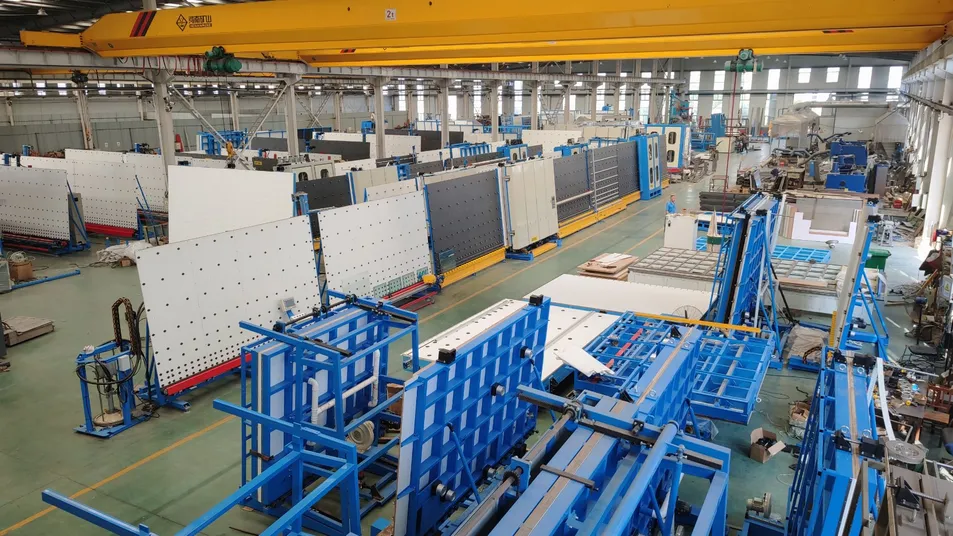

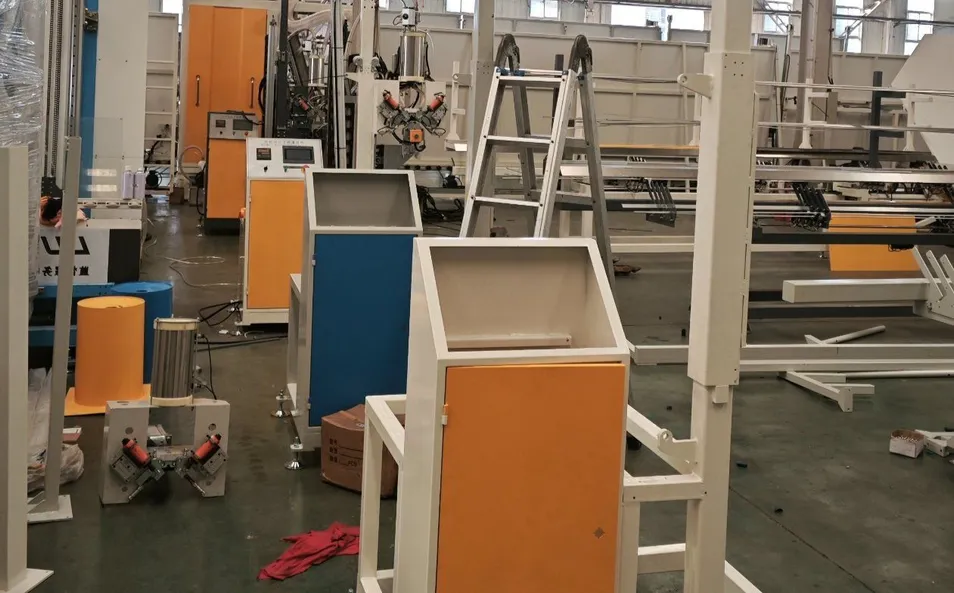

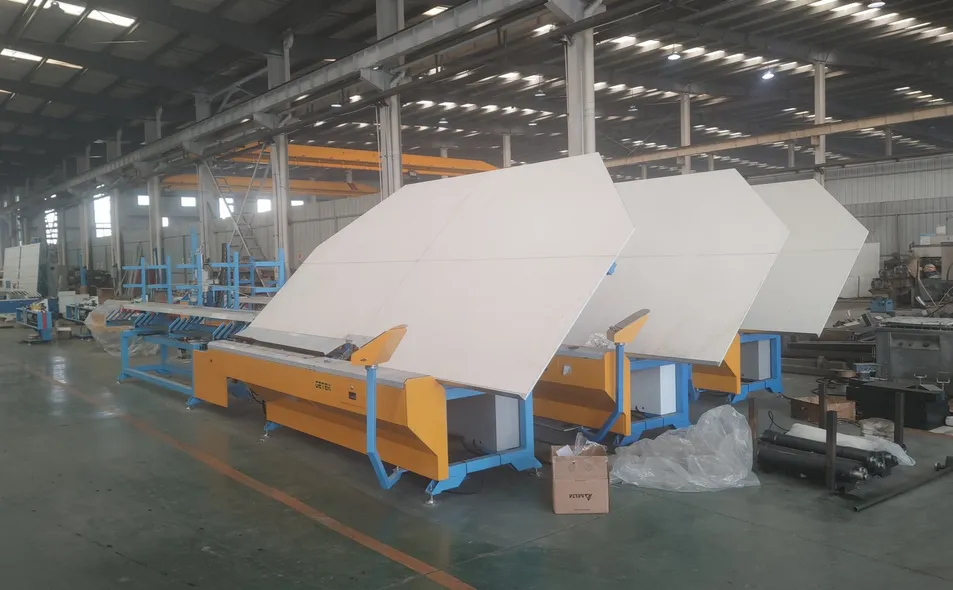

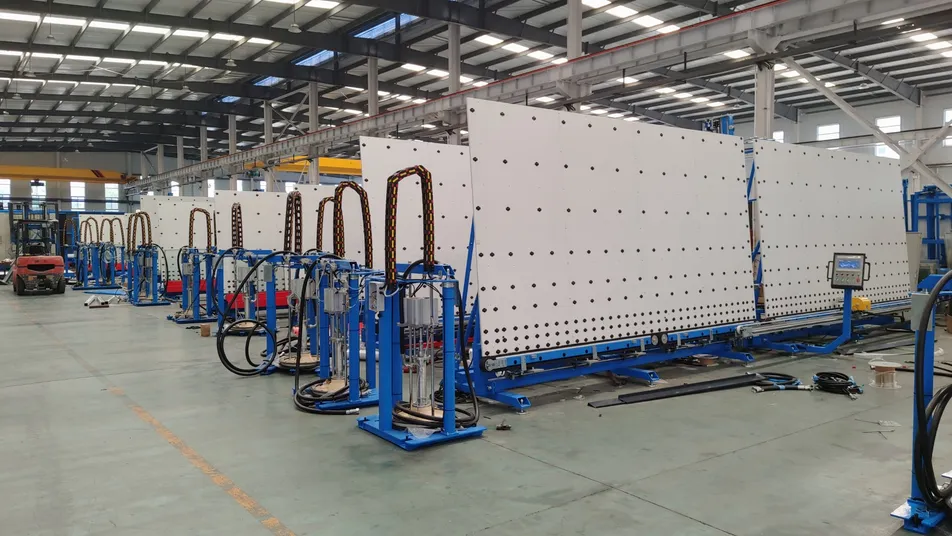

🏢Manufacturing Excellence

As a professional manufacturer of insulating glass processing machinery, we focus on design, research, and development. Our 20,000 sqm workshop is equipped with modern machining centers, laser cutting, bending, and plastic spray facilities. Our researching and developing team ensures high production efficiency and stable performance.

❓Frequently Asked Questions

What is the lead time for the machines?

The lead time is typically 60 days for a whole production line and 30 days for a single machine. Special requirements should be discussed with our sales team.

How is the shipping arranged?

All machines are designed to fit into GP containers to save on sea freight. We use seaworthy packaging and professional container loading for safe arrival.

What kind of warranty is provided?

We offer a one-year guarantee (excluding wearing parts). We provide life-long service and can dispatch engineers for on-site assistance upon request.

How are the machines installed at the customer's site?

Installation service is included. Customers are responsible for the engineer's round-trip air tickets, local transportation, and accommodation. Installation is typically completed within 15 days.

What is your response time for after-sales service?

Spare parts can be dispatched within 72 hours. Our experienced technical sales team and service engineers are ready for on-site instruction and troubleshooting.

Can the machine handle special shapes?

Yes, the machine features an abnormal shape coated glass deleting function, controlled via the advanced PLC system.
