Product Description

Basic Information
Model NO.
WLBZ2025-C
Color
Can Be Customized
Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Component
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Type
Insulating Glass Production Line
Structure
Vertical
Washing Type
Ultrasonic Glass Washing Machine
Condition
New
Warranty
1 Year
Specification
23000*2500*2900MM
Product Description

Automatic Insulating Glass Gas Filling Production Line - WLBZ2025-C

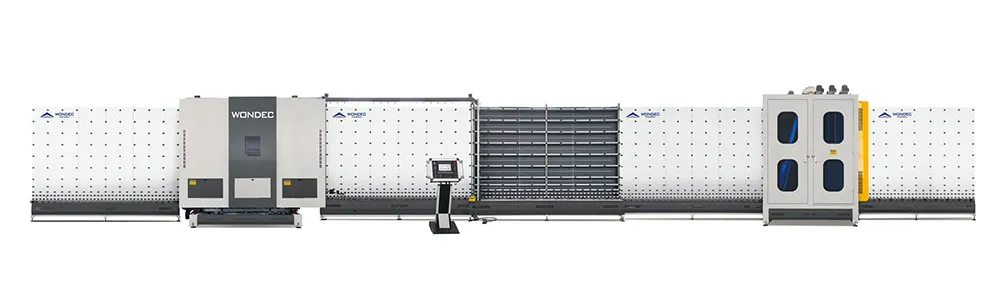

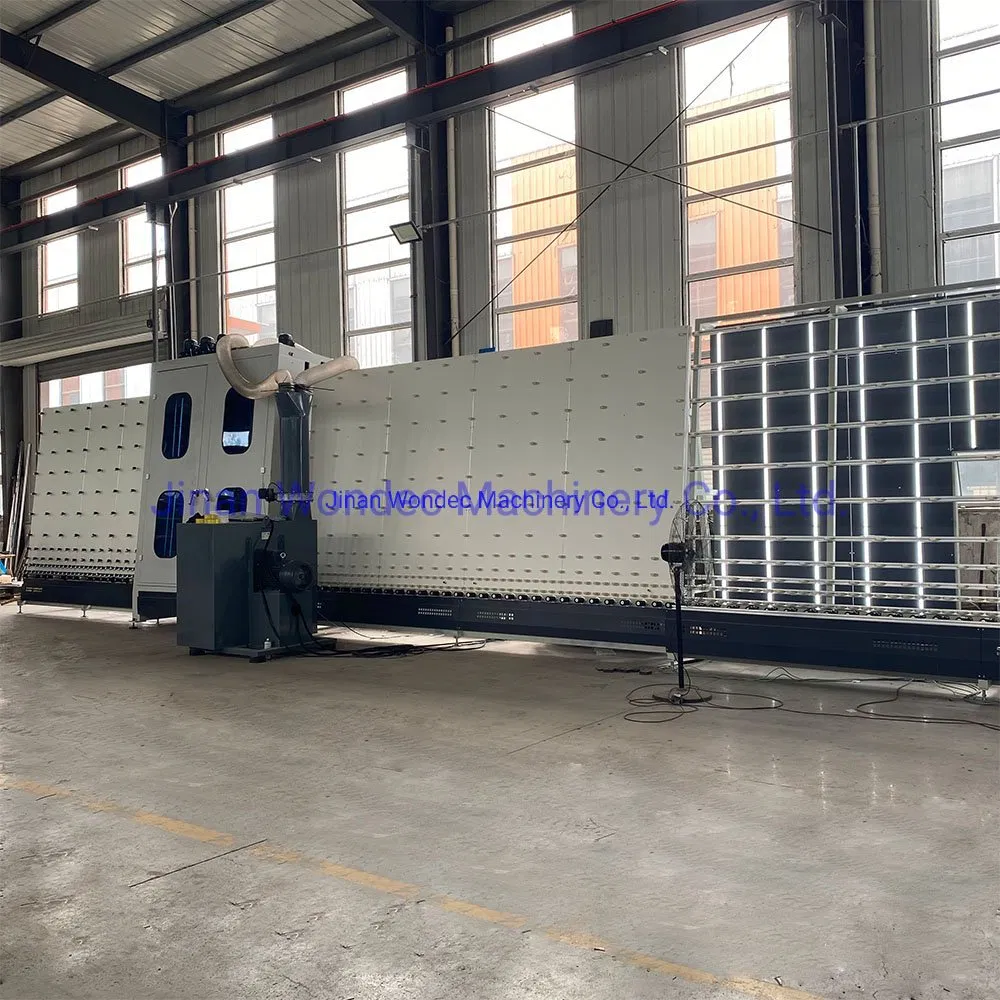

Automatic Insulated Glass Production Line

The whole insulating glass production line usually includes 7 major sections:

  • Section 01: Loading Section - Includes Low-E checking with carbon fiber conductive brushes.

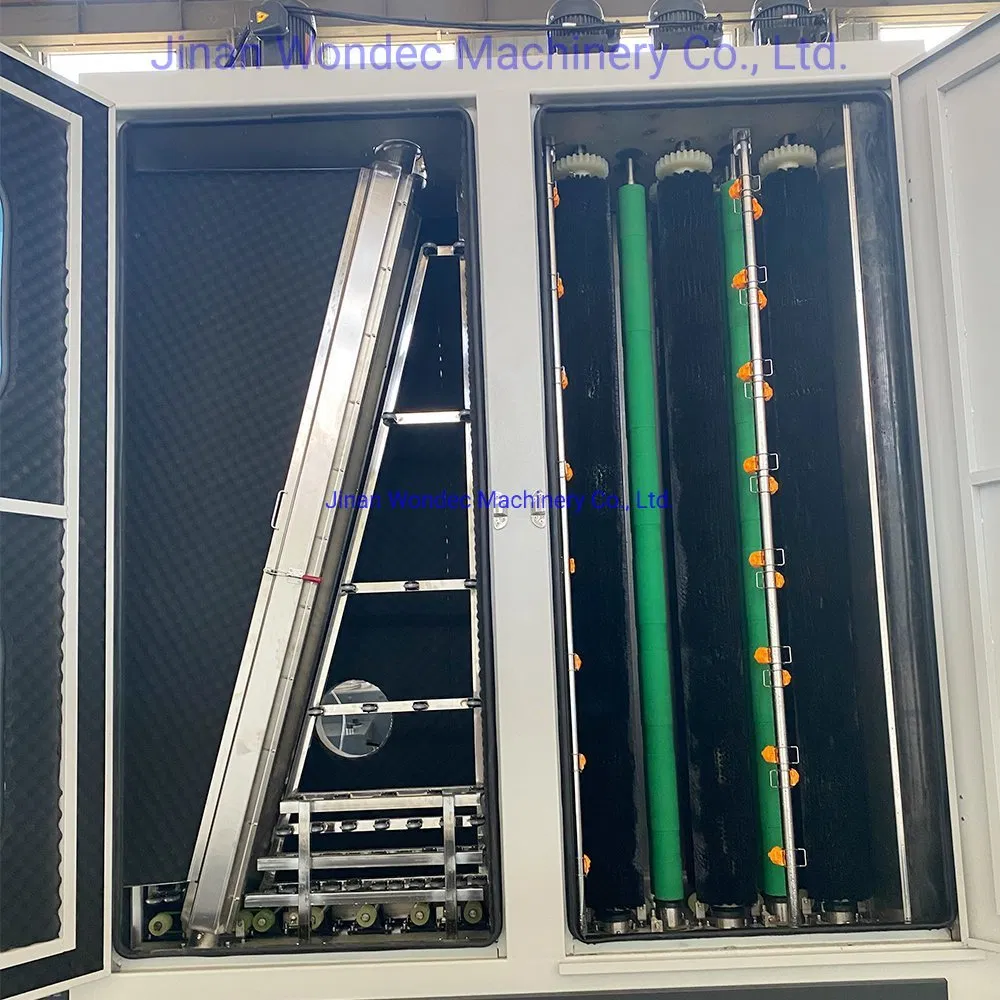

  • Section 02: Washing and Drying Section - Stainless steel construction with 3 pairs of independent motor-driven brushes.
  • Section 03: Conveyor Section - Dual motor drive allowing two small glasses to be parked simultaneously.
  • Section 04: Light Inspection & Spacer Locating - High-quality LED lamps for energy-saving inspection.
  • Section 05: Outside Assembly - Designed for fast, efficient operation with low failure rates.
  • Section 06: Inside Assembly & Panel Press - Servo motor controlled with integrated argon gas filling.
  • Section 07: Unloading Section - Efficient storage and transmission, compatible with sealing robots.
Detailed Photos

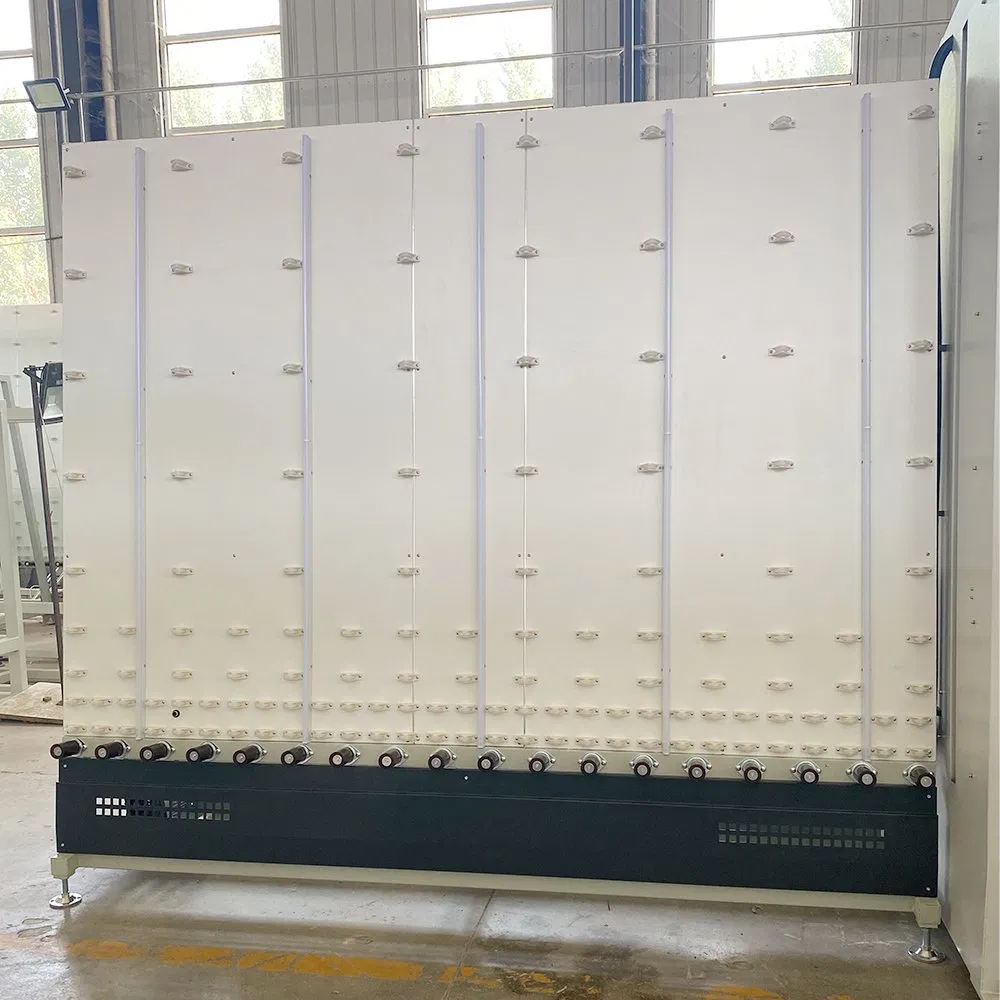

Glass Machine Detail 1

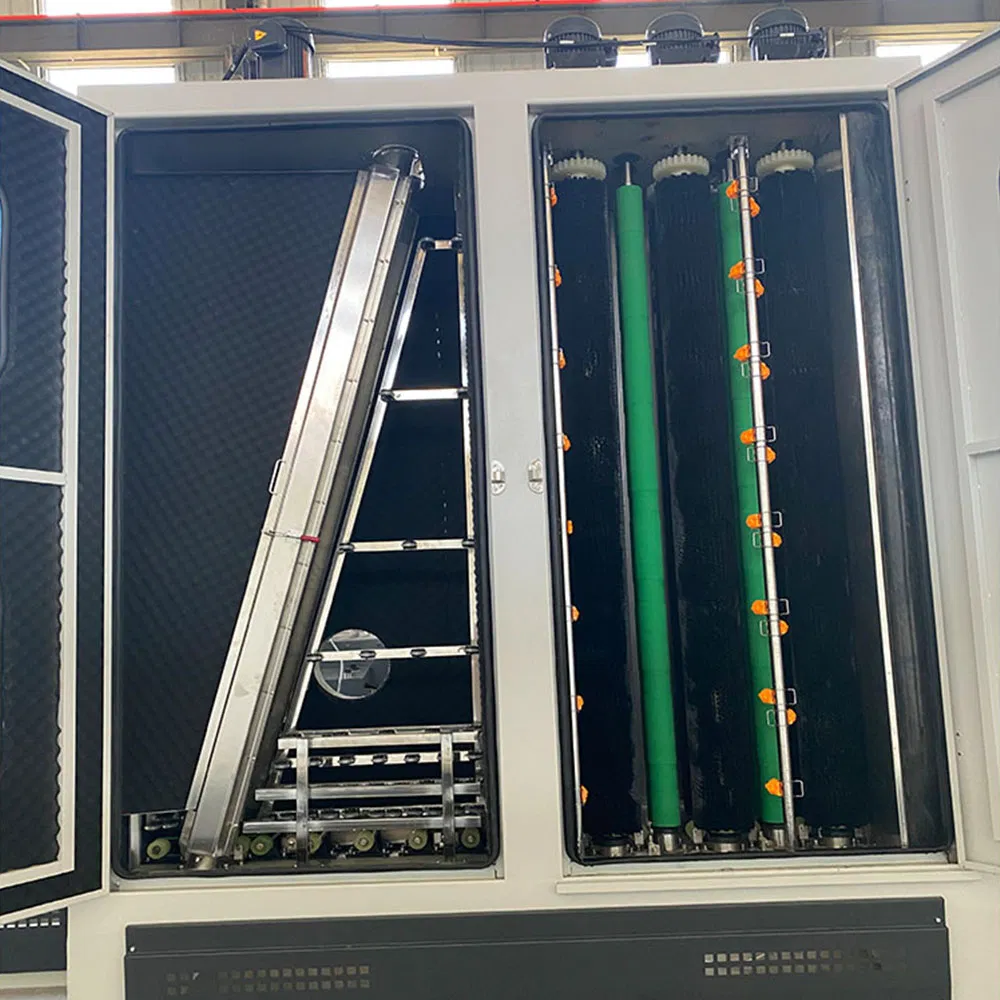

Glass Machine Detail 2

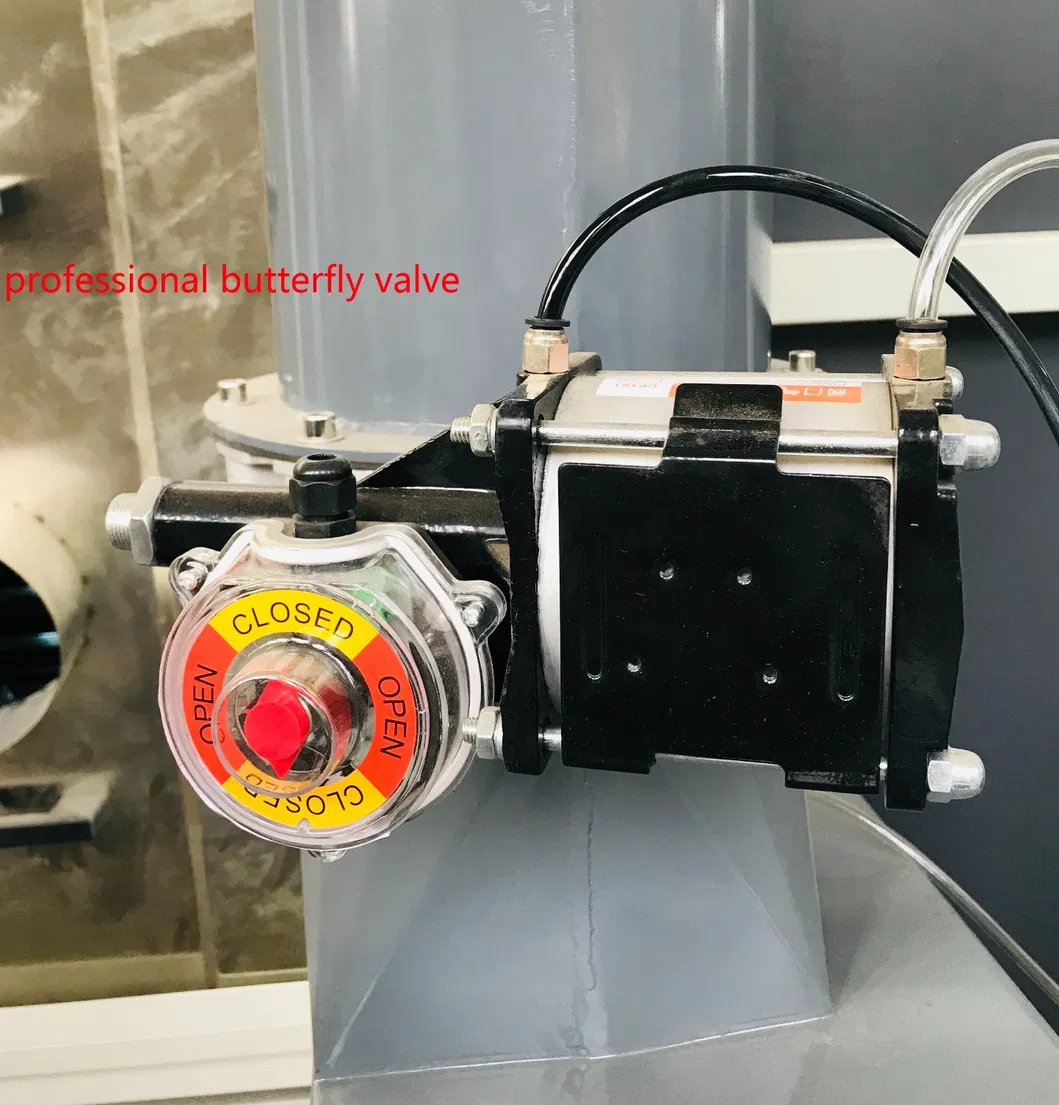

Glass Machine Detail 3
Glass Machine Detail 4

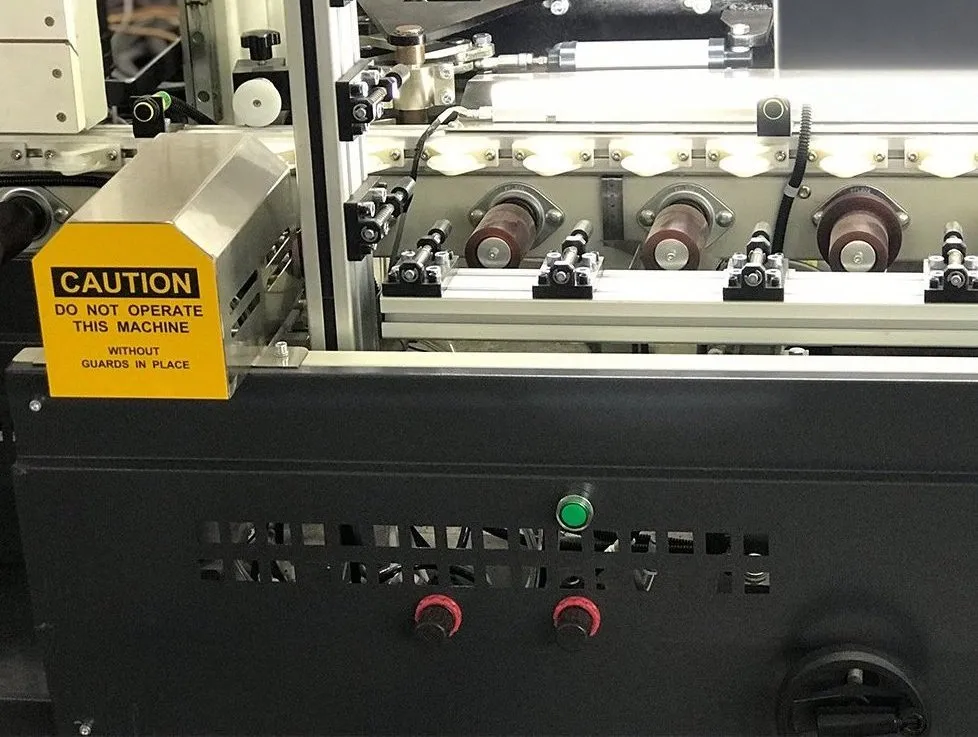

Glass Machine Detail 5

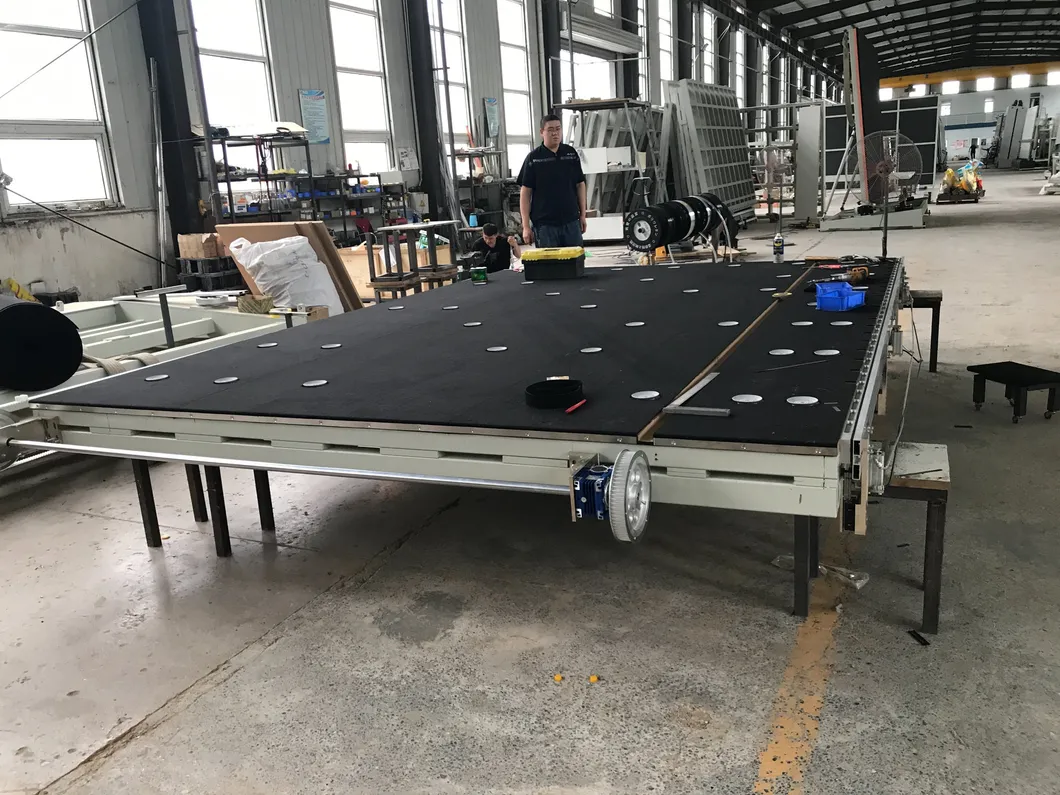

Glass Machine Detail 6
Technical Parameters
Parameter Item Specifications (WLBZ2025)
Total Power30kw
Max Glass Size2000 x 2500mm
Min Glass Size300 x 500mm
Single Glass Thickness3 ~ 12mm
Max I.G. Unit Thickness12 ~ 80mm
Glass Washing Speed3 ~ 12m/min
Working Speed2 ~ 48m/min
Air Flow0.8m³/min
Water Electrical Conductivity≤40μs/cm
Overall Dimension23000 * 2500 * 2900mm
Packaging & Shipping

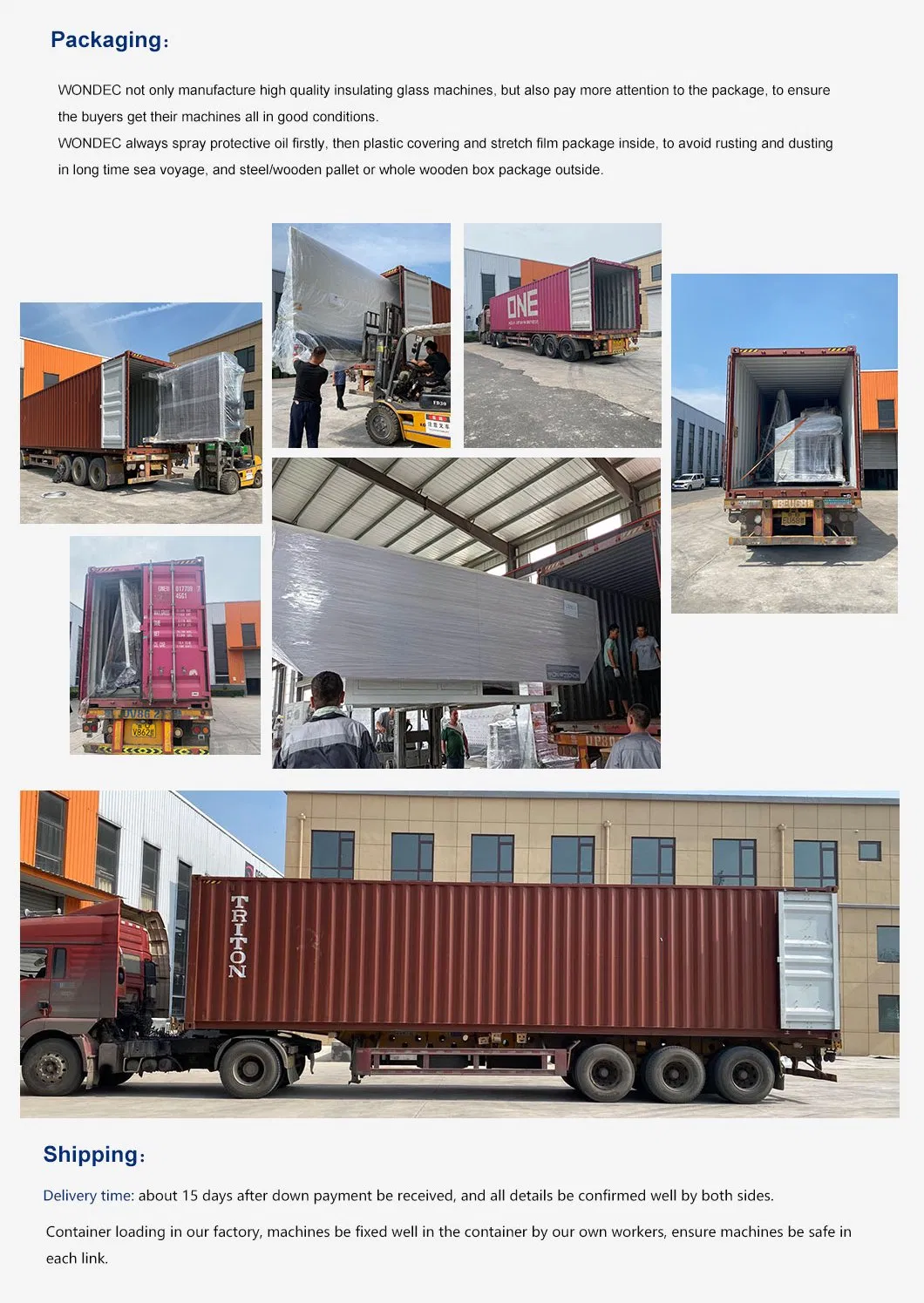

Packaging and Logistics
Our Service

Pre-sales: We offer equipment footprint layouts based on your building floor plan and detailed technical drawings.

After-sales: We provide weekly production reports, equipment installation, debugging, and personnel training. Includes one year of coverage (excluding wearing parts) and lifetime technical support.

Service Support
Frequently Asked Questions
Which countries are your products exported to?
Our equipment has been exported to 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
How do we operate the glass processing machinery?
We provide comprehensive paper instructions in English and offer training support until your team is proficient in operating the machinery.
What is your quality control process?
The entire production procedure undergoes regular inspection. Every component is inspected before use, and the complete machine is tested before leaving the factory. Testing videos and pictures are available before delivery.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in this field, providing not just machines but complete industrial solutions.
What happens if the machine has problems after ordering?
Free parts are sent during the warranty period for any issues. We offer 24/7 technical service and support via phone and digital communication channels.
Do you provide on-site installation?
Yes, we can arrange for engineers to visit your factory to install the machinery and provide hands-on training for your staff.
