Basic Information
Power Supply
220/380/415/480V, 50/60Hz
Dimension
1750*950*1980 mm
Key Selling Points
Easy to Operate
Core Components
Motor, PLC, Pump
Capacity
500 Sets Per Month

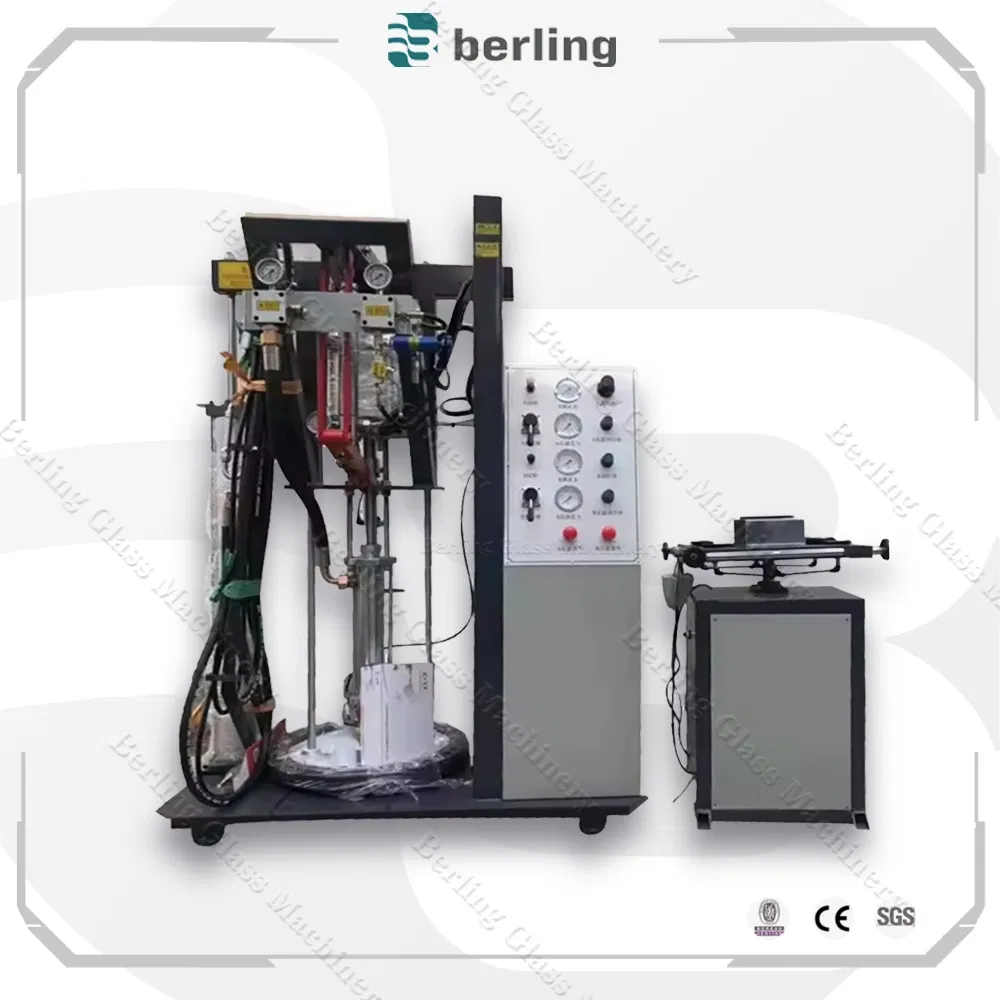

Equipment Advantages
- Suitable for mass production of insulating glass and curtain walls.

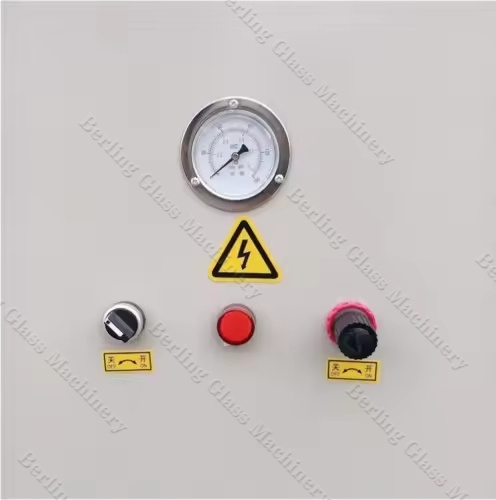

- Pneumatic control, easy to operate.
- Main and auxiliary motor adopt advanced technology, stable power, large sealant output.

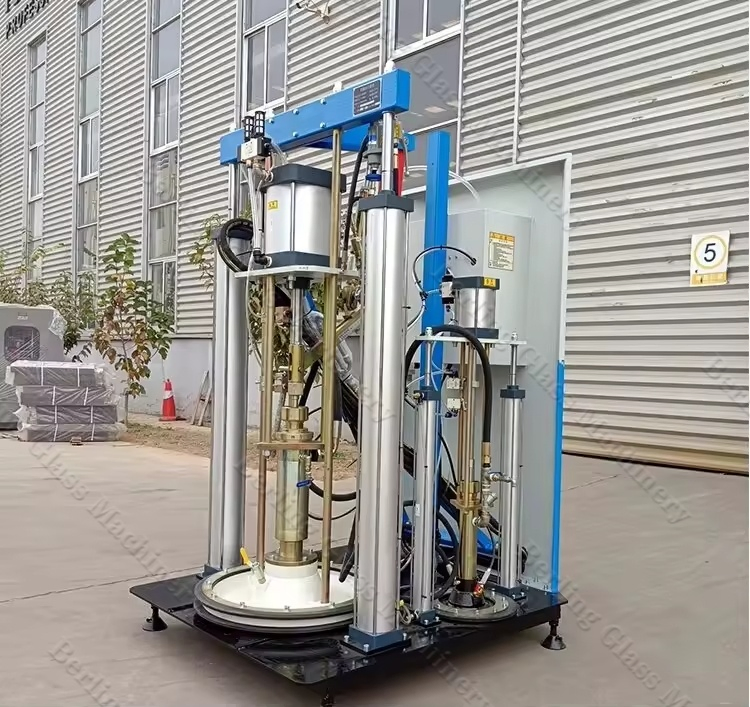

- Integrated structure of base material pump, curing agent pump and proportioning pump to avoid leakage.
- Special device in pumps to avoid running idle.
- Special check valve for fluent sealant output and complete mixing.
- Multichannel filtering device eliminates impurities.
- Stainless steel mixing spindle, precise and durable.

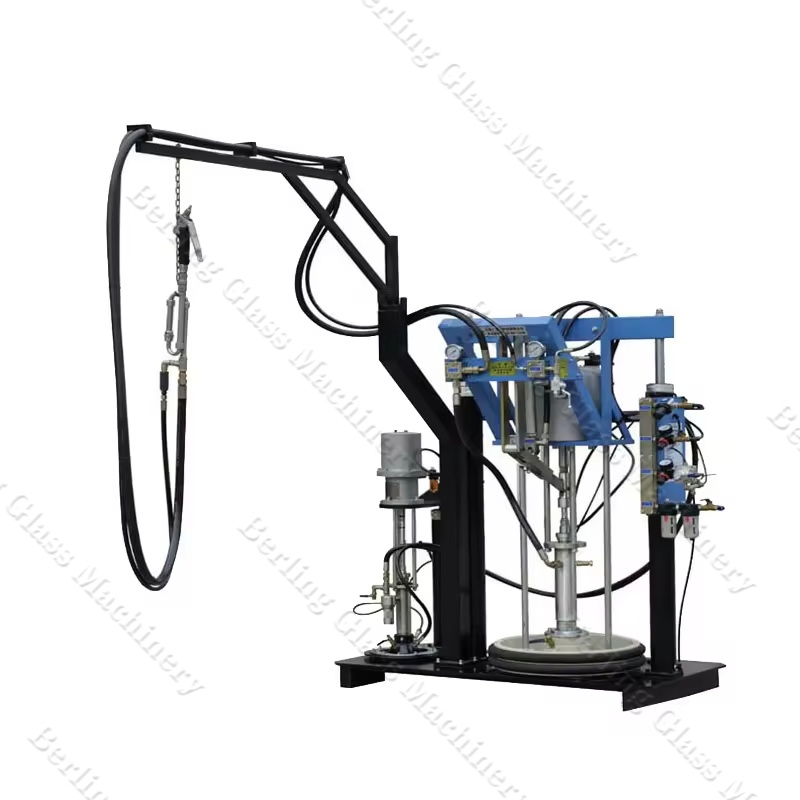

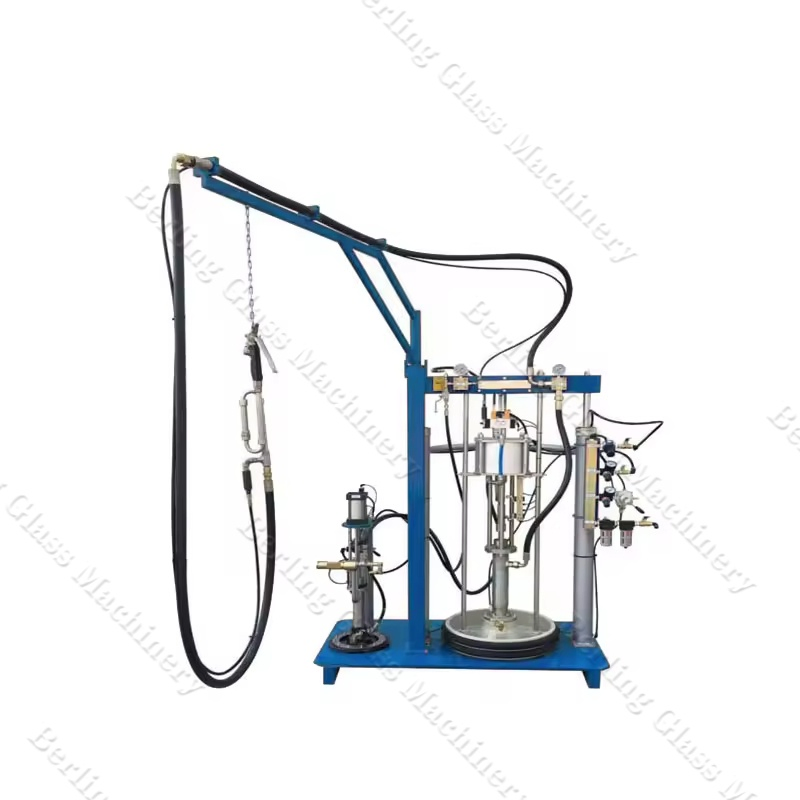

- Universal device on rotating arm, flexible and portable.
Product Parameters
| Model | BL-T03 |
| Mixing Ratio | 6:1 ~ 14:1 |
| Material Drum | 55 gallon (200L) |
| Curing Agent Drum | 5 gallon (20L) |
| Max. Air Consumption | 0.8 m³/min |
| Max. Dispensing Pressure | 32 MPa |
| Output | 4~10 L/min |
| Air Supply Pressure | 0.6~1.0 MPa |
| Outside Dimension | 1750*950*1980 mm |
| Weight | 510 Kg |

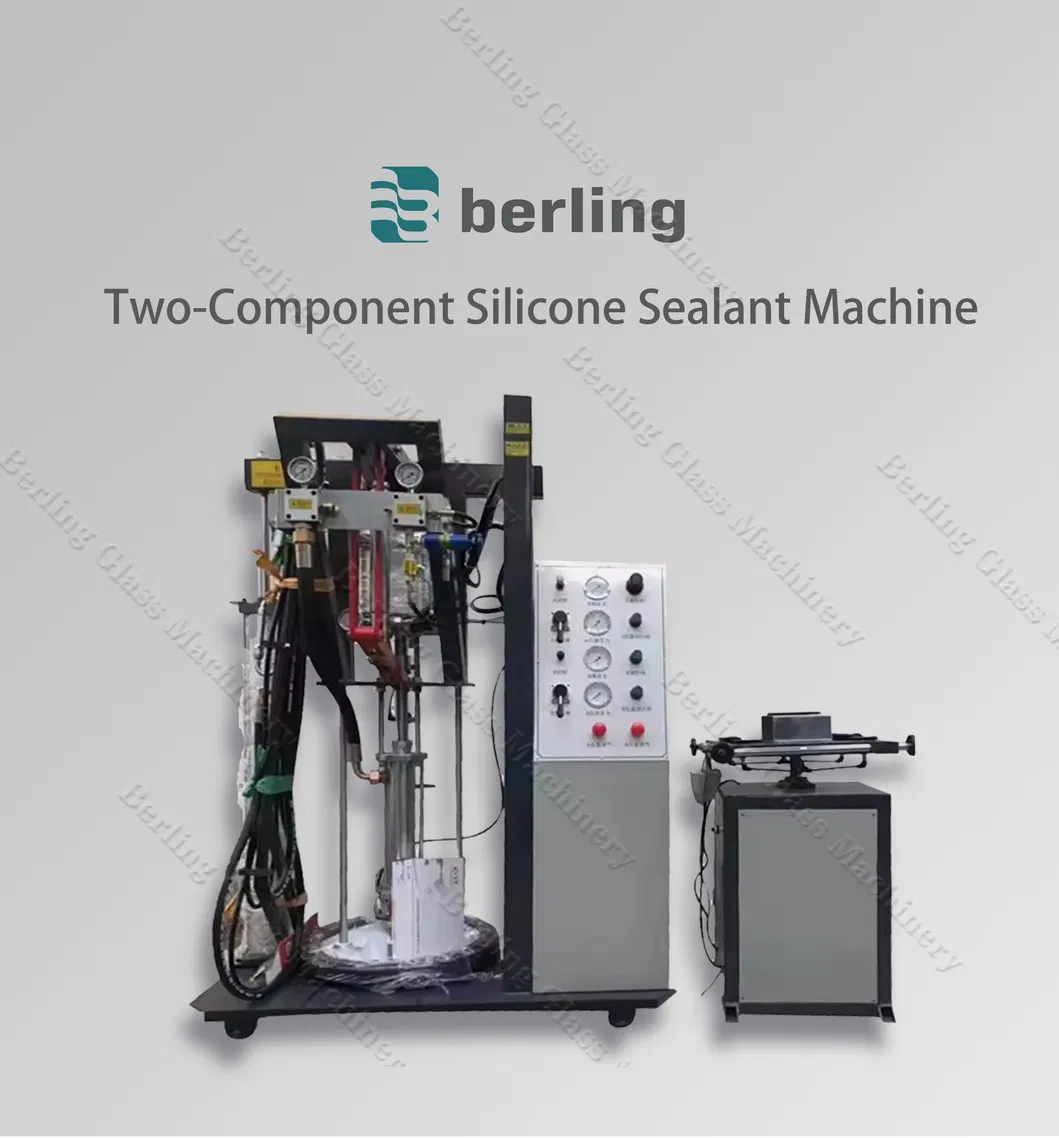

| Machine Type | Two-component Sealant Extruder |
| Glass Thickness | 3-25mm |
Detailed Photos

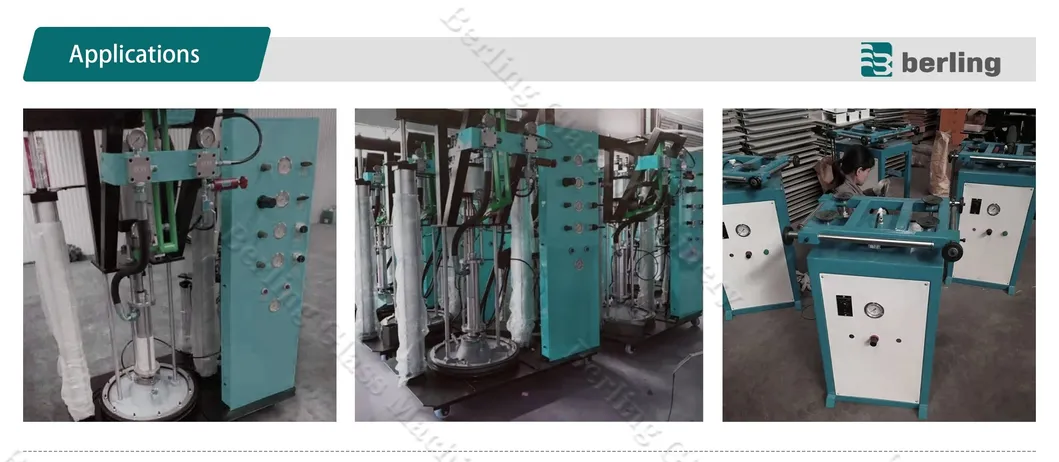

Application Scenario
Our Advantages & Exhibition
Packaging & Certifications
Frequently Asked Questions (FAQ)
What is the mixing ratio of the BL-T03 sealant extruder?
The machine supports a flexible mixing ratio ranging from 6:1 to 14:1, making it suitable for various types of two-component sealants.
What are the power requirements for this machine?
The BL-T03 is compatible with multiple voltage standards including 220V, 380V, 415V, and 480V at 50/60Hz, with a total power consumption of 18kw.
Is this machine suitable for large-scale production?
Yes, it is specifically designed for the mass production of insulating glass and curtain walls, featuring an output of 4 to 10 liters per minute.
How does the machine prevent sealant leakage?
The machine utilizes an integrated structure for the base material pump, curing agent pump, and proportioning pump, which effectively prevents sealant leaks during operation.
What type of maintenance does the pneumatic control system require?
The pneumatic control system is designed for ease of operation and reliability. Regular inspection of the air supply pressure (0.6-1.0 MPa) and cleaning the multichannel filtering device is recommended.
What is the warranty period for the BL-T03?
We provide a 1-year warranty for the machine, ensuring reliable performance and support for your production line.
