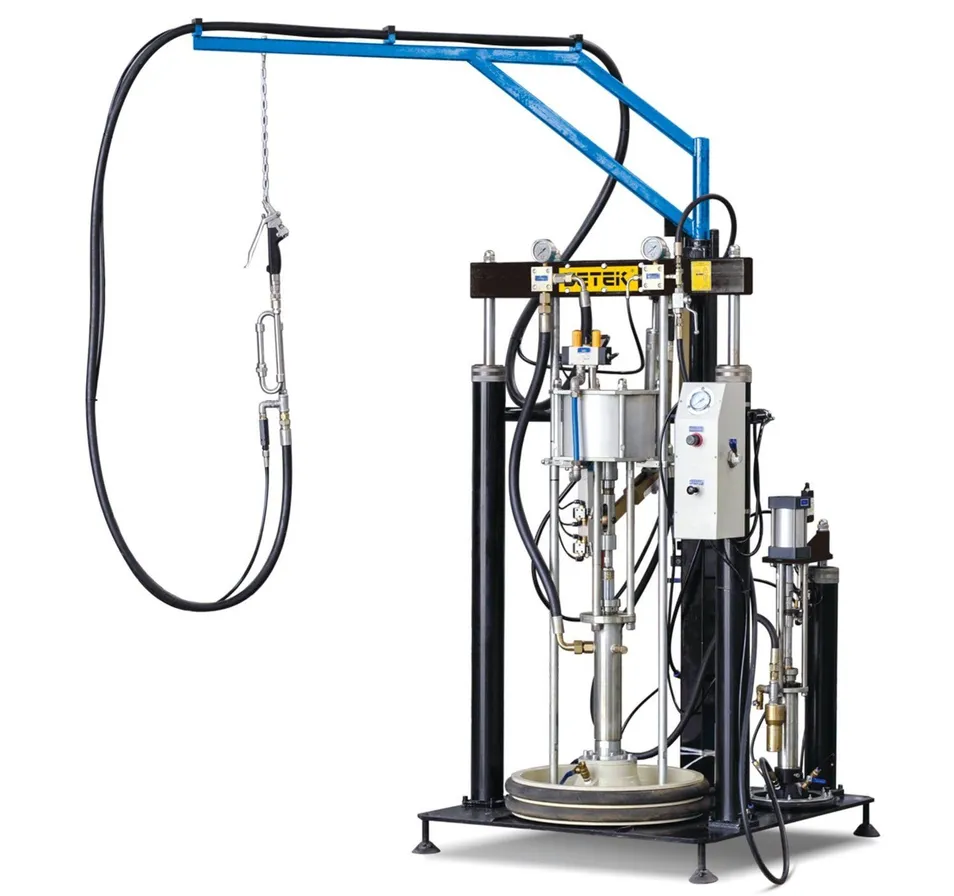

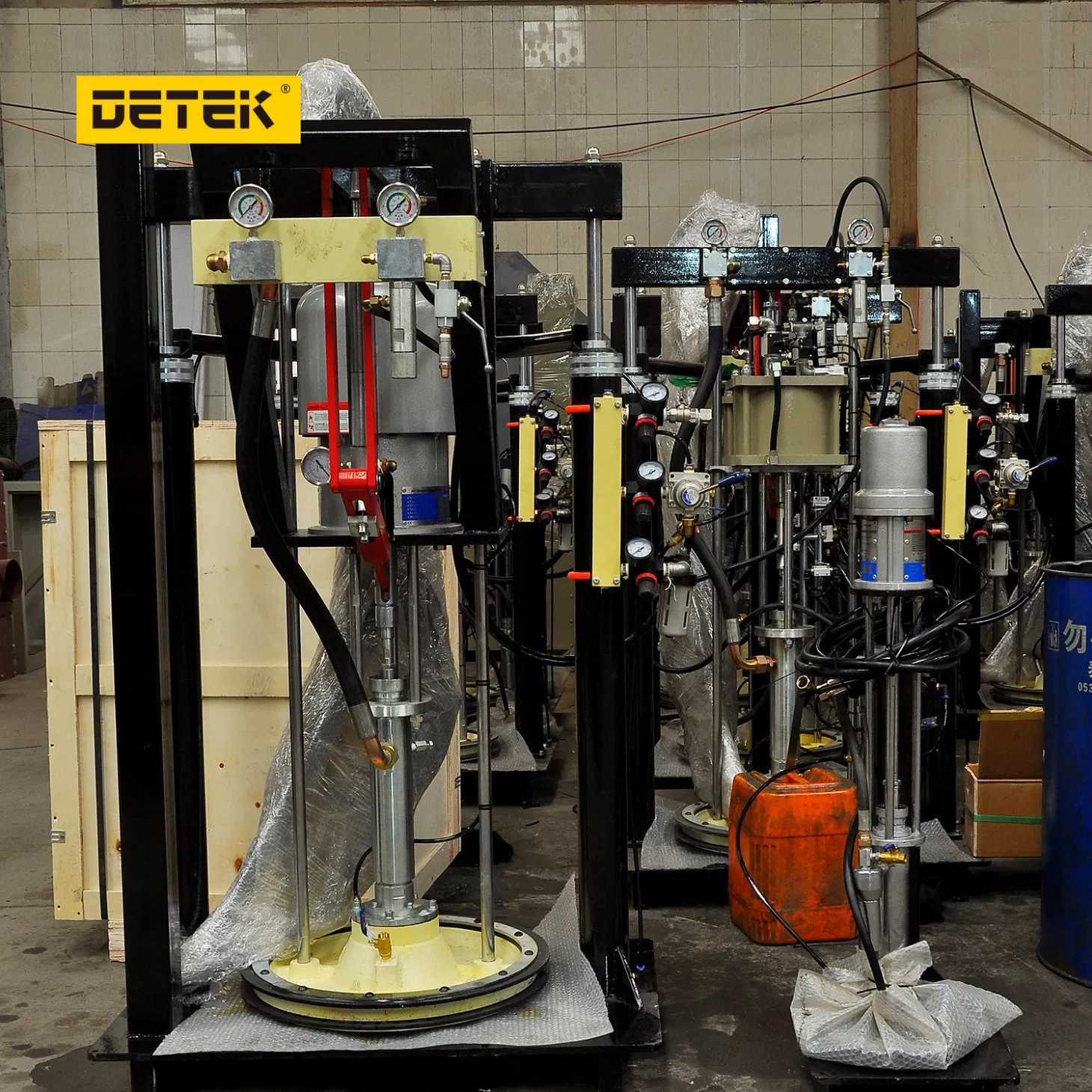

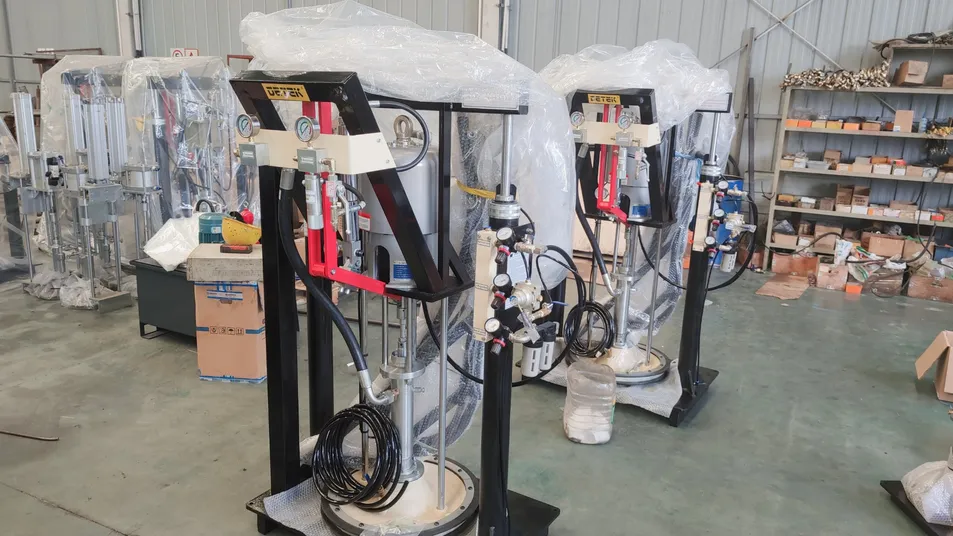

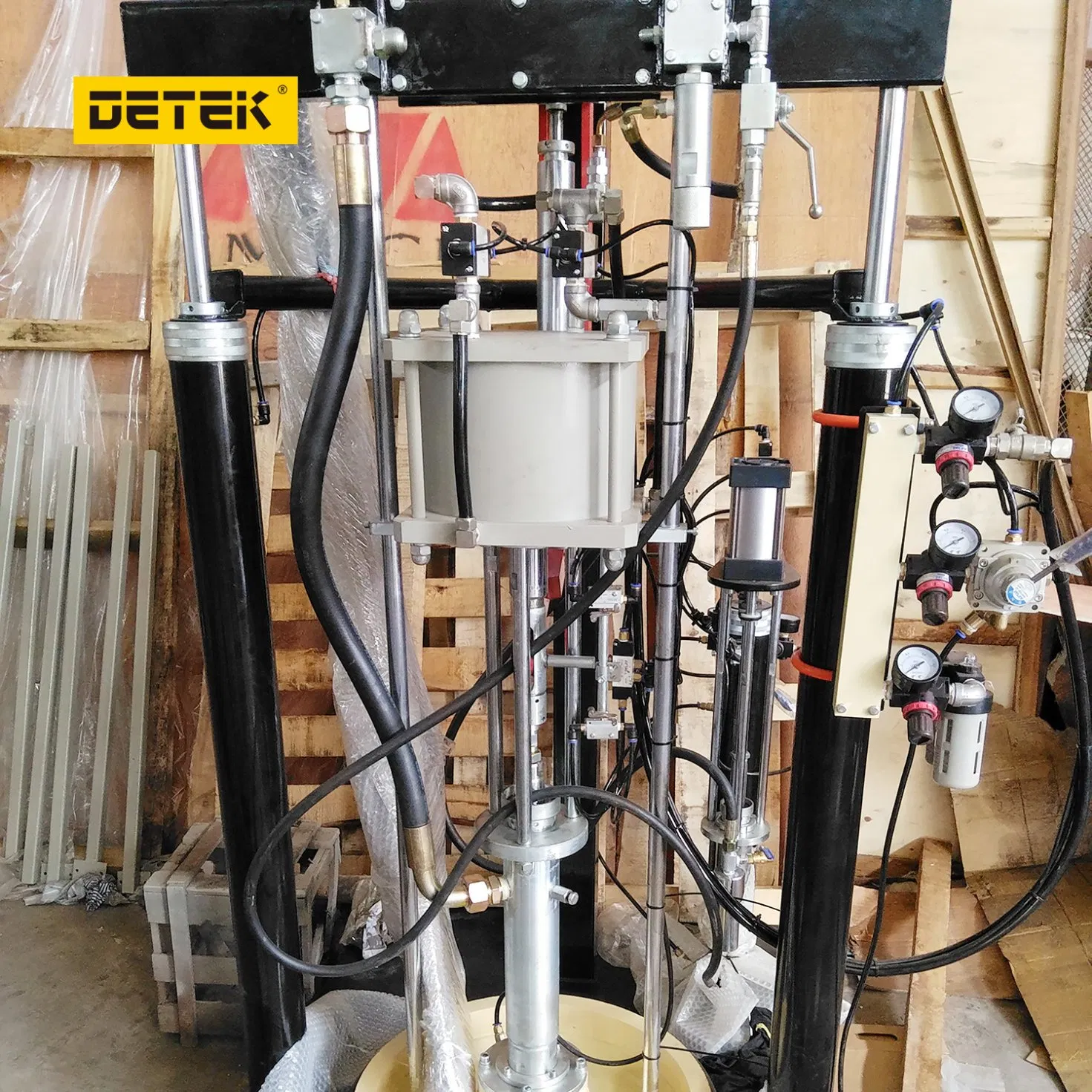

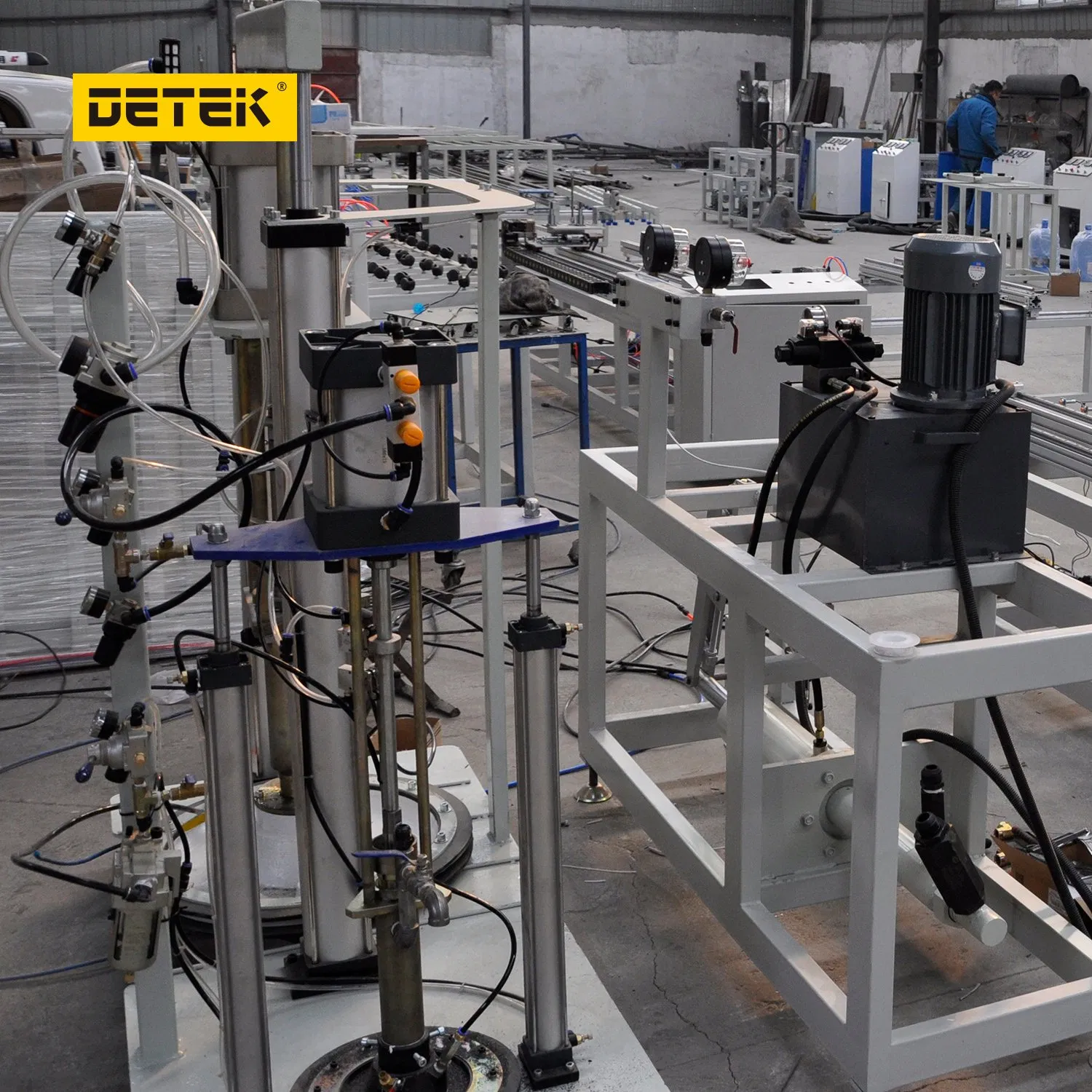

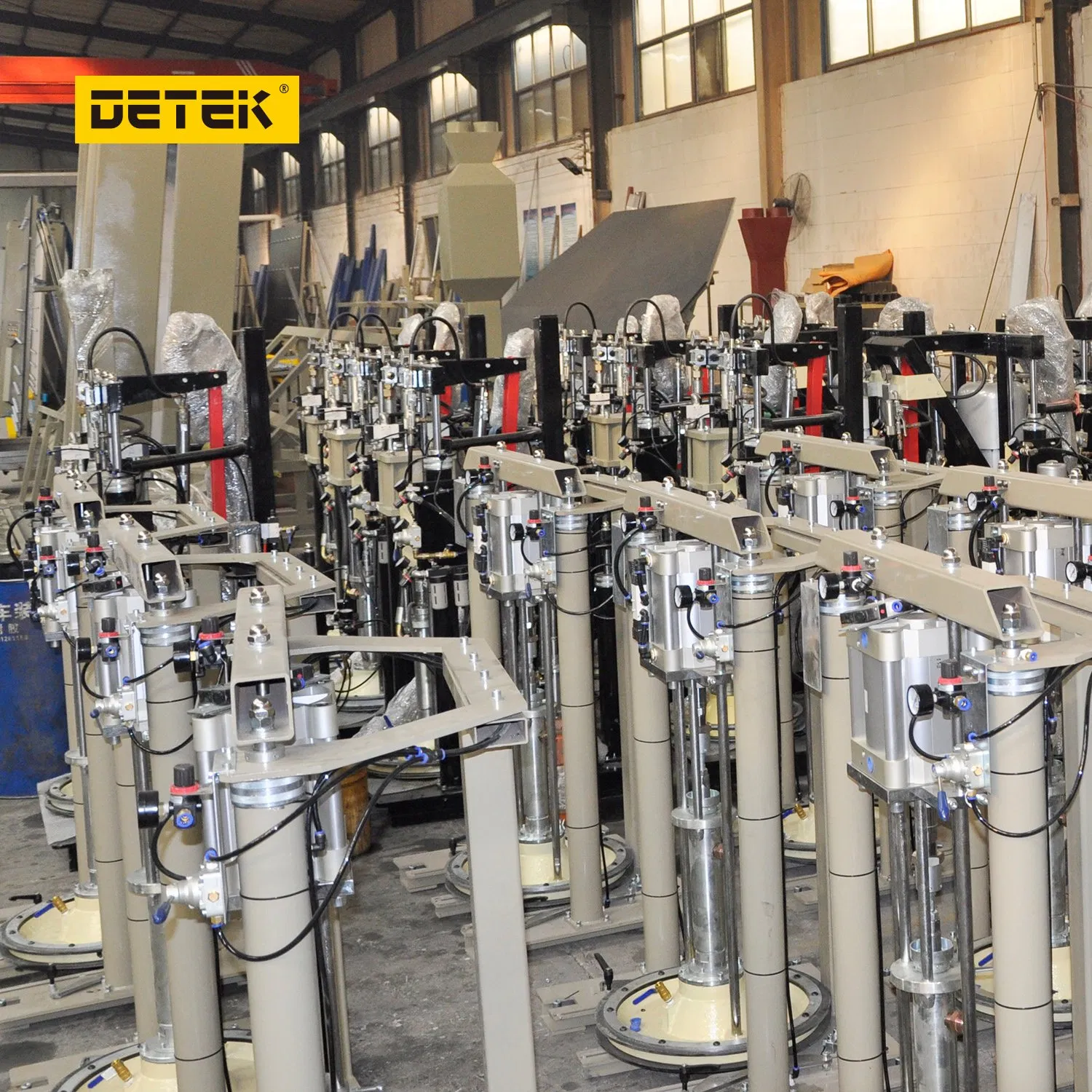

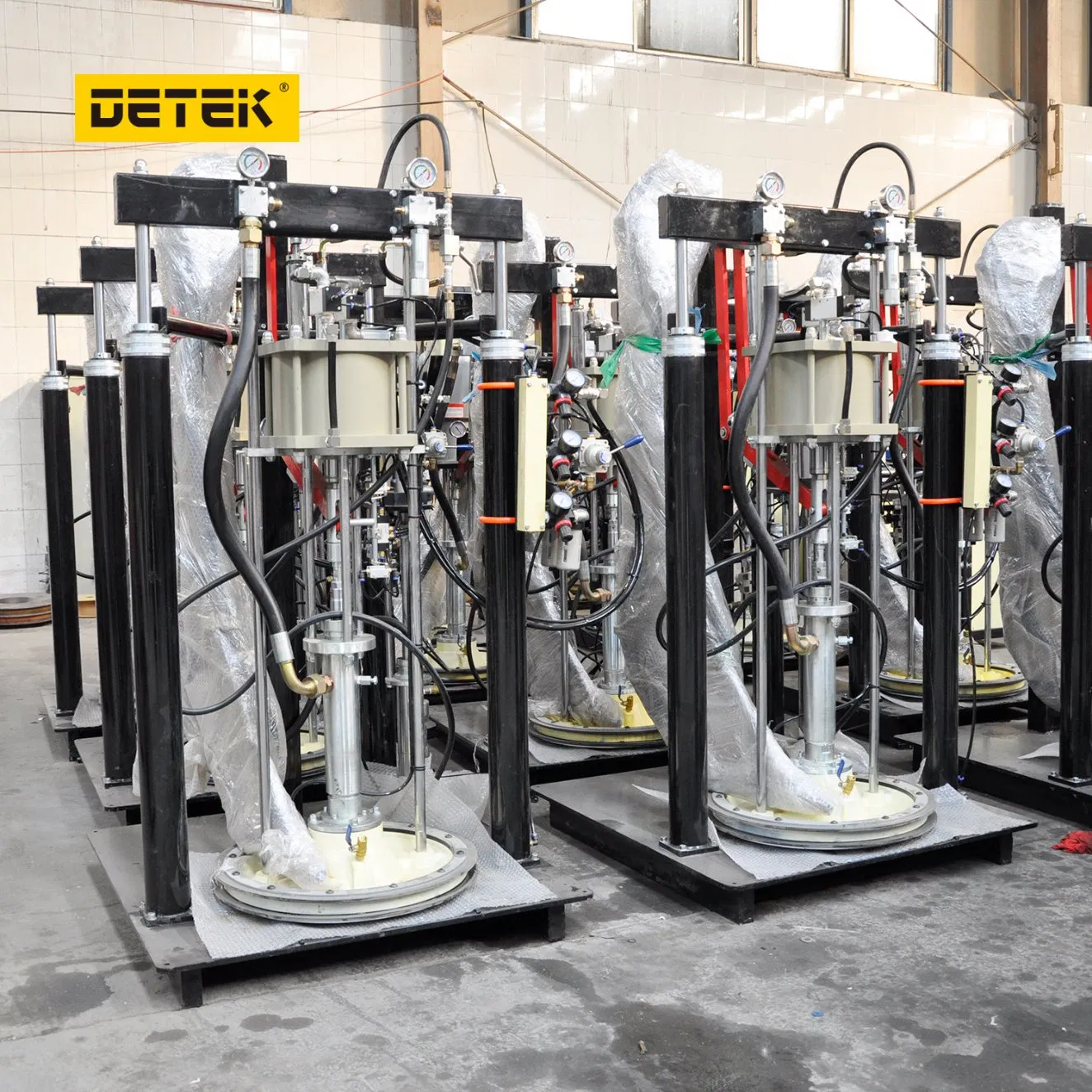

Model ST05 sealant spreading machine is made with the latest technologies, which applies to the sealing and spreading of secondary sealant. A/B pump adopts pneumatic air motor, which works sensibly and reliably.
| Parameter | Details |
|---|---|
| Model | ST05 |
| Glass Thickness | 12-60 mm |
| Type | Insulating Glass Production Line |
| Mixing Ratio | 6:1 - 14:1 |
| Sealant Output | 4-10 L/min |
| Max. Dispensing Pressure | 30 Mpa |
| Air Supply | 0.8-1.0 Mpa |
| Compressed Air | 0.6-0.8 MPa |
| Air Consumption | 0.8 M3/min |
| Diameter of A/B drum | 570mm / 280mm |
| Dimension | 1750×950×1980 mm |
| Weight | 510 Kg |

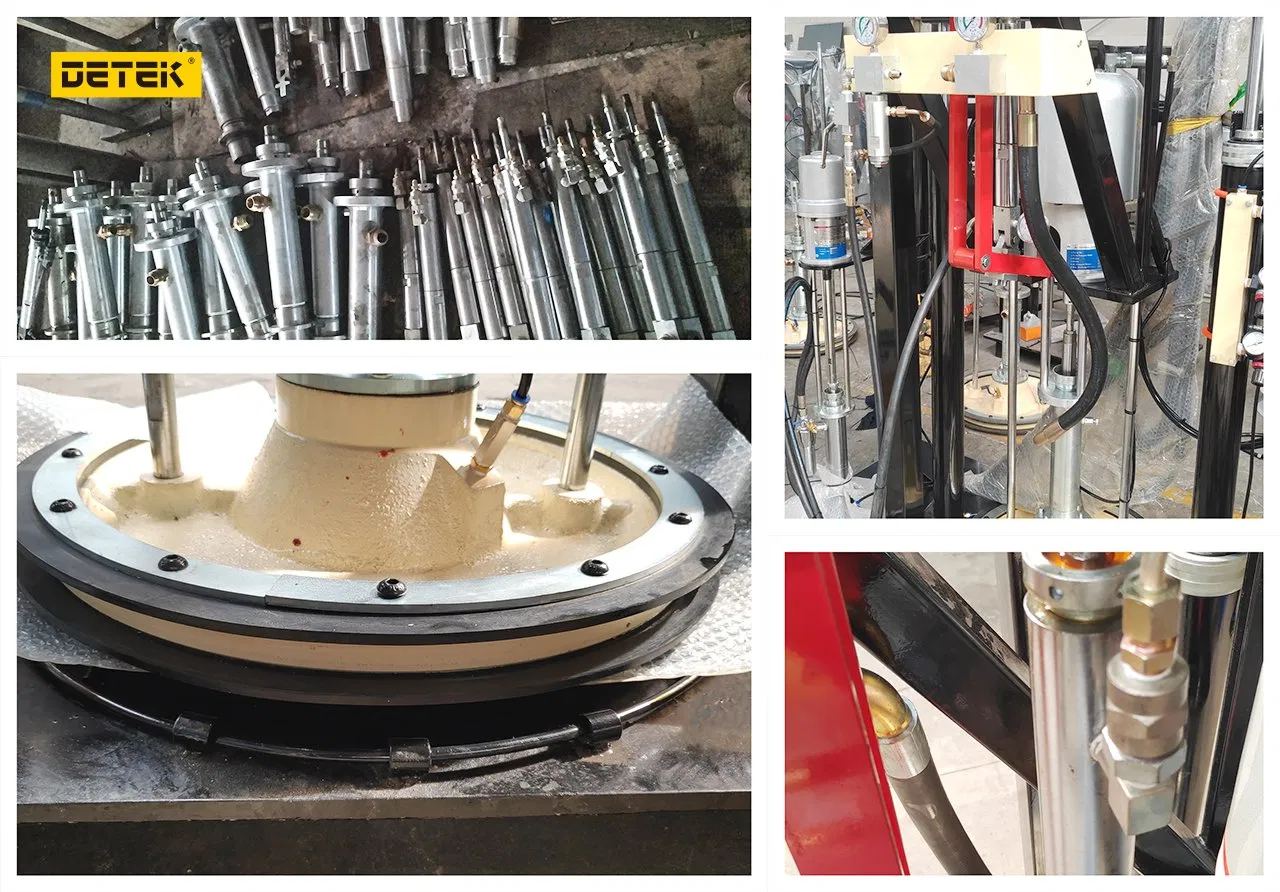

| Name | Brand | Origin |
|---|---|---|
| A/B air motor | Hasco/YL | S. Korea |
| Safety valve | Hasco | S. Korea |
| Pressure gauge | Delta | Taiwan |
| Sealing gun | Self-made | China |

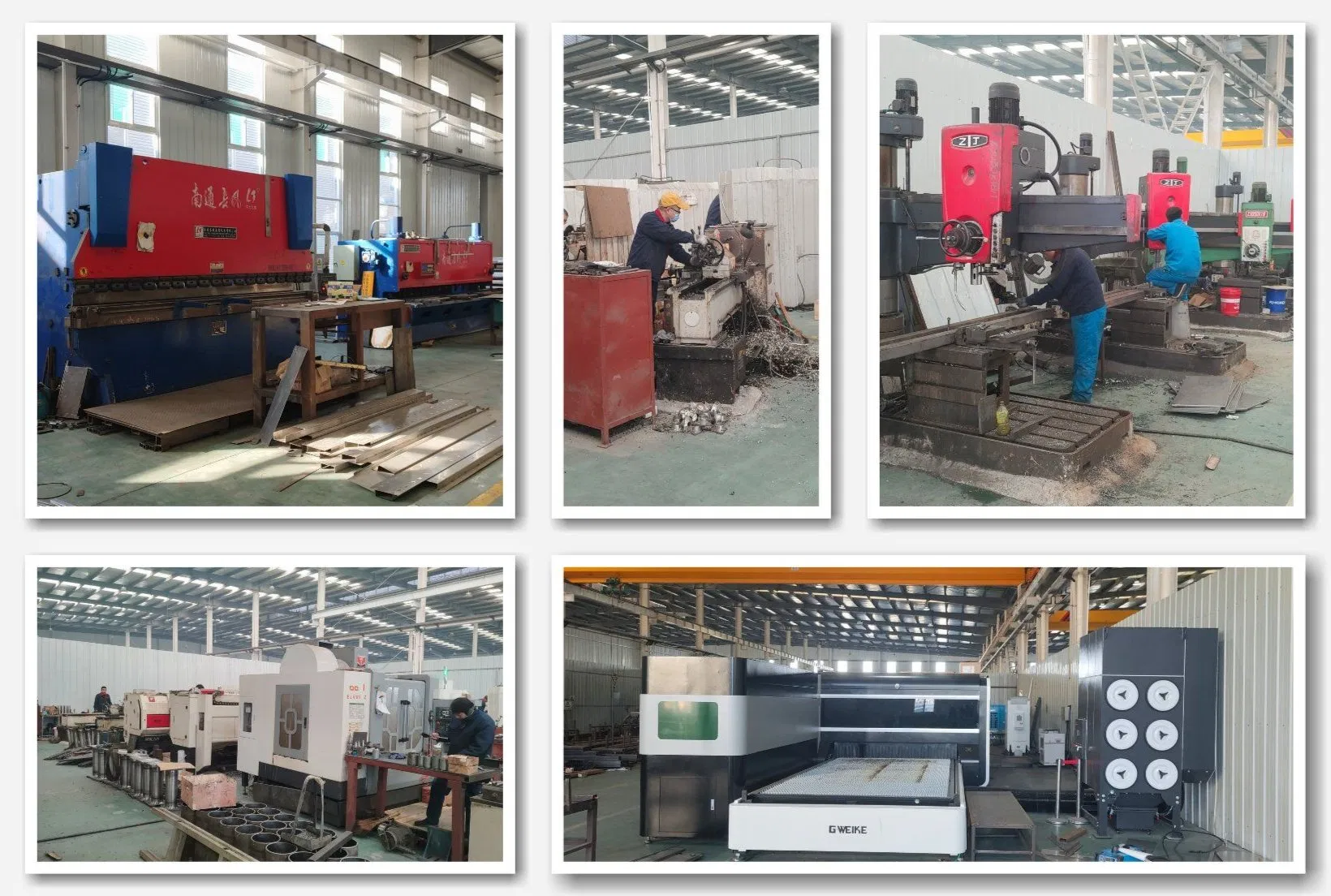

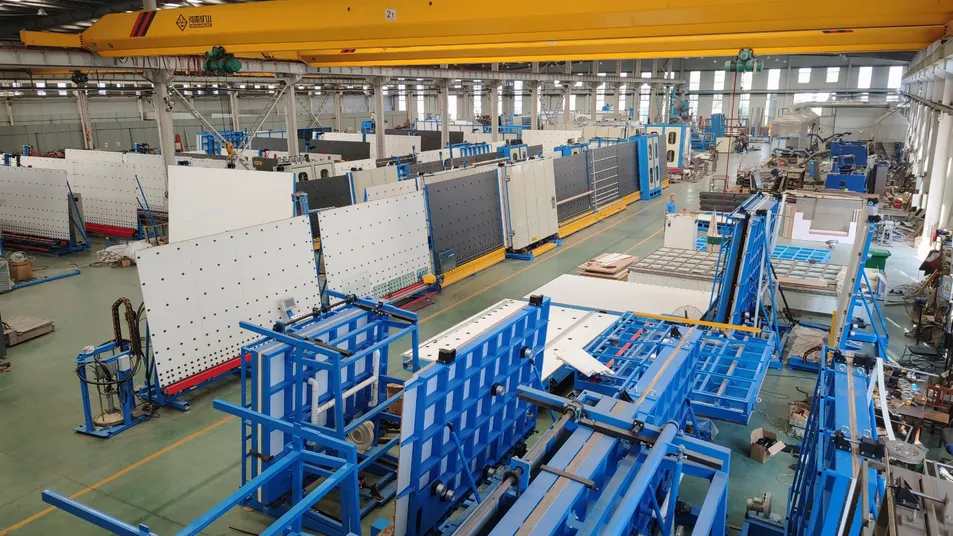

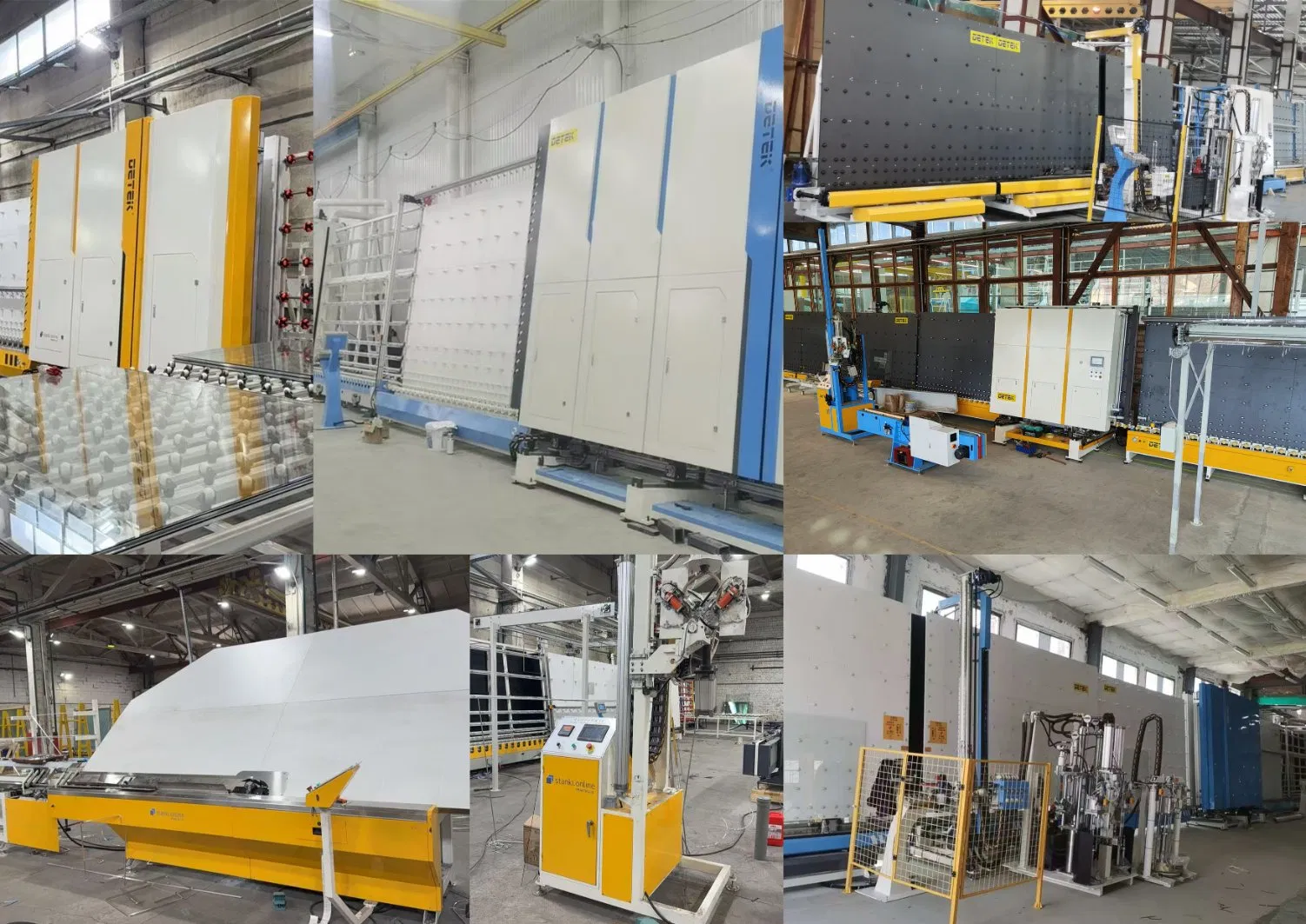

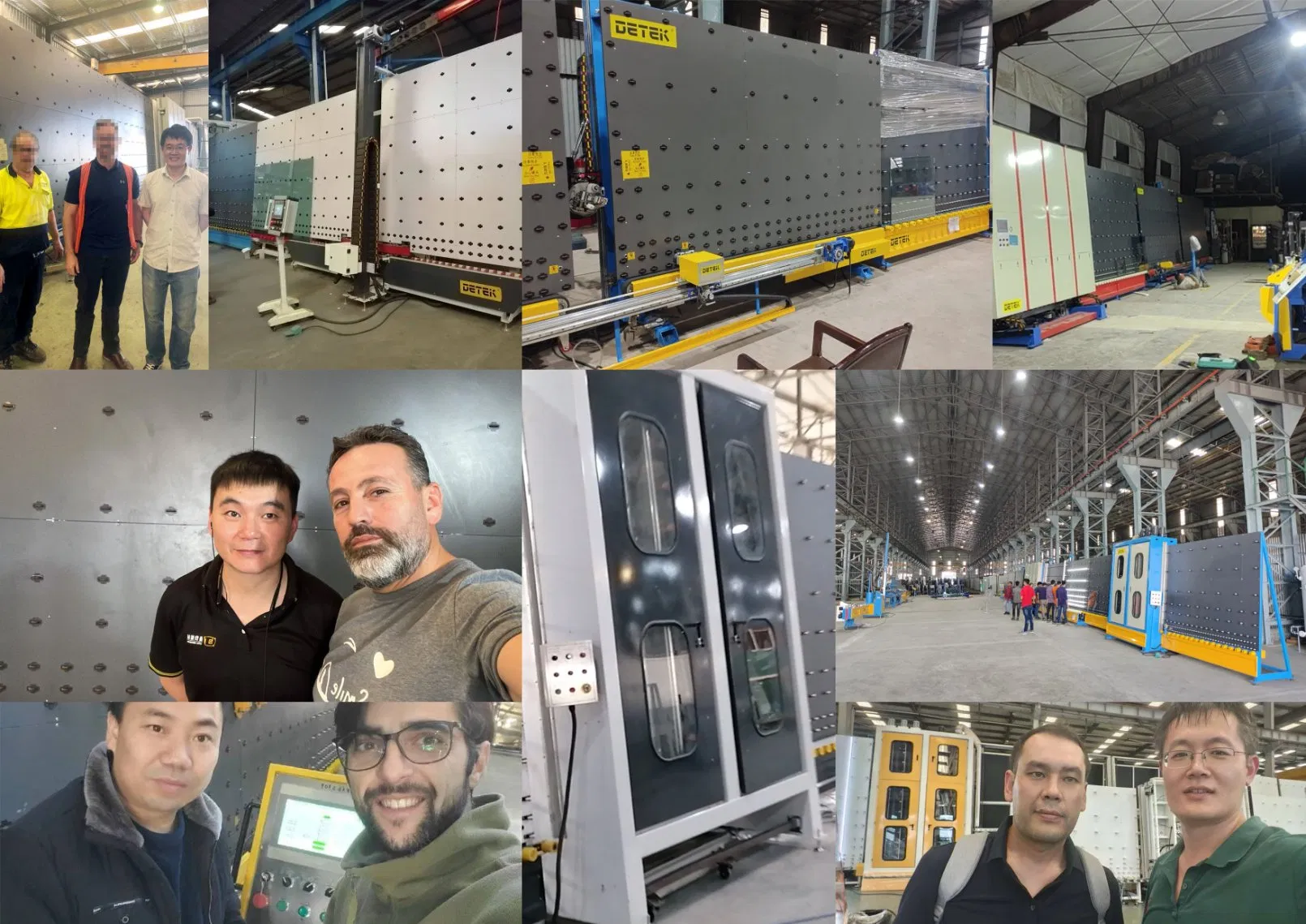

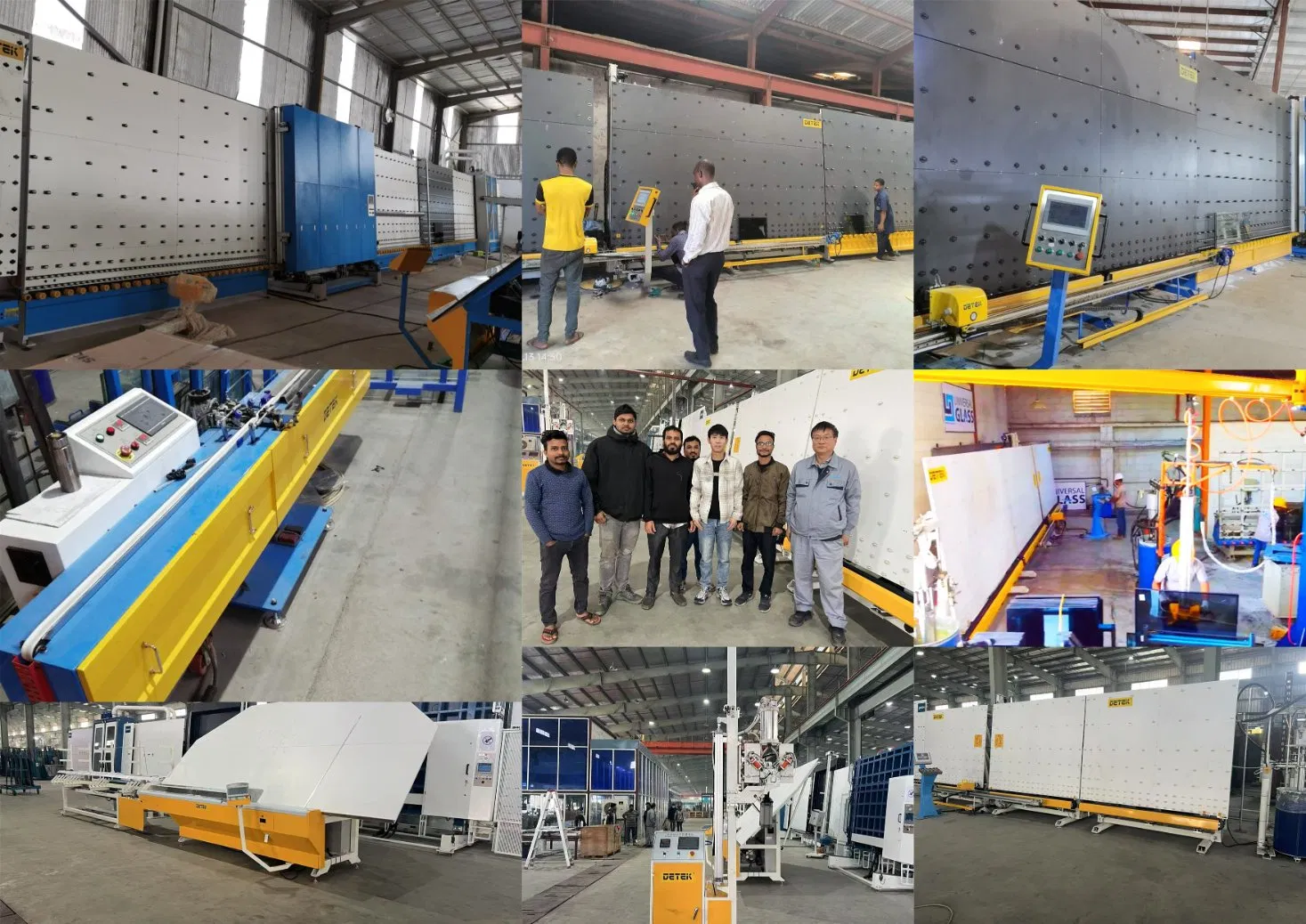

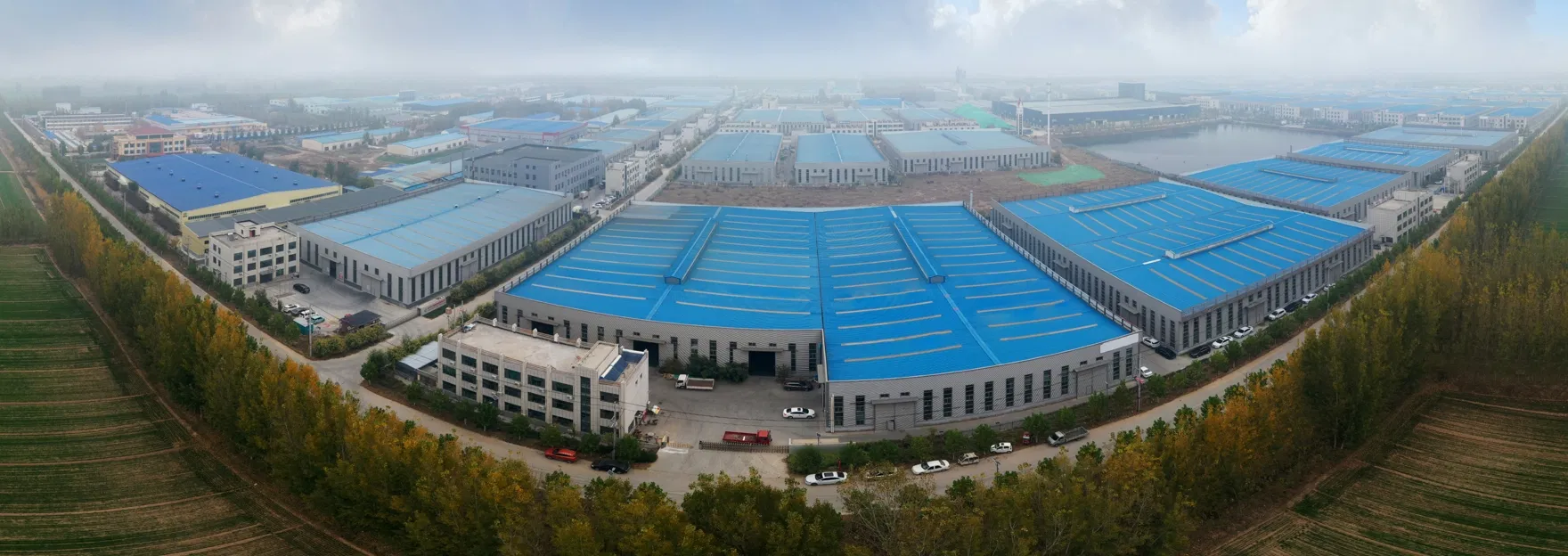

A professional manufacturer of insulating glass processing machinery, focusing on design, research, and development. The facility includes a 20,000 sqm workshop equipped with its own machining center, laser cutting, bending, and plastic spray systems. Machines offer high production efficiency and stable performance.
Equipped with laser machines, cutting, bending, milling, and more to ensure precision manufacturing.
