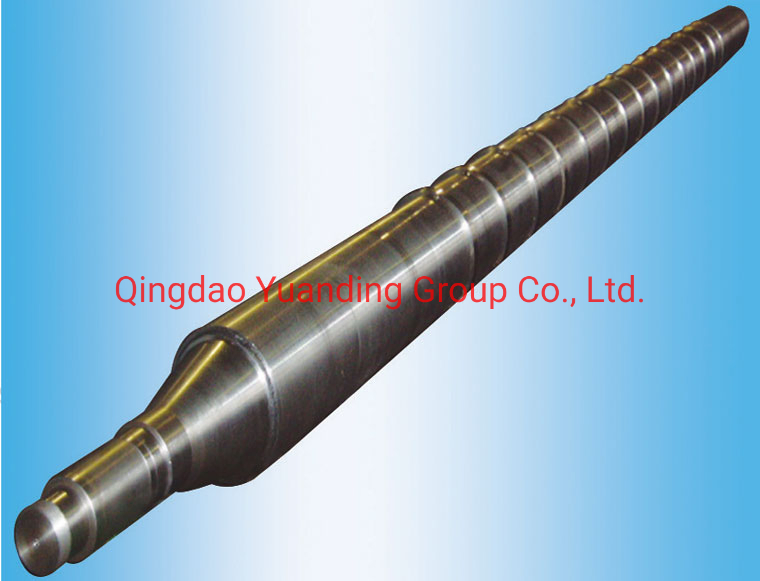

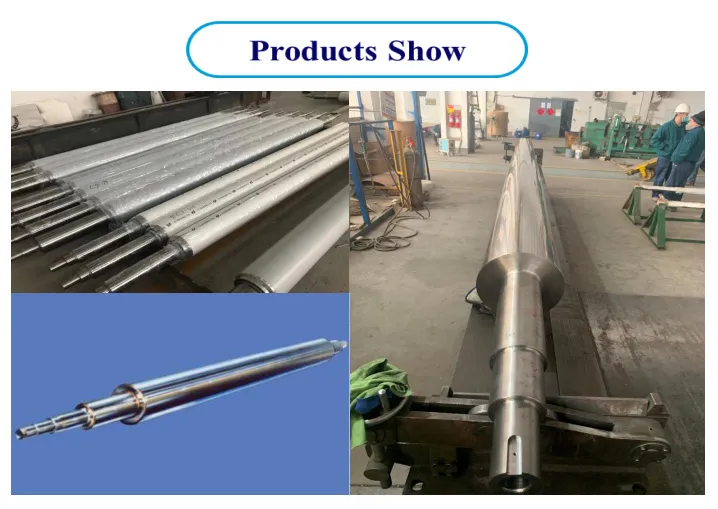

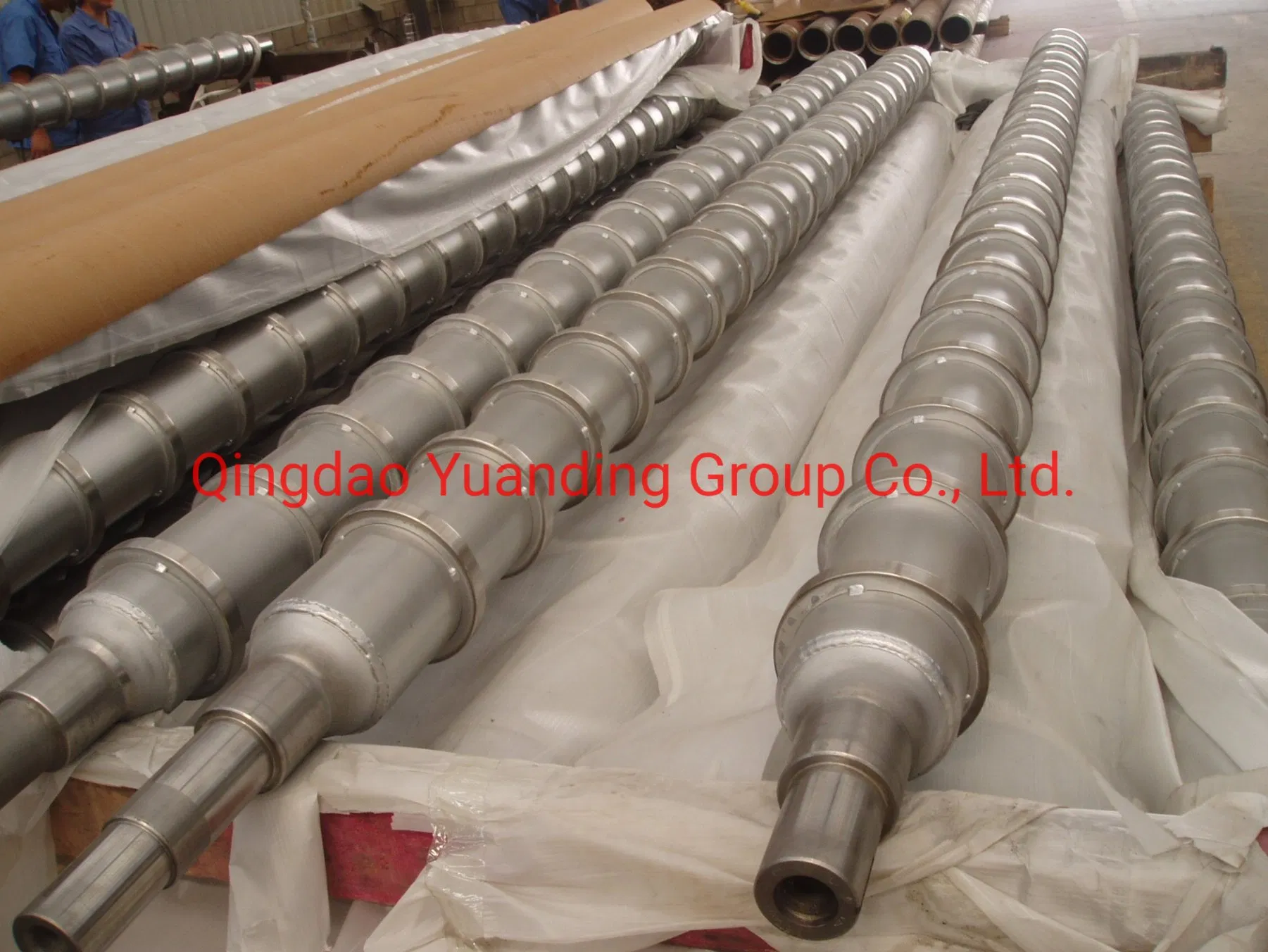

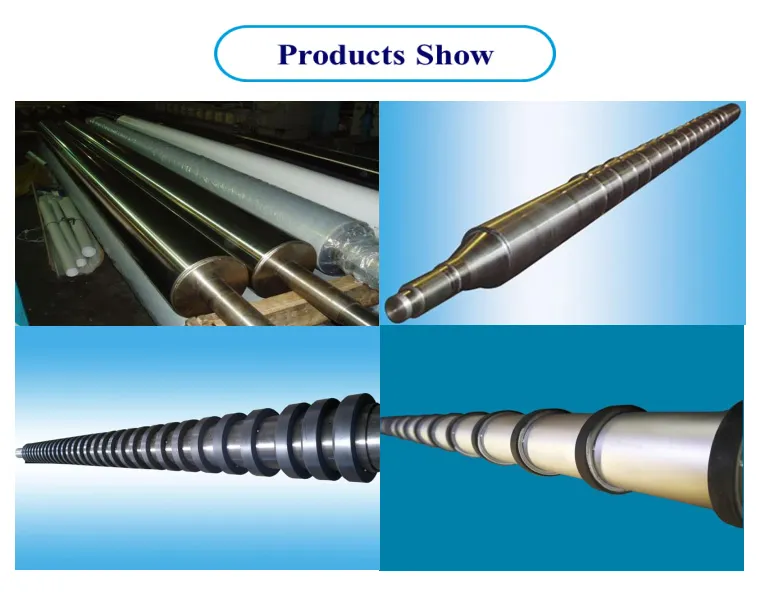

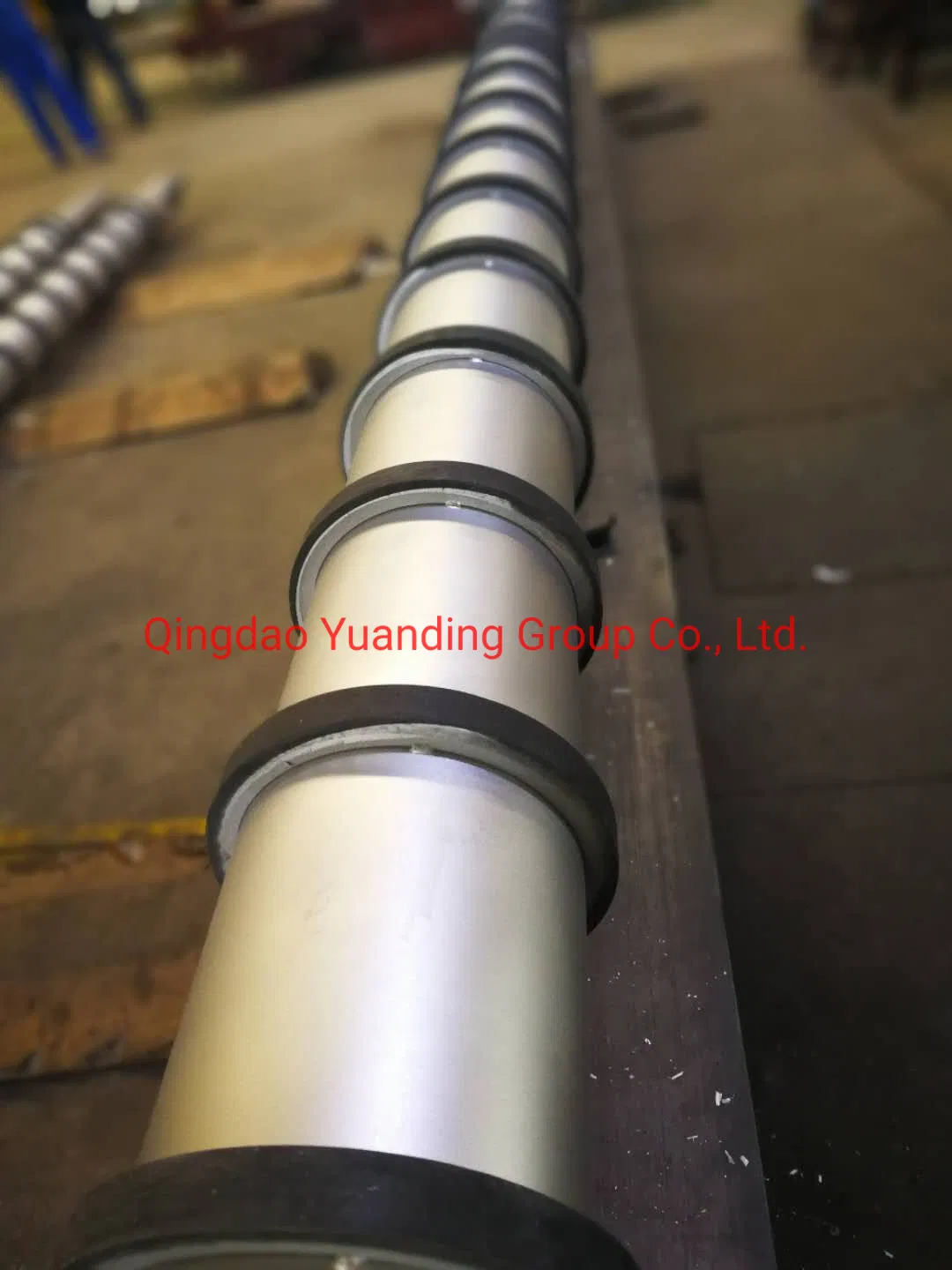

Providing a comprehensive range of rollers, including LOR rollers and lehr rollers from A zone to F zone. Main products include stainless steel plain rollers (25/20, 18/8), metal donut rollers (25/4), fiber rollers, castellated rollers, graphite ring rollers, carbon ring rollers, composite ring rollers, and pattern rollers.
● Lift Out Roller (LOR) - Material: 25/20
Main Application: Long-term use in high-temperature zones of float glass annealing lehrs.
Features: High temperature resistant, anti-oxidative, corrosion resistant, no thermal bending, high precision, smooth surface.

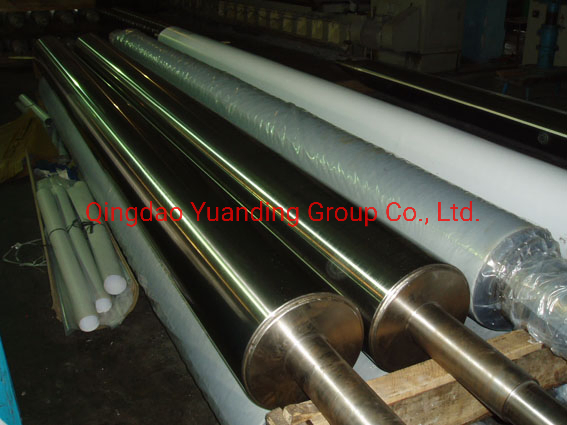

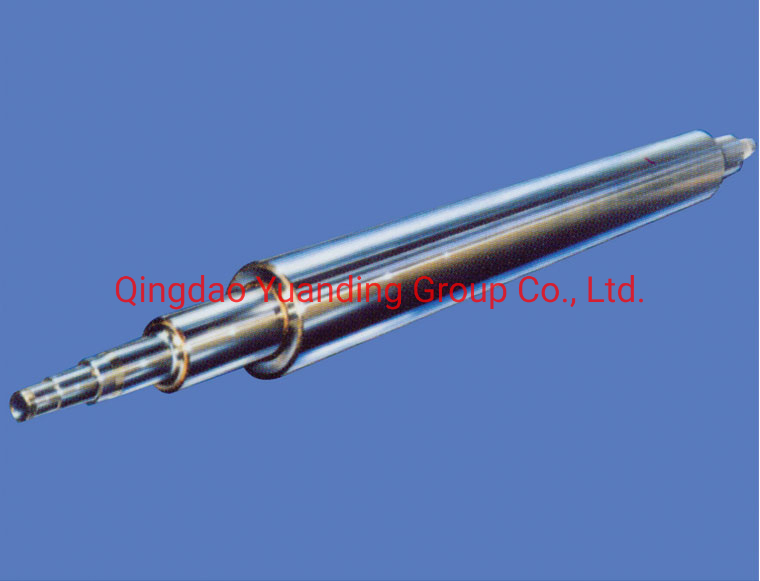

● Steel Roller - Material: 25/20, 18/8
Main Application: Long-term use in A2-B zones of float glass annealing lehrs.
Features: High temperature resistant, high precision, stable dimensions, long service life.
● HRF 650 Non-Asbestos Heat-Resistant Roller
Main Application: Annealing lehr roller series for float glass production lines.
Features: Wear proof, scratch-free surface quality, excellent thermal stability.

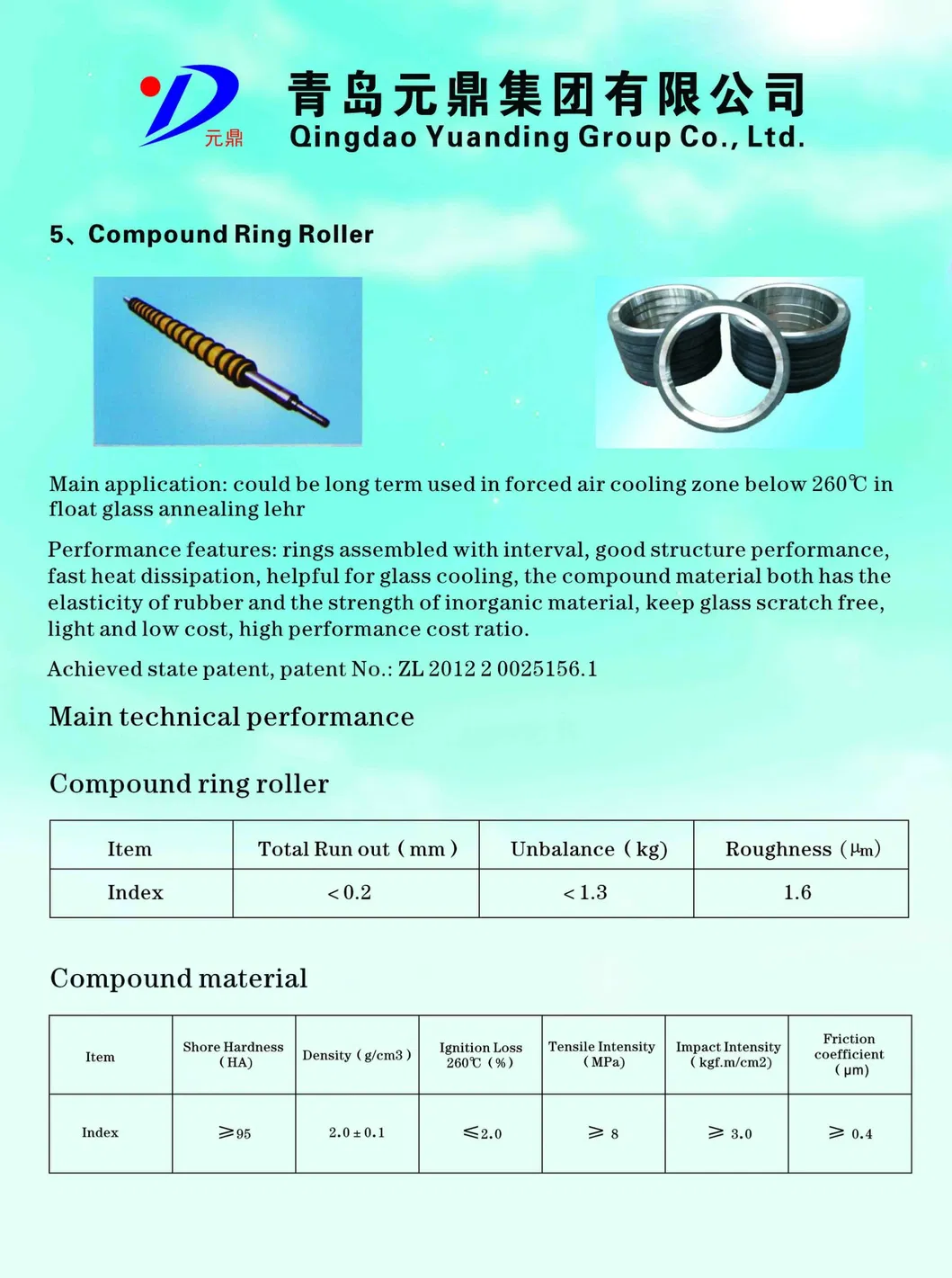

● Composite Ring Roller
Main Application: Used in forced air cooling zones below 260ºC.
Features: Interval ring assembly for fast heat dissipation, combines elasticity of rubber with strength of inorganic material.
● Graphite Ring Roller
Main Application: Used in zones below 400ºC.
Features: Small thermal expansion, no deformation, proper hardness to remain scratch-free on glass.
| Item | Content Details |
|---|---|
| Name | LOR, Steel Roller, Metal Donut Roller, Fiber Roller, Composite Roller, etc. |
| Material | Cr25Ni20, Cr18Ni8, Fiber Material, Graphite Material, Composite Material or customized |

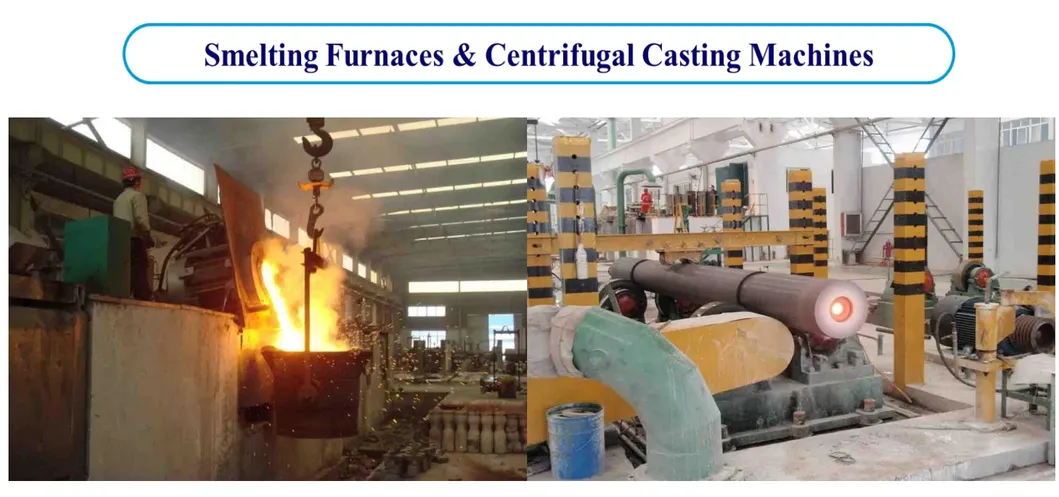

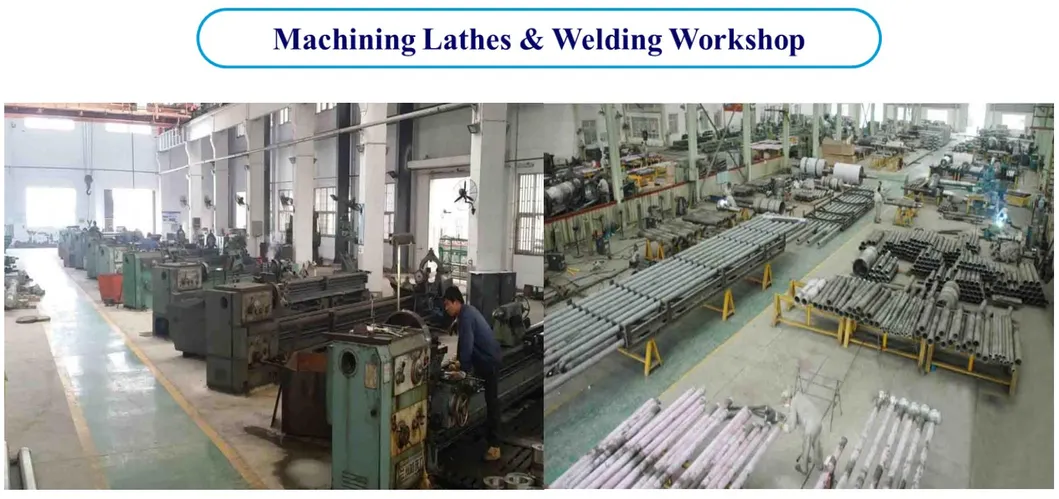

| Process | Centrifugal casting or seamless pipe; welding; heat-treatment; machining; polishing |
| Working Temp. | 650ºC - 700ºC |
| Specification | Customized Dimensions |
| Industry | Float Glass Production |
