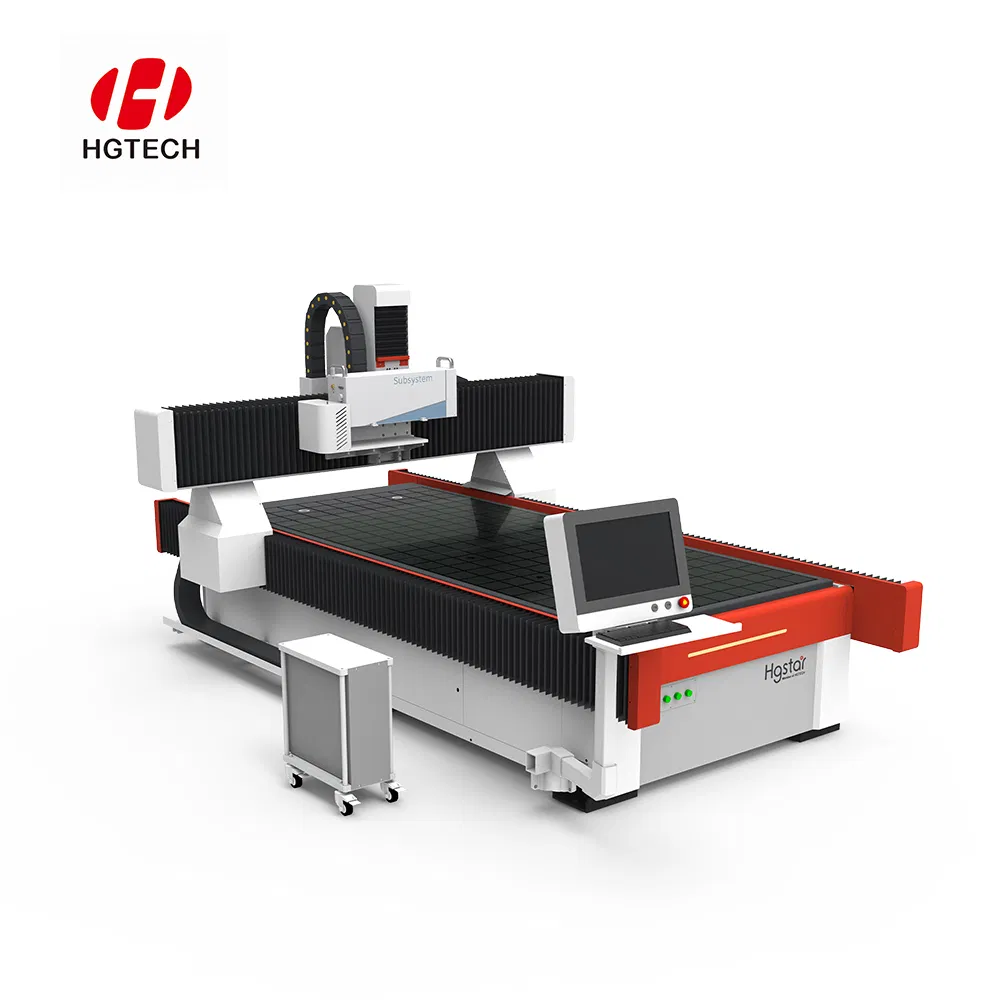

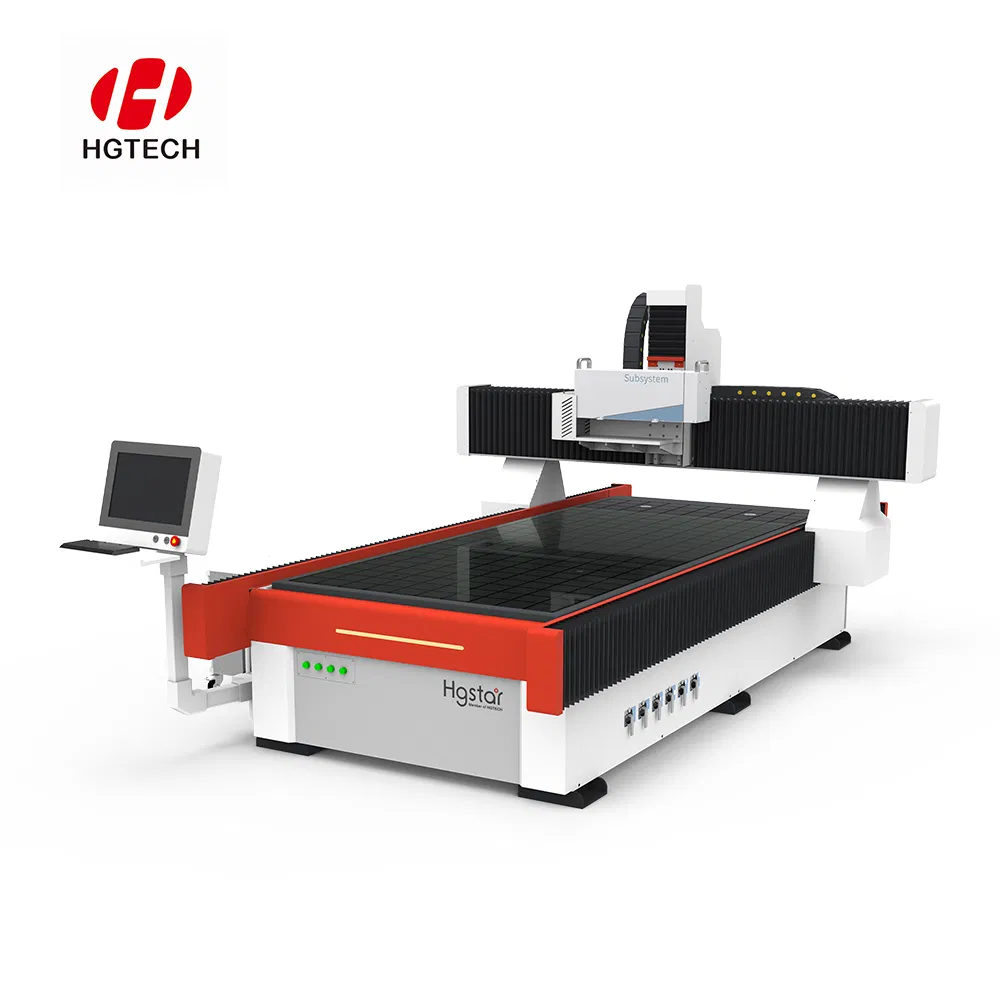

Micro-Hole Drilling Smartphone Glass Covers Sandblasting Processing Tempered Glass Laser Drilling Cutting Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Specifications
Model
Smart HGM
Drilling Diameter
10-20 mm
Glass Thickness
3-19 mm
Power Supply
220V/50Hz
Spindle Speed
1000-2000 RPM
Production Capacity
500PCS
📍 Product Description

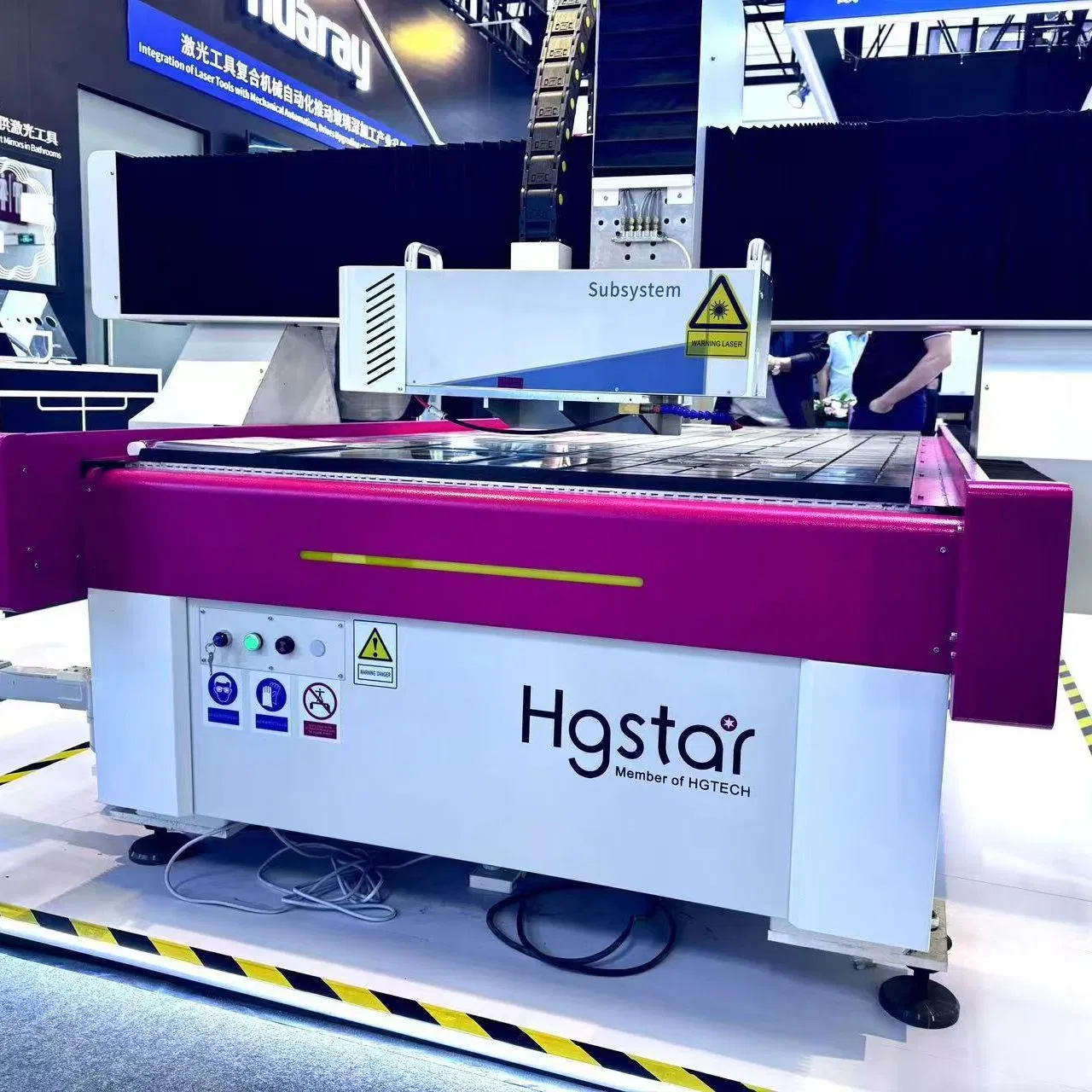

Smart HGM-100F All-in-One Glass Sandblasting / Paint Removal / Drilling Machine

Smart HGM is a new-generation intelligent laser processing machine specifically designed for precision machining of coated glass, lenses, and specialty glass. This system integrates laser sandblasting, coating removal, and glass drilling into one unit, replacing traditional frosting and sandblasting processes. It enables a one-pass, green, and consumable-free processing mode, offering high efficiency and environmental benefits.

Glass Laser Processing Machine
Laser Wavelength1060nm
Laser Source & Average PowerMOPA >105w @200KHz
Power Stability<3%
Cooling MediumDistilled/Purified Water (Set Water Tank Temperature to 28°C)
Net Weight of the Machine1200kg
Processing AreaFocused Spot: 0.04mm
Spot DiameterVisible Spot: 12mm
Max Processing Area1300*2500mm
per Lens50x50mm
Focal Range / Zoom Range≤12mm
Overall Dimensions4150mm*2600mm*1900mm
Total Power Consumption3KW
Operating EnvironmentClean and dust-free, vibration-free, 25°C-35°C, humidity <60%
Control Board & SystemZeus Motion Control System
Operation ModePC Computer
Operating Systemi5 Processor, 6GB RAM, Windows 10, 64-bit
Power Supply220V~240V 1PH 50~60Hz

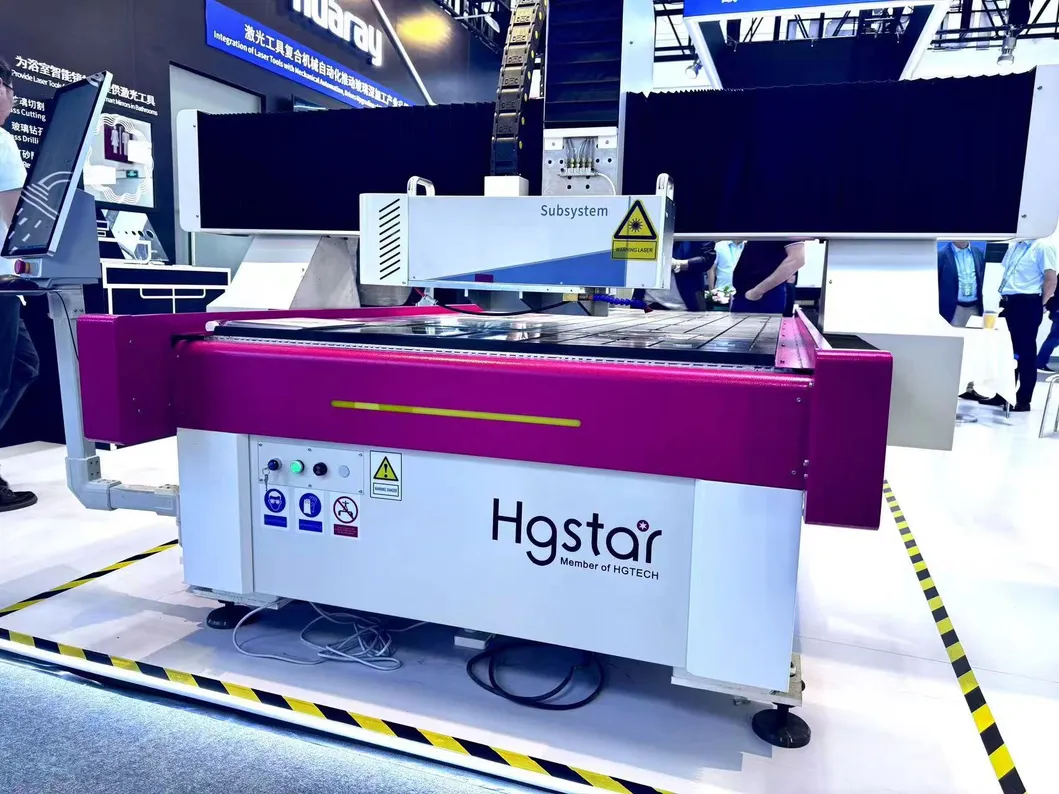

Laser Drilling Detail

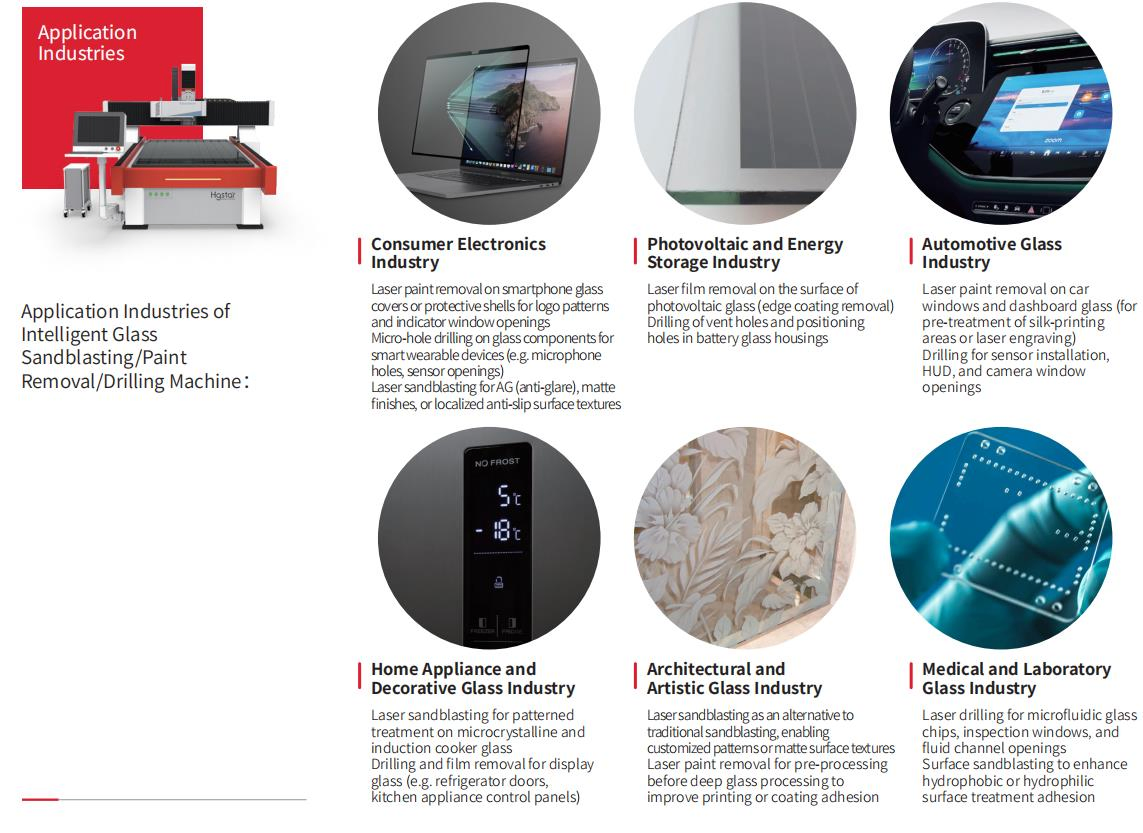

💻 Industry Applications
Laser paint removal on smartphone glass covers or protective shells for logo patterns and indicator window openings.
Micro-hole drilling on glass components for smart wearable devices (e.g., microphone holes, sensor openings).
Laser sandblasting for AG (anti-glare), matte finishes, or localized anti-slip surface textures.
Laser film removal on the surface of photovoltaic glass (edge coating removal).
Drilling of vent holes and positioning holes in battery glass housings.
Laser sandblasting for patterned treatment on microcrystalline and induction cooker glass.
Drilling and film removal for display glass (e.g., refrigerator doors, appliance control panels).
Application Sample
🏭 Manufacturing Capability

The enterprise is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing and National Key Laboratory for Laser Technology, the facility undertakes national key projects and scientific research projects.

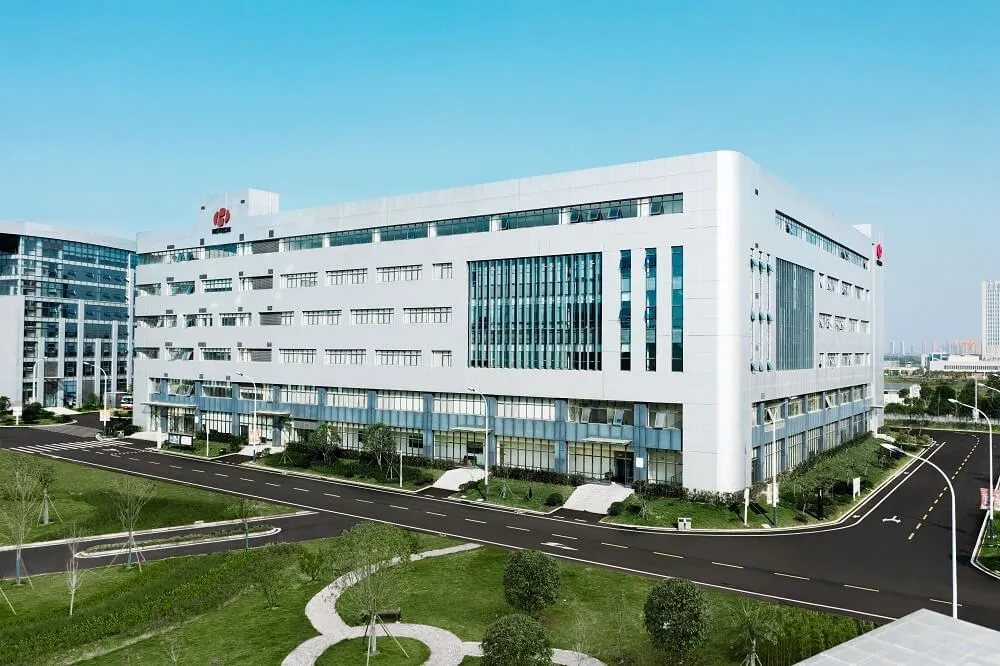

Factory View 1
Factory View 2

We are committed to providing broad and comprehensive laser manufacturing solutions in the industrial manufacturing field, researching, manufacturing, and selling various laser processing and plasma machining equipment. The product range covers the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipment, laser heat treatment systems, and laser drilling machines, which are used widely in metallurgy, automobiles, aviation, precision instruments, and semiconductor manufacturing.

Production Line 1
Production Line 2
Frequently Asked Questions
1. What types of glass can your machine cut?
Our machines can cut float glass, Low-E glass, coated glass, mirror glass, and more - in thicknesses ranging from 2 mm to 25 mm. Edge deletion is available as an optional module.
2. What is the maximum sheet size it can handle?
We offer various models including jumbo-size tables. Our standard models handle up to 4200mm x 2800mm. Custom sizes are available upon request.
3. How accurate is the cutting and drilling?
Our cutting precision is ±0.15 mm, ensuring clean edges suitable for tempering, laminating, or IGU production. Focused spot sizes can reach 0.04mm for precision drilling.
4. Is the machine difficult to operate?
Not at all. The machine features a touchscreen interface, supports CAD/CAM files, and offers automatic nesting. We also provide full training for your team.
5. How long does installation and training take?
Standard installation takes 2-3 days, with training completed in 1-2 days. Our engineers are available both on-site and online.
6. What are the environmental requirements for operation?
The recommended operating environment should be clean and dust-free, vibration-free, with a temperature between 25°C-35°C and humidity levels below 60%.
