Introduction

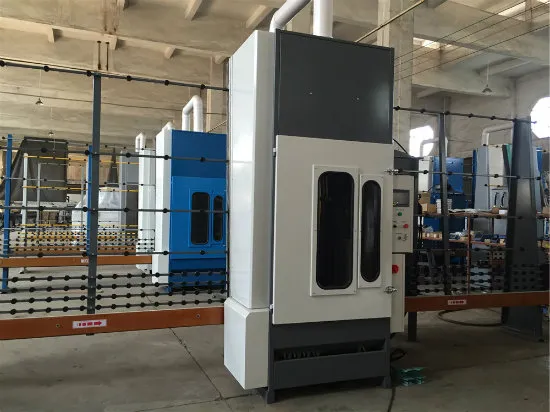

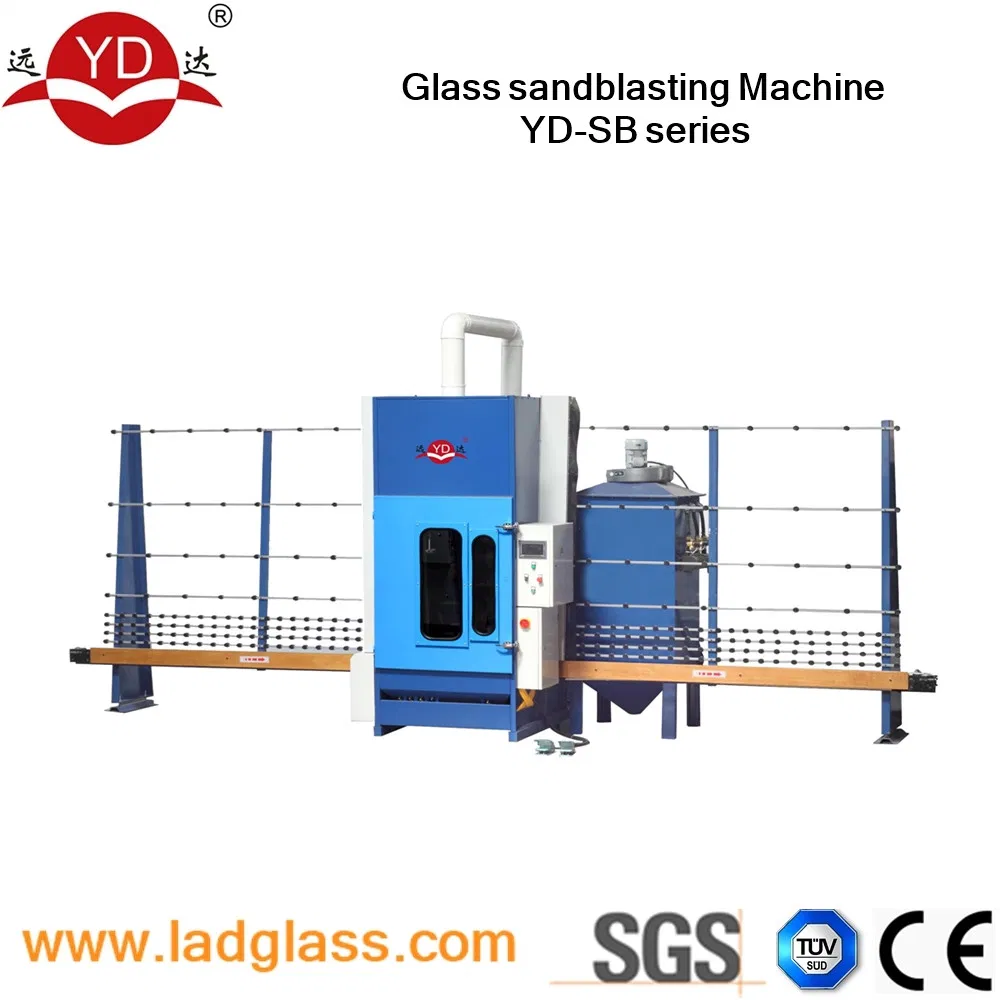

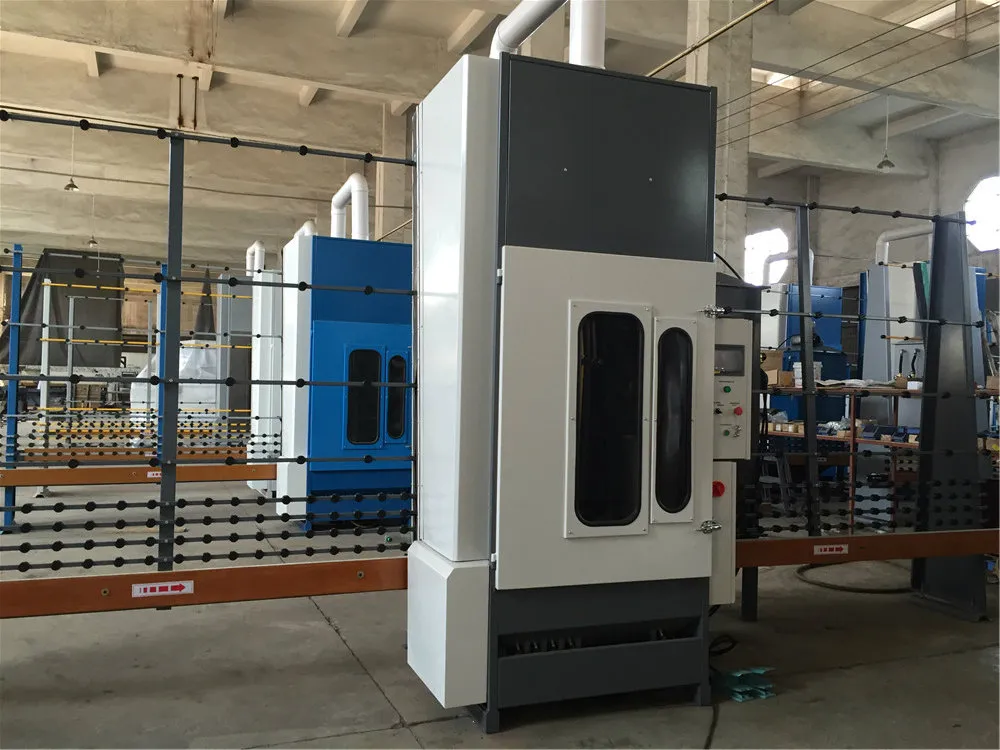

This machine is designed for sandblasting patterns or trademarks on glass surfaces. It is also capable of full-surface sandblasting for separation walls and shower room doors.
| Model type | YD-SB-2500 | YD-SB-2000 | YD-SB-1500 |
| Glass height (mm) | 2500 | 2000 | 1500 |
| Max. glass size (mm) | 2500x3000 | 2000x3000 | 1500x3000 |
| Min. processing size (mm) | 200x500 | 200x500 | 200x500 |
| Glass transfer speed (m/min) | 5 | 5 | 5 |
| Nozzle moving speed (m/min) | 5~25 | 5~25 | 5~25 |
| Working pressure (continues) | 0.6MPa~0.8MPa | 0.6MPa~0.8MPa | 0.6MPa~0.8MPa |
| Suitable air pressure power | 2.4m3/min 15kw | 2.4m3/min 15kw | 2.4m3/min 15kw |
| Power (kw) | 3.5 | 3.5 | 3.5 |
| Outer dimension (m) | 7x2x3.3 | 6x2x2.8 | 4.5x2x2.3 |
| Weight (kg) | 2000 | 1500 | 1200 |
Warranty: One year comprehensive coverage.
Commissioning: English operation manual and setup videos provided.
Aftersales: Lifetime technical support and parts availability.
Delivery: 30 days after down payment.
Certification: Fully CE Certified.
Global Experience: Successfully established plants in Saudi Arabia, Colombia, Libya, Egypt, Australia, Panama, Turkmenistan, Turkey, Czech, and more.
