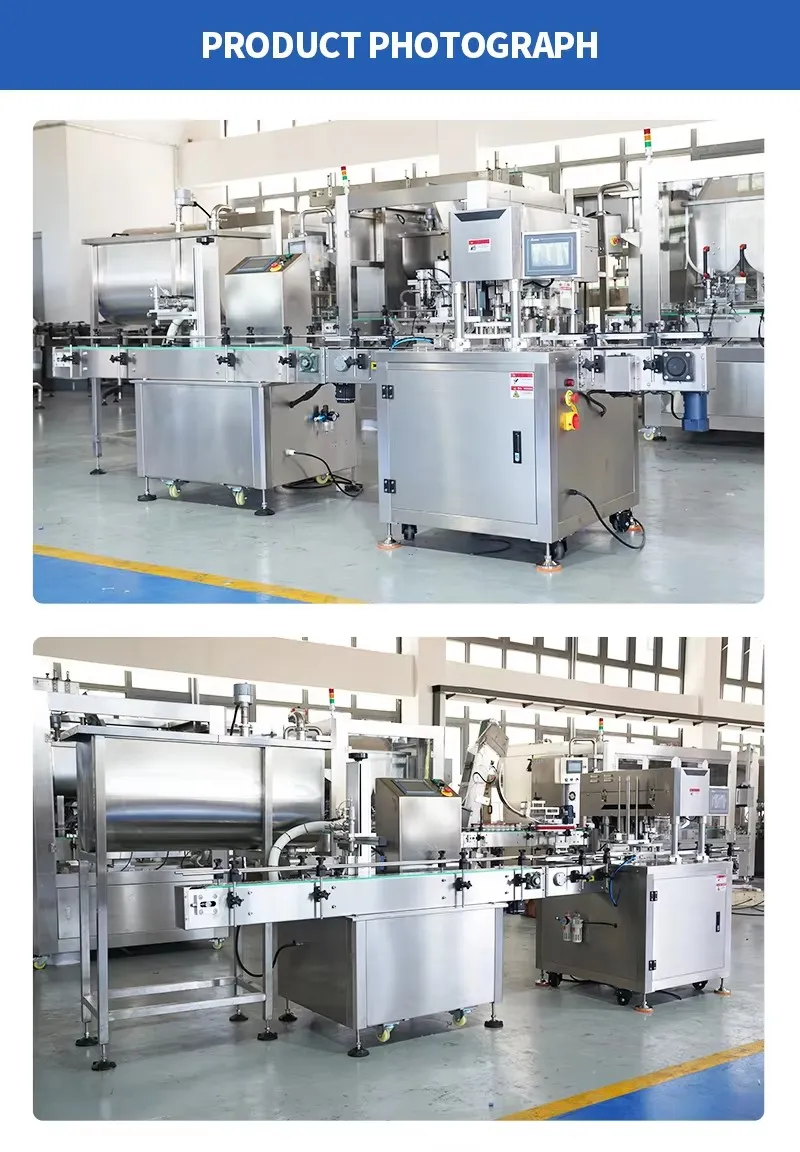

PLC Controlled Tin Can Seaming Food Black Beans Tomato Beef Paste Can Filling Sealing Machines Liquid Filling Production Line.
The production line is suitable for the filling of small and medium-sized glass bottles. It is ideal for sauces and viscous materials. The contact parts of the materials are all 316 stainless steel, and the whole machine is made of 304 stainless steel, which meets food hygiene standards.
The mayonnaise filling machine is suitable for filling various specifications of chili sauce, tomato sauce, sesame sauce, curry sauce, etc. Servo piston metering ensures that the filling accuracy is +/- 1%. The filling speed is increased by 20%-35%. The operation is simple, labor costs are saved, and production efficiency is high.
PLC TOUCH SCREEN
Easy operation with built-in formula memory.
ACCURATE MEASUREMENT
Servo motor control for reliable quantitative filling.
AUTOMATIC CAPPING DEVICE
Detects missing lids and drops them automatically.
SEALING DEVICE
Four-wheel symmetrical sealing for balanced force.
| Specification | Details |
|---|---|
| Product Name | Automatic Paste Filling and Cap Sealing Line |
| Production Speed | 25-40 cans/min |
| Power / Current | 4000W / 3A |
| Filling Range | 100-1000ml |
| Filling Precision | +/- 1% |
| Applicable Diameter | 50-130mm |
| Applicable Height | 50-200mm |
| Voltage | 220V 50Hz |
| Control System | PLC + Touch Screen |
