Oil Cutter Automatic Float Glass Cutting Machine Table with High Efficiency PLC Control Low-E Film Removal

Customization:	Available
Certification:	CE, ISO, SGS
Cutting Method:	Oil Cutter Cutting

Technical Specifications

Model NO.

DS-CT10037

Max Cutting Size

10000 X 3700mm

Cutting Thickness

5 - 25mm

Cutting Precision

±0.30mm

Max Cutting Speed

180m/Min

Power Supply

380V 50Hz / 13kw

Vacuum Pressure

-70~-99 Kpa

Safety Features

Emergency Stop, Overload Protection, Safety Sensor

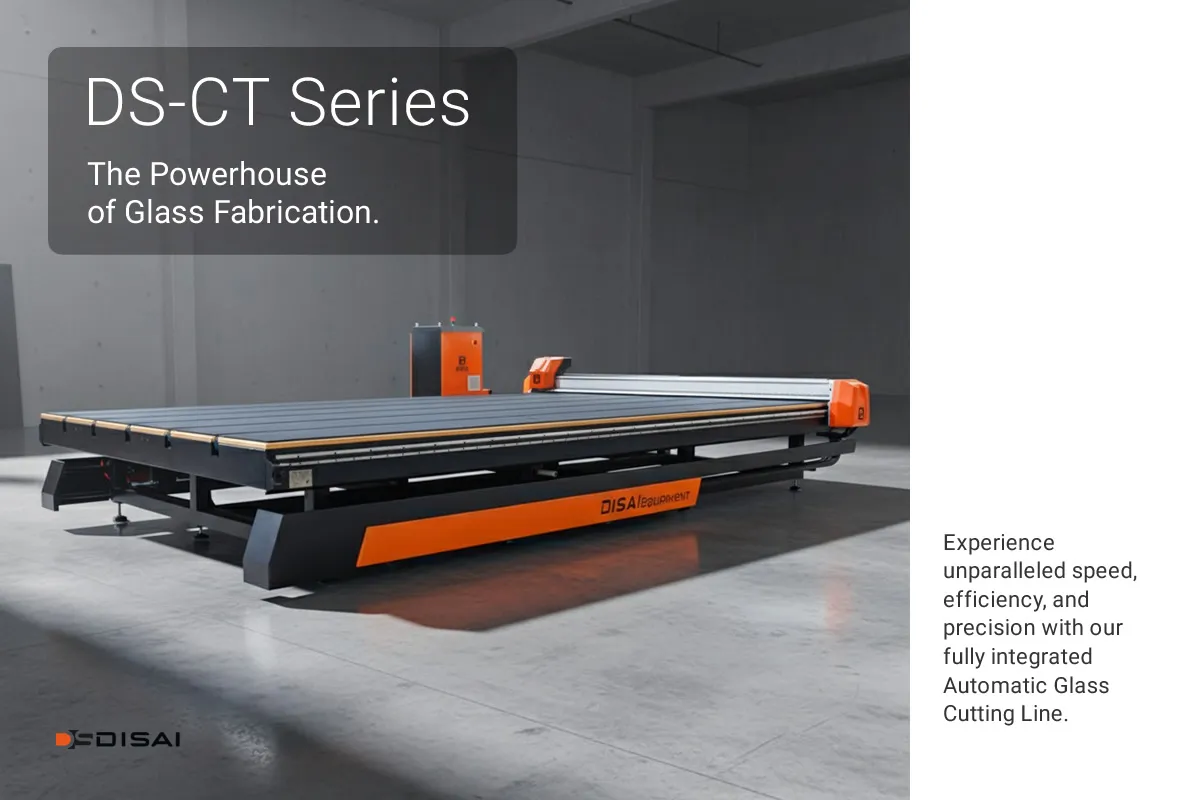

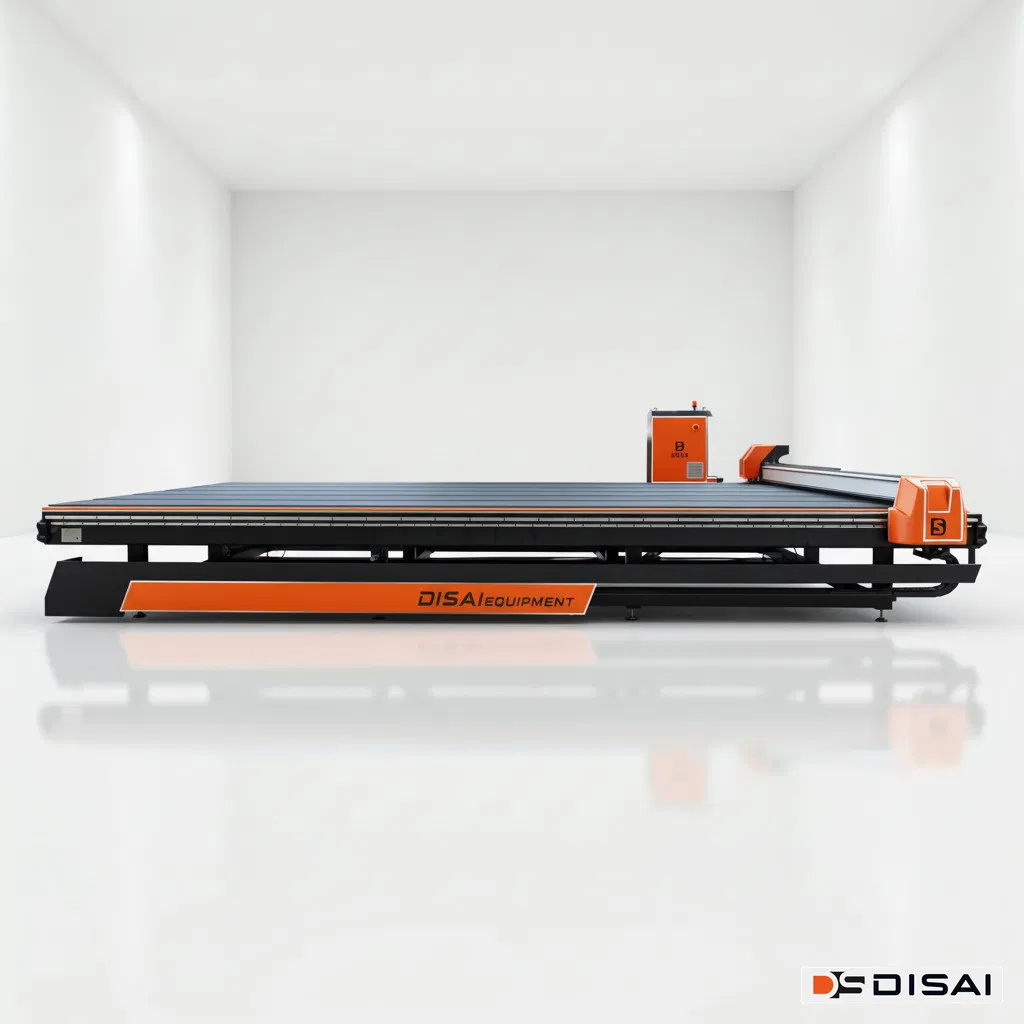

Industrial Jumbo-Scale Glass Processing

The DS-CT10037 glass cutting table marks the entry into true industrial-scale fabrication, offering an incredible 10-meter cutting length designed to process jumbo stock sheets with ease. This machine is built for the high-stakes environment of large architectural projects and specialty glass manufacturing. It combines massive capacity with the ability to cut heavy-duty glass up to 25mm thick, providing the power and scale needed to service the most demanding clients in the industry.

Pressure Regulation

Intelligent system dynamically adjusts for 2-25mm thickness, ensuring a perfect score every time.

Bidirectional Cutting

Maximizes throughput by optimizing the cutting path, slashing cycle times and boosting productivity.

Material Yield

Advanced nesting software significantly improves glass utilization and reduces material waste.

Video Demonstration

Series Comparison Chart

Model	Max Cutting Sheet	Precision	Thickness	Max Speed
DS-CT2621	2600 × 2100mm	± 0.15mm	2 - 19mm	180m/min
DS-CT3725	3700 × 2500mm	± 0.15mm	2 - 19mm	180m/min
DS-CT5133	5100 × 3300mm	± 0.25mm	3 - 25mm	180m/min
DS-CT7537	7500 × 3700mm	± 0.25mm	5 - 25mm	180m/min
DS-CT10037	10000 × 3700mm	± 0.25mm	5 - 25mm	180m/min
DS-CT18037	18000 × 3700mm	± 0.25mm	5 - 25mm	180m/min

World-Class Components

Premium, globally recognized brands are integrated into our machines, including Delta Tau (USA) motion controllers, Panasonic (Japan) servo motors, and Siemens (Germany) PLC, ensuring superior reliability and performance.

Application Scenarios

Architectural Facades

Achieving flawless edges and superior precision on large-format glass.

Photovoltaic Industry

Delivering ultra-high accuracy for technical solar energy applications.

Automotive Glazing

Mastering complex shapes and ensuring consistency for automotive standards.

Frequently Asked Questions

1. What types of glass can the machine cut?

The equipment handles a wide variety of glass, including float, Low-E, coated, and mirrored glass, with thicknesses from 2mm to 25mm.

2. What is the maximum sheet size it can handle?

Our models handle standard sheets up to 4200mm x 2800mm, with custom solutions capable of processing immense 18-meter glass sheets.

3. How accurate is the cutting precision?

We guarantee a cutting accuracy of ±0.15 mm, ensuring flawless edges prepared for tempering or laminating processes.

4. Is the machine difficult to operate for new staff?

No, it features an intuitive touchscreen interface and supports direct CAD/CAM file imports with automatic nesting software.

5. What certifications does the equipment have?

All machines are CE machinery directive certified and manufactured under ISO 9001 standards for full quality assurance.

6. How long does the return on investment (ROI) take?

Customers typically achieve a full ROI within 6-9 months due to increased output and reduced labor/material costs.
