Customization: Available
Certification: CE
Cutting Method: Oil Cutter Cutting
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:YD-CNC-4228
Max Cutting Thickness:15 mm
Control System:PLC / Automatic
Glass Thickness Range:3-19mm
Power Supply:8kw
Structure:Horizontal
Safety Features:Emergency Stop
Production Capacity:20 Sets / Month
P

Product Description

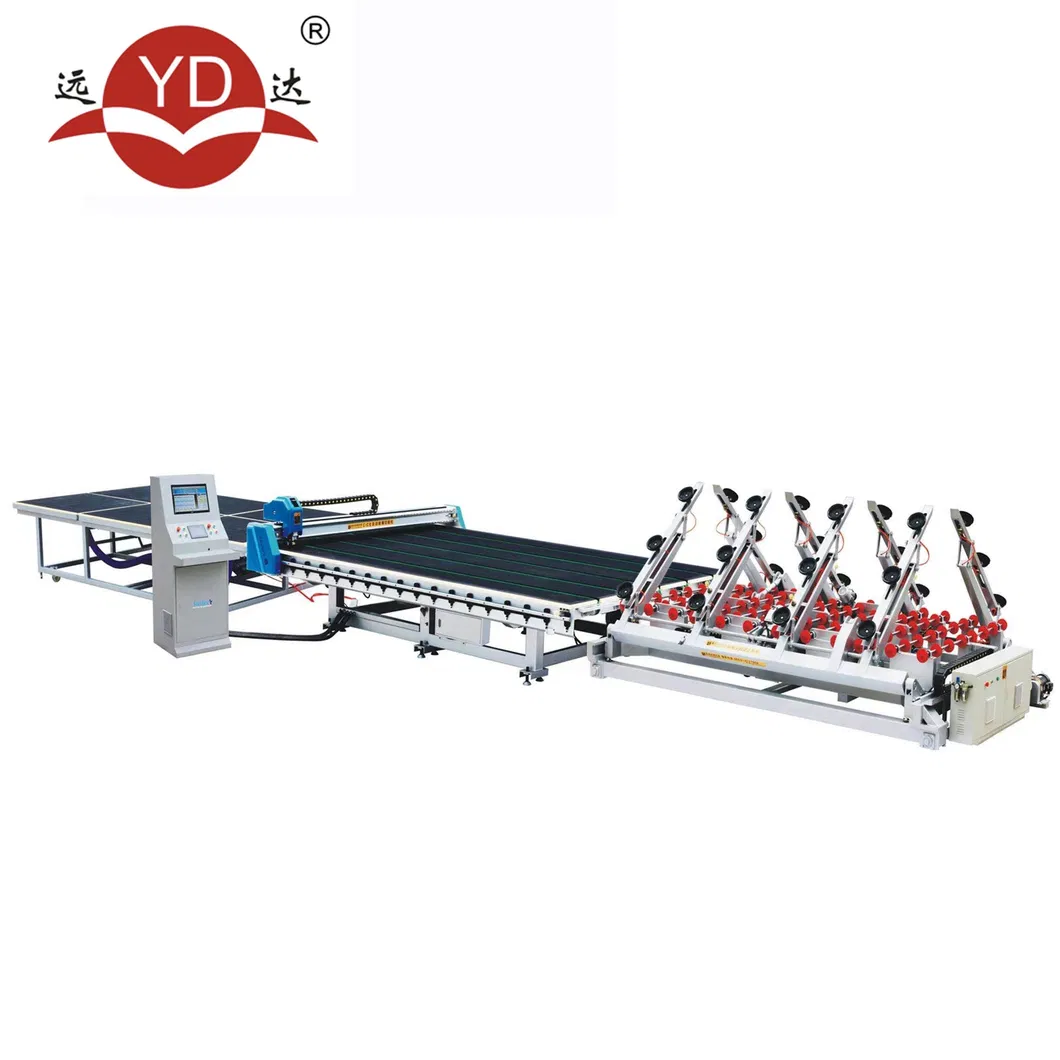

Original Glass Cutting Machine

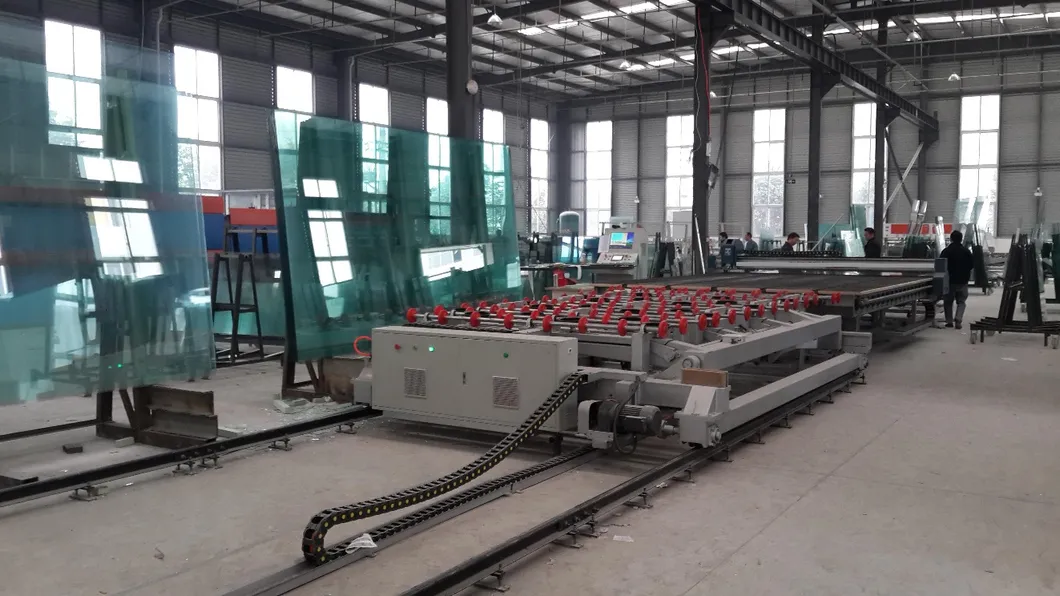

Glass Cutting Line

CNC Glass Cutting Machine Production Line Highlights:

  • Automatic loading table with double side single station or custom request.
  • PC computer control with Microsoft Windows interface.
  • High-end components: America GALI Controller, Japan KHK Rack/Gear, Belgium Cutter wheel.
  • Air float table for easy glass movement and integrated breaking table.

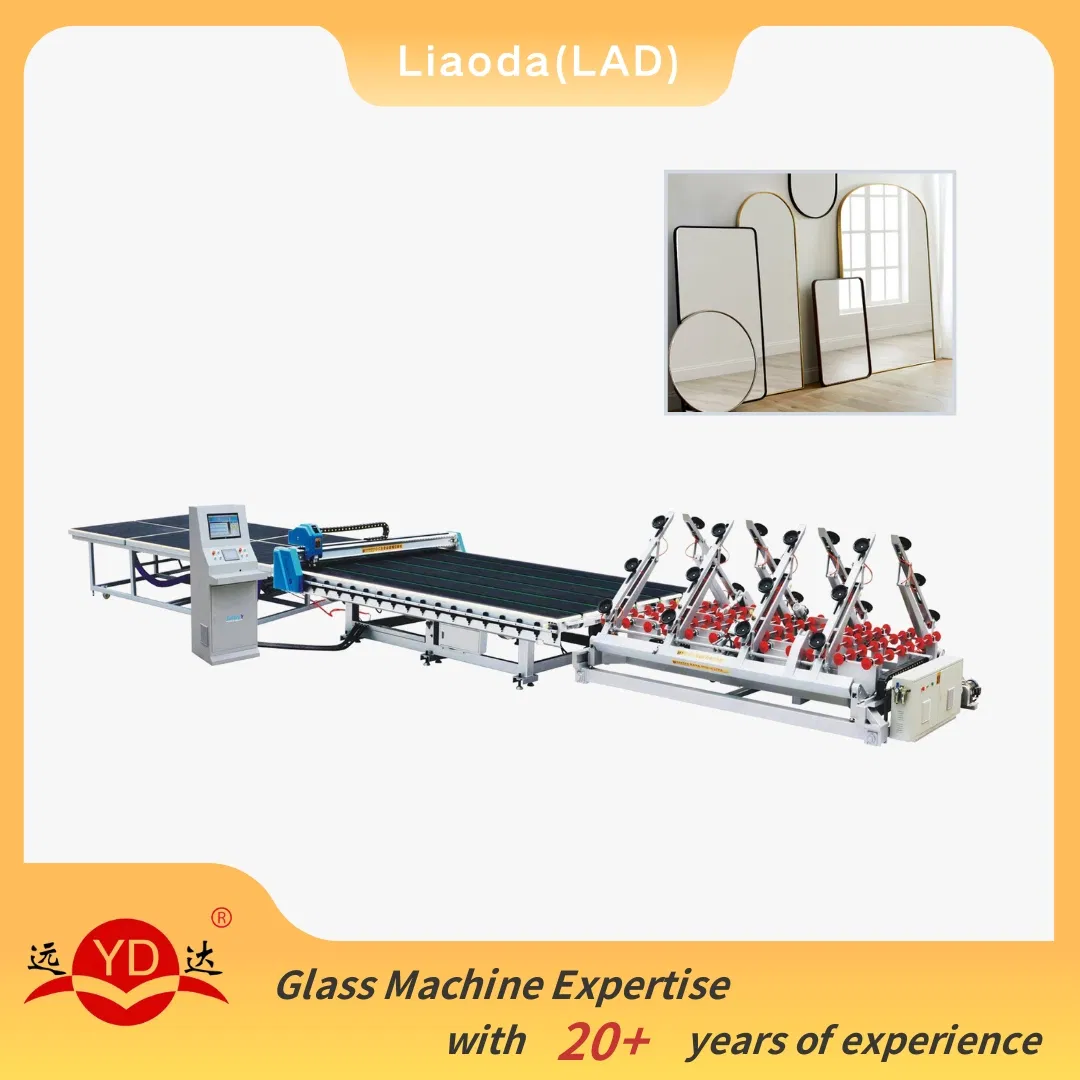

Production Line Sections:

  1. YD-SP-4228 Automatic Glass Loading Machine (Max load: 900KG)
  2. YD-CNC-4228 Automatic Shaped Glass Cutting Machine (Speed: 150m/min)

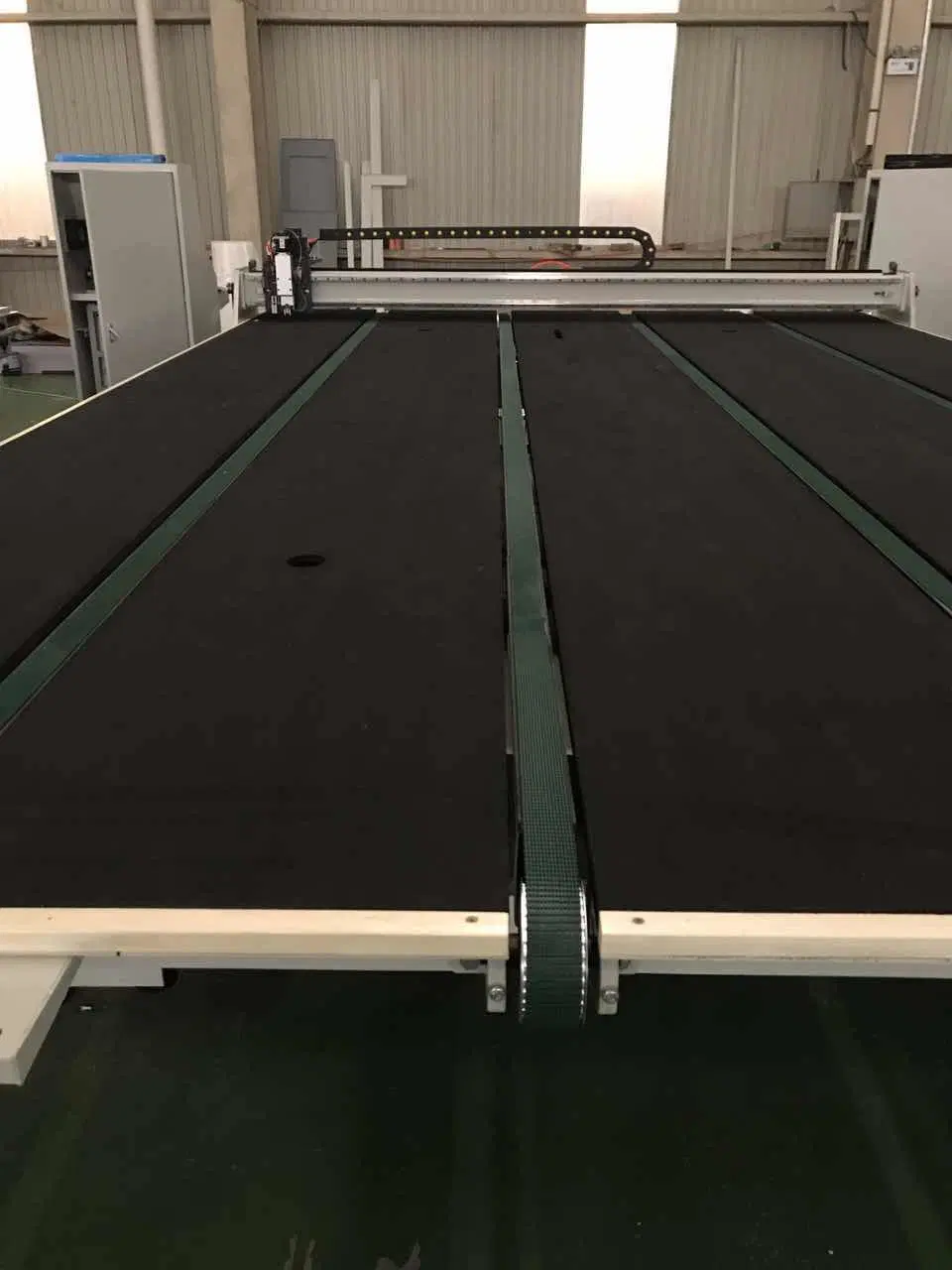

  3. YD-QP-4228 Glass Breaking Table (High density water-proof table)
T

Technical Parameters

Model YD-CTL-4228 YD-CTL-5133 YD-CTL-6133
Max. Glass Size (mm) 4200*2800 5100*3300 6100*3300
Glass Thickness (mm) 3-19 3-19 3-19
Cutting Precision (mm/m) ≤±0.20 ≤±0.20 ≤±0.20
Cutting Speed (m/min) 120 120 120
Power (KW) 8 8 8
Weight (KG) 8000 10000 12000
V

Detailed Visuals

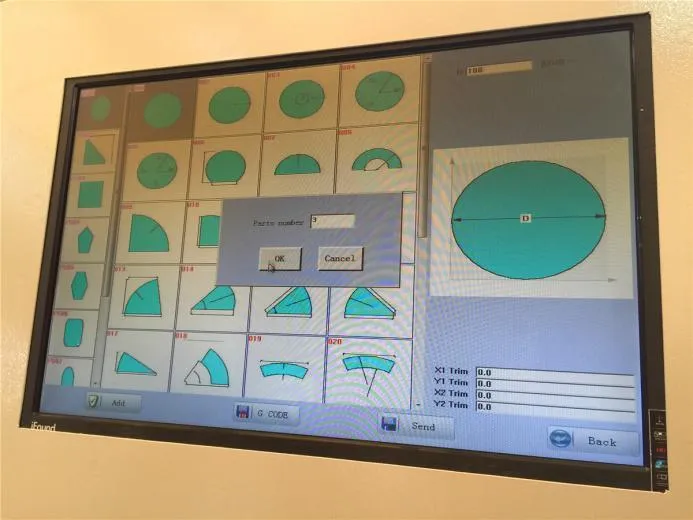

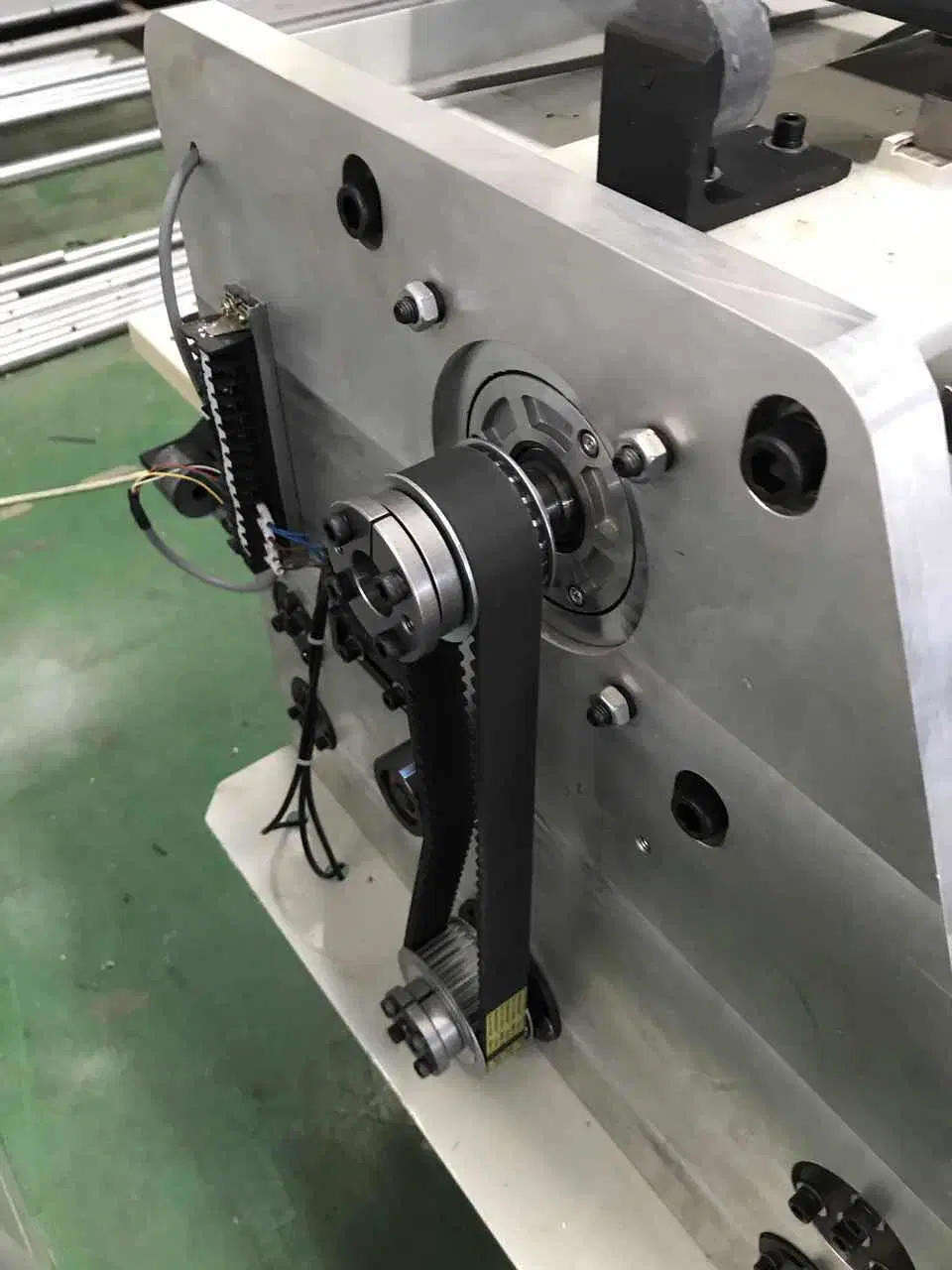

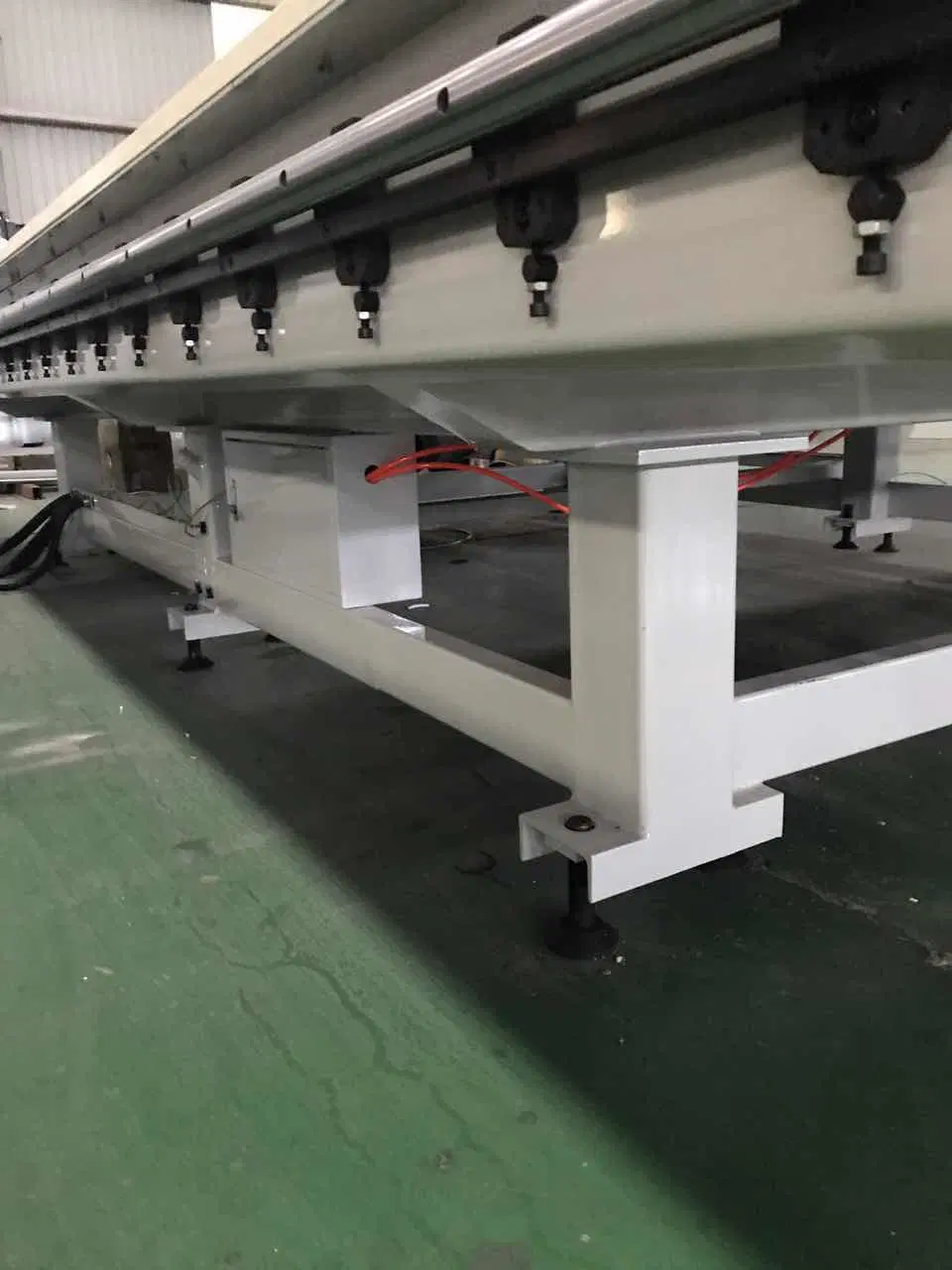

Detailed View 1

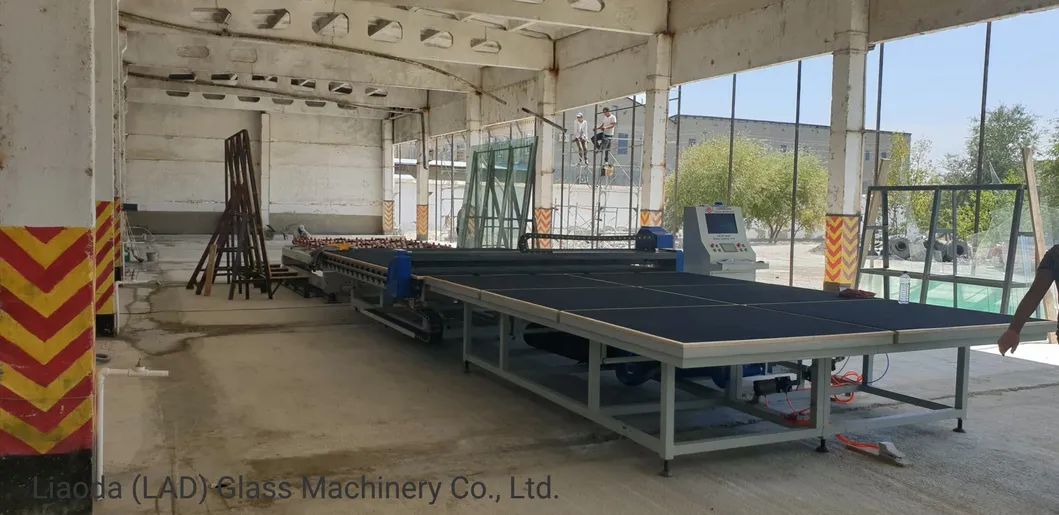

Detailed View 2

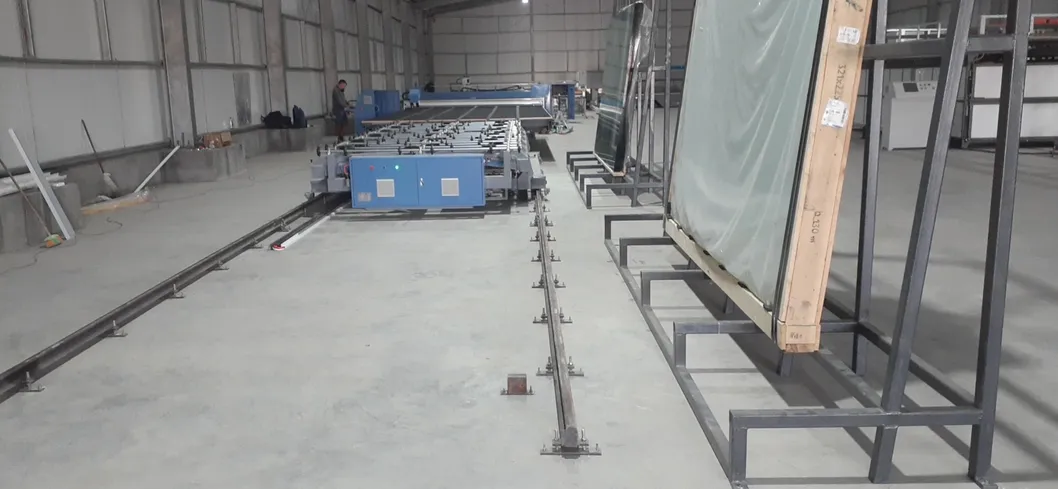

Detailed View 3

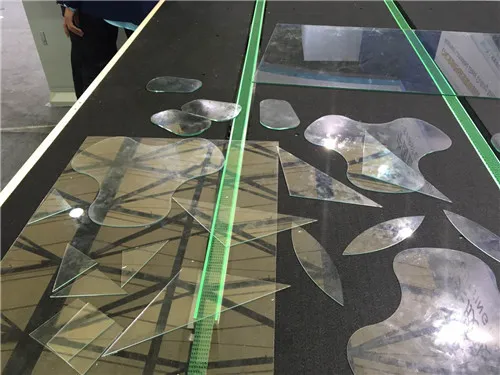

Performance Sample 1

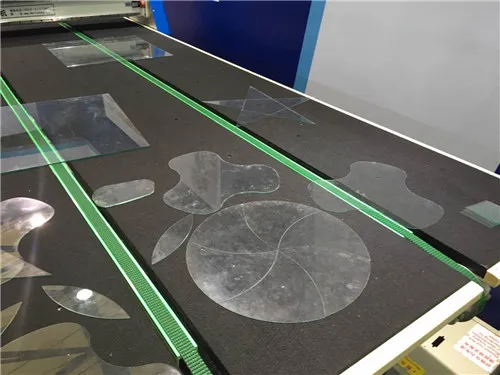

Performance Sample 2
S

Service & Support

Guarantee And After-sale Service:

  • One year guarantee for the whole machine.
  • 24 hours technical support via electronic communication.
  • User-friendly English software, manual, and detailed instructional videos.
  • Provision of all spare parts required for equipment maintenance.
  • Professional after-sales team providing training and installation support.

The equipment can be customized as required.

?

Frequently Asked Questions

Q1: What is the maximum glass thickness this machine can handle? A: The machine is designed to cut glass thicknesses ranging from 3mm up to 19mm, with a maximum cutting thickness of 15mm for standard operations.
Q2: Can the machine cut different shapes of glass? A: Yes, it is a specialized CNC shaped glass cutting machine capable of handling various geometric designs automatically.
Q3: What control system does the equipment use? A: It uses a high-precision PC-based computer control system with a standard Microsoft Windows interface, supporting both Chinese and English.
Q4: Does the price include the loading and breaking sections? A: The full production line typically contains three sections: the Automatic Loading Machine, the CNC Cutting Machine, and the Glass Breaking Table.
Q5: What kind of precision can I expect from the cutting? A: The machine offers a linear parallel precision of ≤±0.25mm/m and a cutting precision error of ≤±0.20mm/m.
Q6: Is technical support available after purchase? A: Yes, we provide 24-hour technical support, a one-year guarantee, and professional team assistance for installation and training.
