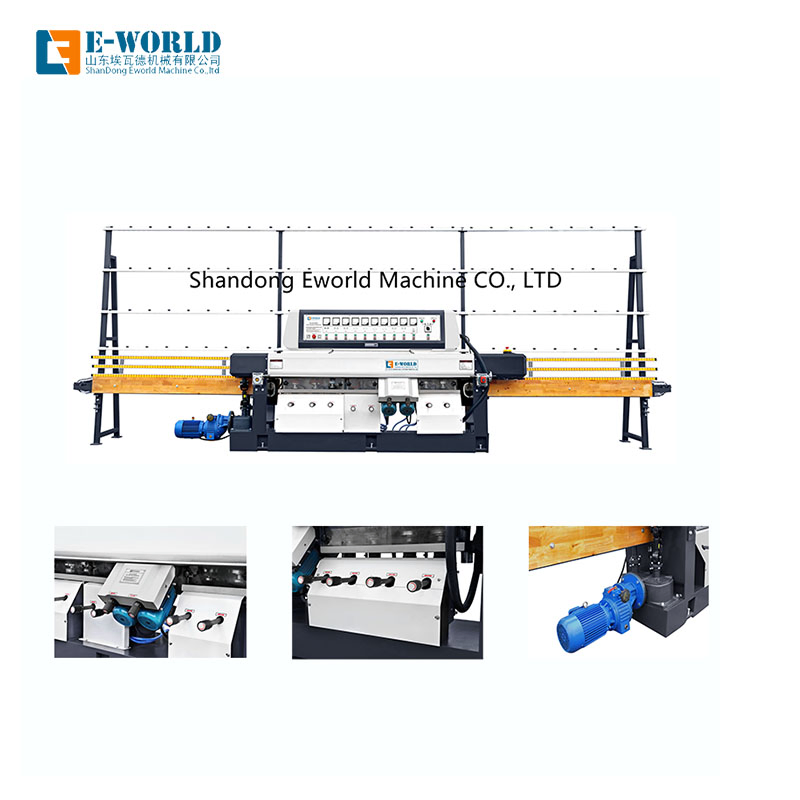

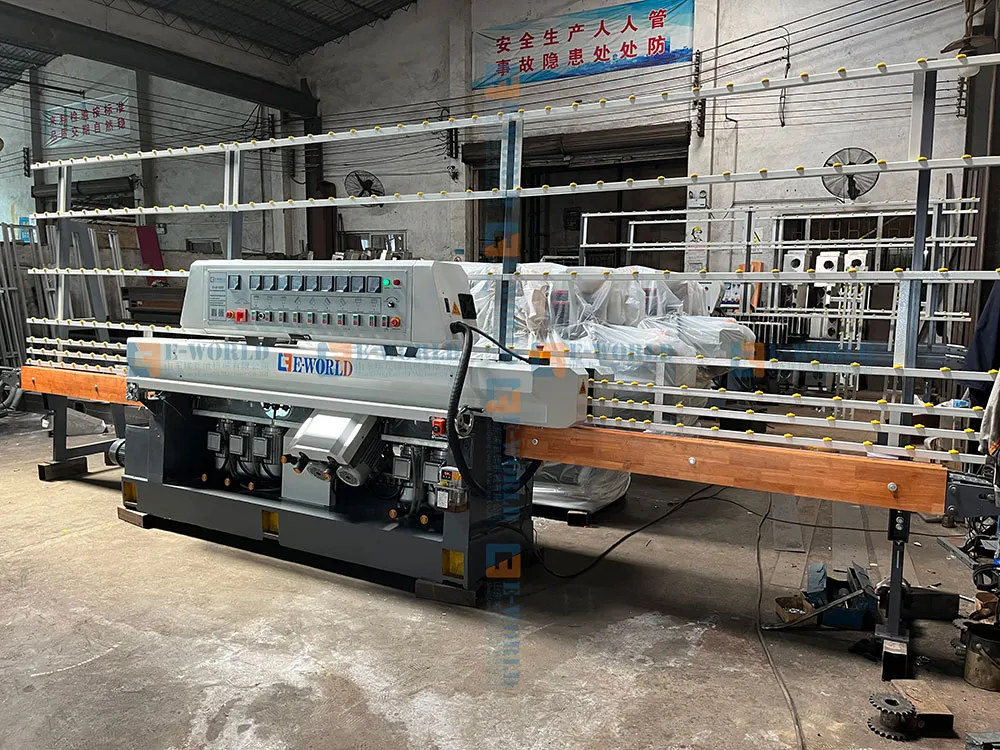

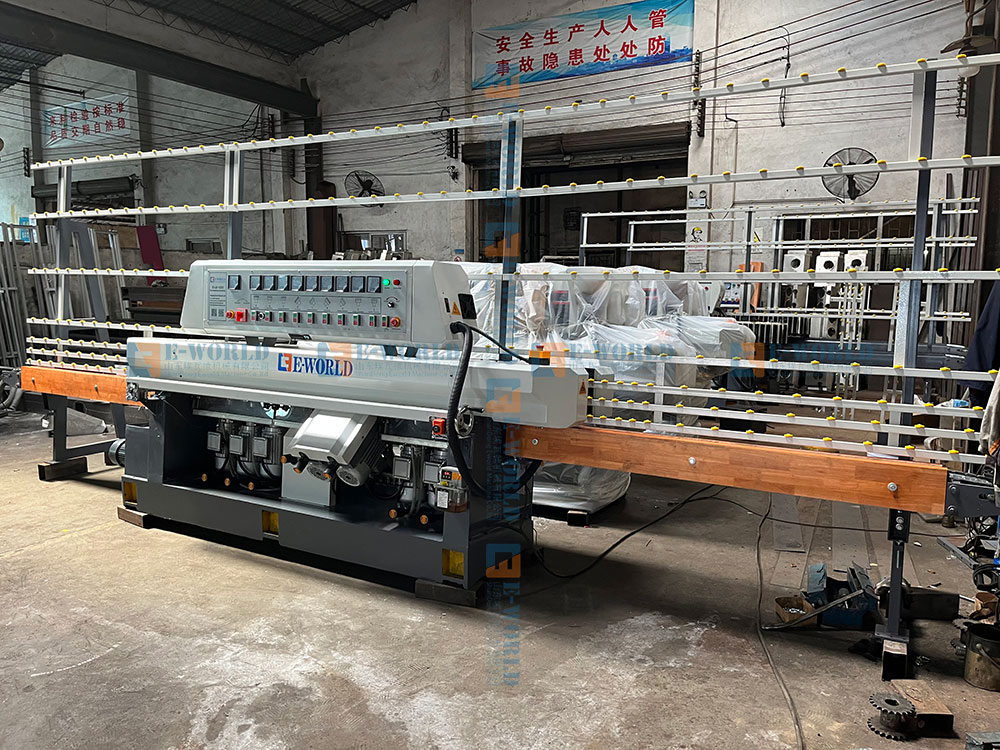

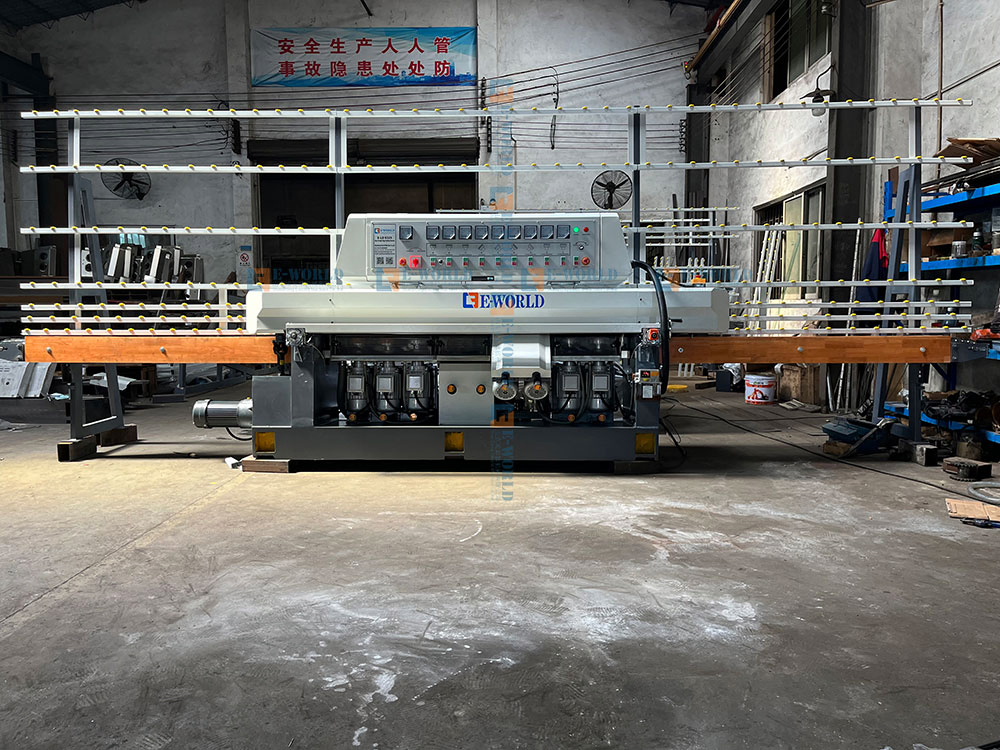

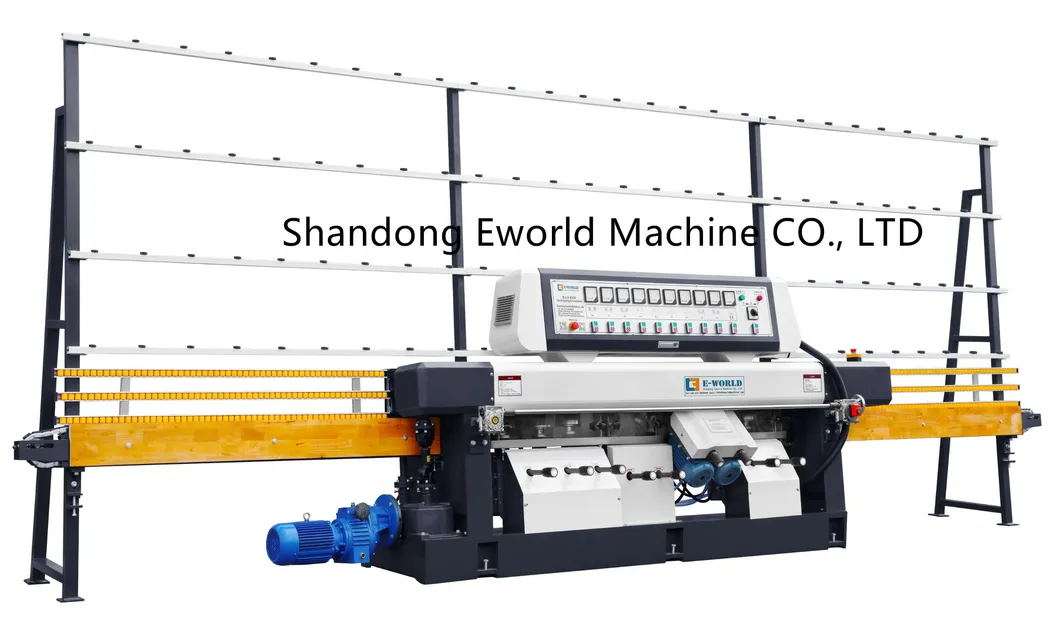

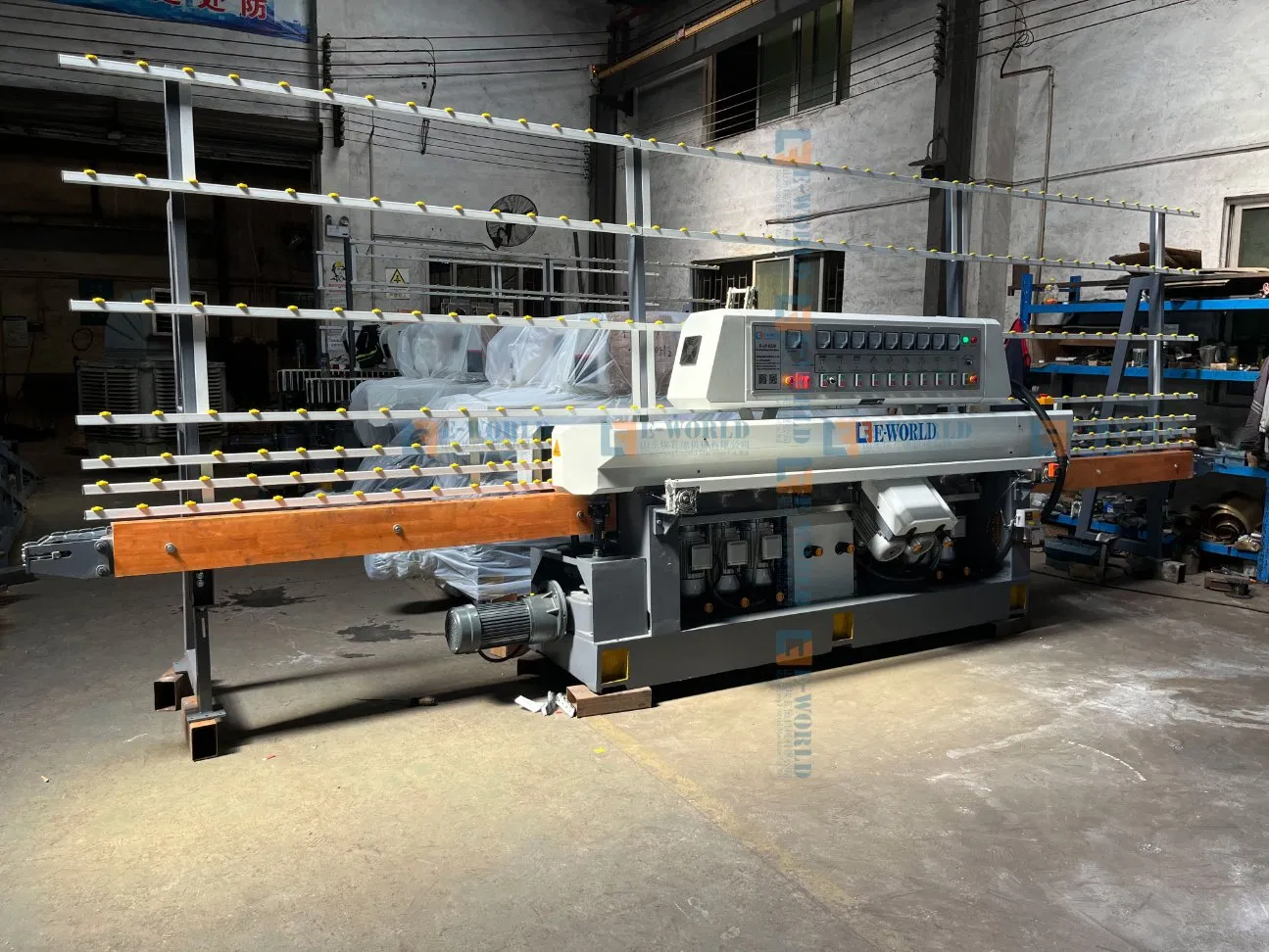

PLC Control Glass Processing Machinery 9 Motor 45 Angle Glass Edging Machine

1 / 5

PLC Control Glass Processing Machinery 9 Motor 45 Angle Glass Edging Machine

Customization:	Available
Certification:	CE, ISO
Processing Speed:	15-20 m/min

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.	E-LD9325-45
Processing Thickness	3-19 mm
Glass Thickness Range	3-25 mm
Voltage	380V/50Hz or Customized
Installed Power	19.75kw
Working Speed	0.5-7.0m/Min
Min Glass Size	50*50mm
Max Glass Size	2440x3660mm
Grinding Head Number	9 Motors
Arrise Angle	45°
Control System	PLC
Type	Glass Straight Edging Machine
Structure	Vertical
Overall Dimension	7.0m * 1.0m * 2.5m
Weight	3000kg

⚙️

Product Description & Features

✓ ISO Standard Compliant

✓ 9 High-performance Spindles

✓ Excellent Grinding and Polishing Effect

✓ Easy to Operate and Maintain

✓ Suitable for Straight-line Edging

✓ Sturdy Structure for 24-Hour Non-stop Running

📦

Packing & Delivery

Packing Terms: Suitable for shipment by sea (Standard Plywood)

Terms of Payment: 30% T/T deposit, balance before shipment

Delivery Time: Within 20-25 days after receipt of deposit

Guarantee: One whole year after installation

🛠️

Main Parts & Components

This machine processes rectilinear glass plates in various sizes and thicknesses. The grinding (roughing), finishing resin, and fillets can be performed simultaneously. It allows for continuous processing of the same thickness sheets, enabling high-volume production for hardening and rolling processes.

❓

Frequently Asked Questions

What is the processing range of the glass edging machine?

The machine can process glass thickness from 3mm to 25mm, with a minimum glass size of 50x50mm and a maximum size of 2440x3660mm.

How many motors does this model have and what is the arris angle?

This model (E-LD9325-45) is equipped with 9 motors/spindles and is designed to create a 45-degree arris angle.

What kind of after-sales service and guarantee is provided?

We provide a one-year warranty after installation. Technical support is available 24/7 via email or calling, along with English manuals and video tutorials.

What is the standard delivery time for this equipment?

For standard machines, delivery is typically within 3 to 15 days. For customized requirements, it may take 15 to 30 days.

Can you provide onsite equipment operation training?

Yes, professional engineers can be sent to your site for installation, adjustment, and operation training.

Why should we choose your machines over cheaper alternatives?

We use high-quality, famous-brand internal electrical parts to ensure reliability. Most machine breakdowns are caused by inferior electrical components, which we avoid to ensure 24-hour continuous operation.
