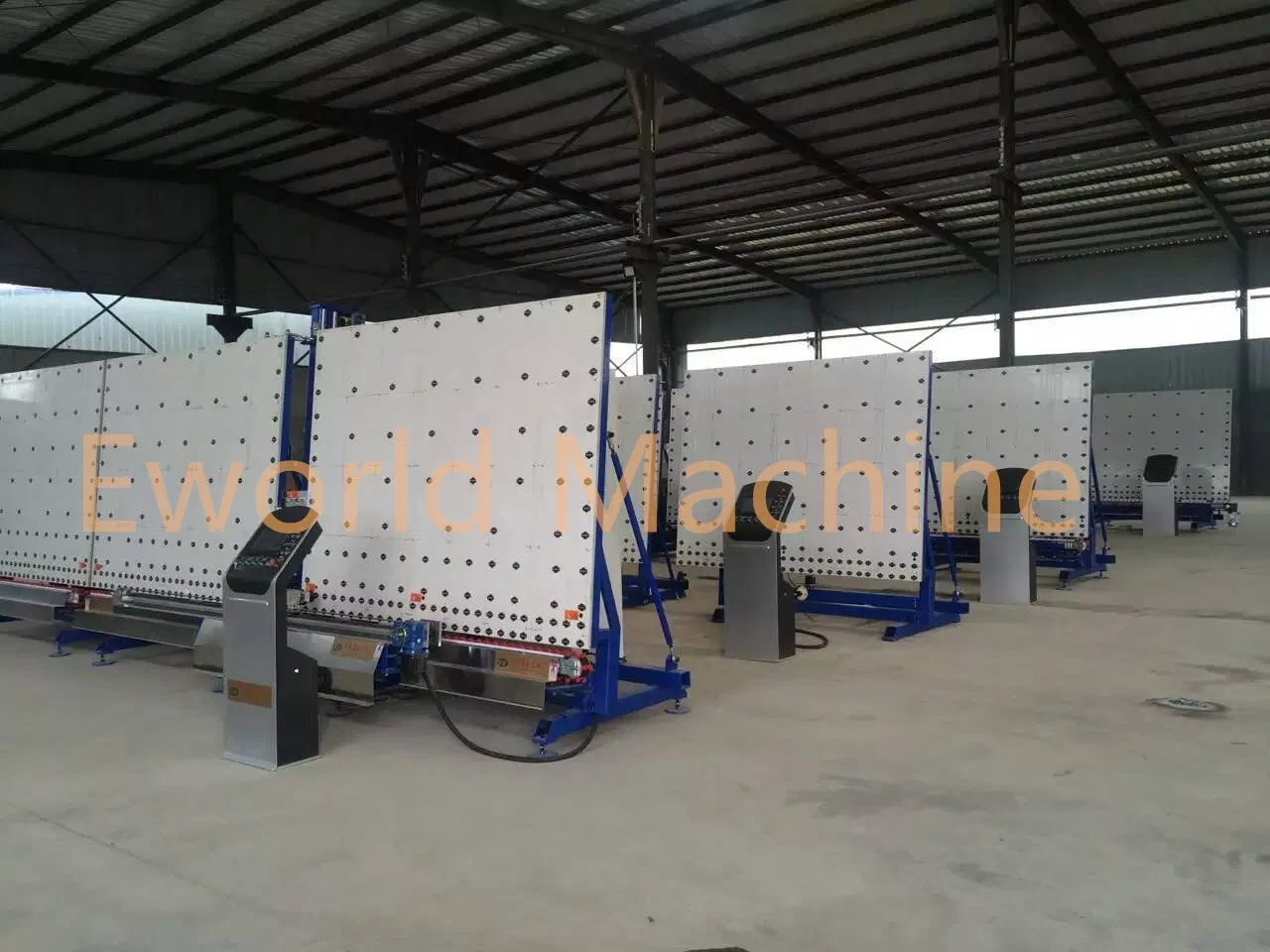

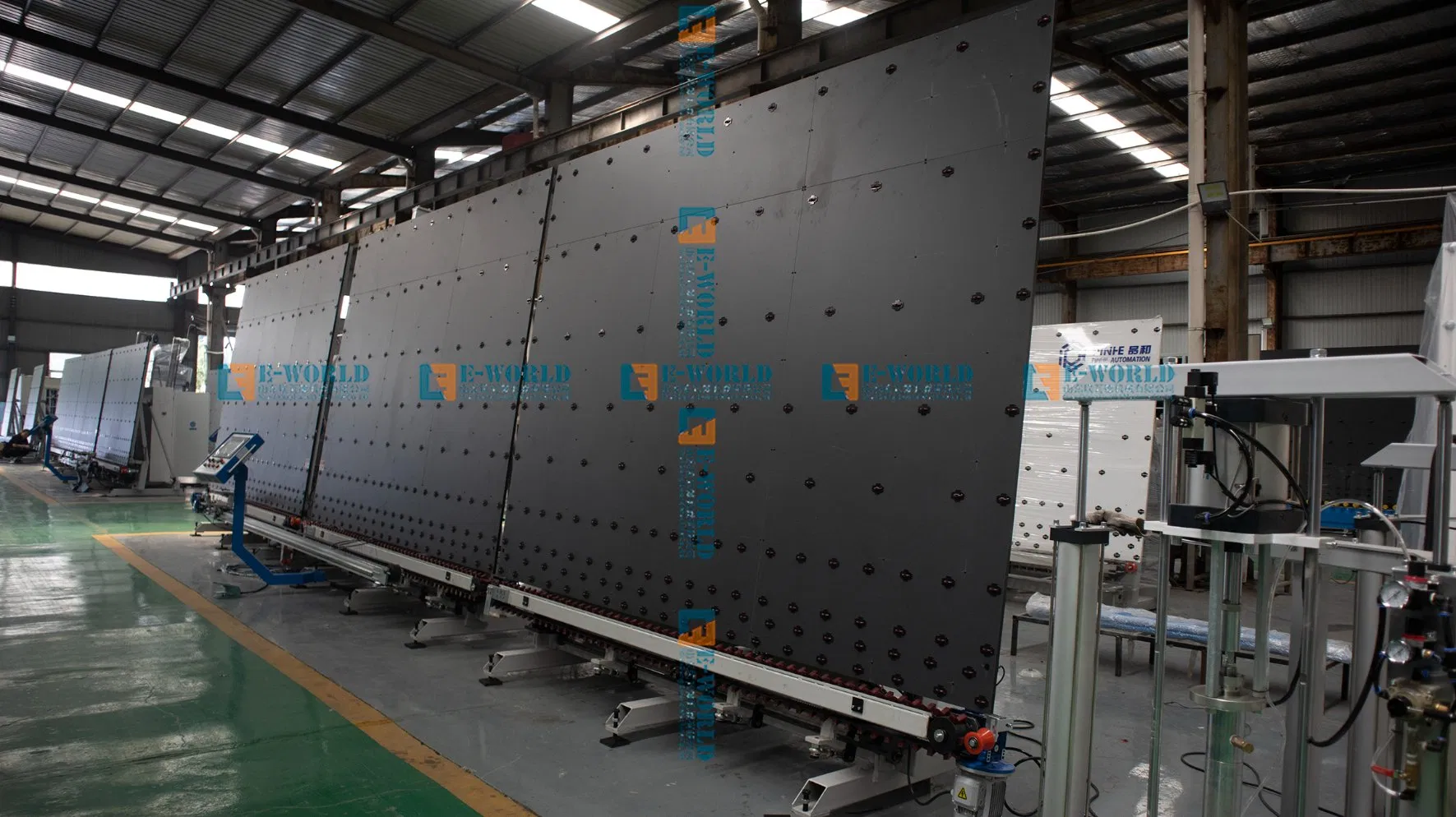

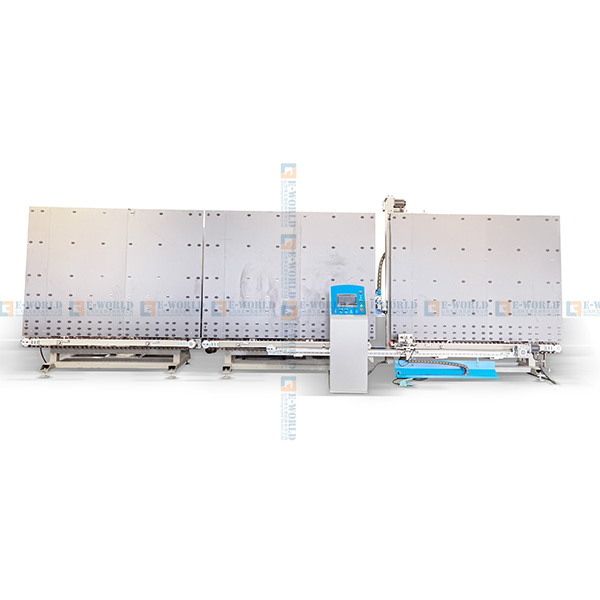

Good Quality Professional Insulating Glass Sealing Robot

1 / 5

Good Quality Professional Insulating Glass Sealing Robot

Customization:	Available
Certification:	CE, ISO
Total Weight:	1000kg

Send Inquiry

Product Description

Basic Information

Model NO.

SMT2000

Max Glass Size

2000*3000mm

Voltage

Customized

Dimensions

10800*3800*3300mm

Power

7.5kw

Type

Insulating Glass Production Line

Condition

New

Warranty

1 Year

★

Product Description

Insulating Glass Sealing Robot

Brief Introduction

High automation, ideal for glass deep processing enterprises.
User-friendly man-machine interface with simplified design for intuitive operation.
Ensures glass edges and corners are full, smooth, and free of air bubbles.

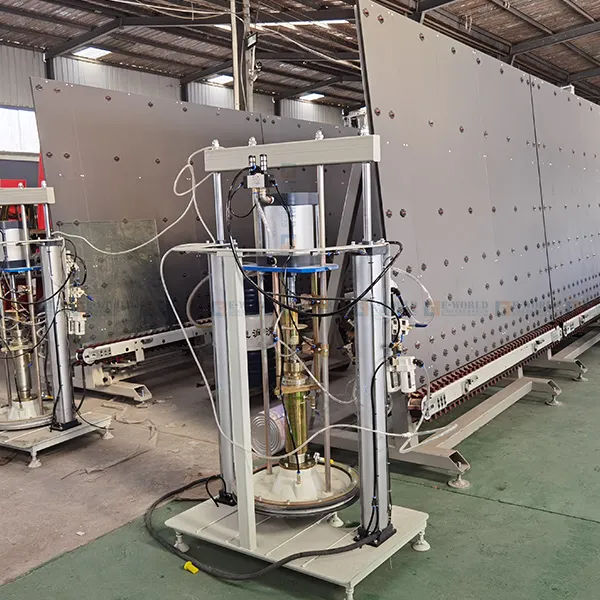

Dual independent sealant supply systems with easy one-key switching.
Efficiency-boosting third section to prestore glass; supports three-layer glass sealing.

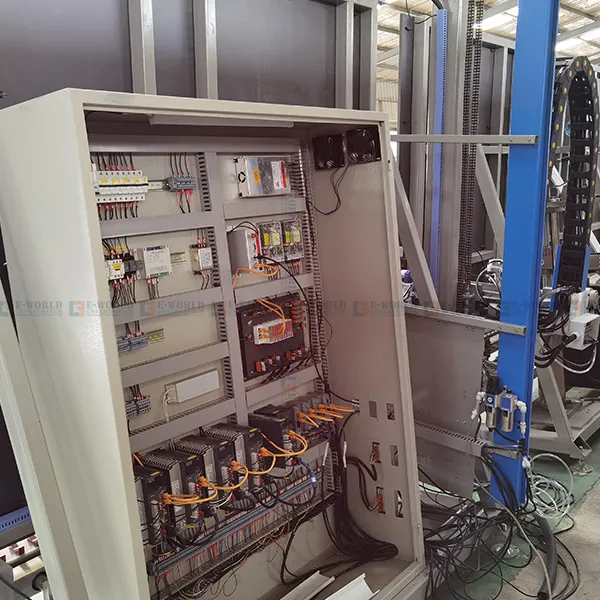

Equipped with high-performance world-famous brand servo control systems.
Synchronous belt transmission for smooth glass transfer and accurate positioning.

Technical Features

9-axis servo motor movement CNC control system for continuous sealing.
Servo-driven hydraulic pump for precise flow rate calculation.
Automatic checking of sealing depth and spacer width.
Low-waste rinse system with a 0.16-liter mixer.
Automatic corner trimming function.
Clean and stable glass conveyance via advanced chain driving.
Compatible with polysulfide, silicon, and polyurethane sealants.
Fast-change extruding nozzle for varied requirements.

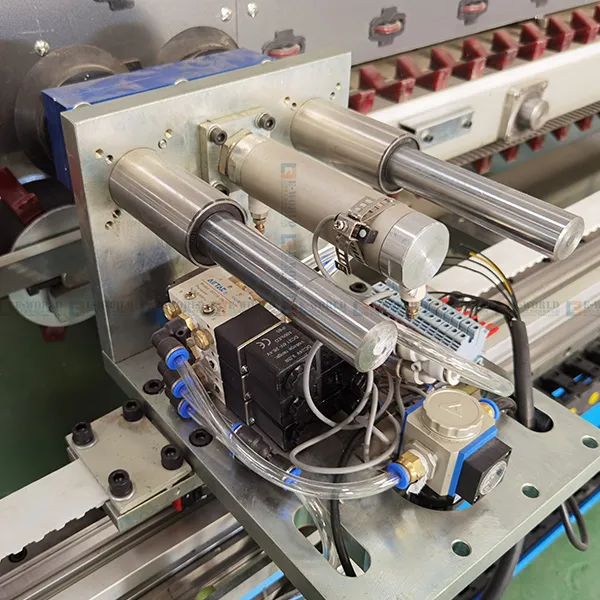

Detailed Photos

Product Parameters

Parameter Item	Specification	Parameter Item	Specification
Model	SMT-1800	Total Power	380V 50HZ 11KW
Air Pressure	0.5-0.7MPa	Squeeze Pressure	32MPa
Max Glass Size	1800*3000mm	Min Glass Size	350*500mm
Working Speed	5-40m/min	Machine Size	1080038003300mm
Sealing Depth	2-10mm	Sealing Width	6-20mm
IG Thickness	12-48mm	Convey Weight	120kg/m

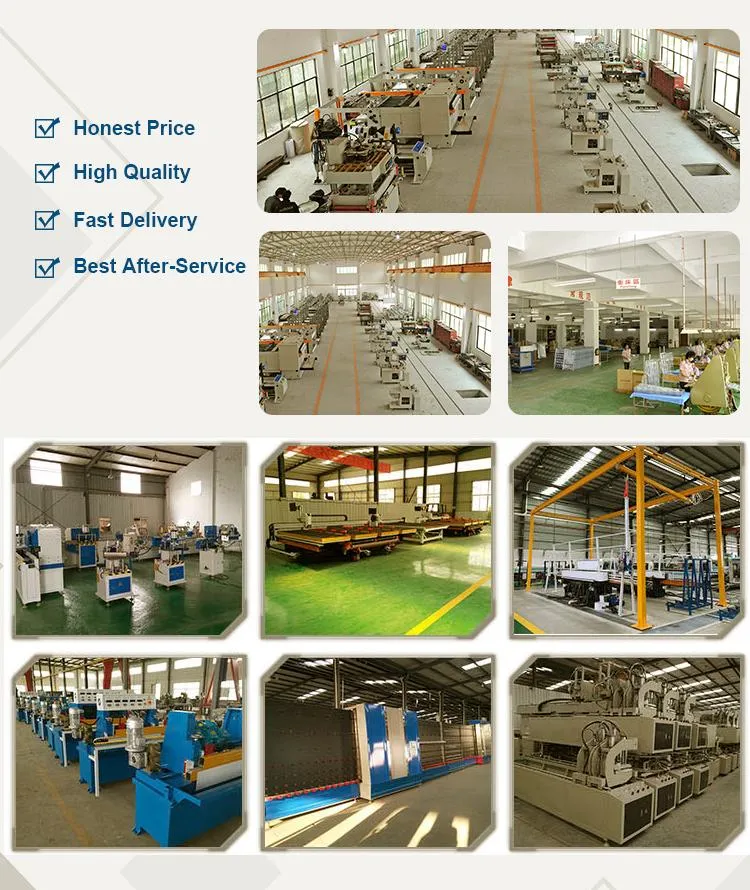

Certifications & Factory

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer with more than 5 specialized workshops dedicated to high-quality glass machinery.

How is your after-sales service?

We provide 24-hour after-sale service, reply to inquiries within 12 hours, and ensure maximum delivery within 15 days for standard orders. Our team has over 12 years of experience in the field.

What kind of guarantee do you offer?

We offer a 12-month general warranty and a 2-year quality guarantee for the machine (excluding consumables). Technical support is available 24/7 via digital channels.

Do you provide equipment operation training?

Yes, we can send professional engineers to your site for installation, adjustment, and comprehensive operation training for your staff.

Why should we choose your machines over cheaper alternatives?

The difference lies in the quality of internal components. we use famous and reliable international brands for electrical parts, ensuring stability and reducing the risk of breakdown.

What is the standard delivery time?

Standard machines are typically ready within 3-15 days. For customized or non-standard machines, the timeframe is 15 to 30 days depending on specific requirements.
