Good Quality Customer Recommended L Frame Glass Handling

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications
Usage
Tool Rack, Tools, Warehouse Rack
Material
Steel and Reinforced Concrete
Structure
Shelf
Type
Pallet Racking
Mobility
Combined
Height
0-5m
Weight
150-500kg
Surface
Powder Coating
Development
New Type
Serviceability
Common Use
Movement
Overhead Crane Forklift Truck
HS Code
7308900000

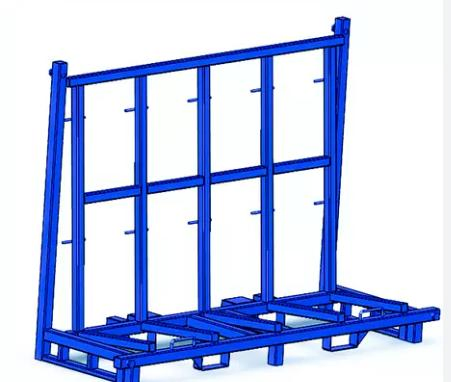

L Frame Glass Stock Racks
High-End Protection: Widely used for high-end glass and hollow glass pairing where strict placement requirements are essential.

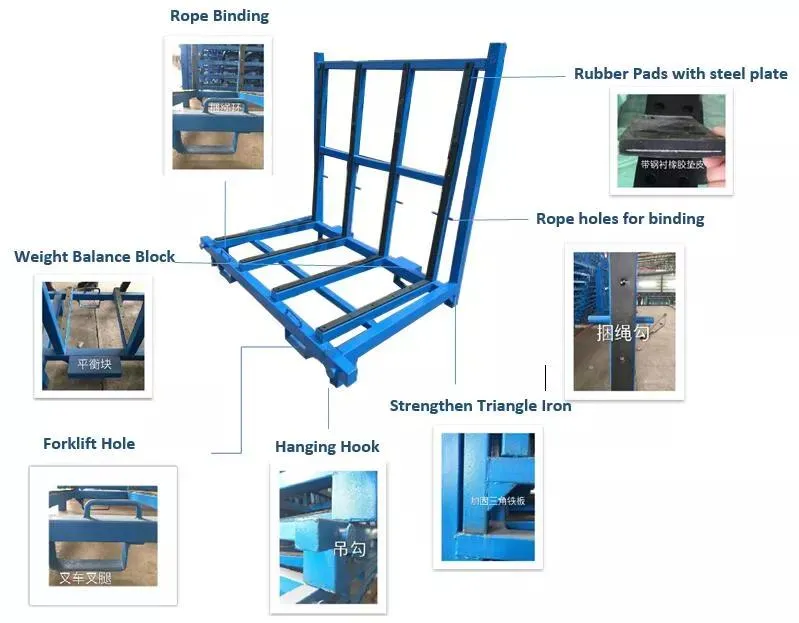

Safety Secure: Features a specialized device for fixing glass to prevent sliding during movement.
Efficiency: Designed to take and put glass accurately, saving manpower, time, and warehouse space.
Modular Design: Separated structure that is easy to disassemble and install, significantly reducing transportation costs.
Detailed Specifications

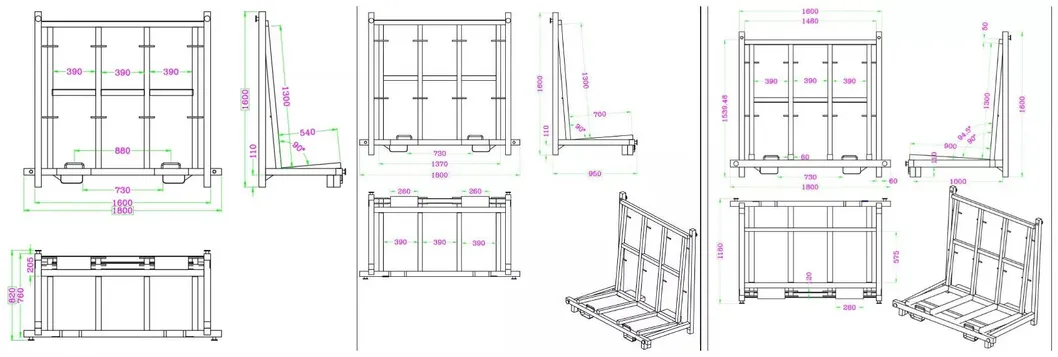

Model L Frame Rack A L Frame Rack B L Frame Rack C
Specification (L*H*W mm) 1800*1600*750 1800*1600*950 1800*1600*1150
Storing Thickness (mm) 540 690 890
Qty for 1*40HQ (pcs) 86 75 68
Self-weight (kgs) 95 100 115
Length (mm) Height (mm) Width (mm) Application Usage
1800 1600 820 540mm glass thickness, small truck transport.
1800 1600 980 690mm glass thickness, middle-size truck transport.
1800 1600 1180 890mm glass thickness, large truck transport.

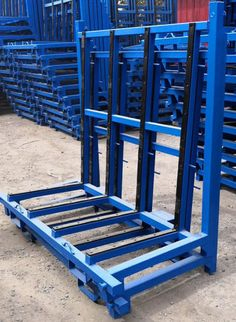

Product Gallery
Factory Overview
Frequently Asked Questions
1. What types of glass are these L Frame racks suitable for?
They are ideal for high-end glass, hollow glass pairing, and raw glass sheets in deep processing plants.
2. Can the size of the glass racks be customized?
Yes, customized sizes and designs are available to meet specific storage and transportation needs.
3. How does the rack prevent glass from sliding?
The shelf is equipped with a dedicated fixing device specifically designed to secure glass pieces and avoid sliding during movement.
4. How are the racks shipped to reduce costs?
The racks use a separated (disassembled) structure which is easy to install, allowing for more units per container and lower shipping fees.
5. What is the surface treatment of the steel frames?
The racks undergo a professional powder coating treatment for enhanced durability and corrosion resistance.
6. What movement modes are compatible with these racks?
They can be moved using overhead cranes, forklift trucks, and pallet trucks for versatile warehouse handling.
