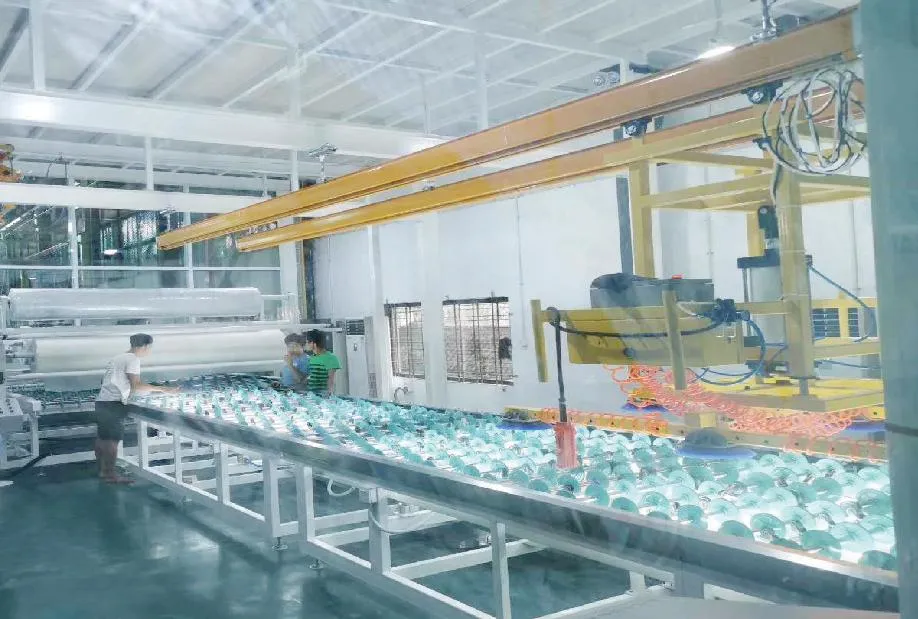

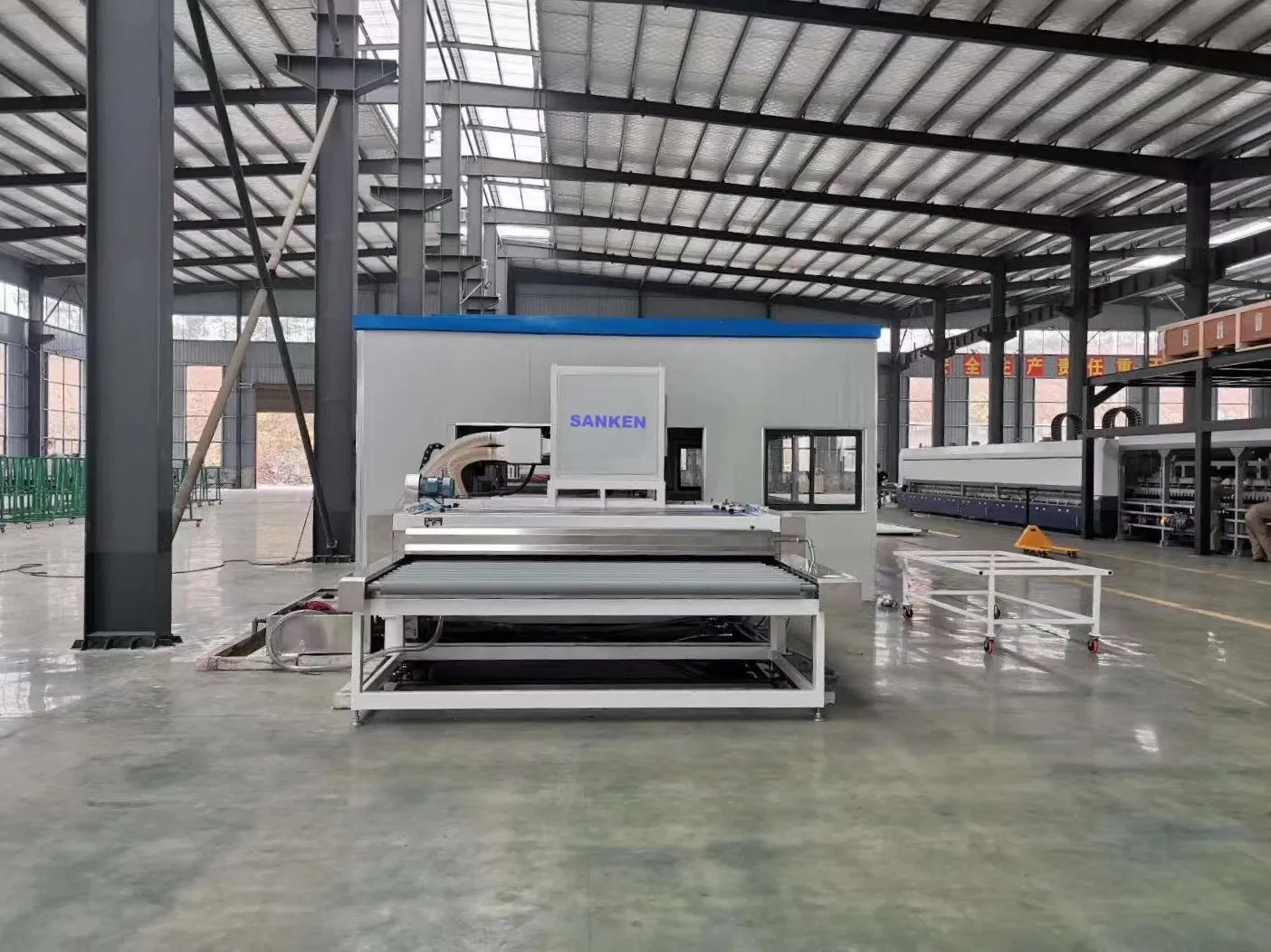

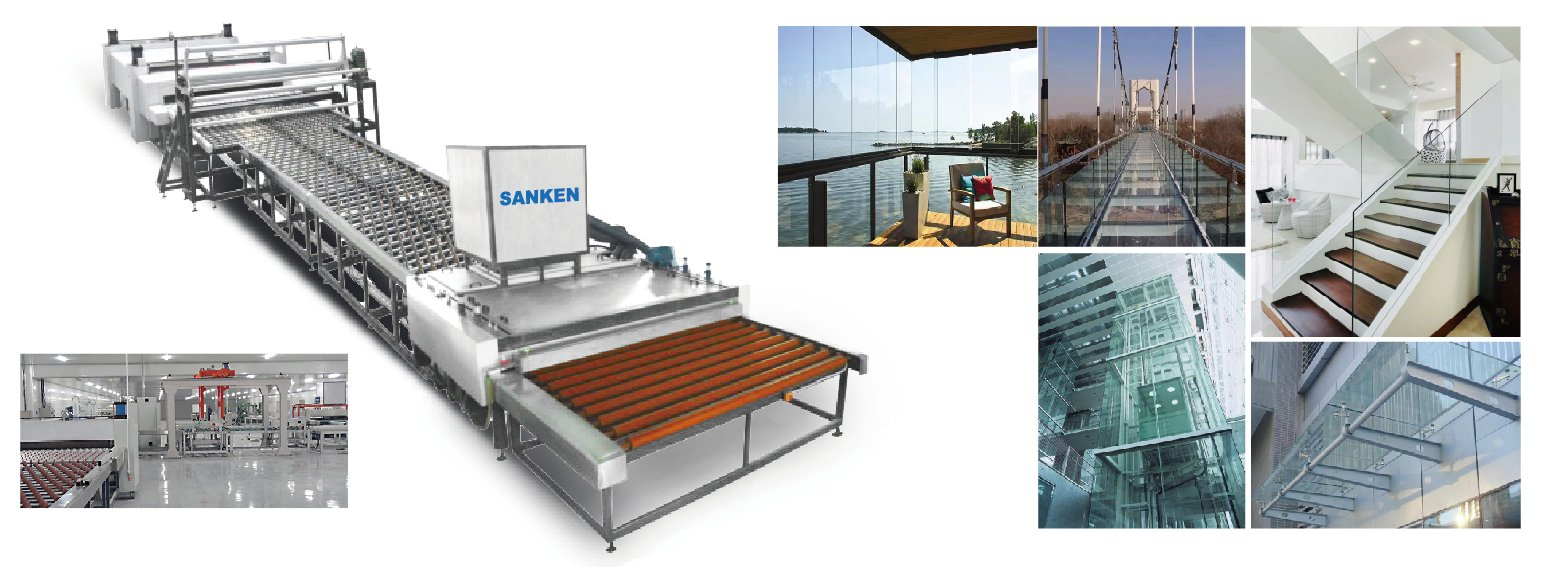

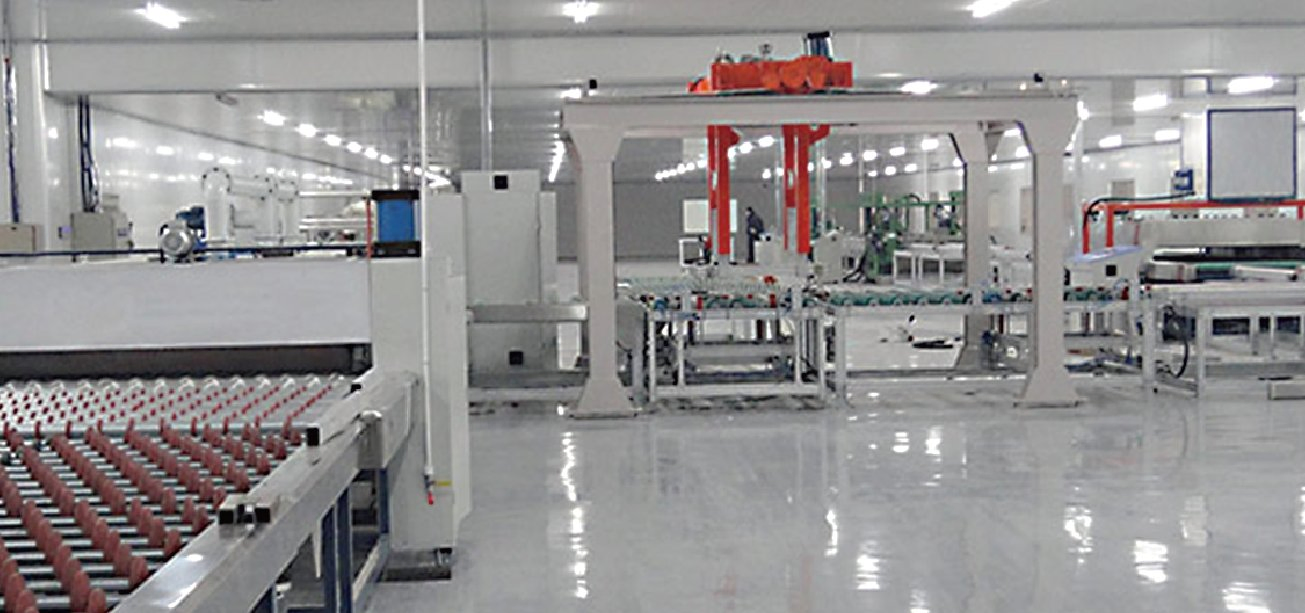

Excellent Semi-Automatic PVB Laminated Glass Production Line
Controlled by SIEMENS PLC and Touch Screen, this line offers a friendly interface, unique ingenuity, high precision manufacturing, and convenient operation. It efficiently produces two or more layers of PVB or SGP laminated safety glass.
Laminated glass produced by this line features extremely high safety and security, being hurricane-proof, earthquake-proof, riot-proof, and anti-ultraviolet. It offers high water pressure resistance and impact resistance. Even if broken, the fragments stick to the PVB film, preventing scattering and injury. Furthermore, the PVB film significantly reduces noise pollution.
| Model | Max Glass Size | Min Glass Size | Thickness | Efficiency | Power | Weight | Machine Size |
|---|---|---|---|---|---|---|---|
| SKPL-2030S | 2000 * 3000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 123 kw | 13.5 tons | 35 * 6 * 4 m |
| SKPL-2040S | 2000 * 4000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 137 kw | 14.5 tons | 40 * 6 * 4 m |
| SKPL-2540S | 2500 * 4000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 163 kw | 16.5 tons | 40 * 6.5 * 4 m |
| SKPL-2560S | 2500 * 6000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 192 kw | 18.2 tons | 50 * 6 * 4 m |
| SKPL-3060S | 3000 * 6000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 251 kw | 24.5 tons | 50 * 7 * 4 m |
| SKPL-3360S | 3300 * 6000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 279 kw | 26.8 tons | 50 * 7.3 * 4 m |
This high-security laminated glass is widely used in demanding locations including: curtain walls, glass guardrails for balconies, shower rooms, high-rise windows, daylight ceilings, shopping malls, schools, gymnasiums, observation elevators, and financial sectors like banks.
