Product Description

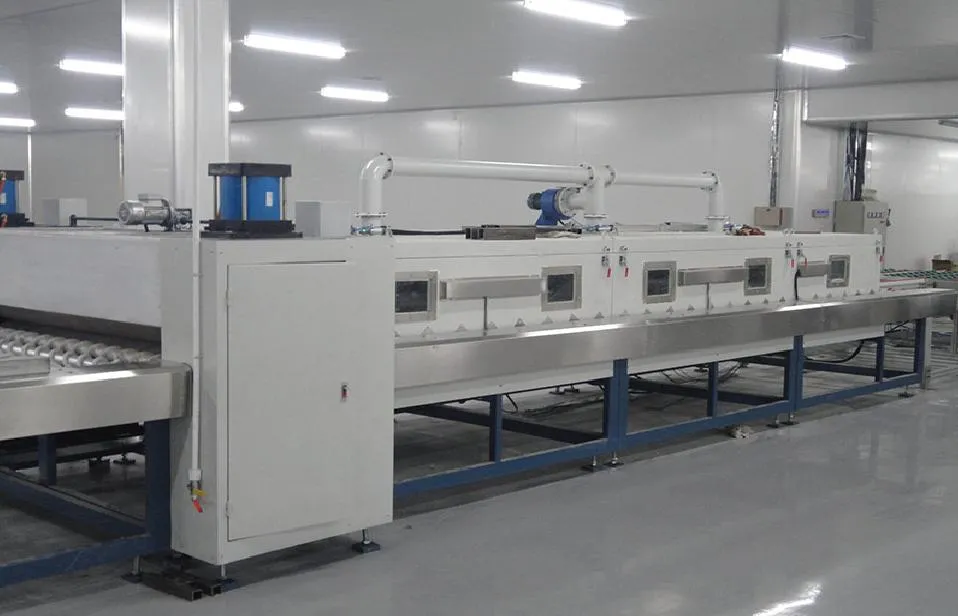

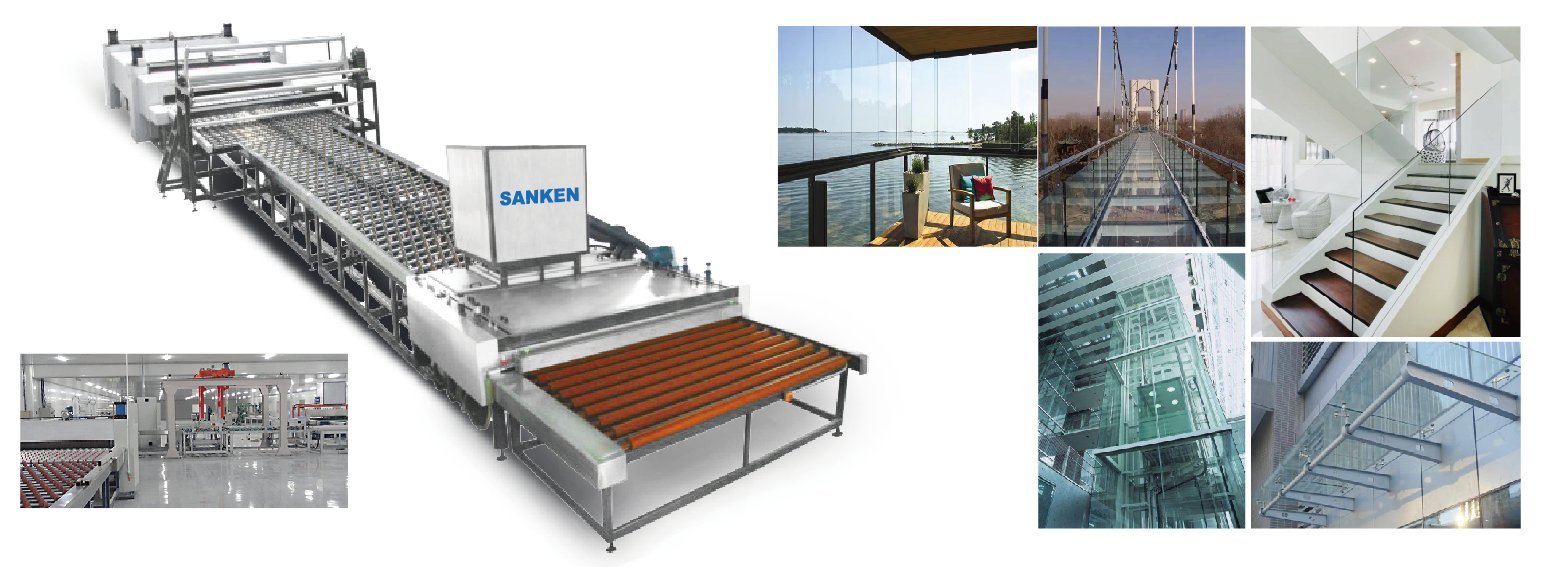

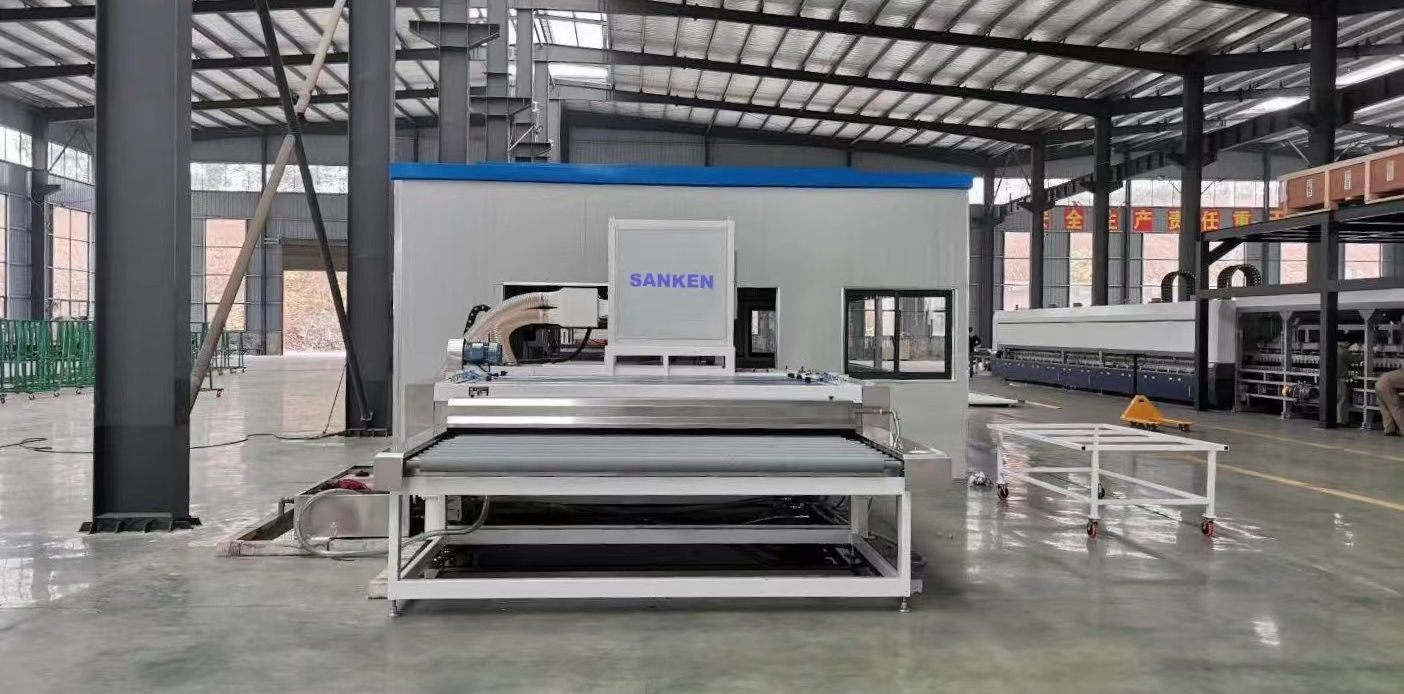

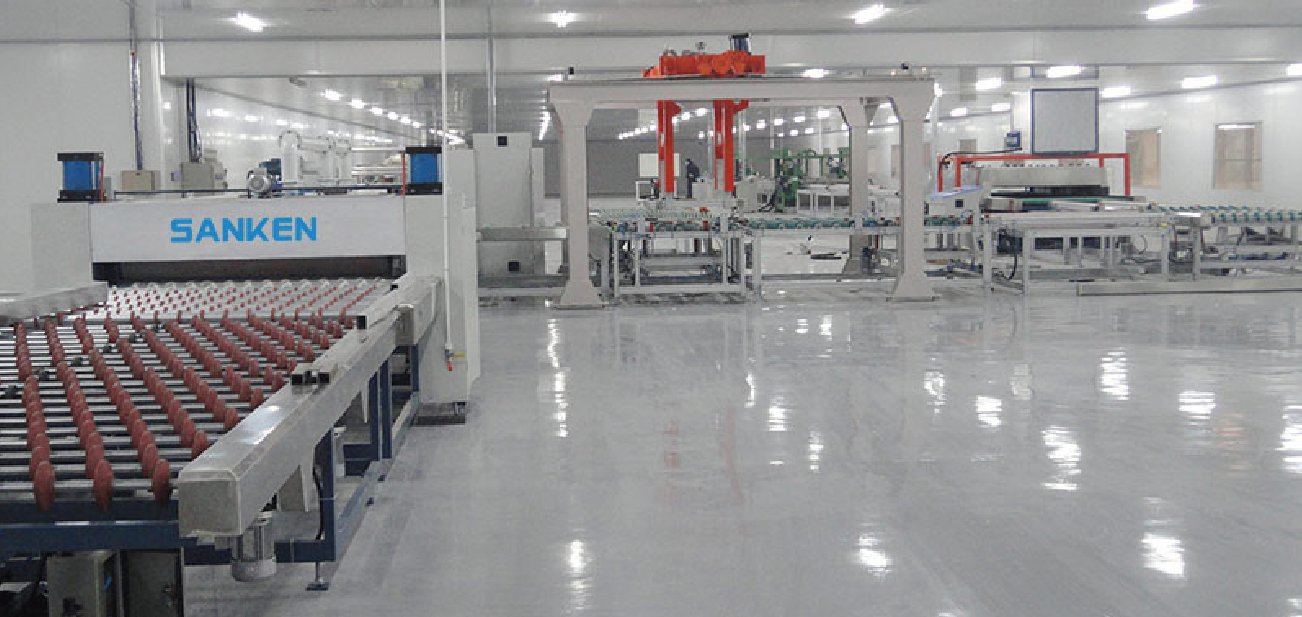

Semi-Automatic PVB Triplex Laminated Glass Machine SKPL-3360S
⚙️

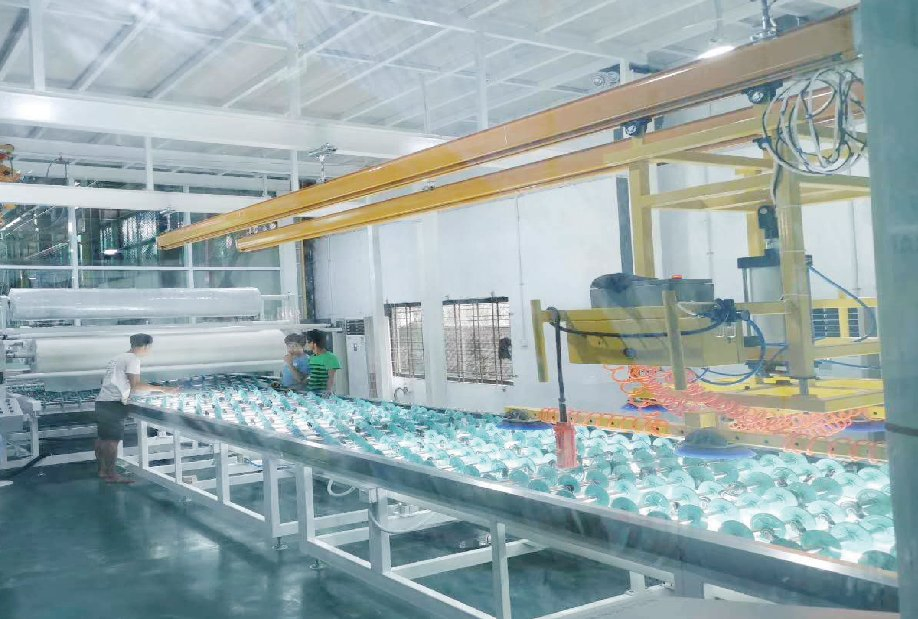

The Semi Automatic PVB Laminated Glass Line is controlled by SIEMENS PLC and Touch Screen, featuring a friendly interface and high precision manufacturing. It efficiently produces two or more layers of PVB/SGP laminated safety glass. The resulting glass offers extreme safety, hurricane-proof, earthquake-proof, and anti-ultraviolet properties. Even if broken, the fragments remain adhered to the film, preventing injury.
🏢
Widely applied in high-security locations: IG curtain walls, balcony guardrails, shower rooms, windows for tall buildings, ceiling glass, shopping malls, schools, gyms, observation elevators, and financial sectors like banks requiring high-security laminated glass.
| Model |
Max glass size |
Min glass size |
Thickness |
Efficiency |
Power |
Weight |
Machine size |
| SKPL-2030S | 2000 * 3000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 123 kw | 13.5 tons | 35 * 6 * 4 m |
| SKPL-2040S | 2000 * 4000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 137 kw | 14.5 tons | 40 * 6 * 4 m |
| SKPL-2540S | 2500 * 4000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 163 kw | 16.5 tons | 40 * 6.5 * 4 m |
| SKPL-2560S | 2500 * 6000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 192 kw | 18.2 tons | 50 * 6 * 4 m |
| SKPL-3060S | 3000 * 6000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 251 kw | 24.5 tons | 50 * 7 * 4 m |
| SKPL-3360S | 3300 * 6000 mm | 300 * 420 mm | 6-80 mm | 30-50 pcs/h | 279 kw | 26.8 tons | 50 * 7.3 * 4 m |
Frequently Asked Questions
1. What type of control system does the glass laminating machine use?
The machine is equipped with a high-end SIEMENS PLC and Touch Screen control system, ensuring a user-friendly interface and high-precision operations.
2. What thickness range can the SKPL series handle?
The SKPL series machines are versatile and can handle glass thicknesses ranging from 6 mm to 80 mm.
3. Which interlayer films are compatible with this production line?
This line is designed to efficiently process both PVB and SGP films for the production of high-performance laminated safety glass.
4. What is the typical production efficiency of these models?
Most models in the SKPL-S series offer a production efficiency of approximately 30 to 50 pieces per hour, depending on the glass size and complexity.
5. Does the machine meet international safety and quality standards?
Yes, the equipment is certified with CE and ISO standards, ensuring compliance with international quality and safety requirements.
6. What is the estimated delivery time for a new machine order?
The standard delivery time for the Semi-Automatic PVB Laminated Glass Machine is approximately 95 days.
