01

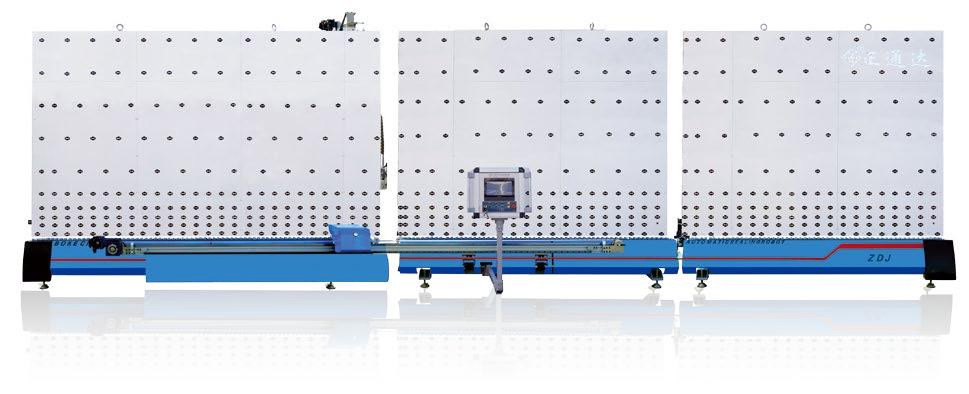

The gluing part adopts a special relocation mechanism, ensuring the gluing nozzle touches the IG unit closely without breakage, adapting to displacement errors.
02
Sealing width is adjustable via parameter input for accuracy. Sealing depth is detected automatically to control speed and quantity, ensuring quality corners.
03
Equipped with high-end electric elements including imported Servo motors, controllers, and fiber optic switches for reliable, long-life operation.
04
Key moving parts like suckers, reducers, and rails are sourced from premium brands to ensure smooth and safe glass transfer.
05

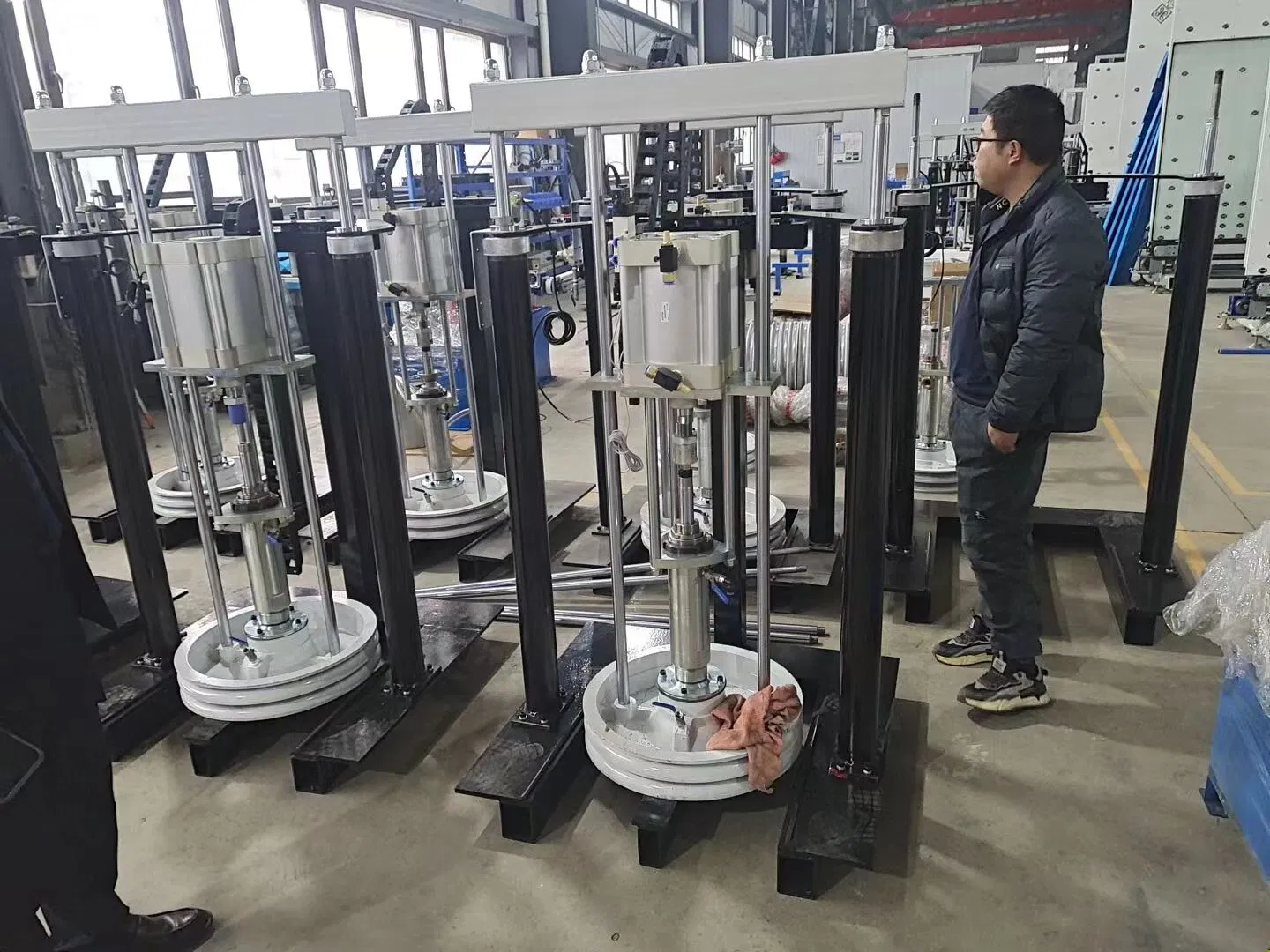

Hydraulic glue system uses precise pressure control for quantitative supply of white and black glue through mechanical linkage adjustment.
06
Utilizes a combination transfer mode with precision roller chains and unique V-blocks for low friction and stable running of coated glass.
07
Features a user-friendly touch screen man-machine interface with graphic combinations for easy operation.
08
Automatic digital control system ensures equipment and glue precision, featuring alarming and automatic lock functions for safety.
09

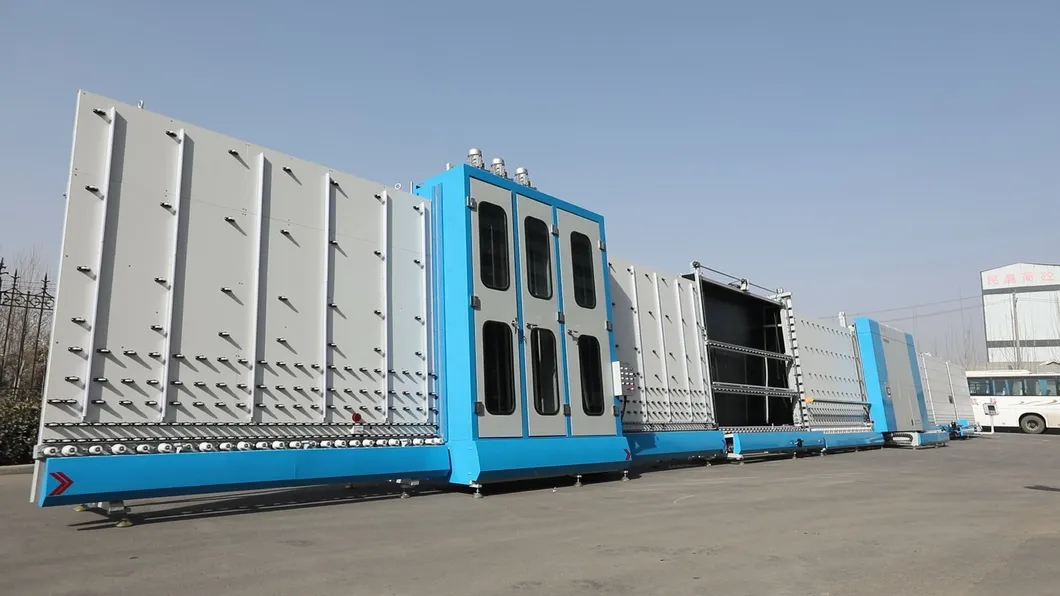

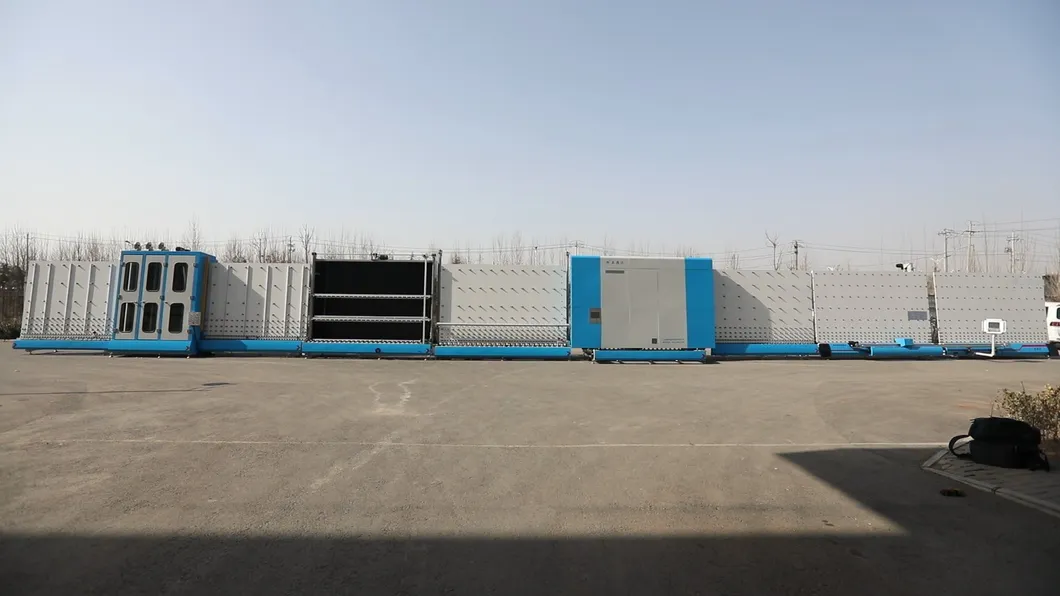

Flexible operation: Can work as a standalone unit or be integrated into an IG unit production line for higher efficiency.
10
Constructed with high-quality NC machined boards and wheel combinations, ensuring a beautiful and durable build.
11
Optimized structure design achieves low power consumption while maintaining high production efficiency.
Frequently Asked Questions
Q: What is the maximum glass size the ZDJ-2500 can process?
A: The machine can handle a maximum glass size of 2500mm by 4600mm.
Q: How fast is the sealing process?
A: The sealing speed ranges from 5 to 35 meters per minute, depending on sealing depth and glue quantity.
Q: Can this sealing robot handle different glass shapes?
A: Yes, the robot is designed for different shape processing and features a special relocation mechanism for accuracy.
Q: What type of control system is used in the robot?
A: It uses an automatic digital control system powered by high-precision servo motors and a touch screen interface.
Q: Does the machine require manual glue depth adjustments?
A: No, the sealing depth can be detected automatically by the system to ensure consistent quality.
Q: What is the warranty period for this equipment?
A: The equipment comes with a 1-year warranty and one year of free after-sales service.
