Basic Information
Model NO.ZRM01
ApplicationViscous Material as Sealant, Adhesive, Pastes
Material TypeViscous Material
Automatic GradeAutomatic
Driven TypePneumatic
Strongpoint3000 Tubes Per Hour
AdvantageFilling Accuracy 99%
FeatureLower Power Energy
Transport PackagePlywood Case
SpecificationStainless Steel
Production Capacity20/Month
Product Description
⚙️

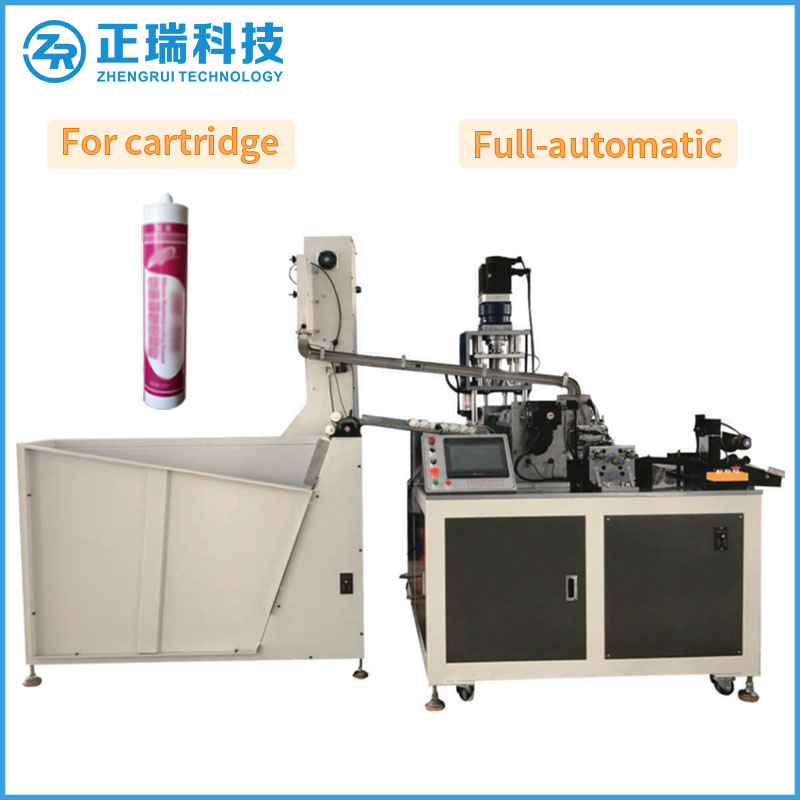

Silicone Filling Machine
Manual Sealant Spreading Machine & Insulating Glass Machine
| Application |
260-310ML Cartridge |
Filling Speed |
40-50pcs/min (Adjustable) |
| Filling Accuracy |
±2g /pc |
Machine weight |
About 1.5T |
| Main power voltage |
Three-phase 380V 50HZ |
Control power |
DC24V |
| Air pressure |
0.6- 0.8mpa |
Control method |
PLC + Touch Screen |
| Power |
4.5KW |
Floor space |
2 square meters |
| Size |
L4050 × W1500 × H2230mm |
Warranty |
One year |
Technical Summary
🔹Automatic horizontal filling equipment for silicone, polyurethane sealant, and viscosity materials.
🔹Electro-pneumatic PLC control system for maximum production speed and diagnostics.

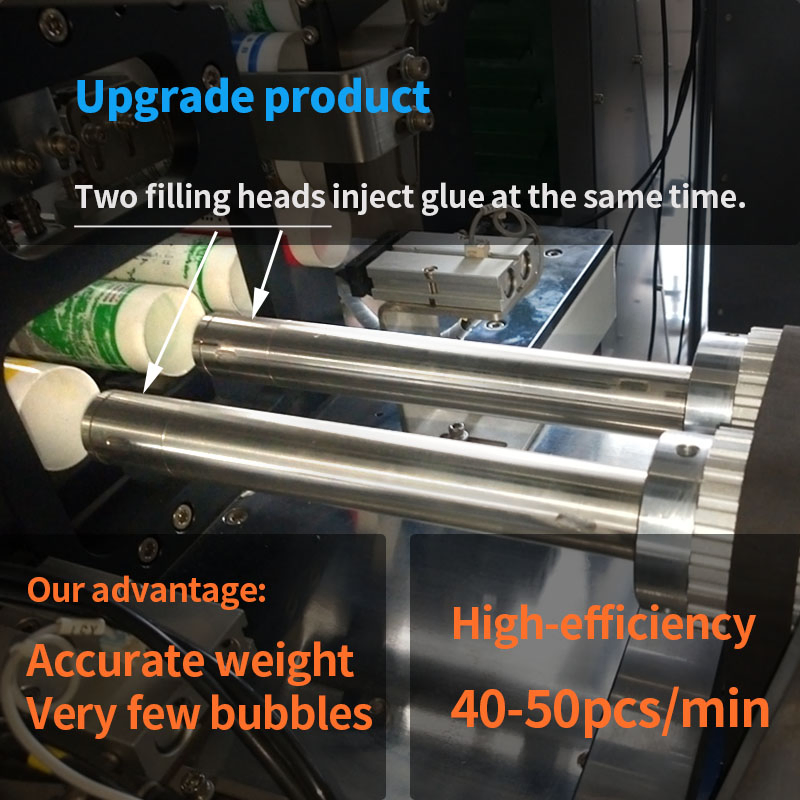

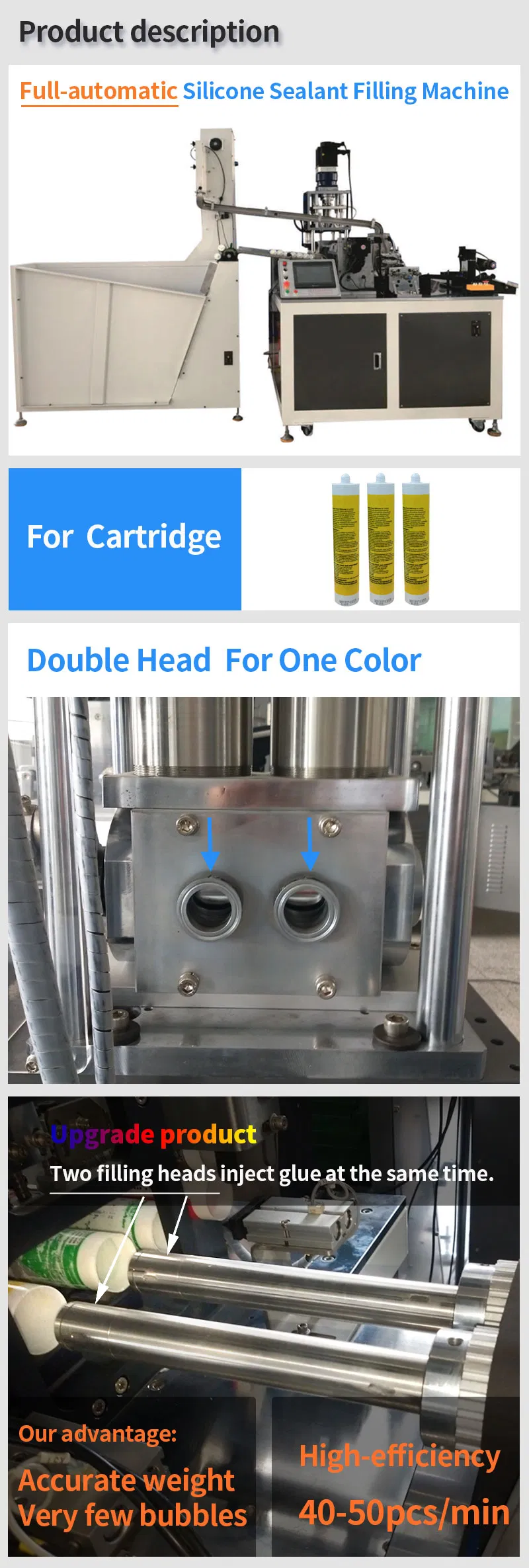

🔹Dosing unit with horizontal dual filling heads for maximum flexibility.
🔹Compatible with both 310 ml (46 mm) and 280 ml (44 mm) cartridges.
🔹Suitable for Acetic, Neutral, Structural Silicone, MS-Polymer, and PU Adhesives.
🔹Adjustable filling volume from 260 ml to 310 ml.
🔹Controlled lowering system during filling to avoid air incorporation.

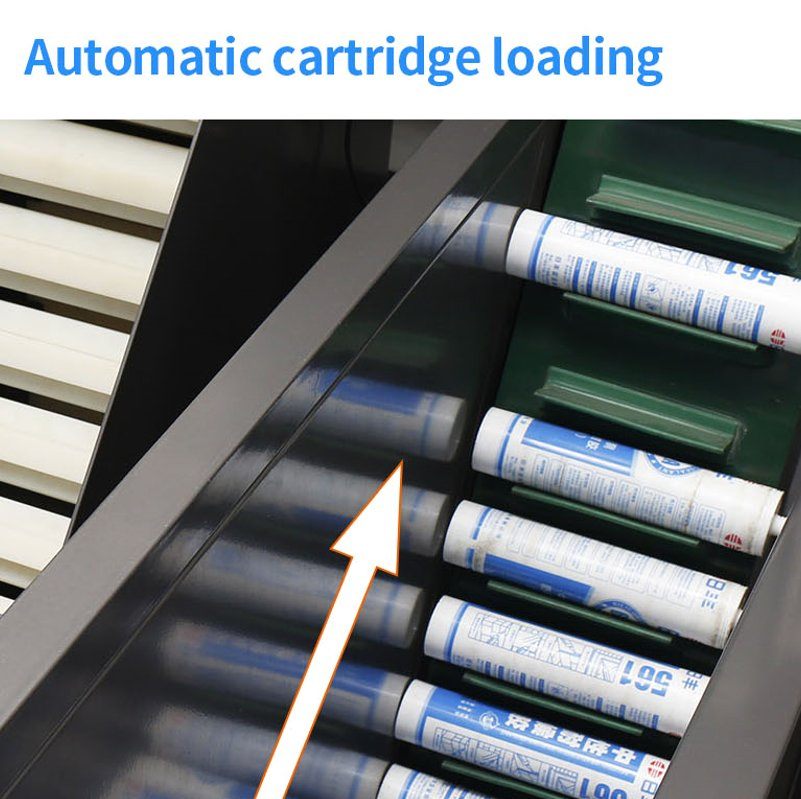

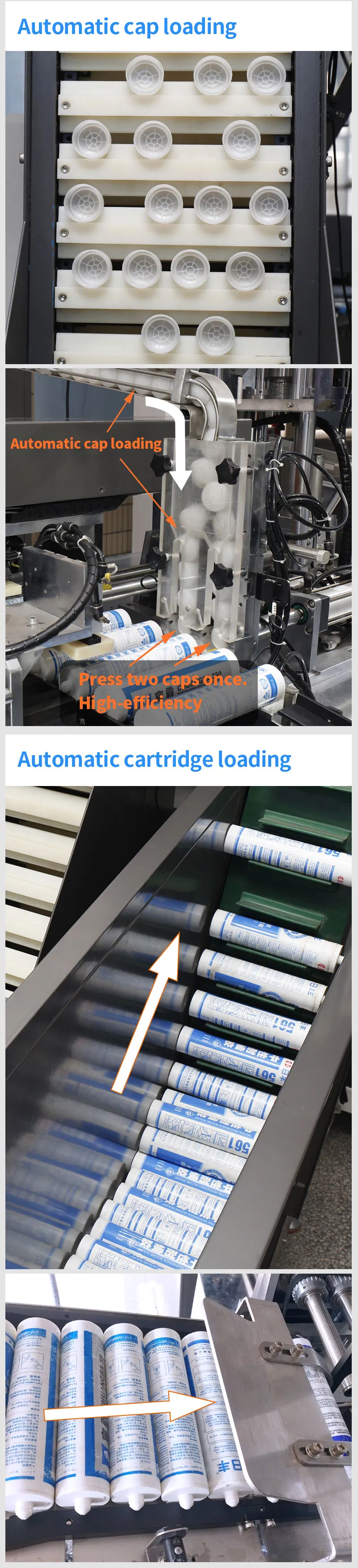

🔹Empty cartridges feeder with orientation control and rejection system.

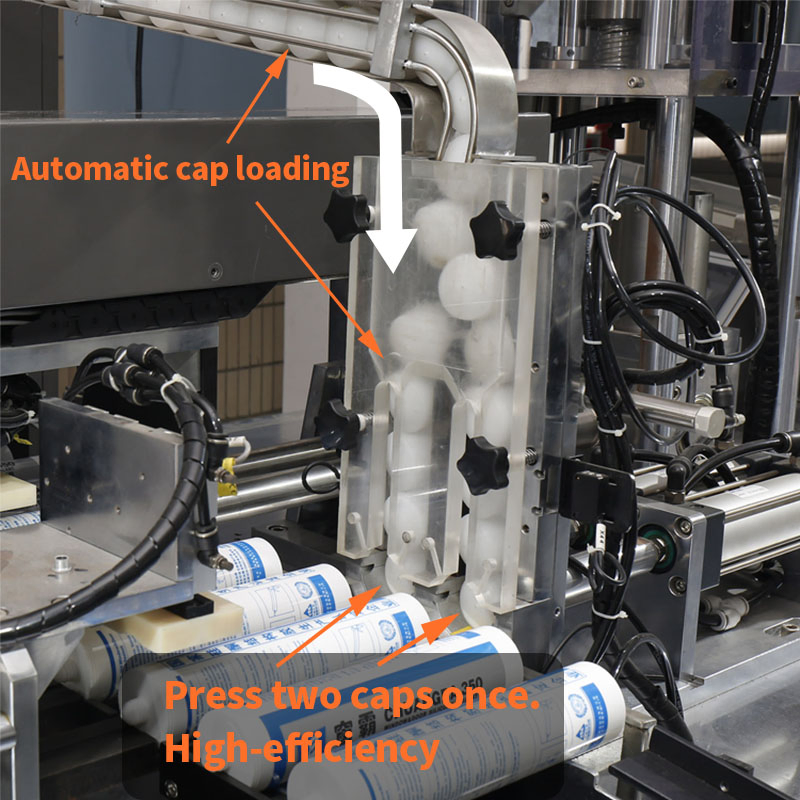

🔹Two-step closing process for total expulsion of residual air.

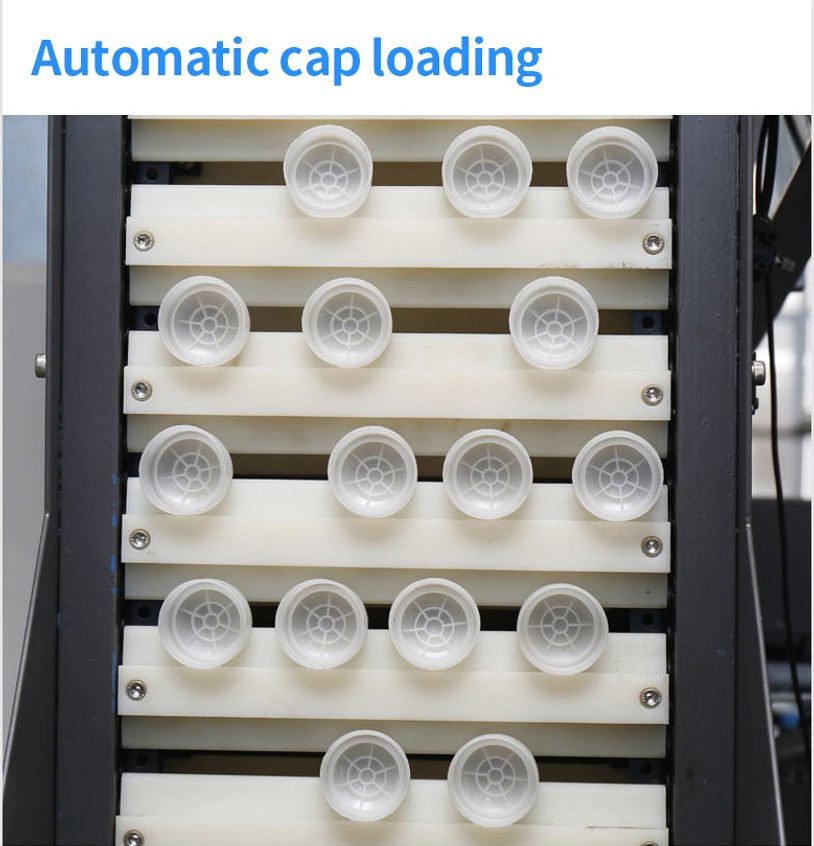

🔹Safety controls to stop machine for missing cartridges or plungers.
🔹Automatic horizontal ejection system.
🔹Production capacity: approximately 2400 cartridges per hour.
Service & Support
🛠️Free Training: Technical training for normal operations and maintenance.
🛠️Expert Guidance: Professional guidance and timely service for all machines.
🛠️Video Support: Online training and video tutorials for troubleshooting and repair.
🛠️On-site Support: Installation and trial run support at your facility.
🛠️Warranty: One-year warranty with free replacement for quality-related component issues.
Frequently Asked Questions
What materials can this machine process?
The machine is designed for viscous materials including Acetic Silicone, Neutral Silicone, Structural Silicone, MS-Polymer, and PU Sealant Adhesives of various viscosities.
What is the production capacity of the automatic filling machine?
The machine can produce approximately 40-50 pieces per minute, which translates to about 2400-3000 tubes per hour, depending on the material and settings.
Can the filling volume be adjusted for different cartridge sizes?
Yes, the filling volume is adjustable from 260 ml to 310 ml. It is suitable for cartridges with inner diameters of 44mm (280ml) and 46mm (310ml).
What is the filling accuracy of the equipment?
The machine offers high precision with a filling accuracy of ±1g to ±2g per piece, ensuring consistent product quality.
What kind of after-sales service is provided?
We provide a one-year warranty, free technical training, video support for troubleshooting, and optional on-site installation and trial run services.
What are the power and air supply requirements?
The machine requires a three-phase 380V 50HZ main power supply (DC24V control power) and an air pressure supply of 0.6-0.8 Mpa.
