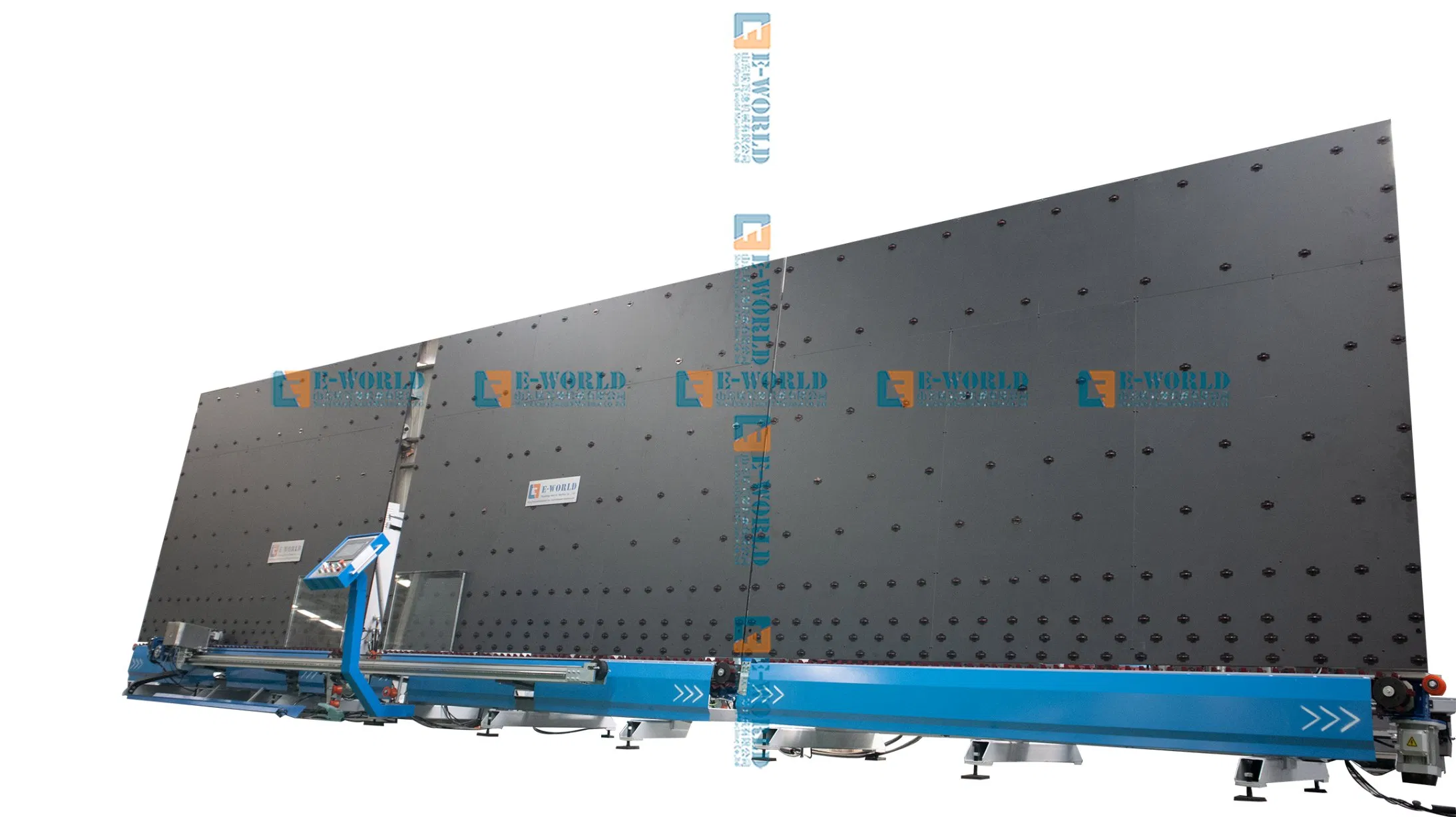

Model SMT 1800 Insulating Glass Sealing Robot

Customization: Available
Certification: CE, ISO

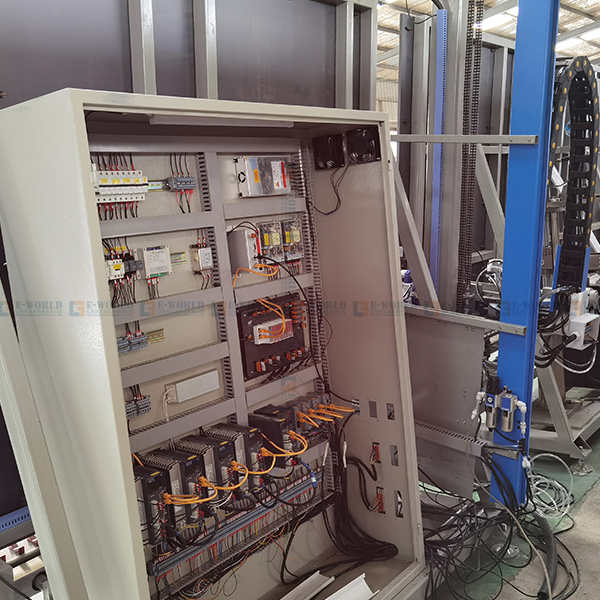

Control System: PLC

Product Description

Basic Specification
Model NO.:SMT 1800
Total Power:380V50Hz 11kw
Air Pressure:0.5-0.7MPa
Max Glass Size:1800*3000mm
Min Glass Size:350*500mm
Working Speed:5-40m/Min
Sealing Depth:2-10mm
Sealing Width:6-20mm
Glass Thickness:12-48mm
Convey Weight:120kg

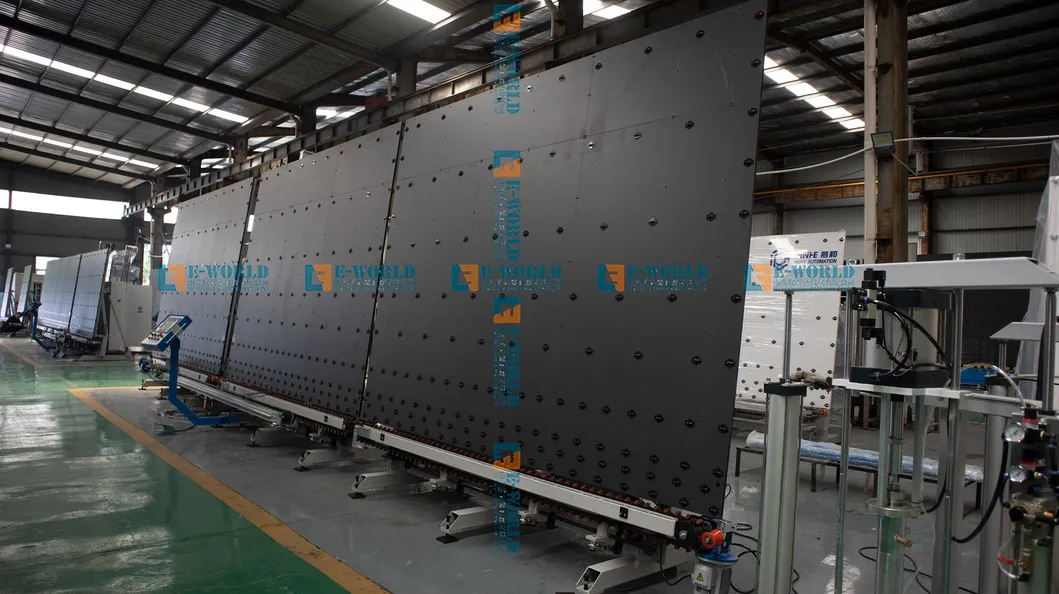

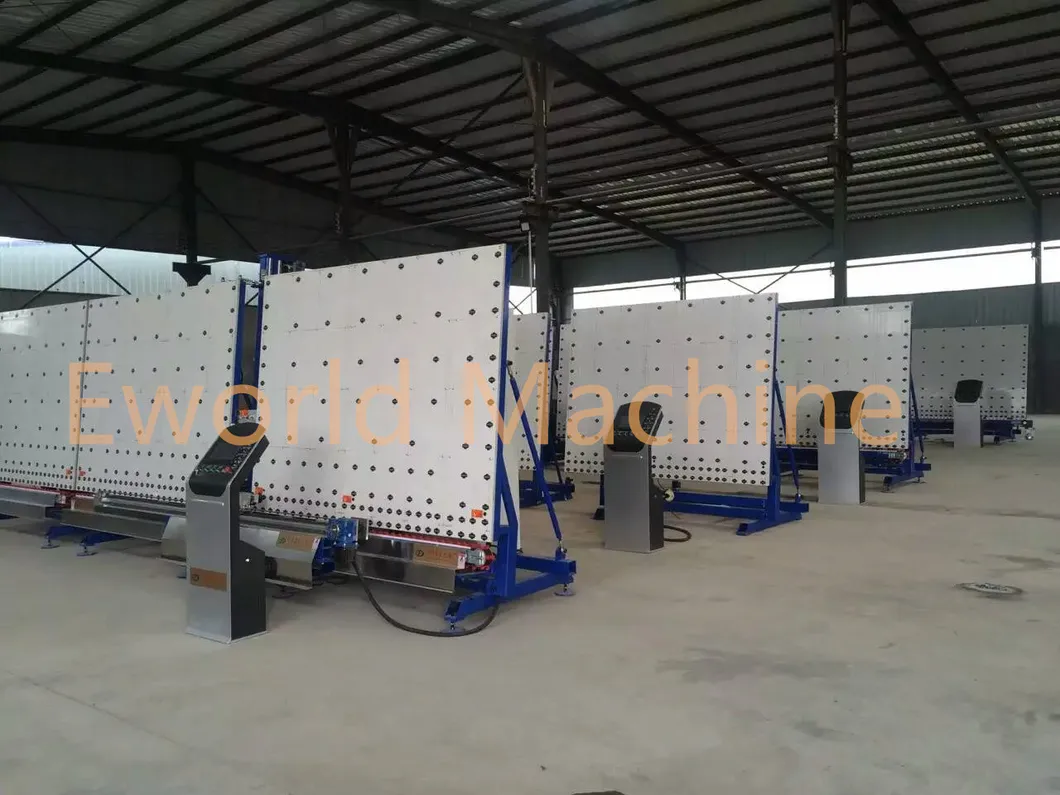

Insulating glass sealing robot
Brief Introduction
  • High automation, suitable for glass deep processing enterprises.

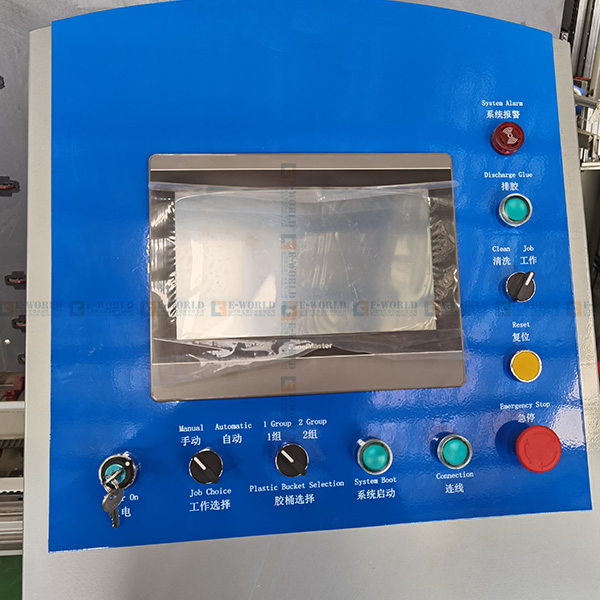

  • Whole machine adopts man-machine interface for convenient and intuitive operation.
  • Produces glass edges and corners without air bubbles, ensuring a smooth surface.

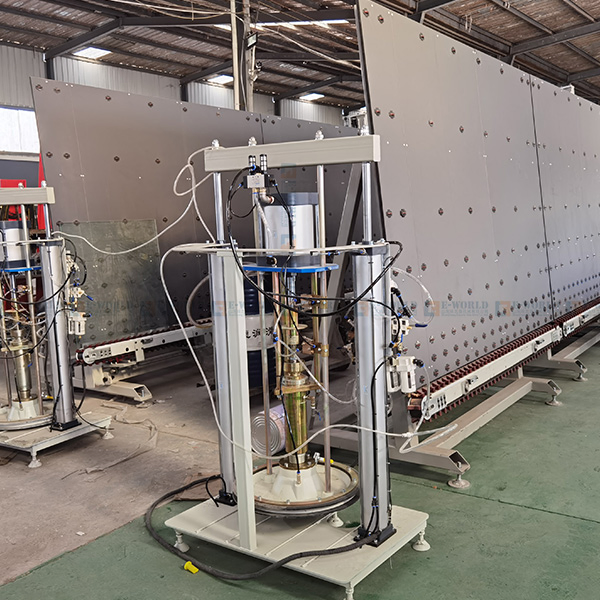

  • Two sets of independent sealant supply systems with one-key switching.
  • The third section prestores glass to improve efficiency; supports three-layer glass sealant.
  • Servo control system uses world-famous Japanese brands for stable performance.
  • Synchronous belt transmission ensures smooth transfer and accurate positioning.
Technical Parameters
Model Power Air Pressure Squeeze Pressure
SMT-1800 380V 50HZ 11KW 0.5-0.7MPa 32MPa
Working Speed Sealing Depth Sealing Width Machine Size
5-40m/min 2-10mm 6-20mm 10800*3800*3300mm
Product Features

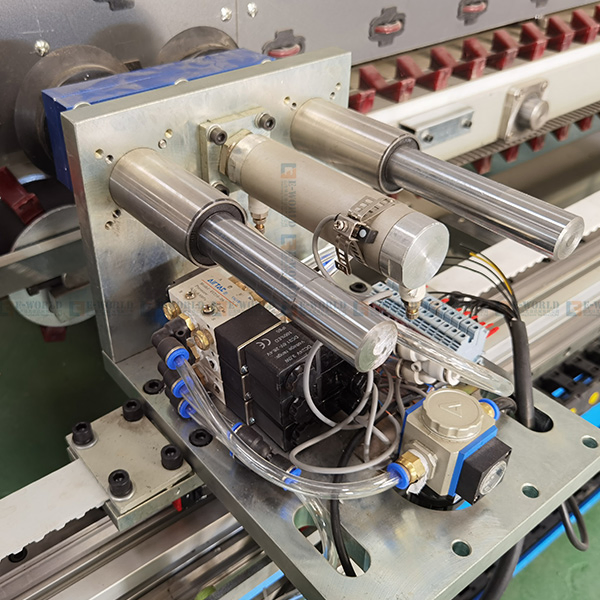

  • 9-axis servo motor movement for fast and continuous sealing.
  • Servo motor drive hydraulic pump for precise ratio control.
  • Automatic checking of sealing depth and spacer width.
  • Efficient rinse system with minimal waste (0.16 liter mixer).
  • Automatic corner trimming function for perfect finish.
  • Compatible with polysulfide, silicon, and polyurethane sealants.
  • Supports both straight line and irregular shape sealing.
Details Showcase
Detail 1
Detail 2

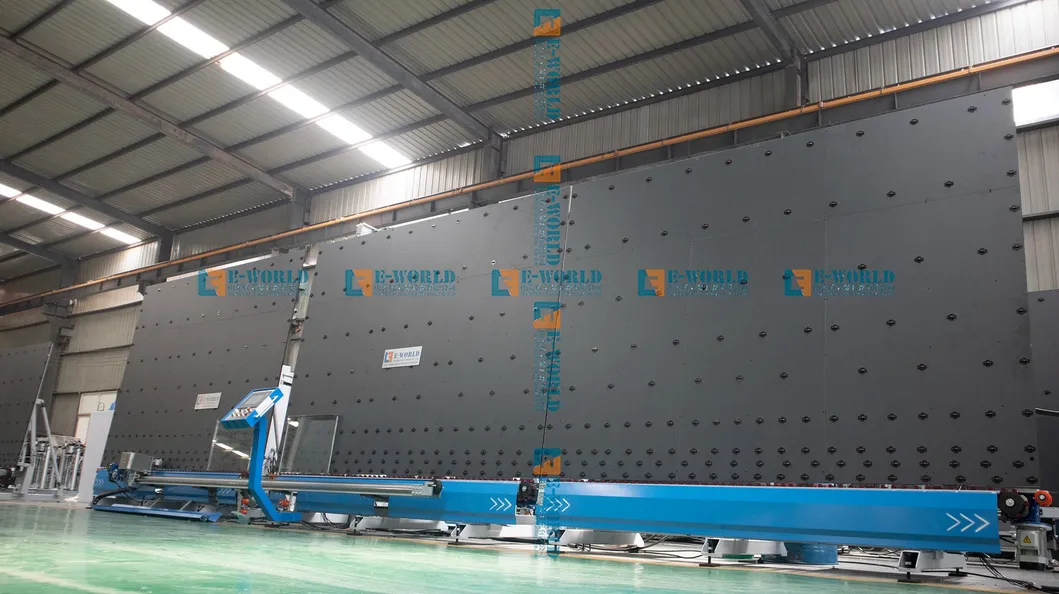

Detail 3
Processing View
Component 1
Component 2
Technical Layout
Frequently Asked Questions
How long is the warranty period for the machine?
The standard guarantee is 18 months, with 2 years quality guaranty for the machine (excluding consumables). We provide 24-hour technical support.
What is the typical delivery time?
For standard machines, it is 3-15 days. For non-standard or customized machines based on specific requirements, it takes 15 to 30 days.
Do you provide operation training for the equipment?
Yes, professional engineers can be sent to the working site for installation, adjustment, and comprehensive operation training.
What types of sealant can this robot use?
The machine is available for polysulfide, silicon, and polyurethane. One or two-component options are available.
How do you ensure the quality of the machine's electrical components?
We use world-famous and reliable brands (such as Japan Yaskawa/Anchuan) for internal electronic parts to ensure stability and minimize breakdowns.
What payment methods are accepted?
We accept various payment methods including L/C, T/T, D/P, and Western Union to suit your requirements.
