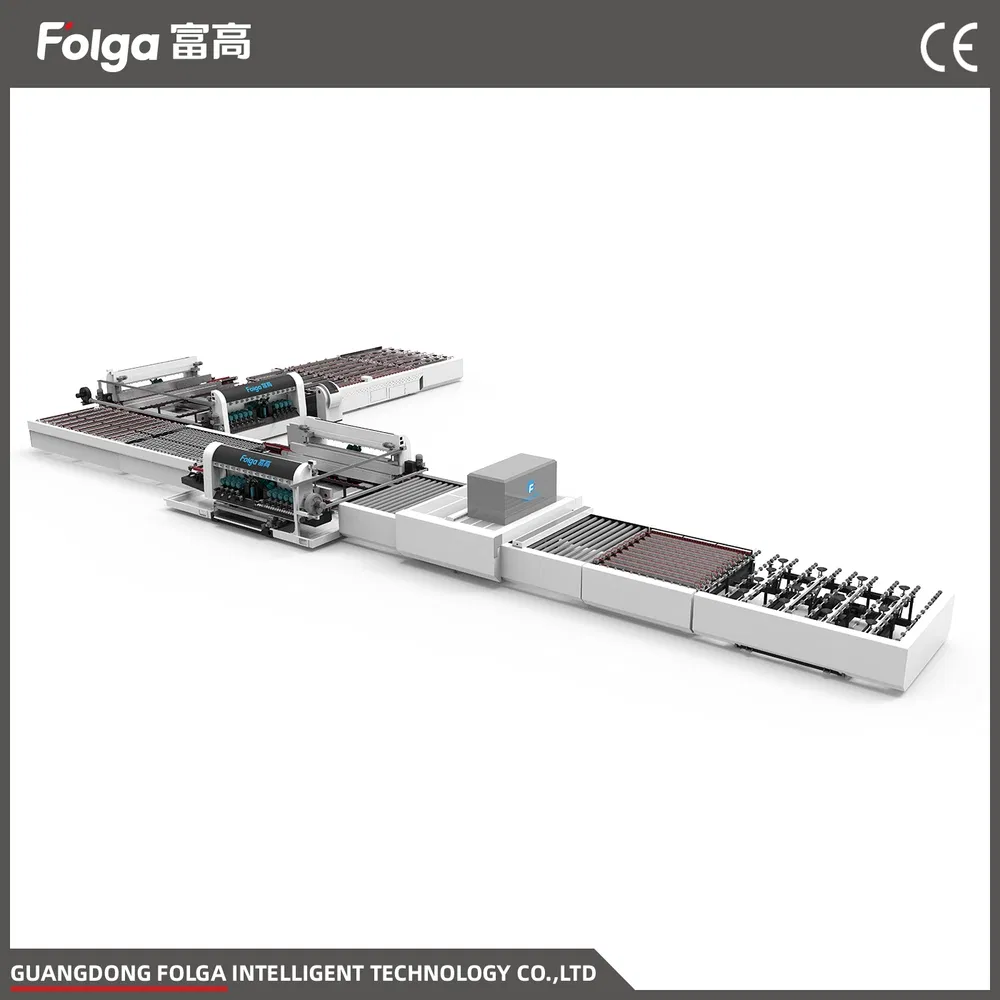

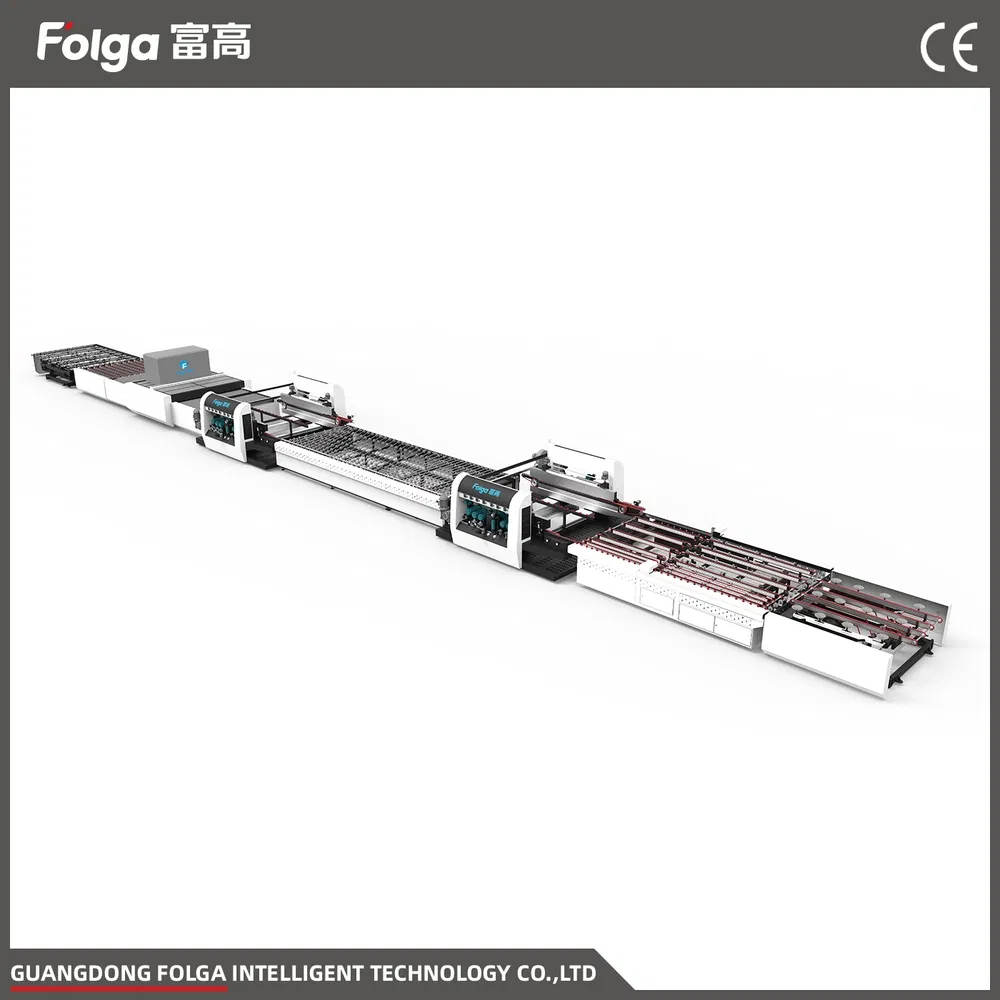

Sturdy-Frame Glass Double Edging Machine for Laminated Glass Manufacturing

1 / 5

Sturdy-Frame Glass Double Edging Machine for Laminated Glass Manufacturing

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	10-15 m/min

Send Inquiry

Product Description

ℹ️

Overview & Basic Info

Model	FSM	Processing Thickness	5-25 mm
Voltage	380V	Warranty	One Year
Product Name	Glass Edging Machine	Keywords	Double Edger Machine
Working Speed	1-30m /Min	Parallel Error	≤0.2mm /M
Air Pressure	≥0.6MPa	Motor Qty	24
Production Capacity	5000 Sets/Year	Package Gross Weight	1500.000kg

📋

Product Description

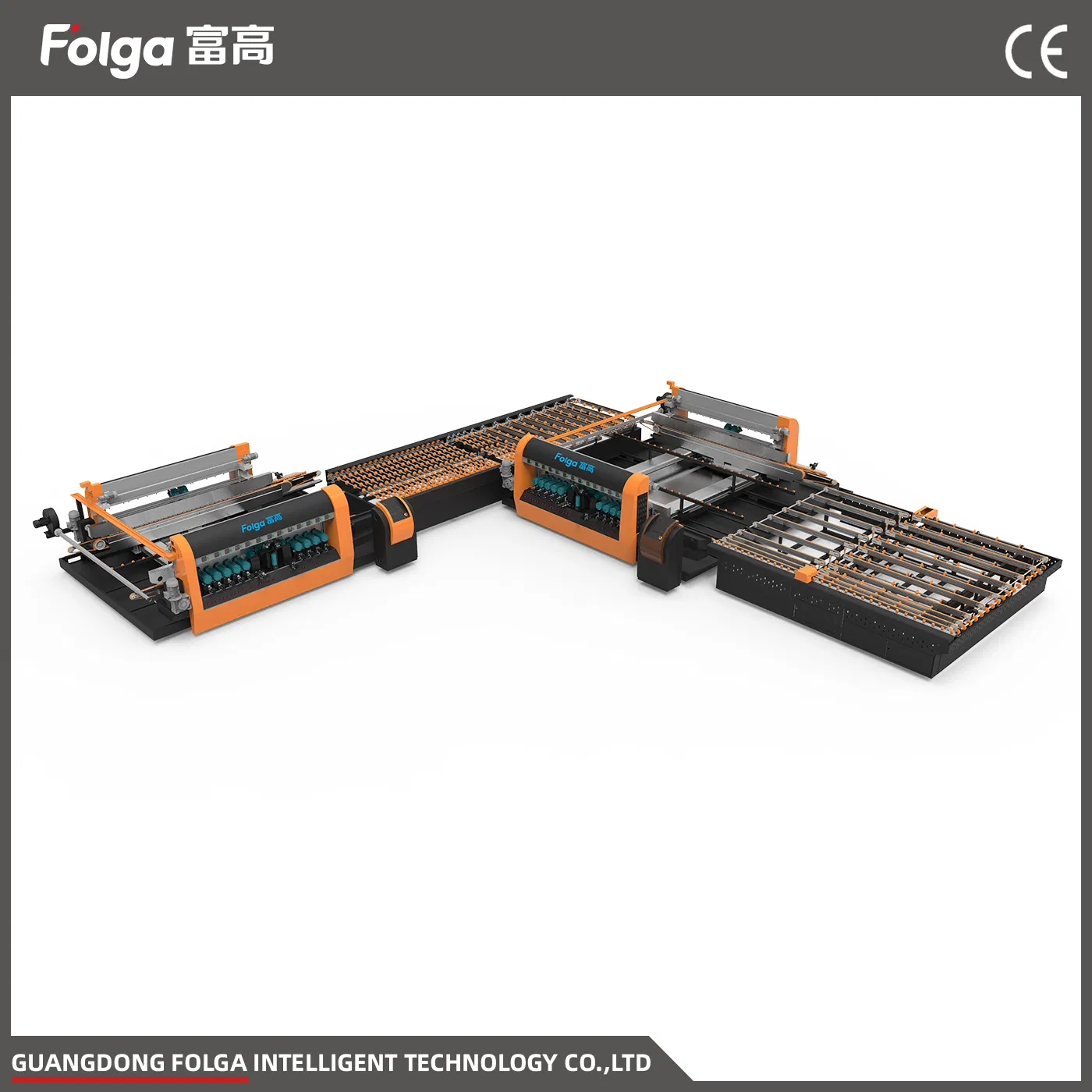

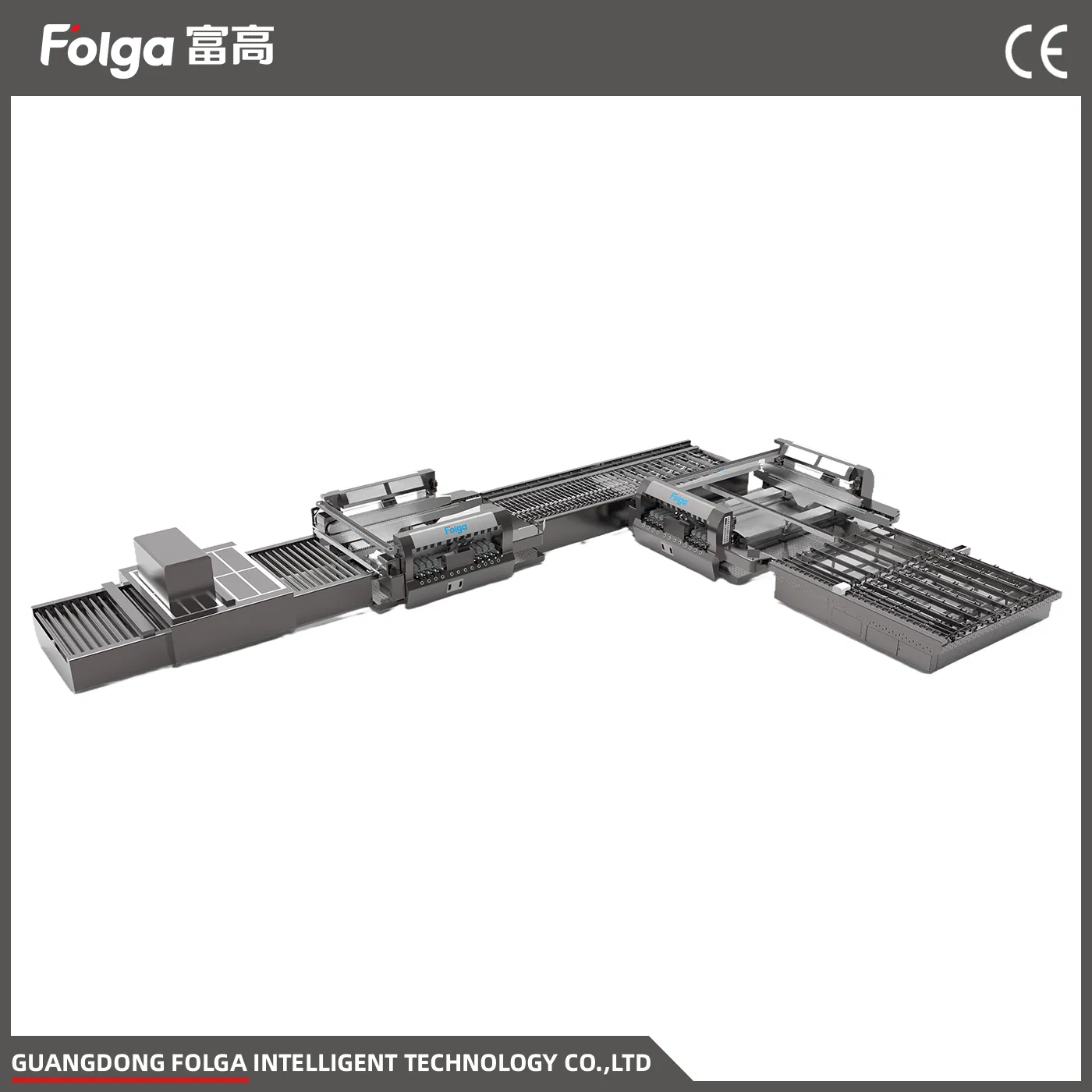

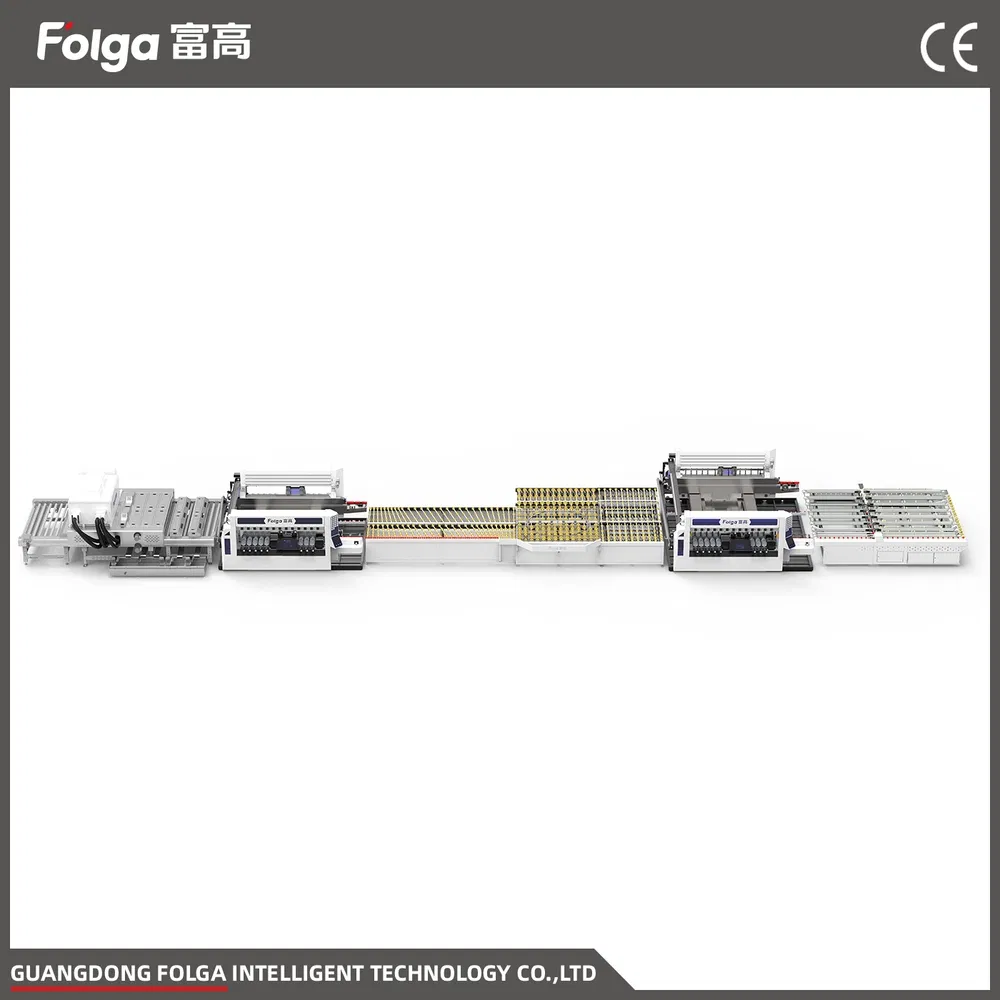

The FSM Series Glass Double Edging Machine is a high-performance automatic double edger line engineered for precision glass processing in industrial applications. This straight line double-edge grinding machine combines economy, high efficiency, and exceptional accuracy to deliver superior edging results for building glass, furniture glass, and window & door glass.

Featuring advanced servo system control and PLC automation, our glass bilateral edging machine automatically measures glass dimensions and adjusts processing parameters for mixed or uniform size production.

💎 KEY FEATURES

Automatic Glass Dimension Detection: Equipped with an intelligent measuring table that automatically measures glass length, width, and thickness without manual input, enabling seamless processing of mixed-size batches.

Servo-Driven Size Adjustment: Features a double screw rod and a linear guide rail structure with a servo system drive for automatic opening/closing with excellent repositioning accuracy.

Dual Grinding Configuration: Double dovetail guide rail base for coarse grinding motor ensures stability, with manual-automatic servo compensation integration.

⚙️

Technical Specification

Glass Thickness	3-25mm
Max. Edge Grinding	5mm
Max. Chamfer Grinding	2mm
Size Changing Speed	1-18m /min
Diagnial Error	≤0.5mm /m
Single Machine Power	74kw (24 motors)

📷

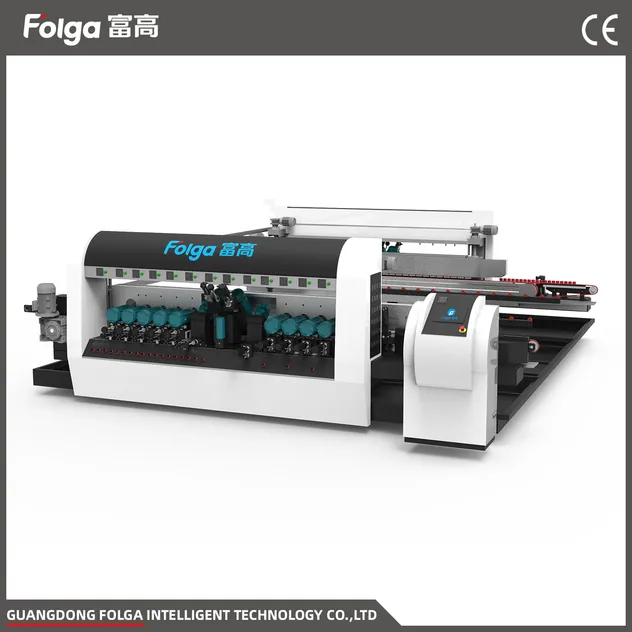

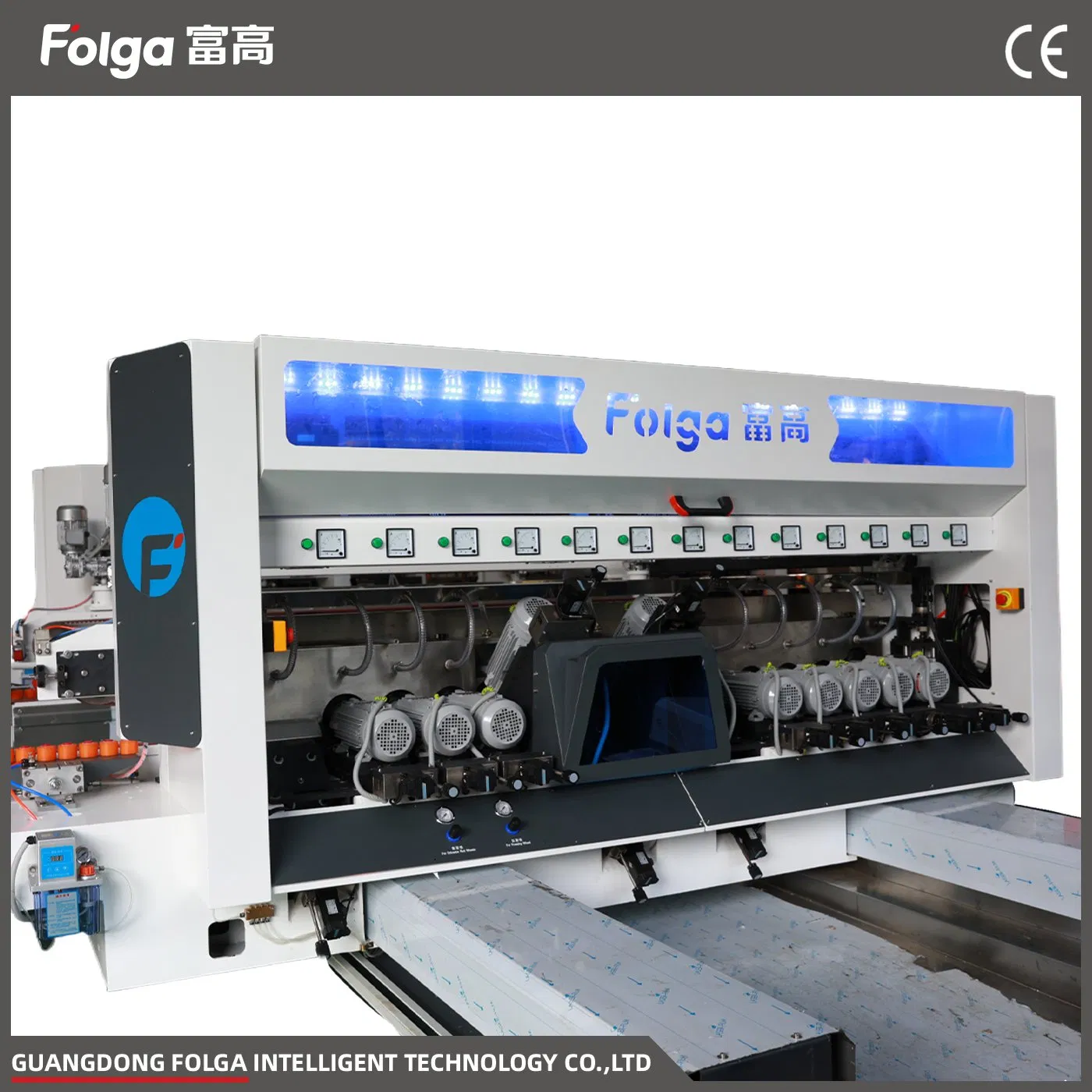

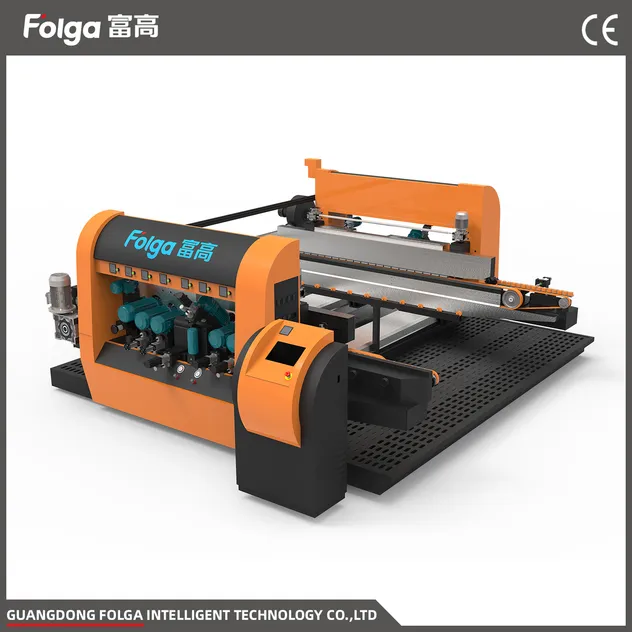

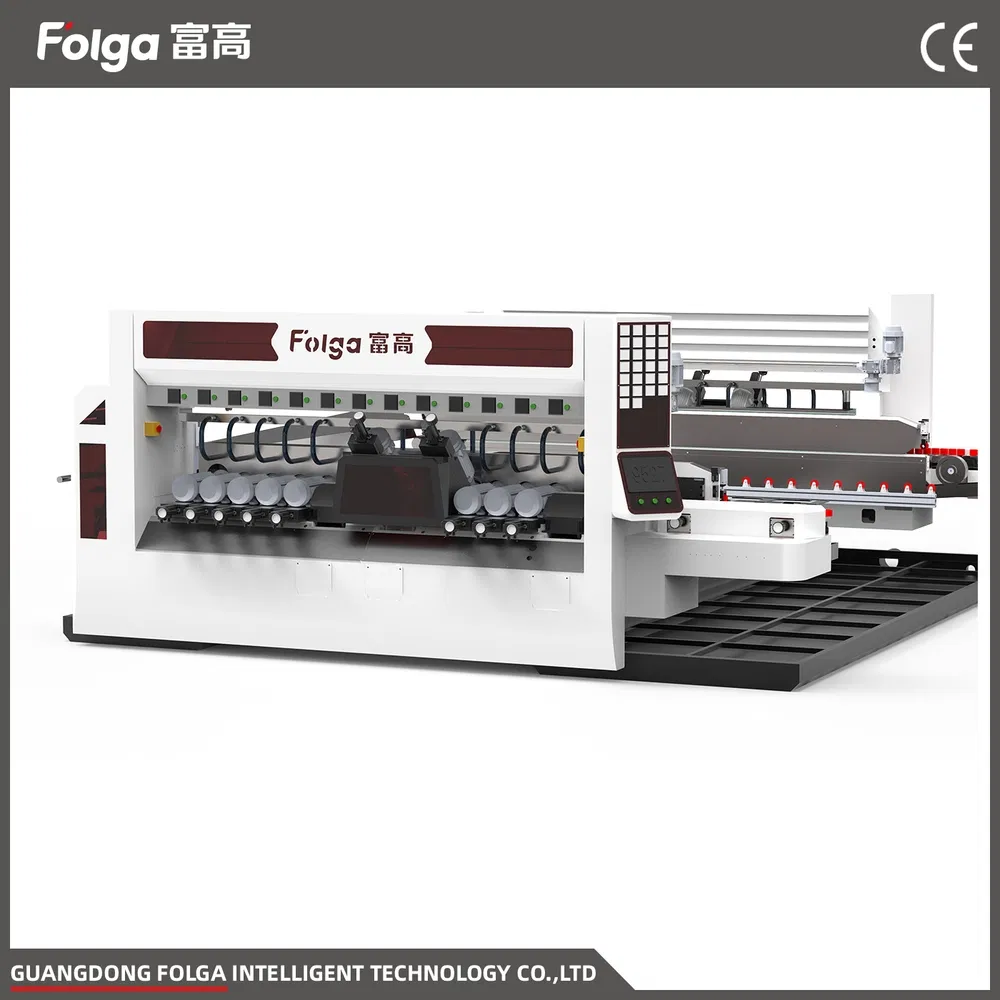

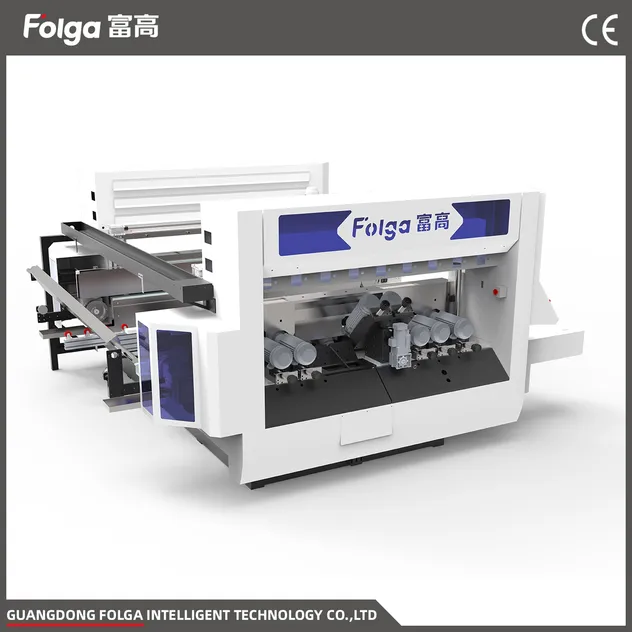

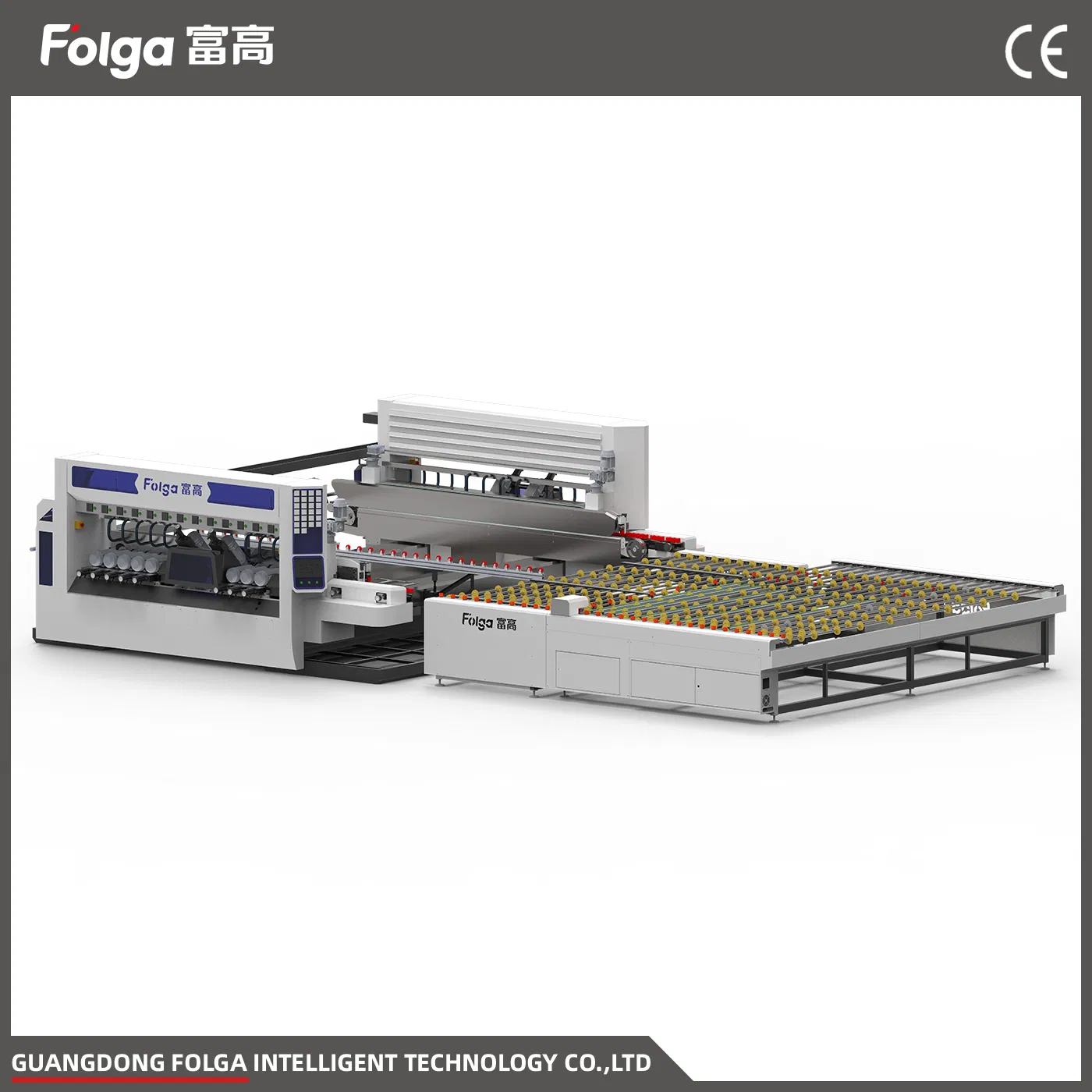

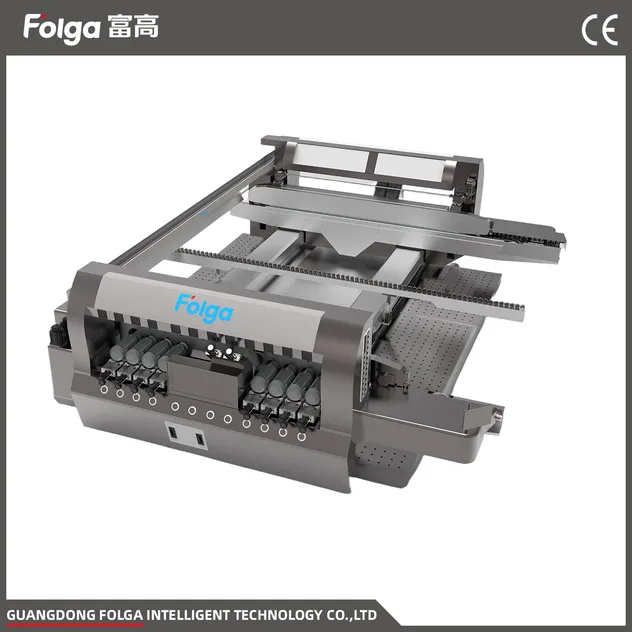

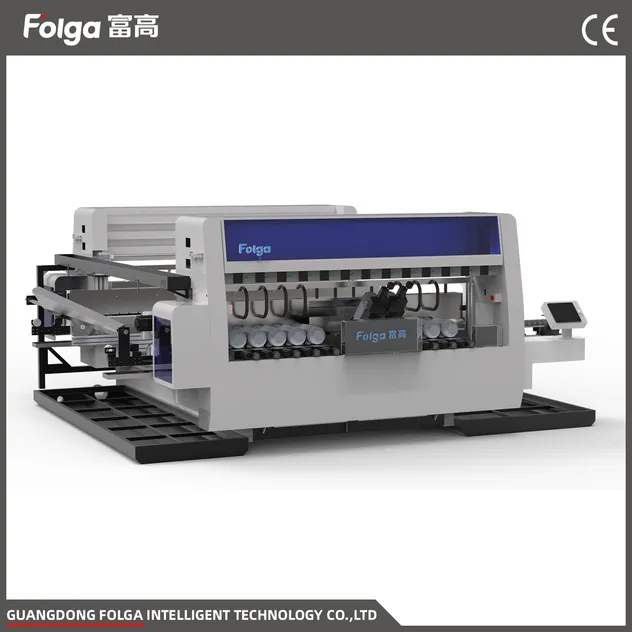

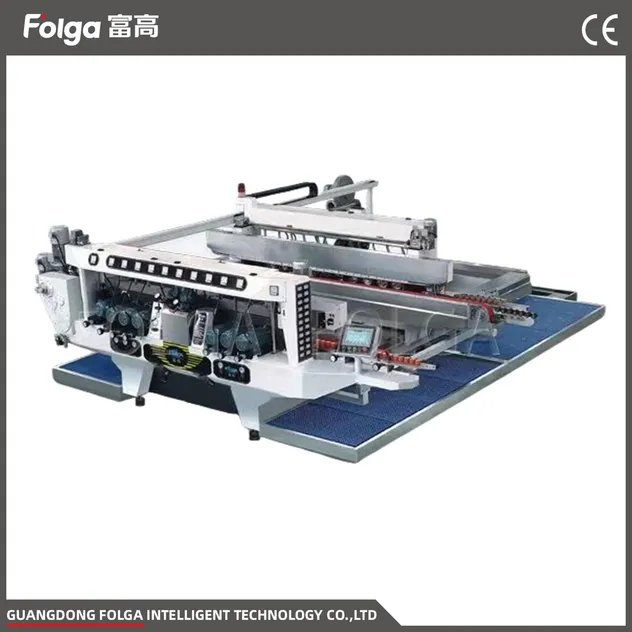

Detailed Photos & Advantages

45° AUTOMATIC CHAMFERING: Integrated automatic lifting device for upper chamfering with accurate positioning and effortless operation.

AUTOMATIC CLAMPING FRAME LIFTING: Features 150mm vertical travel range for rapid grinding wheel replacement, minimizing downtime.

DOUBLE SERVO DRIVE SYSTEM: Main transmission powered by dual servo motors for reliable performance and simplified maintenance.

PLC & HMI INTEGRATION: User-friendly human-computer interface with PLC control system delivers intuitive operation.

INTELLIGENT SPEED MANAGEMENT: Glass automatically accelerates at entry/exit points to reduce cycle time; automatic sleep function conserves energy.

❓

Frequently Asked Questions

Q1: What are your main products? A: We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer washing machines, loading & unloading systems, and drilling machines.

Q2: How much experience do you have in manufacturing? A: Our history dates back to 2004, providing 21 years of expertise in stable technology, quality control, and prompt after-sales service.

Q3: Are you available to dispatch engineers for on-site services? A: Yes, global installation and training services are available for all our machinery.

Q4: Can you customize the machine size for JUMBO glass? A: Yes, we can customize the machine dimensions based on your specific production requirements.

Q5: What kind of glass can your machines process? A: Our machines process all kinds of glass with options for shiny polishing or matte grinding depending on your needs.

Q6: What support is offered if machines have a problem? A: We respond within 8 hours. Within 24 hours, engineers provide step-by-step troubleshooting. Spare parts are sent ASAP via DHL or Express if required.
