| Model NO. | SZM9325B |
| Processing Thickness | 3-19 mm |
| Warranty | 1 Year |
| Certificate | CE |
| Min Glass Size | 100*100mm |
| Max Glass Size | 2500X2500mm |
| Transport Package | Wooden+Pallet |
| Specification | 7200x1300x2500mm |
| HS Code | 846420 |
| Production Capacity | 20 Sets/Month |

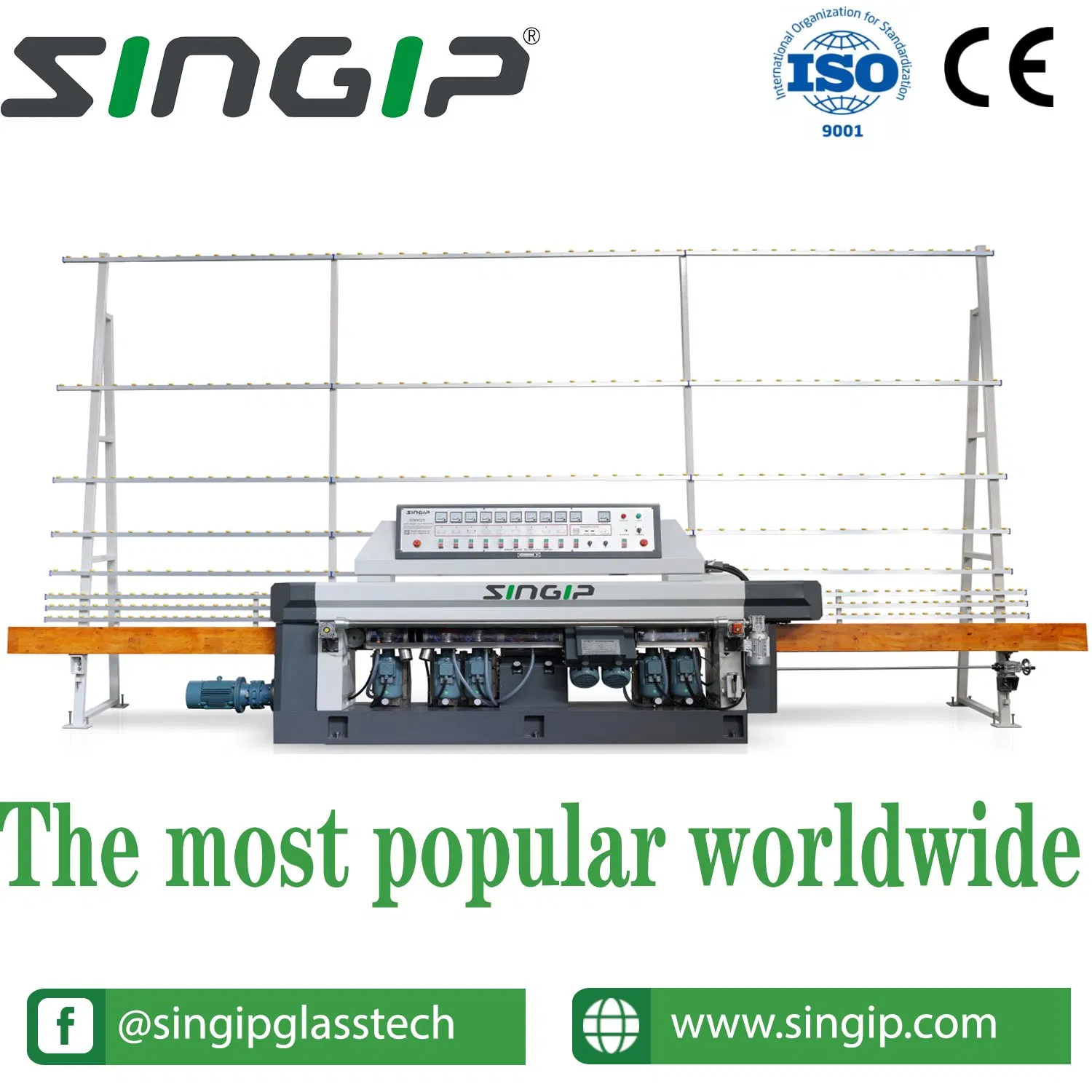

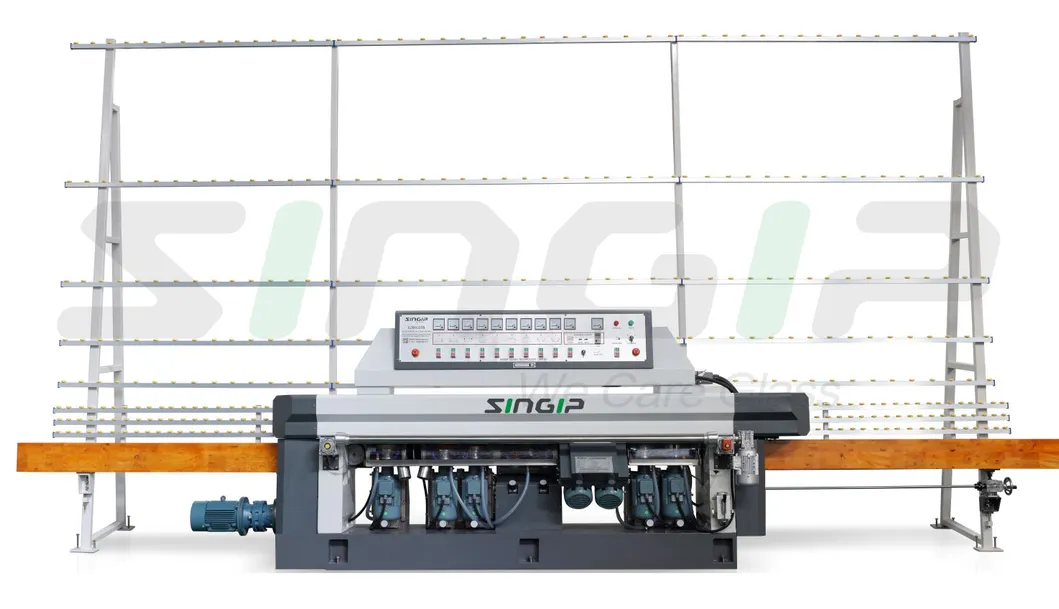

Glass Straight Line Edging Machine
Introduction and Characteristics

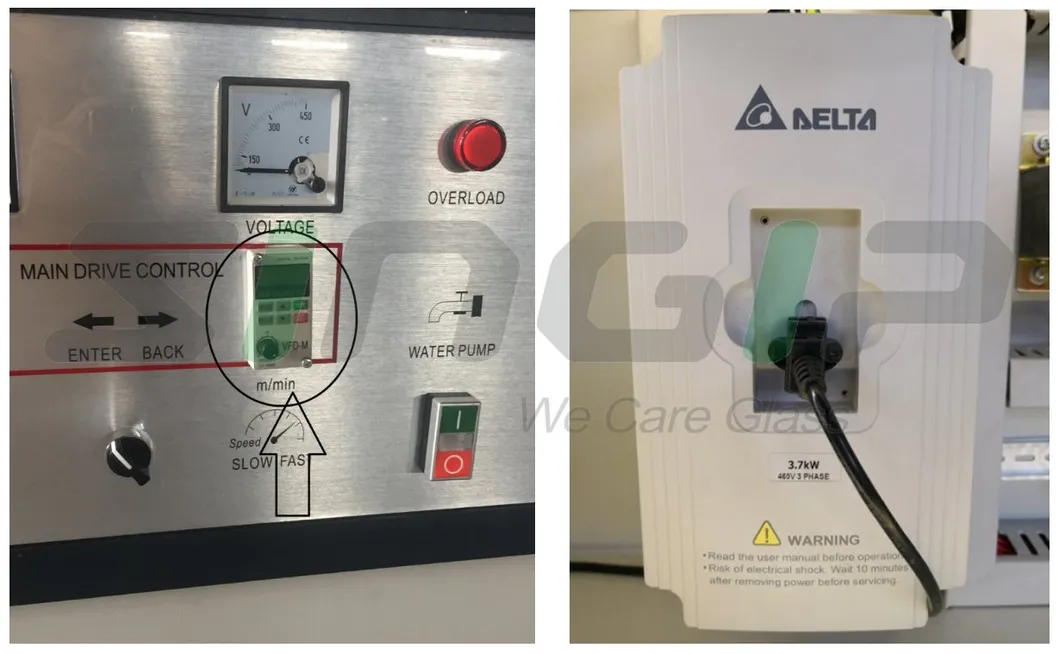

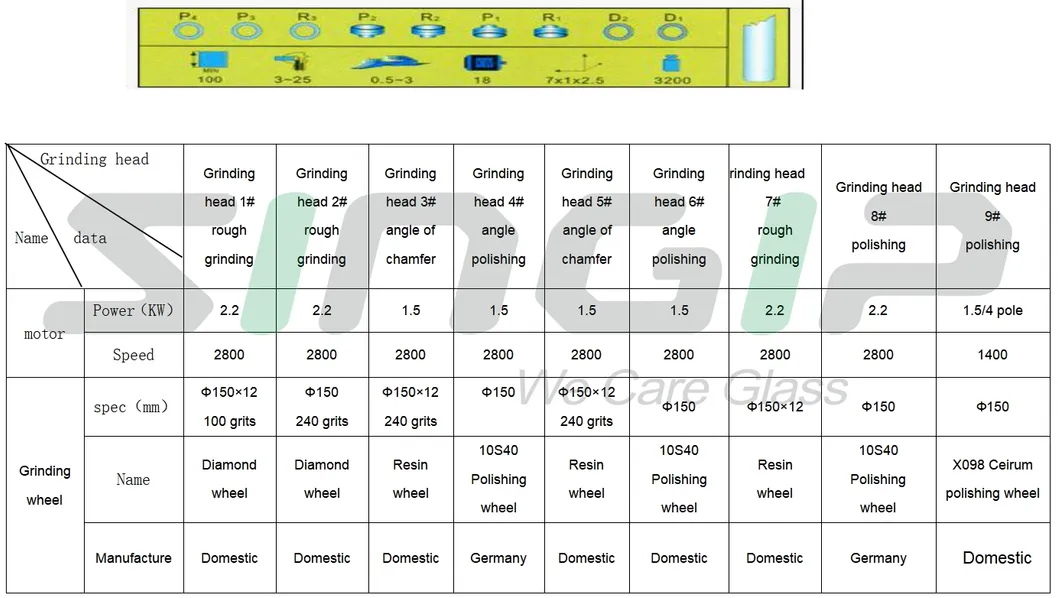

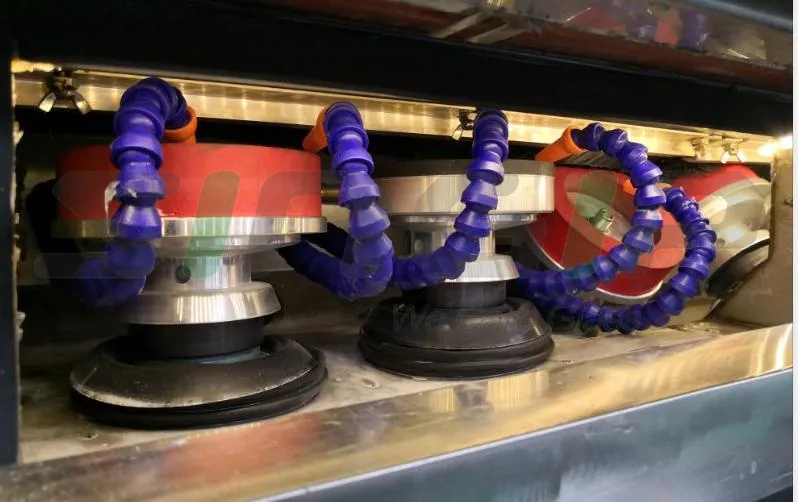

The SZM9325B Glass Straight line edging machine is designed for grinding straight line flat edging of different sizes and thickness and 45 degree arris. Coarse grinding, fine grinding, polishing and angle-making can be completed in a procession. Its speed can be widely adjusted by frequency inverter. Speed alteration is very smooth. In grinding operation, feeding and operation speed can be adjusted at random. Front rails can be adjusted to fit varied thickness of processed glass. With its advanced structure, high precision, easy handling, and high efficiency, it is one of indispensable instruments for glass procession.
| Model | SZM9325B |
|---|---|
| Minimum processing glass size | 100 x 100mm |
| Thickness of processing glass | 3-19mm |
| Feeding speed | 0.5m/min-5m/min |
| Gross weight | 3000kg |
| Size(length*width*height) | 6800x1300x2500mm |
| Total power | 20kw |
| Worktable height | 750mm |
| Voltage | 380V, 50Hz or others |
| Maximum width of arris | 2.5mm |
| Maximum cutting of flat edging | 3mm |
| Angle of arris | 45° |
| Maximum size of processing glass | 3000mm*3000mm |
