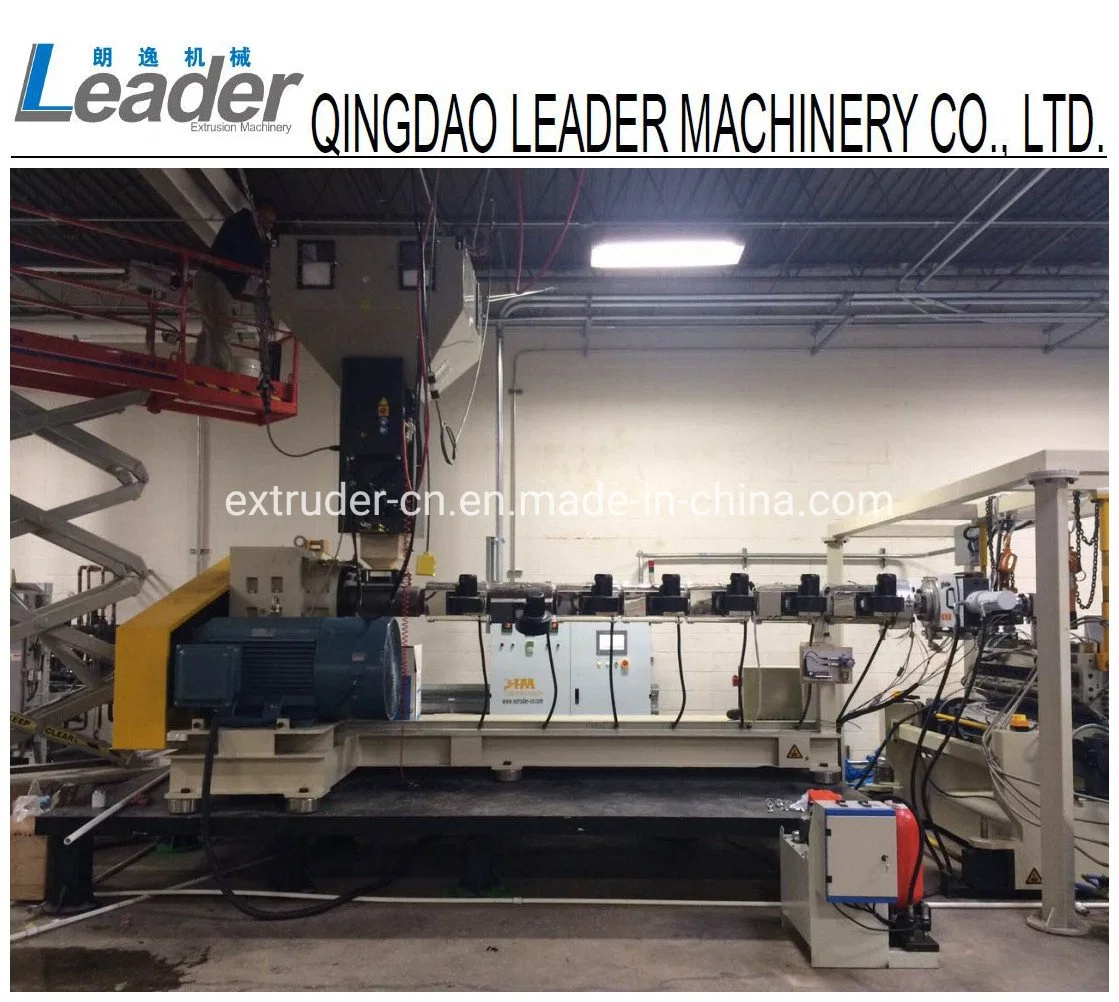

T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
1 / 5
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line
T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line

T-Die Head-PP Plastic Stationery Foam Sheet Extruding Line

Customization: Available
Product Type: PP Board
Board Layers: Single Plate
Send Inquiry

Product Description

Basic Info.

Model NO.
LMSB120/34
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Name
PP Chemical Foam Board/Sheet Manufacturing Machine
Sheet Size
1260mm*2-6mm
Sheet Application
Stationery, Packing, Containers, Handbags etc.
Processing Technology
T-Die Head and Three Roller Calendars
Max Capacity
250kg/H
Electrical Parts
ABB, Omron, Rkc, Schneider, FUJI, Delix etc.
Guaranteed Time
12 Months
Machine Dimension
24m*3.5m*2.8m
HS Code
8477209000

Product Description

PP Chemical Foam Board/Sheet Manufacturing Machinery

PP micro foam board extrusion machine adopts T-type die head and three roller calendars technology to produce high smoothly and highly flat micro foam sheets. It is foamed by add some foaming additives, also called chemical foamed. This kind of foam board can be single layer extrusion, and also can be double layer AB type and 3 layers ABA/ABC type.

1

Sheet Applications

This kind of foam sheets are widely used in the field of stationery, handbags, luggage, cosmetics, commodity, plastic containers for medicine, food, drink, alcohol, pesticides, engine oil, chemical industry and glass bottles sealing/gaskets etc.

2

Main Technical Data

Machine model / Main data LSJ-65/30 LSJ-90/30 LSJ-120/30
Extruder modelSJ-65/30SJ-90/30SJ-120/30
T-die head width750mm950mm1350mm
Three roller calendars360mm400mm450mm
Sheet width400mm-600mm600mm-800mm800-1200mm
Sheet thickness0.8-3mm0.8-3mm0.8-3mm
Sheet Density0.4-0.7g/cm30.4-0.7g/cm30.4-0.7g/cm3
Main electrical partsSiemens PLC controlled, ABB inverter, Omron thermocontroller, Schneider contactor
Installed power110kw150kw180kw
Dimension22m*2.5*2.7m25m*2.8m*2.8m28m*3m*3m
3

Production Flows

1
Vacuum feeding machine
2
Single screw extruder
3
Hydraulic exchanger
4
T-die head
5
Three roller calendars
6
Thermoforming machine
7
Cooling frame and edge cutting units
8
2 rubber rollers haul off machine
9
Cutter-guillotine or twin position winder
10
Material conveying table & Stacker

Machine & Factory Exhibition

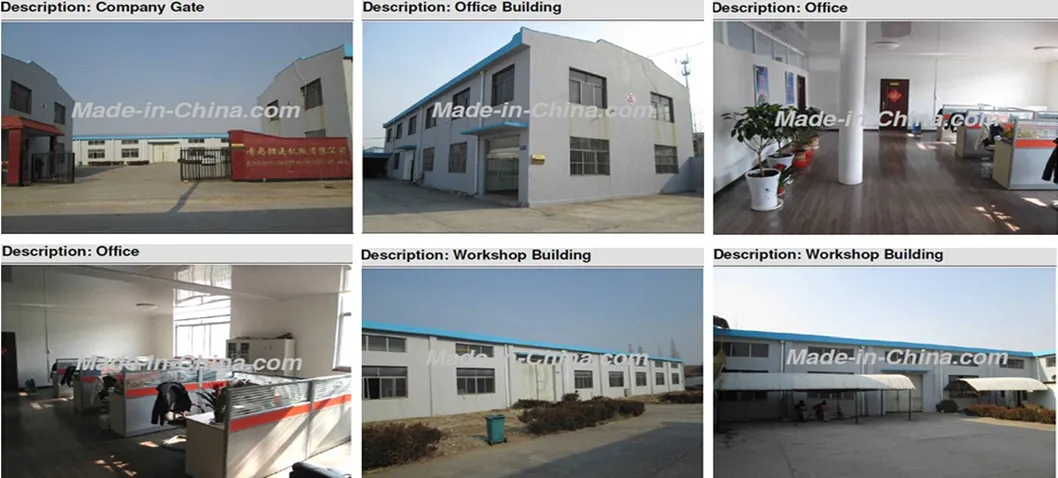

Production Line
Certification
Trade Show
Packing and Delivery
Machine Detail

Other Related Machines

1. PET sheet extrusion machine
2. PP/PS sheet extrusion machine
3. ABS/HIPS sheet extrusion machine
4. ABS/PMMA sheet extrusion machine
5. PE sheet geomembrane/geocell sheet extrusion machine
6. PC/GPPS/PMMA sheet extrusion machine
7. PC hollow grid sheet/sunshine roofing panel extrusion line
8. PP hollow profile sheet extrusion line
9. PVC sheet/edge banding sheet/marble sheet machine
10. PVC free foam/celuka foam board extrusion line
11. EVA car interior decoration sheet extrusion line
12. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine

Frequently Asked Questions

What materials can be processed by this machine?
This machine is specifically designed for PP (Polypropylene) micro foam board production using chemical foaming additives.
What is the range of sheet thickness and density?
The machine can produce sheets with a thickness range of 0.8-3mm and a density between 0.4-0.7g/cm3.
What kind of extrusion layers can the machine produce?
It supports single-layer extrusion as well as multi-layer structures like double-layer (AB) and three-layer (ABA/ABC).
Which electrical brands are used in the machine?
We use high-quality international brands including Siemens PLC, ABB inverters, Omron thermocontrollers, and Schneider contactors.
What is the production capacity and warranty?
The maximum capacity is 250kg/h, and the machine comes with a 12-month guaranteed quality time.
What are the main applications for the produced sheets?
The foam sheets are widely used for stationery, handbags, luggage, cosmetic containers, food packaging, and industrial gaskets.
