📋 Basic Information
Name:Glass Edging Machine
Function:Edging Glass
Use:Machine for Edging Glass
Type:Glass Edging Machine
Structure:Horizontal
Control System:PLC
Machine Type:Glass Double Edging Machine
Grinding Heads:9
Condition:New
After-sales:24 Hours Online
Package:Wooden Case
Capacity:30 Sets/Month
⚙️ Product Description

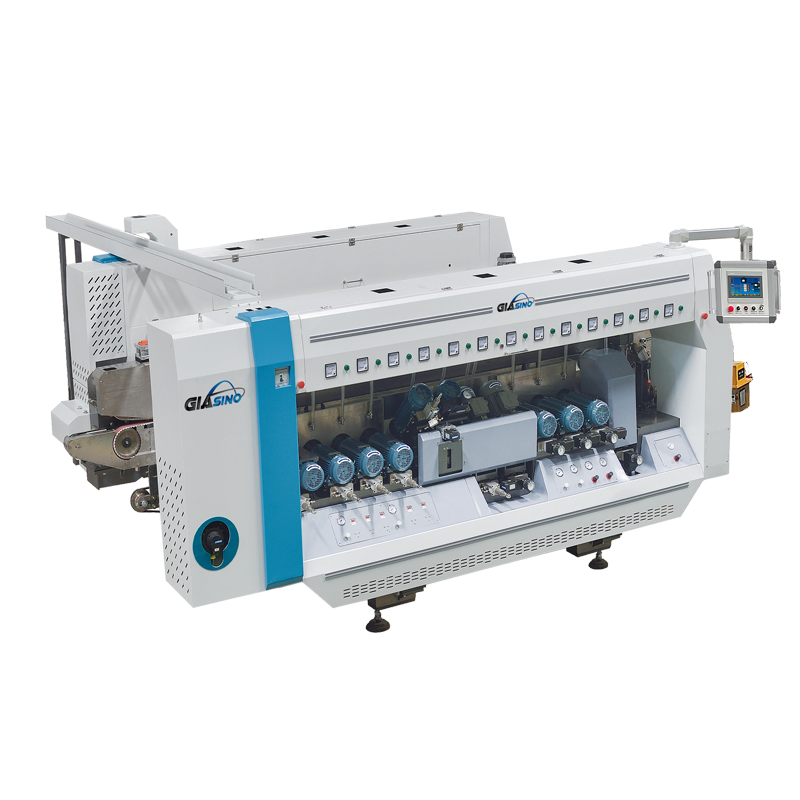

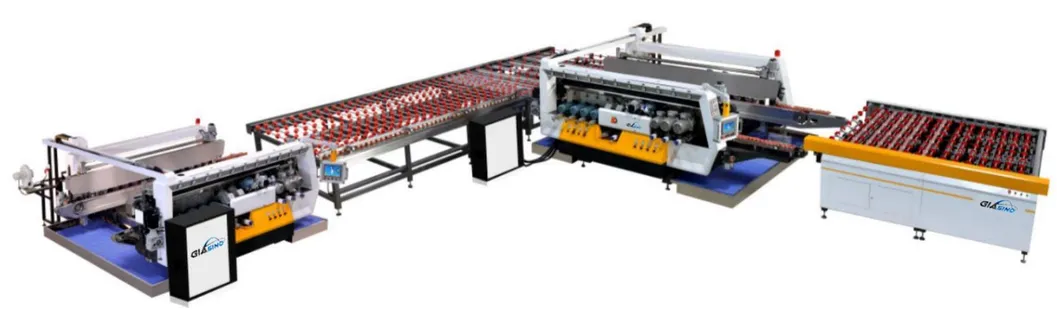

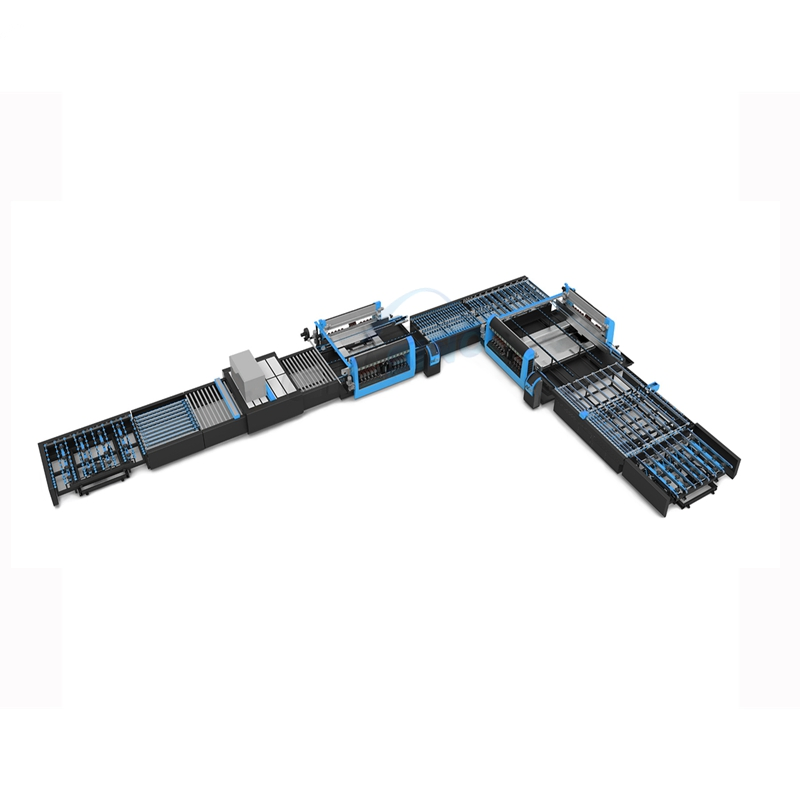

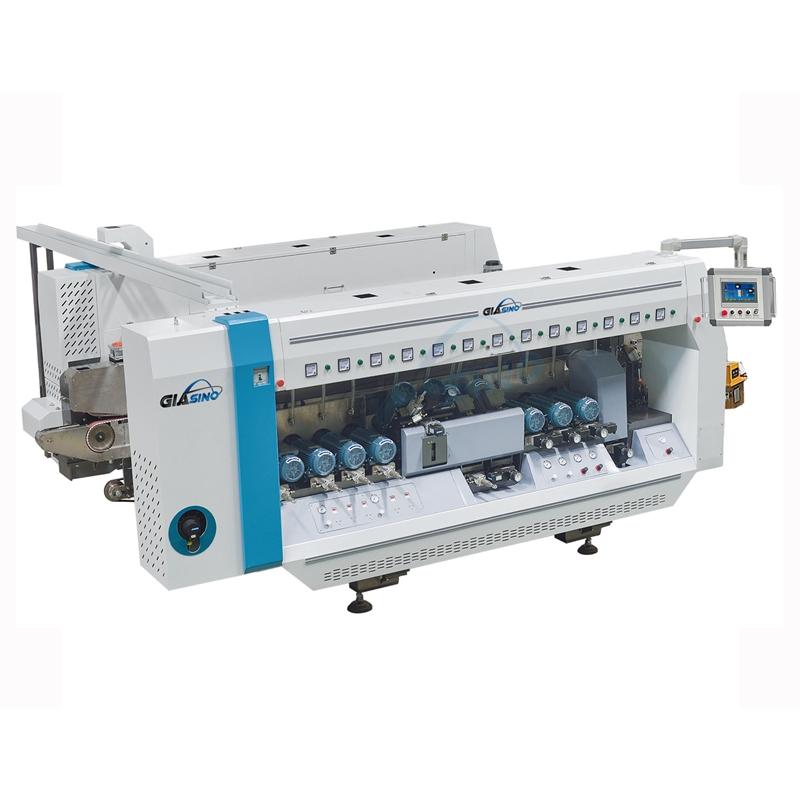

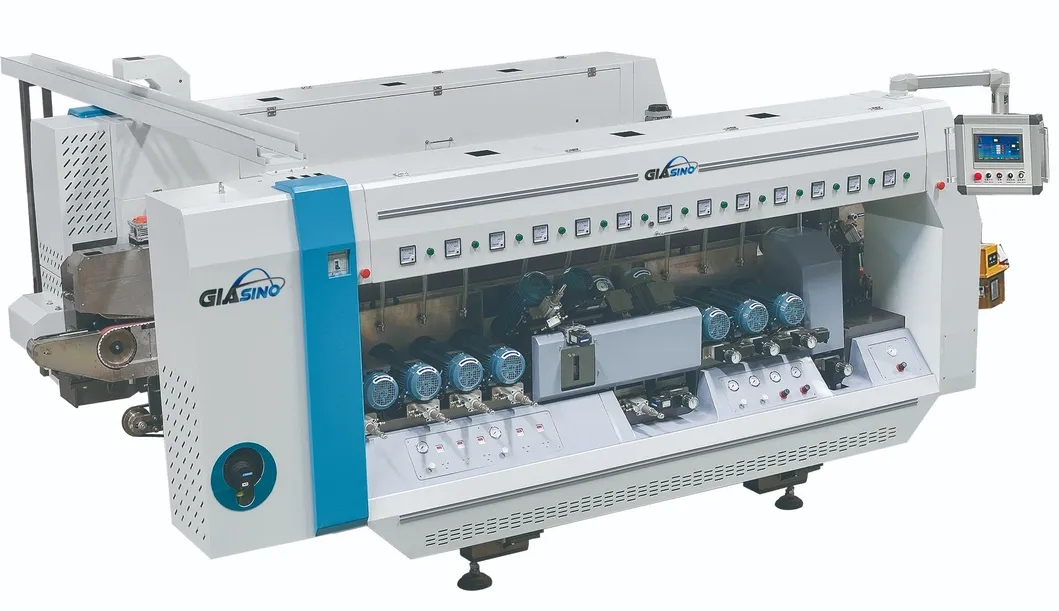

High Speed Double Edging Machine Production Line

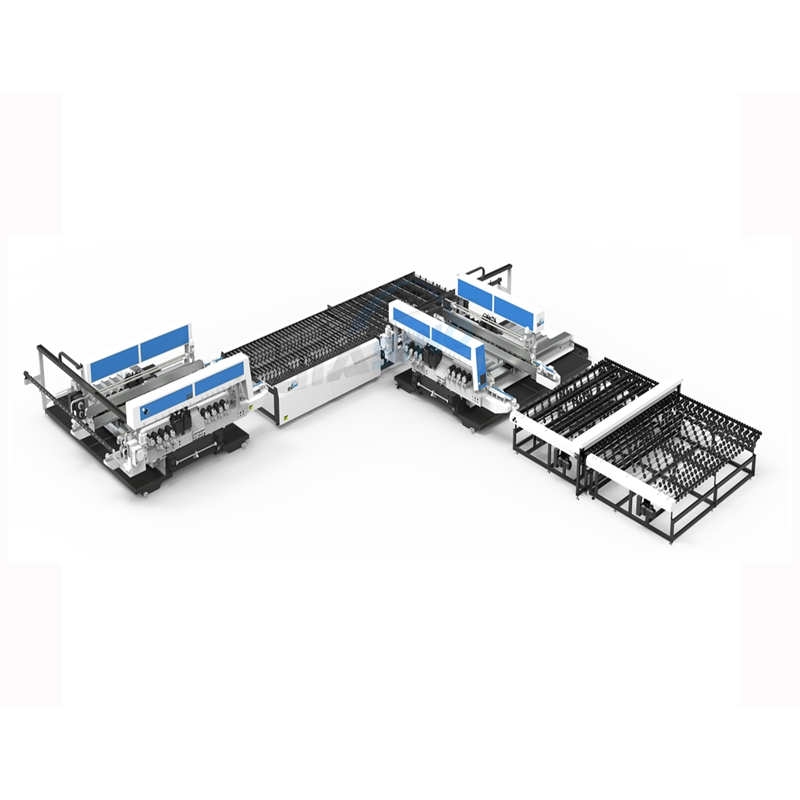

GSZM2042+GSTL4225+GSZM2025 Glass Straight Line Double Edging Machine production line is an economic, high efficiency, high precise, reliable product for all size of flat glass, laminated glass and Low-E glass on mass production.
1. Opening and closing of structure adopt ball screw and straight line lead rail.

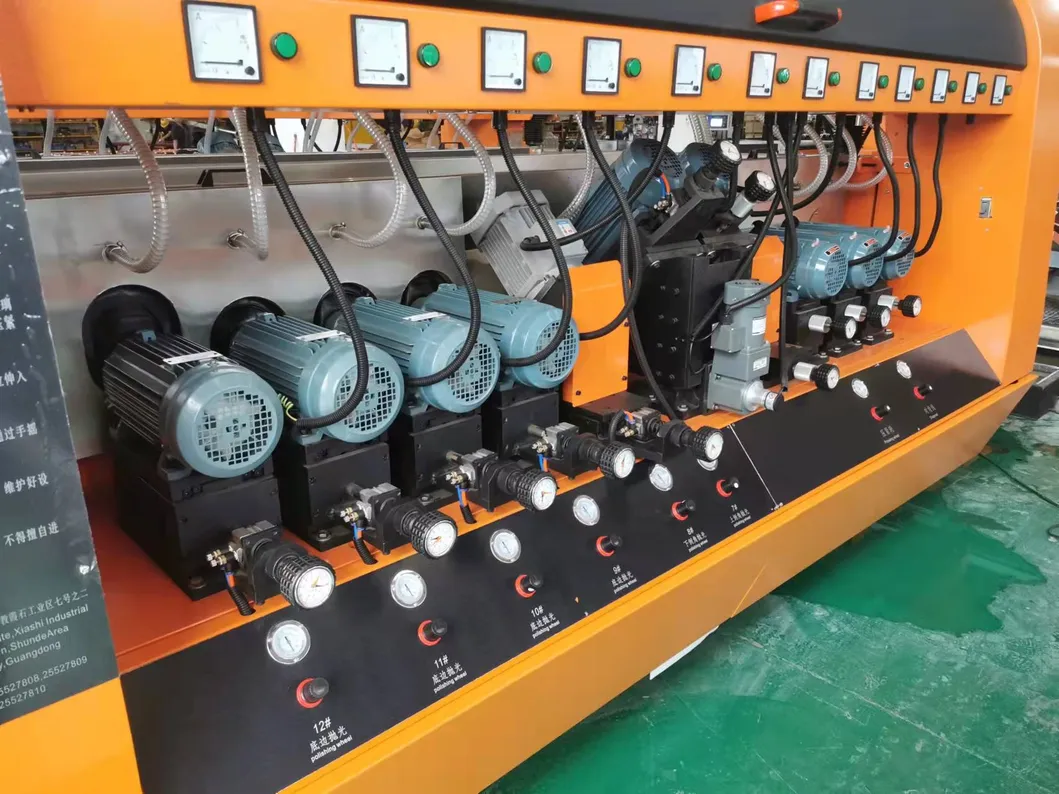

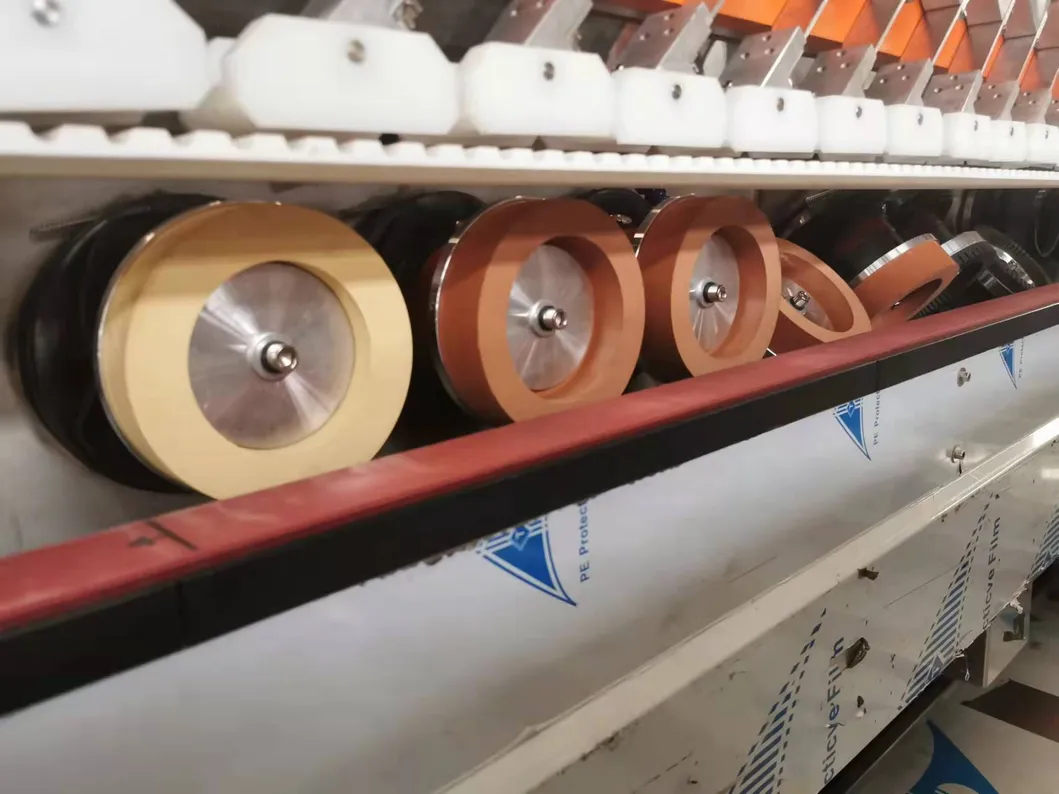

2. Grinding wheel adopts double V type guide rail with high precision, smooth operation and small vibration.
3. Semi-automatic for polishing.
4. Upper angle chamfer adopts ball screw and linear guide, precise orientation.
5. Automatically lifted for cleating bracket, which can be reached to 120mm.
6. Main transmission drive adopts mechanical frequency conversion to adjust the speed, upper posited, convenient for changing and maintenance.

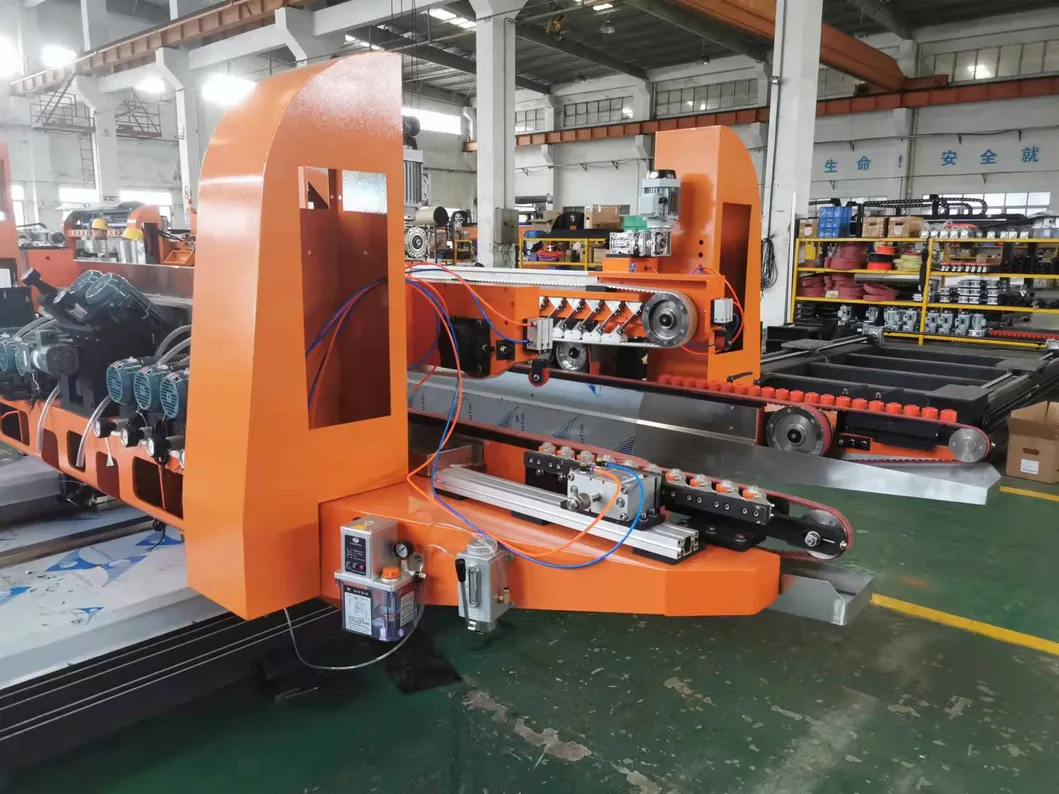

7. Adopt annular synchronous belt and pneumatic positioning device for conveying glass, with smooth transmit and accurate positioning.

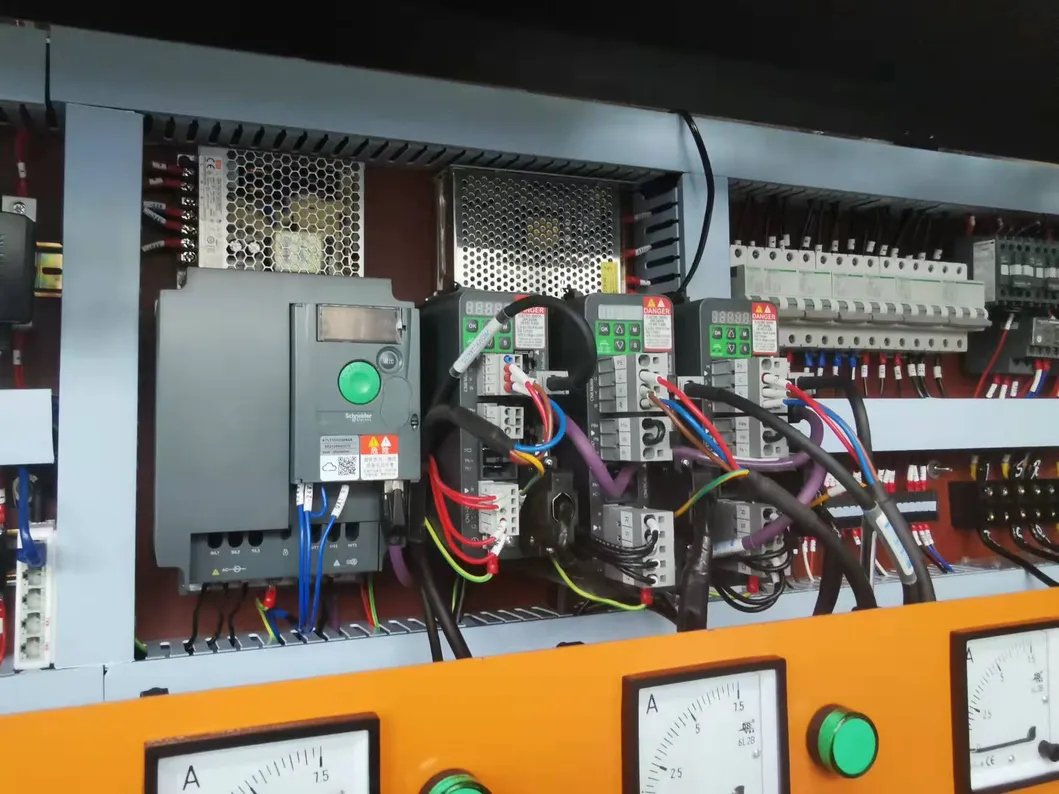

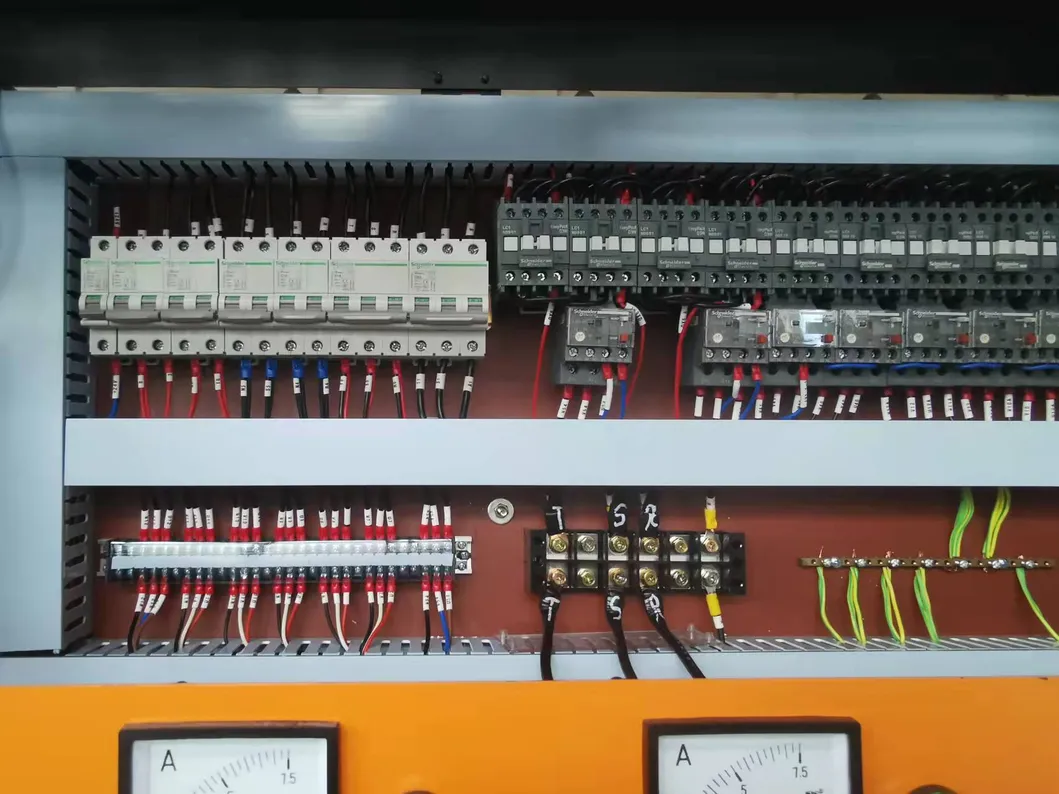

8. Adopt human-computer interface and PLC controlling system, easy operation.
❓ Frequently Asked Questions
Q1: What range of glass thickness can this edging machine handle?
A1: This machine is designed to process glass thicknesses ranging from 3mm to 25mm.
Q2: What is the processing speed of the production line?
A2: The glass conveying speed is adjustable from 0.5 to 15 meters per minute using mechanical frequency conversion.
Q3: Does the machine support Low-E or laminated glass?
A3: Yes, the production line is highly reliable for mass production of flat glass, laminated glass, and Low-E glass.
Q4: What kind of control system does the machine use?
A4: The machine utilizes a PLC controlling system with a user-friendly human-computer interface for easy operation.
Q5: What is the precision level for processed glass?
A5: The machine achieves a parallel difference of ≤0.2mm and a diagonal difference of ≤0.5/1000mm.
Q6: How long is the warranty and what support is provided?
A6: We offer an 18-month guarantee, 24-hour online technical support, and a 2-year quality assurance for the main machine components.
