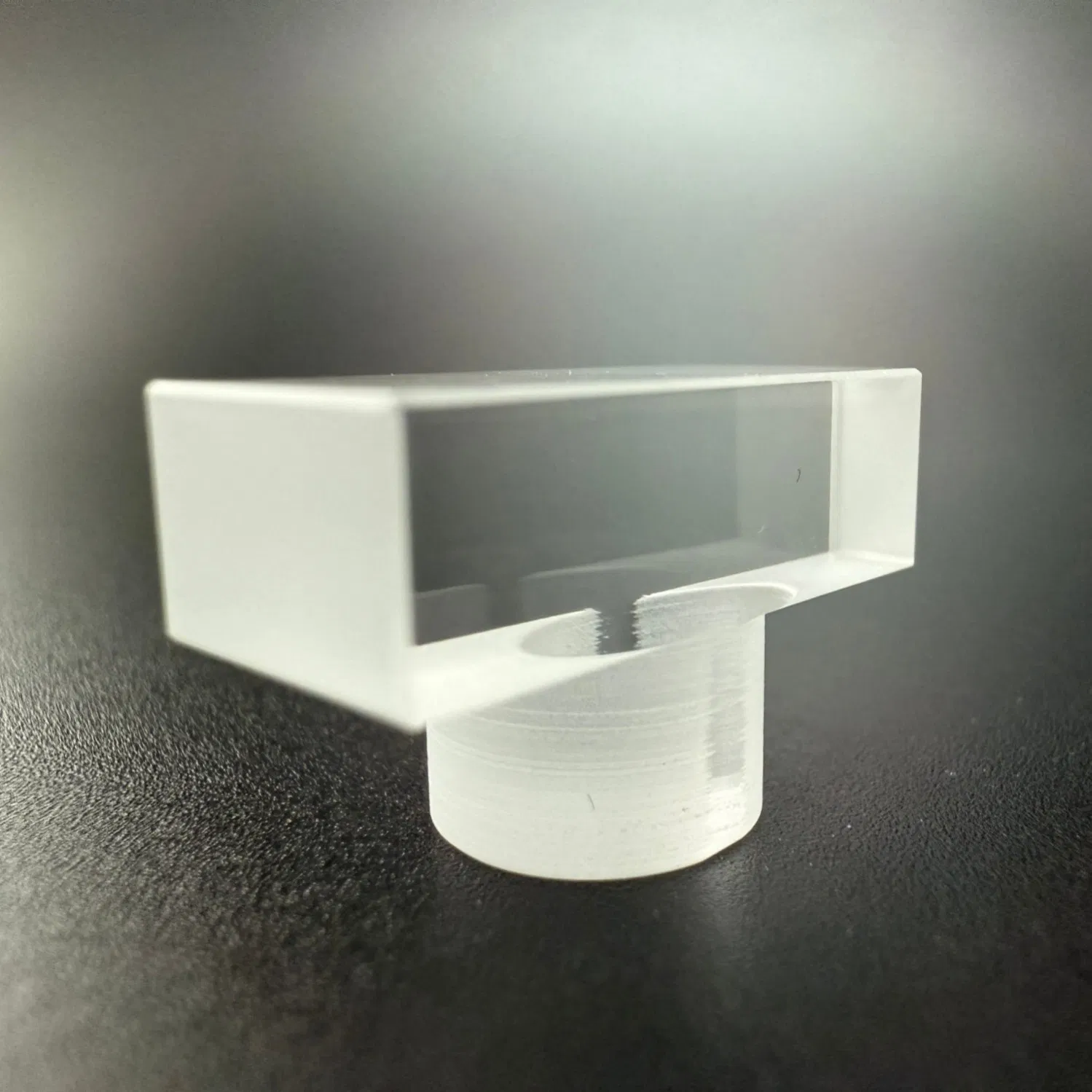

Innovative Textured-Grip Sapphire Glass for Improved Device Handling

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Product Overview

Model NO.:1-1000mm

Usage:Medical, Optical

Type:Flat Lens

Transmittance:>95%

Material:Synthetic Sapphire Glass

Hardness:Mohs Hardness of 9

Lenses Color:Clear

Certification:RoHS, ISO9001

Density:3.98 G/Cm³

Refractive Index:1.76-1.77 (@589nm)

📊

Technical Parameters

Category	Parameter Name	Typical Value / Description	Notes
Physical	Mohs Hardness	9	Second only to diamond
Physical	Young's Modulus	345 GPa	-
Thermal	Melting Point	2040 °C	-
Thermal	Max Operating Temp	1000°C (Air) / 1900°C (Vacuum)	Extremely stable
Optical	Transmission Range	0.15 μm - 5.5 μm	UV to Mid-IR
Optical	Abbe Number	72.2	Low dispersion
Surface	Flatness	λ/10 @ 632.8nm	High Precision
Surface	Surface Quality	10-5 Scratch-Dig	MIL-PRF-13830B

🛠️

Coating & Applications

Coating Options:AR, HR, Oleophobic, Hydrophobic, ITO conductive coating.

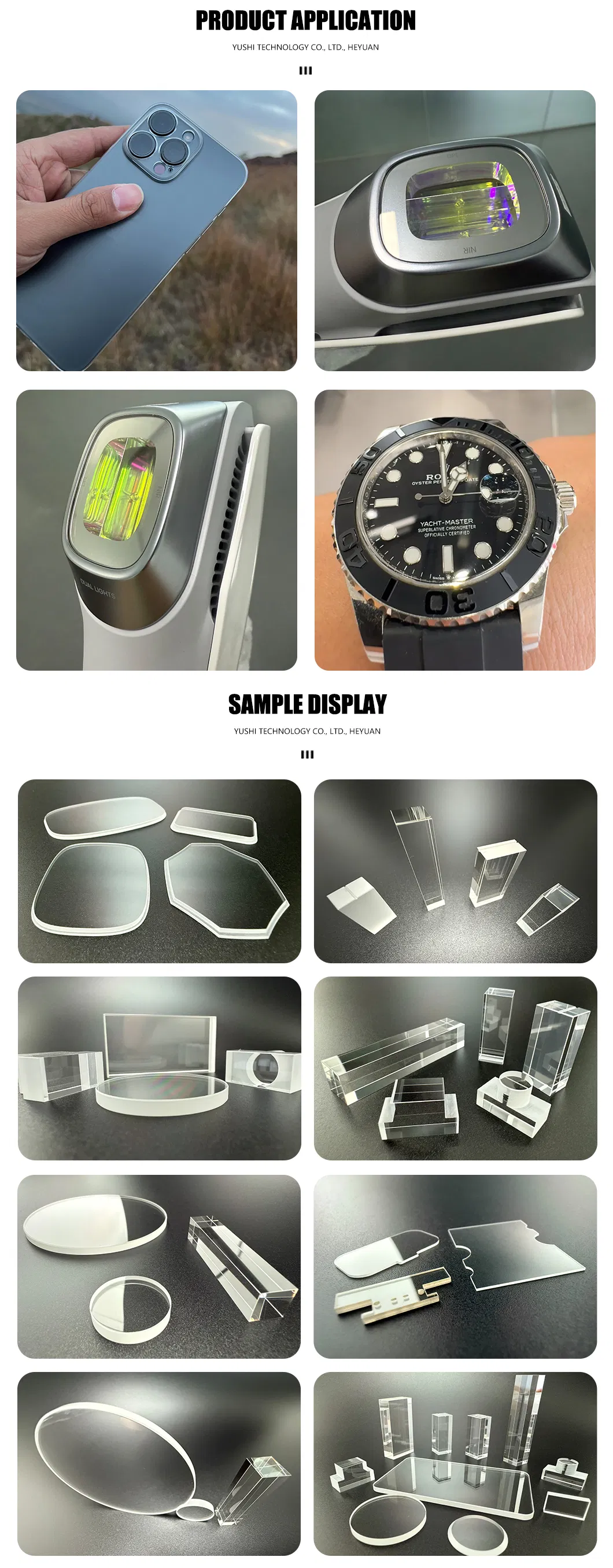

Fields:Consumer Electronics, Industrial Laser, Aerospace, Medical Endoscopes, Semiconductors.

📦

Packing & Delivery

Package Size:20.00cm * 20.00cm * 20.00cm

Gross Weight:1.000kg

Transport:Factory-Sealed

📜

Certifications

💡

Frequently Asked Questions

What makes Sapphire Glass superior to ordinary optical glass?

Sapphire glass features a Mohs hardness of 9, making it nearly scratch-proof (second only to diamond). It also offers a much wider transmission range (0.15–5.5 μm) and significantly higher thermal conductivity.

What is the maximum operating temperature for sapphire windows?

Sapphire windows can withstand up to 1000°C in air and up to 1900°C in vacuum or inert gas environments, making them ideal for high-temperature industrial viewports.

Can I customize the dimensions and shape of the lens?

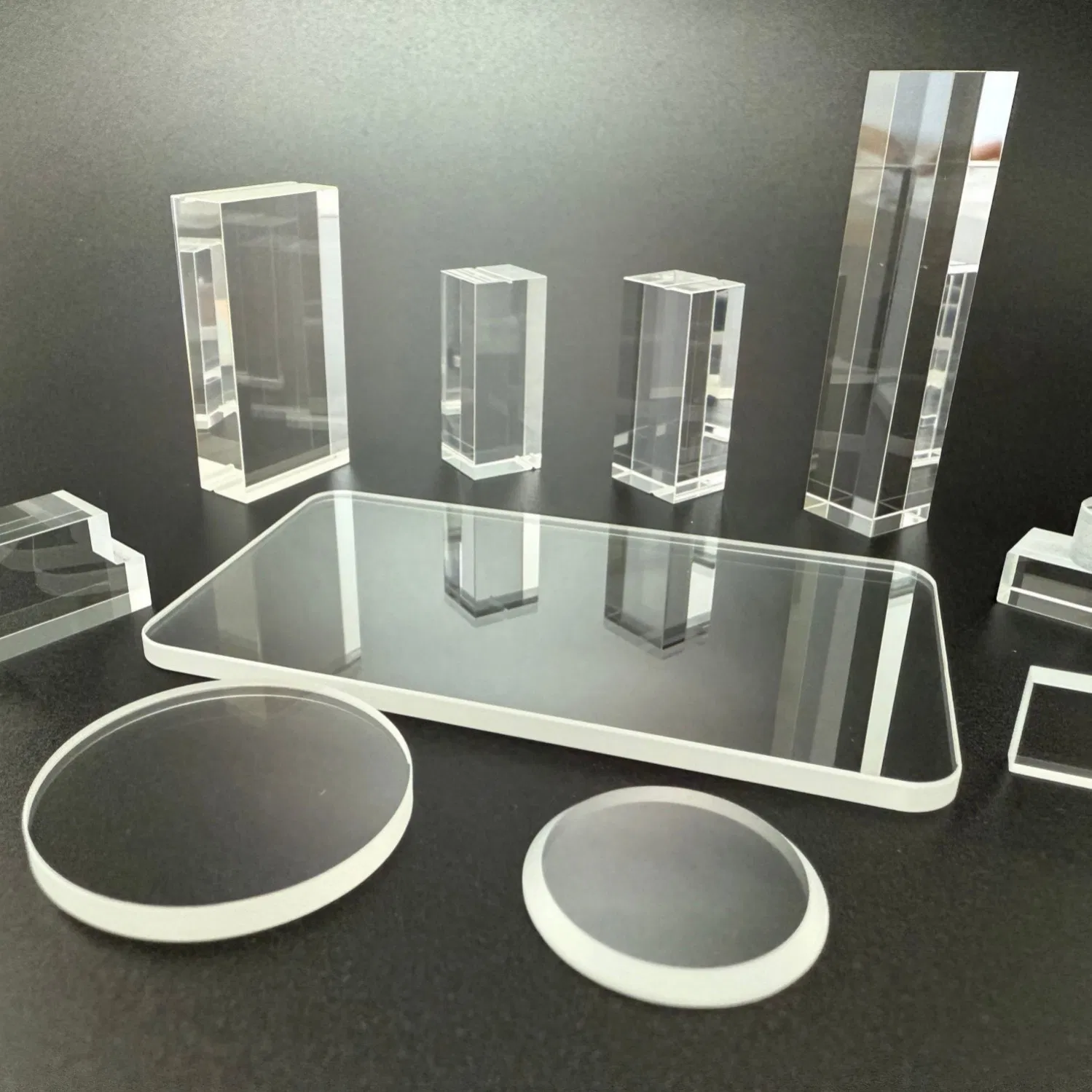

Yes, we offer customization for sizes ranging from 1mm to 1000mm. Shapes can be flat, spherical, or aspheric depending on your specific requirements.

What types of coatings are available?

We provide several coating options including Anti-Reflection (AR) to increase transmittance, High Reflection (HR) for lasers, and Oleophobic/Hydrophobic coatings for anti-fingerprint properties.

Is sapphire glass resistant to chemical corrosion?

Yes, sapphire is highly stable and insoluble in water, resistant to most strong acids and bases. However, it is not resistant to hydrofluoric acid (HF) or hot phosphoric acid.

What industries typically use sapphire optical windows?

Major industries include medical (endoscopes), aerospace (missile domes), electronics (smartphone sensors), and high-power laser research.
