| Model NO. | Fused Silica Roller | Thermal Shock Resistance | Excellent |
| Application | Float Glass Production Line, Tempered Furnace | Factory Advantage | 3 Refractory Production Base |
| Type | Insulating Glass Production Line | Structure | Horizontal |
| Condition | New | After-Sales Service | Technical Support |
| Transport Package | Standard Export Package | Specification | Custom |

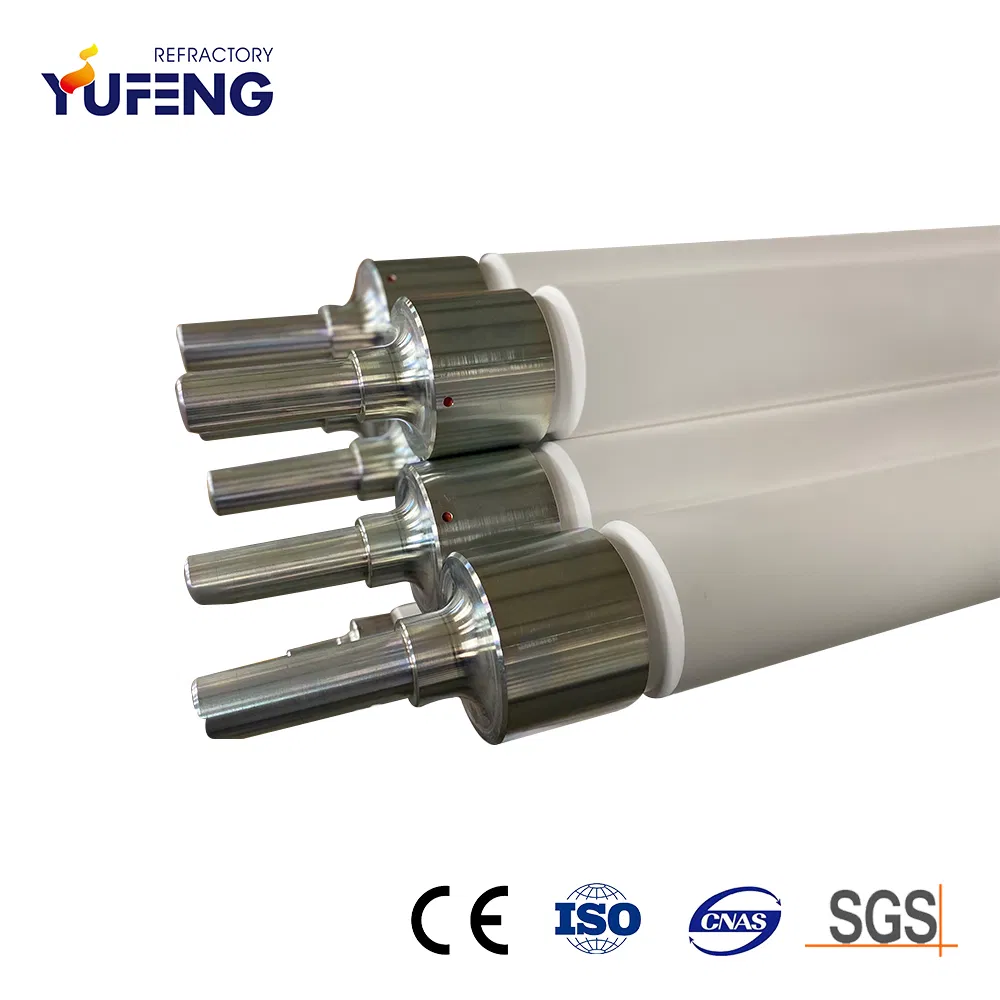

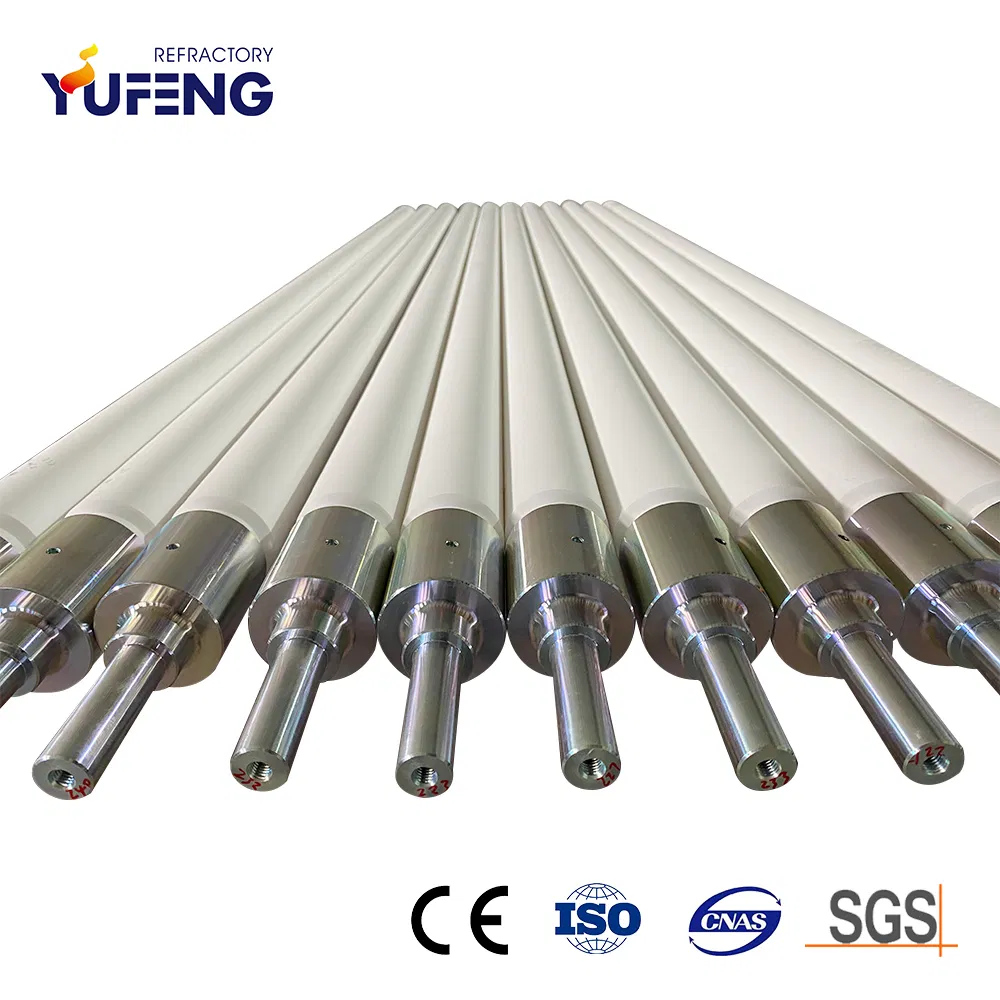

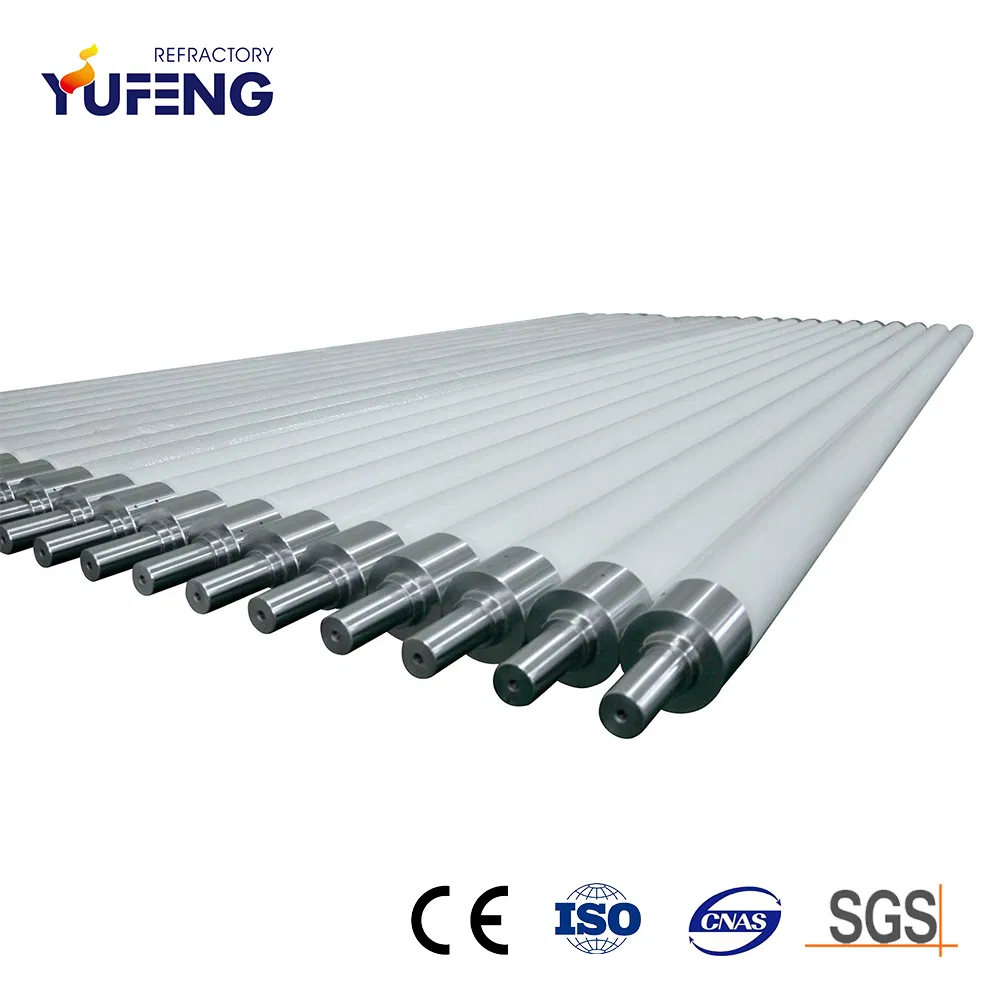

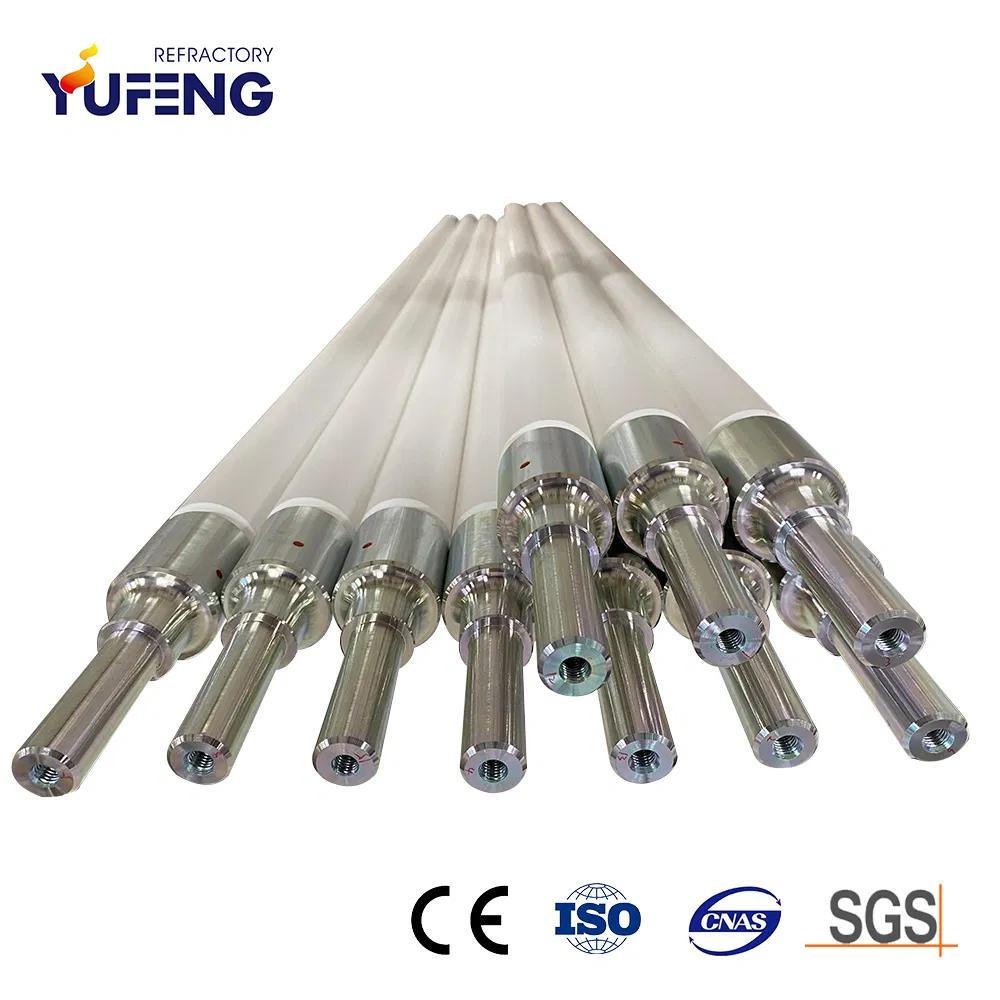

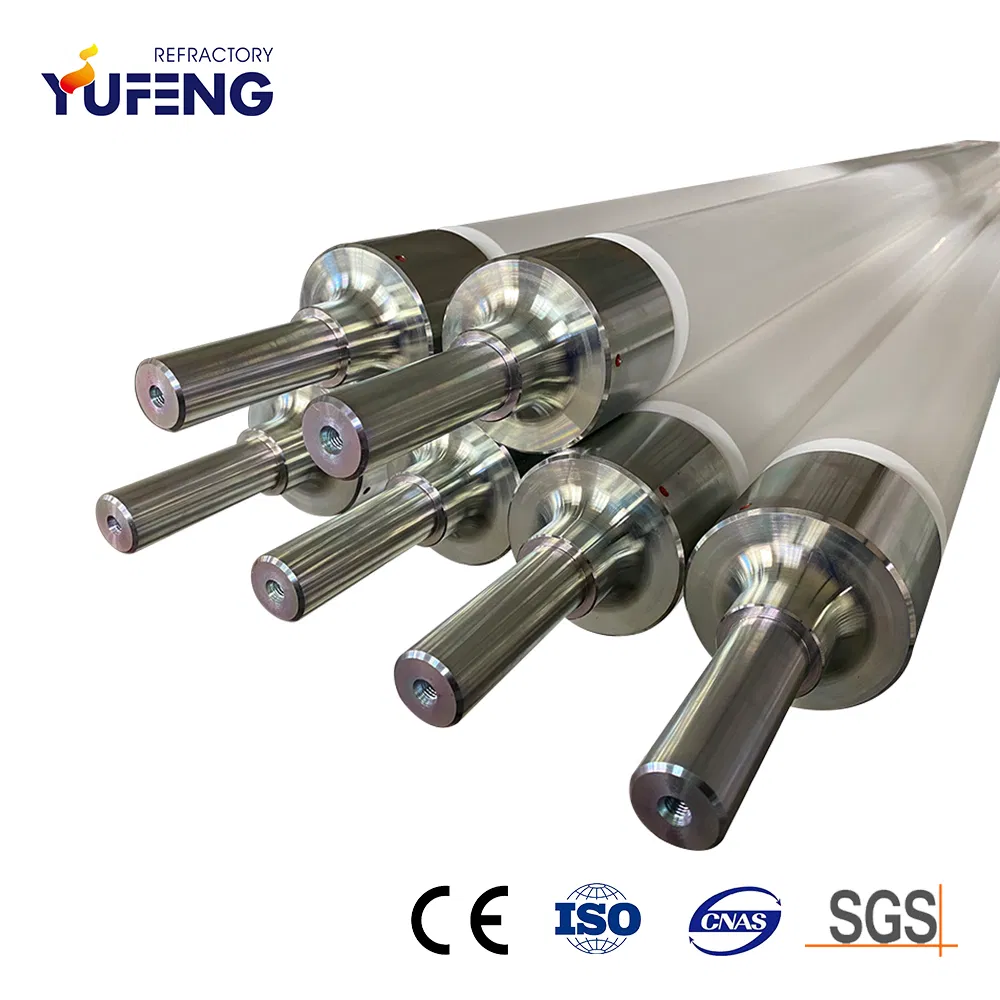

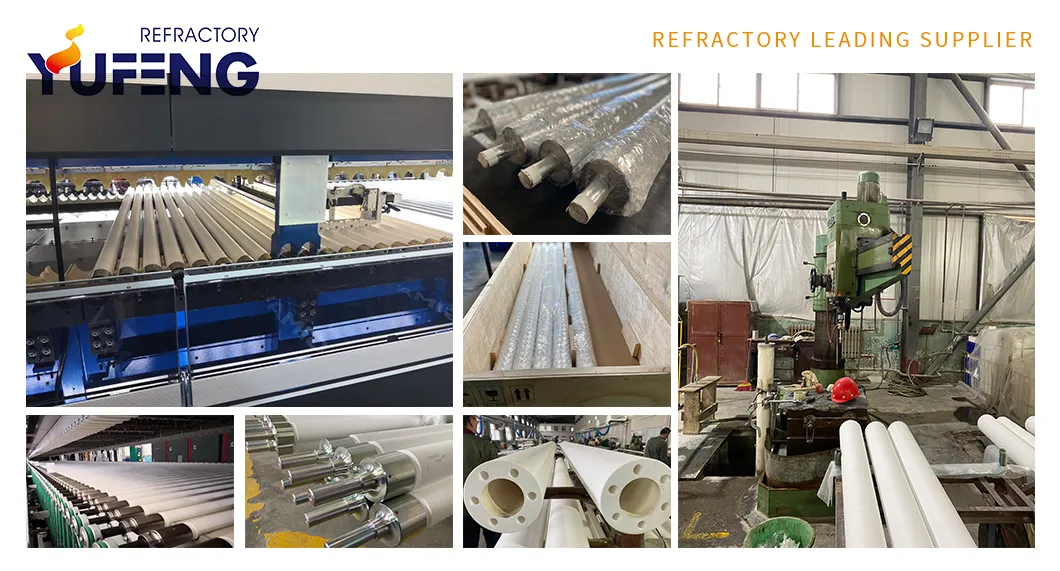

Fused Silica Ceramic Rollers are widely used for the production of raw glass and glass deep processing. Combined with outstanding ceramic art and scientific theory, a systemic production system has been formed. Every production series of quartz ceramic rollers offers an excellent variety of performance indicators, fully guaranteeing product quality and meeting the needs of many types of glass enterprises.
| Item | Unit | Index |
|---|---|---|
| SiO2 | % | ≥99.8 |
| Al2O3 | % | ≤2000ppm |
| Fe2O3 | % | ≤45ppm |
| Density | g/cm3 | 1.95-2.00 |
| Apparent Porosity | % | 10-11 |
| Compressive Strength | MPa | ≥60 |
| Modulus of Rupture | MPa | ≥30 |
| Crystallinity | % | Cristobalite <1% |
| Thermal Expansion Rate (20-1000ºC) | x10-6/ºC | <0.6 |
| Roughness Ra | um | ≤1.6 |
| Diameter Tolerance | mm | +/-0.03 |
| T.I.R. | mm | ≤0.13 |
Note: Data are average test results and are subject to variation.

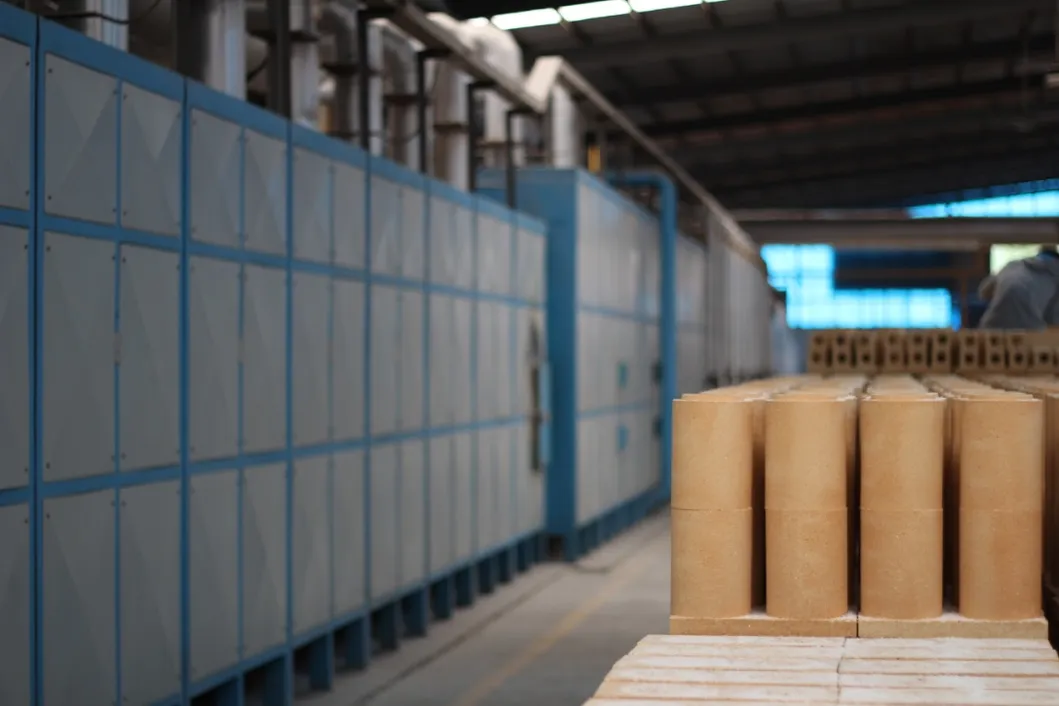

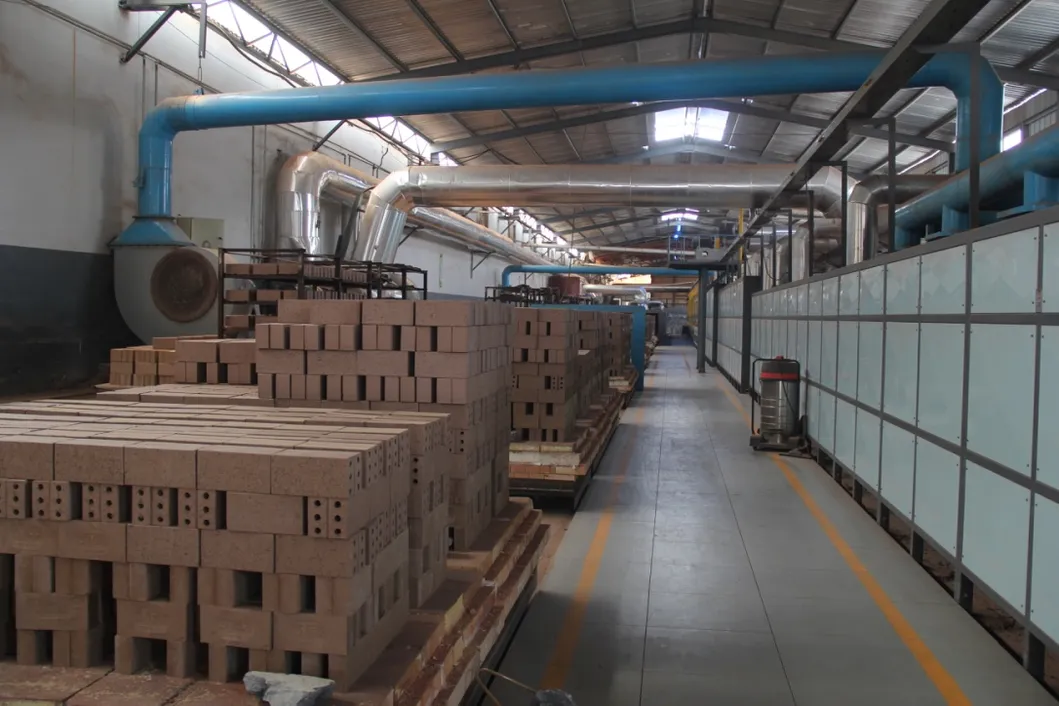

Based in a major industrial refractory production hub, we have over 30 years of experience in researching and supplying high-temperature refractory materials. Our facilities include raw material processing, hydraulic pressing, isostatic pressing, and high-temperature shuttle kilns. We provide technical support to help clients achieve high efficiency and cost savings.
We hold ourselves to the highest standards regarding timely delivery and quality assurance. Our manufacturing processes are designed to deliver the performance required for critical industrial projects.
We have established a comprehensive Quality Management System certified to meet ISO 9001:2008 requirements. This ensures continuous process improvement and consistent quality for all refractory and insulating materials across various industries.
