Machine Application:

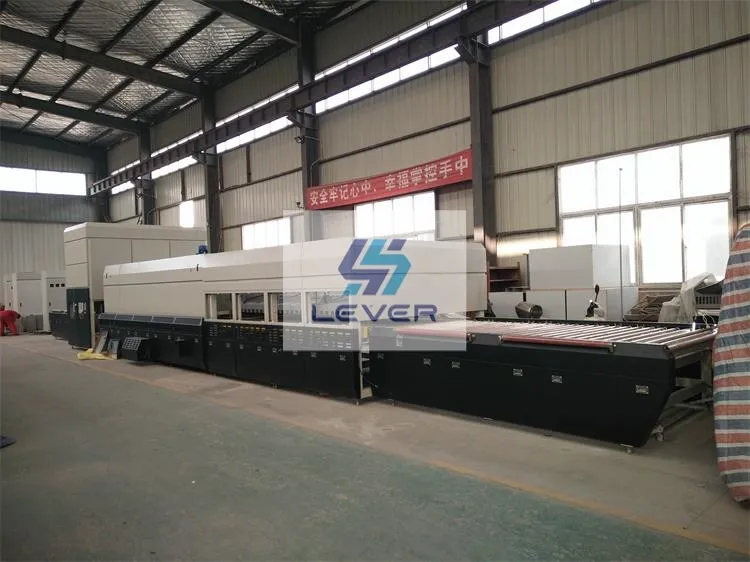

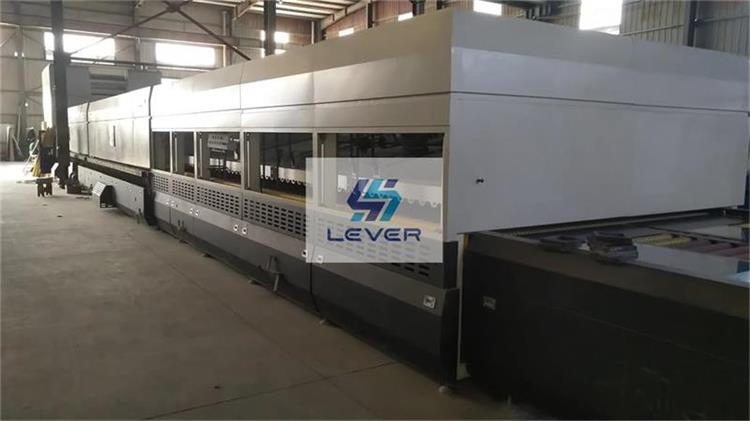

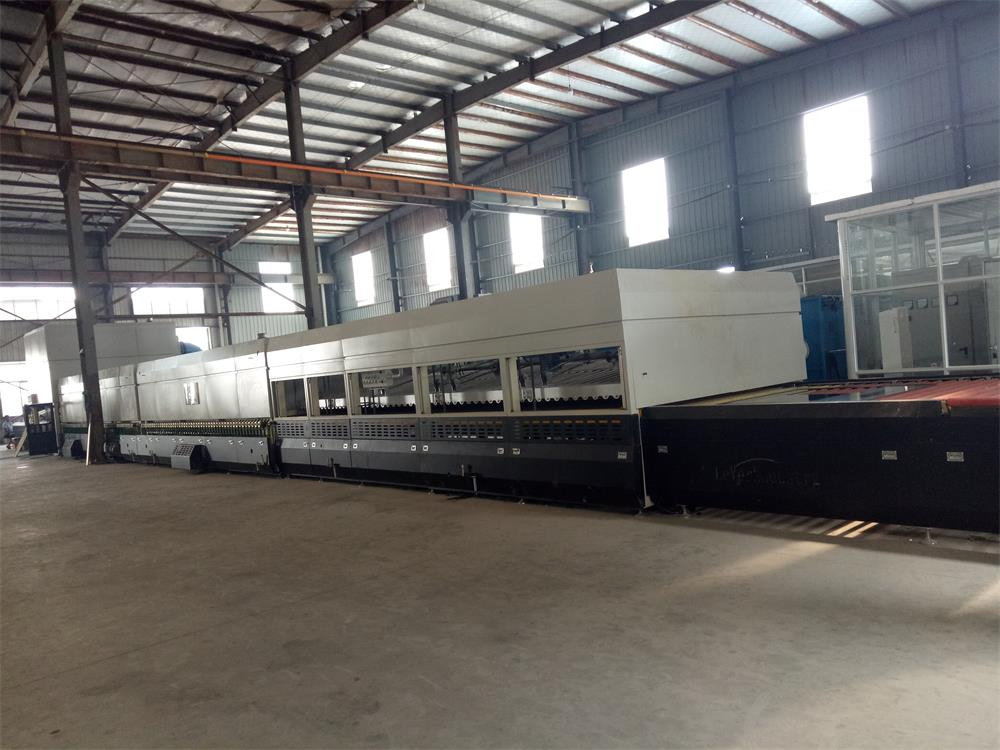

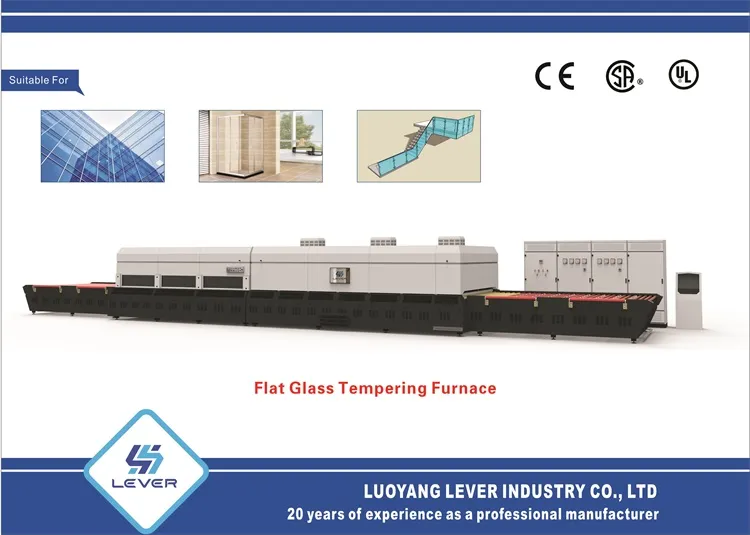

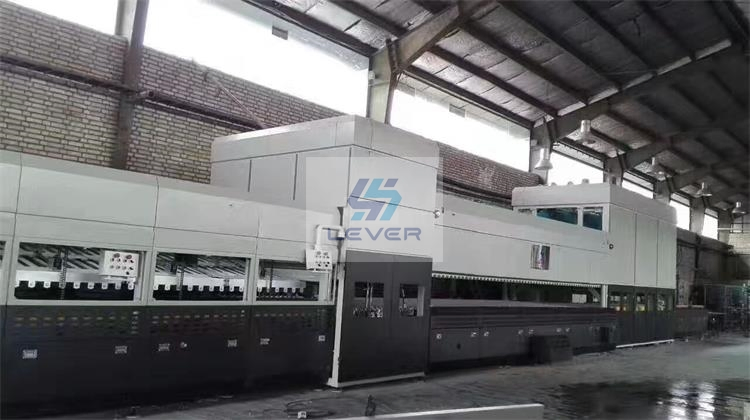

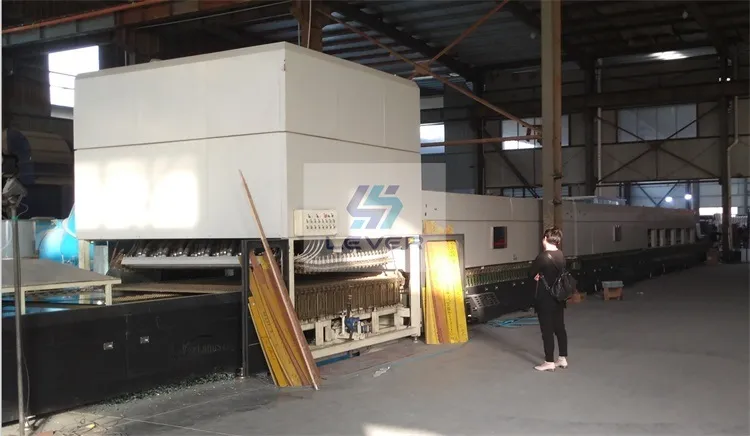

Flat/bent glass tempering furnace is a special plant used to produce flat and bent tempered glass and thermal strengthened glass. It is widely used in architecture (doors, windows), automotive side windows, shower rooms, home appliances, garden fences, elevators, and furniture. With the force convection system, soft (off-line) Low-E glass can be processed efficiently.

• Ceramic plates installed at the top of the oven ensure even heating and avoid dregs falling.
• Ceramic rollers system driven by triple belts for simultaneous and stable running.
• Gapless parallelogram heating elements design for superior finished product quality.
• Upper and lower quenching can be moved separately for precise flatness adjustment.
• Intelligent glass positioning and collision avoidance system in quenching and unloading sections.

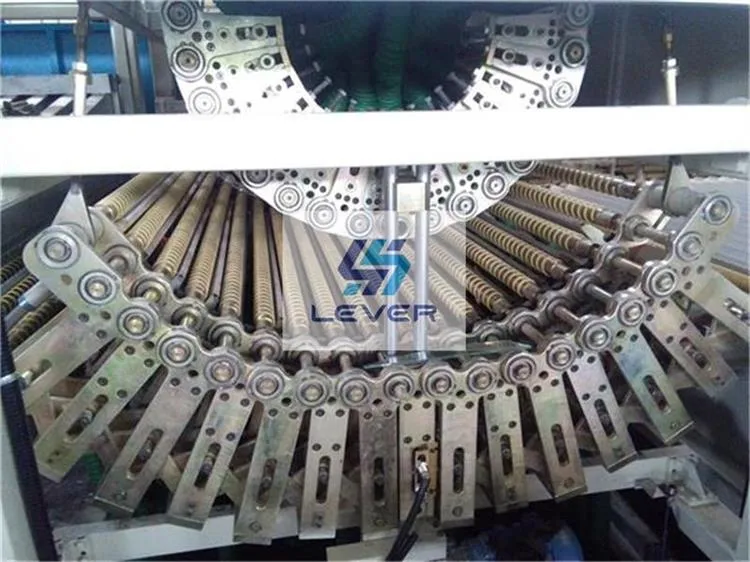

• Servo motors and controllers specifically for high-precision bending forming.
• Automatic detection of heating elements and preventive functions for wrong operations.

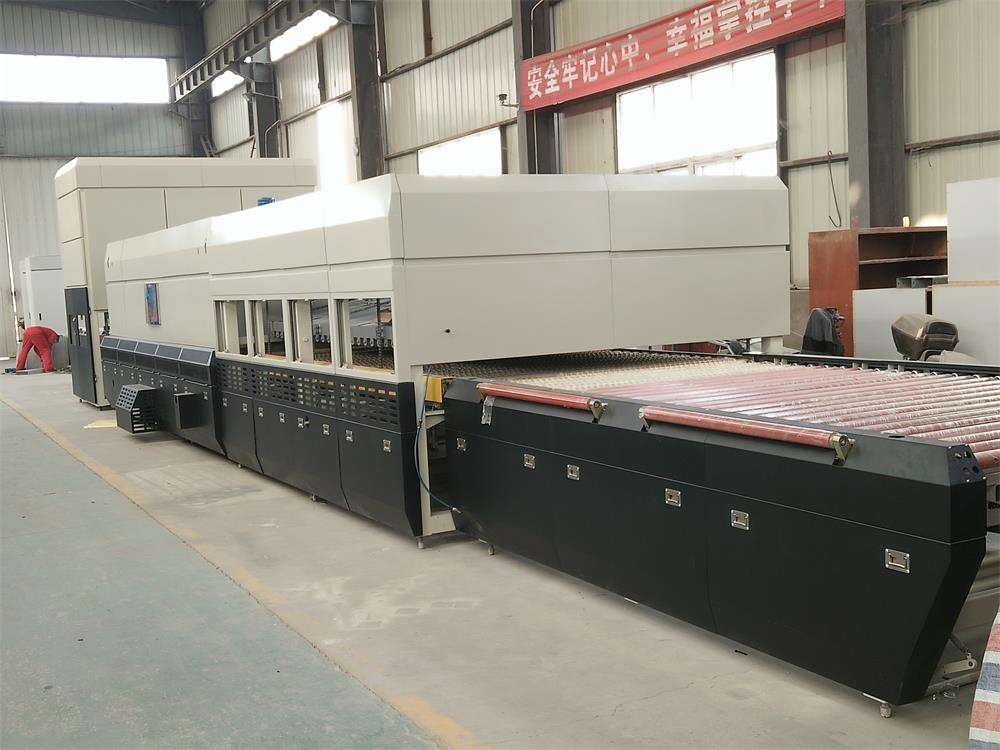

• Loading table & Unloading table
• Heating section with force convection system (Vesuvius ceramic roller)
• Flat & Bent tempering and cooling sections
• Blower system (Taixin Blower; Siemens Blower motor)
• Electrical & control system (Siemens PLC, Computer, etc)
• Technical documents and spare parts package
