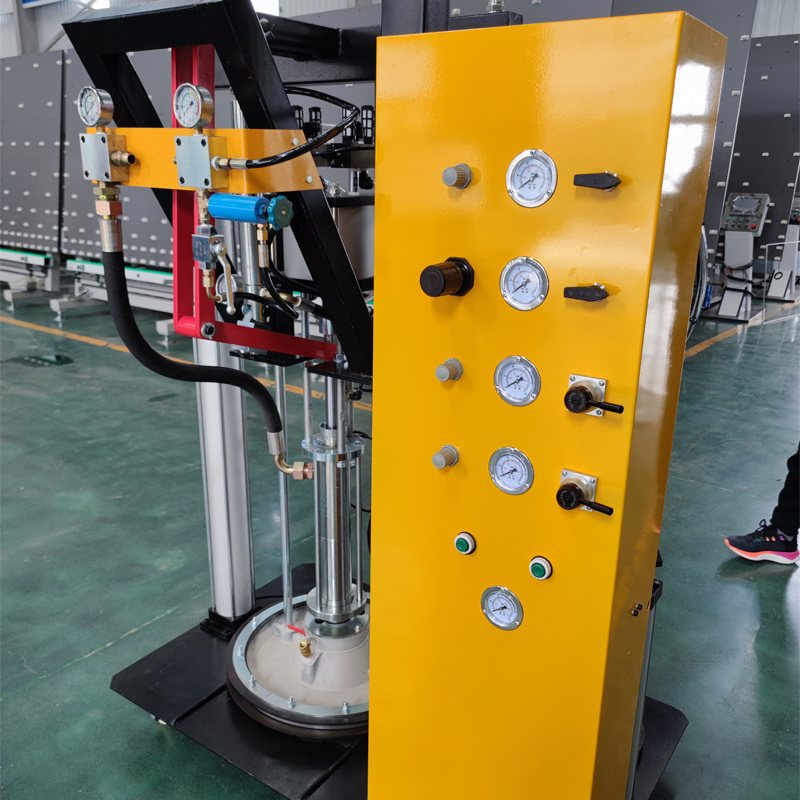

Two Component Silicone Sealant Coating Machine Insulating Glass Silicone Glue Extruder with CE ISO for Making Insulating Glass

Customization: Available
Certification: CE, ISO, FDA, UR, PCI, PDA, CE
Control System: PLC

Product Description

📊 Basic Specifications
Model NO.
ZKT06
Mixing Ratio
6:1~14:1 55
Material Bucket
200L
Air Pressure
0.5~0.8MPa
Air Consumption
0.8m /Min
Max. Pressure
25MPa
Output
4~10L/Min
Weight
500kg
Dimensions
1870*800*1750mm
Power Supply
380V, 50Hz
Voltage
220V, 380V, 415V, Customised
Type
Glass Coating Machine
Warranty
One Year
Origin
Shandong, China
Two Component Silicone Sealant Coating Machine
⚙️ Product Description

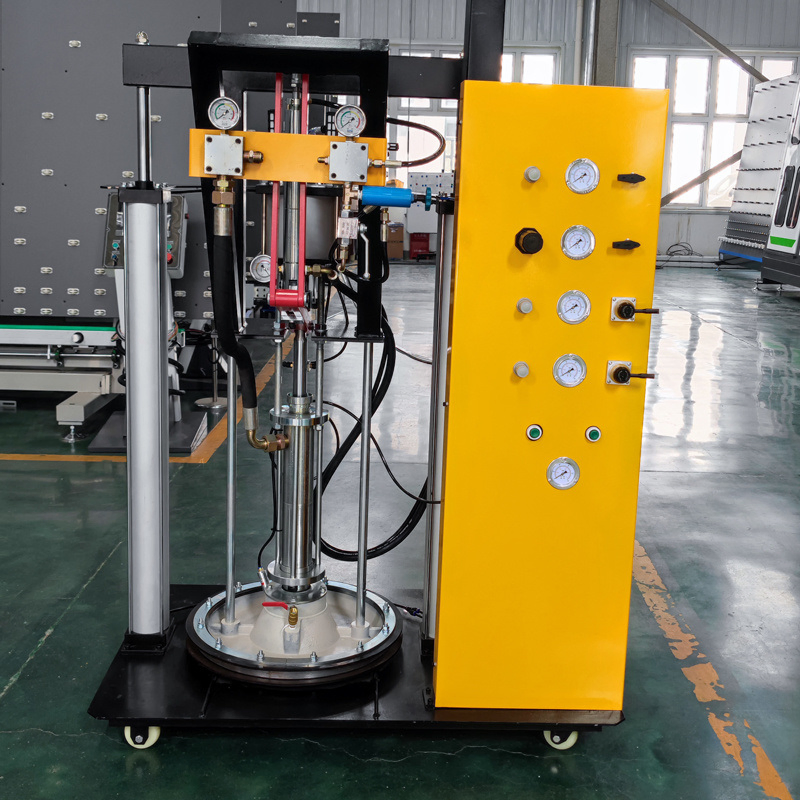

ZKT06 Manual Two-Component Sealant Applicator for Insulating Glass

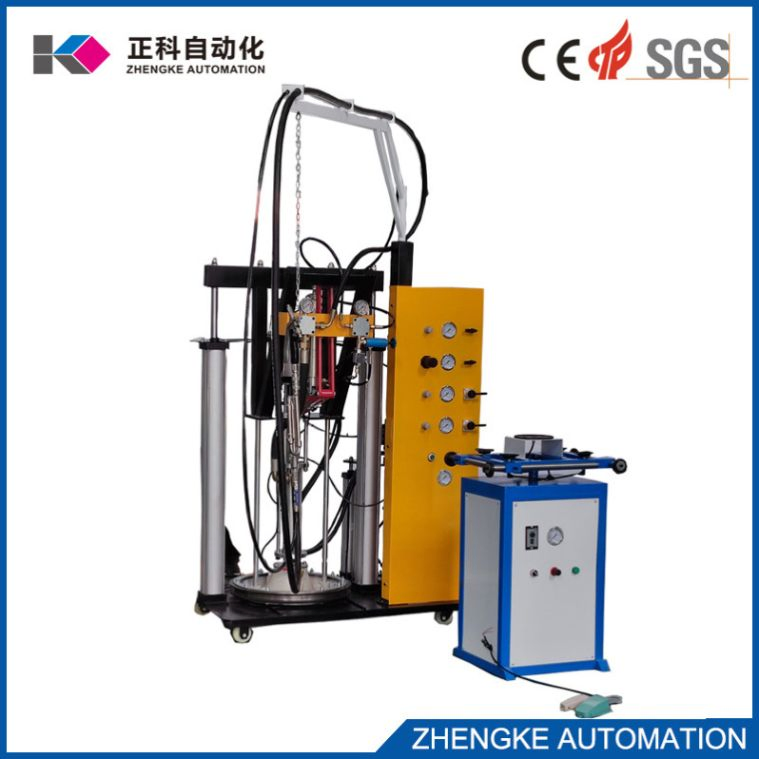

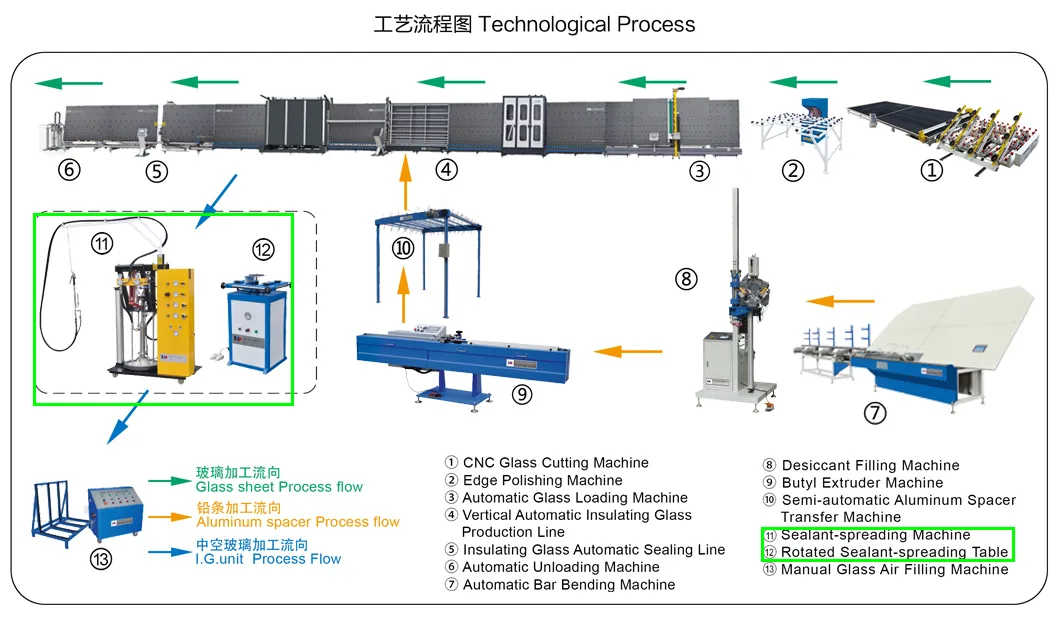

Sealant Applicator Overview

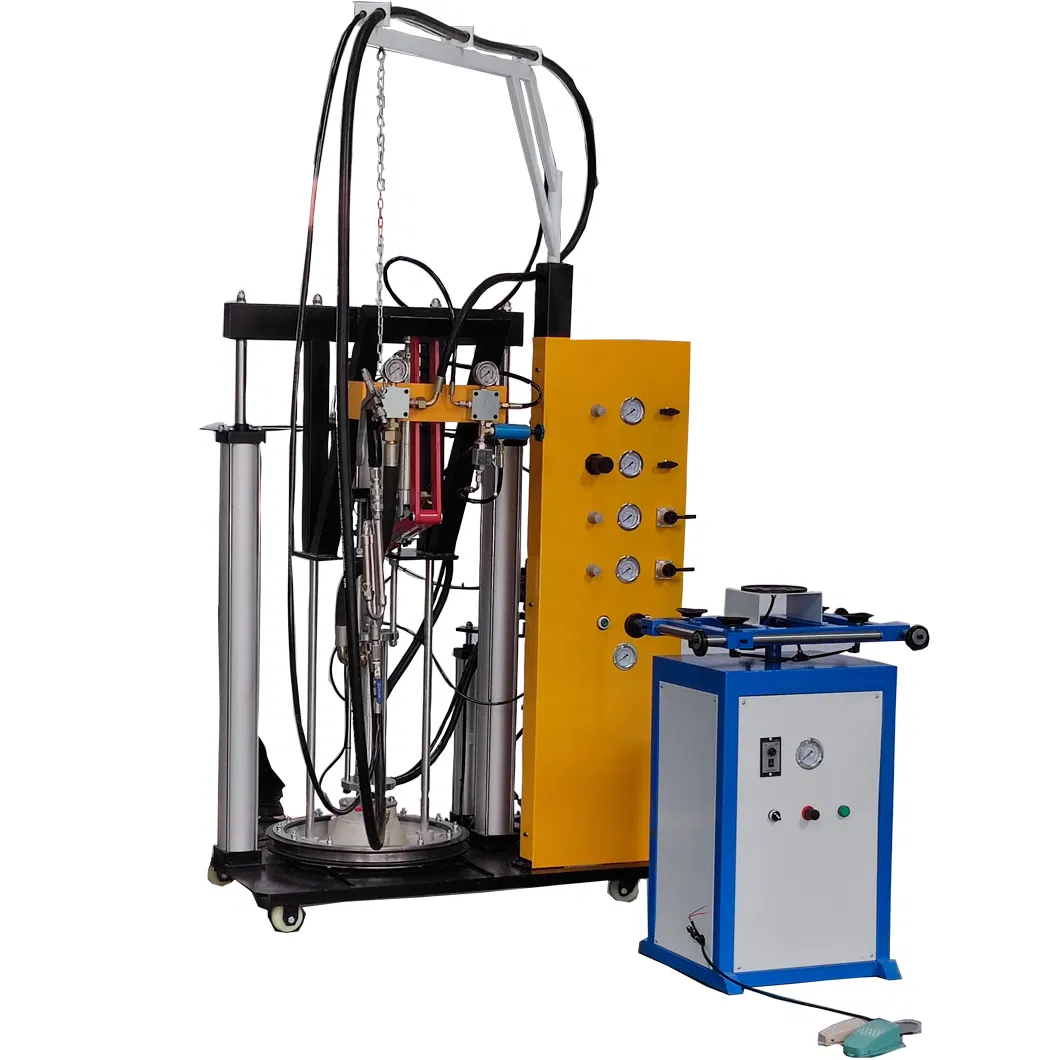

Equipment Detail 1

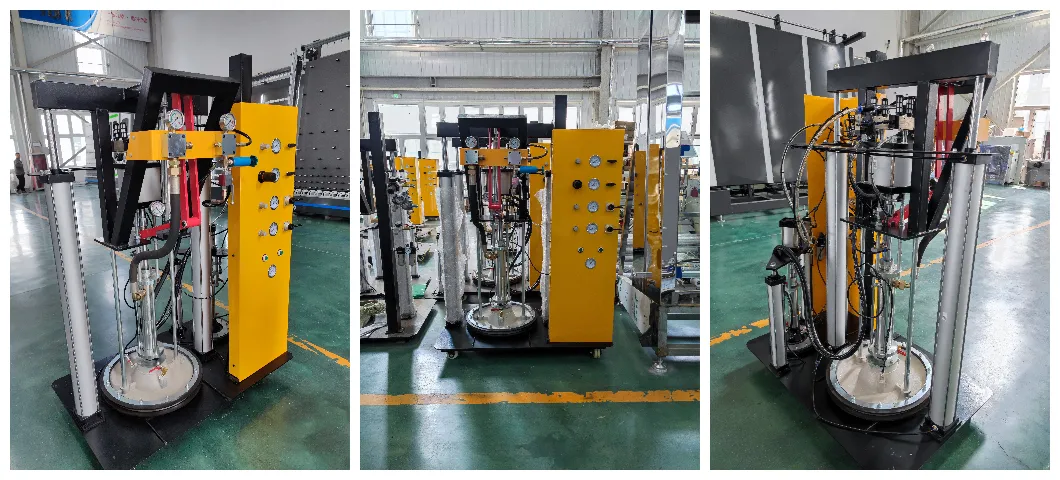

Equipment Detail 2
💎 Equipment Features
  • Imported Main Components: Low primary pump adopts imported pneumatic motor for steady drive and reliability.
  • Pneumatic Control: Pure pneumatic control with a fission type structure, making it easy to use and operate.

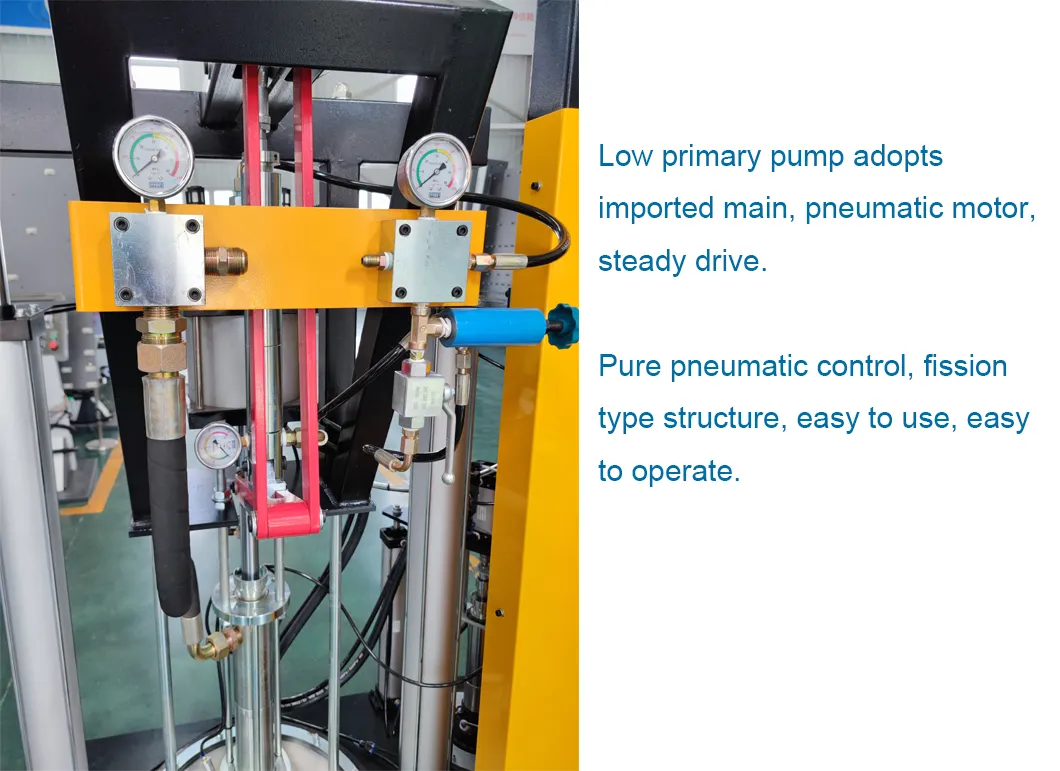

  • Pneumatic Control System
  • Accurate Ratio Adjustment: Stepless adjustment of the two-component structure satisfies high accuracy requirements.
  • Uniform Mixing: Utilizes international popular static reciprocating mixer for superior mixing uniformity.

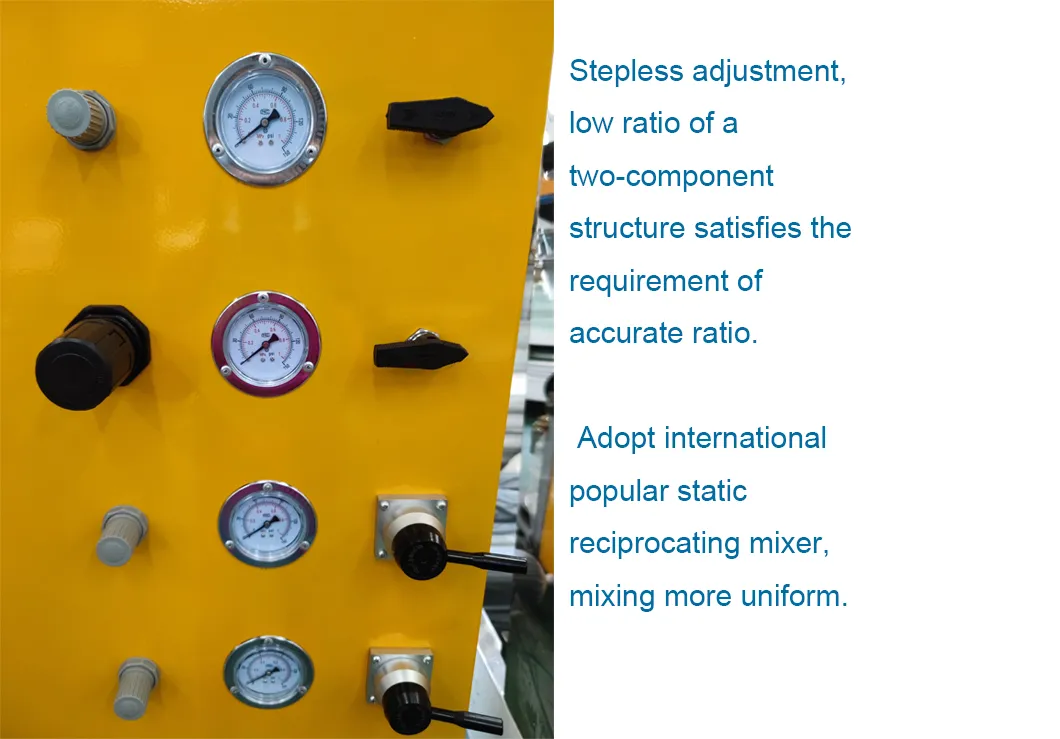

  • Mixing System
  • Advanced Filtration: Multichannel filtering device eliminates impurities entering the pump body.
  • Durable Construction: Check valve adopts high wear-resisting material for long-term directional stability and service life.

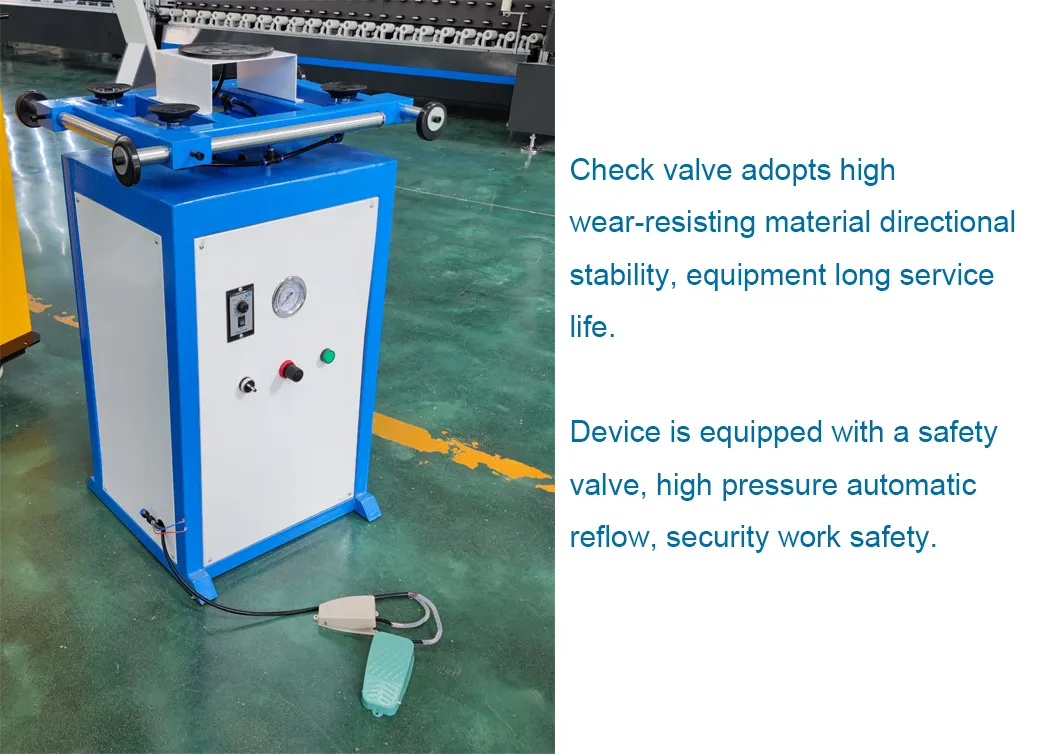

  • High Quality Components
  • Safety First: Equipped with a safety valve and high-pressure automatic reflow for secure operation.
📸 Detail & Sample Photos

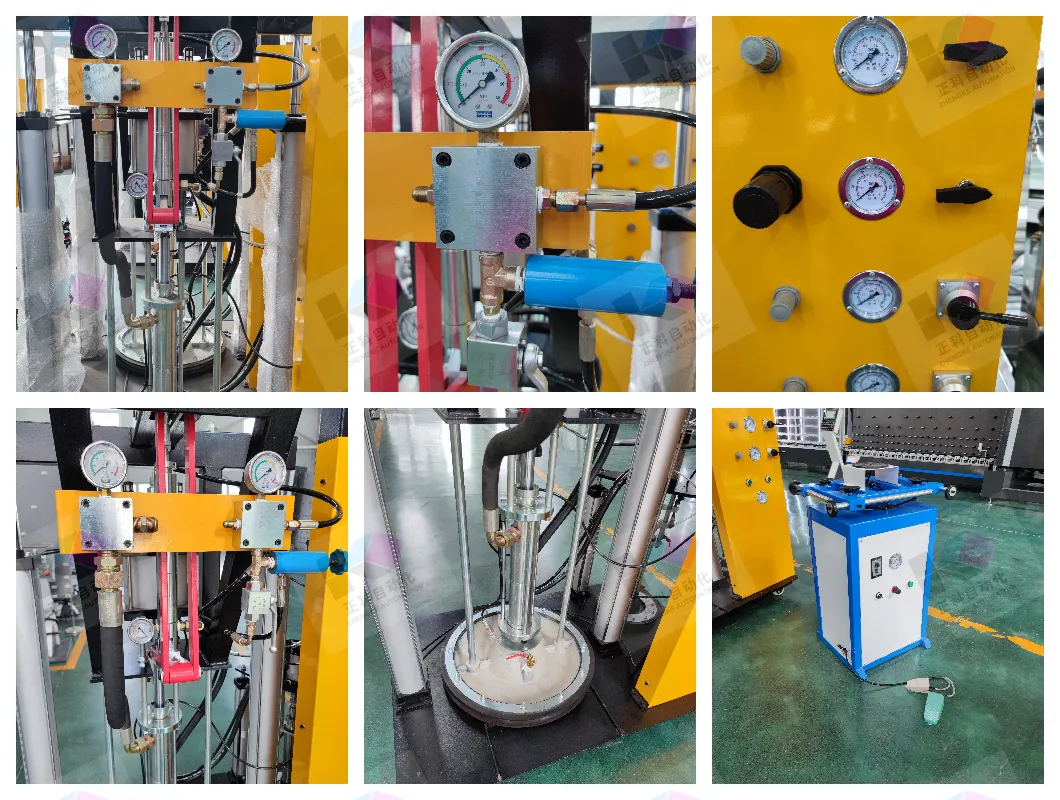

Detail View

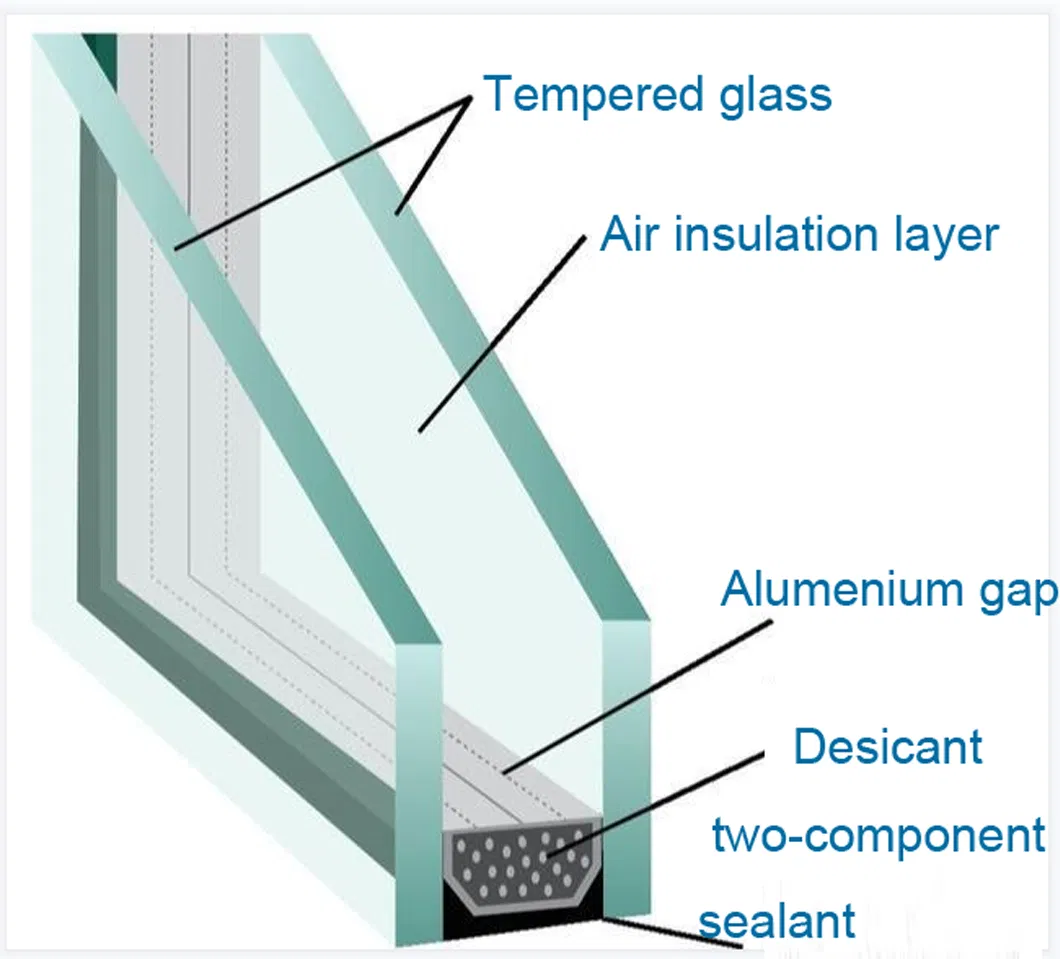

Sample View

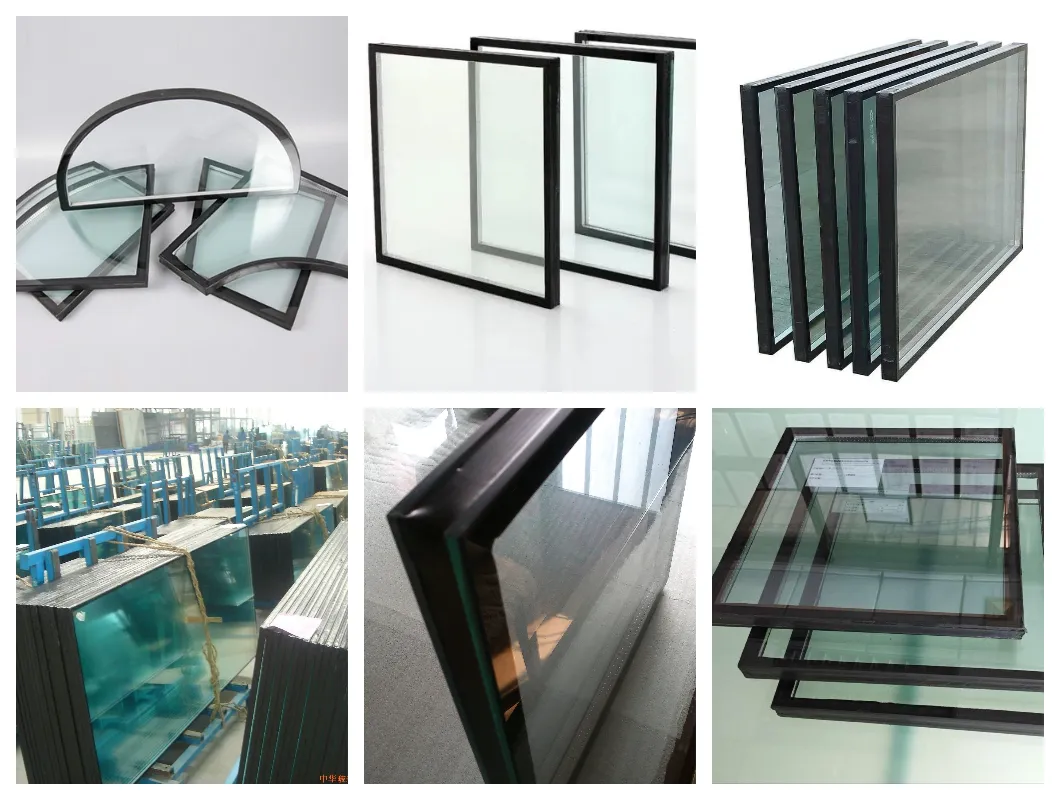

Finished Product
🚀 Our Advantages
Professional glass production solutions.
24-hour professional online service.
Quality-first consideration in all designs.
Acceptable OEM & ODM customization.
Competitive manufacturer direct pricing.
Fast delivery via efficient factory management.
📦 Packaging & Transport
Packaging and Transport
Frequently Asked Questions
What types of sealants can the ZKT06 machine process?
The machine is widely used for two-component silicone structural adhesives, polysulfide adhesives, and polyamine glues, ensuring high accuracy and uniform mixing.
How is the mixing ratio adjusted?
The ZKT06 features stepless adjustment with a ratio range of 6:1 to 14:1, allowing operators to meet precise specifications for different material requirements.
What is the output capacity of this sealant extruder?
The machine provides a stable output of 4 to 10 Liters per minute, significantly improving production efficiency compared to manual application.
Is the machine easy for new operators to learn?
Yes, it utilizes a pure pneumatic control and a fission type structure, which is designed for simplicity and ease of operation with minimal training.
What safety features are included in the equipment?
The device is equipped with a safety valve and a high-pressure automatic reflow system to ensure maximum work safety for the operator.
What kind of warranty and after-sales service is provided?
We provide a one-year warranty and comprehensive after-sales service, including technical consulting, guidance, and staff operation training.
