Product Description

📋 Basic Specifications
Model NO.
BST06
Overall Dimension
1100*950*1980mm
Total Weight
460kg
Type
Insulating Glass Production Line
Structure
Vertical
Condition
New
Warranty
1 Year
After-sales Service
1 Year
Production Capacity
400 sets/Year
Origin
China
⚙️ Product Description

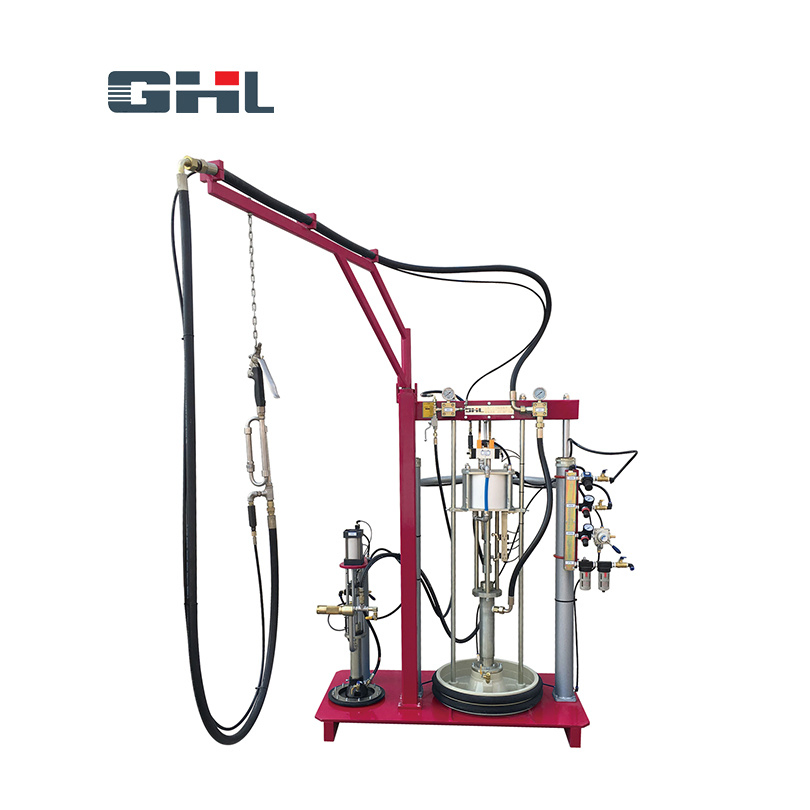

Pneumatic Two Component Sealant Extruder

Pneumatic Two Component Sealant Extruder
🚀 Machine Performance Introduction
✔1. Pneumatic control system, economical and practical.
✔2. Suitable for insulating glass and curtain walls.
✔3. Main and auxiliary motor all adopt domestic leading technology, low failure rate.
✔4. Equipped with shortage alarm system for base material and curing agent.
✔5. Integrated (unibody) structure of base material pump, curing agent pump and proportioning pump, avoid leaking sealant.
✔6. Special device in base material pump and curing agent pump, avoid running idle.
✔7. Special check valve in proportioning pump to make the sealant coming out more fluently.
✔8. International popular type unique gun, to make the mixing uniformity. Stainless steel mixing spindle.
✔9. Check valve made of high wear-resistant materials, directional stability, long service life.
✔10. Multichannel filtering device, eliminate the impurities into the pump body.
✔11. Equipped with safety valve, guarantee the operating safety.
📊 Technical Parameters
Mixing Ratio Base Material Curing Agent Max. Air Consumption Max. Working Pressure Sealant Output Air Pressure Dimensions Weight
6:1~14:1 55 gallons 5 gallons 0.8m³/min 26Mpa 3~7L/min 0.8~1.0Mpa 1100*950*1980mm 460kg
🖼️ Product Gallery

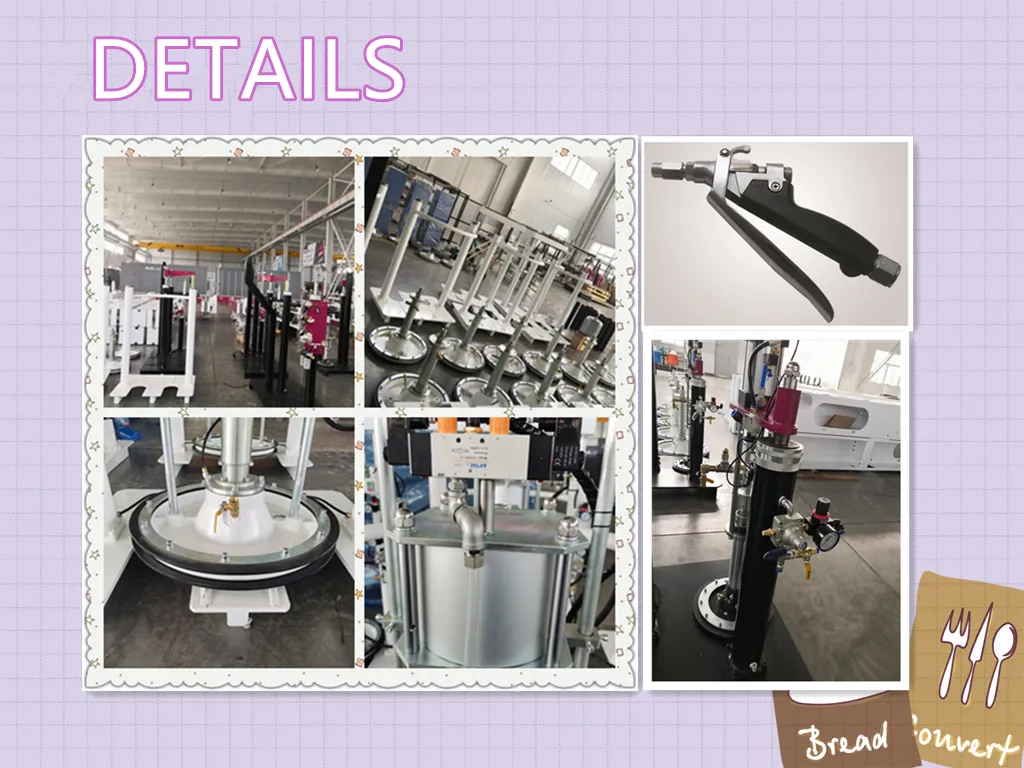

Sealant Extruder View 1
Sealant Extruder View 2
Sealant Extruder View 3
Sealant Extruder View 4
Sealant Extruder View 5

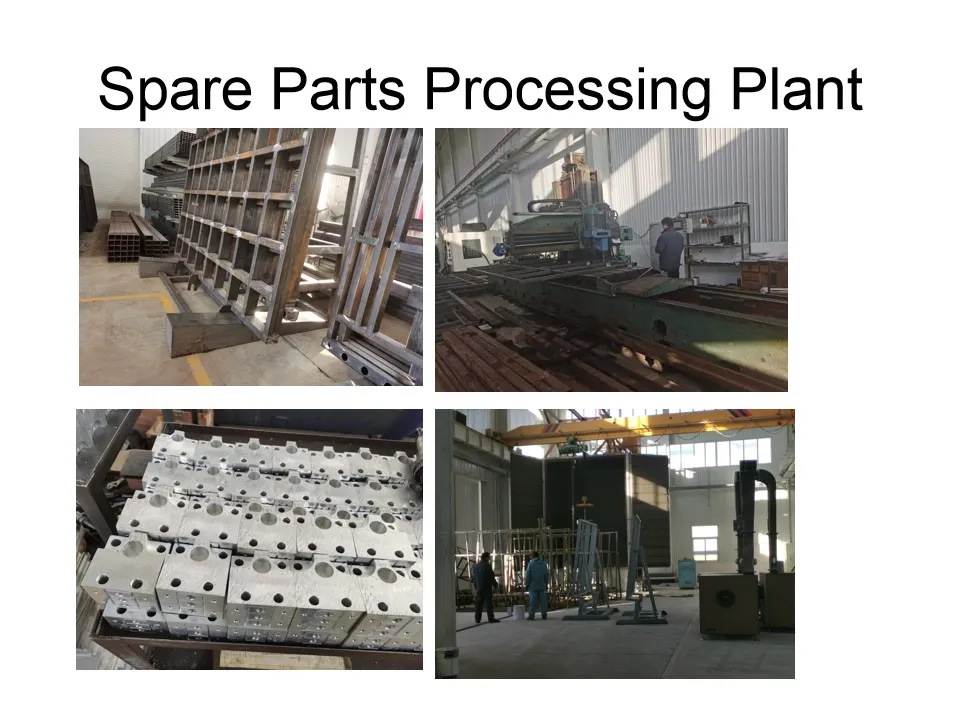

Sealant Extruder View 6
Sealant Extruder View 7
Sealant Extruder View 8
Frequently Asked Questions
What is the mixing ratio range of the BST06 extruder?
The machine offers a flexible mixing ratio ranging from 6:1 to 14:1 to accommodate different sealant requirements.
What types of glass projects is this machine suitable for?
It is specifically designed for the production of insulating glass and curtain walls.
How does the machine handle material shortages?
It is equipped with an integrated shortage alarm system for both the base material and the curing agent to ensure continuous operation.
What are the safety features of this sealant extruder?
The machine includes a safety valve to guarantee operating safety and a unibody pump structure to prevent sealant leakage.
What is the maximum output capacity of the sealant?
The BST06 model provides a sealant output of 3 to 7 Liters per minute depending on the settings.
What is the warranty period for this equipment?
We provide a 1-year warranty and 1-year of after-sales service for this machine.
