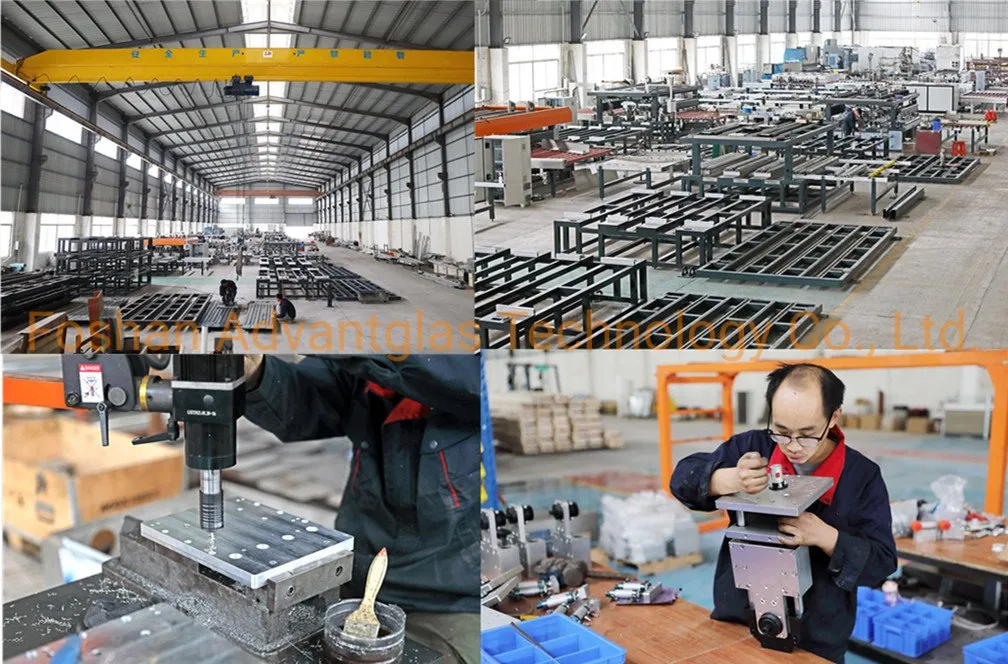

Own machining workshop for components & parts. Direct supply ensures quality control and stable lead-times.
Fully automatic operation, no manual input of glass size required. Large capacity with low labor costs.
Whole processing line design. Online and on-site installation support with lifelong training.

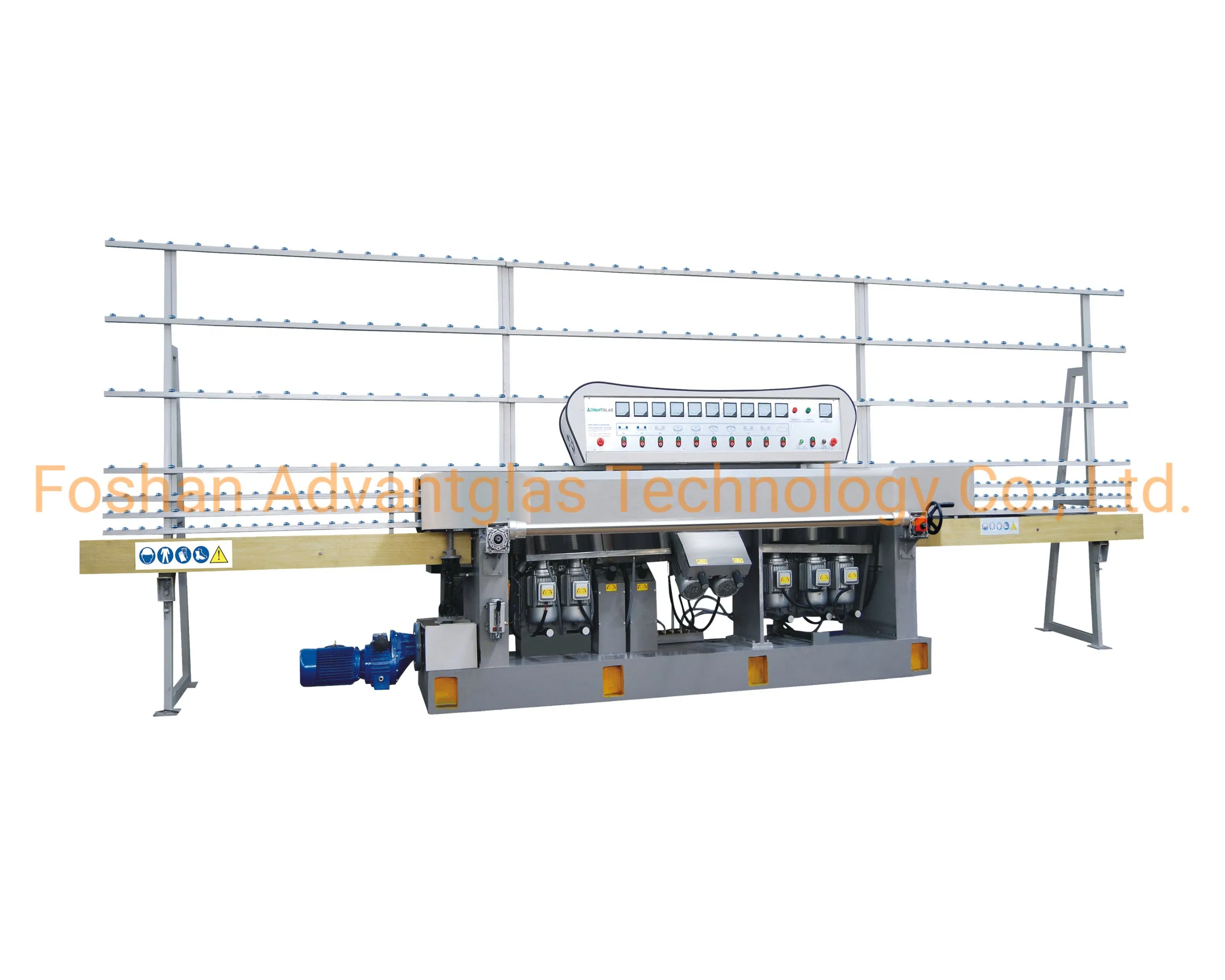

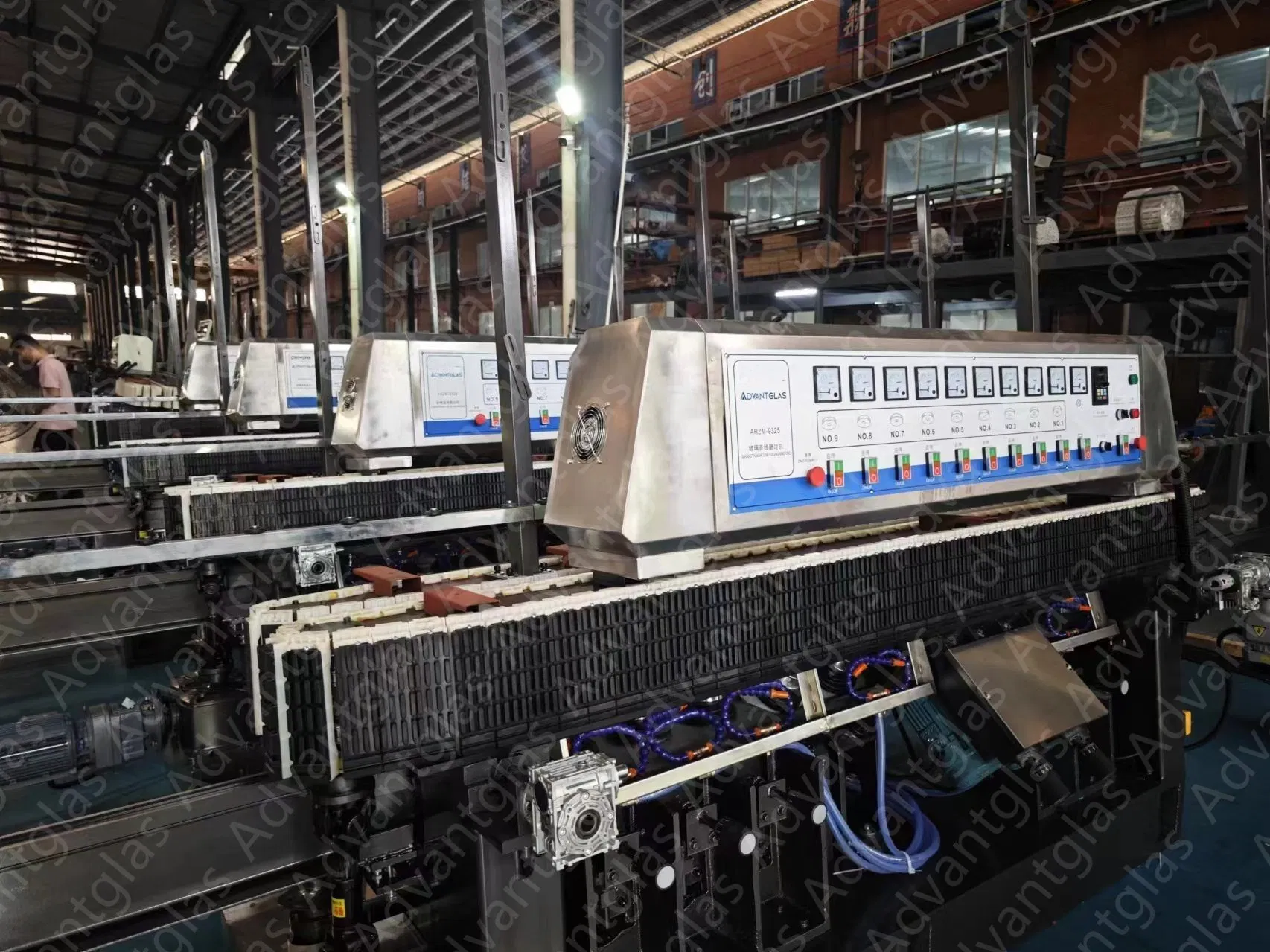

Vertical Glass Grinding Edging Polishing Processing Machine (9 Spindles)
• Processed objects: Glass, sintered stone, stone.

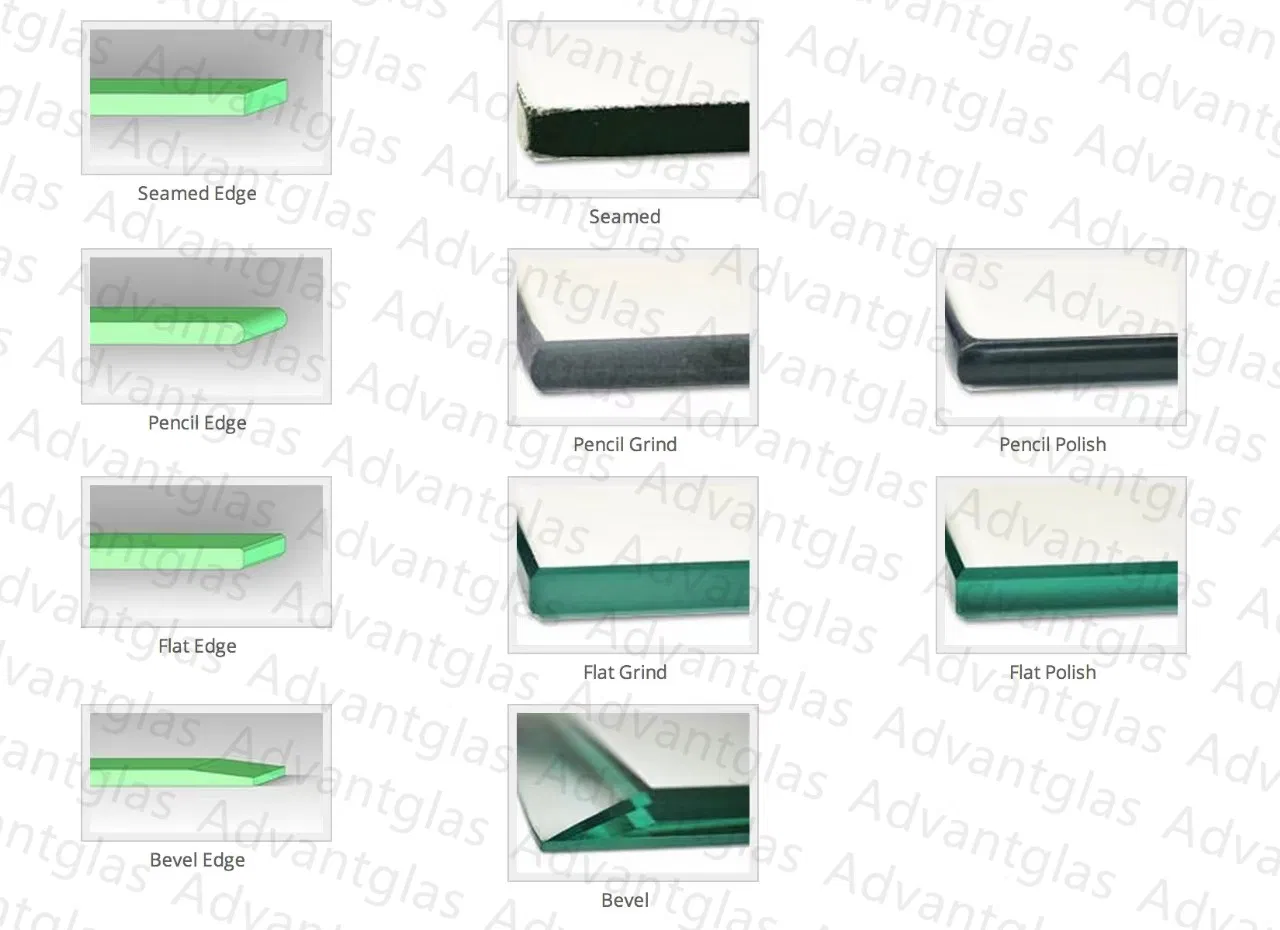

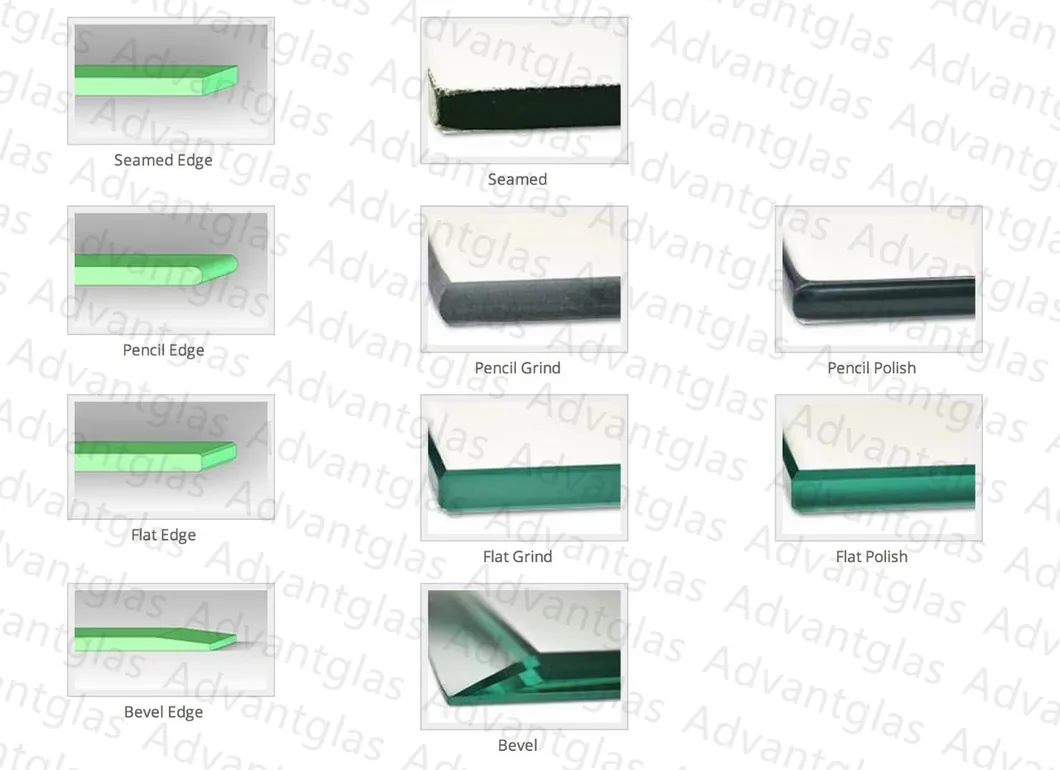

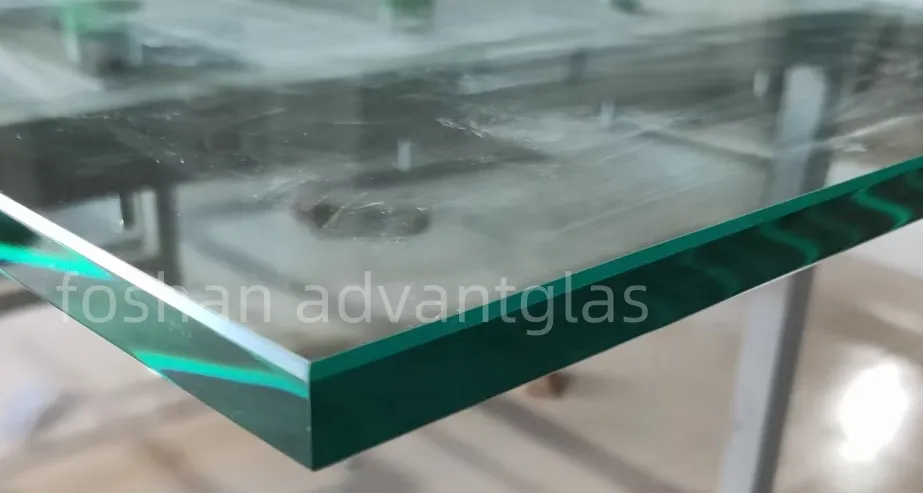

• Edge requirements: OG edge, pencil edge, bevel edge, straight edge.
• Performance: Rough grinding, fine grinding, polishing.

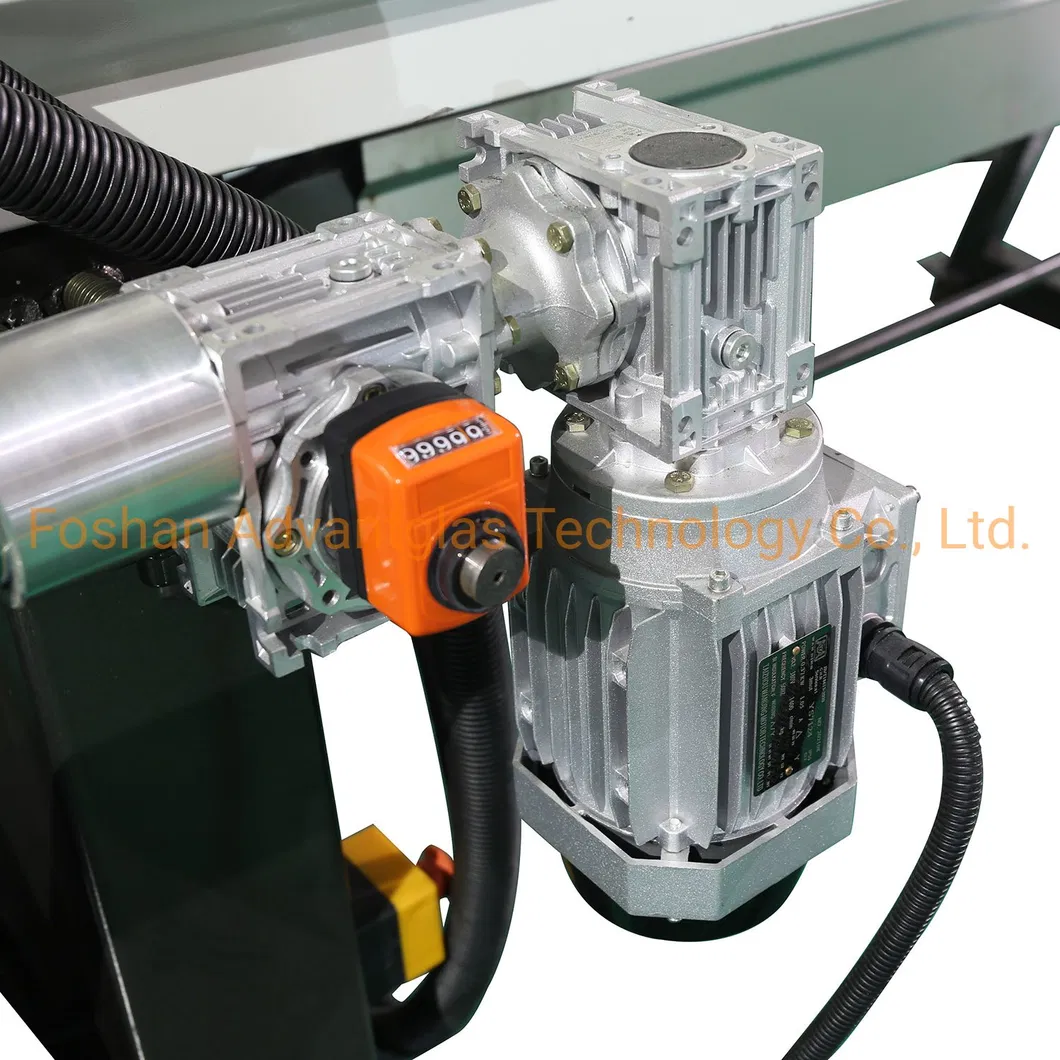

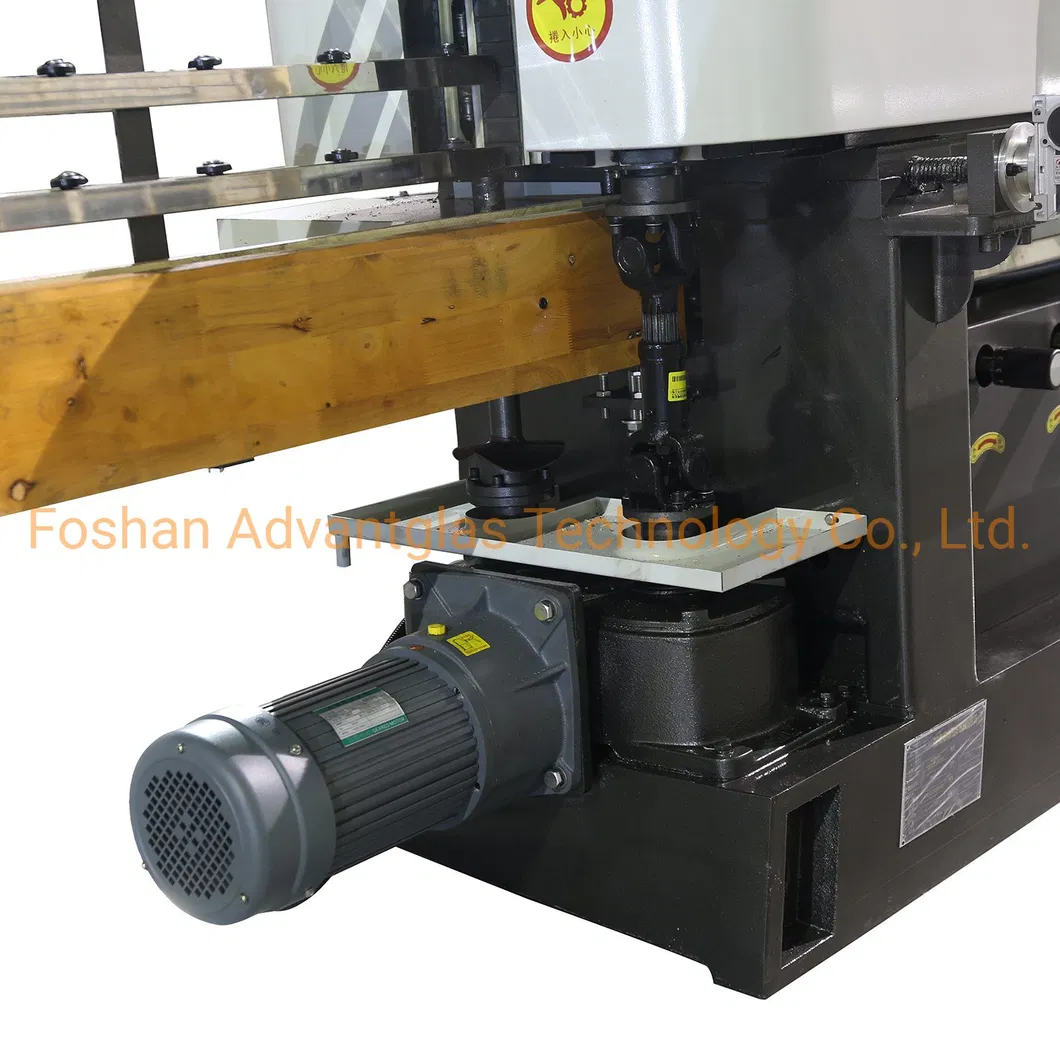

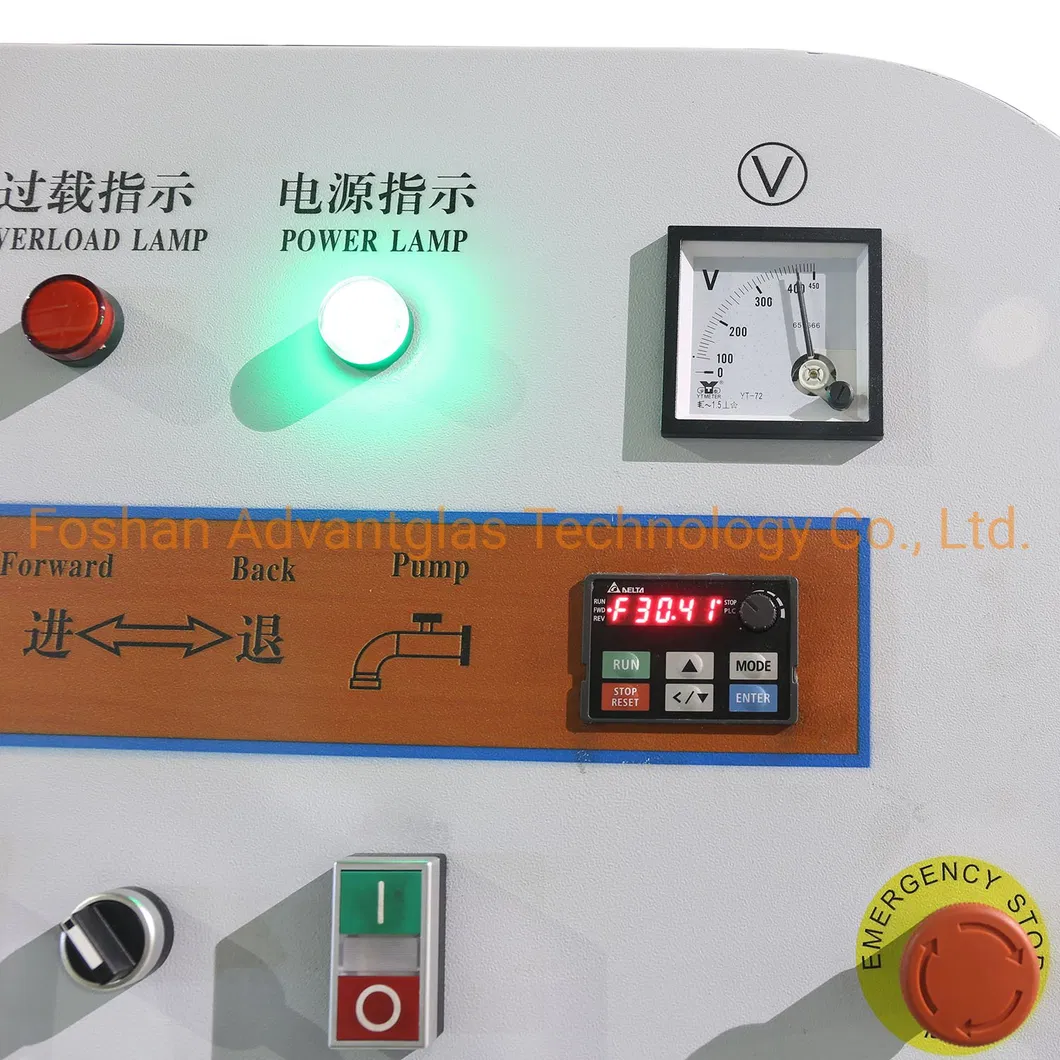

• Adjustments: VFD speed adjustment; Mechanical or Electrical thickness adjustment optional.
| Model | Min. Size | Max. Size | Thickness | Speed | Power | Dimension (mm) |
|---|---|---|---|---|---|---|
| AR-ZM9325 | 100x100mm | 3000x3600mm | 3-25mm | 0-6m/min | 19.5kw | 6899x1200x2500 |
| AR-ZM10325 | 100x100mm | 3000x3600mm | 3-25mm | 0-6m/min | 21kw | 7183x1300x2500 |
| AR-ZM11325 | 100x100mm | 3000x3600mm | 3-25mm | 0-6m/min | 23.5kw | 7500x1500x2500 |
Advantglas specializes in glass machines, including edging, washing, drilling, and CNC aluminum profile cutting machines. With extensive experience, we provide full production flow designs based on successful previous cases and customer layout requirements.
