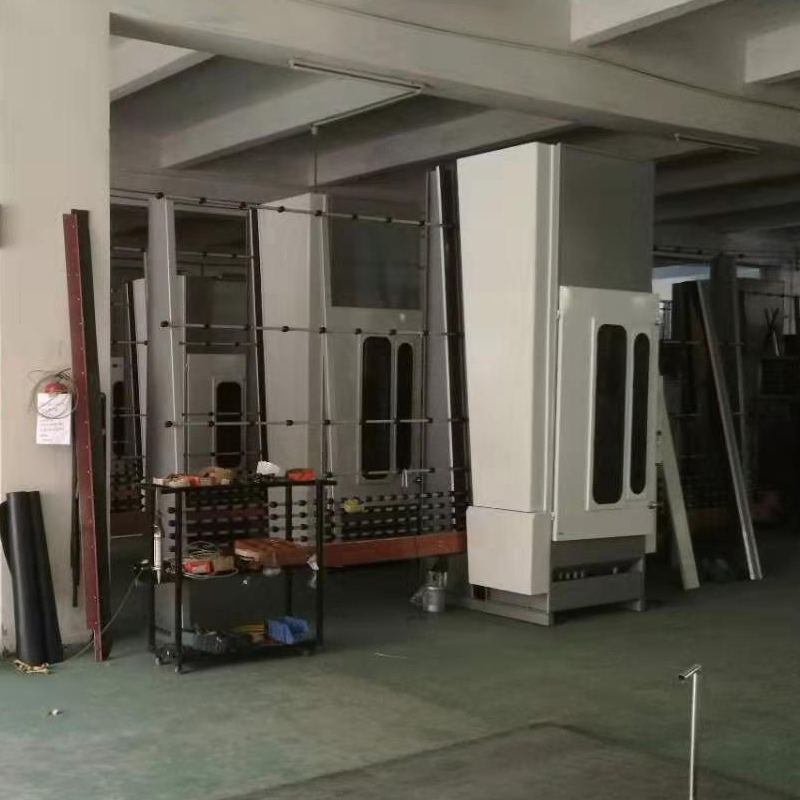

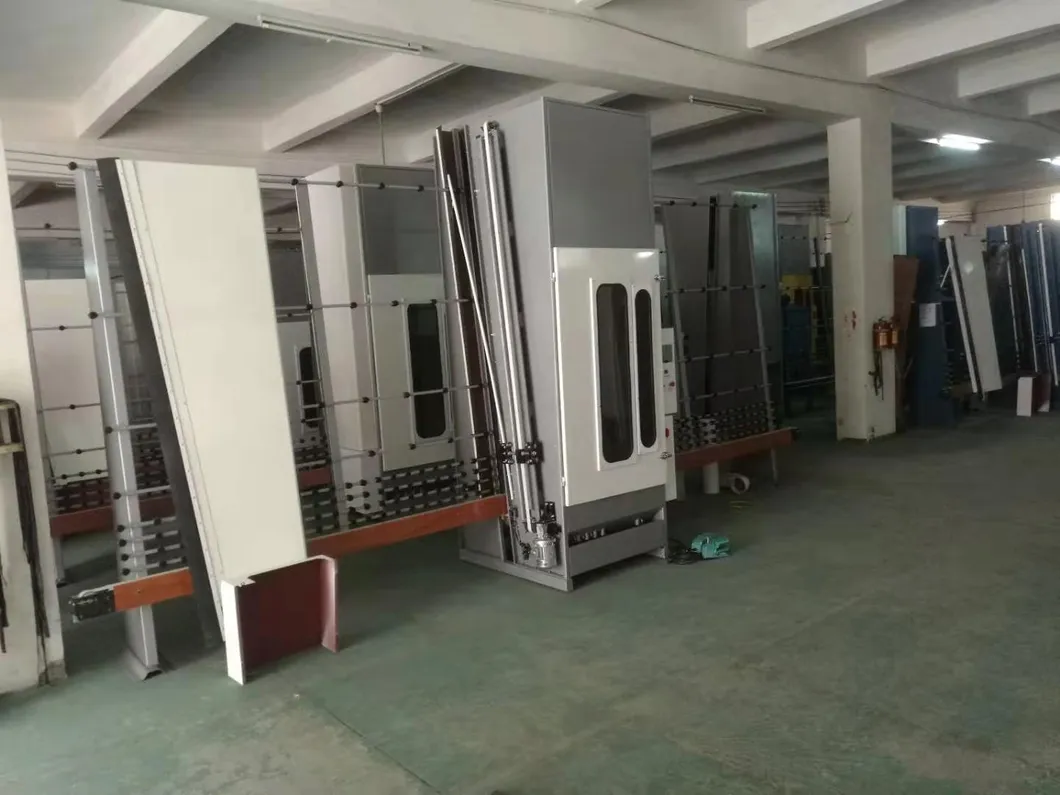

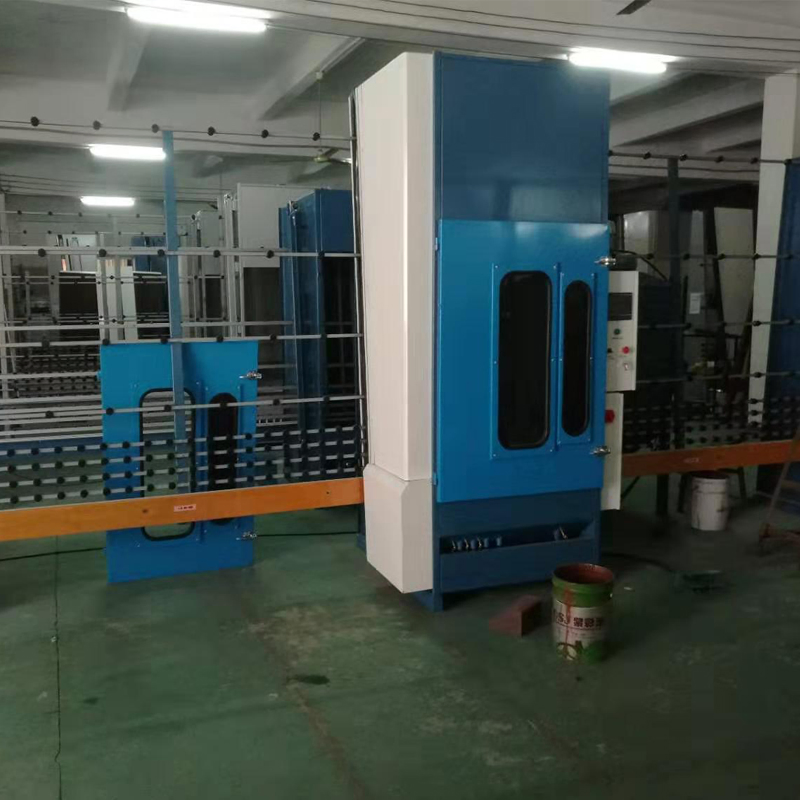

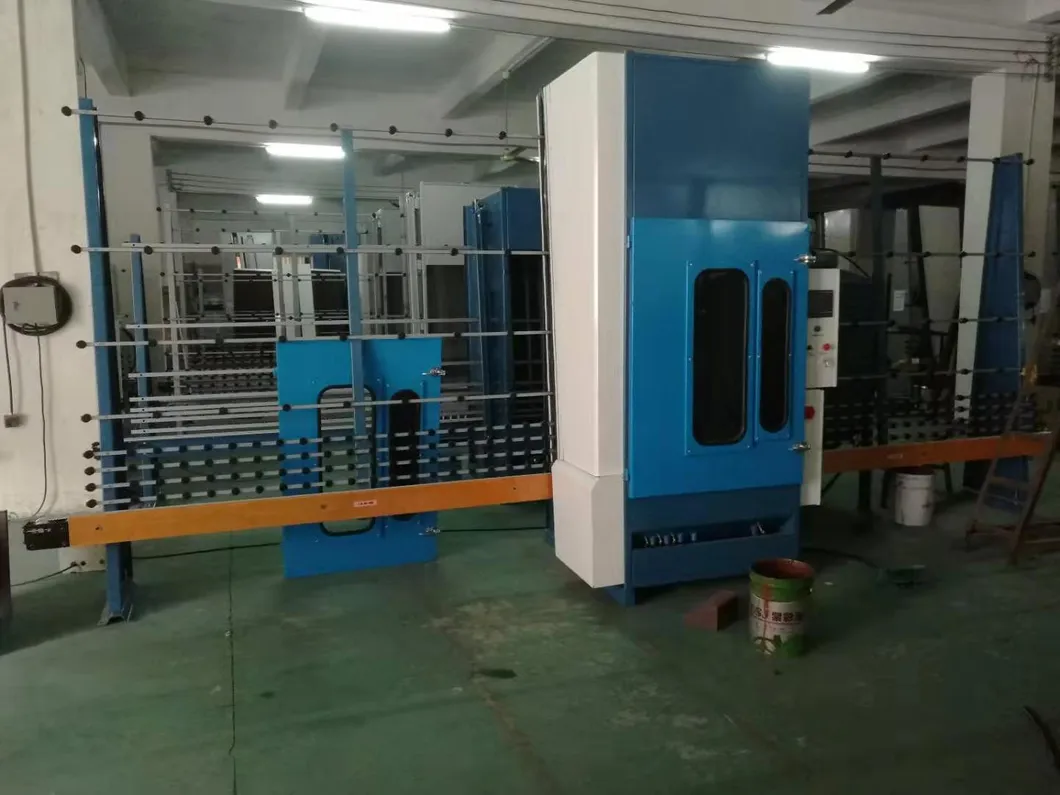

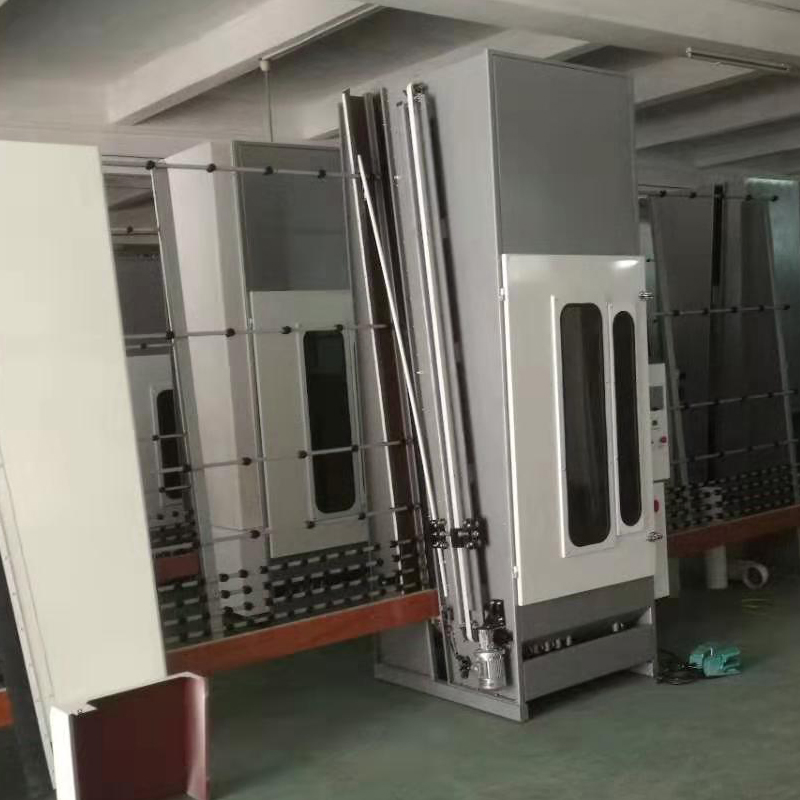

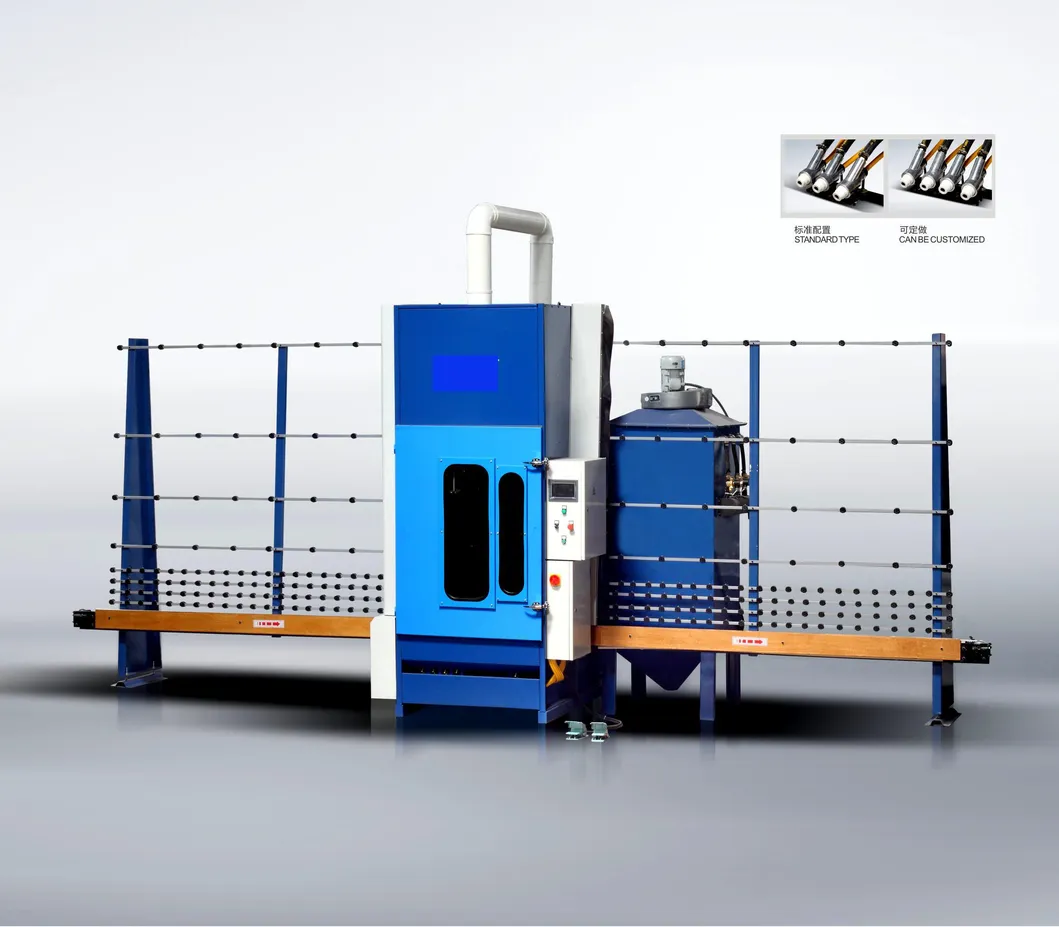

Glass Sandblasting Machine Automatic System

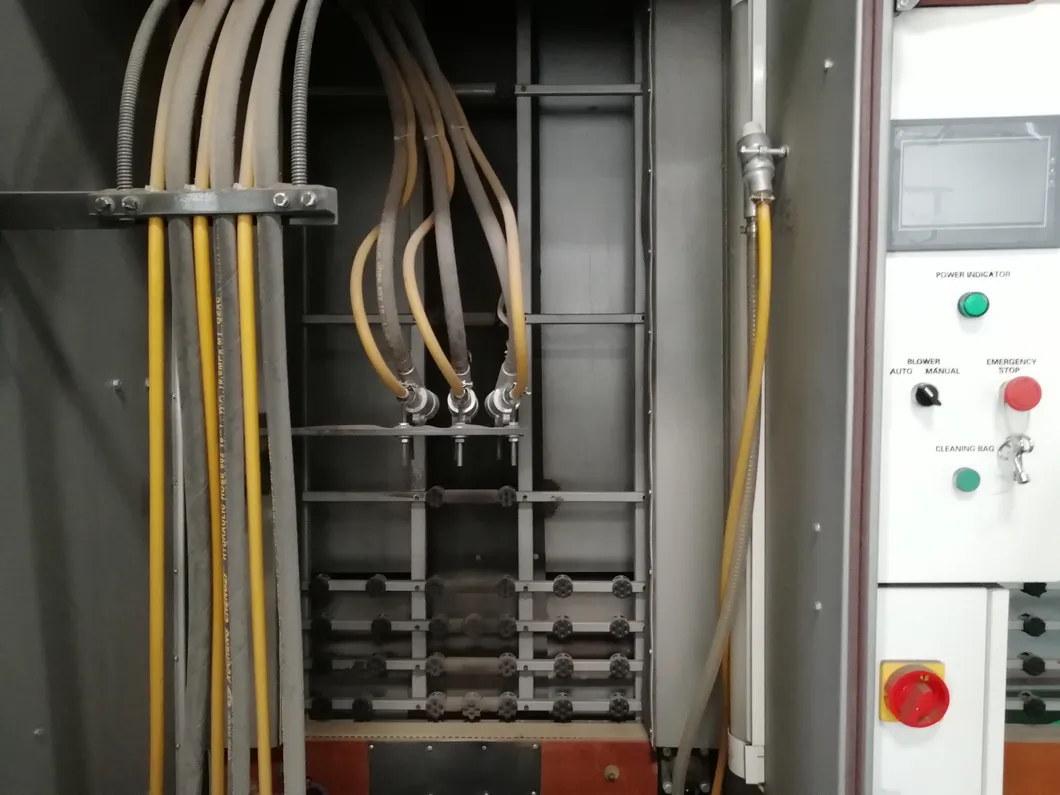

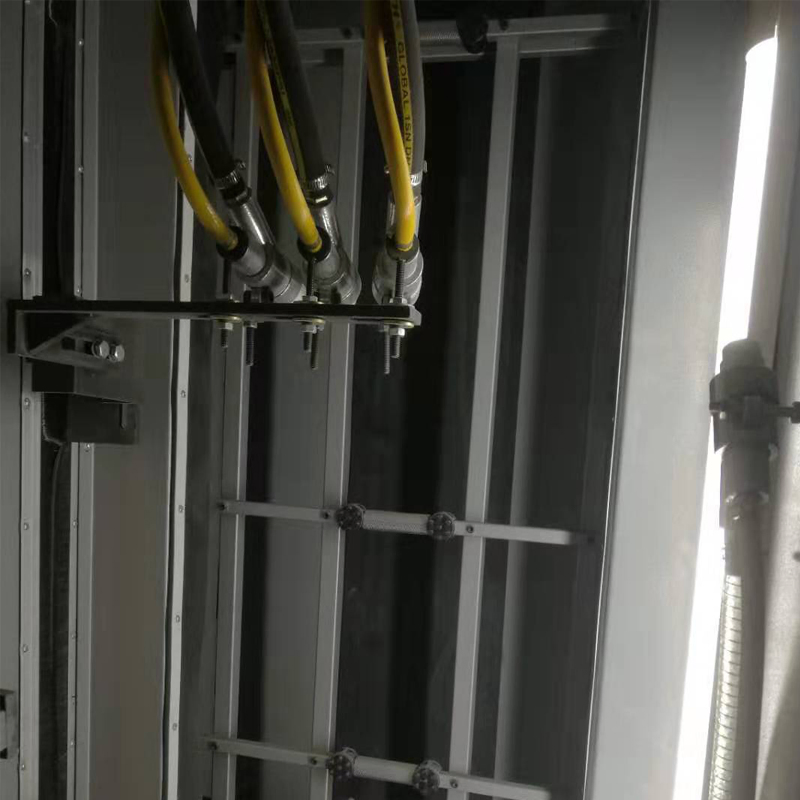

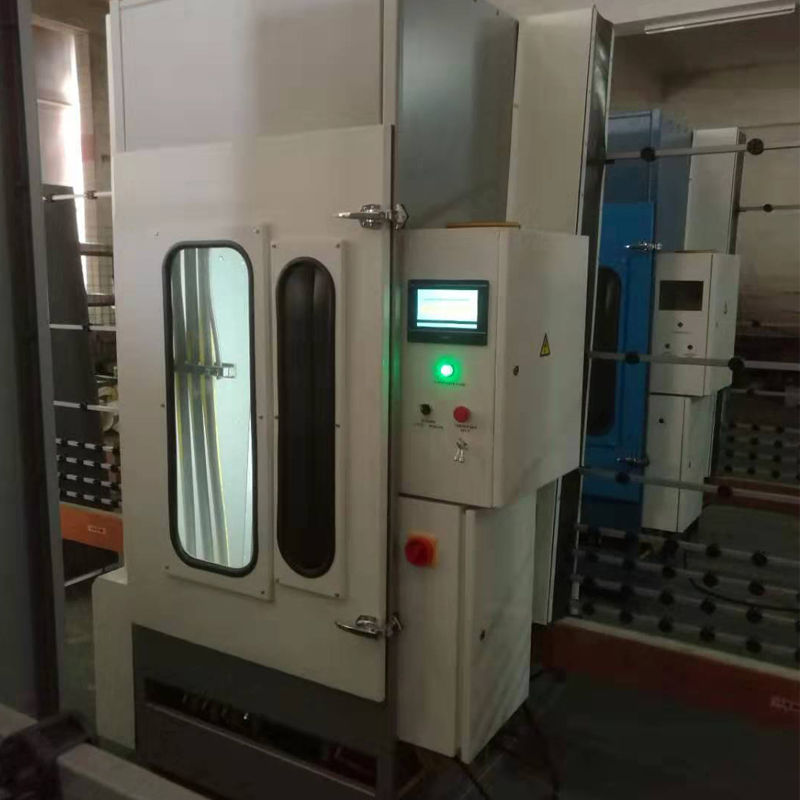

The GS series automatic glass sandblasting system is integrated with a touch screen and PLC control. The machine features three automatic spray guns and one manual spray gun, enabling both manual and automatic sandblasting functions.
Designed for easy operation, it handles various glass sizes automatically according to the programmed specifications. It ensures a fine and even production effect and includes a high-efficiency dust collector to separate dust and sand, maintaining a clean and quiet working environment.
Key Features:

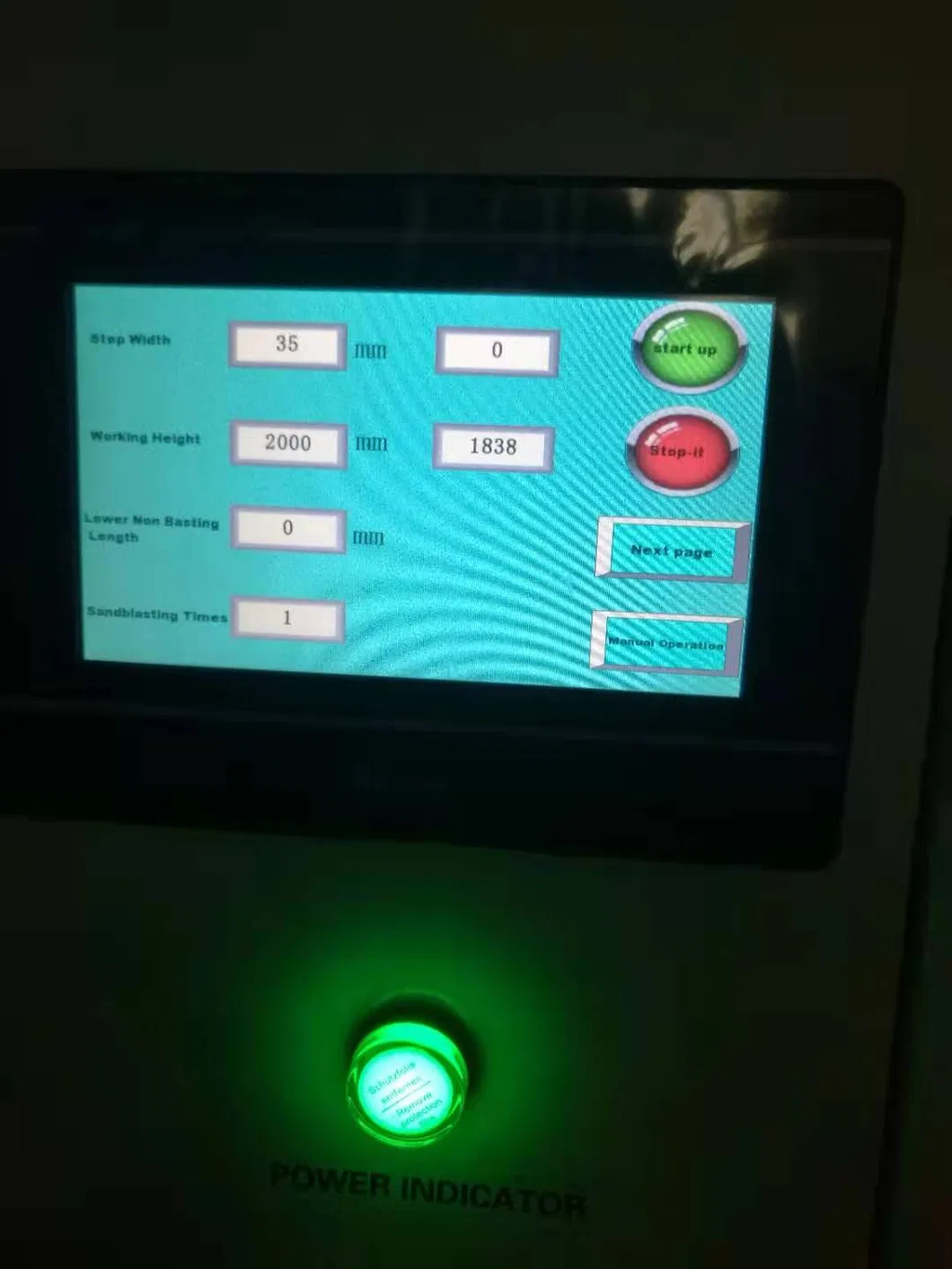

PLC control system for precision adjustment.

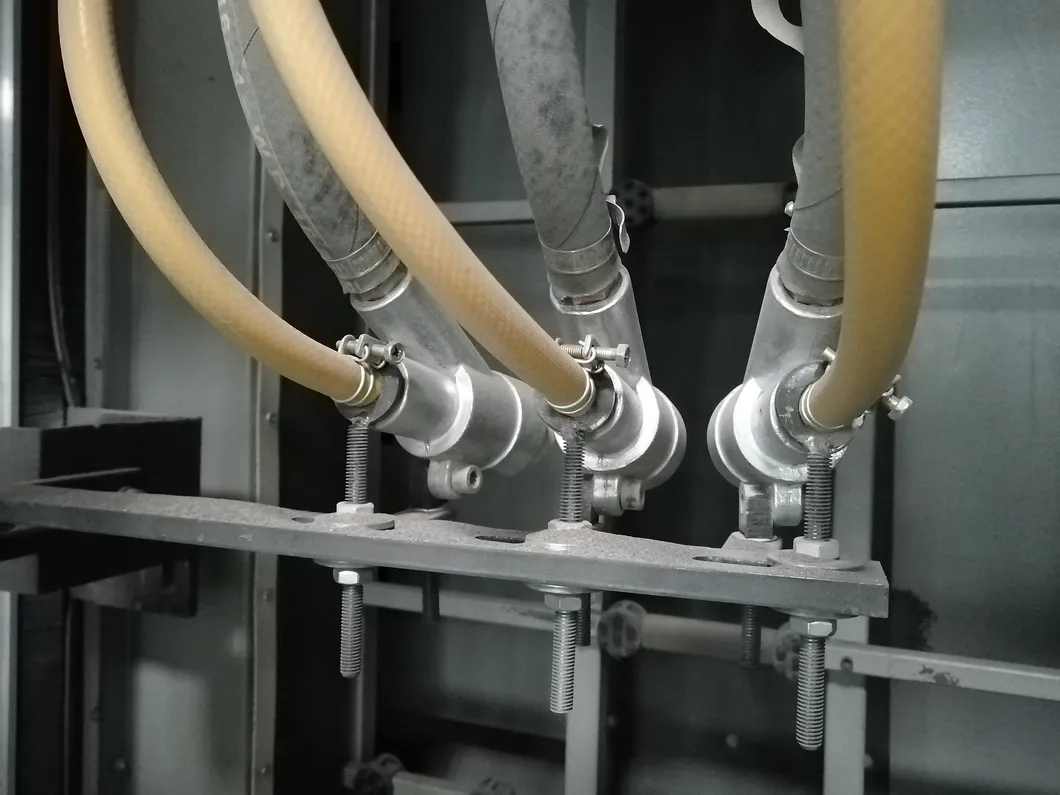

High-quality durable air pipes and long-life nozzles.
Professional guns ensure smooth and even blasting.
| Model Number | GS-1500 | GS-2000 | GS-2500 |
|---|---|---|---|
| Glass height (mm) | 1500 | 2000 | 2500 |
| Max. glass size (mm) | 1500*3000 | 2000*3000 | 2500*3000 |
| Min. processing size (mm) | 200*500 | 200*500 | 200*500 |
| Nozzle speed (m/min) | 5-25 | 5-25 | 5-25 |
| Working pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa |
| Air pressure power | 2.4m2/min 15kw | 2.4m2/min 15kw | 2.4m2/min 15kw |
| Power (kw) | 3.5kw | 3.5kw | 3.5kw |
| Outer dimension (m) | 4.5*1.5*2.5 | 7*1.5*2.8 | 8*1.5*3.3 |
| Weight (kg) | 1000 | 1000 | 1000 |
The glass sandblasting machine is essential equipment for processing glass partition walls and decorative glass.
Founded in 2003, our enterprise specializes in high-tech CNC glass machinery, including glass cutting machines, insulating glass lines, and curtain wall glass equipment. We hold European CE certification and ISO 9001:2008 quality control system marks.
Our product range includes automatic glass cutting lines, multifunctional machines, aluminum spacer bending machines, and full insulating glass processing sets. We focus on outstanding quality and satisfied service through perpetual innovation.
