Product Description

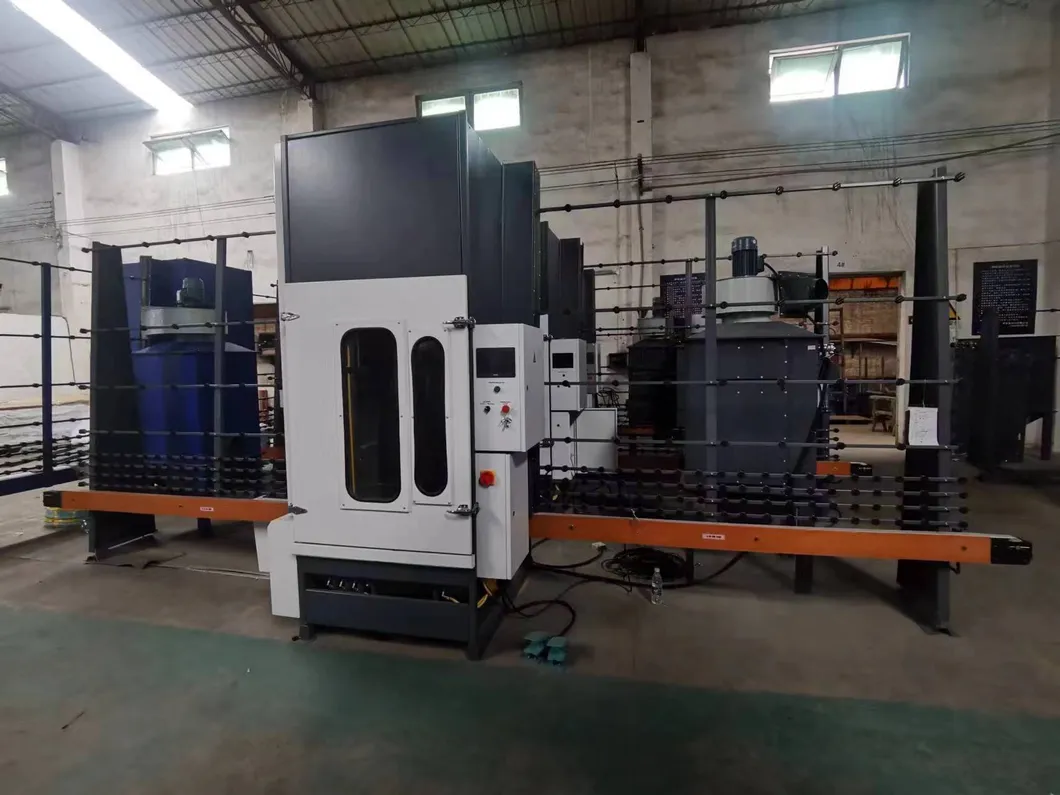

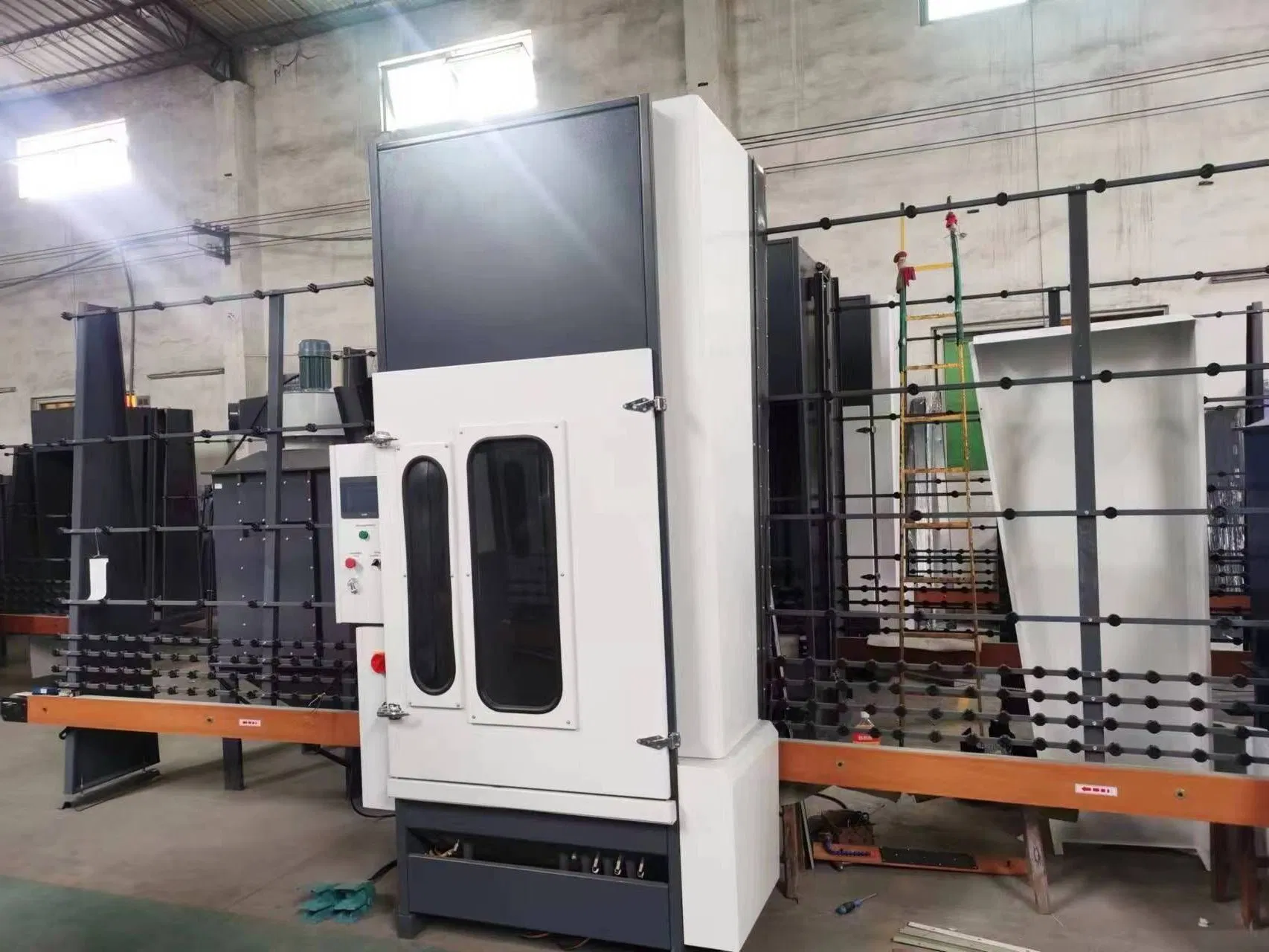

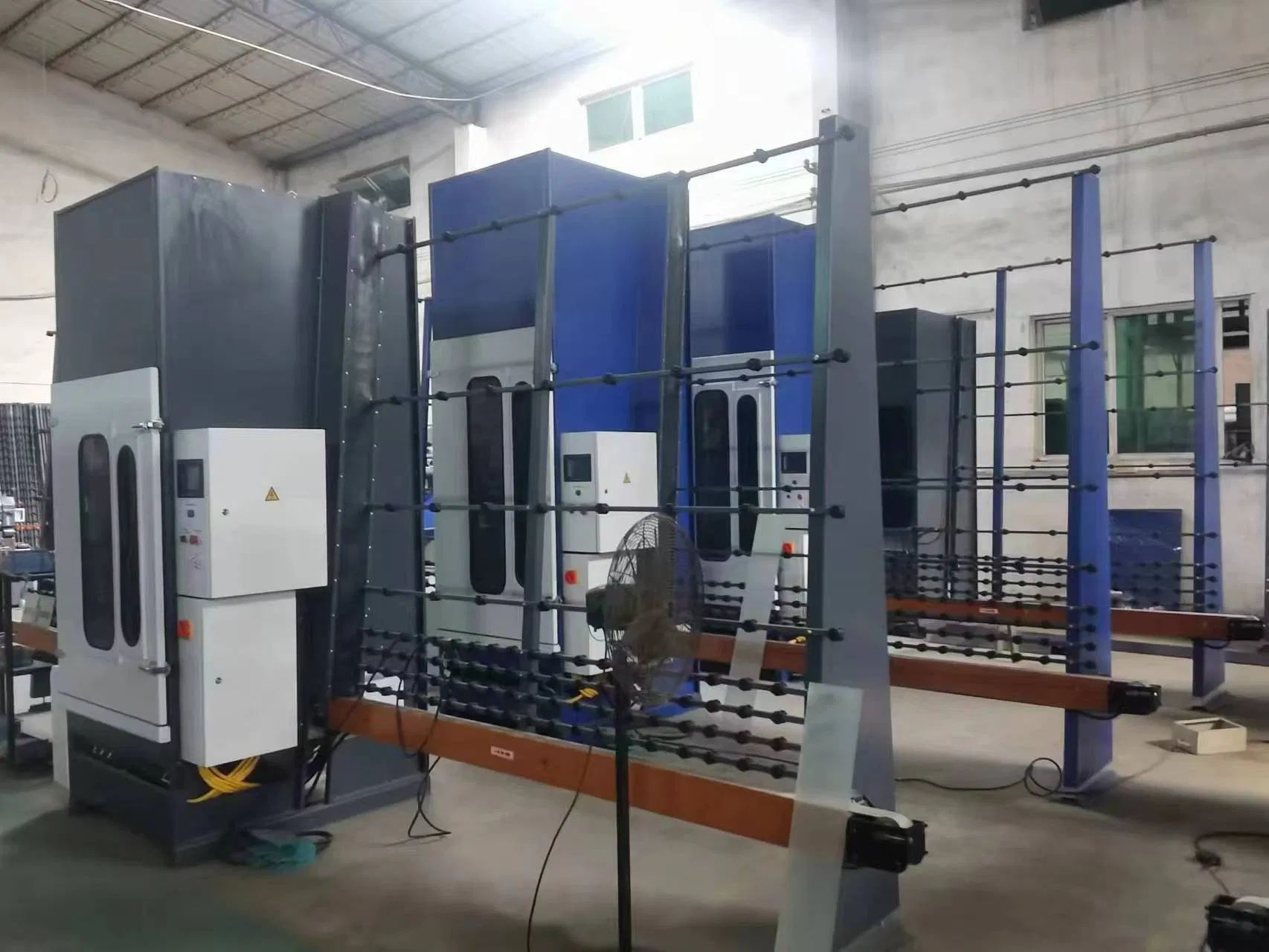

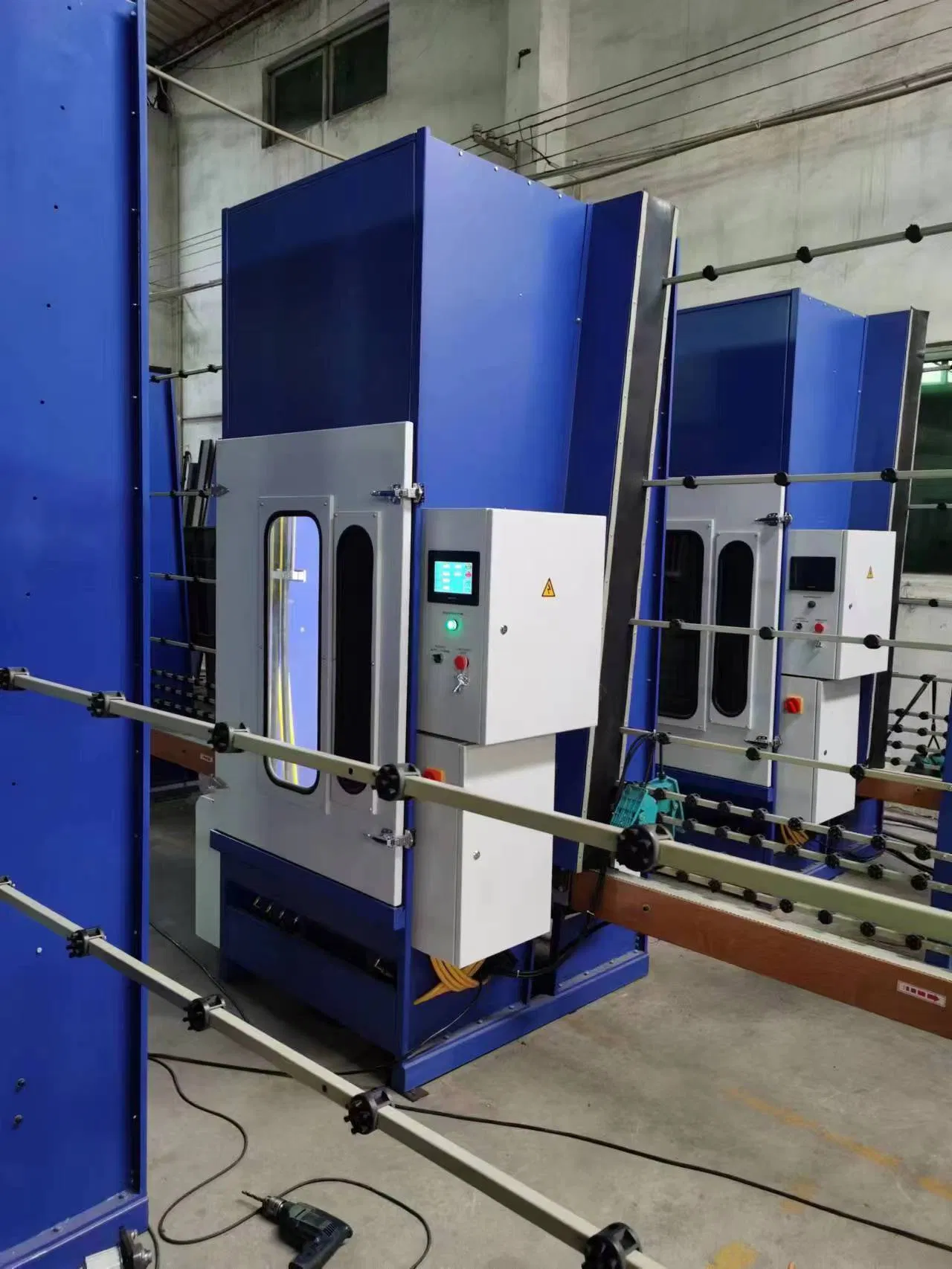

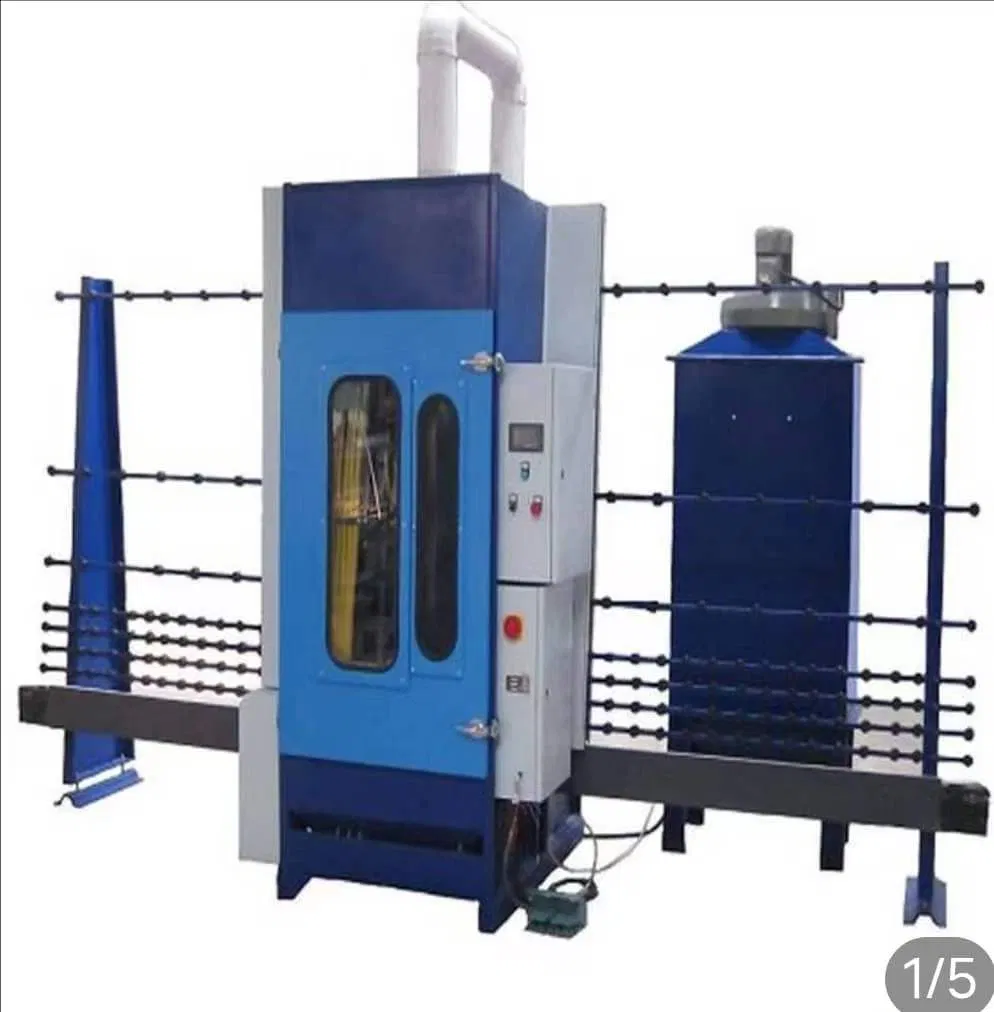

Glass Automatic Sandblasting Machine, touch screen PLC control, either manual or automatic operate function, with 3 automatic blasting guns and 1 manual operation gun, suitable for processing flat glass thickness 5-50mm for steric pattern, timing belts glass transmission, when glass arrive the position for sandblasting, the 3 blasting guns driven move up-and-down to spurt out sand. The height and the width of sandblasting can be adjusted according to the requirement. The advantages of the belts are stable on transmission, high efficiency and easy maintenance. The drive structure of the blasting gun is outside the machine which is good for a long period of working and daily maintenance.
Frequently Asked Questions
What is the maximum glass thickness this machine can handle?
The machine is designed to process flat glass with a thickness ranging from 3mm up to 50mm.

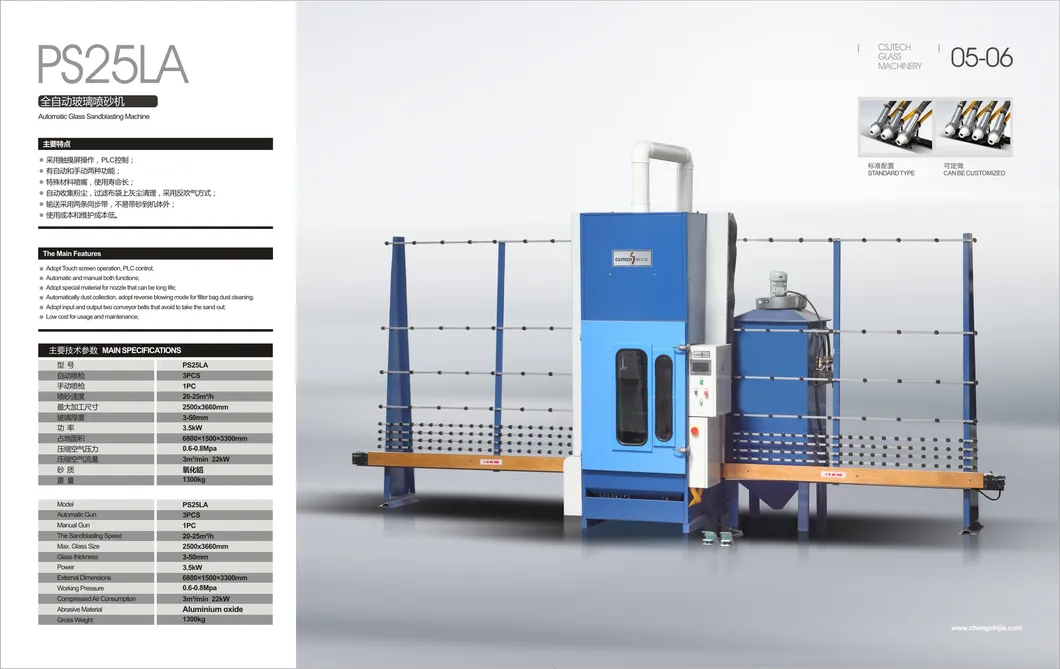

How many blasting guns are equipped with the PS25LA?
It comes equipped with a total of 4 guns: 3 automatic blasting guns for high-efficiency production and 1 manual operation gun for detail work.
What kind of control system does the automatic sandblasting machine use?
The machine features a professional PLC control system with an intuitive touch screen interface, supporting both manual and automatic operating modes.
What are the advantages of the timing belt transmission system?
The timing belts ensure stable glass transmission, providing high efficiency, precise positioning, and ease of daily maintenance.
What is the sandblasting speed and production capacity?
The machine offers a sandblasting speed of 20-25m2/H, and our production capacity reaches up to 500 sets per year.
What abrasive material is used for the sandblasting process?
The recommended and standard abrasive material for this vertical glass sandblasting machine is Aluminum Oxide.
