Technical Specifications
| Model NO. | BXLP3300 |
| Power Supply | 380V/50Hz |
| Total Power | 18.5kw |
| Max Glass Size | 3300*4000 |
| Min Glass Size | 450*200 |
| Work Speed | 3-45m/Min |
| Type | Insulating Glass Production Line |
| Structure | Vertical |
| Warranty | 1 Year |
| Glass Washing Machine Type | Vertical Glass Washing Machine |
| After-sales Service | Lifetime Service |
| Transport Package | Standard Packing |
| Specification | 19700*2500*3180MM |
| Origin | China |
| HS Code | 84649019 |
| Production Capacity | 500set Per Year |
Product Description
Key Advantages
1

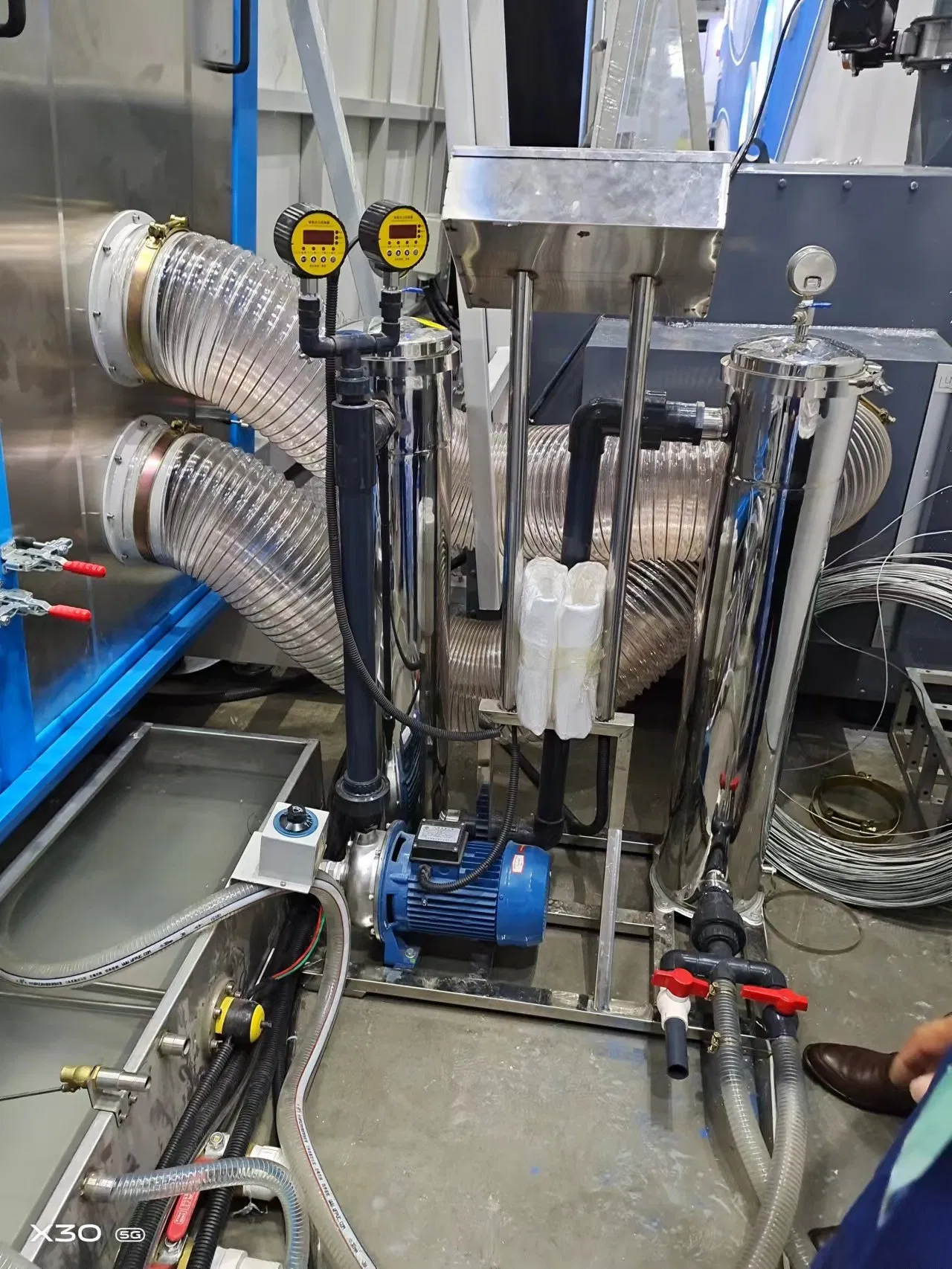

The water in the washing tank is optimized for purified water use.
2
Mechanical Wind Knife Adjustment: Automatic detection and adjustment based on glass thickness without manual operation.
3

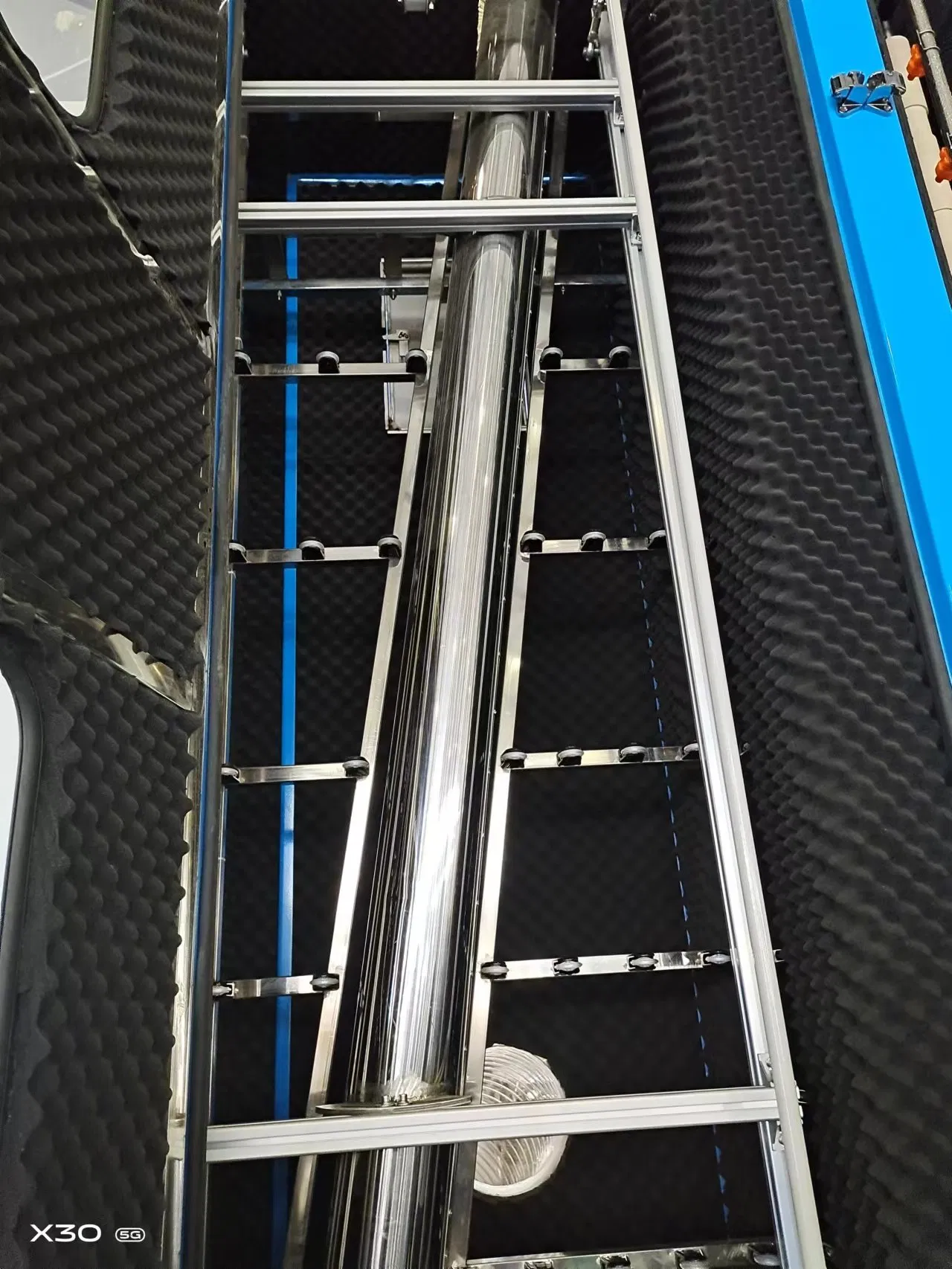

High Performance Fan: 18.5kw fan equipped with muffling equipment and efficient wind pipes for noise reduction and rapid, uniform drying.
4
Leak-Proof Design: All brush and wind knife posts are installed on the upper bracket. The bottom is a single piece of stainless steel without joints or holes to prevent leaks.
5

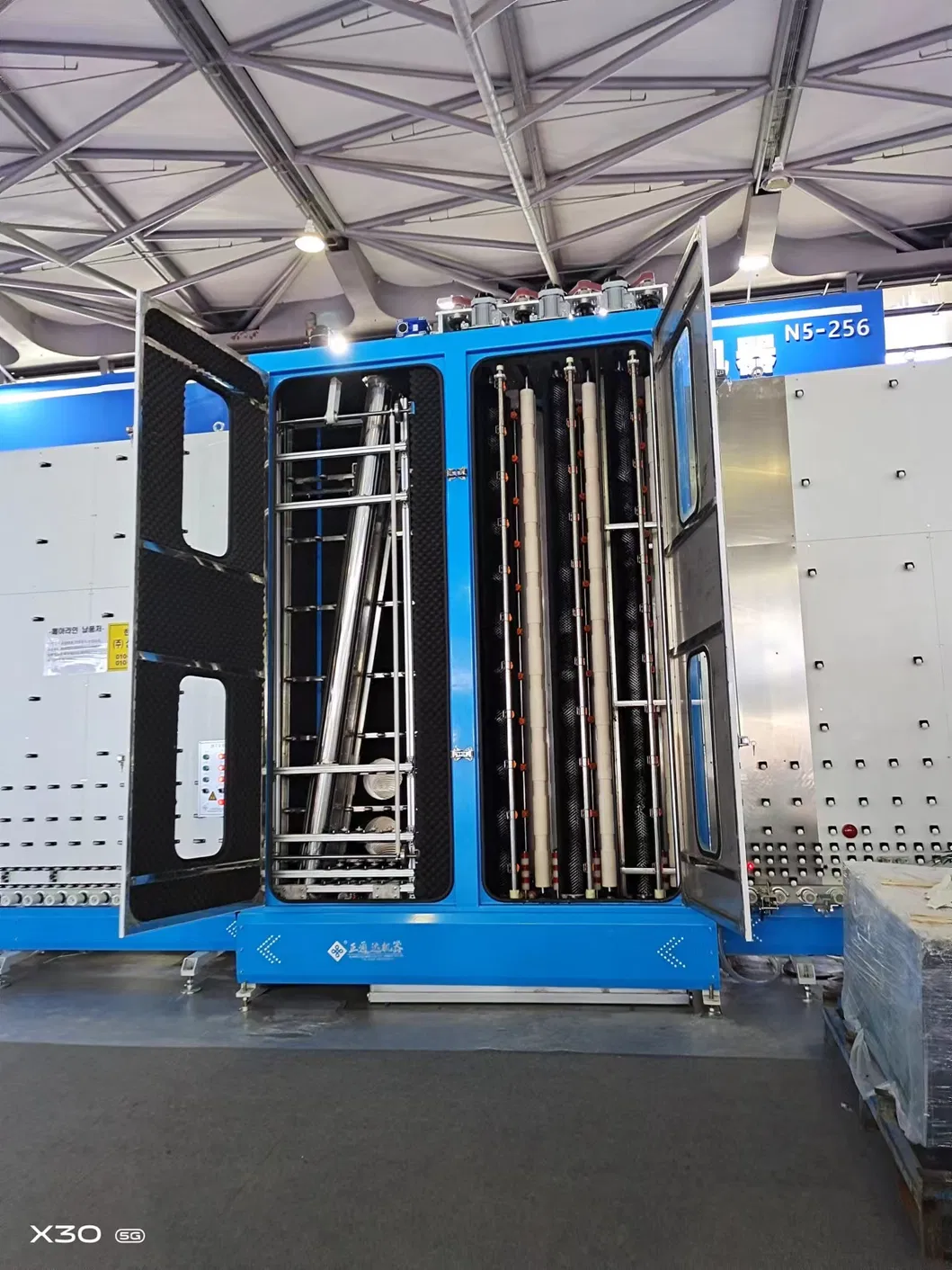

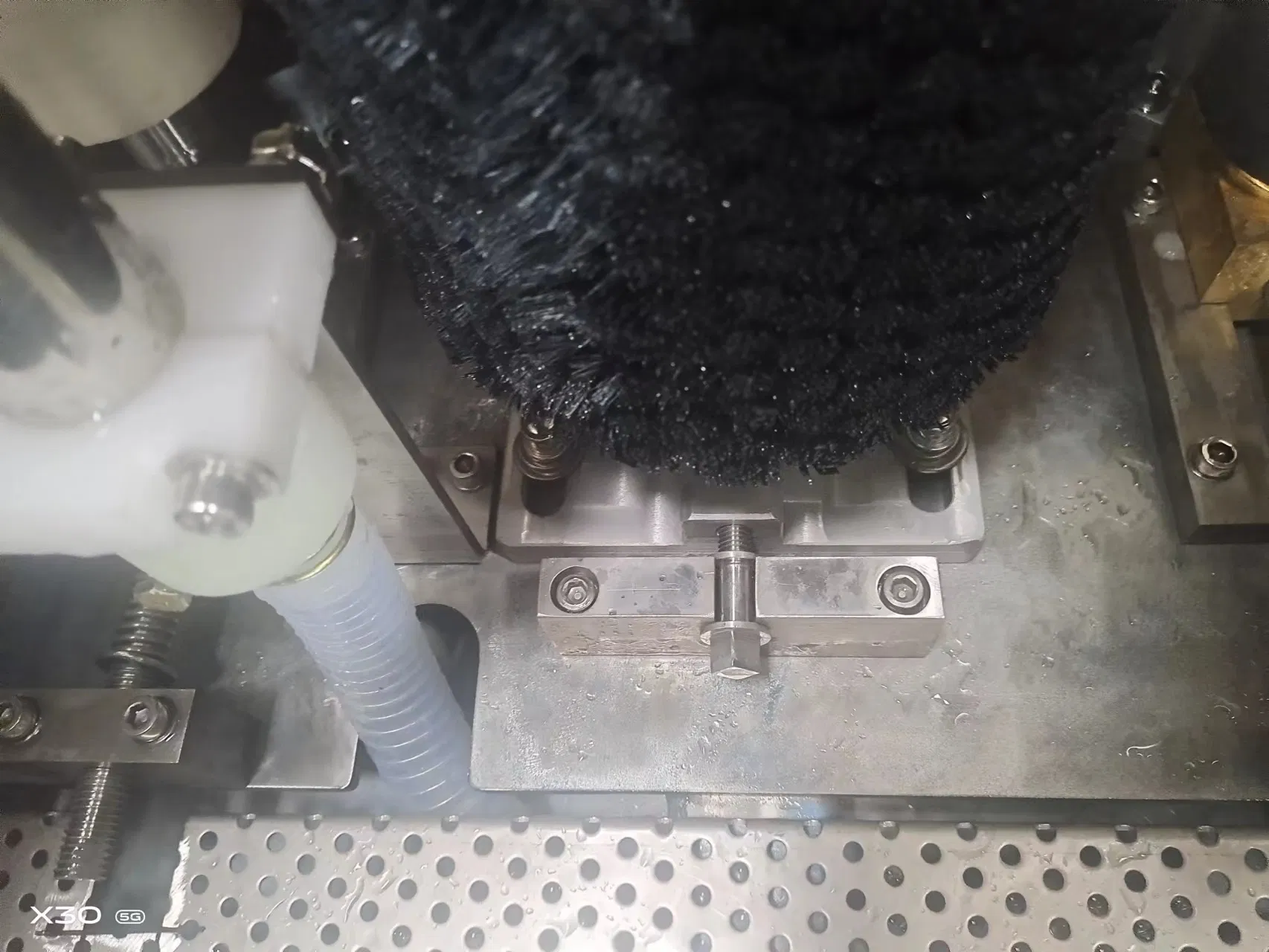

Adjustable Brushes: Strip-shaped screw holes allow for position adjustment as brushes wear down over time, extending their service life.
6
Convenient Operation: The brush wiper does not require pre-soaking and provides superior water scraping performance.

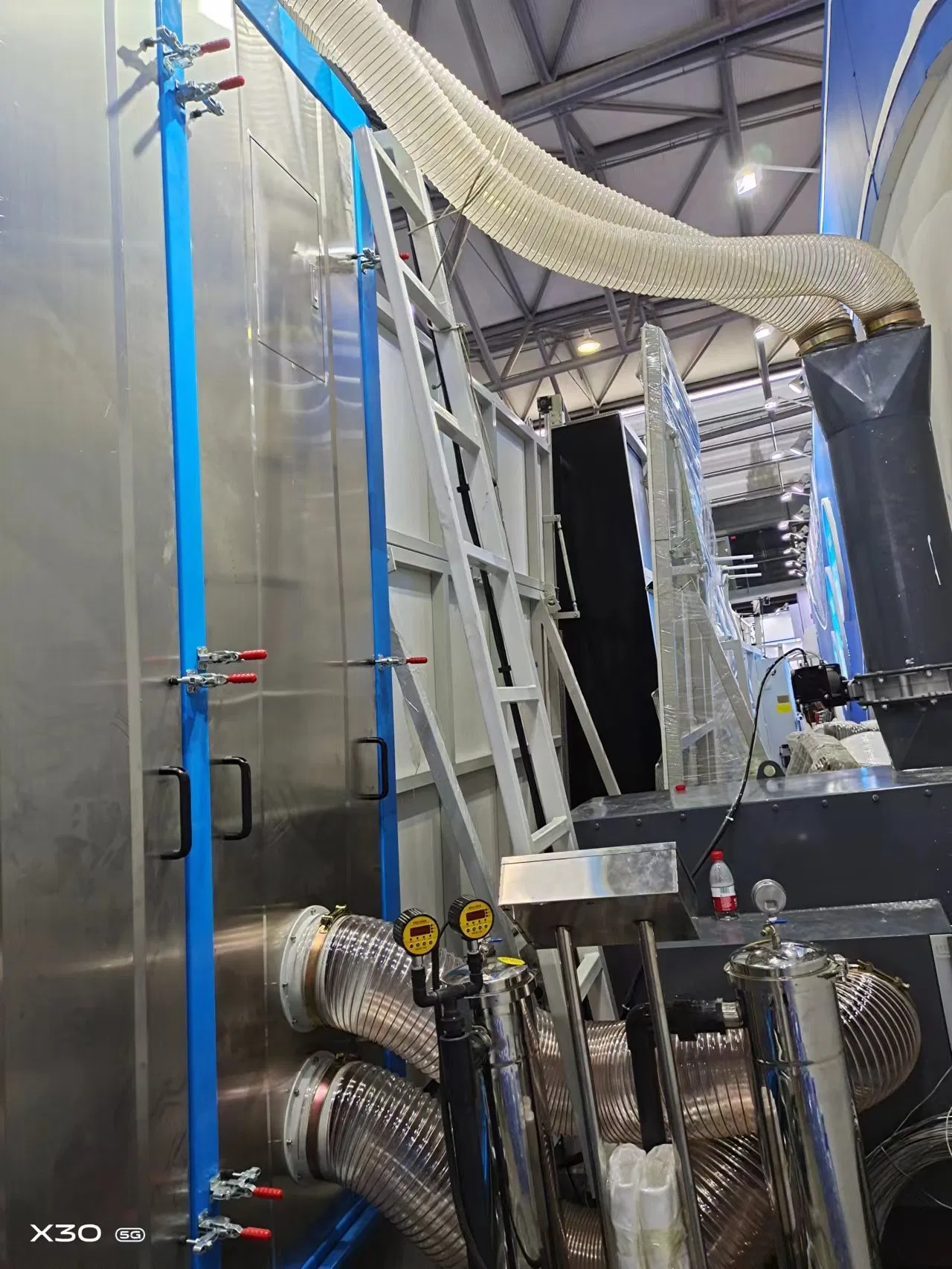

Visual Showcase
Frequently Asked Questions
What is the maximum glass size this machine can handle?
The machine can process glass up to a maximum size of 3300*4000mm.
Does the wind knife require manual adjustment for different glass thicknesses?
No, the machine features mechanical adjustment that automatically detects and adjusts the wind knife according to the glass thickness.
How is the leakage problem addressed in the washing section?
The bottom board is a complete piece of stainless steel without any joints or drilling holes, ensuring the washing section is leak-proof.
Is the machine noisy during operation?
The 18.5kw fan system is equipped with professional muffling equipment to significantly lower noise levels during the drying process.
How can the service life of the brushes be extended?
The brush positions are adjustable via strip-shaped screw holes. Regular adjustment as the brushes shorten and polishing the glass edges before washing will extend brush life.
What kind of after-sales support is provided?
We offer a 1-year warranty and lifetime service support for the insulating glass production line.
