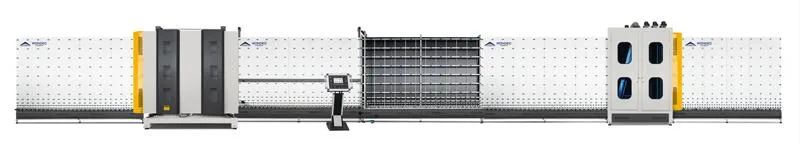

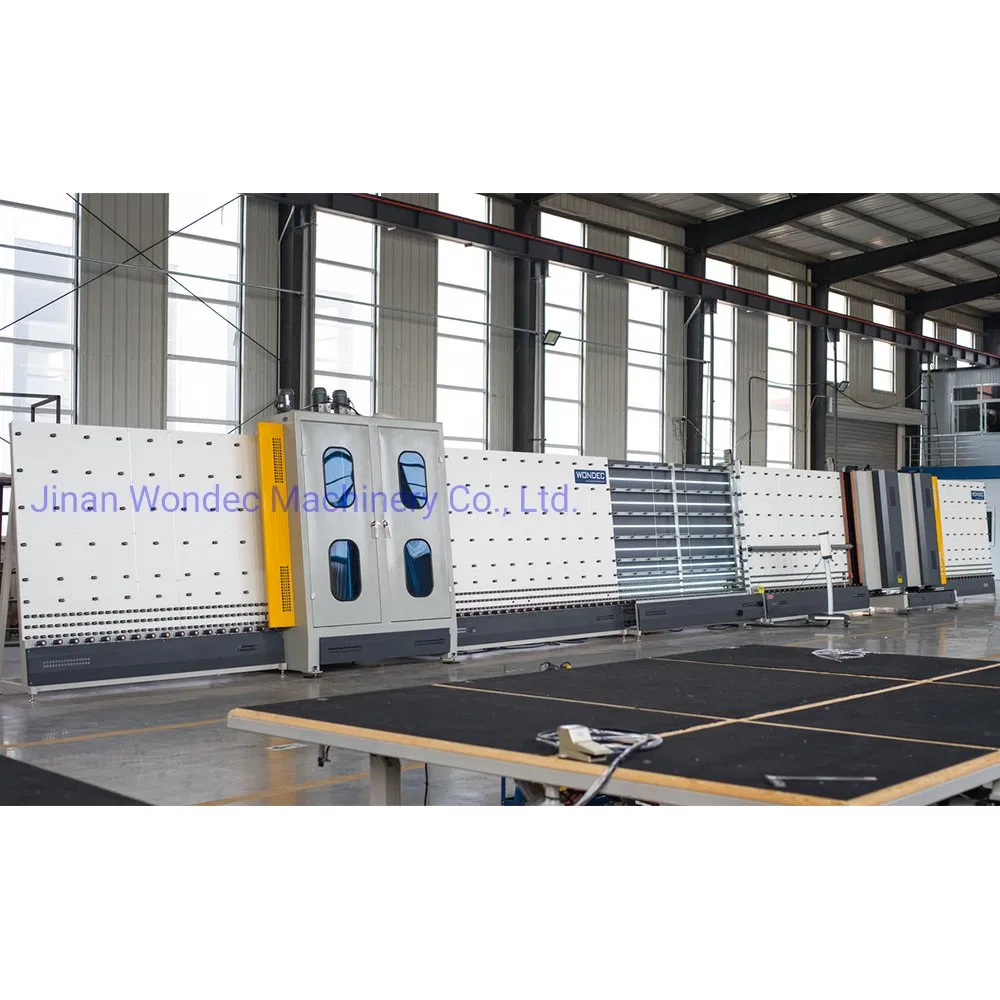

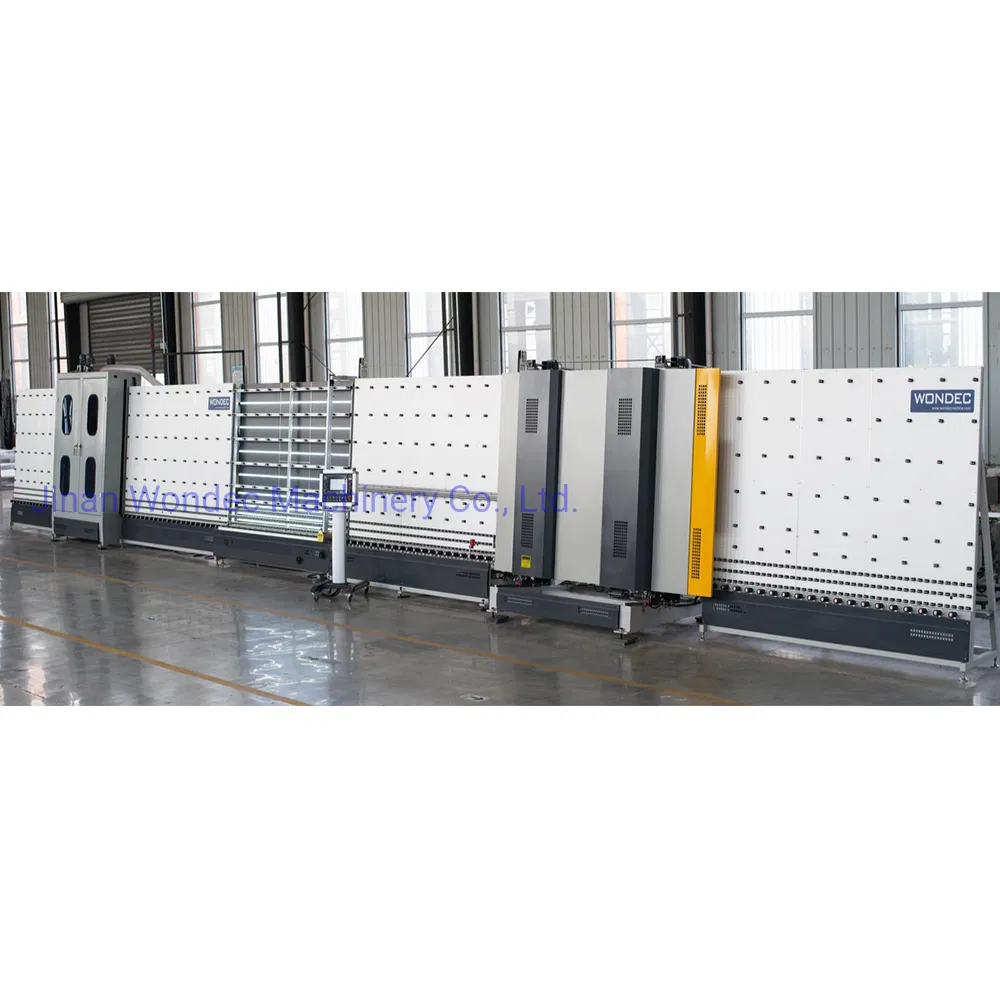

2000 Laminated Insulated Glass Machine Production Line
Automatically distinguish the coating side of coated glass and low-e glass
PLC control system with touch screen operation
Machine work and fault dynamic display
Outside assembly lines can produce standard double layer IG and three layers IG

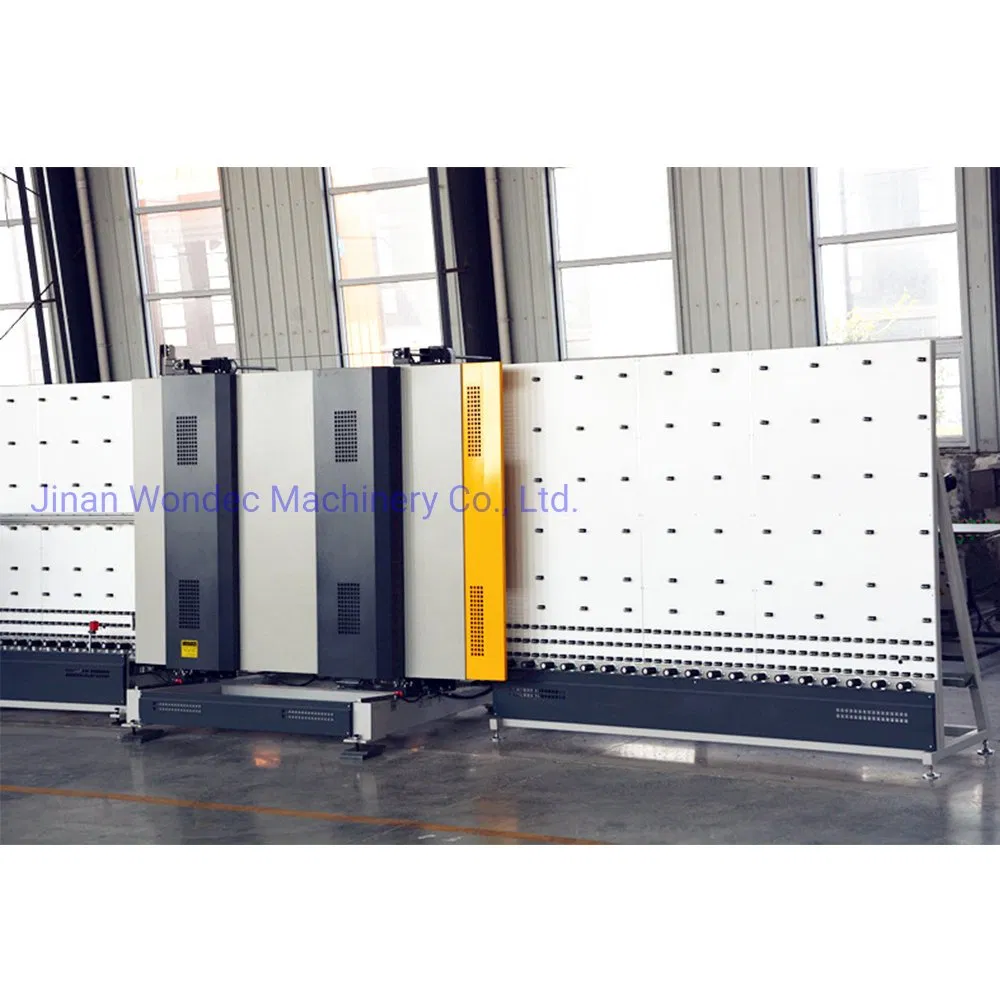

Both inside and outside panel press, capable of stepped IG, standard double & three layers
Inter gas filling in the plate (optional)
IG press design-gear and synchronous device driven by hydraulic station
Frequency control designed for glass transmission

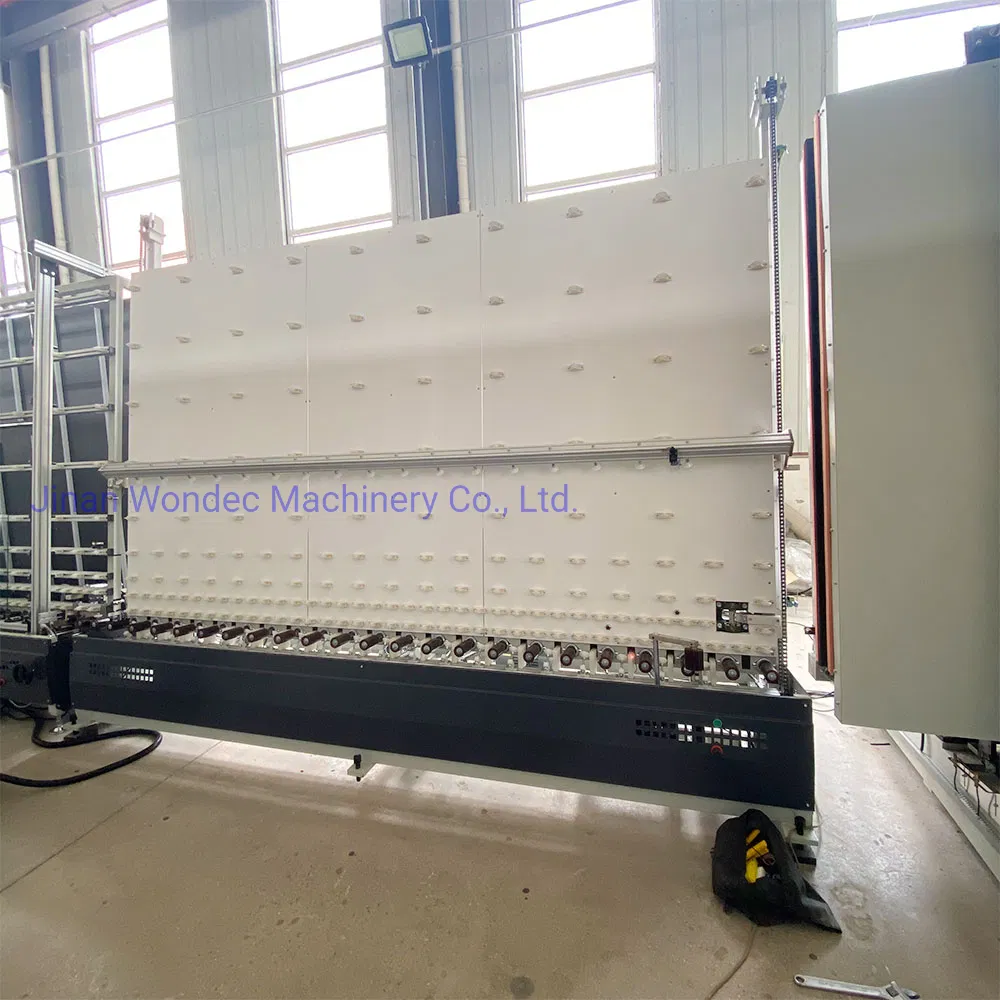

Panel press openable, easy for maintenance and glass transmission
Output: 800 IG units per 8-hour shift (1m double layer IG)
Technical Parameters
Power
29Kw
Working Speed
2~45m/min
Max Glass Size
3000*2000mm
Trip Dimension
Optional
Min Glass Size
500*300mm
Air Pressure
0.8mCBM/min(1Mpa)
Pane Glass Thickness
3~12mm
Water Conductivity
< 40us/cm
Glass Washing Speed
2-12m/min
Overall Dimension
21300*2500*2900mm
Component Gallery
Detailed Views
Frequently Asked Questions
Q1: What types of insulating glass can this production line produce?
A: The line is capable of producing standard double-layer IG, triple-layer IG, and stepped IG units using both inside and outside panel press functions.
Q2: Can the machine handle Low-E coated glass?

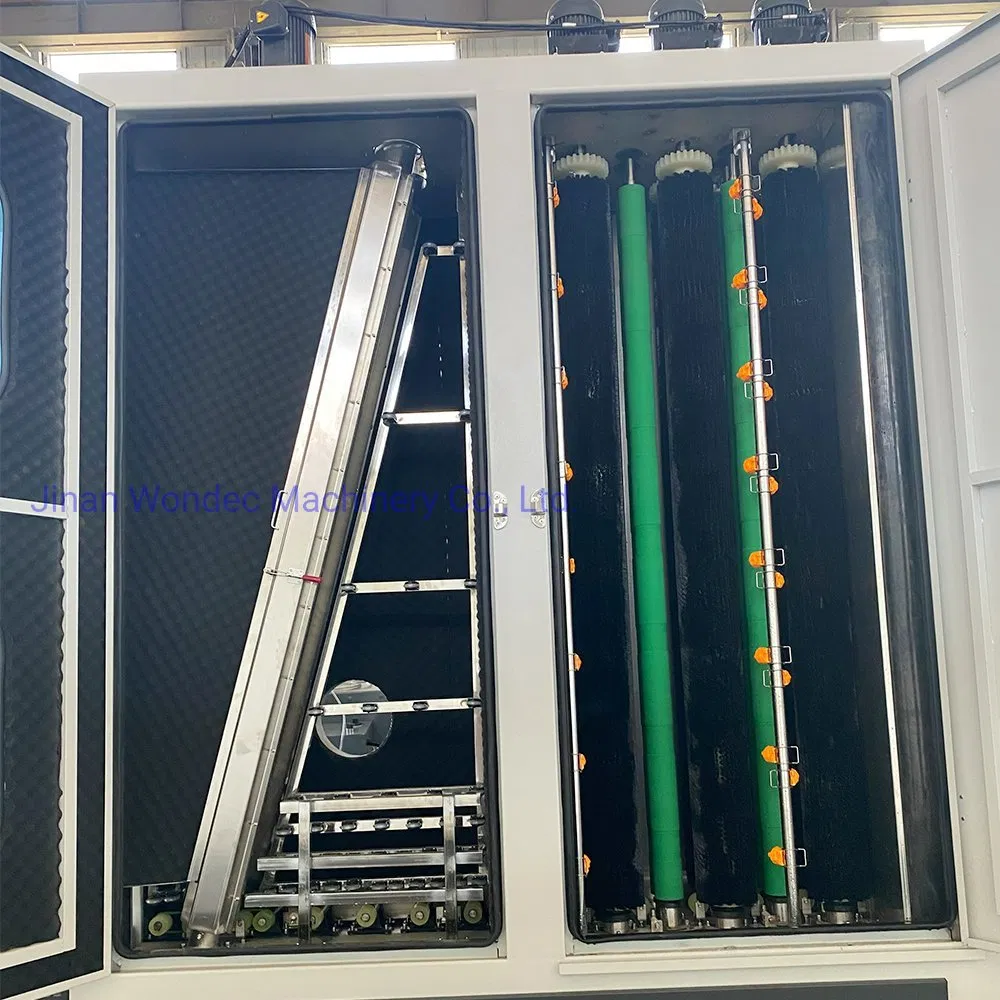

A: Yes, it features a standard function to automatically distinguish the coating side of Low-E glass and is equipped with 3 pairs of brushes suitable for high-quality washing.
Q3: What is the maximum glass processing size?
A: The maximum glass size for this model is 3000mm x 2000mm, with a thickness range for pane glass between 3mm and 12mm.
Q4: Is the gas filling function included?
A: Internal gas filling in the plate is an optional feature that can be added to the production line based on your requirements.
Q5: How many units can the machine produce in one shift?
A: The production capacity is approximately 800 standard double-layer IG units (1-meter size) per 8-hour shift.
Q6: What control system does the machine use?

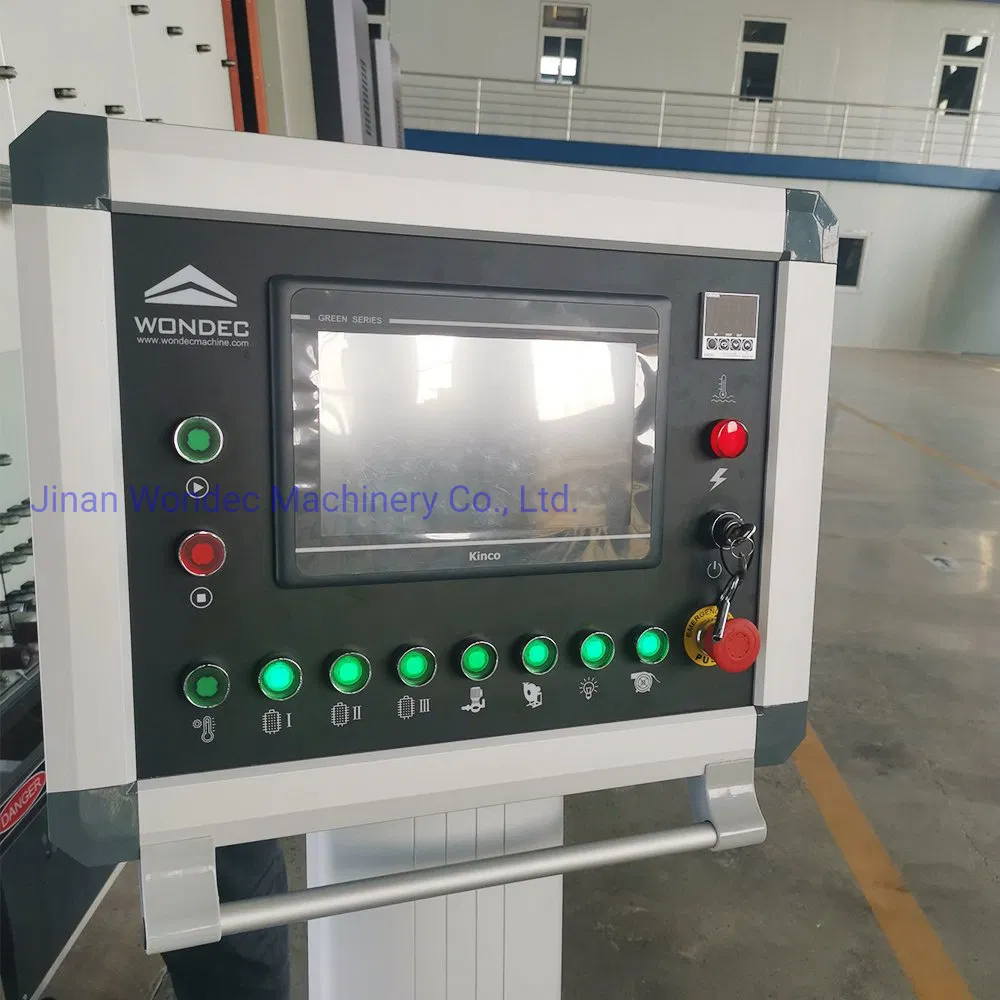

A: It uses a high-stability PLC control system with an intuitive touch screen interface, featuring dynamic displays for machine work status and fault diagnosis.
