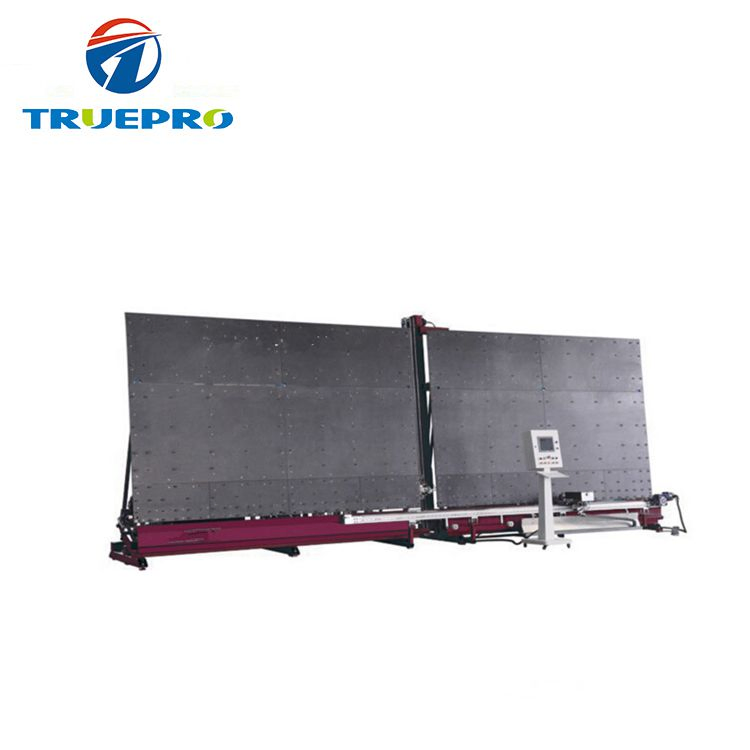

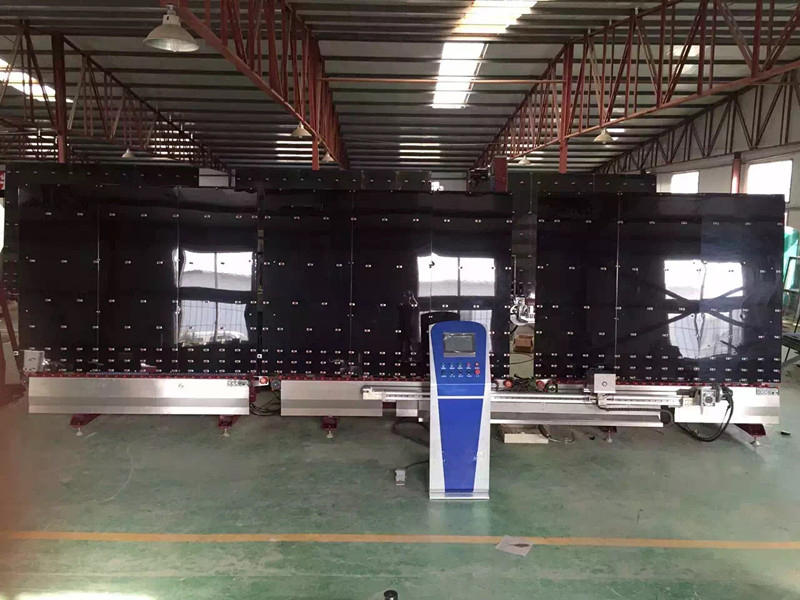

Vertical Insulating Glass Silicone Sealant Sealing Robot

Customization:	Available
Condition:	New
Certification:	CE

Send Inquiry

Product Description

Basic Specifications

Model NO.

JYT-2500

Automatic Grade

Automatic

CNC or Not

CNC

Voltage

380V

Input Power

18kw

Air Pressure

0.6-0.8MPa

Max. Processing Size

2500*3000mm

Min. Processing Size

300*450mm

Working Direction

Bi-directional

Transfer Speed

5-40m/Min

Weight

3000kg

Origin

China

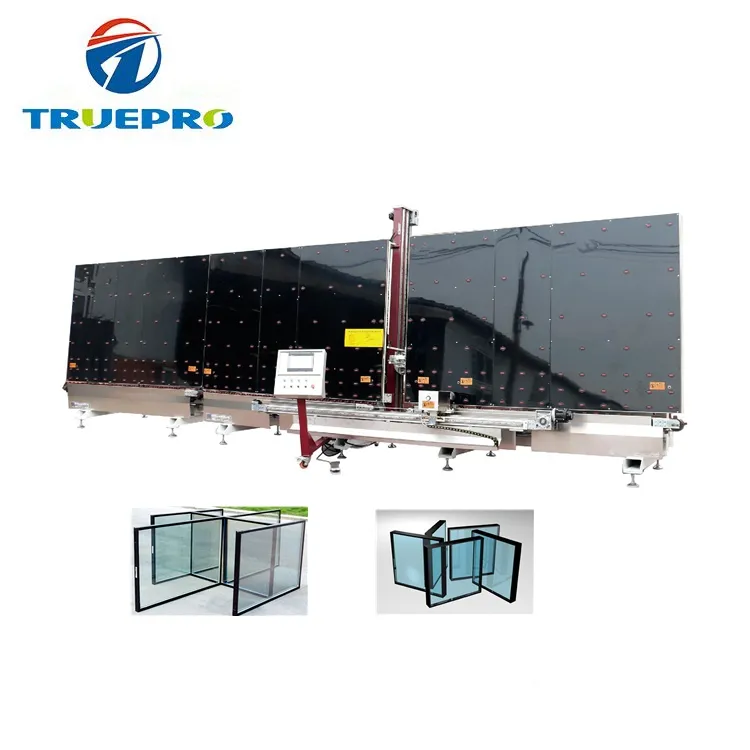

Vertical Insulating Glass Sealing Robot

◈

High automation for deep processing enterprises, reducing labor intensity and improving efficiency.

◈

Man-machine touch screen interface with integrated memory functions.

◈

Seamless coating: edges and corners are full without air bubbles, providing a smooth surface without manual corner paring.

◈

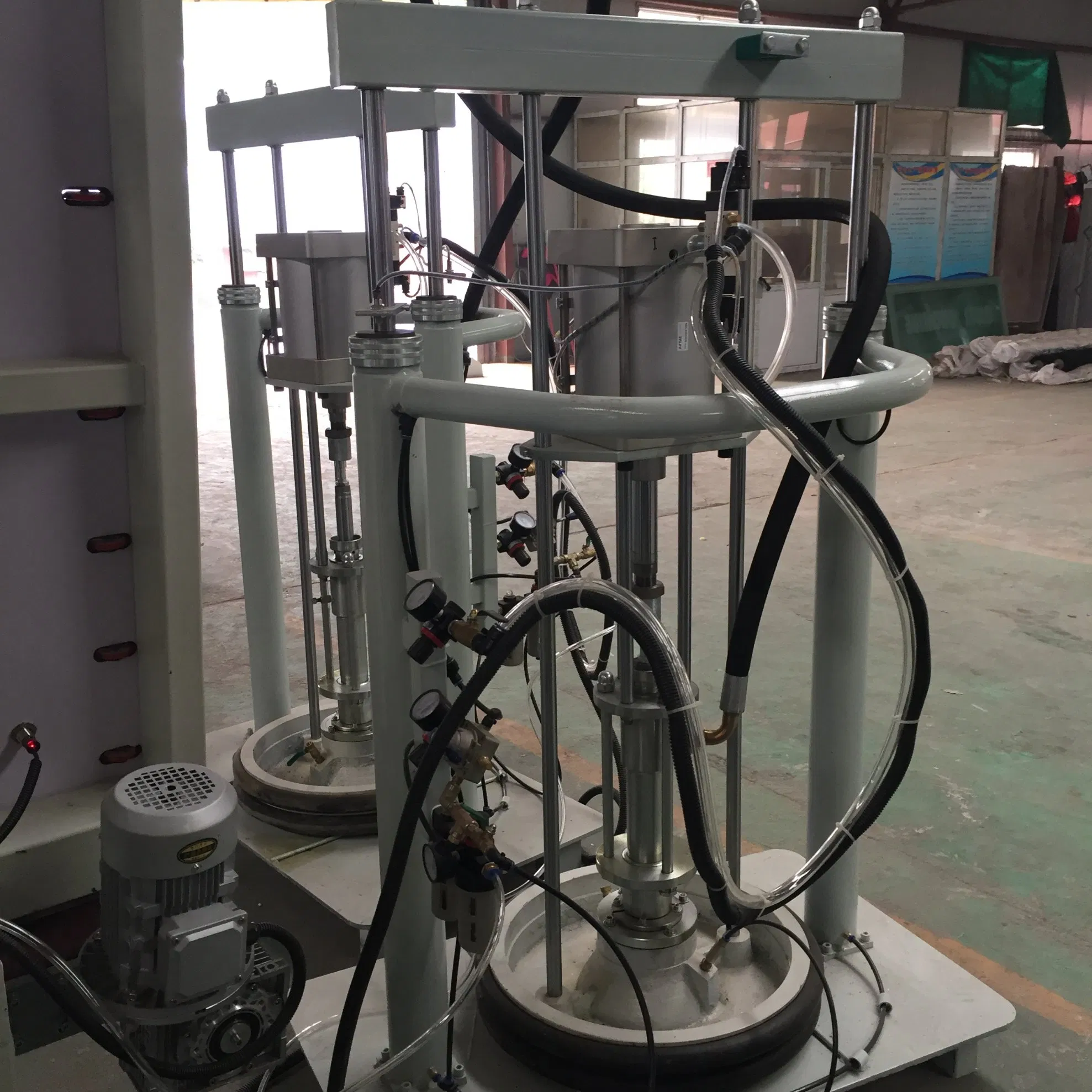

Optional dual sealant supply systems for fast switching via one-button operation.

◈

Compact 1.5m width design saves valuable factory floor space.

◈

Production line sections can pre-store three glass pieces to maximize throughput.

◈

Equipped with an anti-blocking device in the mixer for easy maintenance.

◈

Advanced Japan YASKAWA servo control system ensures stable performance and high precision.

◈

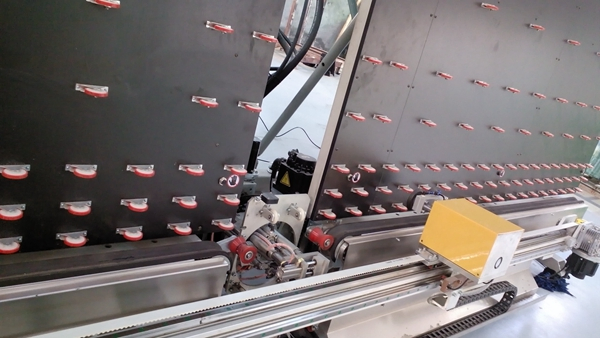

Special V-type transmission belt prevents sealant sticking and keeps glass edges clean.

◈

Supports processing of triple glazing units.

Technical Parameters

Parameter Item	Specifications
Product model	JYT-2500
Power supply	380V/50HZ
Total Power	18KW
Air supply	0.6-0.8Mpa
Max. glass size	2500*3000mm
Min. glass size	300*450mm
Conveyor speed	5-40m/min
Dimension	10000x1500x3600mm
Weight	3000kg

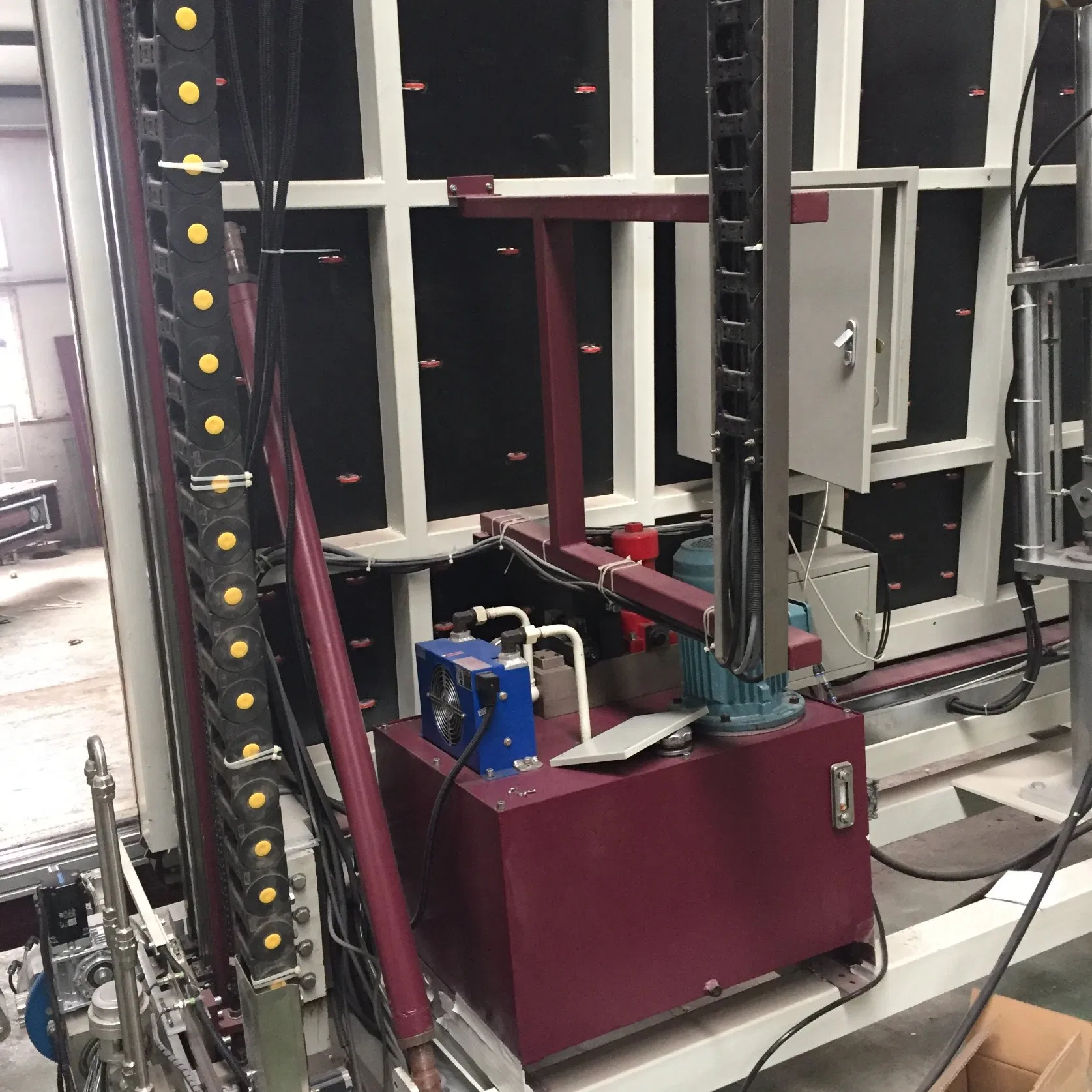

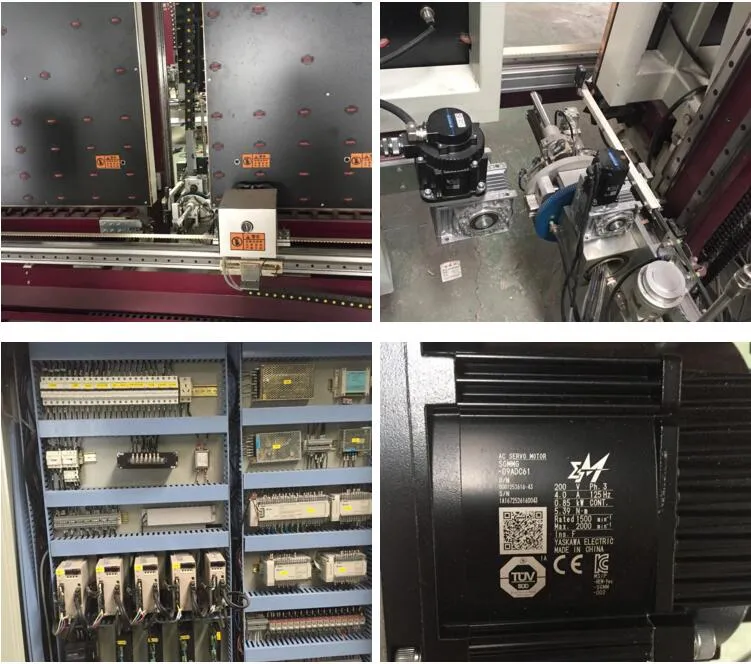

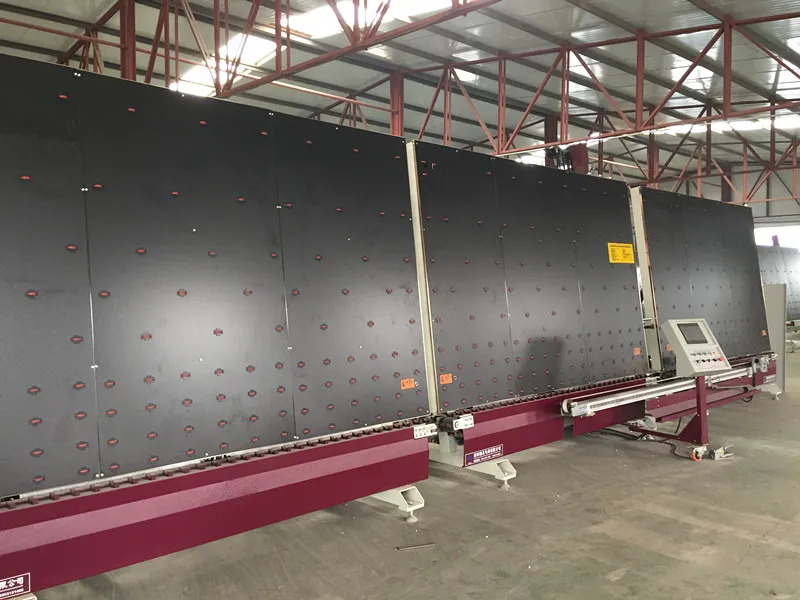

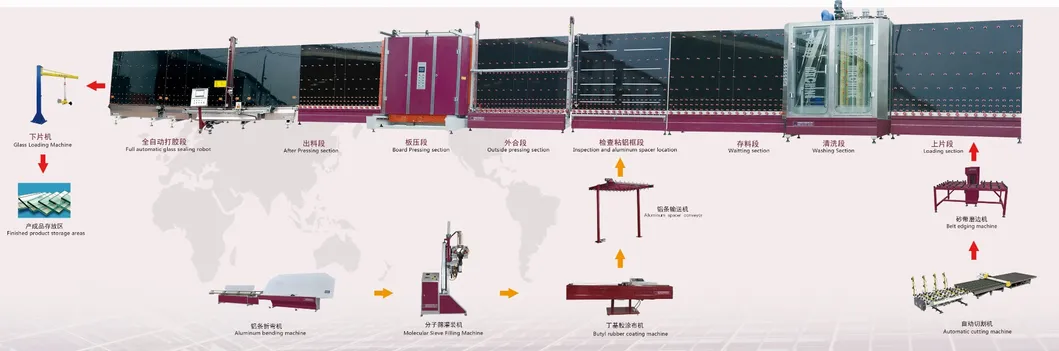

Machine Detail Gallery

Frequently Asked Questions

When can the shipment be arranged?

Shipment is usually arranged within 15 days after receiving the deposit. For customized machine requests, the lead time is approximately 25 days or more.

What support is available if the machine encounters problems?

We provide free replacement components if the machine is within the guarantee period. Additionally, professional engineers can be dispatched to repair your equipment.

Do you provide equipment operation training?

Yes, professional engineers are available for on-site installation, technical adjustment, and comprehensive operation training. All our engineers hold valid passports for international travel.

What is the minimum glass size this robot can process?

The minimum insulating glass size that can be processed by the JYT-2500 model is 300*450mm.

Can this machine handle triple glazing units?

Yes, the vertical sealing robot is specifically designed to be suitable for processing triple glazing units efficiently.

What type of control system does the robot use?

The machine utilizes a world-renowned Japan YASKAWA servo control system, ensuring stable performance, fast counting speed, and high-precision sealant output.
