Customization:	Available
Type:	Float Glass
Shape:	Flat

Send Inquiry

Product Description

Basic Specifications

Model NO.14A

StructureHollow

Glass Thickness12mm

Air Cavity Depth9mm

Moh's Hardness8

Energy TransferConduction

Deep ProcessingHollow Glass

ColorBlack Sliver

UsageFurniture, Door, Building, Window

SpecificationA10

OriginMade in China

HS Code84790000

Product Overview

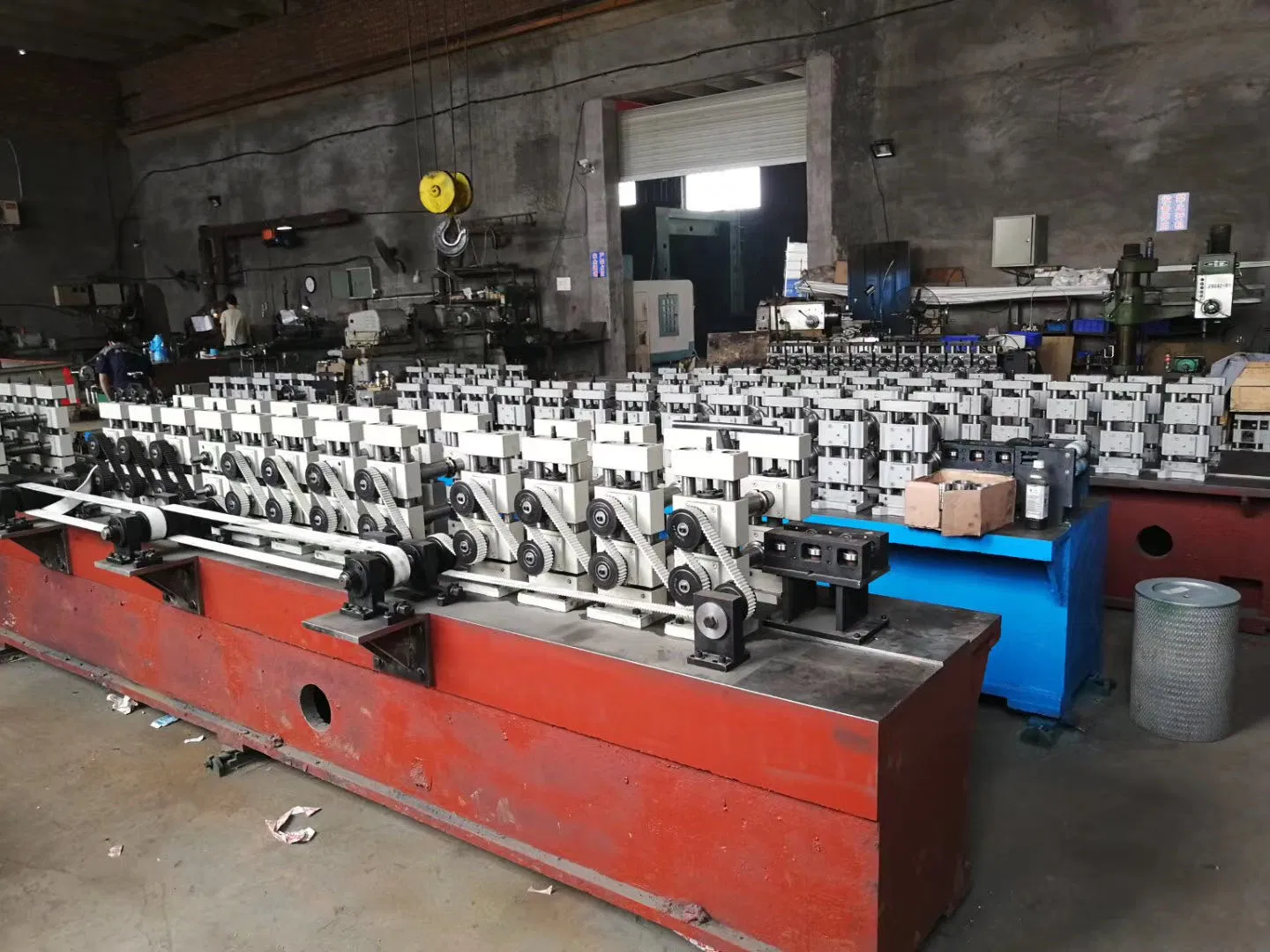

Warm edge spacer production line & Aluminum spacer bar production line equipment components:

Cast iron platform: 6 meter length
Level of frame: 17 pcs
Feeder: 1 pcs / Gearing: 1 set
Belt & Belt sheave: 1 set each
Mould: 3 pcs with cover and mat
Welding frame & Scraper: 1 set/pcs
Straightening machine: 1 set

Key Features & Certifications

CNC angle iron punch line for high precision
Reliable quality with professional forming technology
Professional engineering service support
CE & ISO certified equipment

Warm Edge Spacer Production Line

Technical Parameters

Process Flow	Decoiling → Active feeding → Forming → Measuring → Punching → Cutting → Product Stand
Profile Thickness	0.23mm -- 0.35mm
Decoiler Specs	Inner diameter: 450-700mm \| Max width: 1250mm \| Max load: 5000kg
Forming Speed	8 -- 10 m/min
Main Motor Power	5.5kw \| Voltage: 380v, 50hz
Blade Material	Cr12 steel with quenched treatment (60-62°)
Hydraulic System	Advanced system from Taiwan \| Power: 3kw

Commercial Terms

DeliveryIn stock

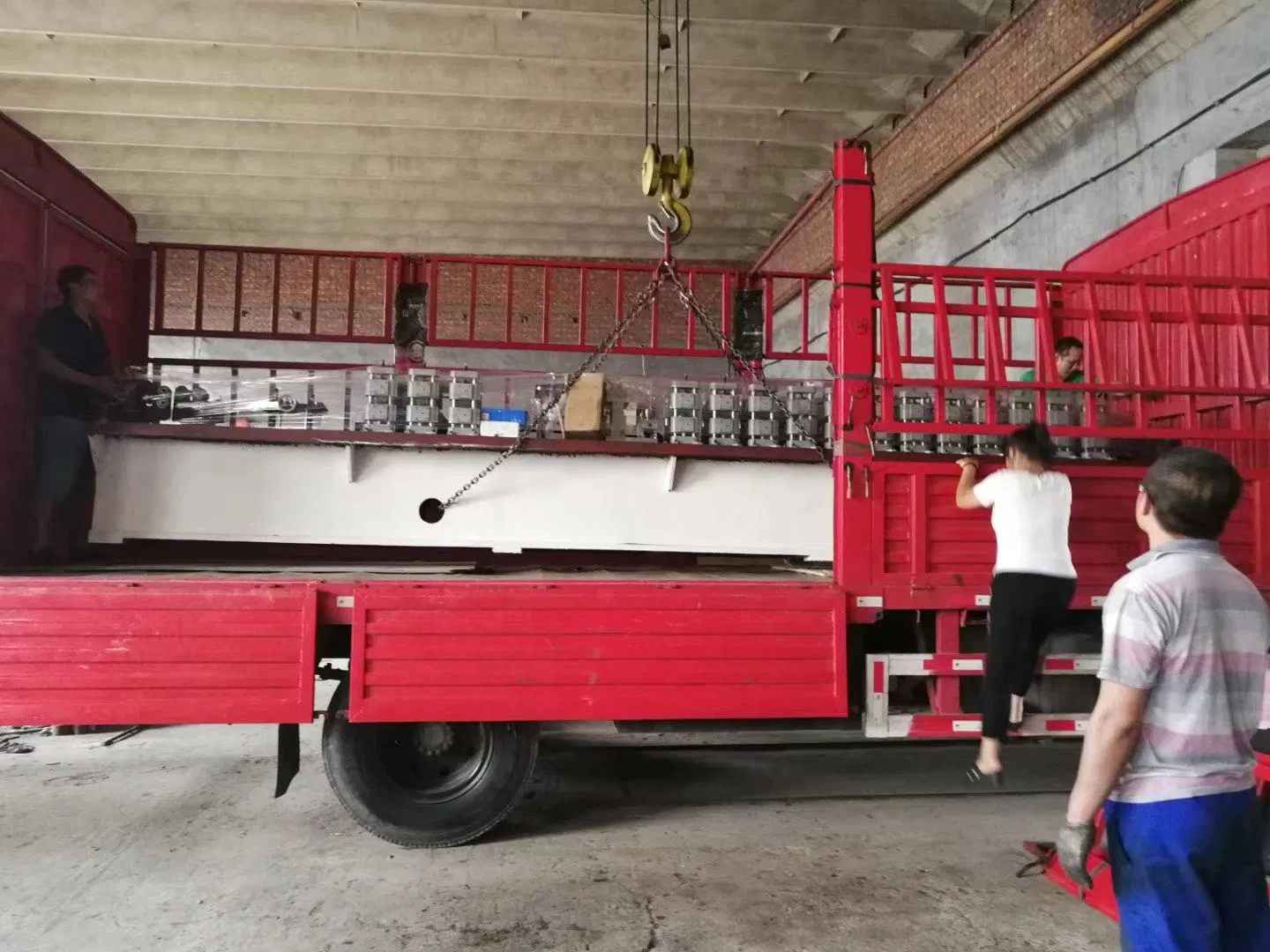

PackageExport standard container

Payment30% Deposit, 70% after inspection

Lead Time30 working days

Warranty12 Months

SupportLife-time technical support

Frequently Asked Questions

What is the production capacity for this machine?

The production capacity is rated at 5,000,000 units.

What materials are supported for profile thickness?

The production line is designed for thicknesses ranging from 0.23mm to 0.35mm.

What is the material used for the cutting blades?

The blades and moulds are made of Cr12 steel, quenched to a hardness of 60-62°.

What certificates does the equipment hold?

The aluminum spacer bar production line is CE and ISO certified.

What is the forming speed of the main machine?

The main forming machine operates at a speed of 8 to 10 meters per minute.

What is the warranty and technical support policy?

We provide a 12-month product warranty and life-time technical support for the equipment.
