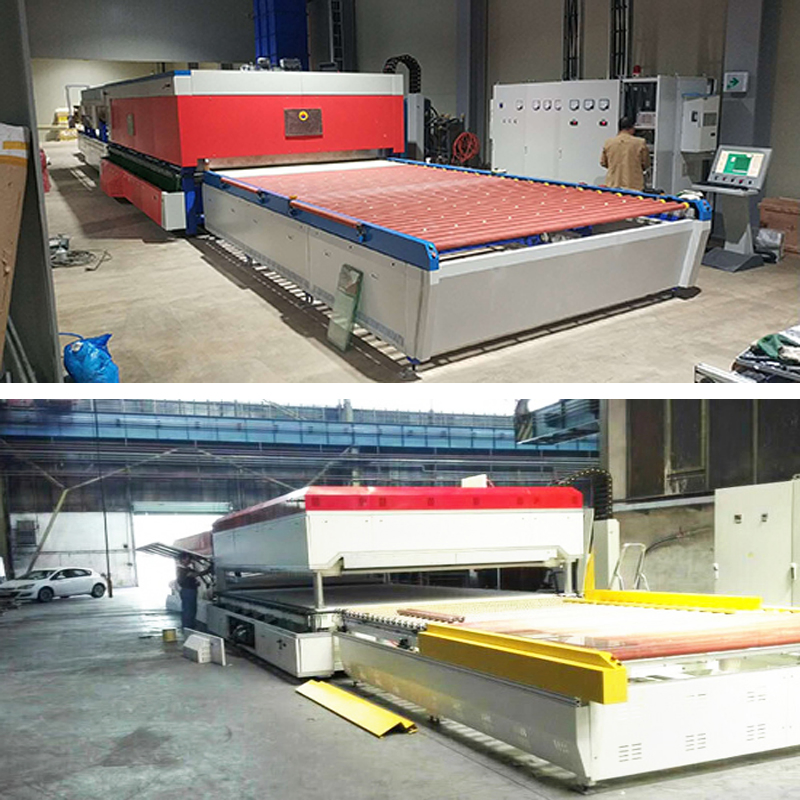

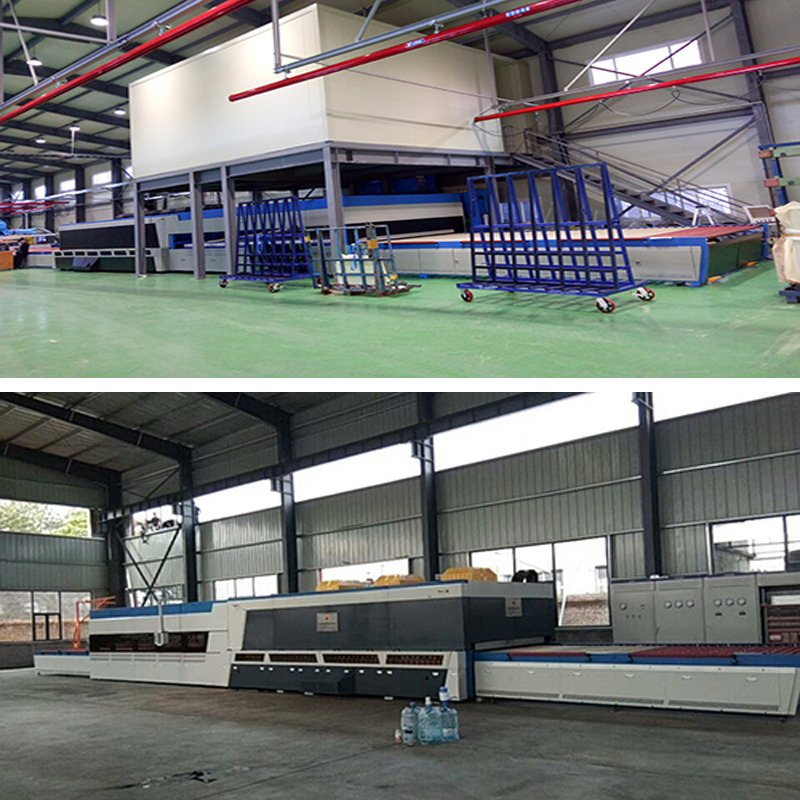

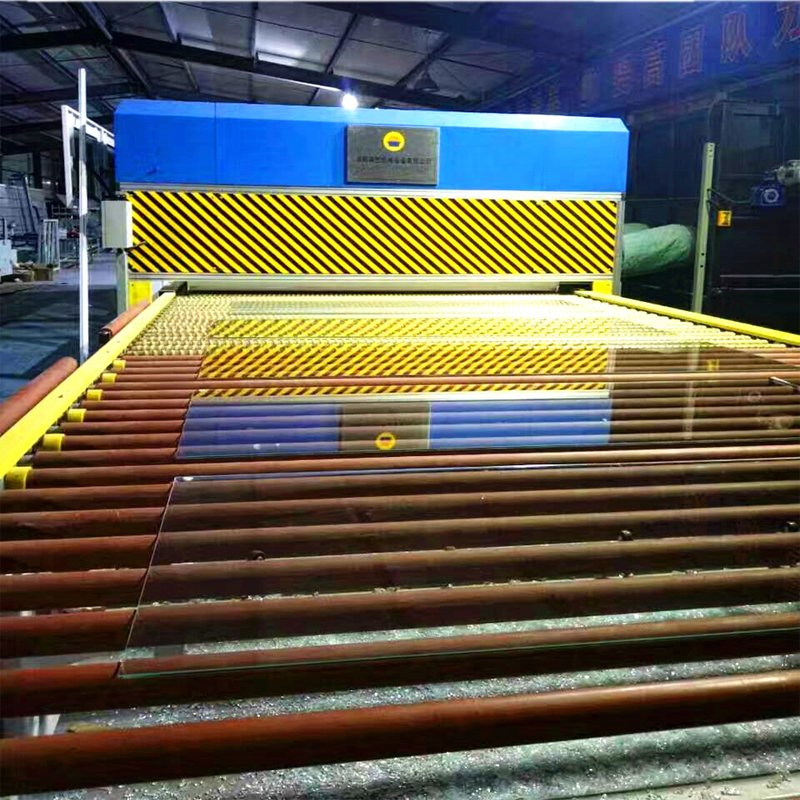

Wholesale China Trade Glass Bending Machine Bent Glass Tempering Furnace

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Overview

Model NO.

GS-TAQ2436/2442/3050

Name

Glass Tempering Furnace Machine

Function

Tempering Glass

Glass Thickness

4-19mm

Max Glass Size

2000*2500mm

Structure

Horizontal

Warranty

12 Months

Production Capacity

80 Sets/Year

Product Description

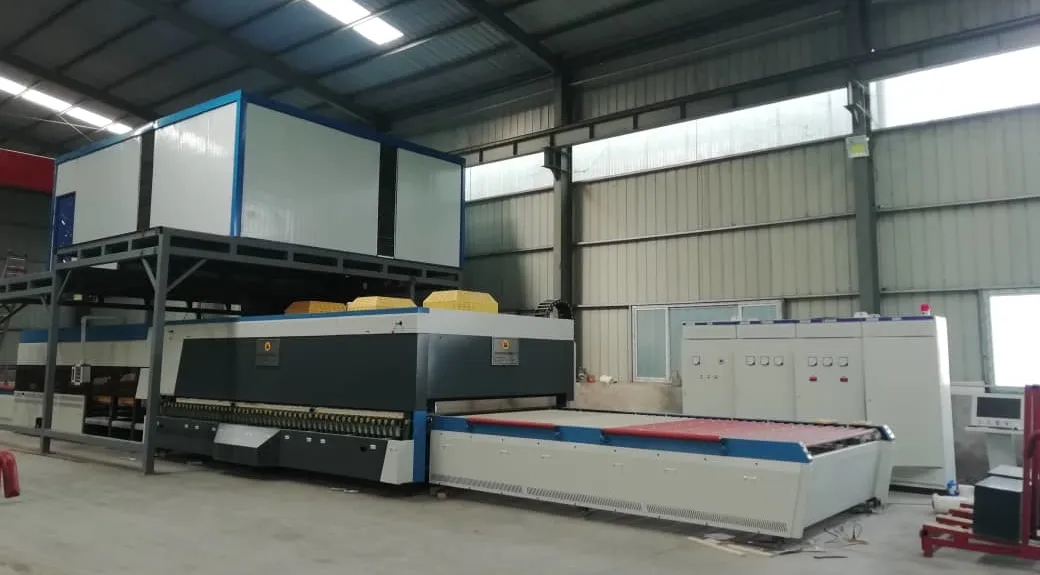

Main Features of Flat Glass Tempering Furnace

Top installed special heat-proof convection fan for superior air circulation.
Dual sets of cooling and tempering blowers (Large & Small KW) for high efficiency and energy saving.

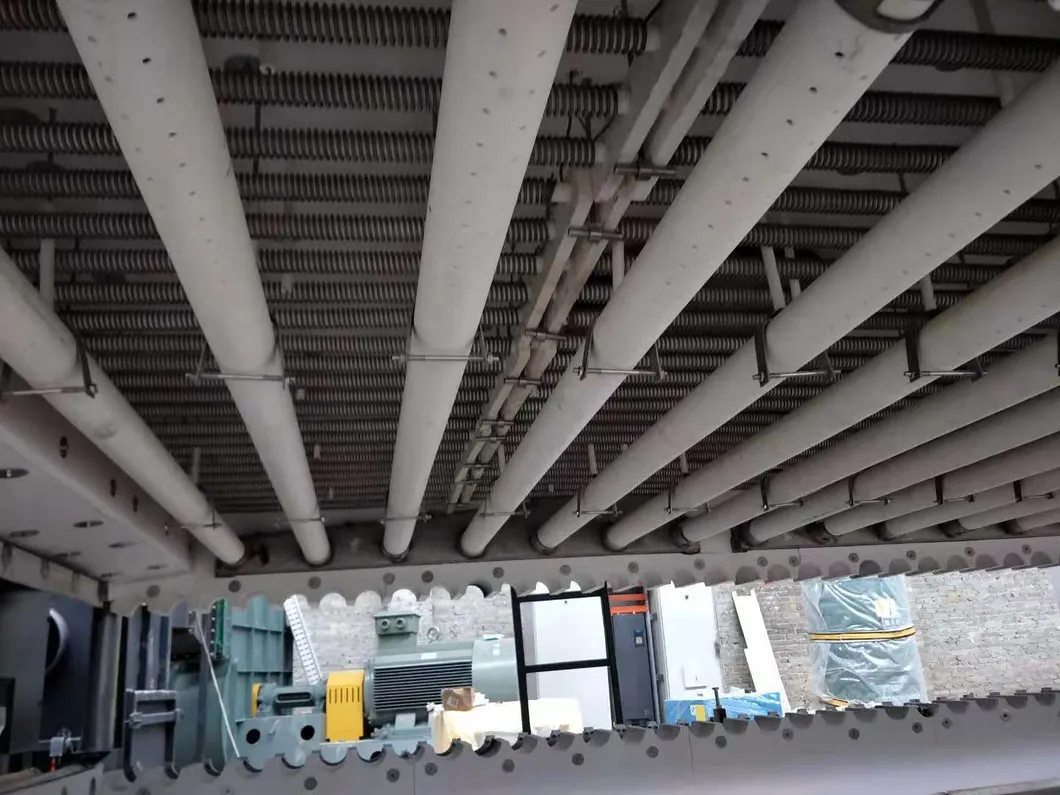

Convection system constructed with top-quality stainless steel, ensuring heat-proof and antioxidant properties.
Advanced blowing and special trough-type design compatible with 3.5-19 mm glass thickness.
Versatile processing: Suitable for off-line low-E, on-line low-E, extra white, screen printed, pattern, and clear glass.

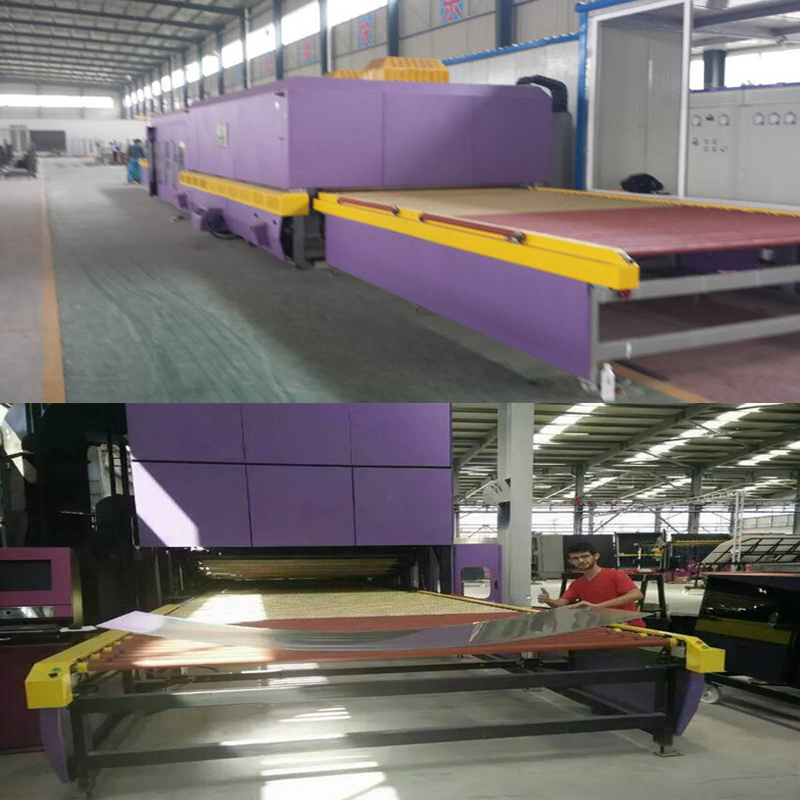

Curvature Forming & Control

Computer-controlled glass curvature forming with precise radius data input.
Utilizes aluminum-alloy wheels with high-durability fiber rope.
Separated structure cooling quench fixed among rollers for precise deformation.
Automatic quench transmutation method—no mold required.
Integrated sensor for real-time glass length measurement.

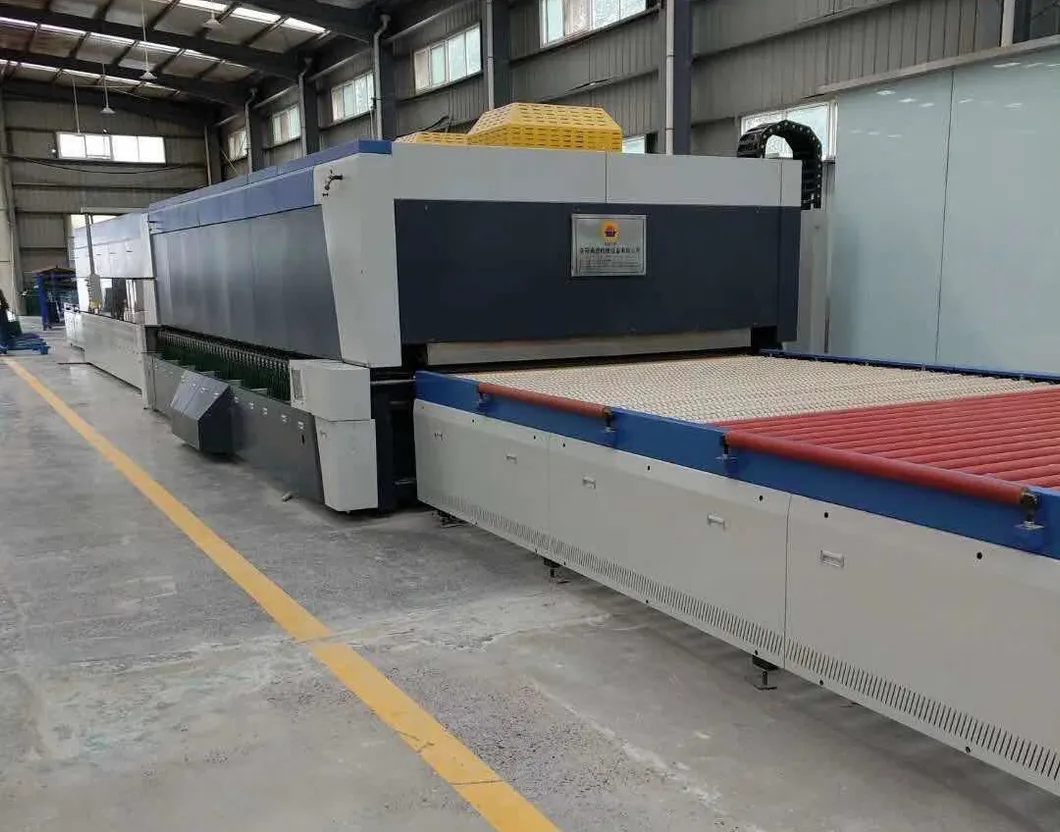

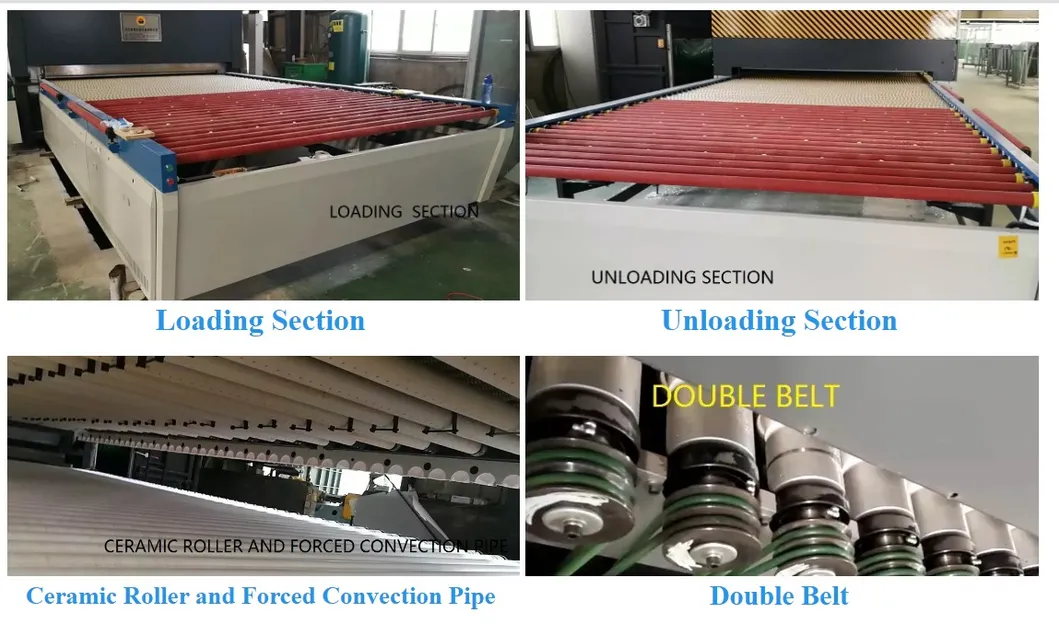

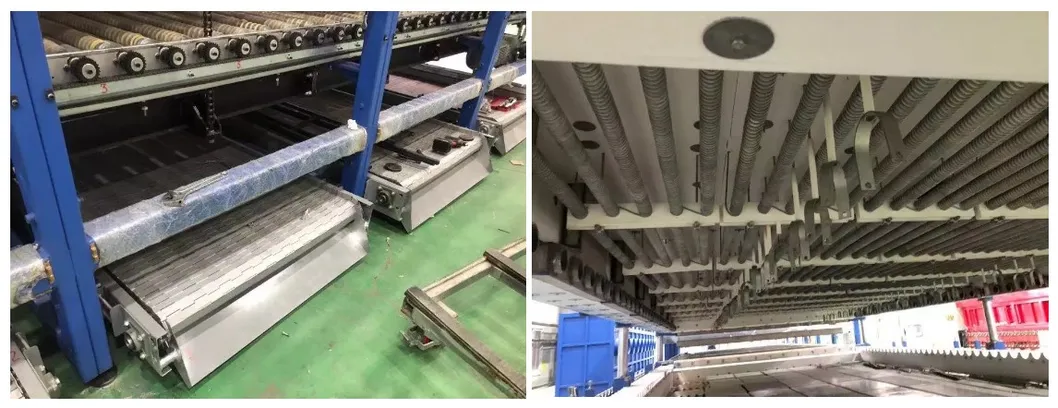

Detailed Photos

Product Parameters

Model	Max Loading Size (mm)	Min Size (mm)	Thickness (mm)	Output (m²/h)	Capacity (KVA)
AT-TA1225	1250×2500	100×250	3-19	53	200
AT-TA1636	1600×3660	100×250	3-19	91	400
AT-TA2036	2000×3660	100×250	4-19	126	500
AT-TA2436	2440×3660	100×300	4-25	152	630
AT-TA2442	2440×4200	100×300	4-25	173	630
AT-TA2450	2440×5000	100×300	4-25	202	800
AT-TA2842	2850×4200	200×350	5-25	213	800

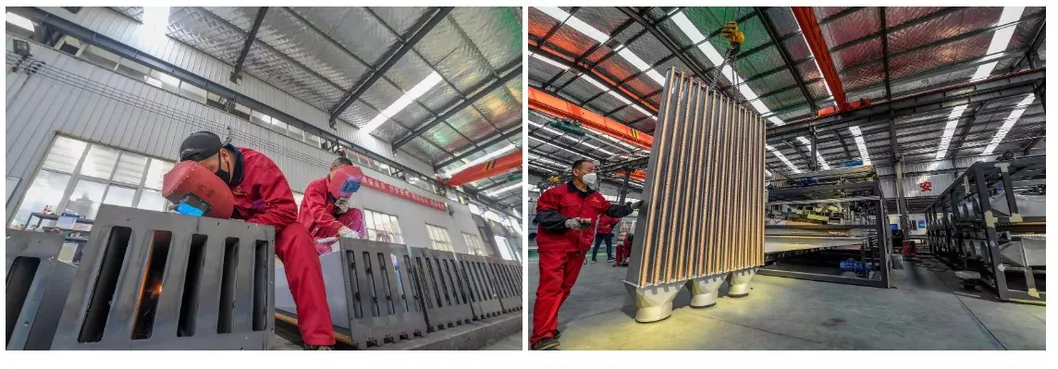

Production & Packaging

Frequently Asked Questions

1. What range of glass thickness can the furnace process? The machine is designed to process glass thicknesses ranging from 3mm up to 25mm, depending on the specific model selected.

2. What types of glass can be tempered with this machine? It supports various glass types including off-line and on-line low-E glass, extra white glass, screen printed glass, pattern glass, color glass, and standard clear glass.

3. How is the quality of the machinery guaranteed? Quality is ensured through a pre-production sample before mass production and a final inspection before shipment. All equipment comes with a 12-month warranty.

4. Is the curvature forming process manual or automated? The process is fully controlled by a computer. Users can input the required radius data, and the machine adjusts automatically.

5. What is the production capacity of these furnaces? The current production capacity is approximately 80 sets per year, ensuring steady supply and quality control.

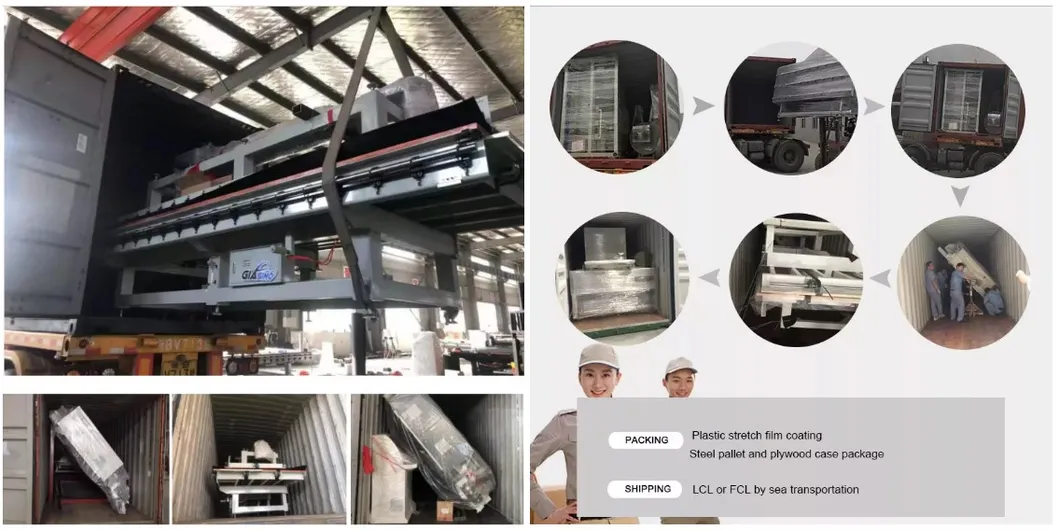

6. How are the machines packaged for international transport? The machines are secured using professional cling film packaging to prevent moisture and damage during transit.

Wholesale China Trade Glass Bending Machine Bent Glass Tempering Furnace
