Zxqx1200 Insulating Glass Washing and Drying Machinery 1200

Customization:	Available
Certification:	CE
Product:	Insulating Glass Washing and Drying Machinery

📊 Basic Info.

Model NO.

ZXQX1200

Mode

Zxqx1200

Process Glass Thickness

3-19mm

Max Width of Glass

1200mm

Mini Size of Glass

100*100mm

Function

Flat Glass Cleaning and Drying

Machine Size

3500 * 1750 * 1100 mm

Power

12kw

Type

Glass Washing and Drying Machine

Structure

Horizontal

Brush/Sponge

3 Pairs of Brush, 2 Paires of Sponge

HS Code

8464109000

⚙️ Product Description

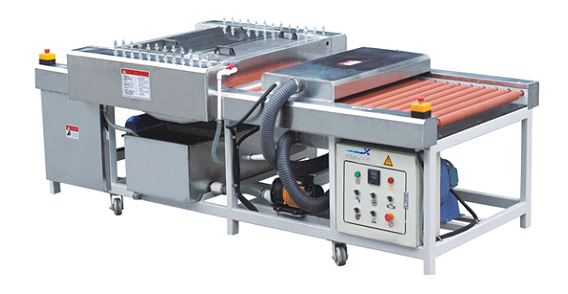

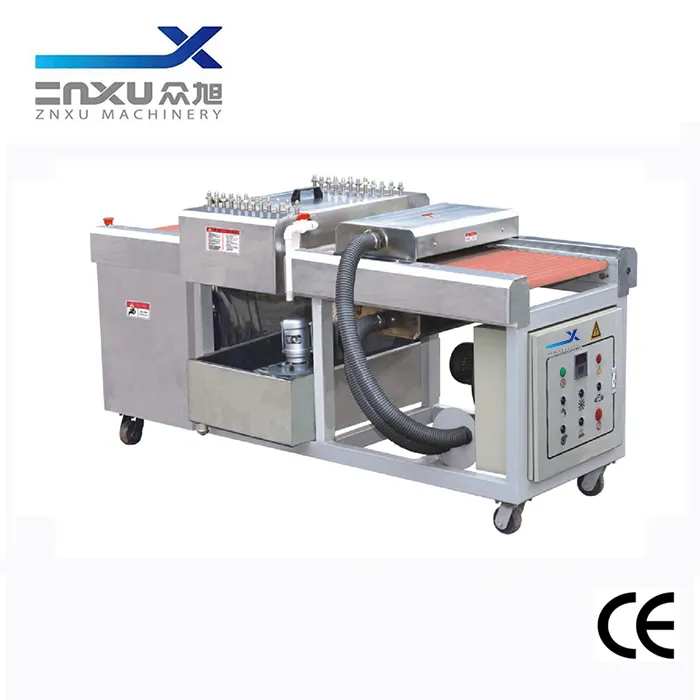

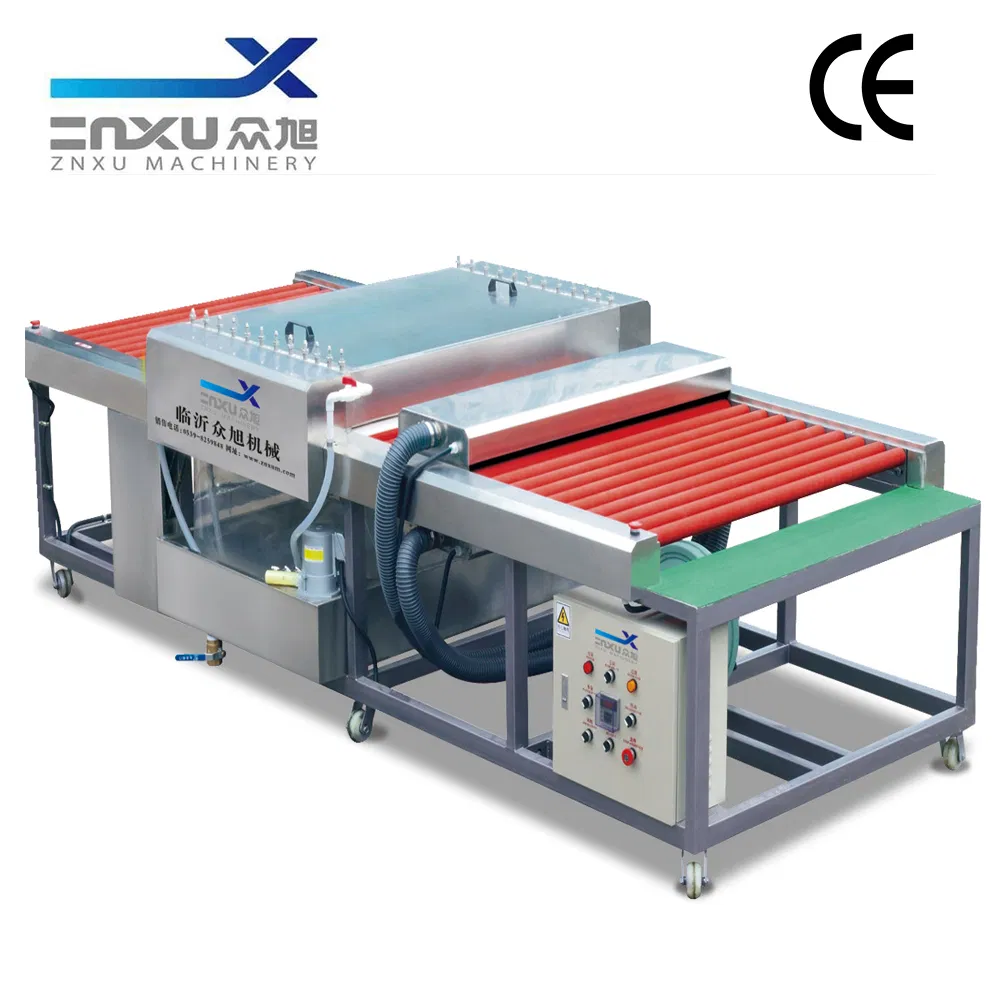

Insulating Glass Washing and Drying Machinery

✔

ZXQX1200 Horizontal Glass Washing & Drying Machine is specifically designed for high-efficiency washing and drying of flat glass.

✔

Comprehensive Components: The machine consists of a loading section, washing section, drying section, and unloading section.

✔

Advanced Drive System: Features a robust chain drive and stepless speed regulation for smooth operation.

✔

Cleaning Power: Equipped with four pairs of brushes, three pairs of sponge rollers, and one specialized tank.

🔄 Operation Process

Place the glass on the transmission roller.
Automated processing follows: Input segment → Washing segment → Drying segment → Output segment.

📋 Main Technical Parameter

Parameter Name	Specifications
Max Glass Width	1200mm
Mini Process Glass Size	100100 mm (7070mm customized)
Thickness of Glass	3-19mm
Speed Range	0.75-3.5 m/min
Height of Table	810 mm ± 10
Size of Machine	3500 * 1750 * 1100 mm
Power	12KW
Weight	800 KG
Input Voltage/Frequency	380v/50HZ (as per requested)

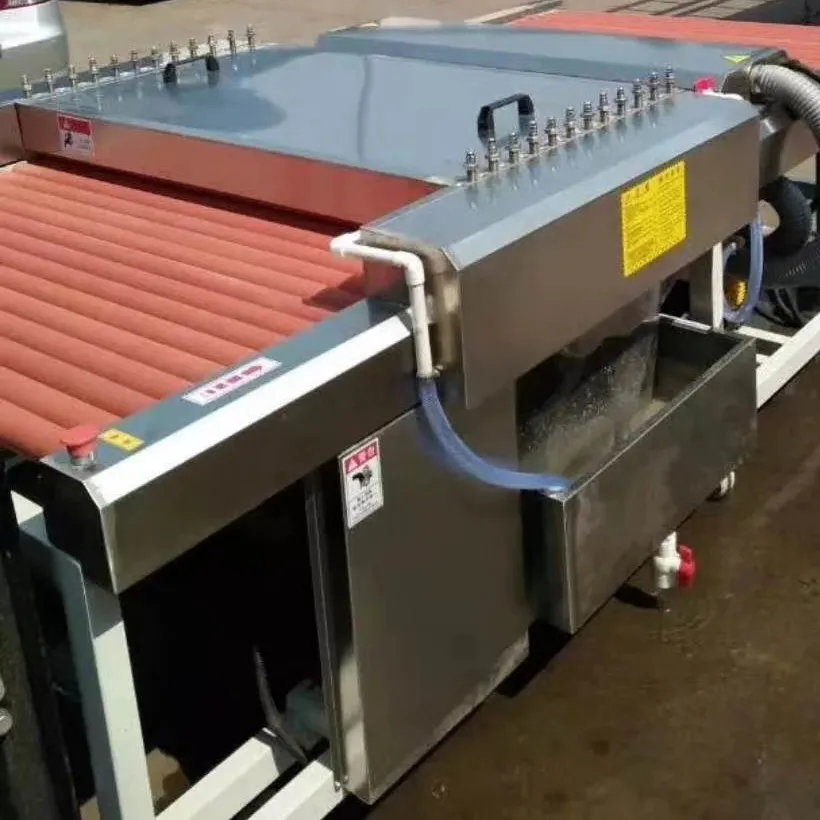

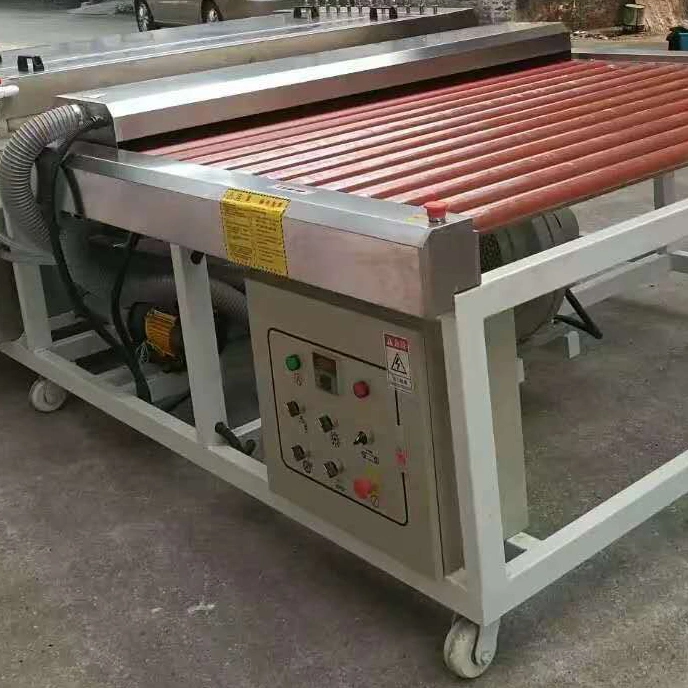

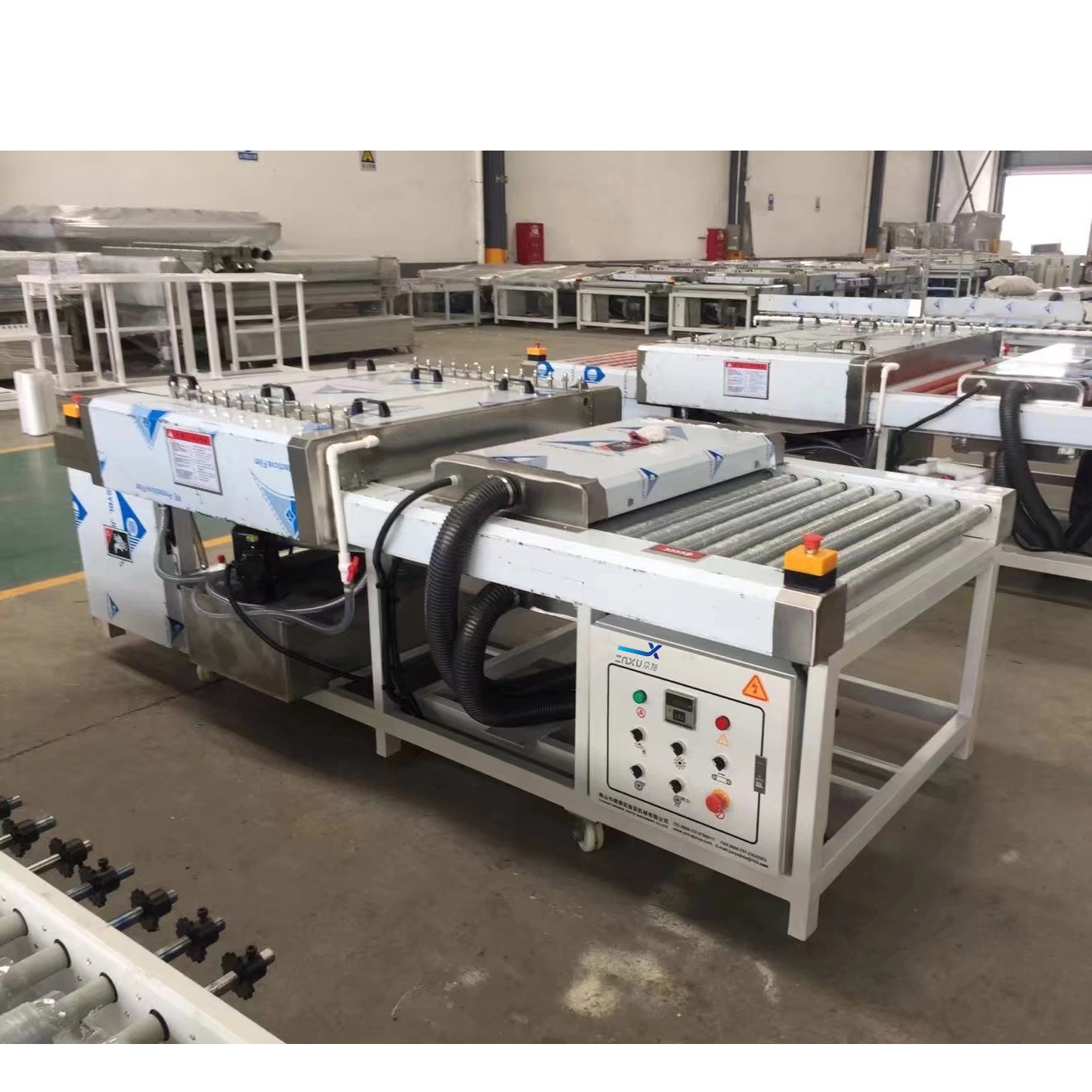

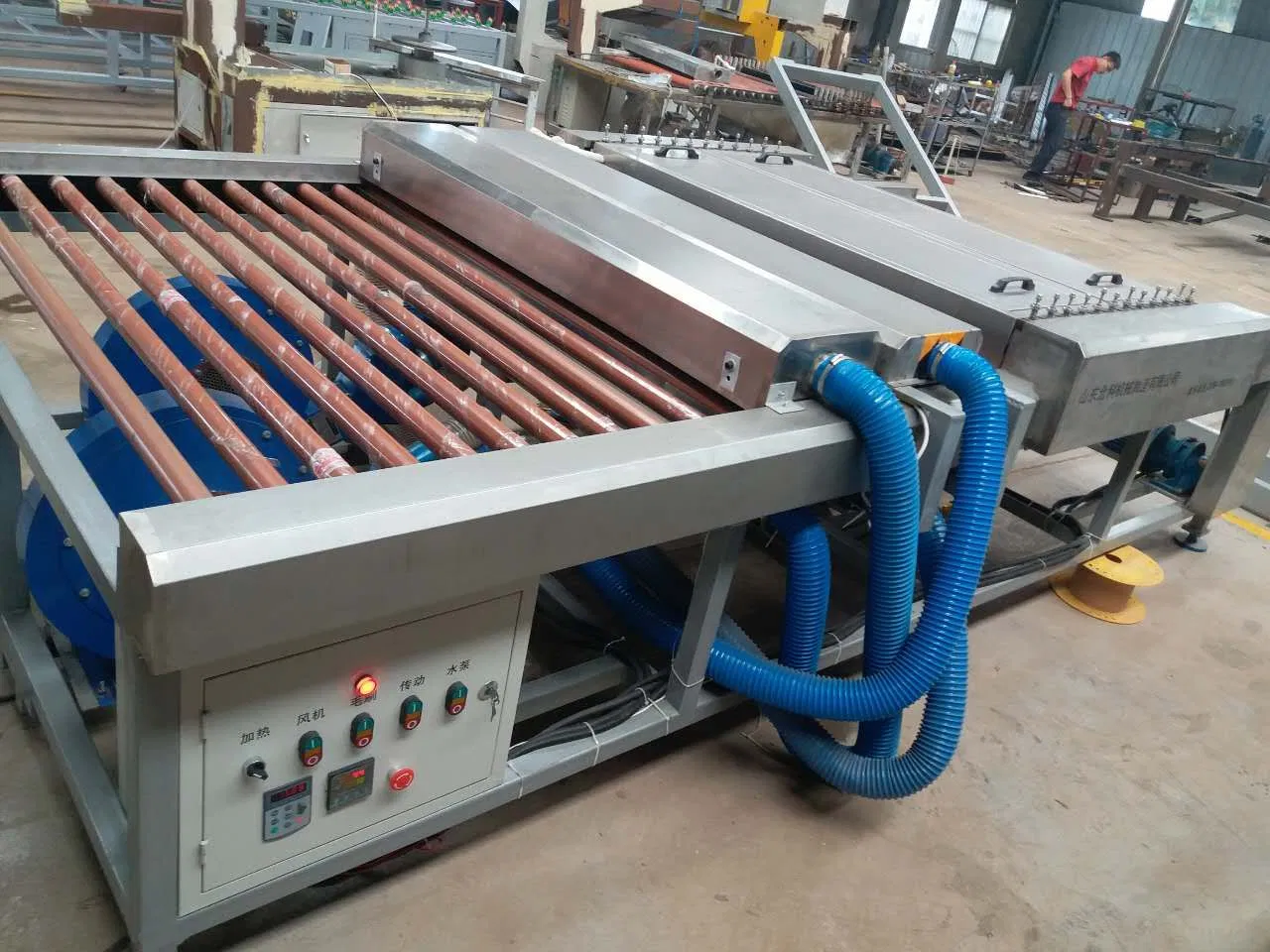

🖼️ Machine's Gallery

🛠️ Other Available Glass Processing Machinery

CNC glass slotting & grinding machine
Glass edging & Beveling machine
Glass shape & polishing machine
Triangles glass bar polishing machine
Acrylic glass edge polishing machine
Cabinet & kitchen door polishing machine
Glass cutting & drilling machine
CNC glass loading machine
CNC Four Edges Chamfering machine

❓ Frequently Asked Questions

Q1: What is the maximum glass width this machine can handle? The ZXQX1200 model can process glass with a maximum width of 1200mm.

Q2: What thickness range of glass is suitable for this machine? This machine is versatile and can process glass thicknesses ranging from 3mm to 19mm.

Q3: Can the machine handle small glass pieces? The standard minimum size is 100x100mm, but it can be customized to handle sizes as small as 70x70mm.

Q4: How does the cleaning system work? The machine utilizes four pairs of brushes and three pairs of sponge rollers, combined with a dedicated water tank for thorough cleaning and drying.

Q5: Is the processing speed adjustable? Yes, the machine features stepless speed regulation with a range of 0.75 to 3.5 meters per minute.

Q6: What are the electrical requirements? The standard power is 12KW with an input voltage of 380v/50HZ, though this can be adjusted per request.
