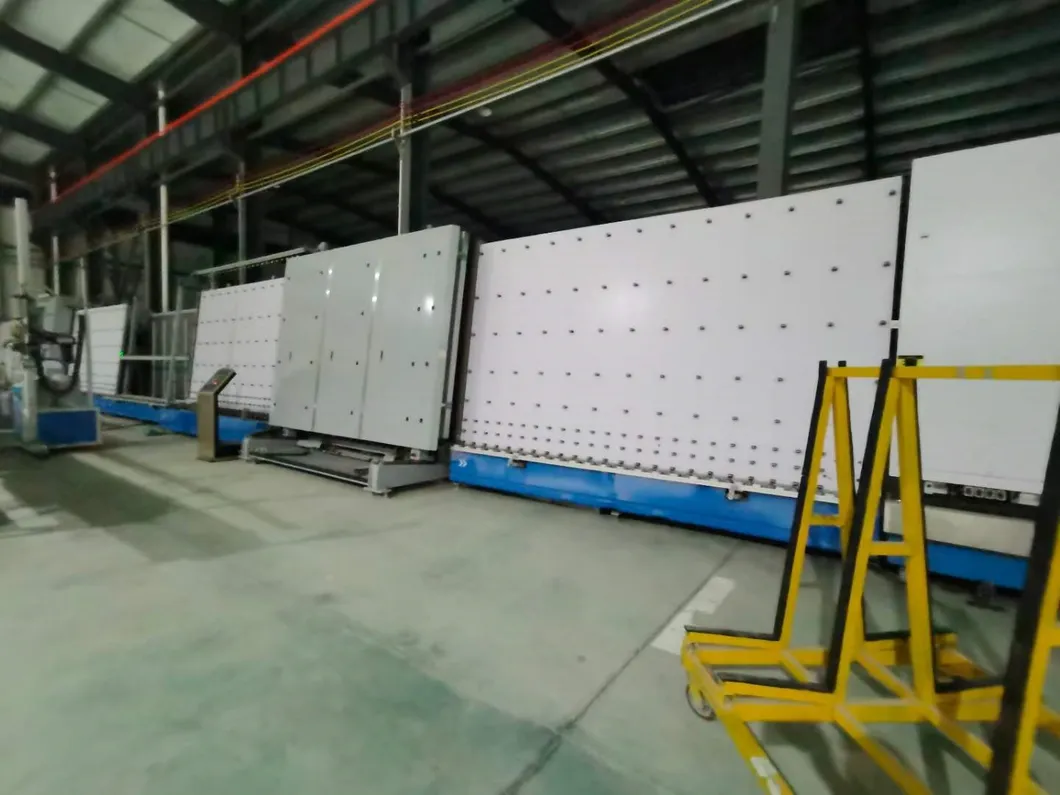

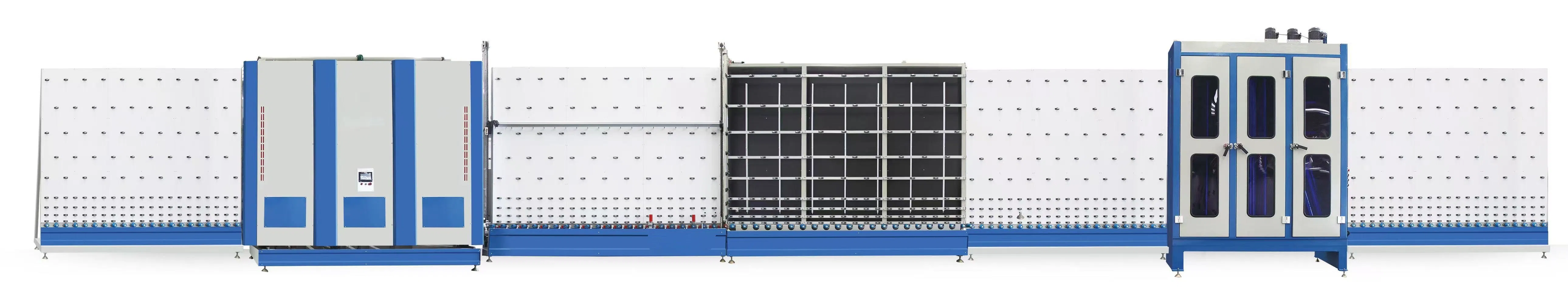

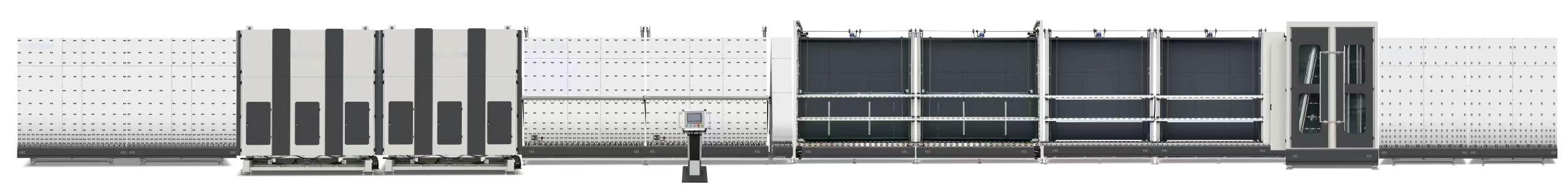

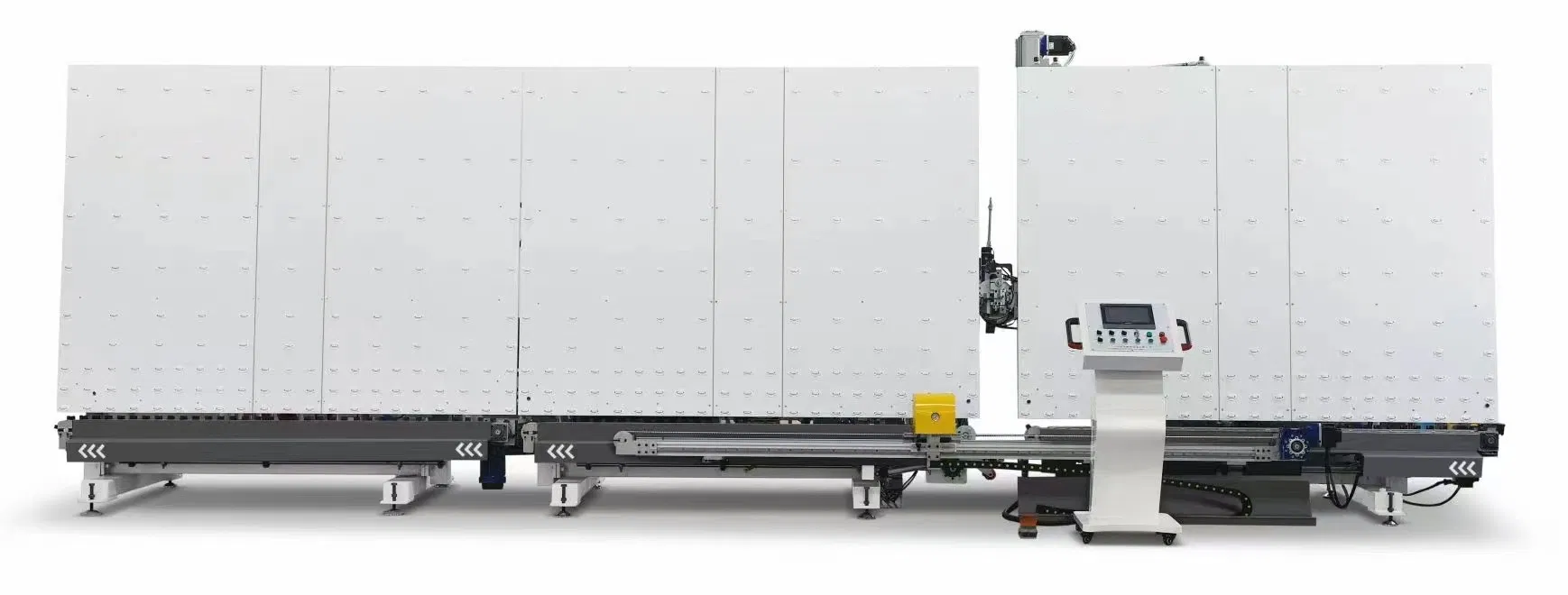

Advanced Double Glazing Insulated Glass Production Equipment Line

This sophisticated production line excels in manufacturing both standard and low-e insulating glass. With its high automation, exceptional efficiency, and user-friendly operation, it stands out as the ultimate choice for high-volume production.

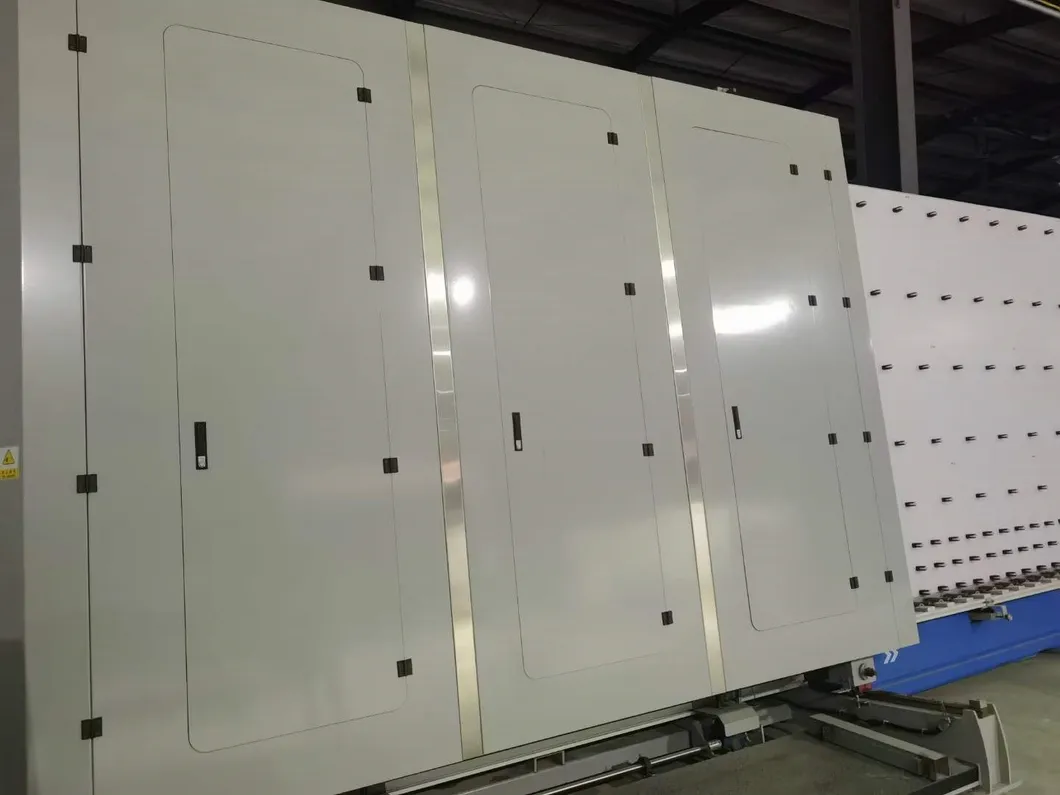

This critical section expertly guides the glass to the washing and drying station. The carbon fiber conductive brushes adeptly detect coatings on both standard and Low-e glass, ensuring perfect handling.

• ✔

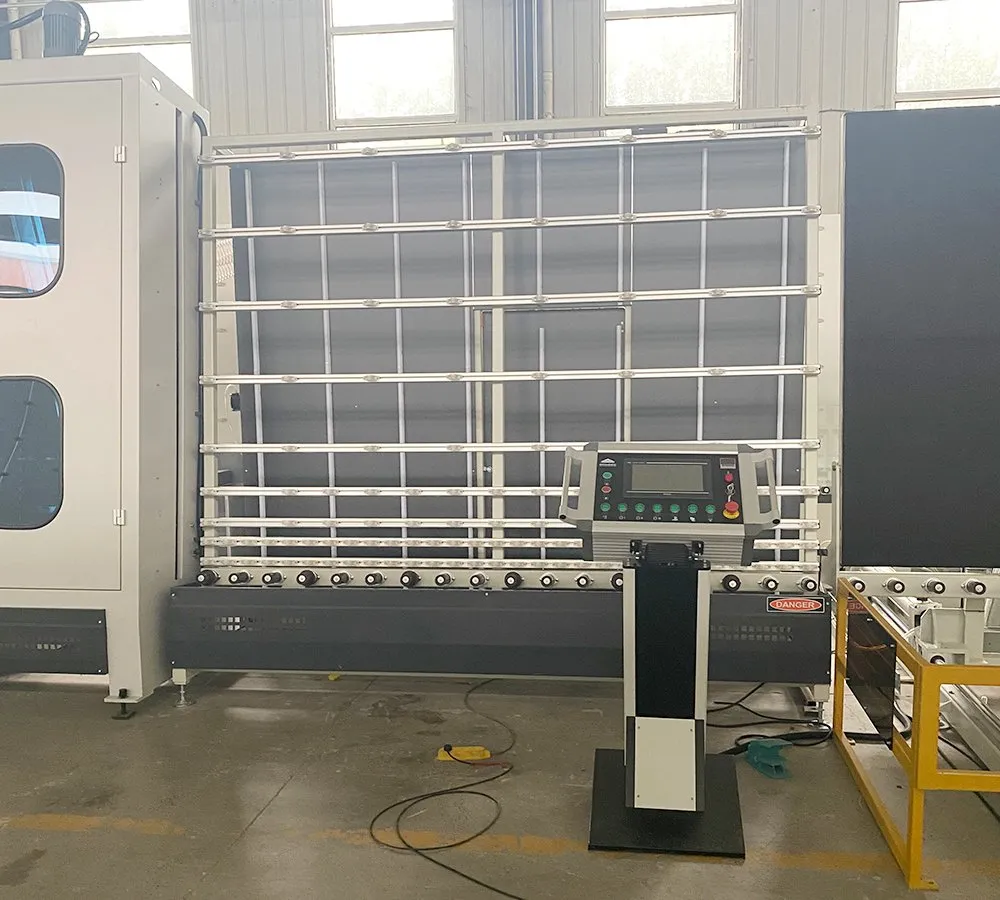

  Constructed with stainless and corrosion-resistant materials, ensuring robust durability across all washing areas, water tanks, and pathways.
• ✔
  Equipped with six independently driven brushes, each powered by its motor, ensuring continuous operation even if one motor encounters issues.
• ✔
  Features a coupling design that directly connects the brush to the motor, eliminating any risk of slip or idle motor issues.
• ✔
  The initial trio of brushes (0.1 mm) is perfect for Low-E glass, while the subsequent trio (0.2 mm) is designed for standard glass.

Section 03: Glass Inspection Conveyor with a Conveniently Openable Rear Door.

Section 04: Tilting table designed for the efficient and precise manual application of the Super Spacer.

Section 05: Expertly incorporate Georgian bars with unmatched precision and ease.

• 💎

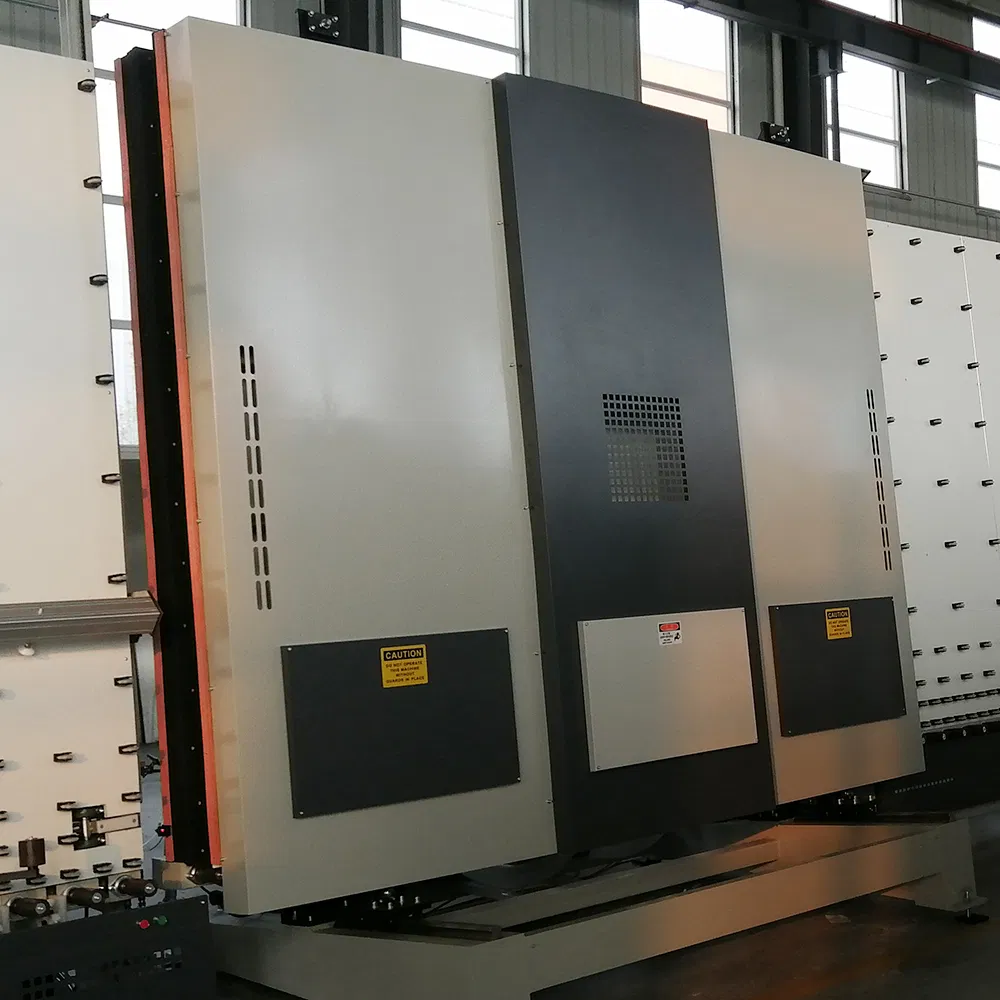

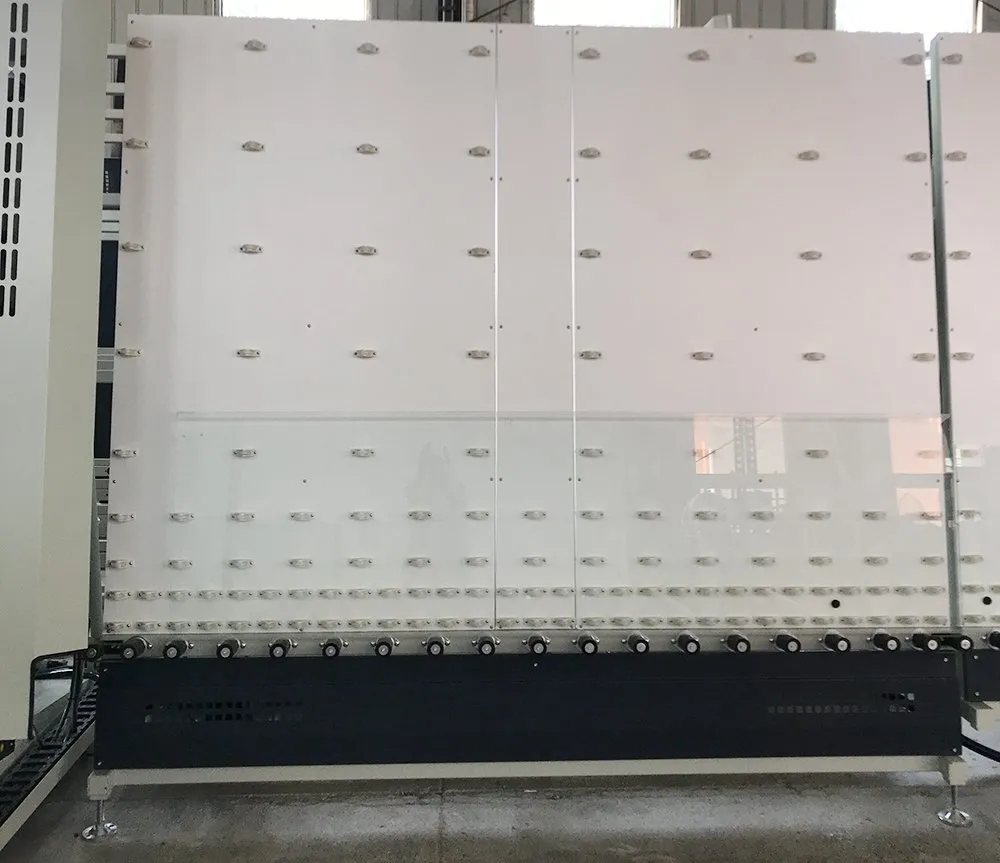

  Servo Motor Control: The panel press is expertly controlled by a state-of-the-art servo motor for maximum precision.
• 💎
  Dual-Layer Design: The front pressing plate features an innovative dual-layer steel frame for perfect flatness adjustments.
• 💎
  Logic Valve System: Each suction cup is fitted with an independent logic valve, enabling partitioned operation tailored to the glass size.
• 💎
  Argon Gas Infusion: Effortless and fully automatic inflation from the bottom for double and triple IGUs.
