Advanced Glass Polishing Tool Set for Home and Business

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	10-15 m/min

Send Inquiry

Product Description

Basic Specifications

Processing Thickness

3-19 mm

Voltage

380V, 220V, 415V, 600V

Warranty

One Year

Size of Machine

4100*2650*2200mm

Processing Size

2500*1500mm

Weight

2600kg

Main Spindle

11kw

Drive

Delta

Main Function

Grinding and Polishing

Tool Magazine

5 PCS

Production Capacity

50 Sets Per Month

HS Code

8464201000

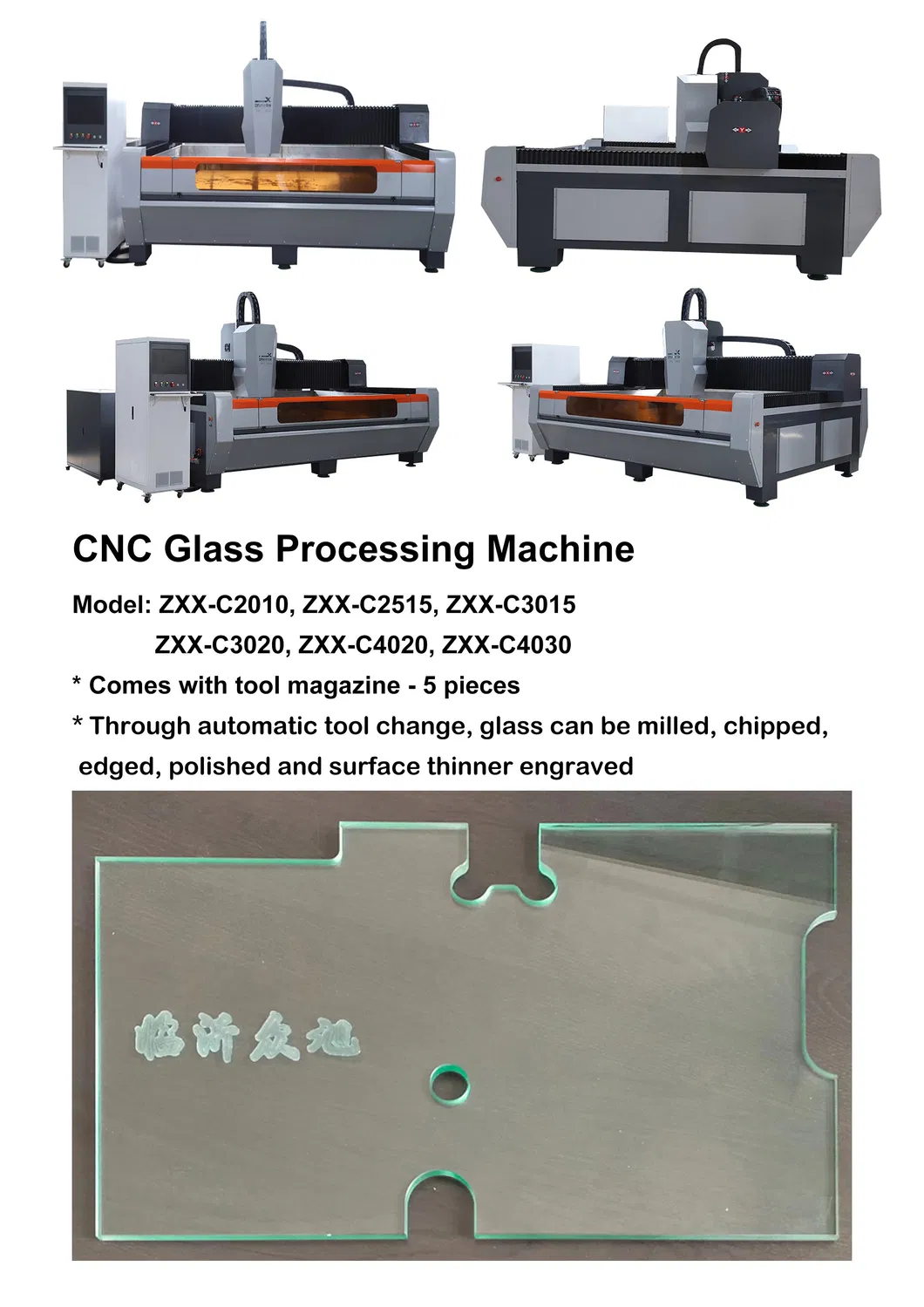

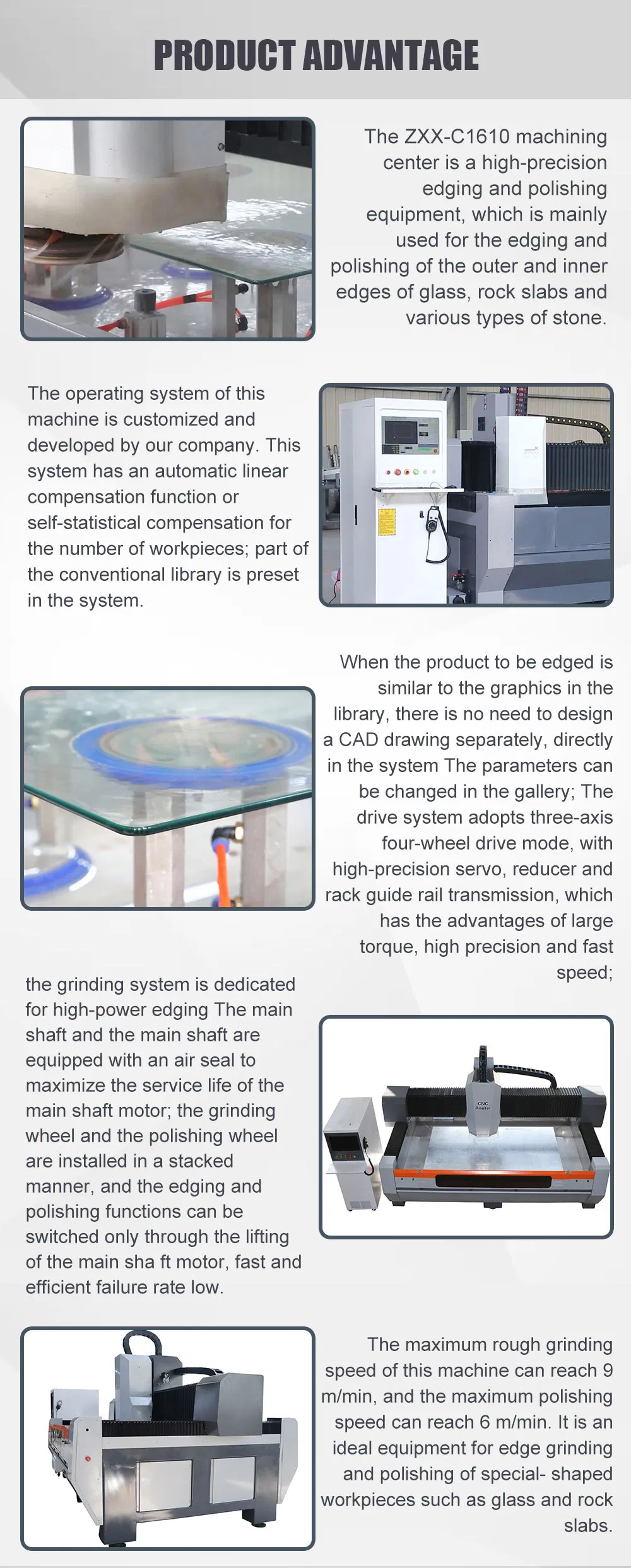

Advanced CNC Glass Machining Center

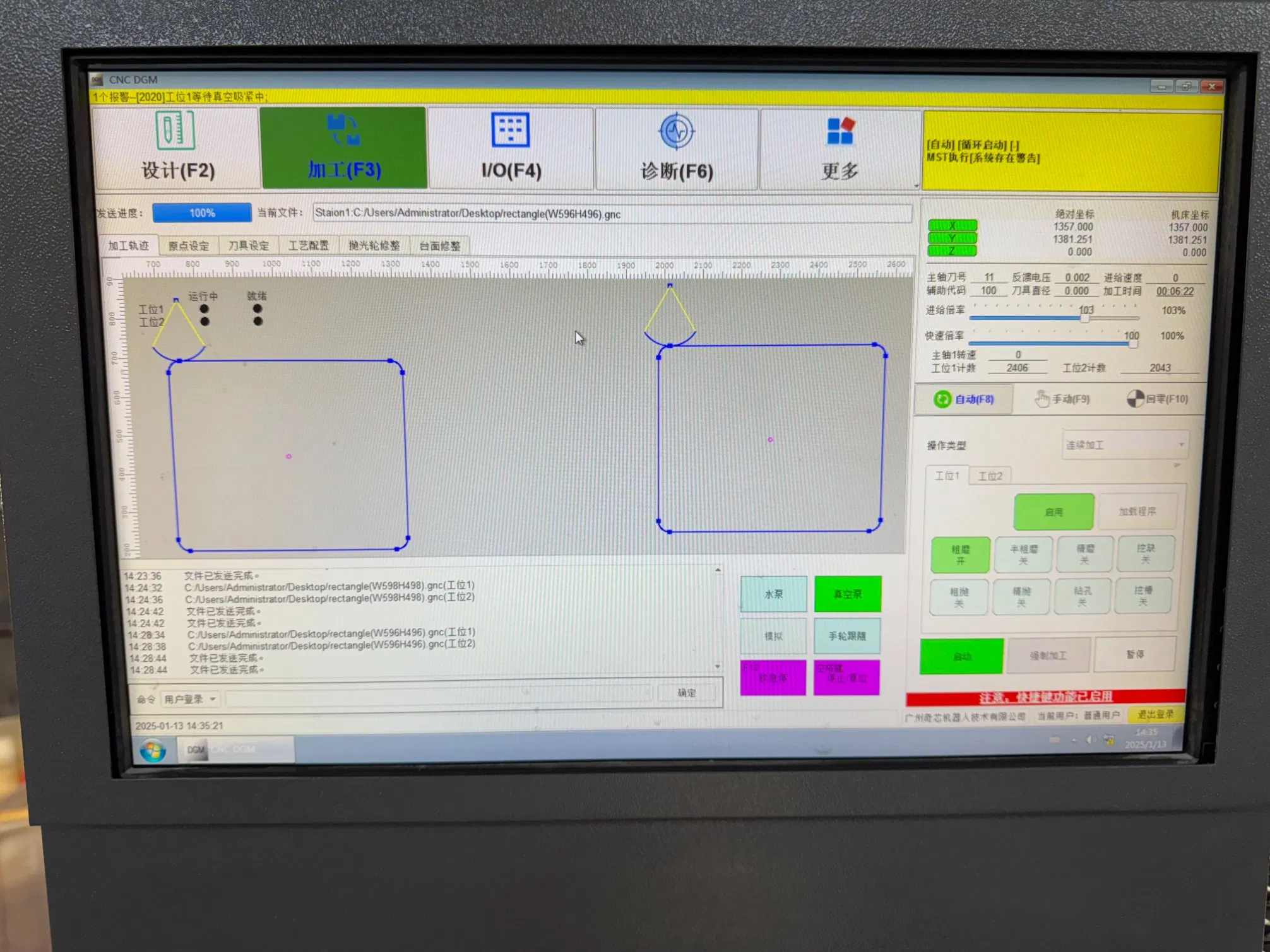

The PC based numerical control work center is dedicated to the glass processing. Cutter heads can be moved left and right, up and down through the three-axis linkage structure controlled. The base, the columns & beams are made of Heavy iron to ensure the stability of the machine for long-term operation.

The drive adopts servo motor, and the sliding adopts imported high-precision linear guide rail to ensure running, slider and ball screw, which ensures the accuracy requirement during operation.

Key Features & Advantages

⚙️

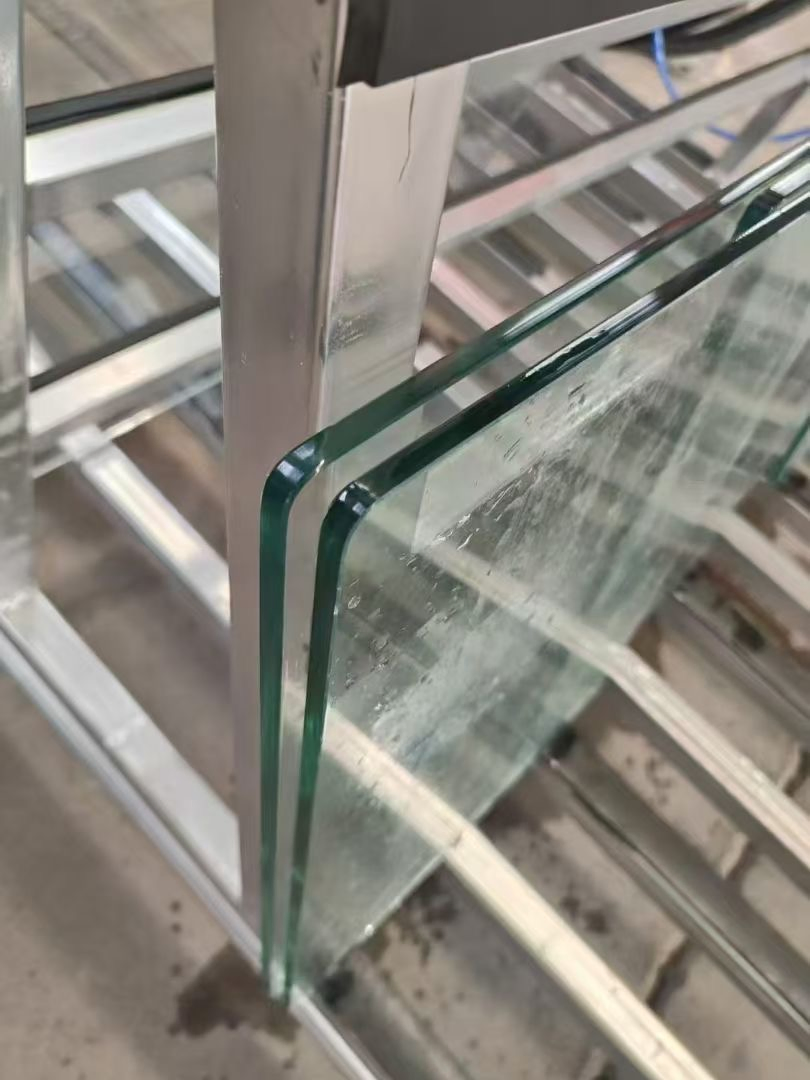

Automated Processing: Fully automated glass processing center for rough edging, fine edging, and polishing.

🔧

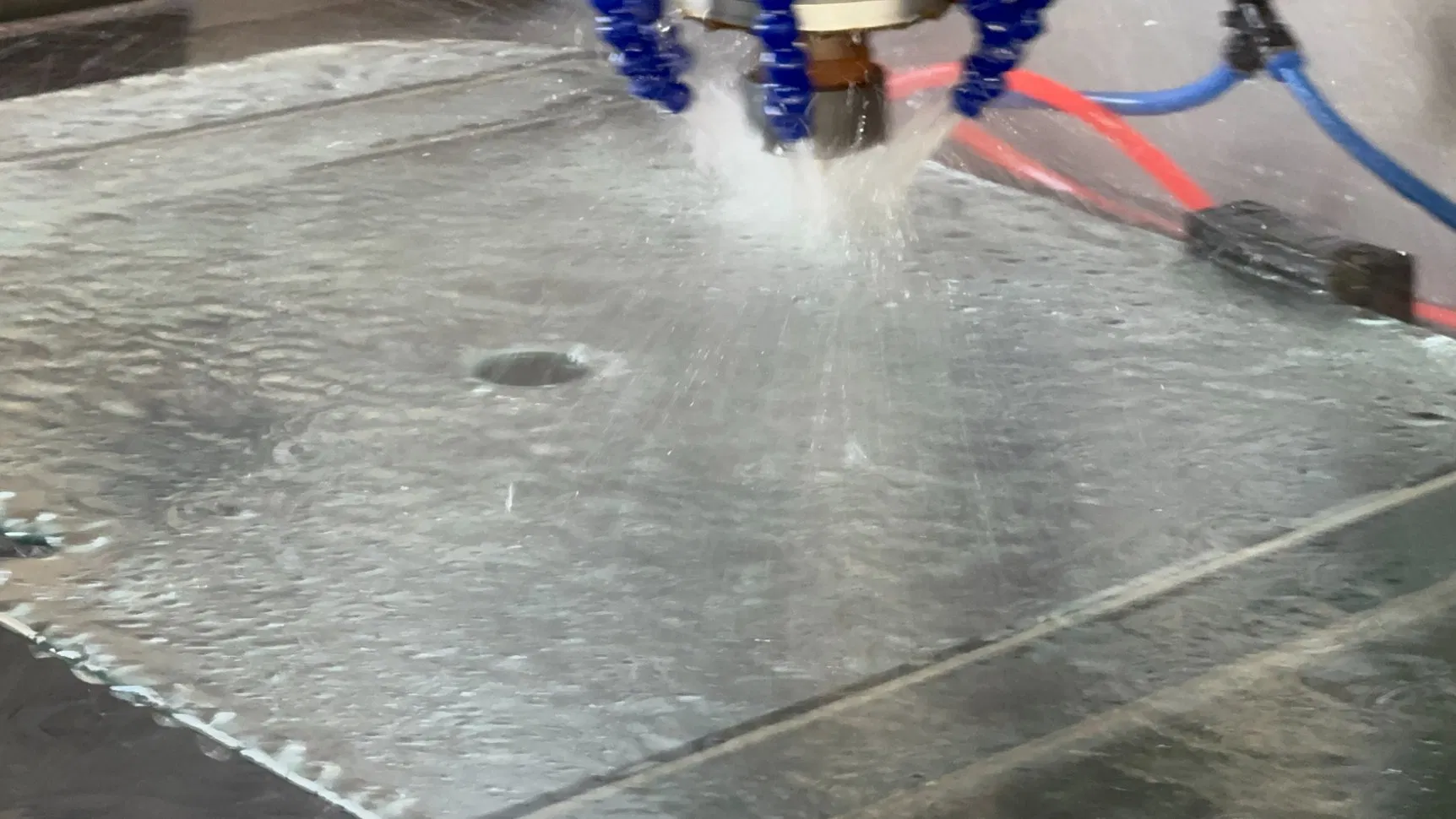

Multi-Functional: High-performance glass drilling and glass milling capabilities integrated.

🔄

Smart Systems: Features automatic tool changing (5 PCS) and tool calibration systems.

💧

Maintenance: Equipped with automatic spindle cooling and a central lubricating system.

📐

Precision Design: Compact, space-effective design with extremely robust structural integrity.

🚗

Versatile Application: Excellent solution for glass doors, shower doors, and automotive glass production.

Technical Parameters

Model No.	ZXX-C2515
Machine Bed	Heavy heat treatment bed
Internal Structure	Half Cover / Waterproof design
Main Spindle	Power: 15kw, RPM: 12000, Water Cooling
Work Travel	2500 * 1500 * 380 MM
Max Grinding Size	2350 * 1350 MM
Speed	Grinder < 15M/MIN, Polish < 6M/MIN
Table Material	Aluminium Plate
Position Accuracy	0.1mm
Total Power	24 kw

Packaging & Delivery

Package Size

220.00cm * 320.00cm * 150.00cm

Gross Weight

200.000kg

Transport Package

Standard Export Package

Product Gallery

Frequently Asked Questions

1. What range of glass thickness can this CNC machine process?

The machine is designed to handle glass thicknesses ranging from 3mm to 19mm, making it suitable for a wide variety of industrial applications.

2. Does the machine support automatic tool changes?

Yes, it features a fully automated tool changing system with a magazine capacity of 5 PCS, allowing for seamless transitions between grinding, milling, and polishing.

3. What are the primary functions of the ZXX-C2515 model?

This machining center is multi-functional, capable of performing rough edging, fine edging, polishing, glass drilling, and milling in one setup.

4. How is the accuracy of the machine maintained during operation?

The machine utilizes Delta servo motors and imported high-precision linear guide rails along with ball screws, ensuring a positioning accuracy of 0.1mm.

5. What type of cooling and lubrication systems are integrated?

It includes an automatic water-cooling system for the main spindle (capable of 12,000 RPM) and an automatic central lubricating system to ensure longevity and smooth operation of all moving parts.

6. What industries is this machining center best suited for?

It is an excellent solution for enterprises specializing in glass deep processing, particularly for producing glass doors, shower enclosures, and automotive glass.
