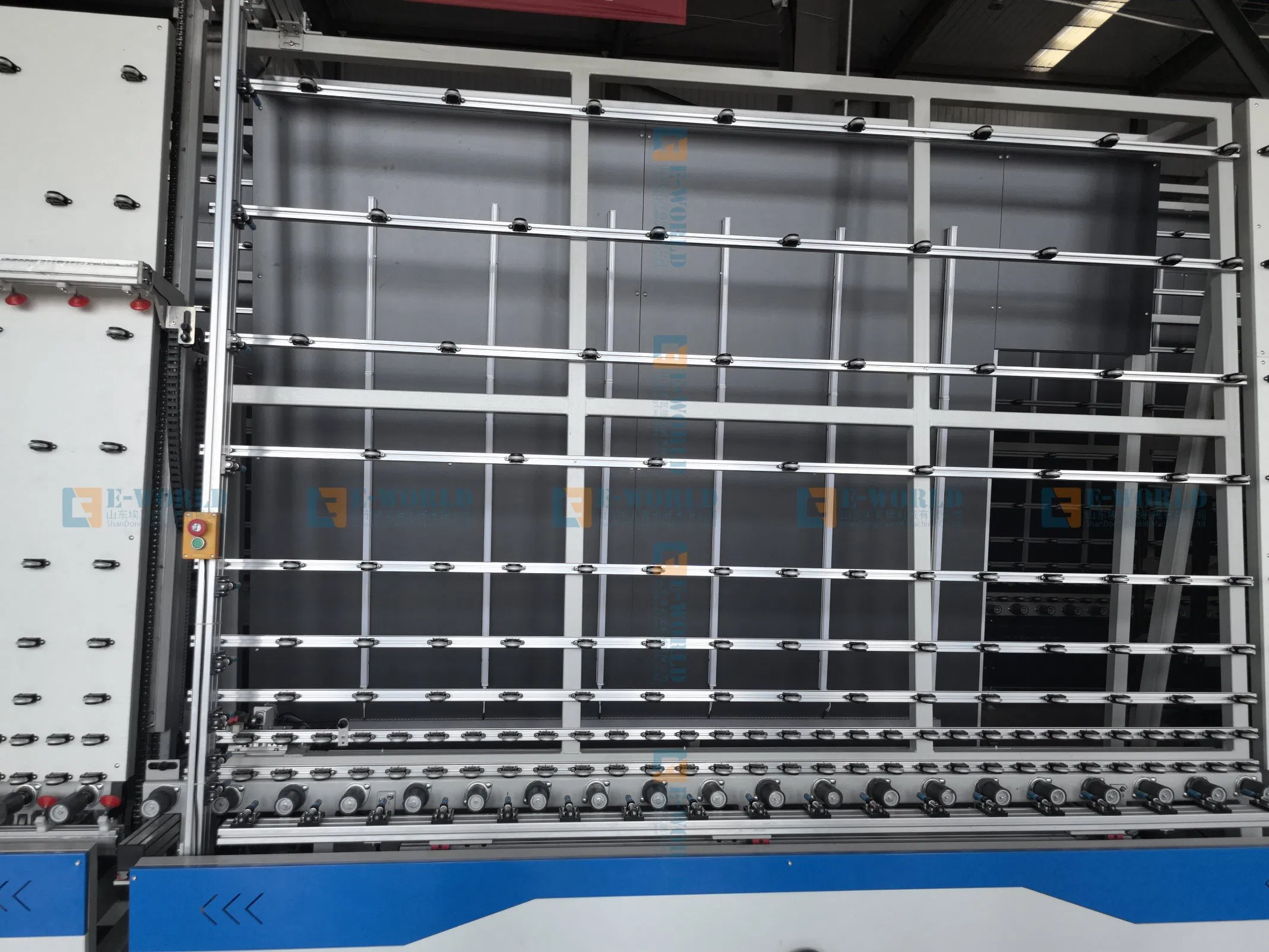

Advanced Igu Insulating Glass Production Line for Efficient Washing and Drying

Customization:	Available
After-sales Service:	on Line
Warranty:	One Years

Send Inquiry

Product Description

Basic Information

Certification:GS, CE, RoHS, ISO 9001

Usage:Woodworking, Metal, Plastic, Glass, Stone, Rubber, Mould

Current / Power:AC / Small Power

Control System:Automatic PLC Control

Drive Type:Hybrid Servo Drive

Max Working Size:1800*2500mm

Single Glass Thickness:3-12mm

Washing Speed:0-8m/Min

Production Cycle:30-40 Seconds

Brusher System:3 Paris (Rough & Fine)

HS Code:8464201000

Package:Wooden Box

Product Description

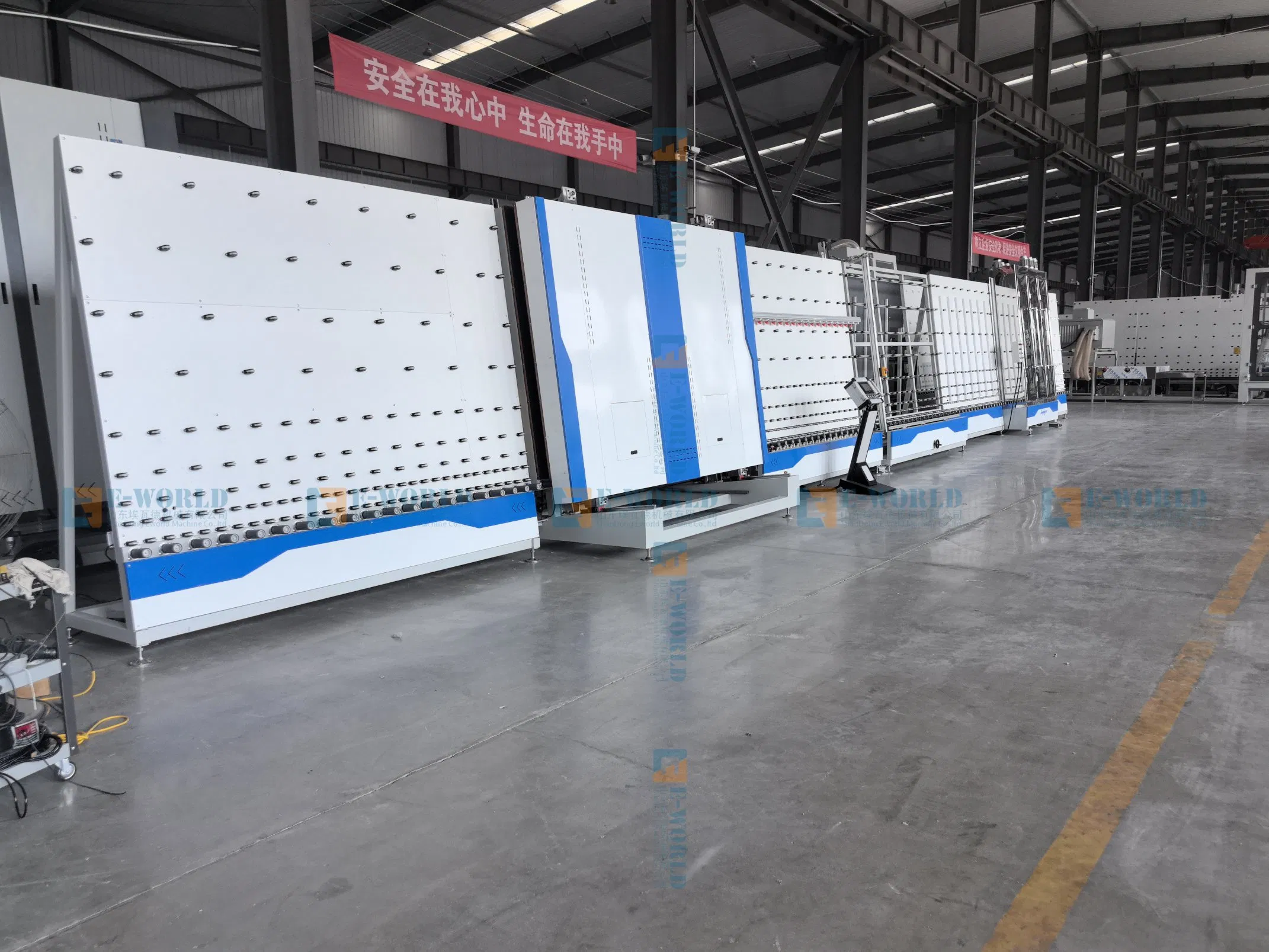

The IGU Professional Insulating Glass Production Line is essential equipment for aluminum groove type insulating glass production. It is capable of manufacturing two-layer and three-layer insulating glasses, including stepped glass and shaped glass, with both equal and unequal glass sheets.

Fully controlled by PLC system with easy, humanized operation.

Touch screen interface for seamless transfer between automation and manual modes.

Self-diagnosis system for high user convenience.

Automatic identification of LOW-E and coated glass films.

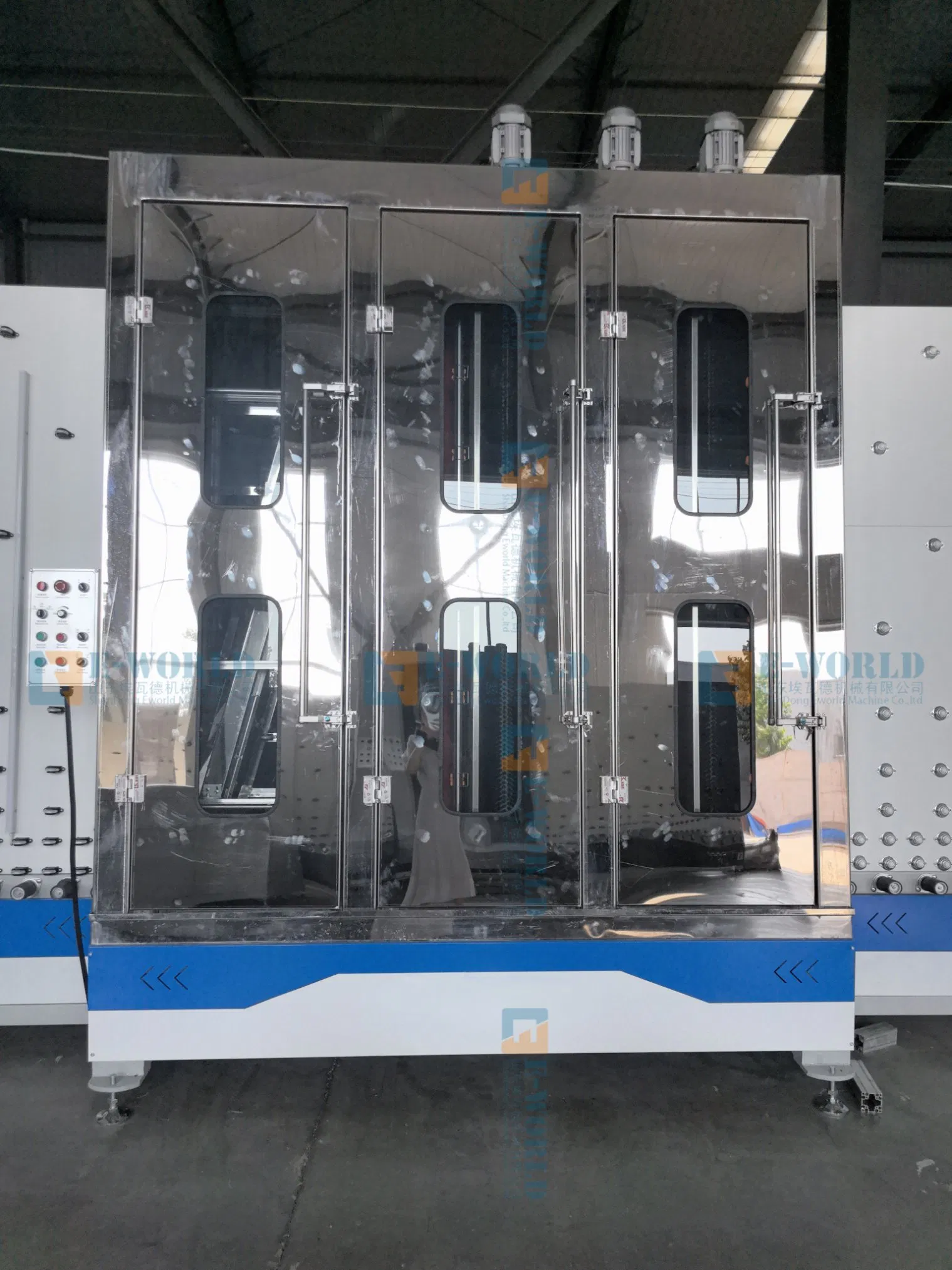

Stainless steel washing part with tempered glass monitoring doors.

Energy-saving interrupted system for the washing machine.

Unique water nozzle design for fast and easy maintenance.

Integrated heating system for water and air when temperature is below 7°C.

Automatic assembly inside the press machine with expanded joint connections.

Technical Parameters (Model Comparison)

Specification	Line 1800	Line 2000	Line 2200	Line 2500
Max working size	1800*2500mm	2000*3000mm	2200*3500mm	2500*3500mm
Min working size	300*500mm	400*300mm	400*600mm	400*600mm
Single Glass Thickness	3-12mm	3-12mm	3-12mm	3-12mm
Washing Speed	0-8m/min	0-8m/min	0-8m/min	0-8m/min
Brusher Pairs	3 pairs	4 pairs	4 pairs	4 pairs
Air Pressure	1.0Mpa	0.7Mpa	1.0Mpa	1.0Mpa

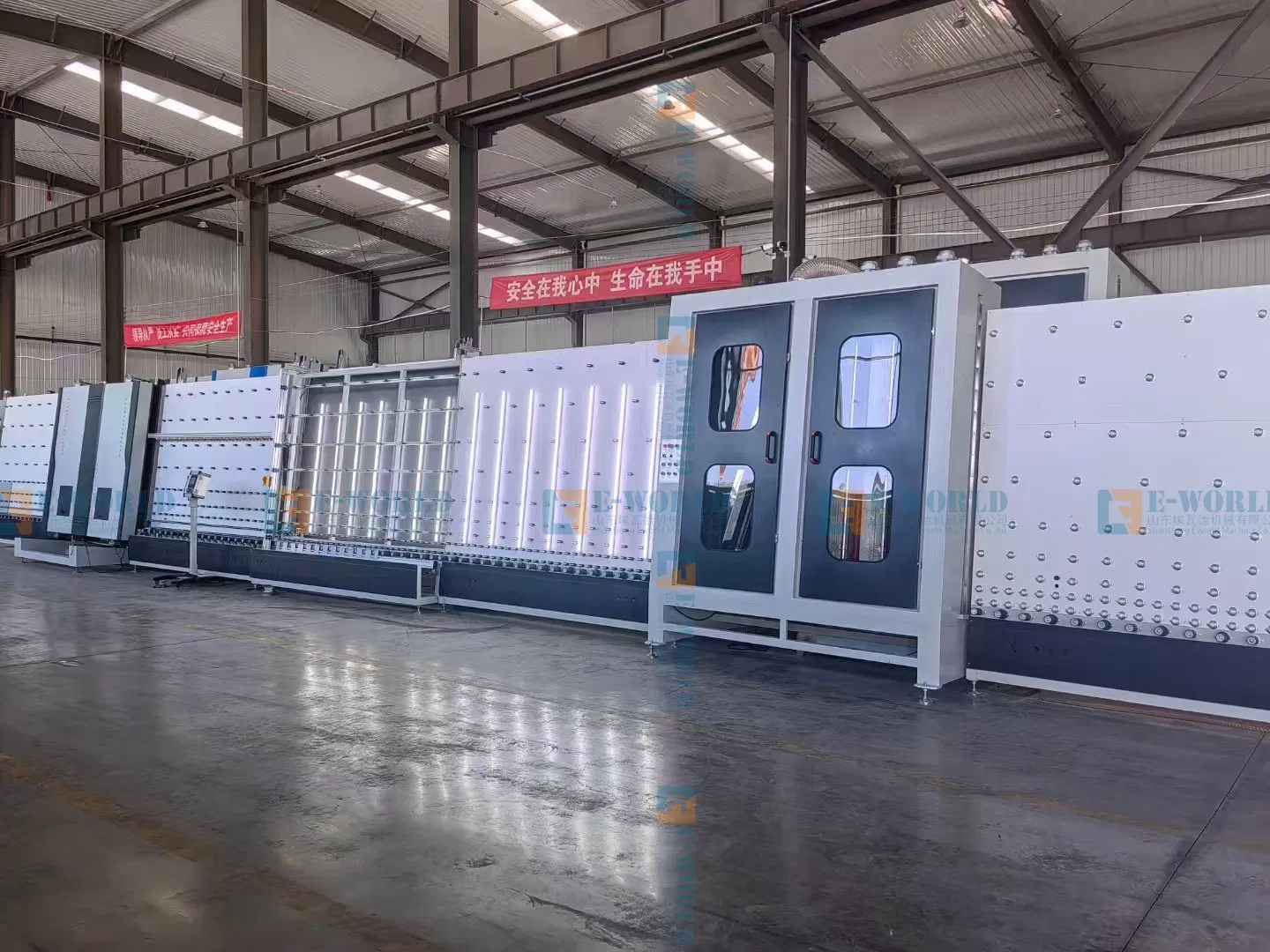

Production Process Overview

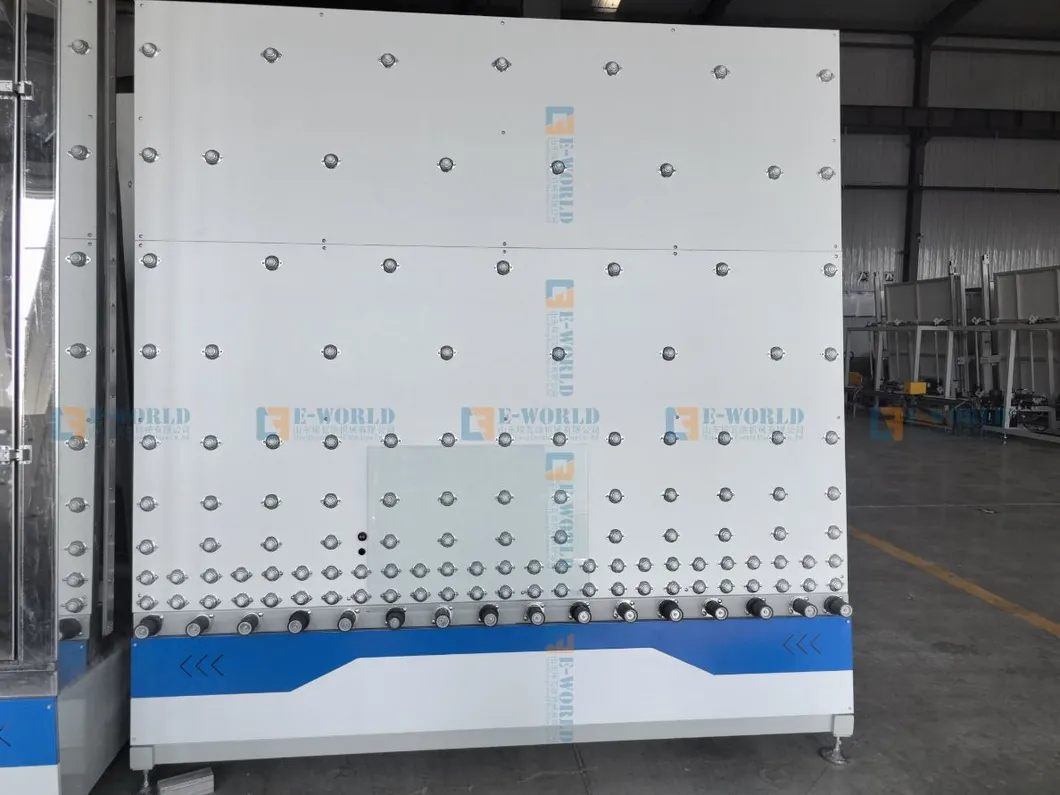

1. Input Section: Prepared glass is loaded. Manual lifting for small glass, lifter for large sheets.

2. Washing & Drying: Automatic transfer for high-efficiency cleaning and rapid drying.

3. Inspection: Lamp-assisted check to ensure glass purity before assembly.

4. Frame Positioning: Aluminum frame placement followed by automated transfer.

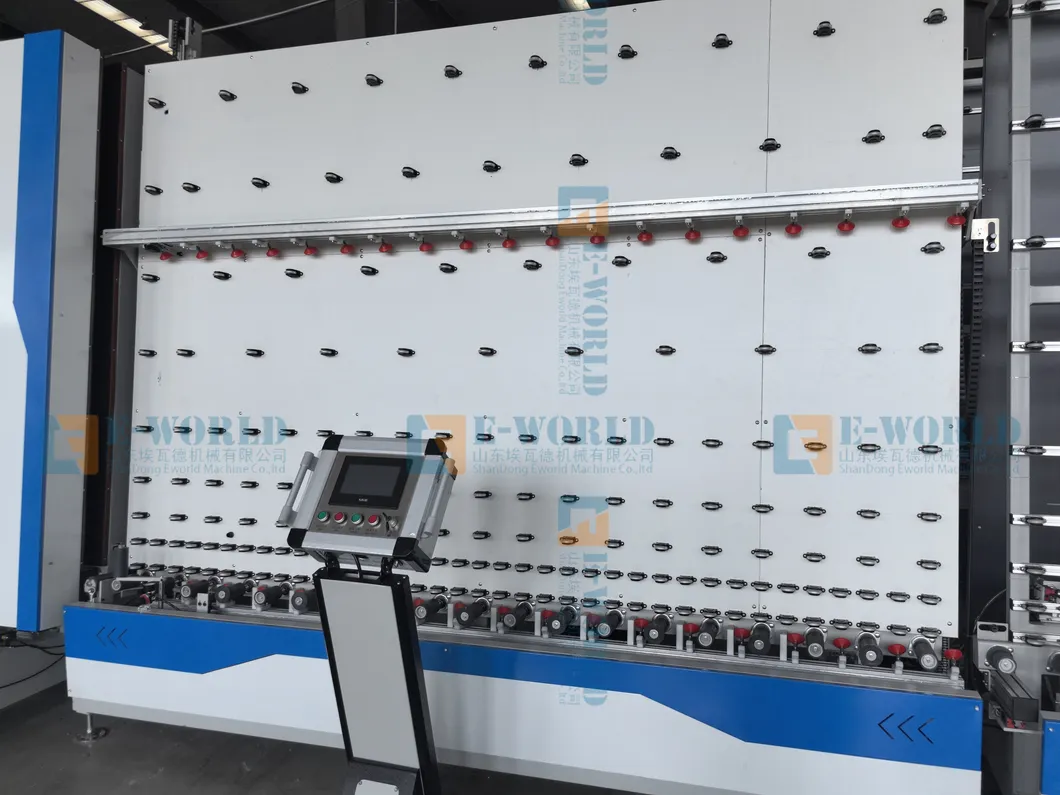

5. Outer Joint: Alignment and preliminary pressing of the dual glass sheets.

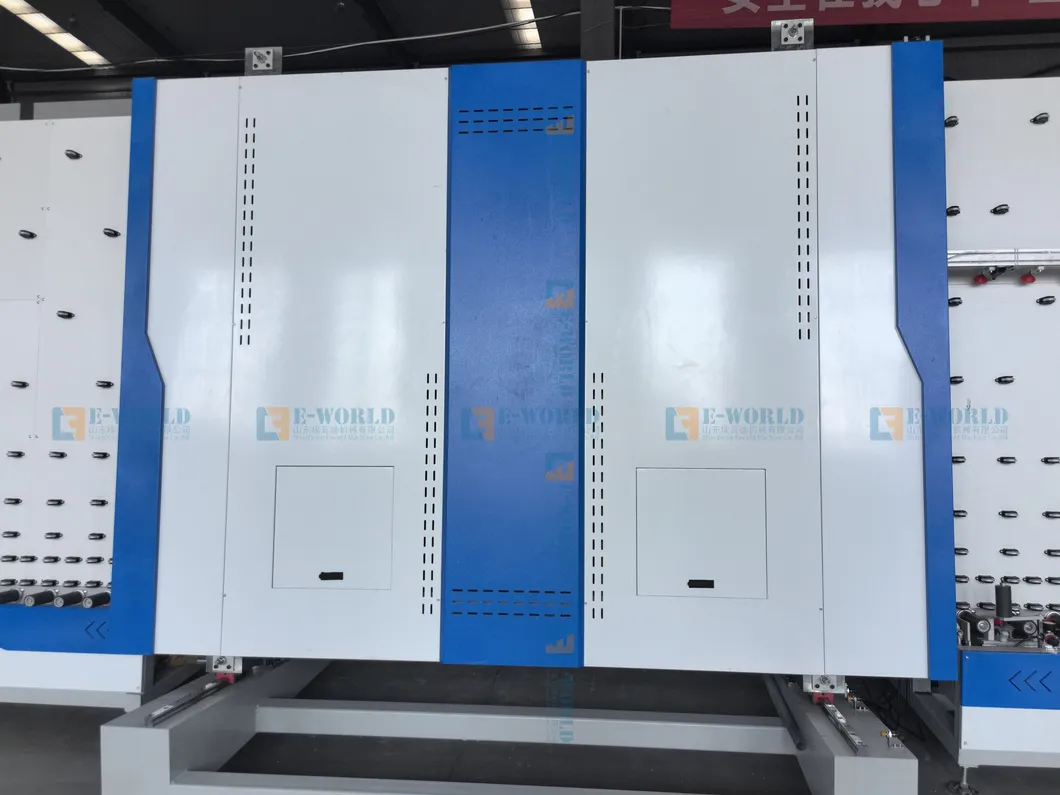

6. Final Pressing: Heavy-duty pressing to secure the insulating glass structure.

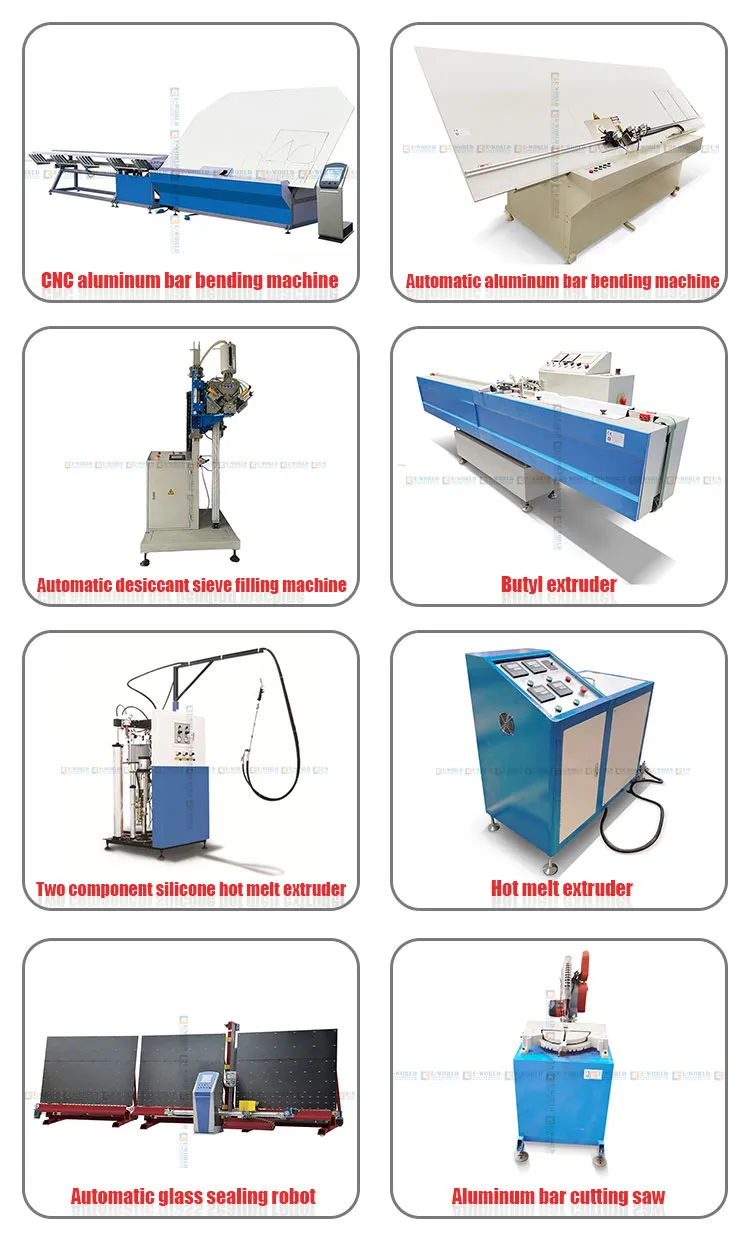

Auxiliary Equipment & Details

Frequently Asked Questions

What is the warranty period for the machinery?

The standard guarantee is 18 months. We also provide a 2-year quality guaranty for the machine (excluding consumables) and lifetime technical support.

How long is the delivery lead time?

Standard machines typically take 3-15 days. For non-standard or customized machines tailored to specific requirements, the delivery time is 15 to 30 days.

Do you offer operation training and installation?

Yes, we can send professional engineers to the working site for installation, adjustment, and comprehensive operation training. All engineers are equipped with passports for international travel.

Why is your equipment more reliable than others?

We focus on high-class casting and the use of famous, reliable internal electrical components. This ensures stability and prevents common breakdowns associated with lower-quality parts.

What payment methods are accepted?

We support various payment methods for your convenience, including L/C, T/T, D/P, and West-Union.

What kind of after-sales support is provided?

We provide 24-hour after-sale service, including technical support via email or calling, English manuals, and video tutorials. Consumable parts are provided at agency prices.
