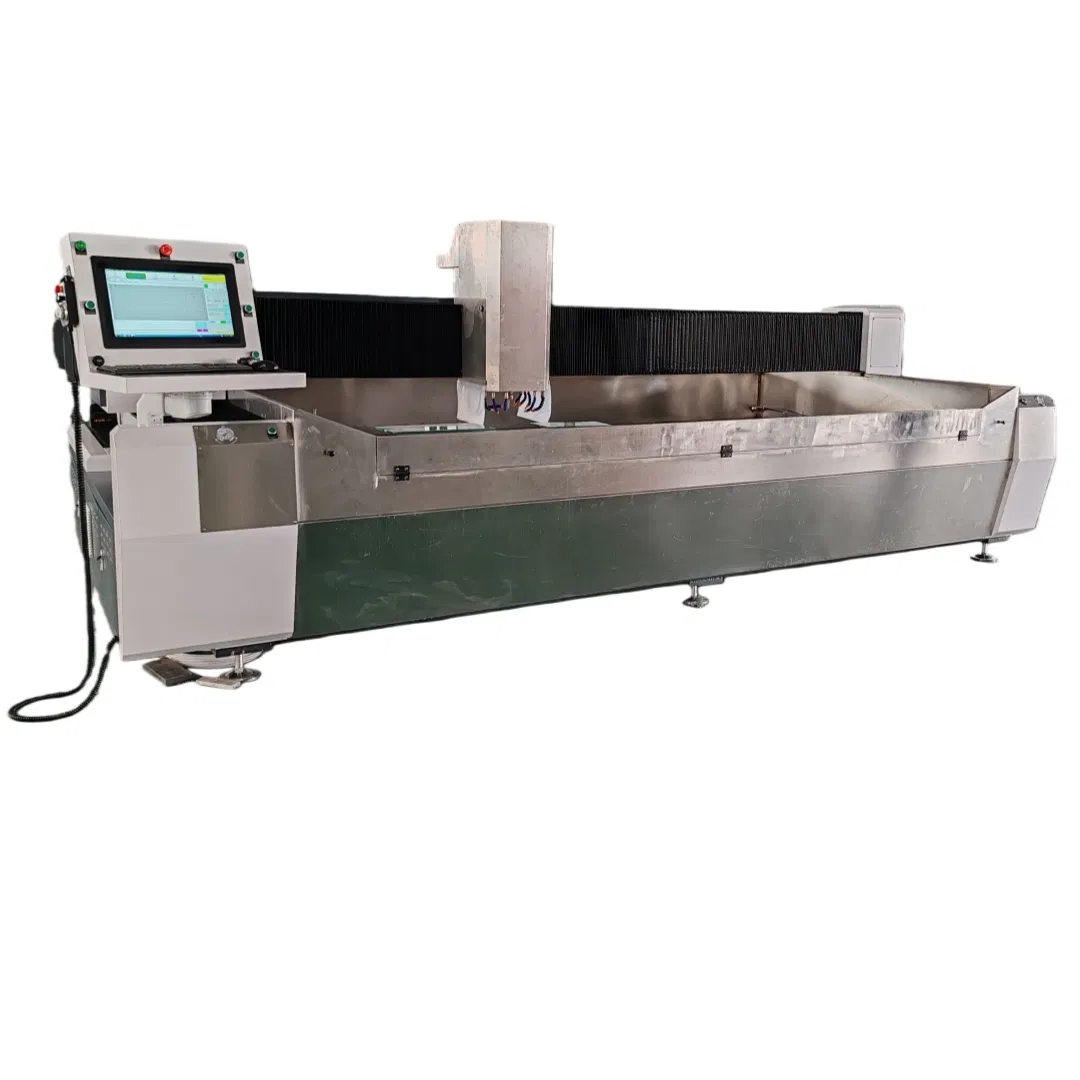

| Model NO. | HS2515 | Warranty | 1 Year |
|---|---|---|---|
| Working Area | 3000*1500mm | Equipment Size | 5200*2250*1800mm |
| Cooling System | Water Cooling | Auto or Not | Automatic Machine |
| Origin | China | HS Code | 8464201000 |
● Drilling: Circular or oval holes for hinges, handles, and accessories.
● Grooving: Slots for glass splicing, inlaying, or hardware fixing.

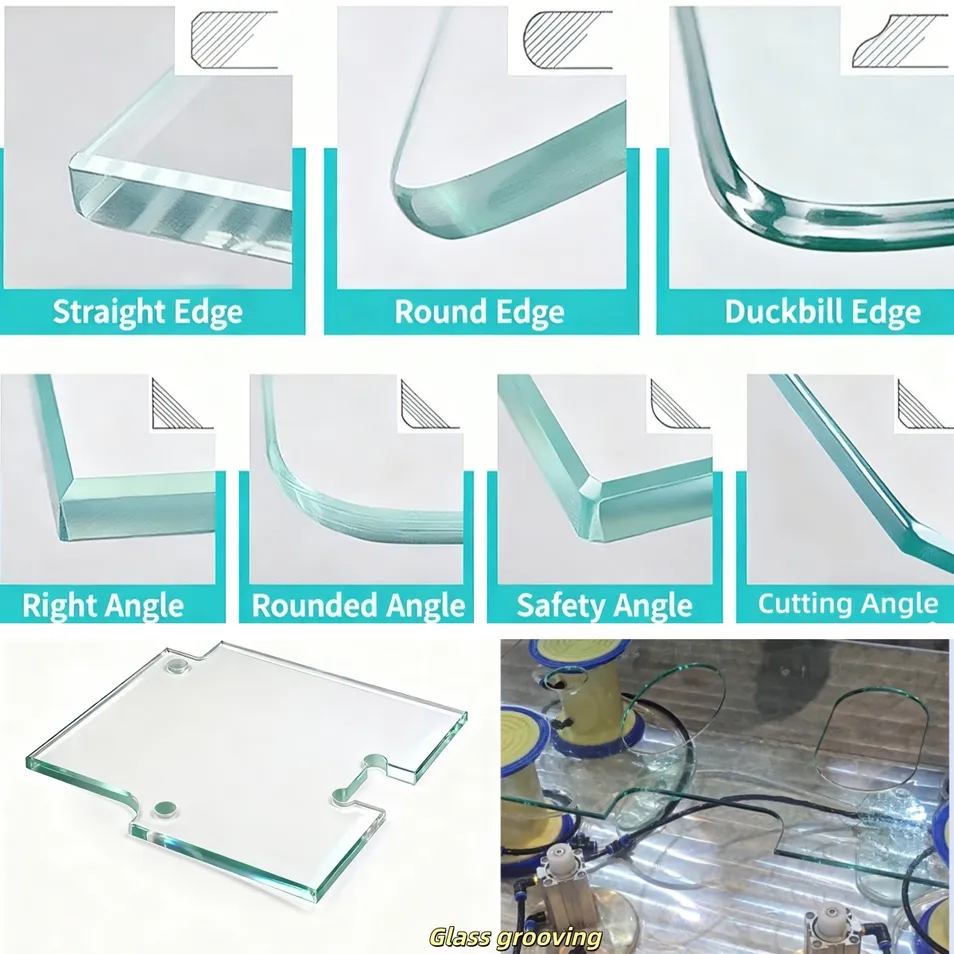

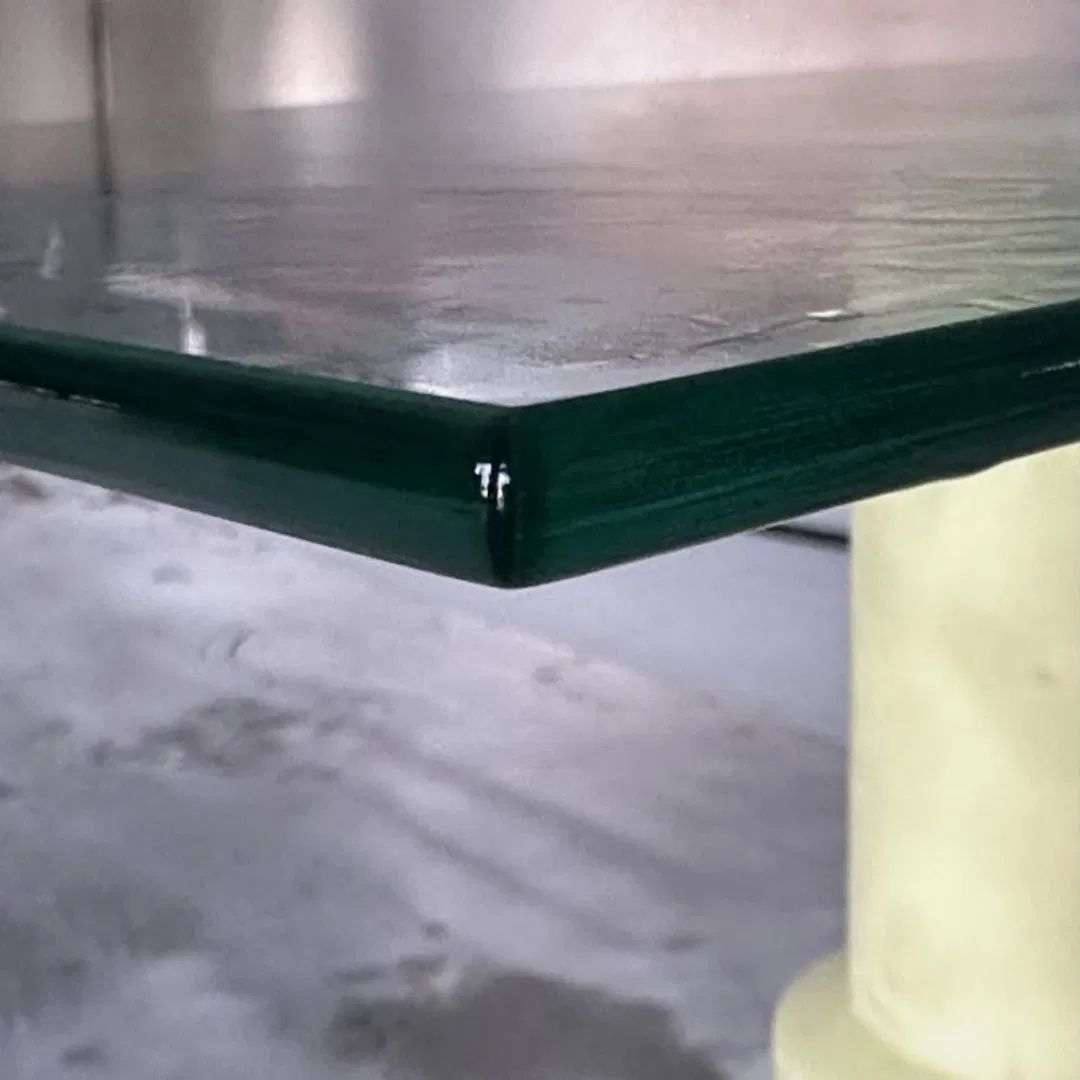

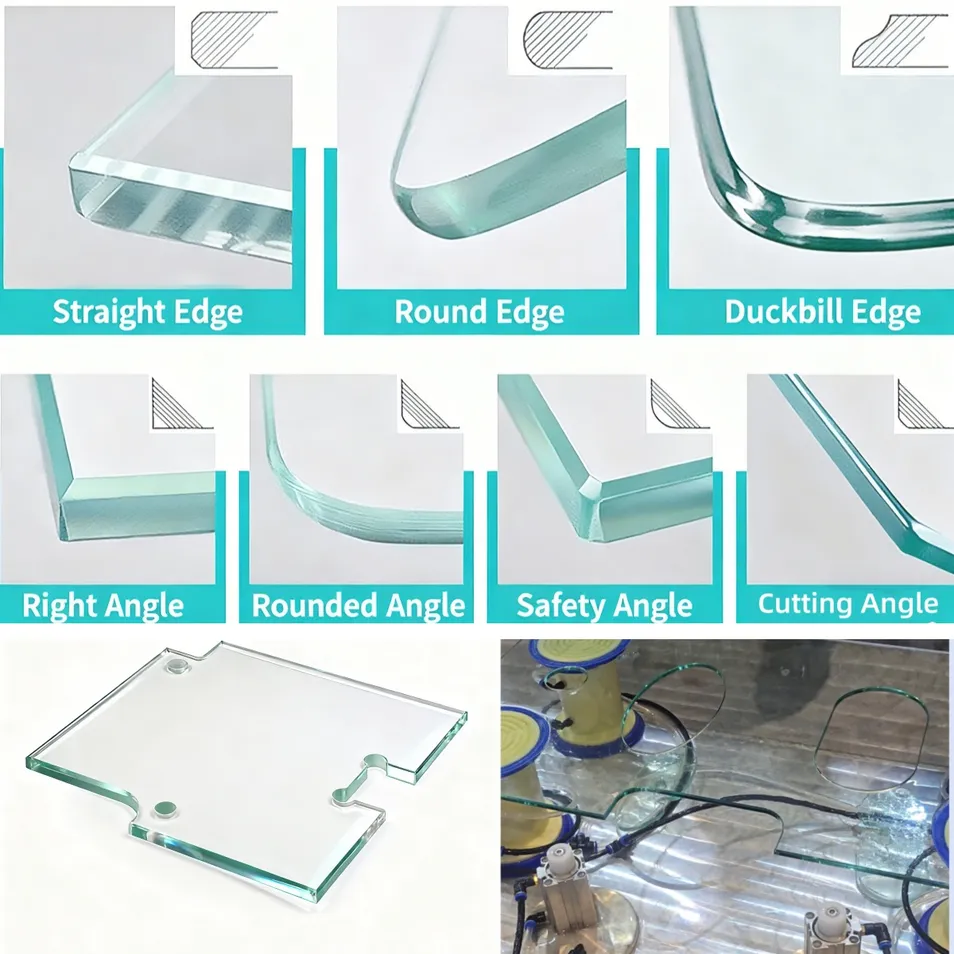

● Edge Grinding: Straight, round, bevel, and duckbill edge shaping.
● Chamfering: Corner rounding to prevent sharp edges and scratches.
● Polishing: High-gloss mirror treatment for high-end decorative glass.

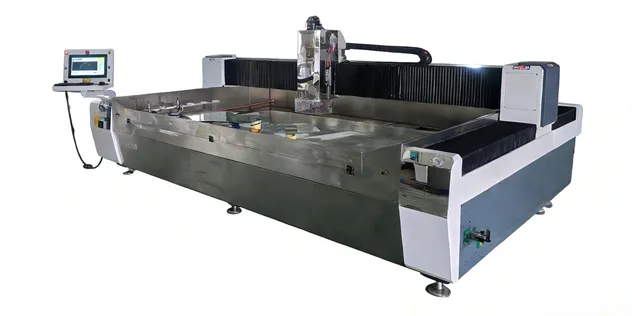

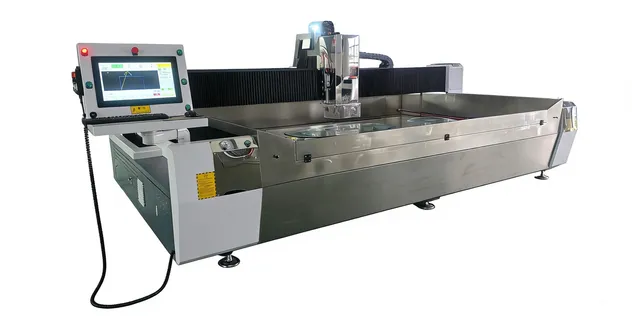

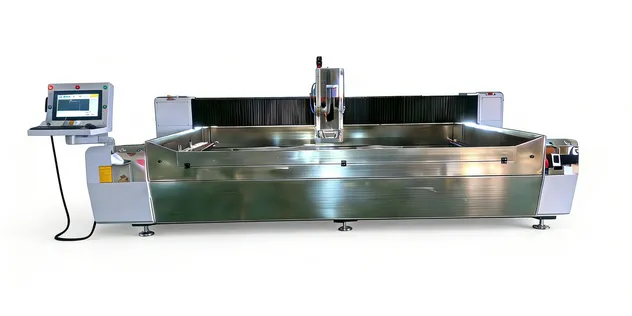

Mechanical Structure: Constructed with thick-walled square tubes, five-axis machined, and high-temperature annealed for long-term stability.
High-Power Spindle: Electric spindle with accuracy of ±0.01mm and repeatability of ±0.005mm.
Motion System: High-precision servo system with low-noise transmission components.
Corrosion Resistance: Water-contact parts are made of stainless steel to ensure a longer service life.

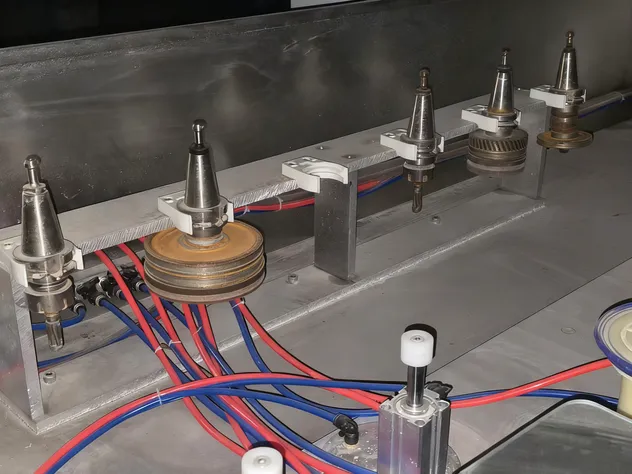

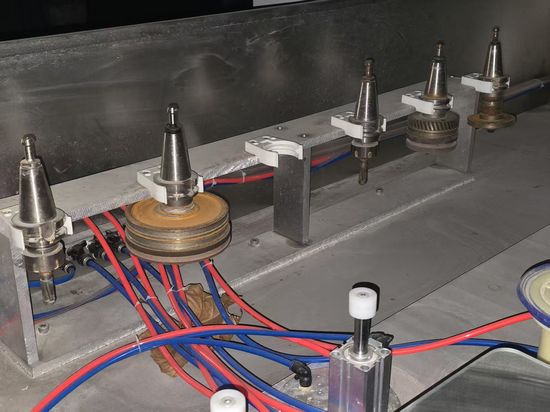

Automatic Tool Changer: Equipped with a 6-tool magazine to meet various processing requirements.
Operating System: Professional control system with a built-in image library and multiple modes.
(Custom configurations available upon request.)
| Specification | Model 2515 | Model 3015 | Model 3020 |
|---|---|---|---|
| X/Y Axis Travel | 2500*1500mm | 3000*1500mm | 3000*2000mm |
| Z Axis Travel | 350mm | 350mm | 350mm |
| Max Loading | 300KG | ||
| Spindle Power | 15KW | ||
| Positioning Precision | ±0.05mm | ||
| Glass Thickness | 2-19mm | ||
| Machine Weight | 4000KG | 4800KG | 5600KG |
Automatic Tool Changer

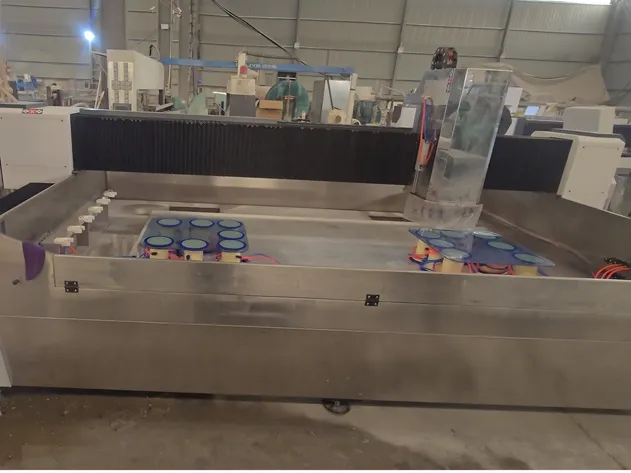

Dual Station Processing

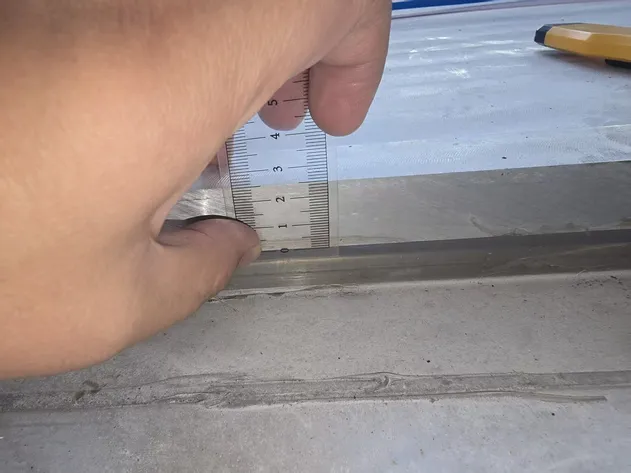

25mm Aluminum Surface

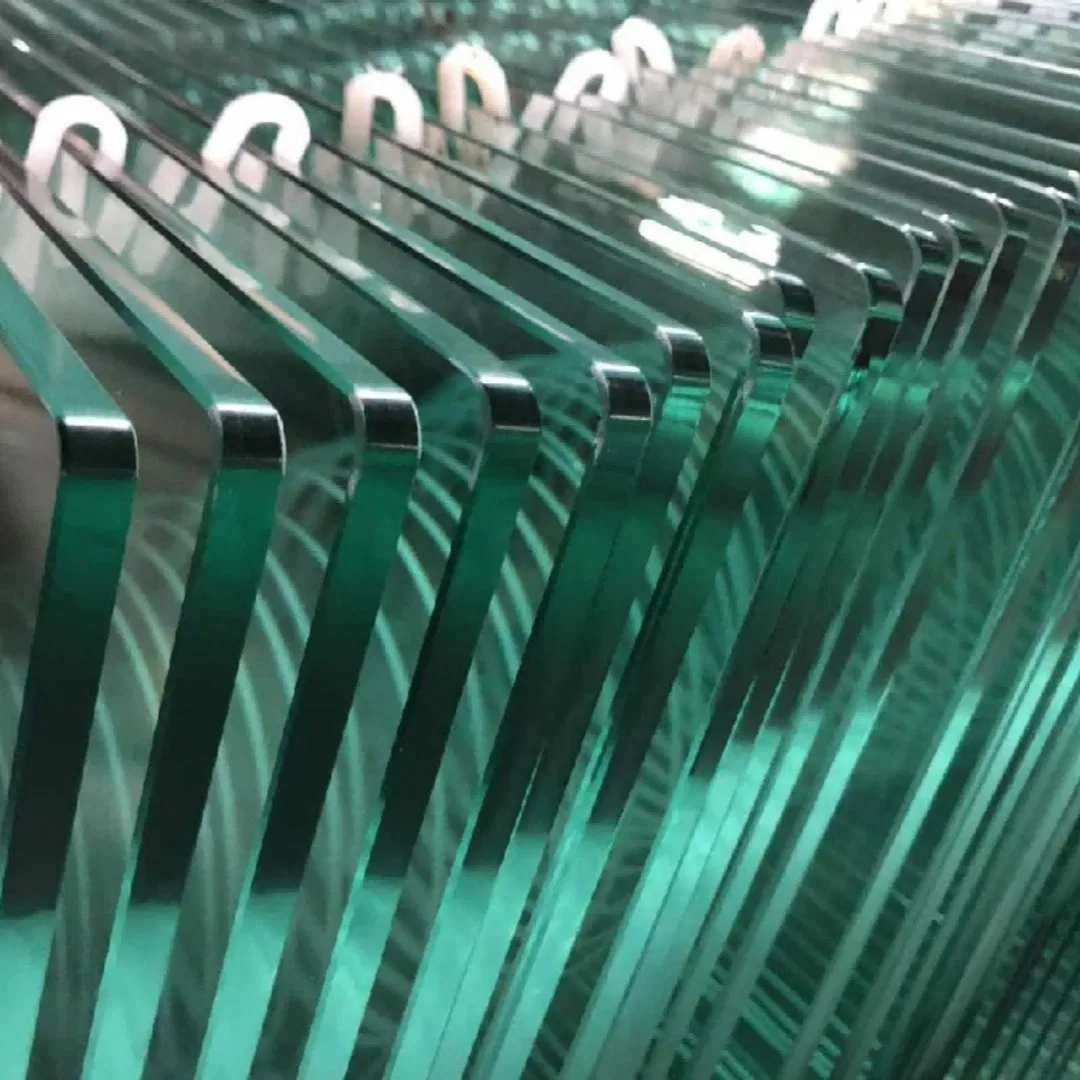

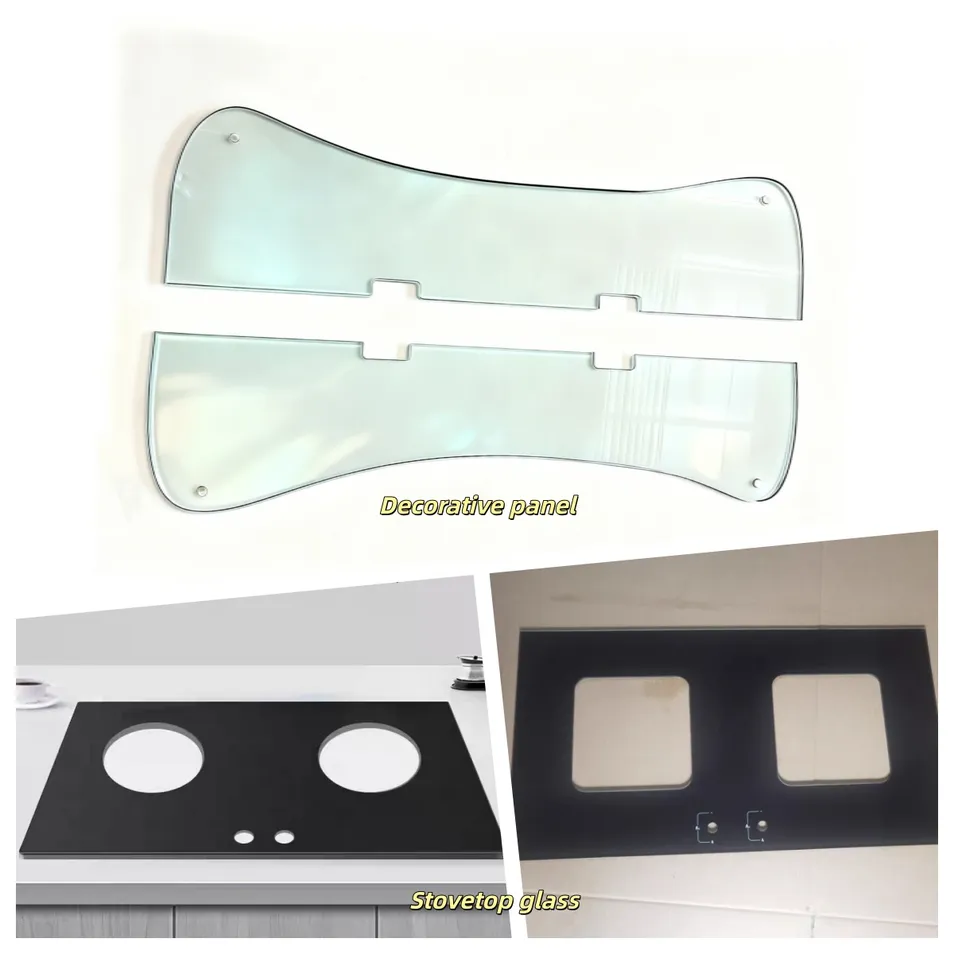

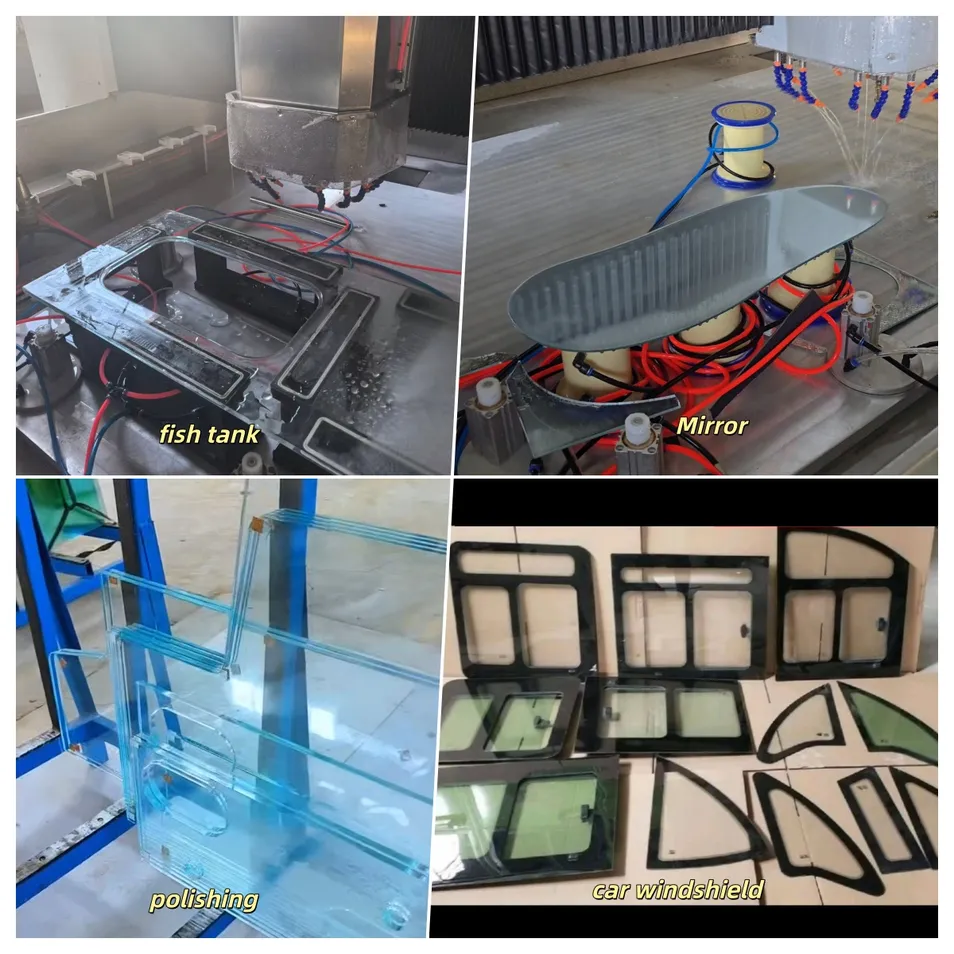

Suitable for processing furniture glass, appliance glass, glass doors, mirrors, aquarium glass, and automotive glass.

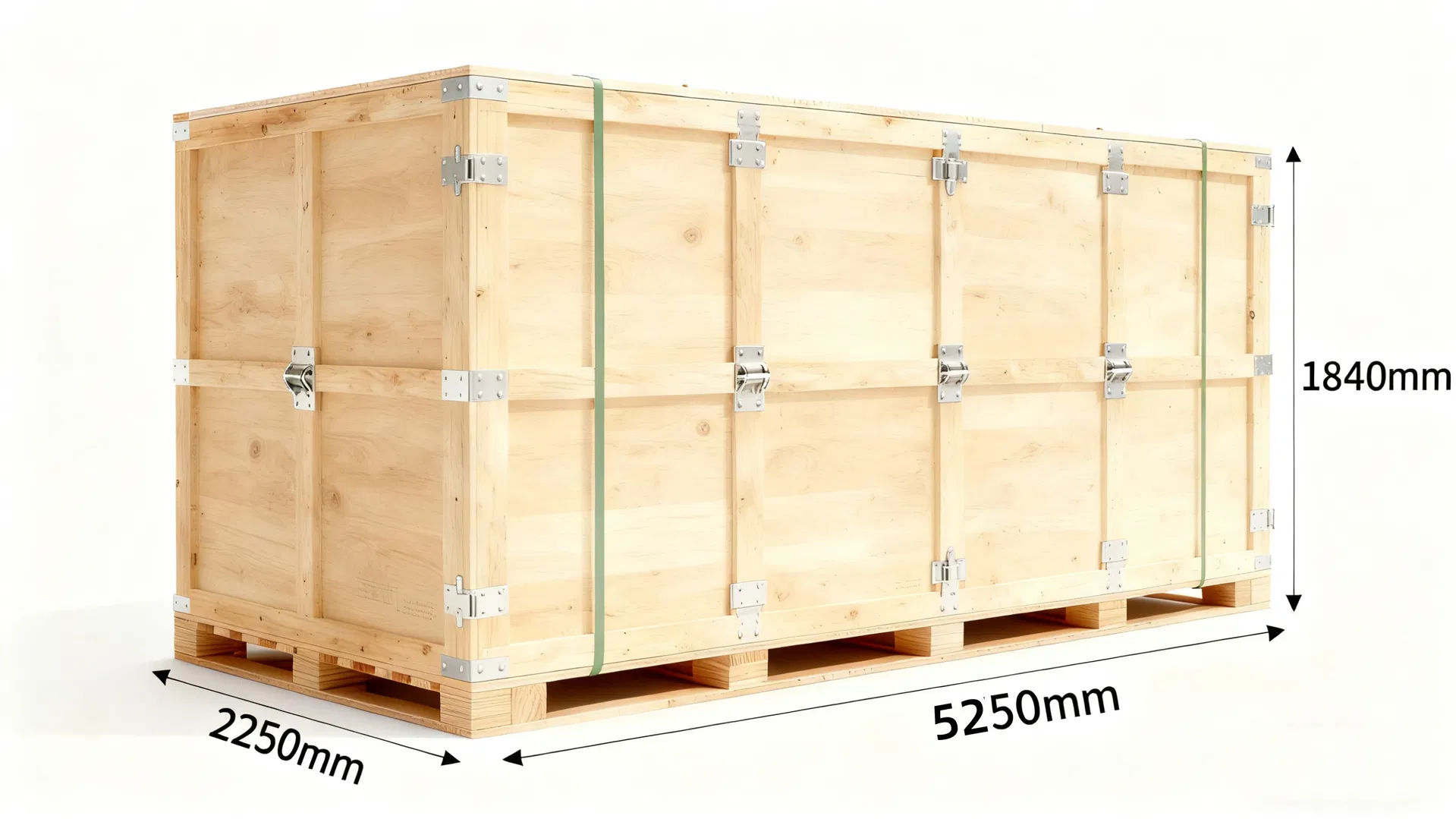

Standard machine width is controlled at 2200mm for export container loading. Large-sized machines feature a modular design for easy transport.
