Product Description

📋 Basic Information
Model NO.
WLBZ2025-CF
Power
24kw
Max. I.G. Unit Thickness
12~80mm
Working Speed
2~48m/Min
Type
Insulating Glass Production Line
Structure
Vertical
Washing Machine Type
Ultrasonic
Condition
New
Warranty
1 Year
Production Capacity
10sets/Month
⚙️ Product Description

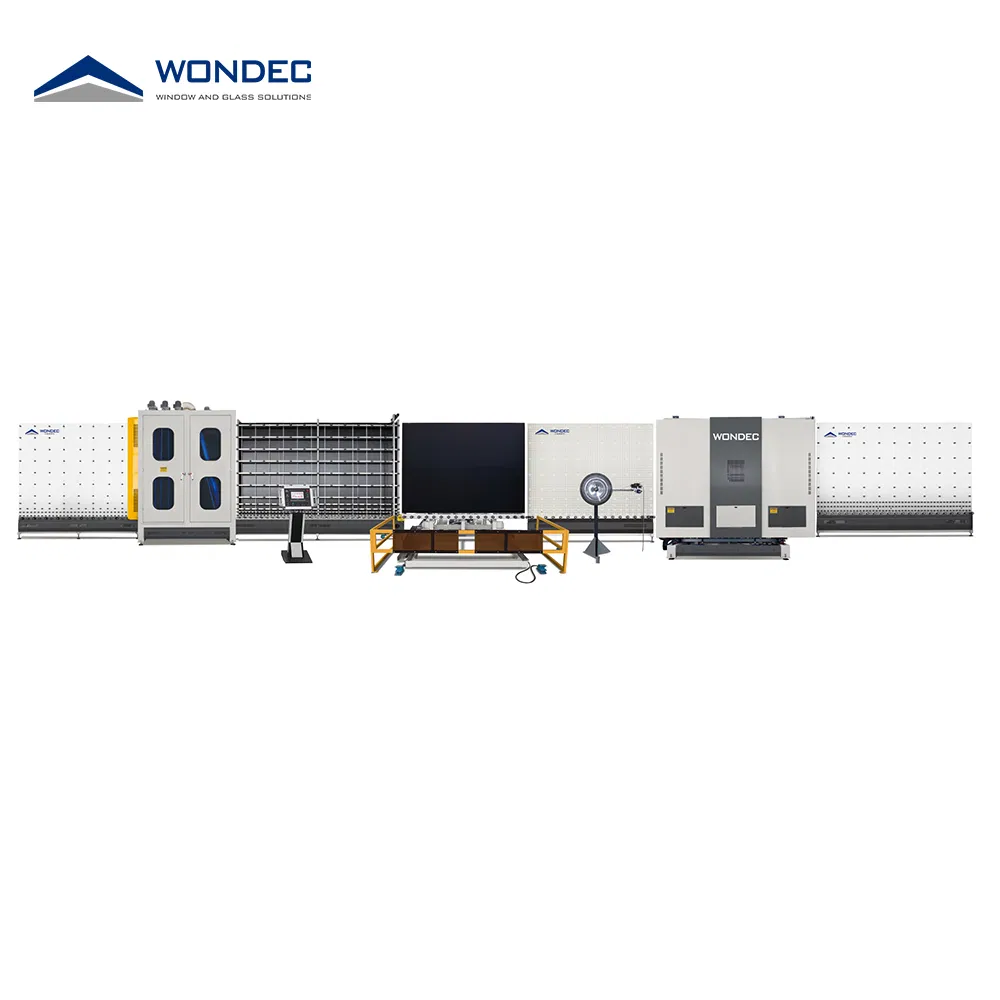

Fully Automated Vertical Warm Edge Flexible Super Spacer Automatic Hot Melt IGU line For DGU Double Glazing Insulating Glass Making

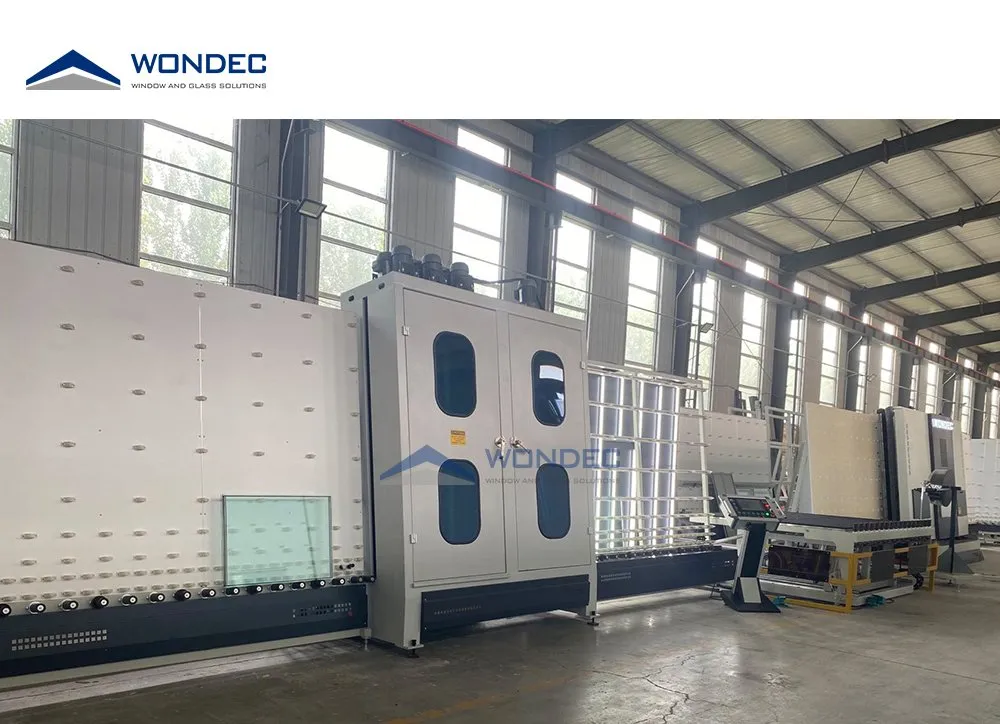

Automated IGU Line

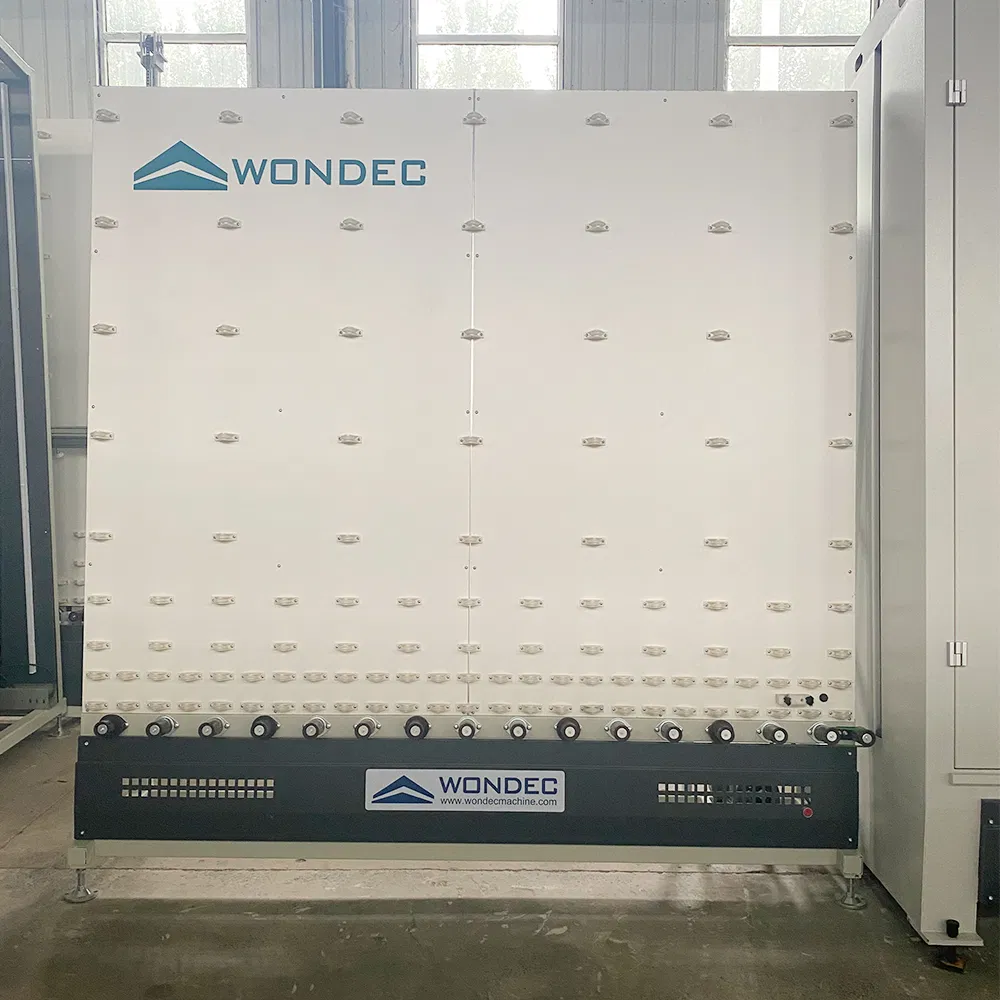

Machine Detail
Section 01: Input Conveyor
This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

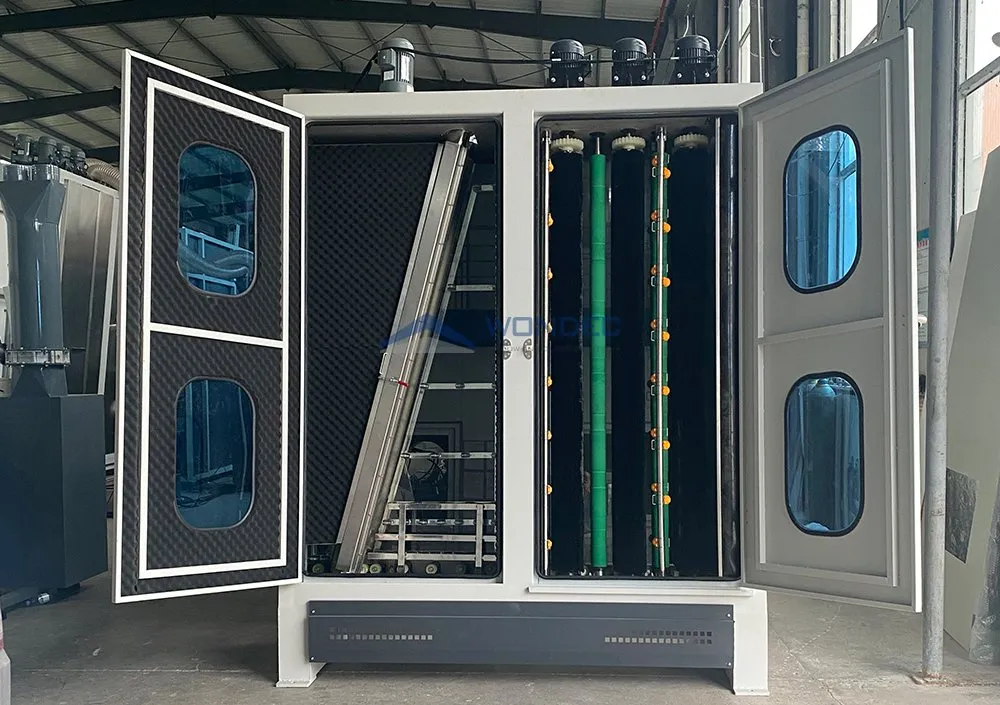

Input conveyor

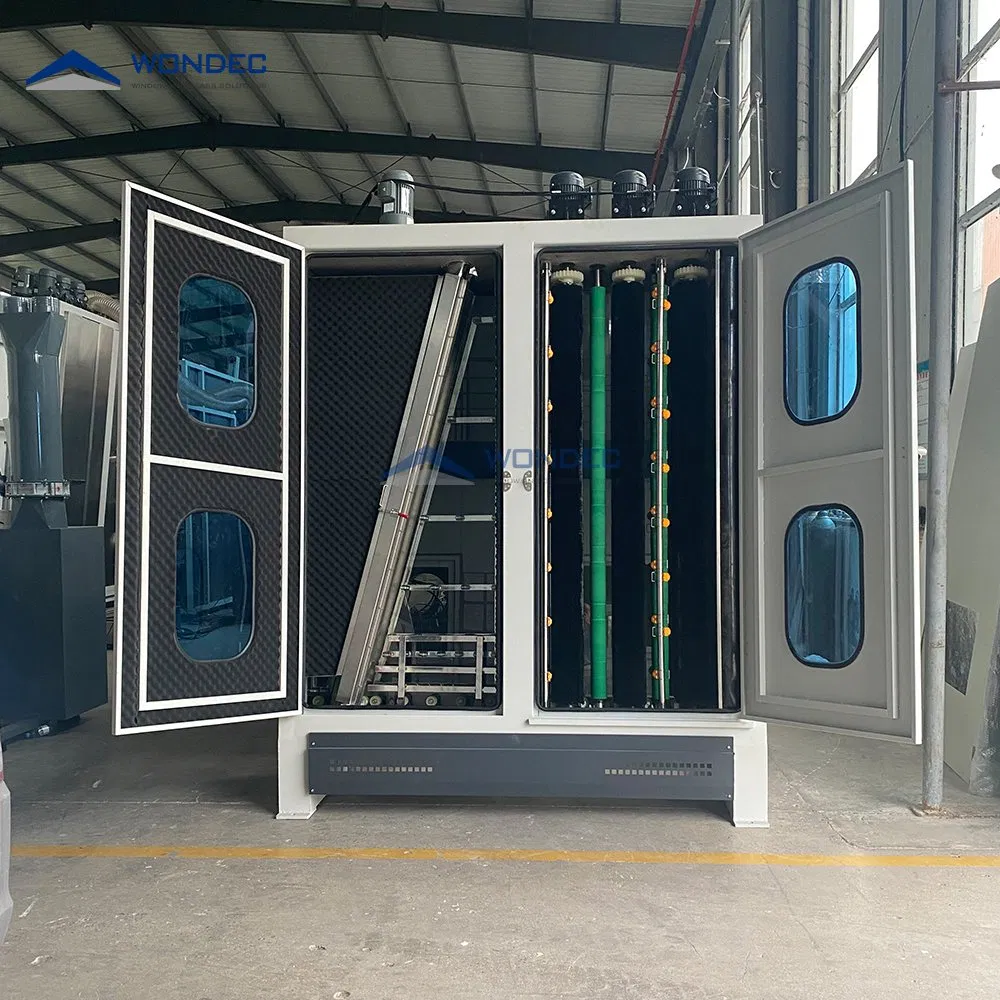

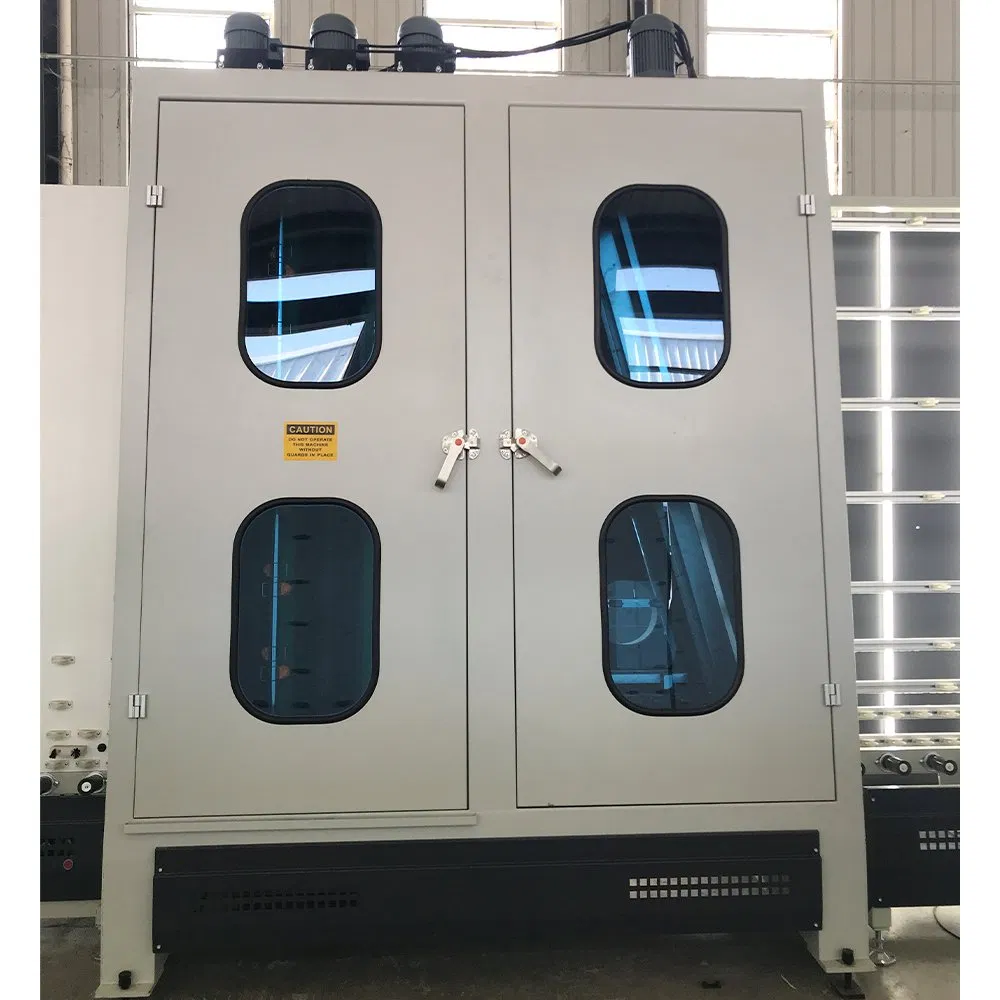

Section 02: Glass Washing and Drying Section
Stainless steel and corrosion-resistant materials for all washing areas and waterway systems.
6 brushes driven by 6 independent motors to ensure continuous operation.
Direct coupling connection between brush and motor prevents slipping.
Front 3 soft brushes (0.1mm) for Low-E glass; back 3 hard brushes (0.2mm) for ordinary glass.

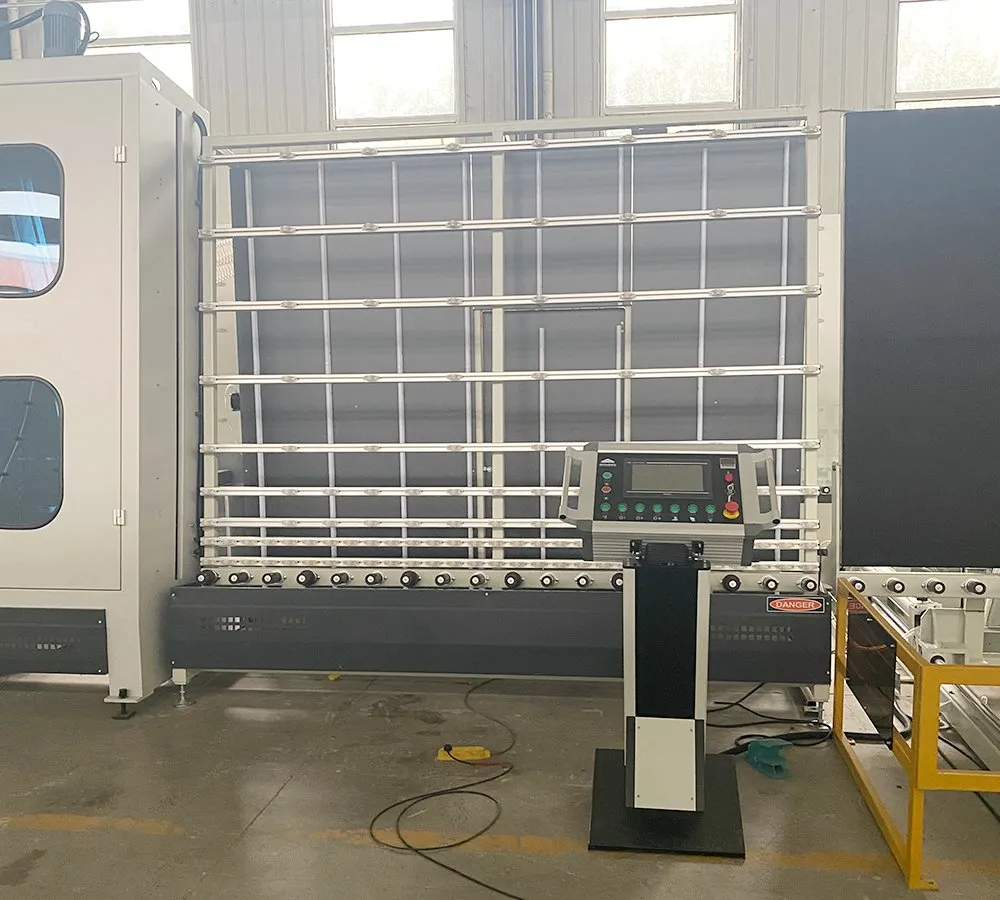

Washing section

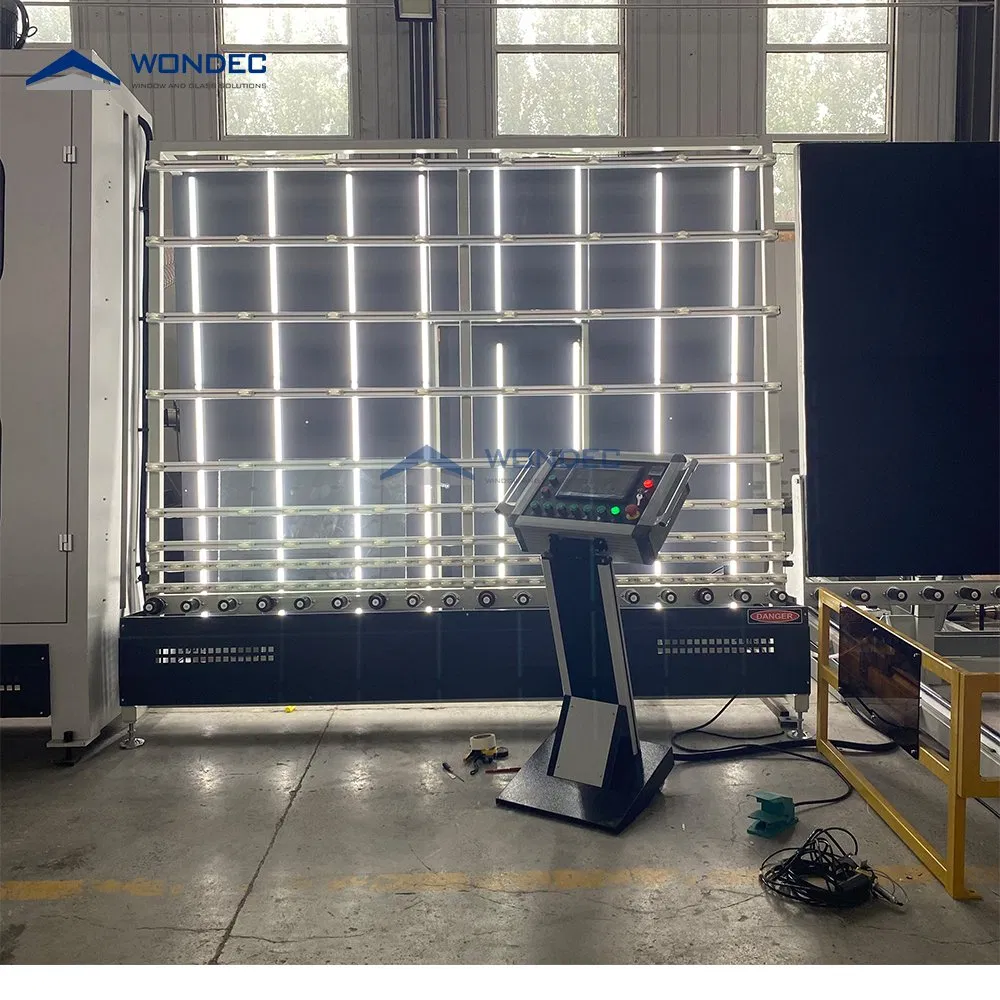

Section 03: Glass Inspection Conveyor
Features an openable door at the rear for easy maintenance and inspection access.

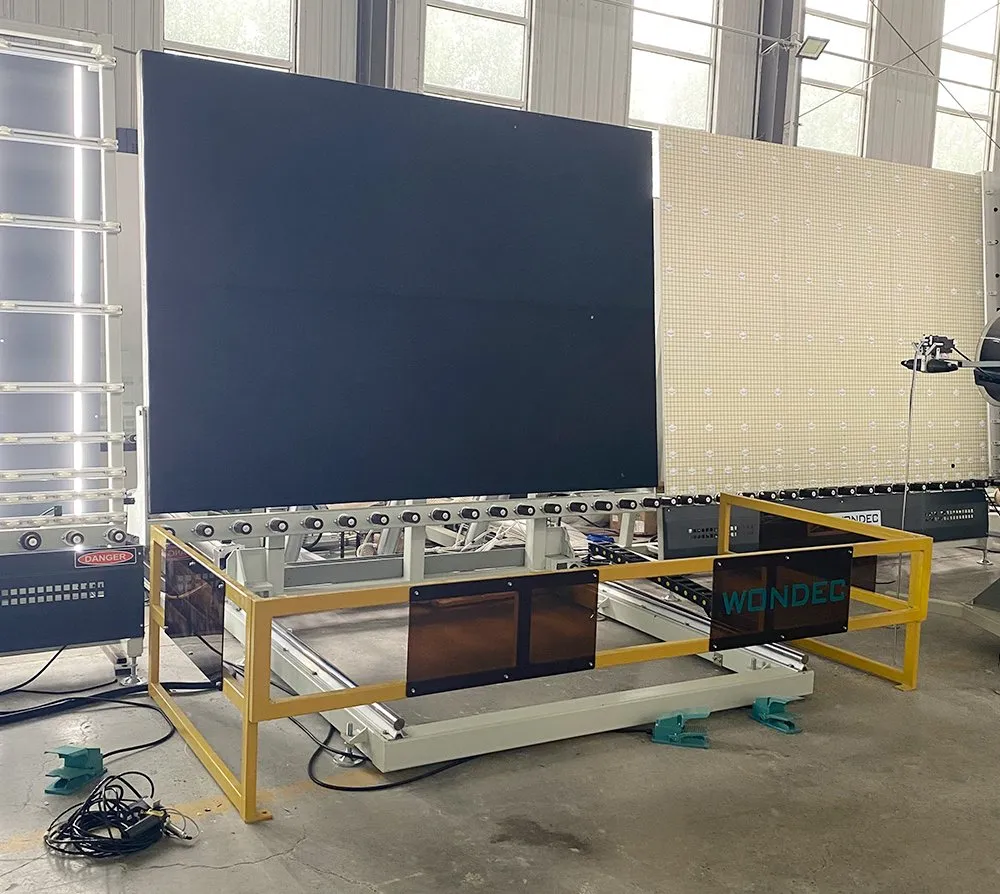

Inspection unit 1
Inspection unit 2

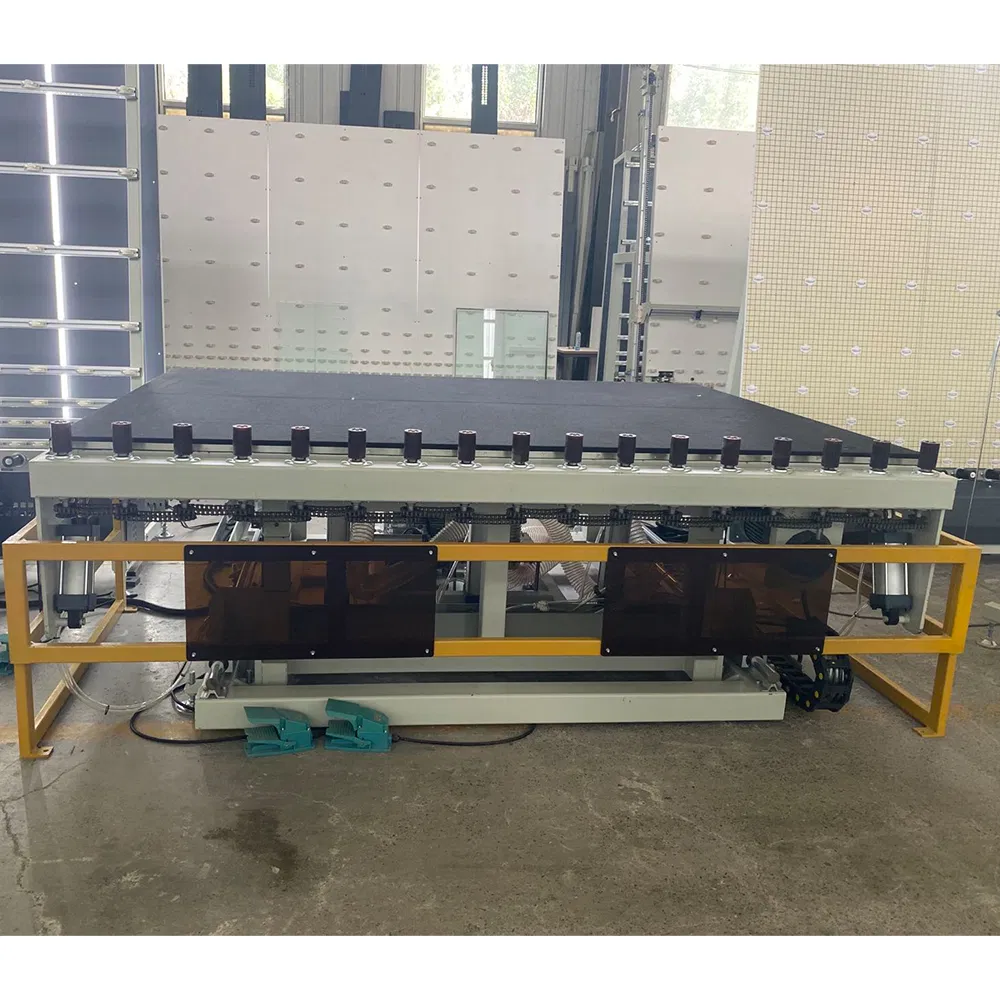

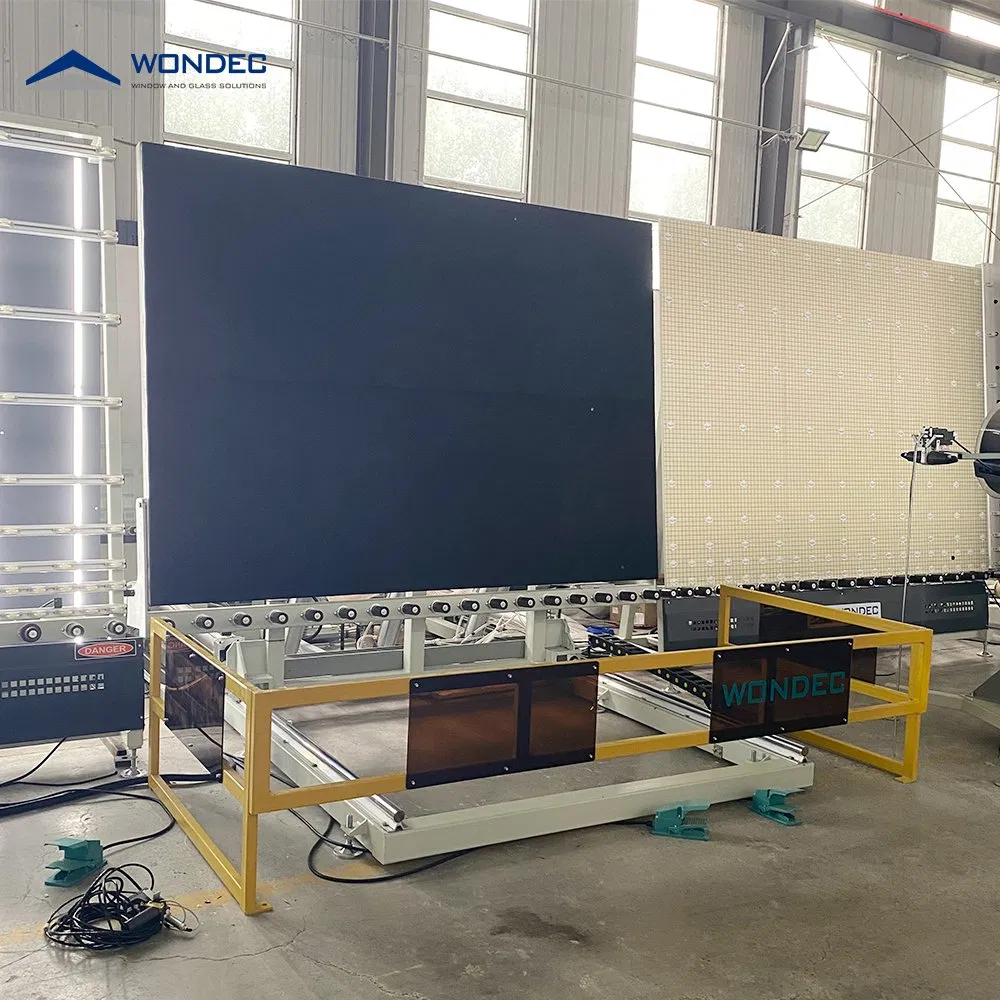

Section 04 & 05: Application Tables

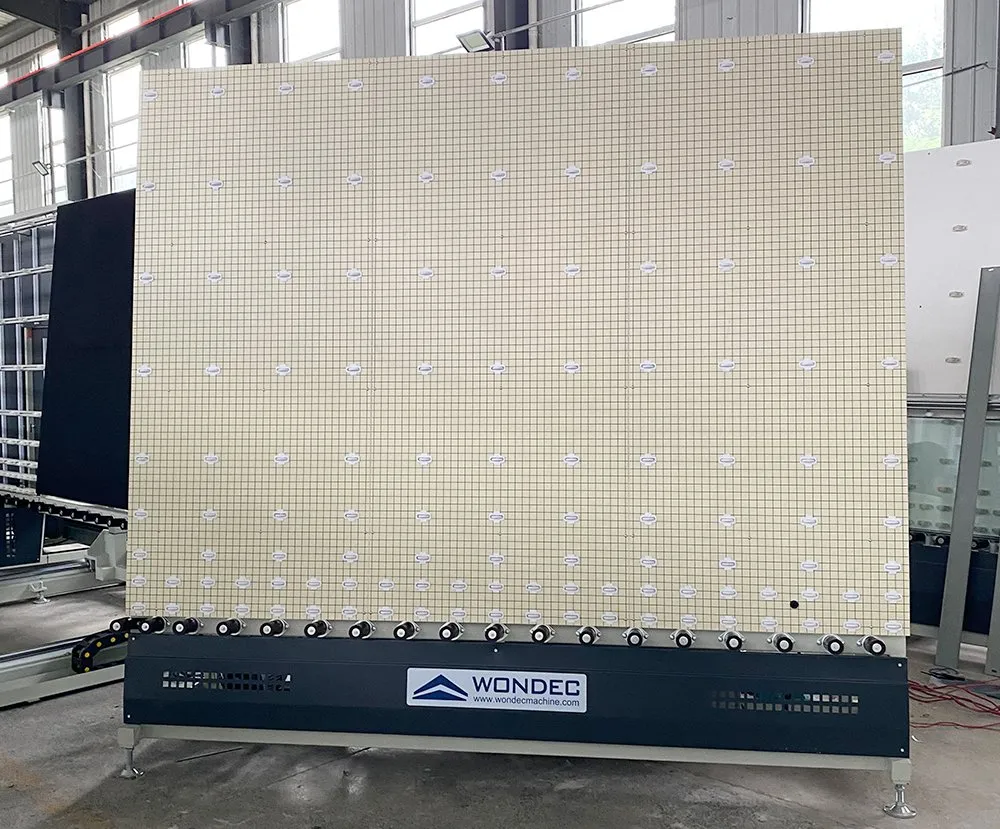

Tilting table for manual Super Spacer application and dedicated area for Georgian bars application.
Tilting table

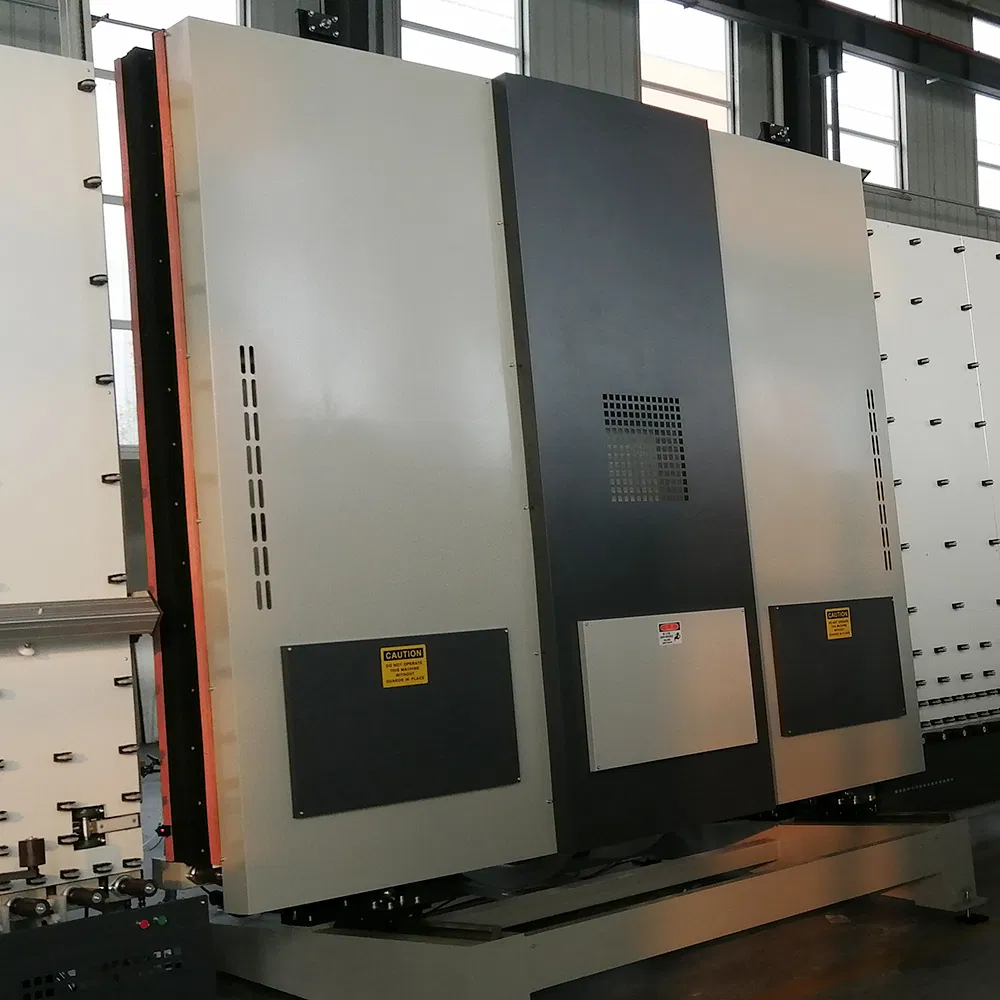

Georgian bar app 1
Georgian bar app 2
Section 06: Inside Assembly & Panel Press with Gas Filling
Denser steel frame for a stronger, more stable machine body.
Panel press controlled by high-precision Servo motor.
Dual-layer front pressing plate for adjustable flatness and long-term accuracy.
Suction cups equipped with separate logic valves, partitioned by glass size.
Automatic online argon gas filling for double and triple IGU from the bottom side.

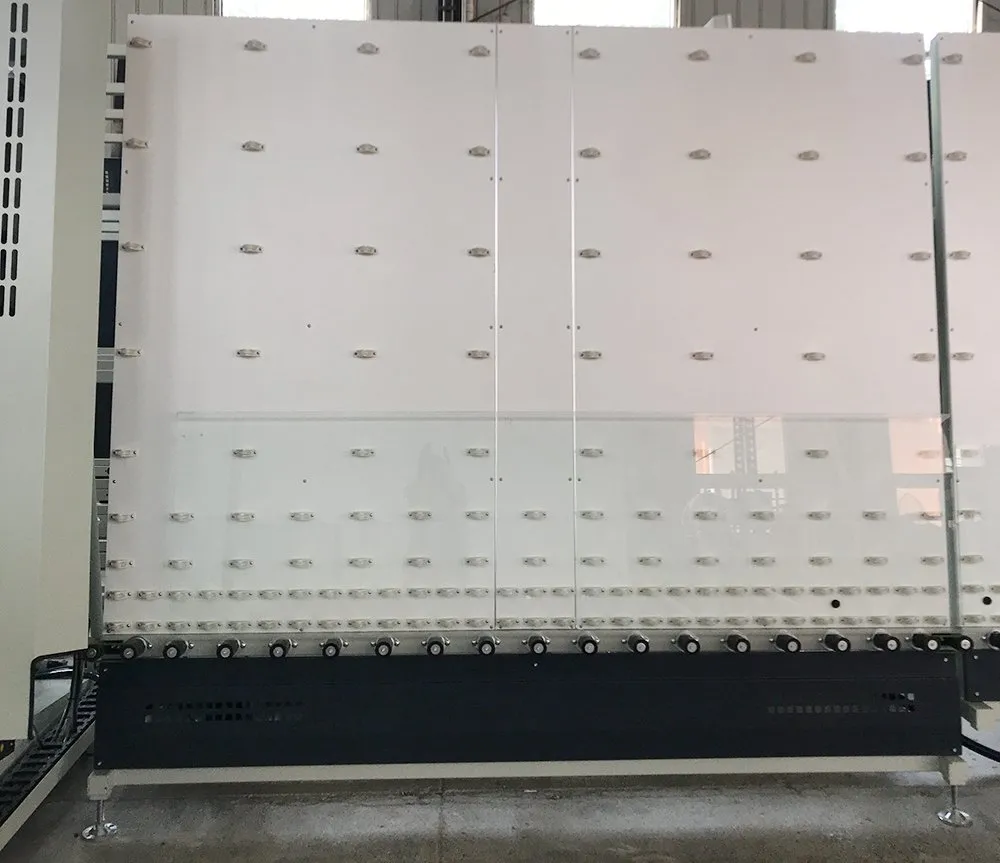

Panel Press Section
📊 Technical Parameters
Parameter Item Specification Data
Max. glass size2000*2500mm
Min. glass size500*300mm
Pane glass thickness3-12mm
Max. Insulating glass thickness12-80mm
Glass washing speed3-12m/min
Working speed2-48m/min
Air pressure0.8m³/min
Water electrical conductivity≤40µS/cm
Overall dimension18760*3500*2850mm
🏭 Production & Factory

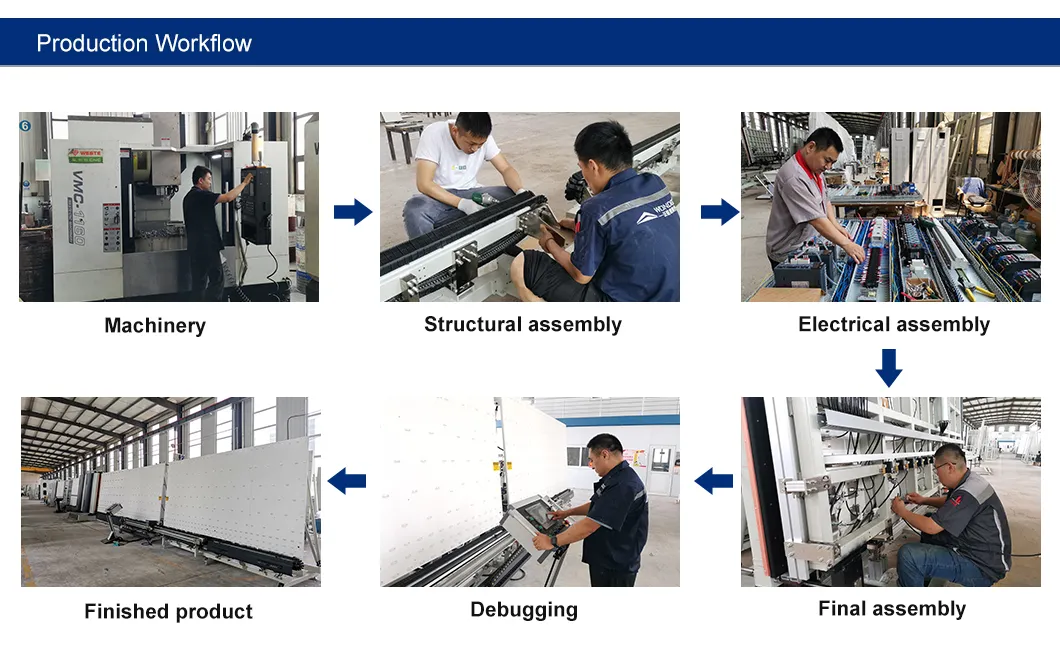

Production View 1
Production View 2
Production View 3
Production View 4
Production View 5
Production View 6
❓ Frequently Asked Questions
Are you the manufacturer of this glass equipment?
Yes, we are a professional manufacturer with over 10 years of specialized experience in insulating glass production machinery.
Can the machine's voltage be customized for my country?
Absolutely. We can customize the electrical configuration and voltage of our machines to match your local power standards.
What is the production and delivery process?
After deposit confirmation, we initiate production. Once finished and tested, we provide performance videos for your review before final packing and shipment.
Do you assist with international shipment logistics?
Yes, we work with reliable shipping partners to ensure fast and cost-effective delivery worldwide based on your specific requirements.
How is the machine installed once it arrives?
We provide comprehensive manuals and step-by-step installation videos. Additionally, our technicians offer online support through dedicated groups to assist with any technical queries.
What kind of after-sales support do you provide?
We offer a 1-year warranty along with video technical support to ensure your production line runs smoothly and efficiently.
