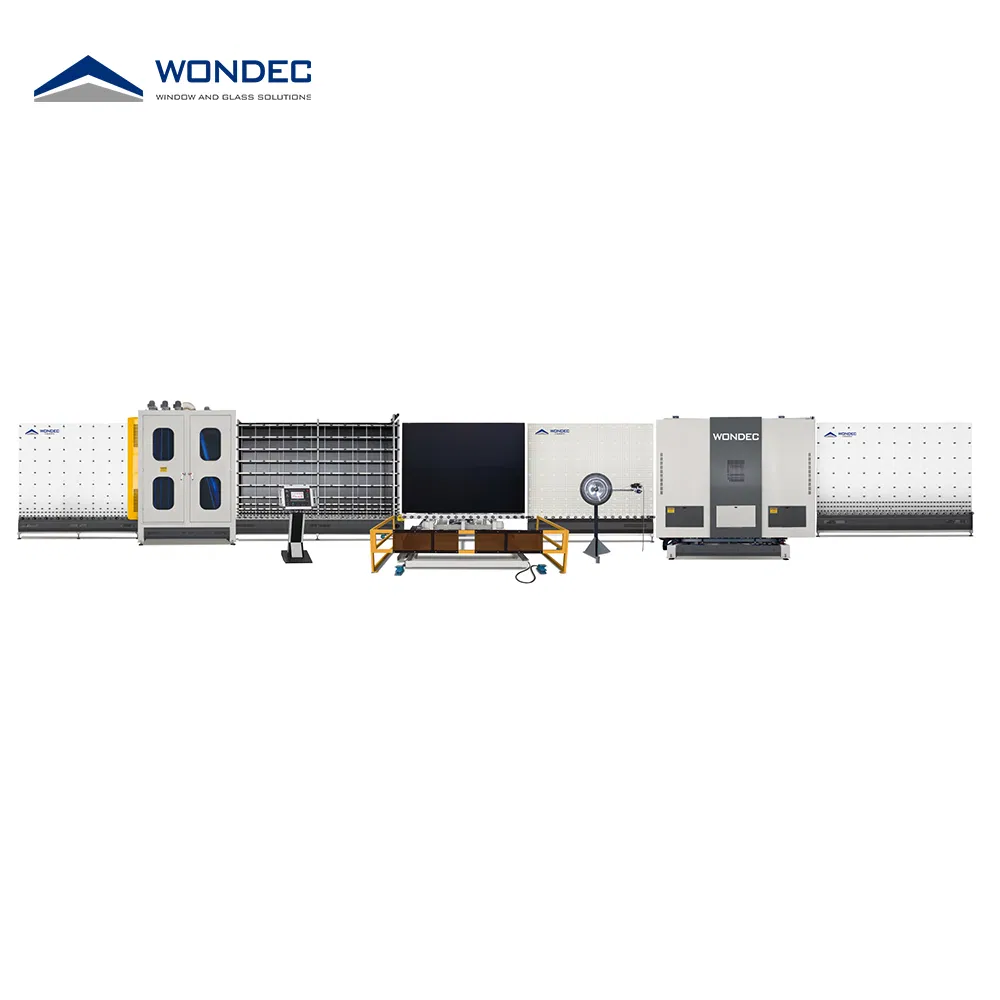

Automated Vertical Warm Edge Igu Production Line for Flexible Spacer Used on Processing of Coated Insulating Glass Units

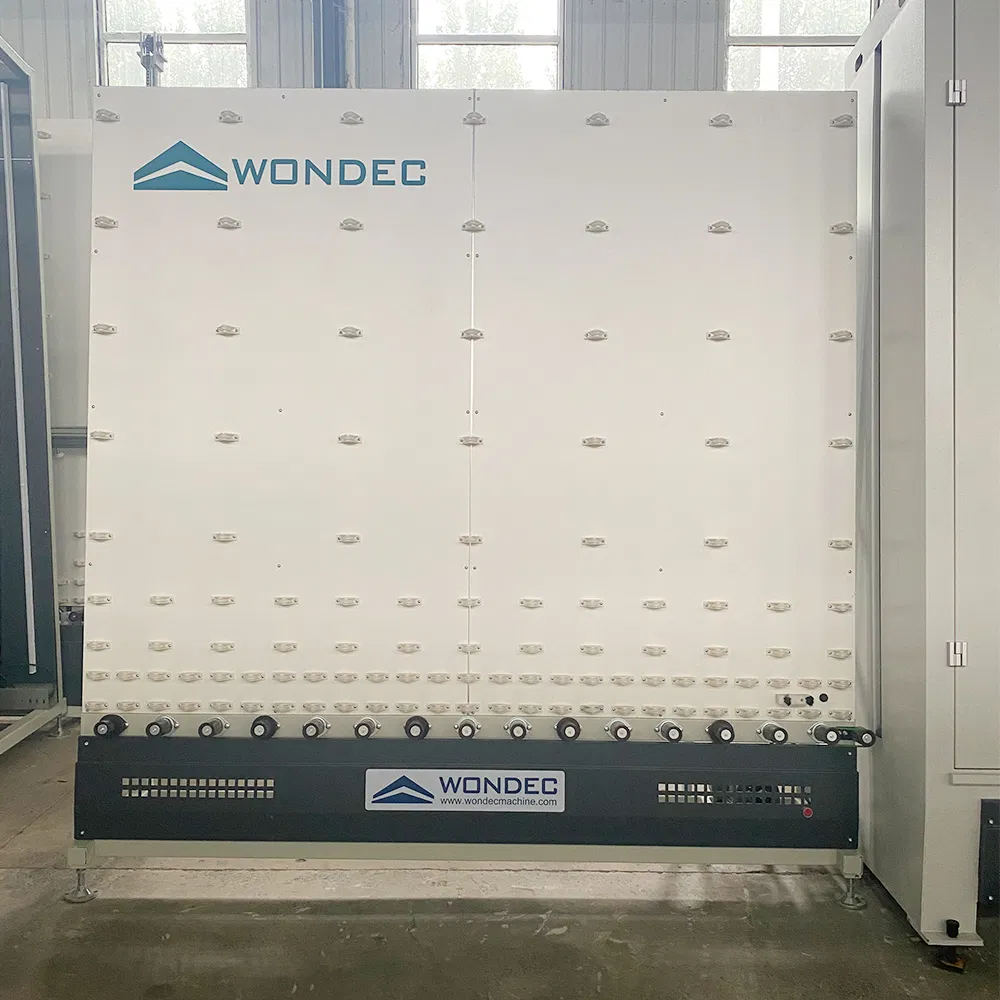

Section 01: Input Conveyor

This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

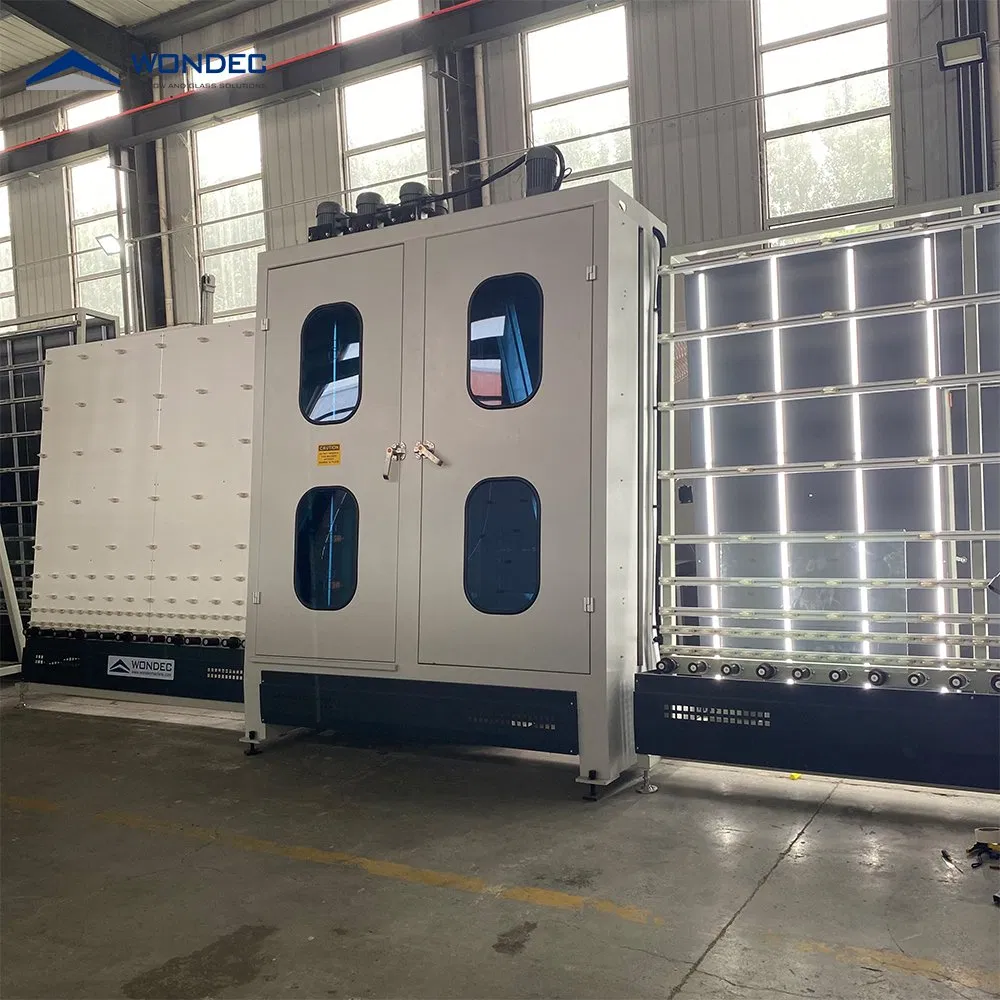

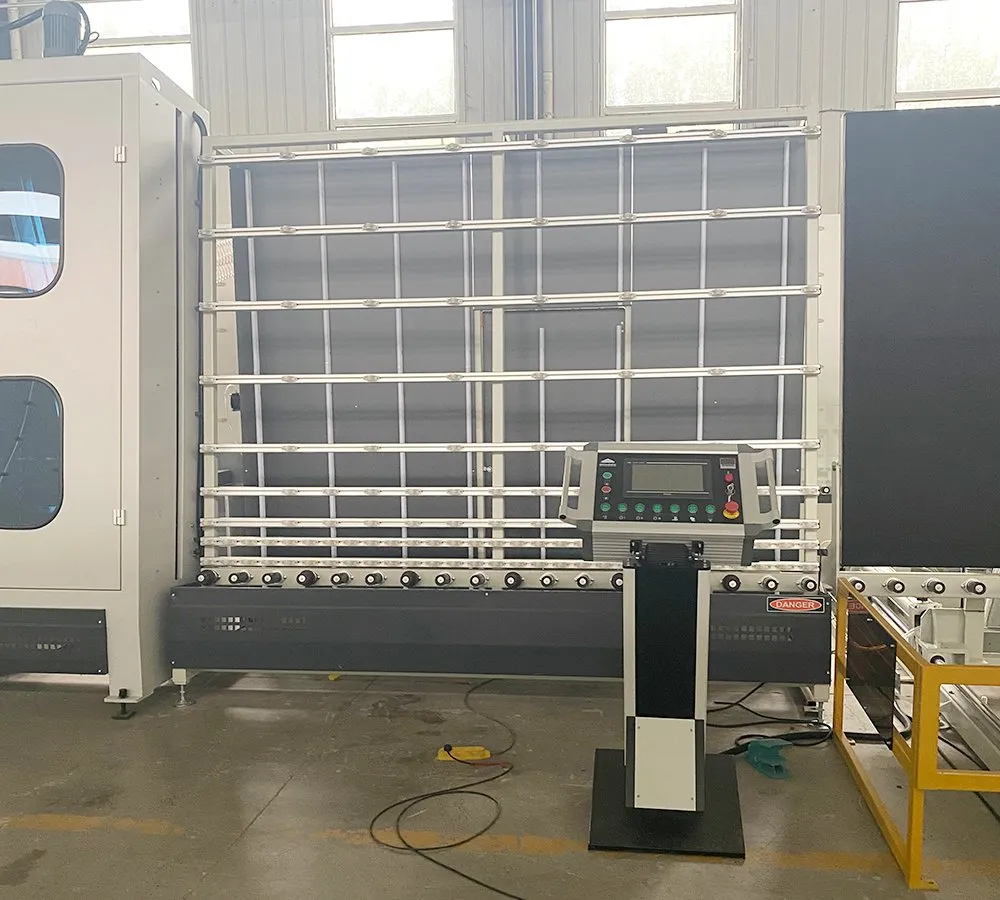

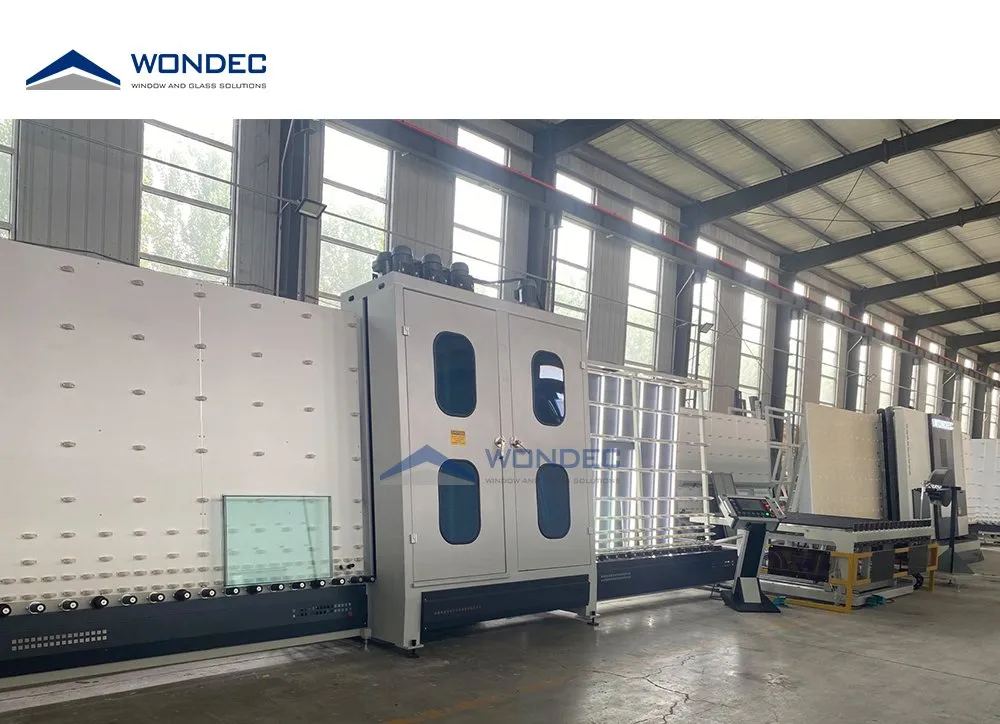

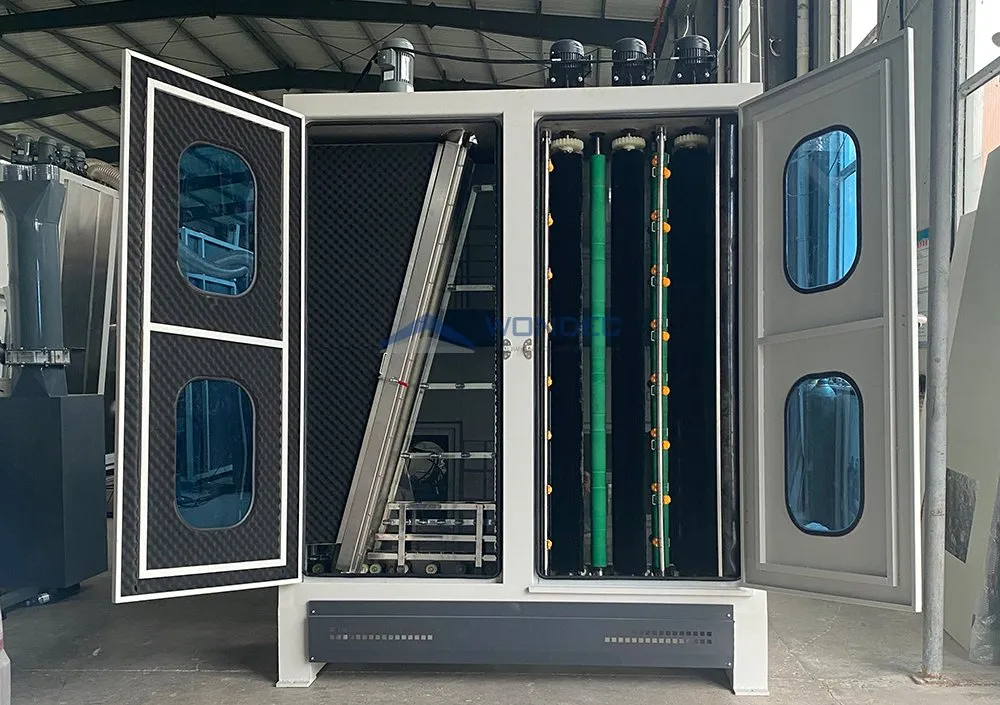

Section 02: Glass Washing and Drying Section

• Stainless steel material and corrosion-resistant material adopted for all washing area, water tank, and waterway system.
• The 6 brushes are driven by 6 motors independently, ensuring continuous operation even if one motor fails.
• Coupling connection between brush and motor prevents slipping or idling.
• Front 3 brushes (0.1mm) are suitable for Low-E glass; rear 3 brushes (0.2mm) are for ordinary glass.

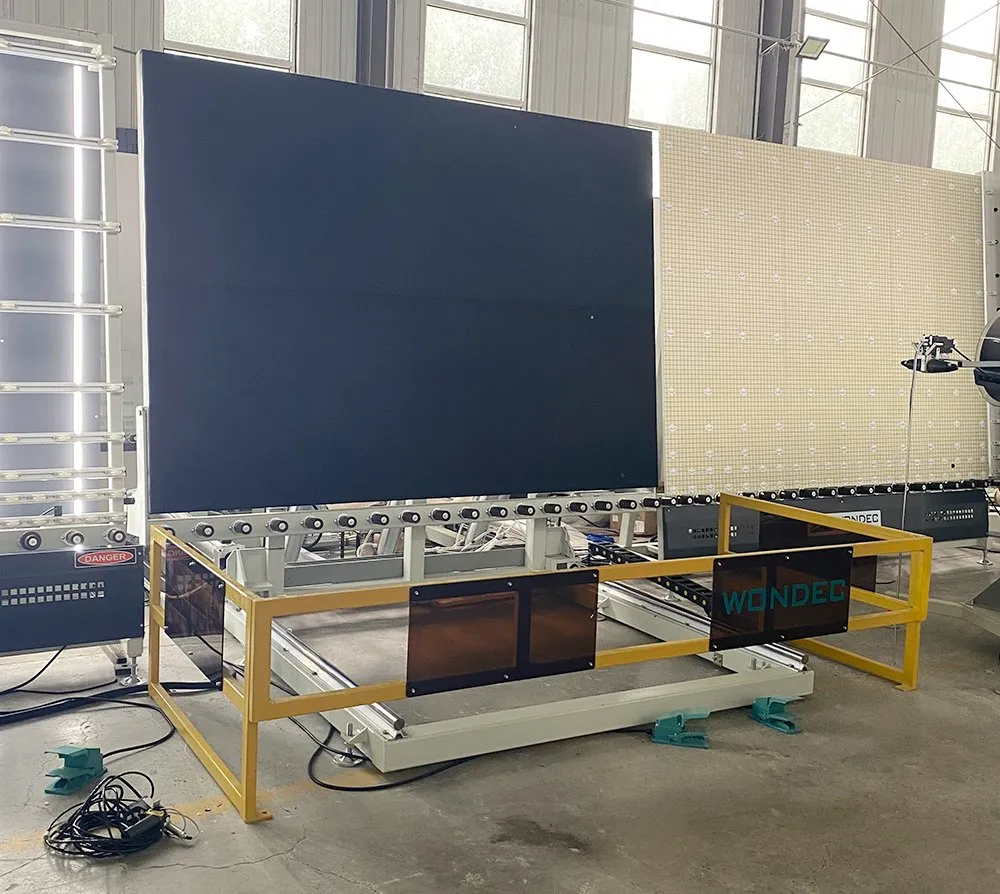

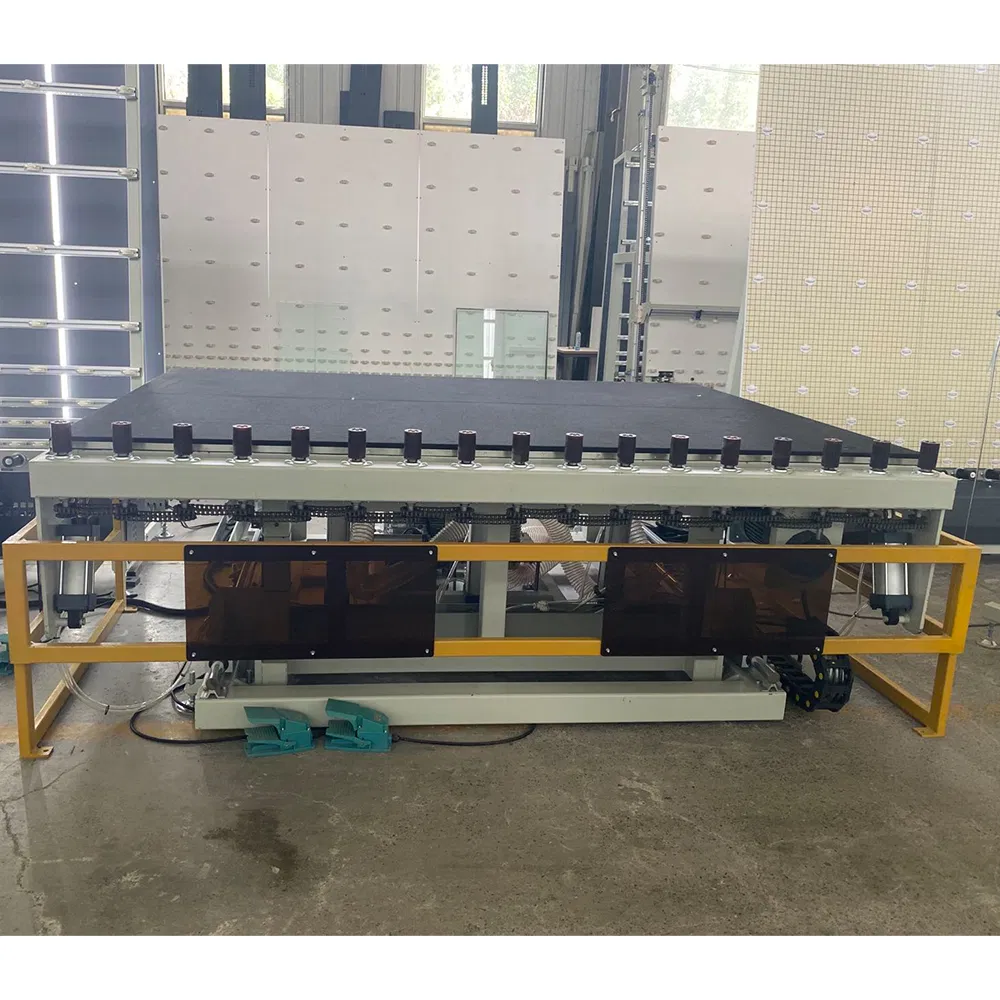

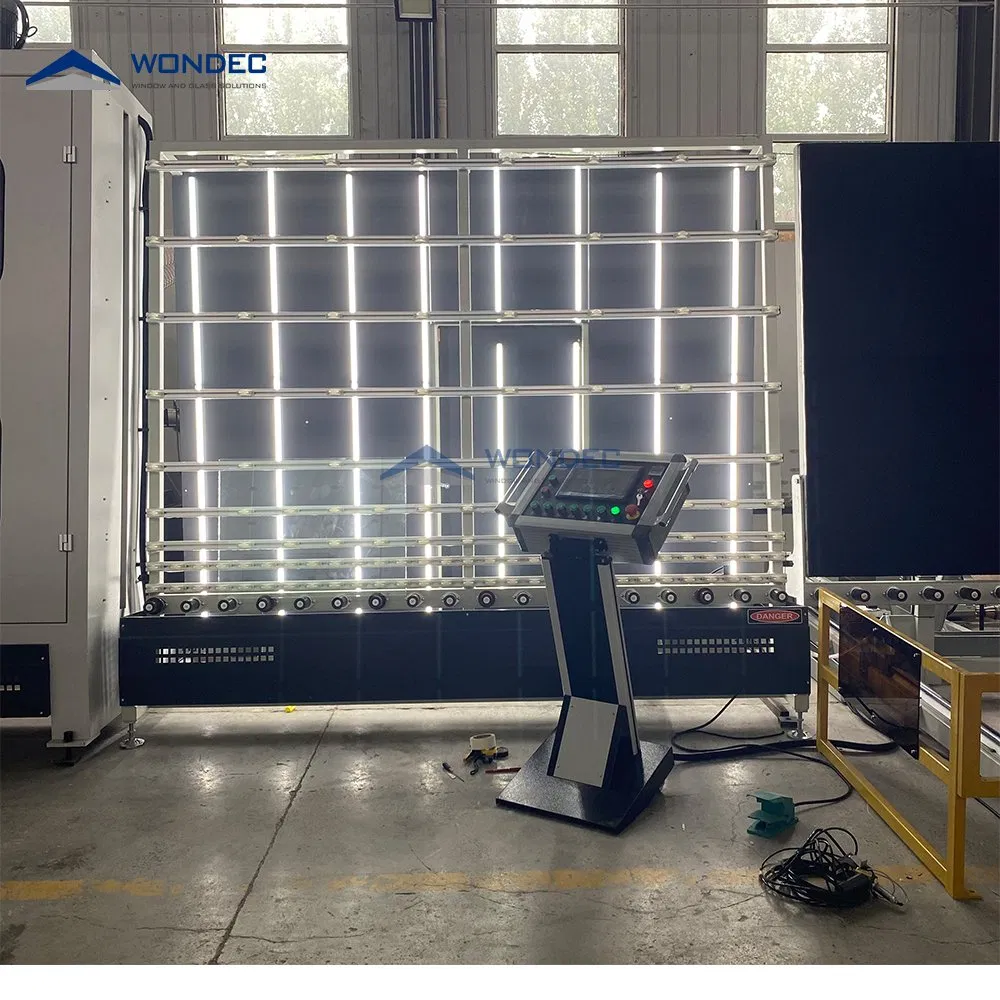

Section 03: Glass Inspection Conveyor

Features an openable door at the rear for easy access and inspection.

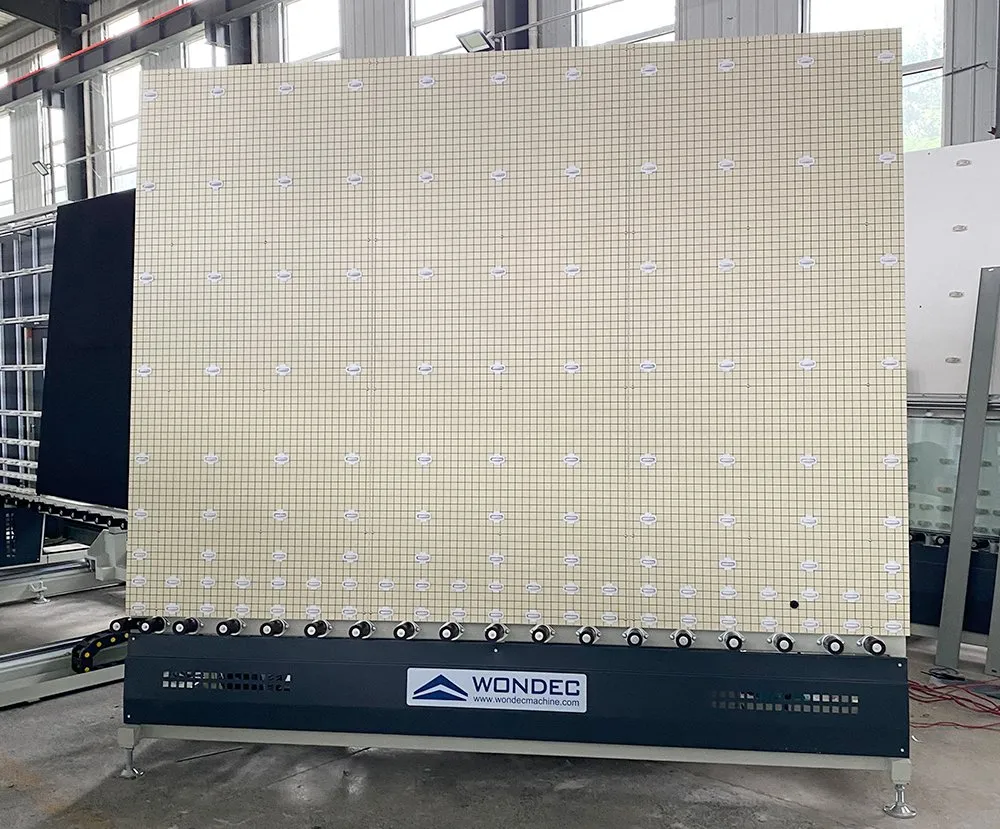

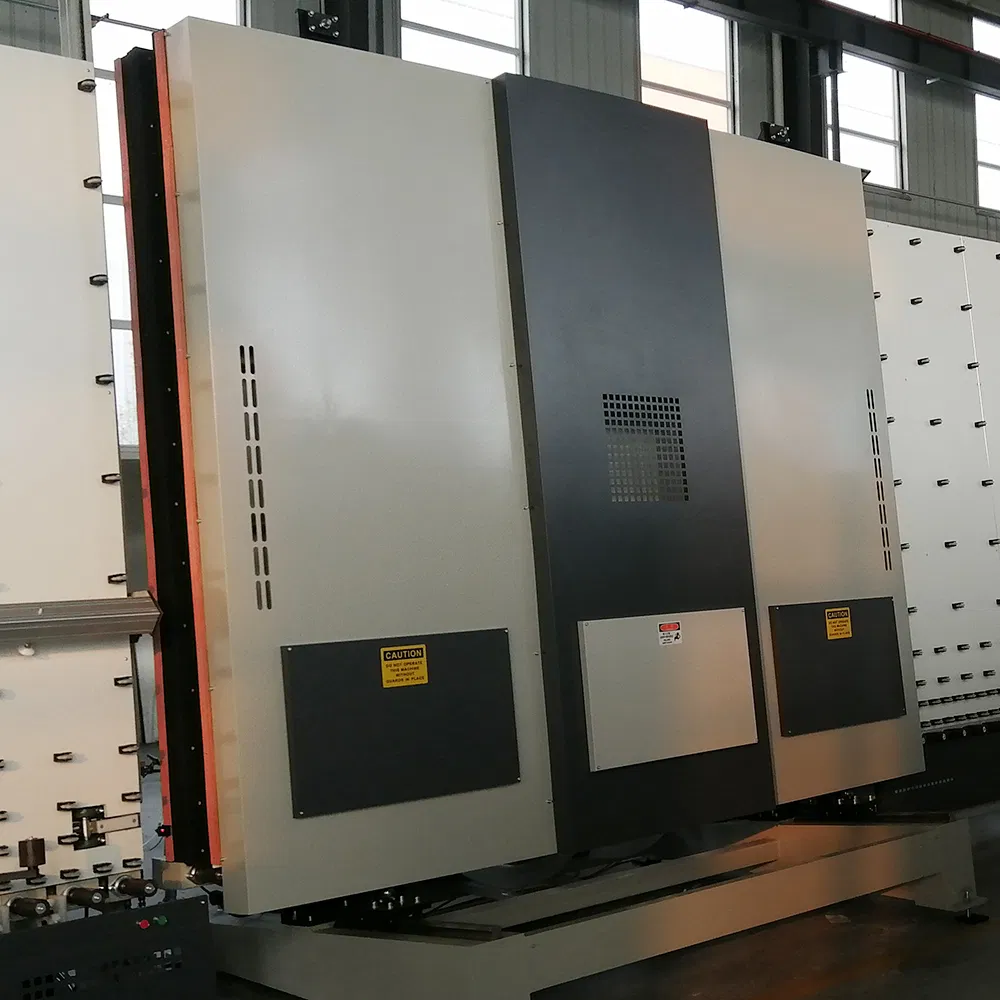

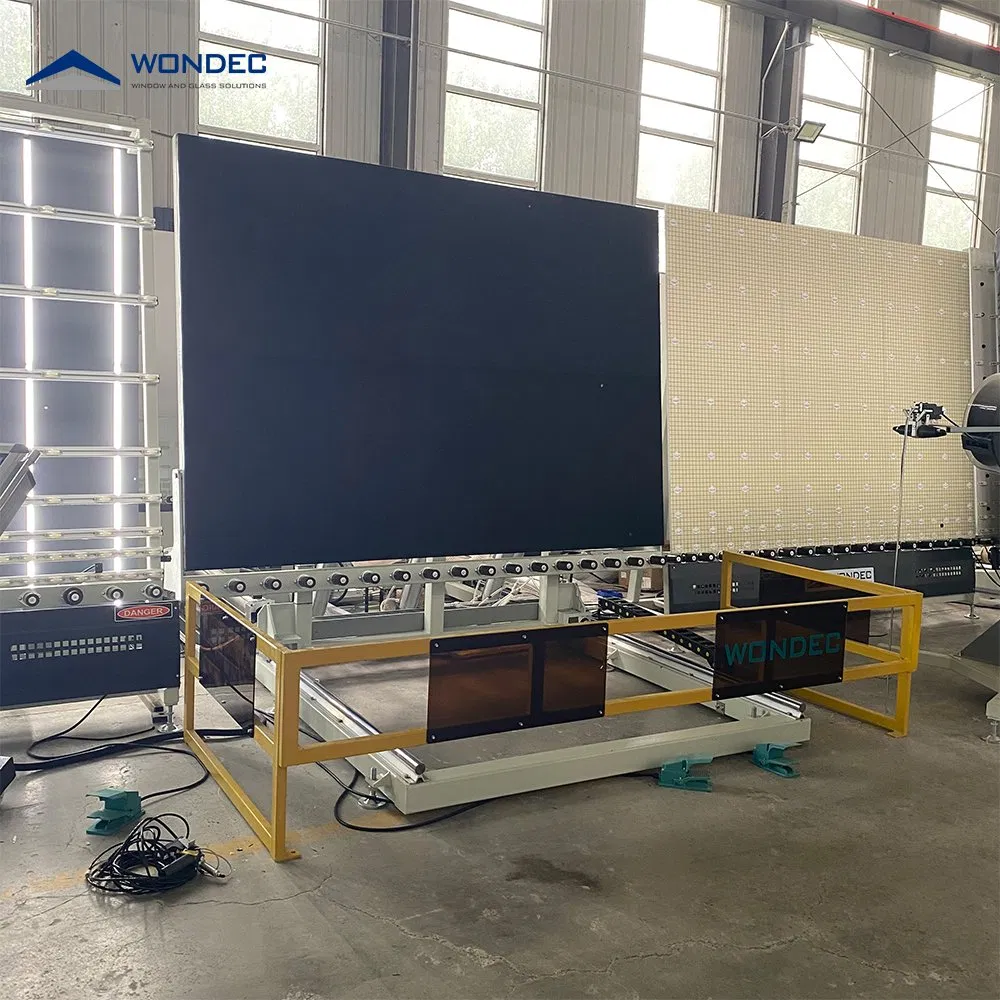

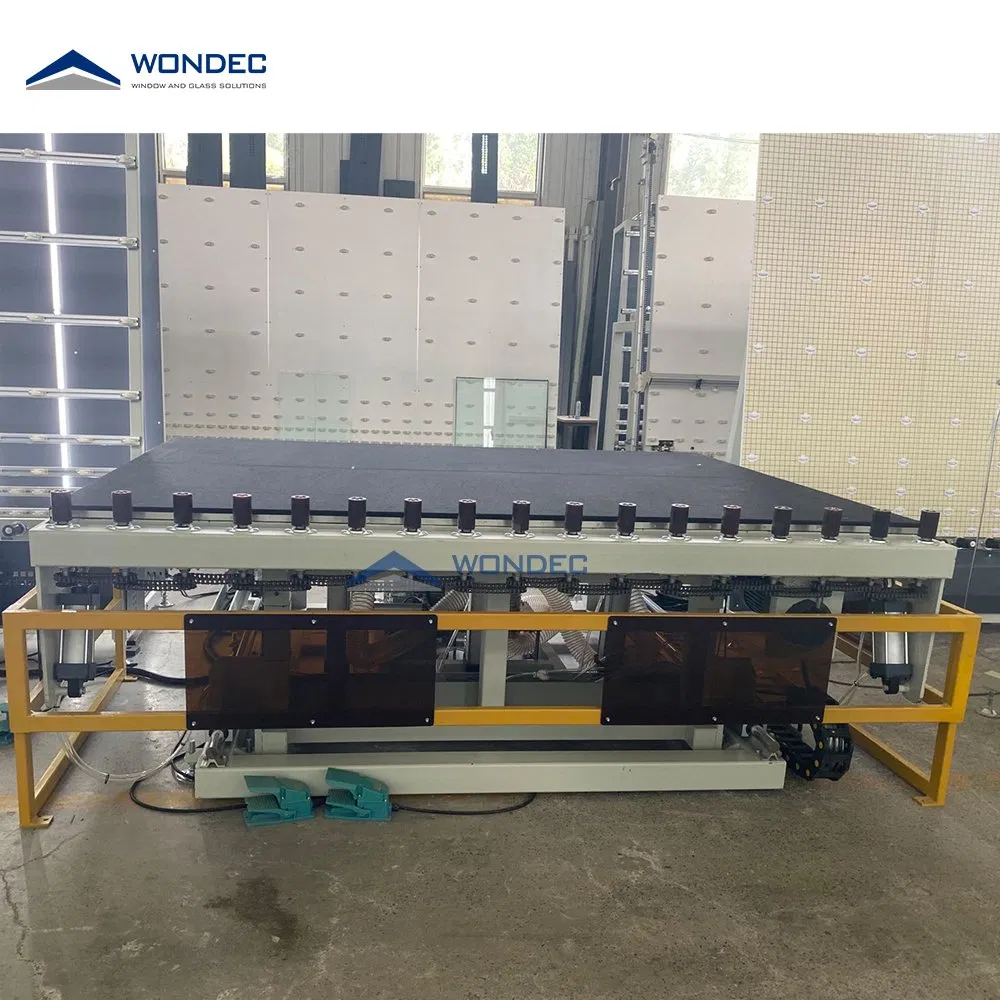

Section 04 & 05: Tilting Table & Georgian Bars Application

Manual application station for Super Spacer and Georgian bars application.

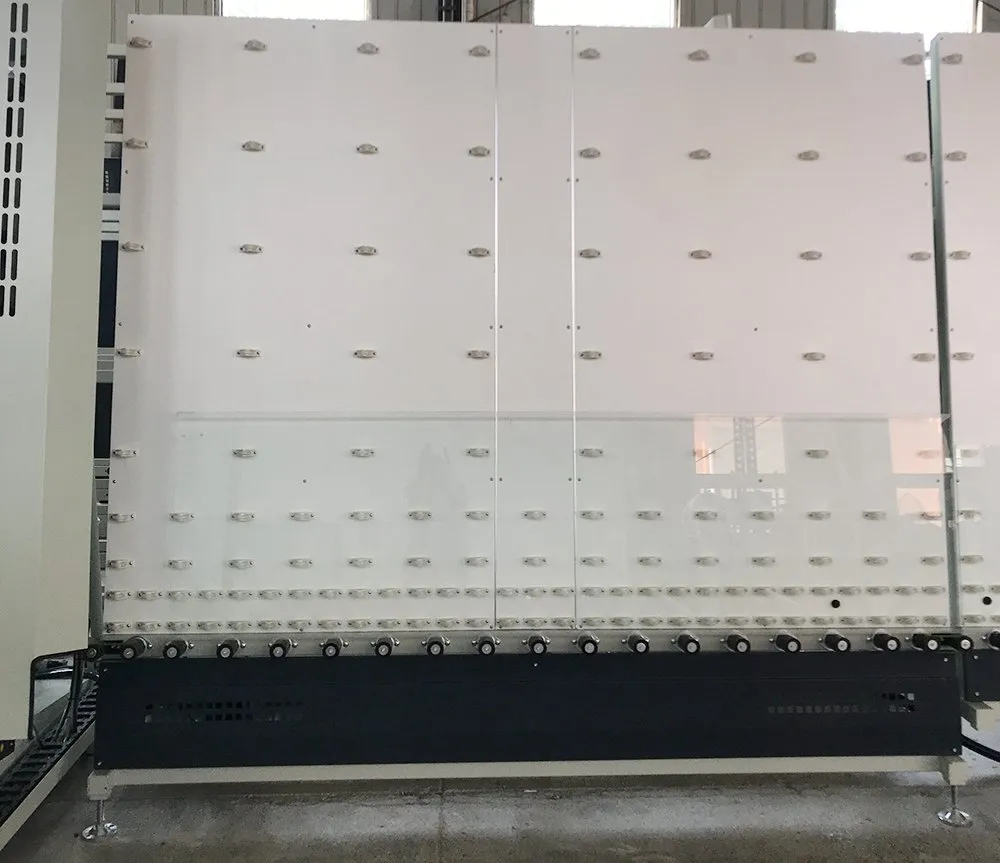

Section 06: Inside Assembly & Panel Press

• Denser steel frame for a stronger machine body.
• Panel press controlled by high-precision Servo motor.
• Double-layer front pressing plate ensures long-term flatness.
• Each suction cup equipped with a separate logic valve for partitioned size control.
• Automatic online Argon gas filling for double and triple IGU units.
