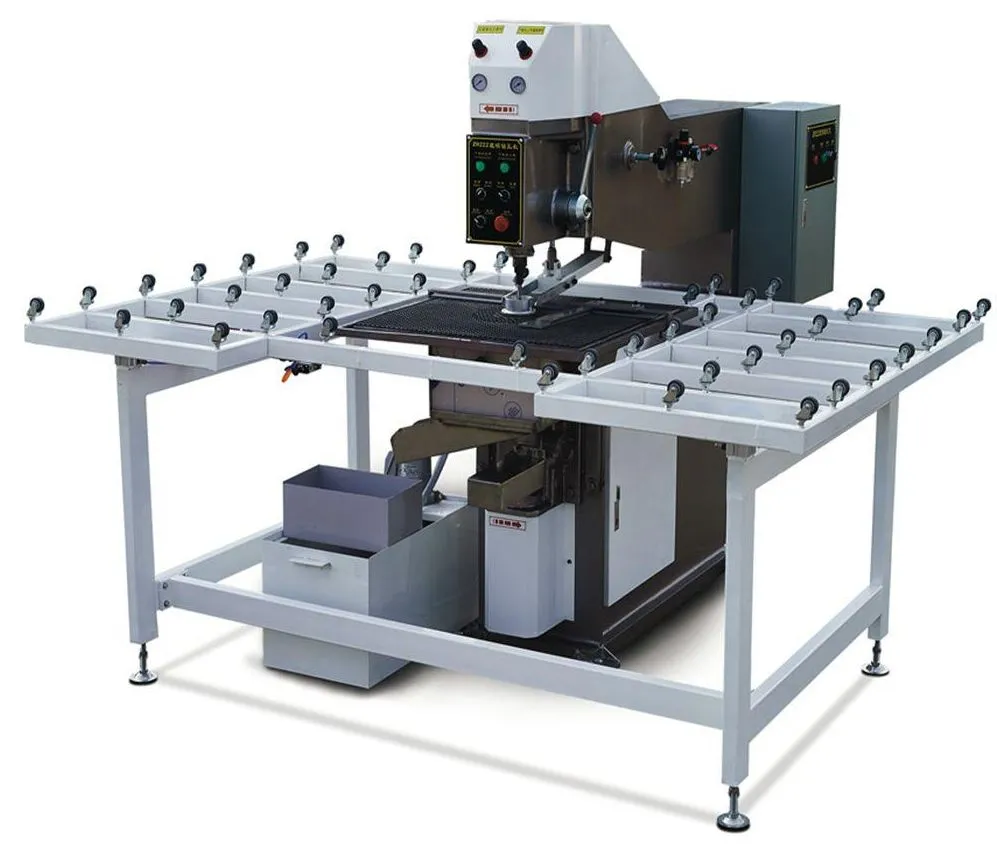

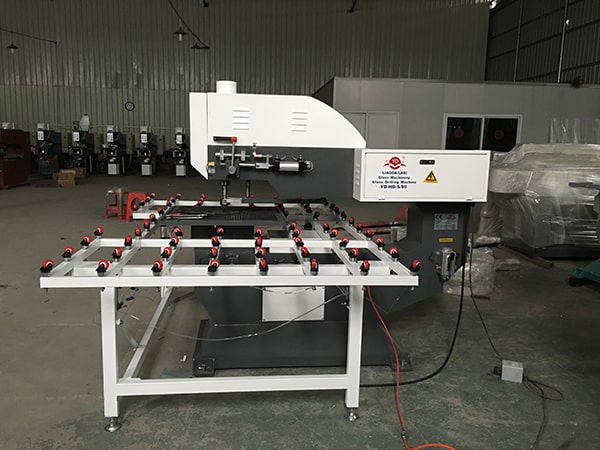

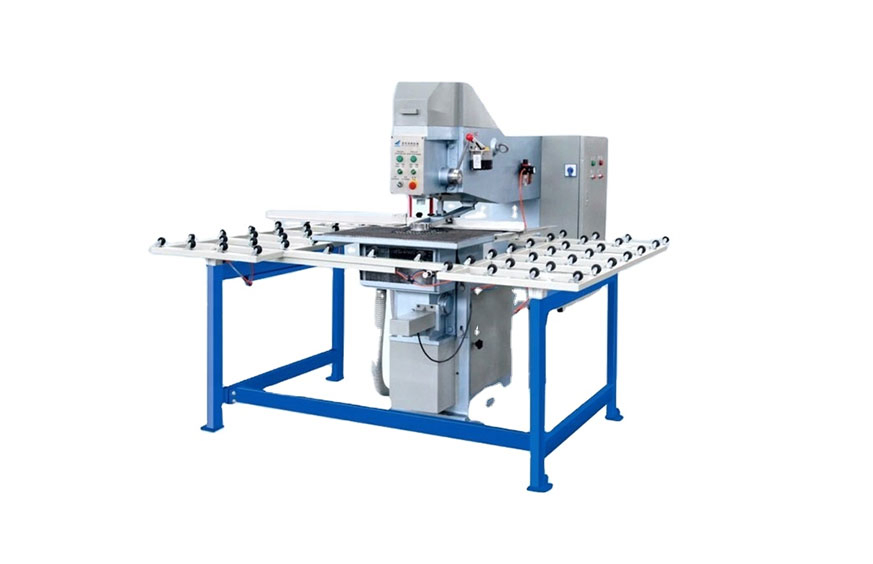

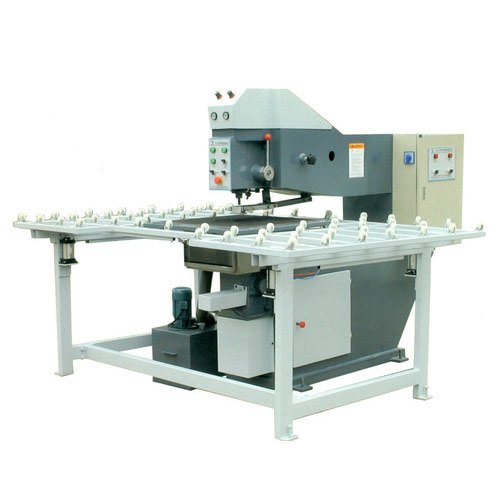

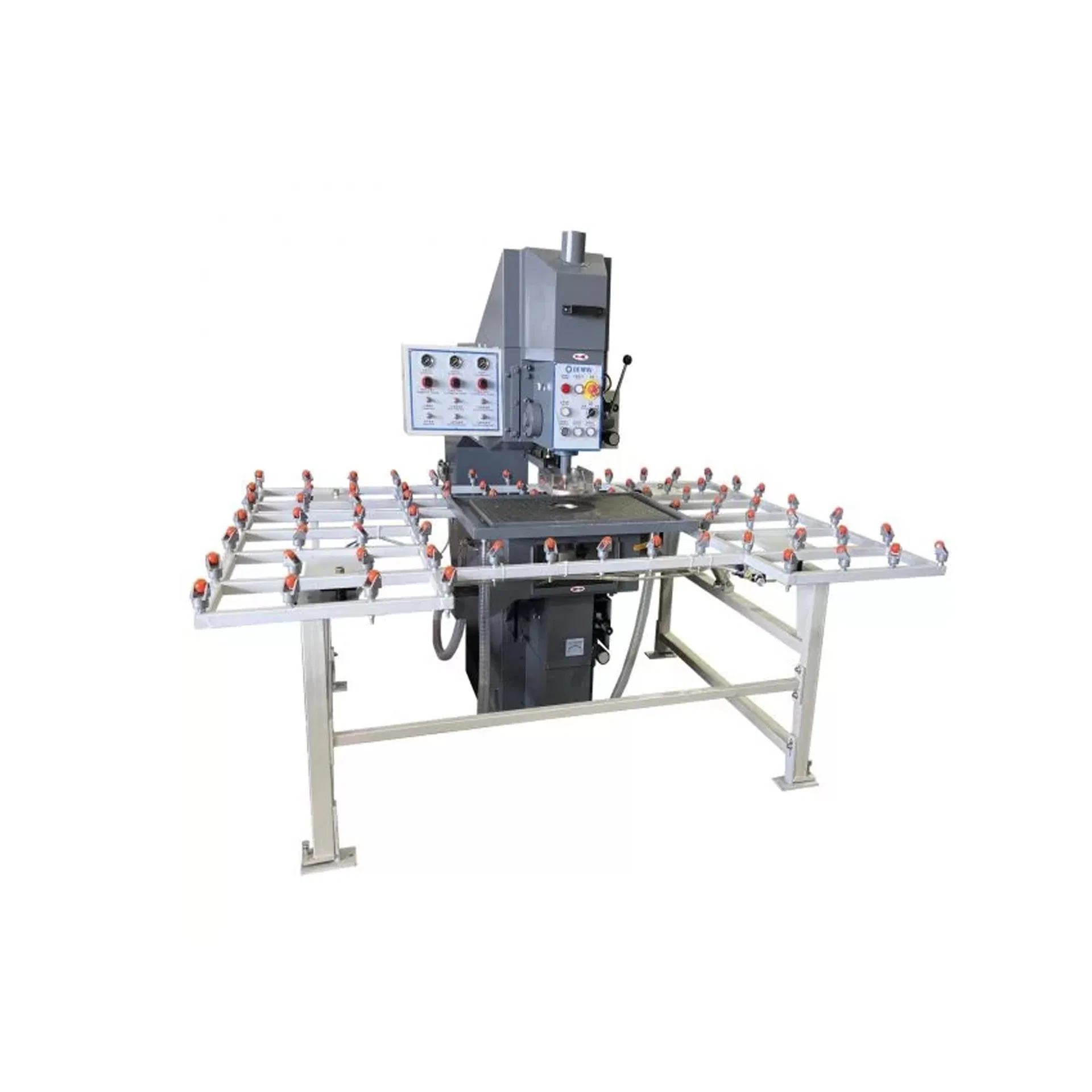

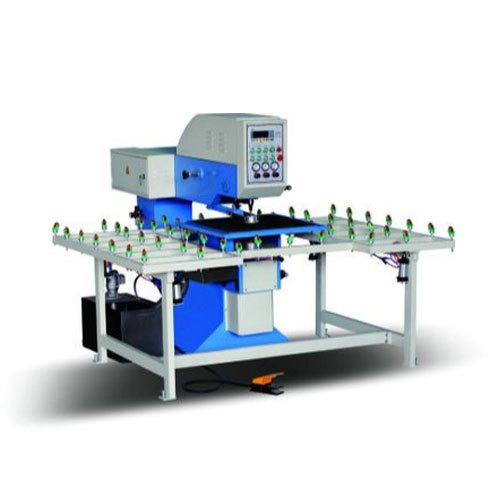

Model HHJGZK0222 Nesting glass drilling machine adopts a pneumatic way to clamp glass. Upper and under drills successively drill holes, and the under drill can rise automatically. Both position and speed are adjustable. Automatic feeding and workbench's pneumatic elevation ensure the feasibility of massive continuous production and processing.
| Parameter | Specification |
|---|---|
| Model | HHJGZK0222 |
| Power Supply | 380V/50HZ/3P |
| Total Power | 2.45KW |
| Max. Glass Size | 2600mm * 2400mm |
| Min. Glass Size | φ100 * 100mm |
| Glass Thickness | 3-20mm |
| Hole Diameter Range | φ4-120mm |
| Working Table Height | 850mm |
| Machine Dimensions | 2200*2700*1700mm |
| Net Weight | 600KG |
Note: The drill speed can be adjusted in multiple stages. The worktable features pneumatic lifting and positioning plates for efficient batch processing.
| Component | Brand / Specification | Quantity |
|---|---|---|
| AC Contactor | 0910 | 3 |
| Thermal Relay | 4-6A | 2 |
| Air Switch | DZ473P16A | 1 |
| Terminals | 45A / 1.6A | 2 / 1 |
| Transformer | BK100VA | 1 |
| Limit Switch | D4MC3030 | 1 |
| Micro Switch | LX19K | 1 |
