| Model NO. | LV-HDM |
|---|---|
| Hole Diameter | 3-220mm |
| Power | About 2.5kw |
| Machine Weight | About 900kgs |
| Machine Size | 2200X2700X1700mm |
| Working Table Height | 900mm |
| Warranty Period | 12 Months |
| Production Time | 15-30 Days |
| After-Sales Service | 24 Hours Technical Support by Call, Video |
| H S Code | 8464901900 |
| Color | Customized |
| Drilling Head | 1, 2 or 3 |
| Drilling Type | Upper & Lower Drilling |
| Automatic Grade | Manual, Semi-Automatic |

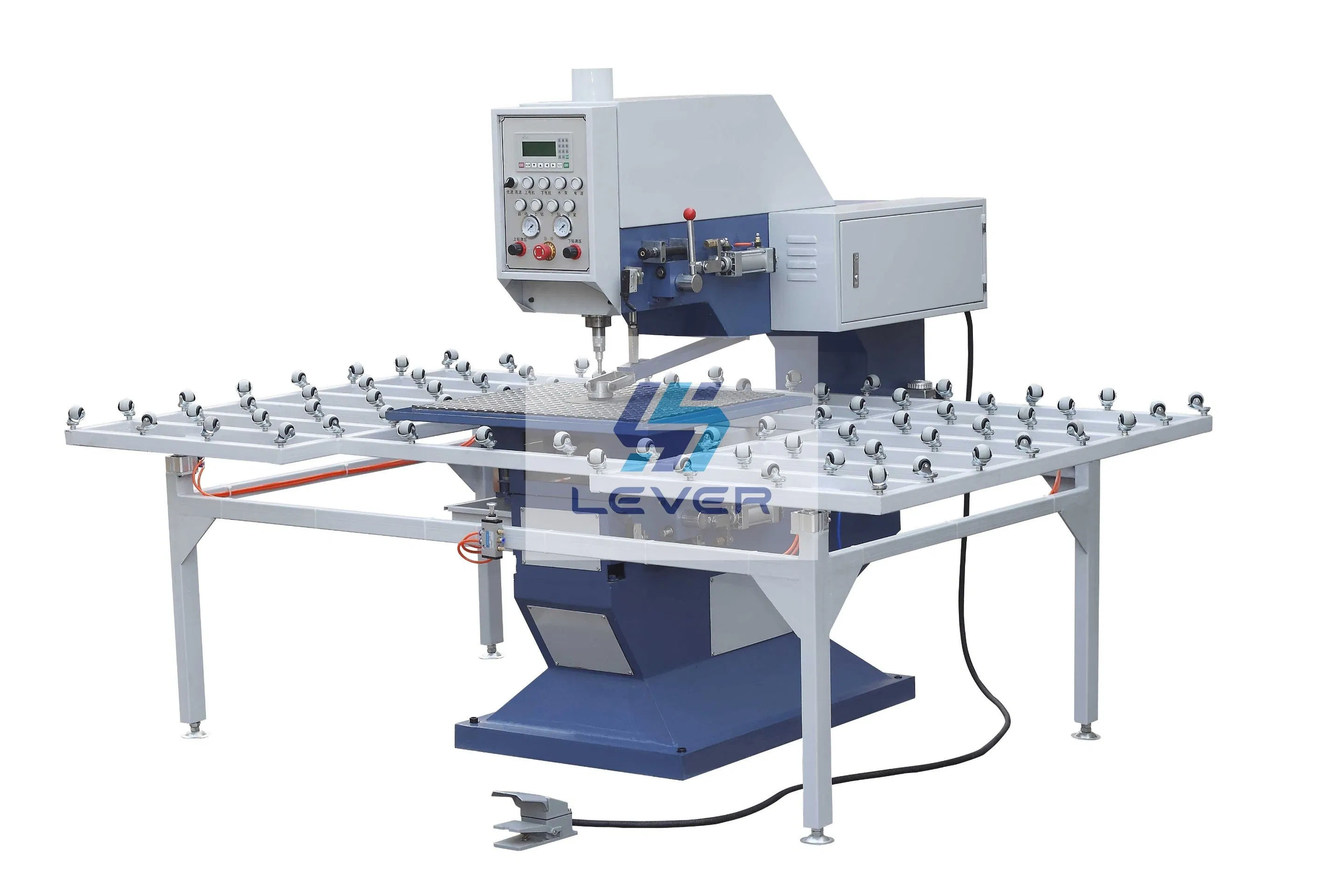

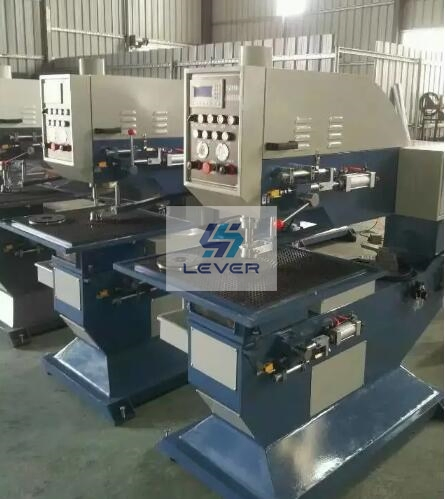

| Type | Glass Drilling Machine |
| Structure | Horizontal |
| Transport Package | Wrapping Film & Wooden Pallet |

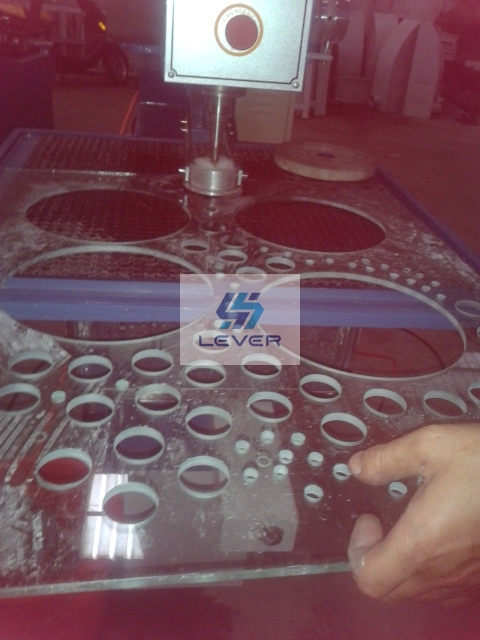

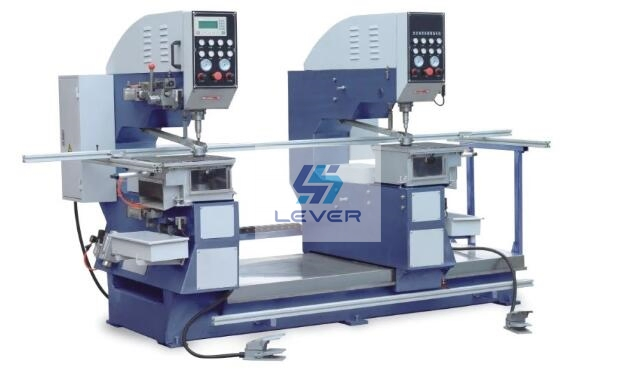

This drilling machine is specifically designed to create holes of various diameters in glass panels, suitable for tempering, float, and solar glass processing.
* Note: Quality and performance of all components meet or exceed standard technical requirements.
| Parameter | Value |
|---|---|
| Glass thickness | 3-30mm |
| Drilling diameter | Ø3 - Ø220mm |
| Power | 2.45kw |
| Concentricity of Upper/Lower Drill | ≤0.12mm |
| Beating Degree of Upper/Lower Drill | ≤0.02mm |
| Working Table Height | 900mm |
| Weight | 1200kgs |
| Machine Dimensions | 2200 x 2700 x 1700mm |

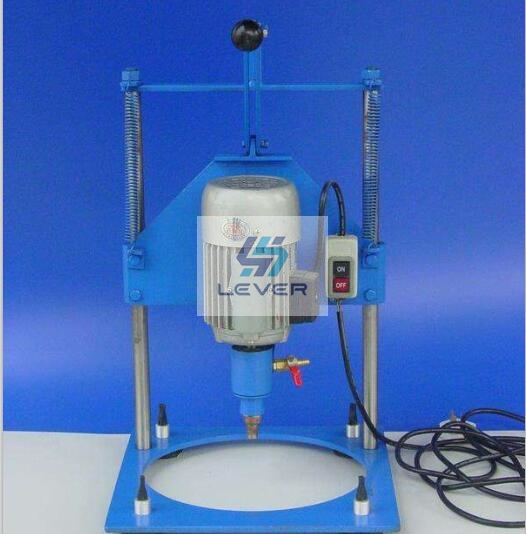

| Voltage | 110/220/380VAC |
|---|---|
| Frequency | 50-60Hz |
| Power | 180w |
| Rotation speed | 1400Rpm |

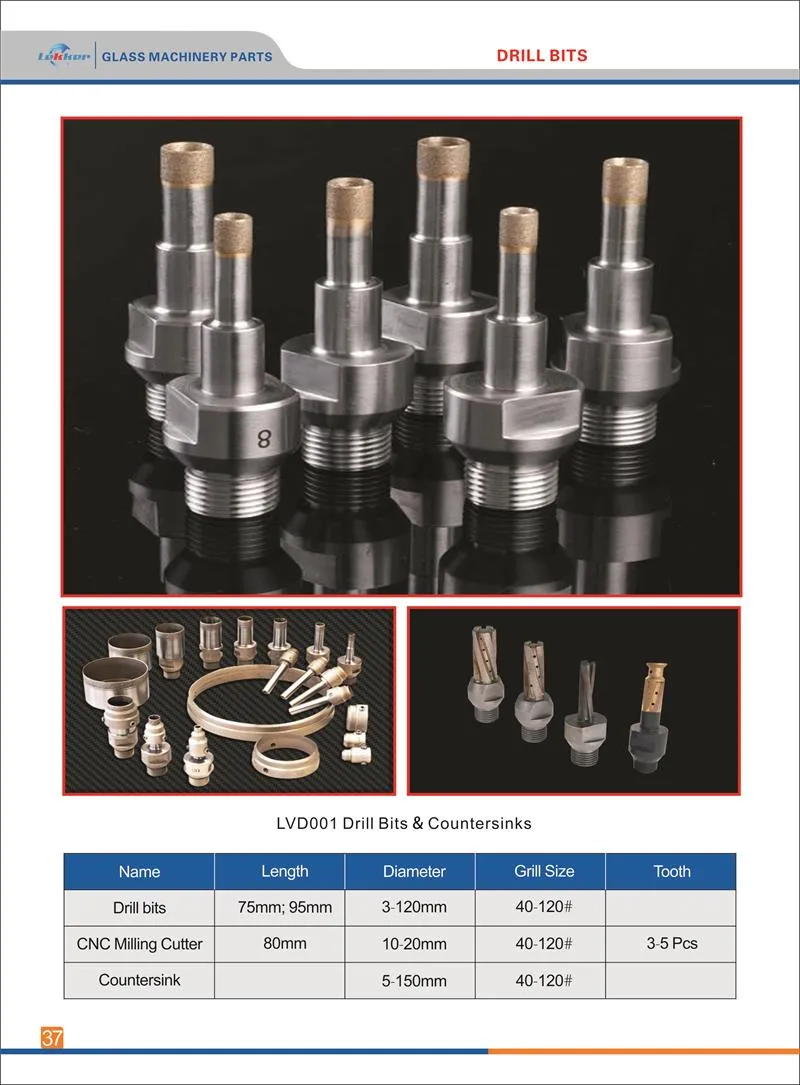

| Applicable drill bit | L75. G1/2 |
| Max. Hole Diameter | 250mm |
| Volume | 220x200x400mm |
